Model Maytag TC407W COMPACTOR – Common Parts & Diagrams

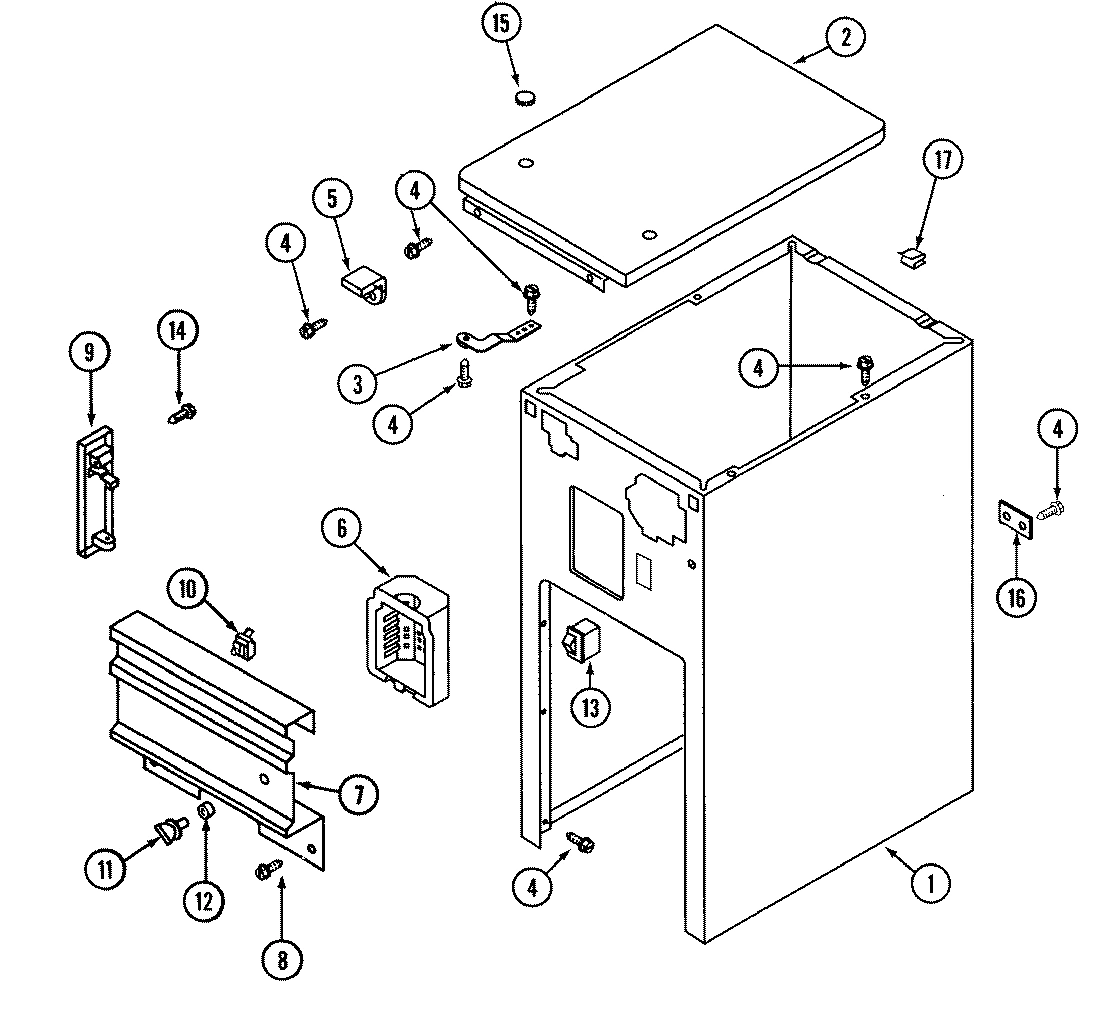

01 - CABINET & CONTROL PANEL

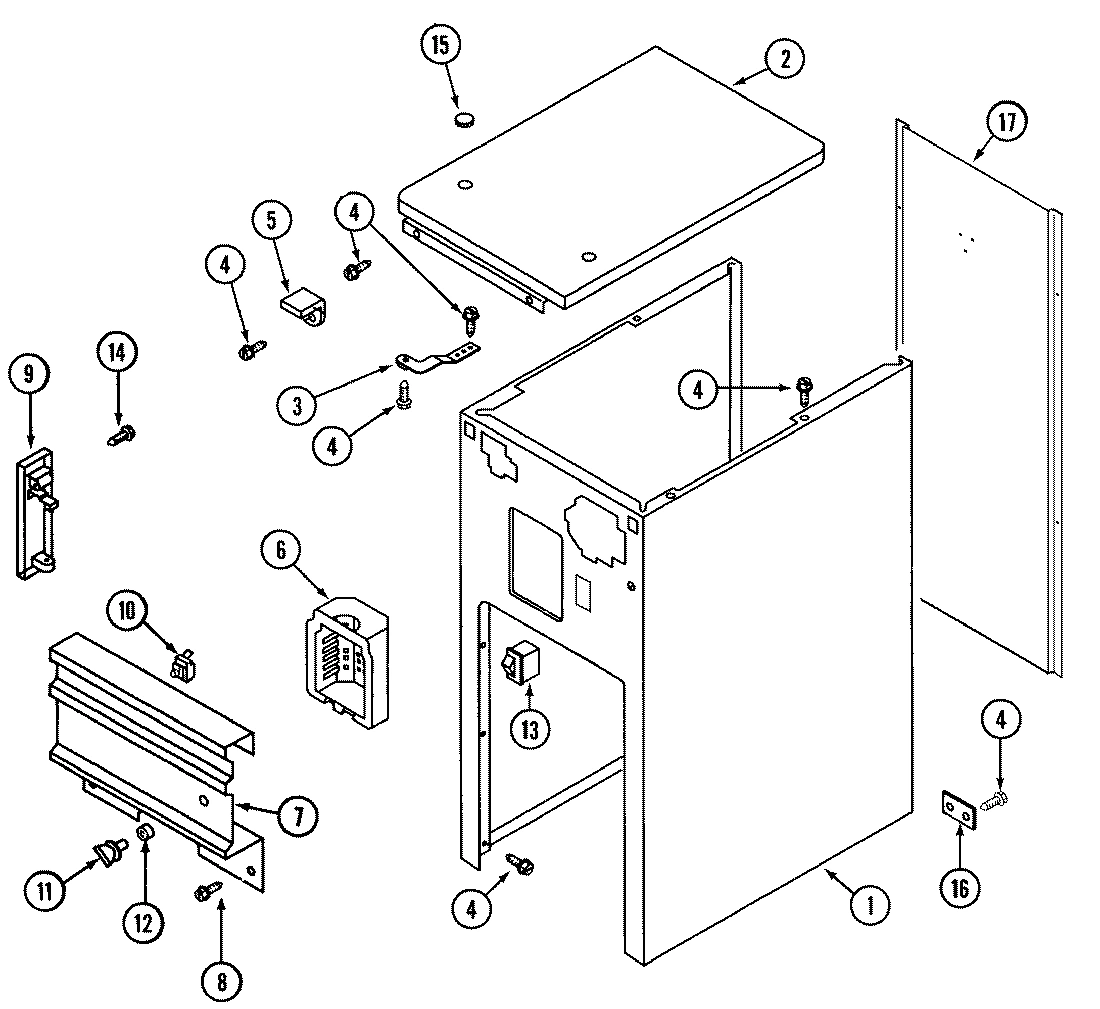

02 - CABINET & CONTROL PANEL (SERIES 3-4)

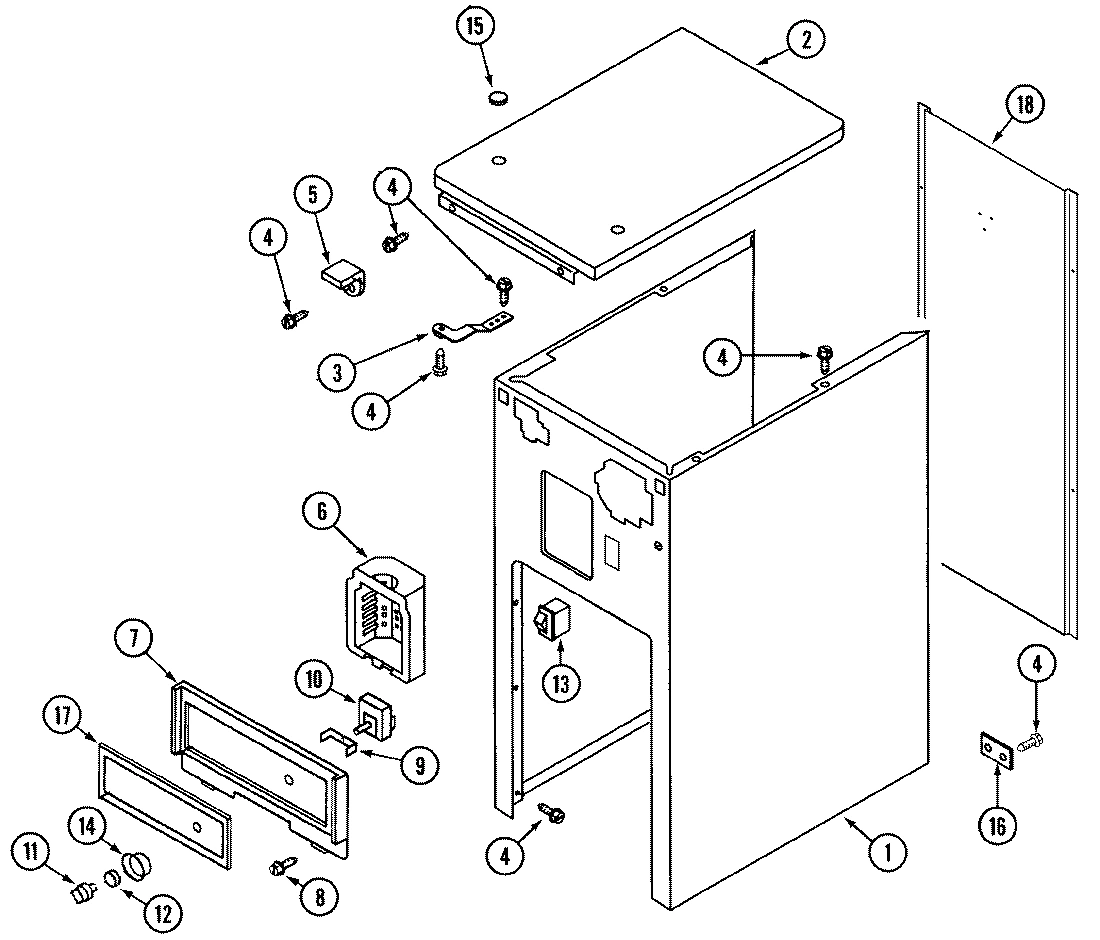

03 - CABINET & CONTROL PANEL (SERIES 5)

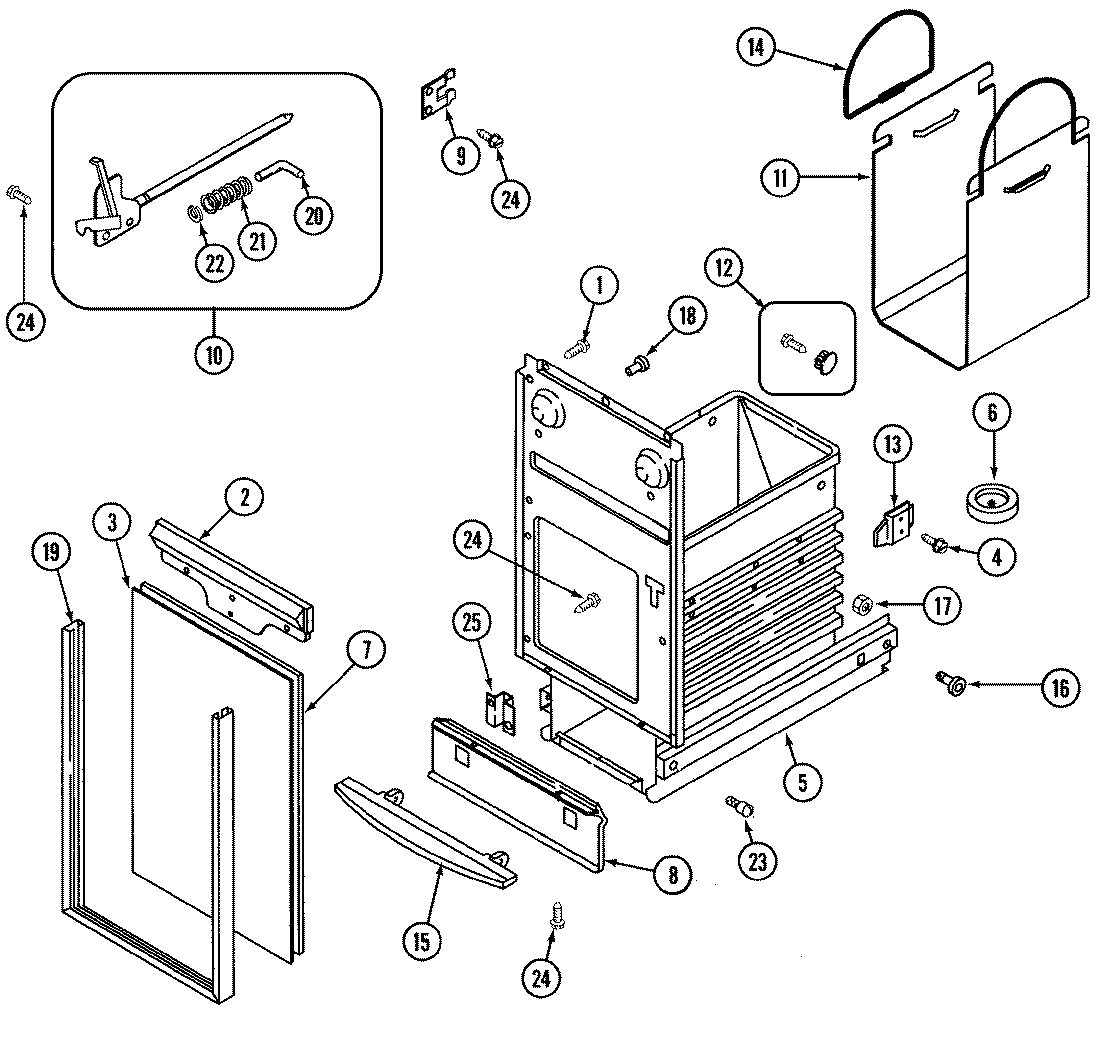

04 - CONTAINER BODY

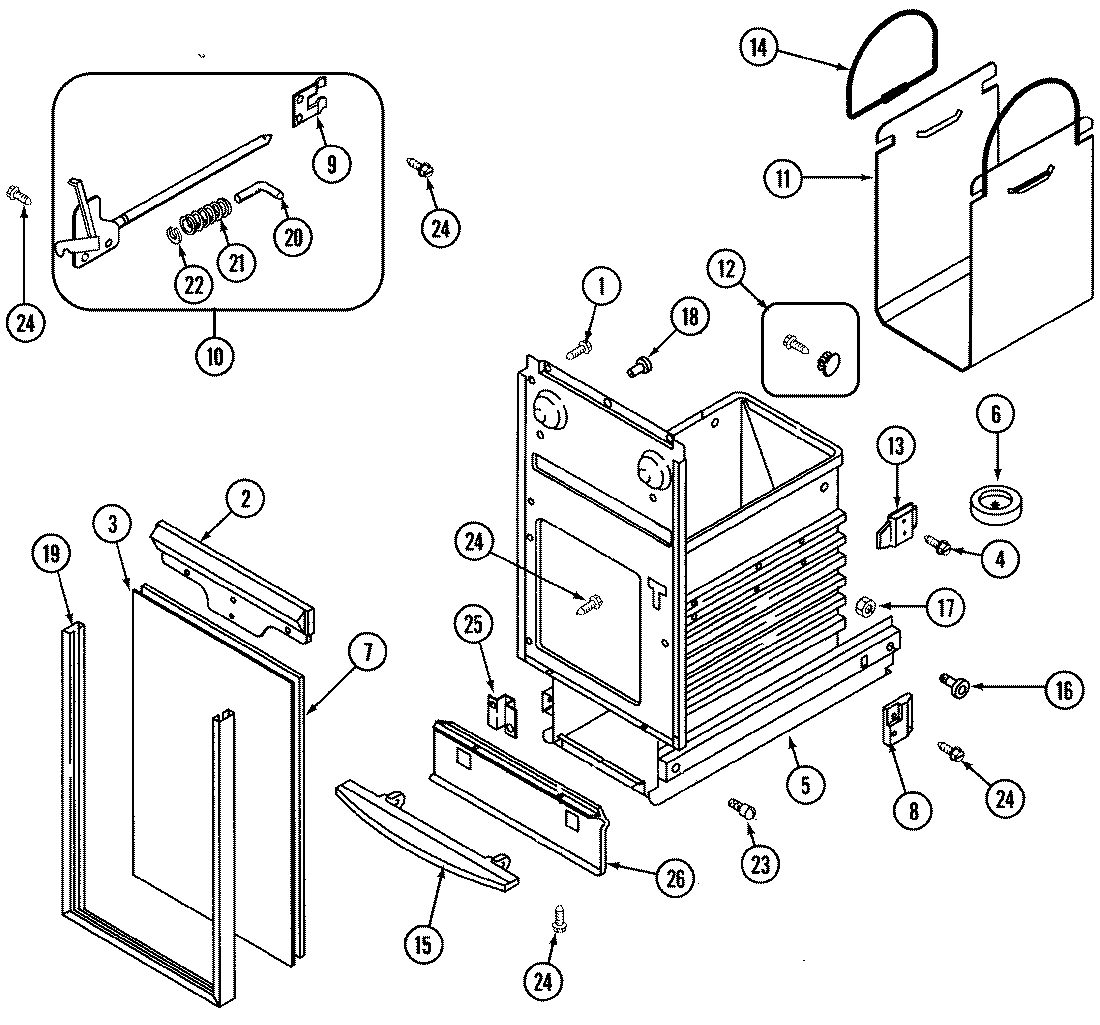

05 - CONTAINER BODY (SERIES 2-5)

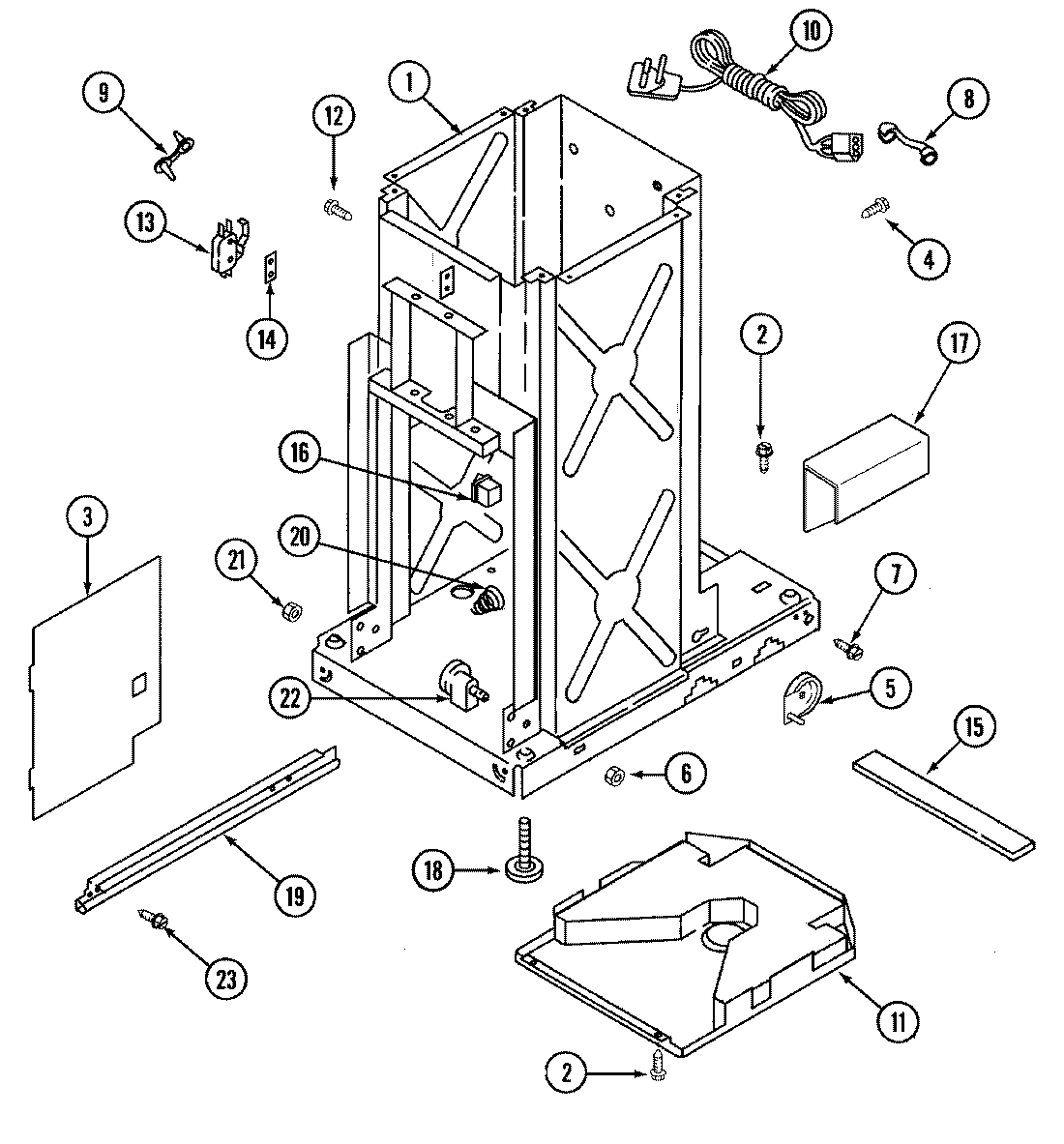

06 - FRAME

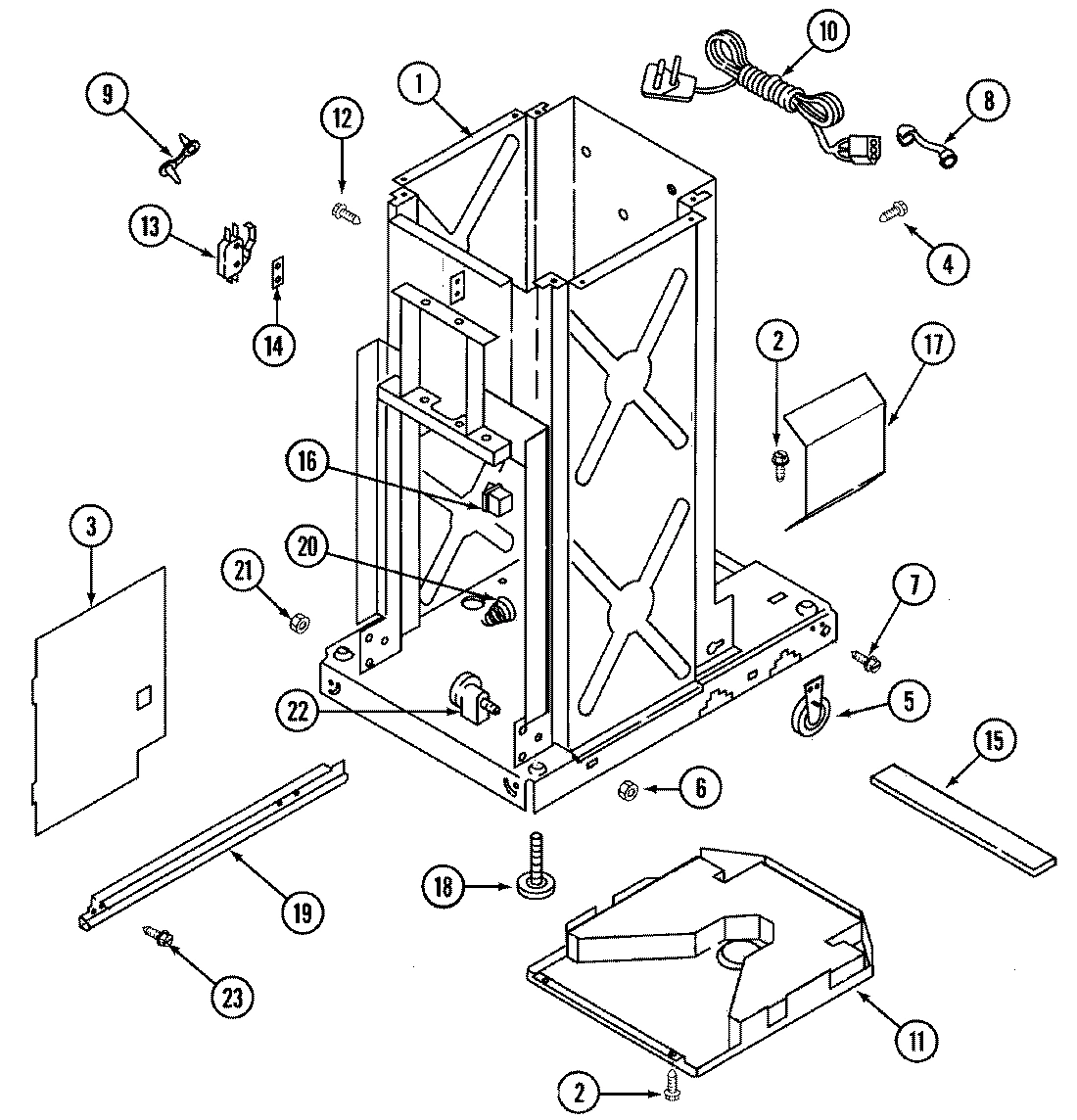

07 - FRAME (SERIES 2-5)

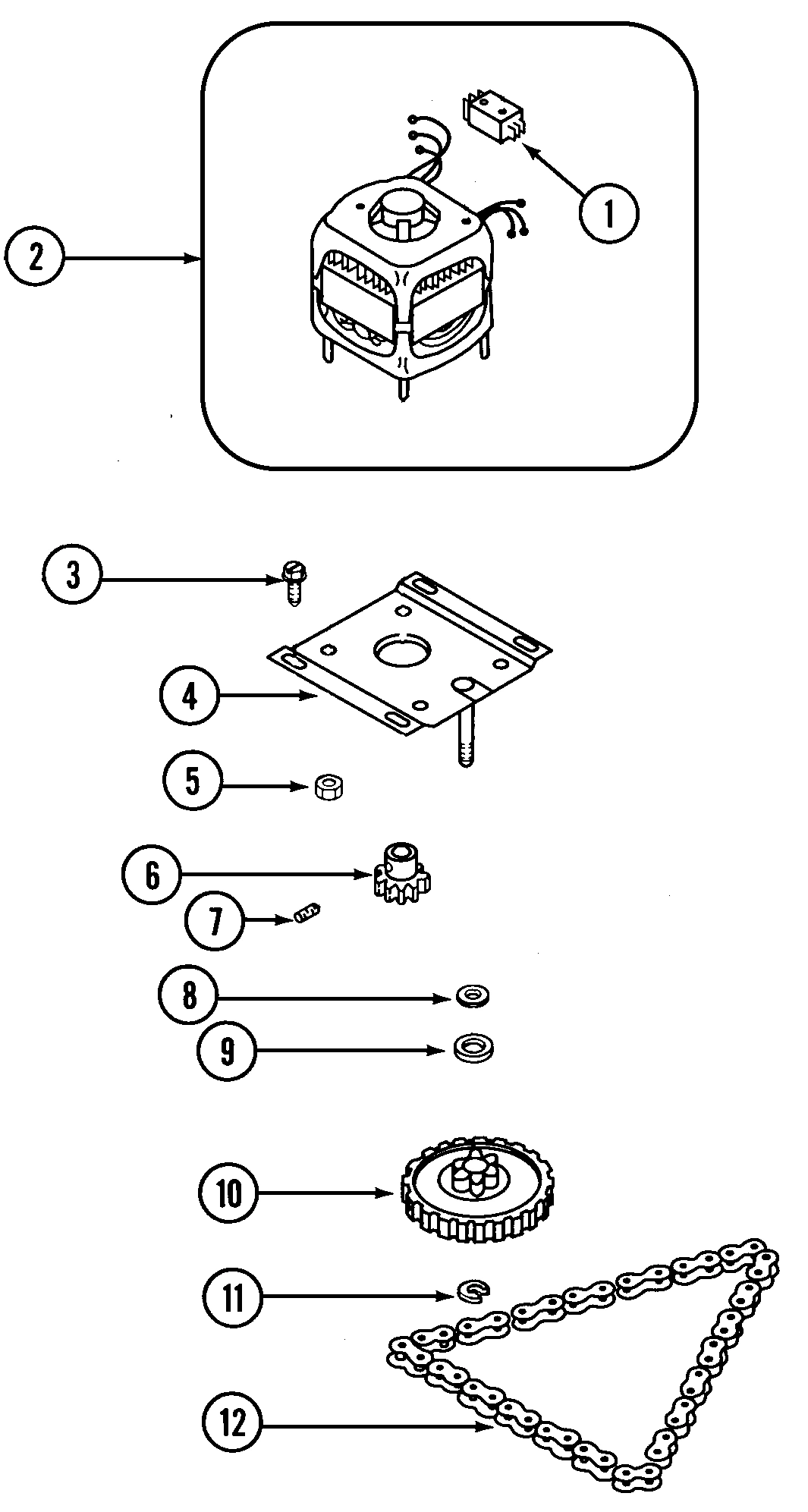

08 - MOTOR & DRIVE

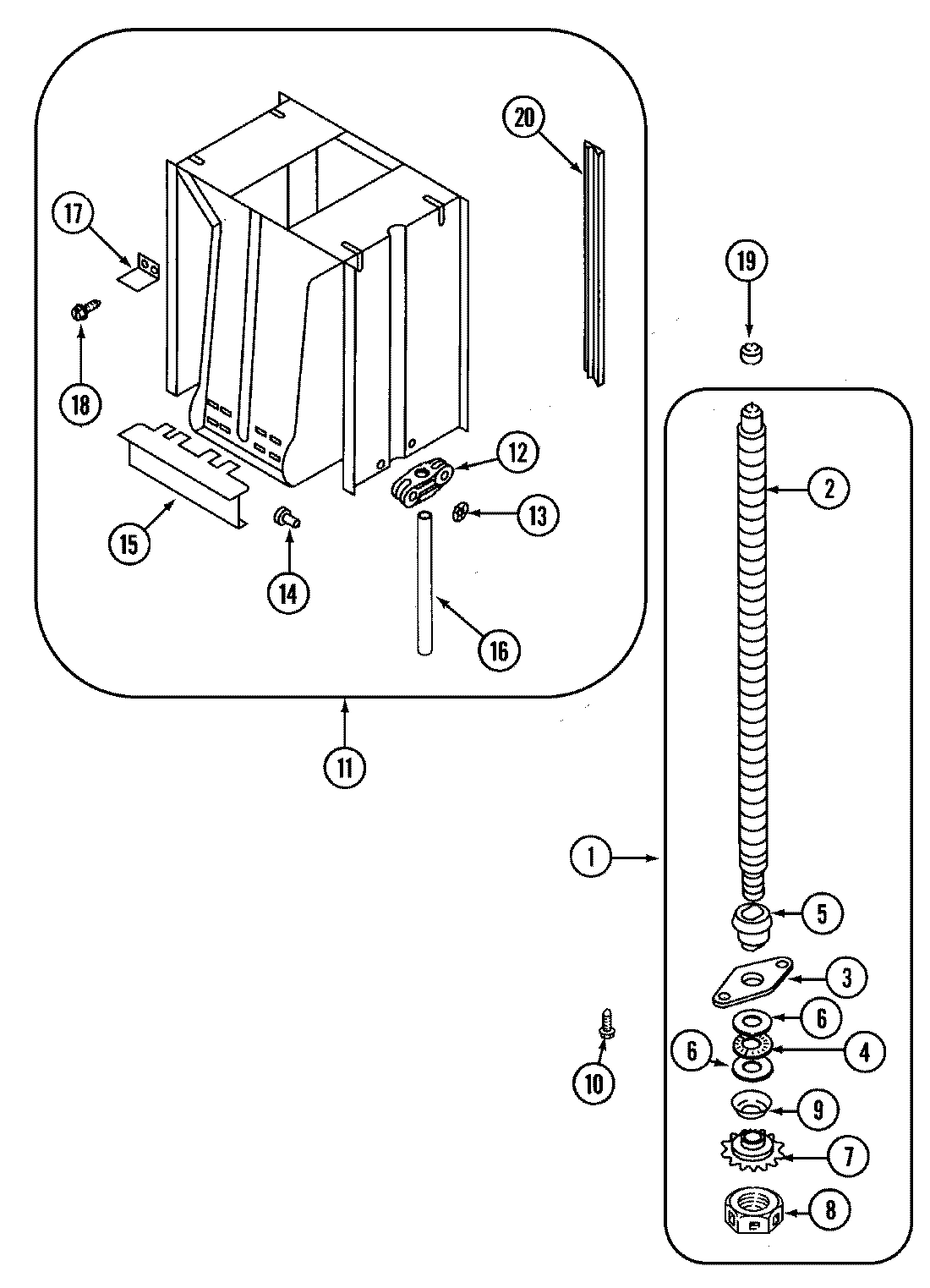

09 - POWER SCREW & RAM (SERIES 2-5)

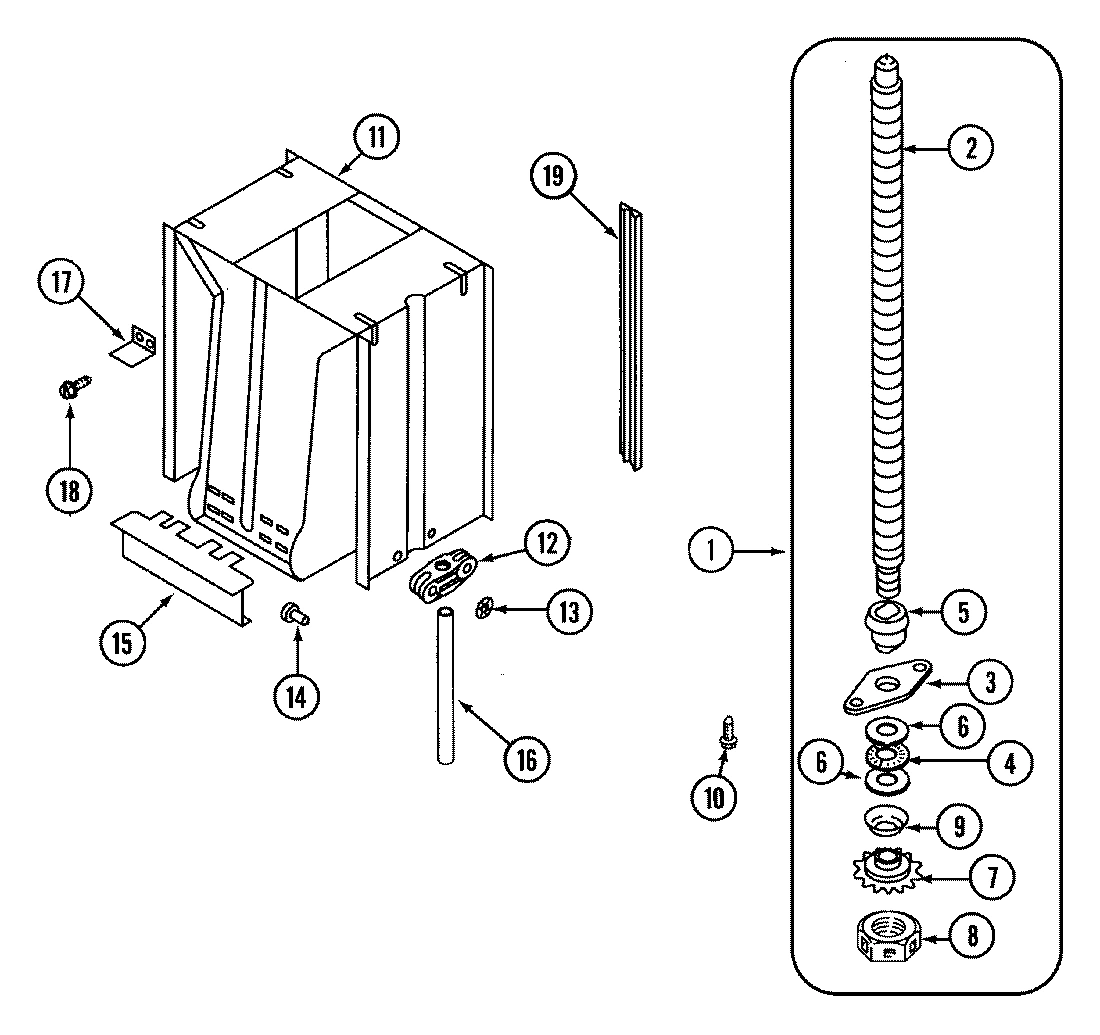

10 - POWERSCREW & RAM

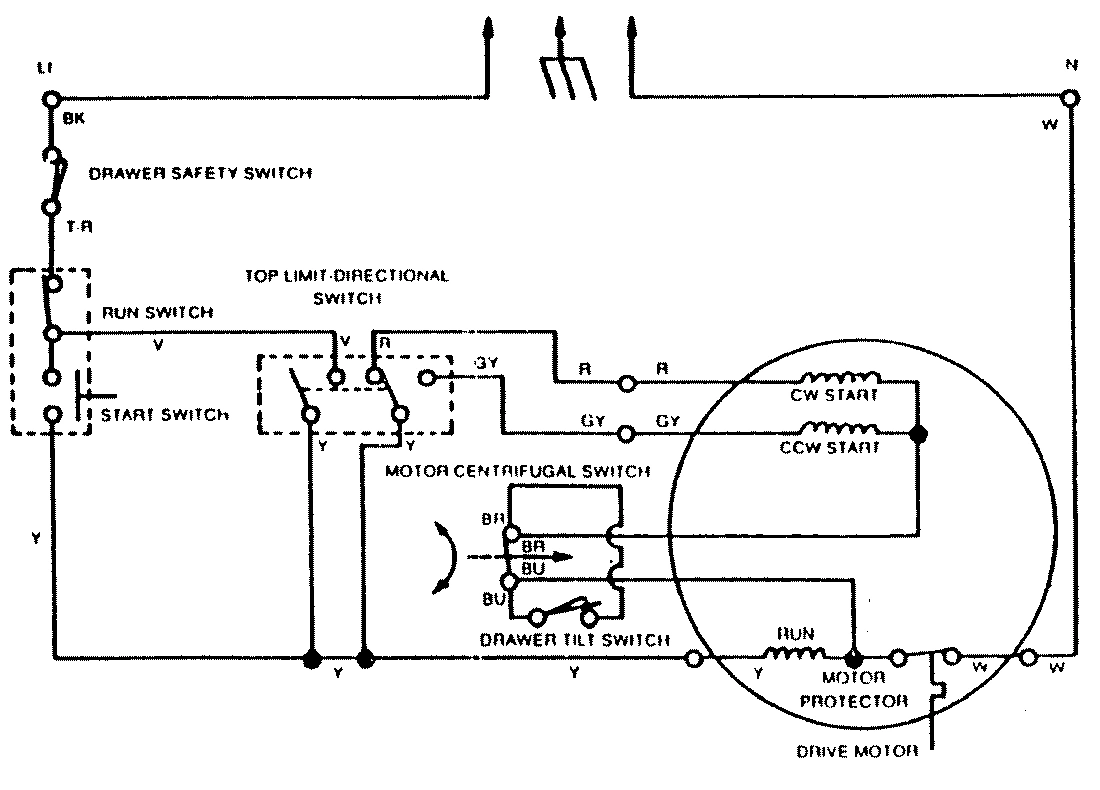

11 - WIRING INFORMATION
Common parts from model Maytag TC407W COMPACTOR
1
MAY 11100010 MAY 11100010 Contact Us For Availability
1
MAY 749076 MAY 749076 Contact Us For Availability
1
MAY 41001008 MAY 41001008 Contact Us For Availability
1
MAY 41001042 MAY 41001042 Contact Us For Availability
1
MAY 11100003 MAY 11100003 Contact Us For Availability
1
MAY 41001048 MAY 41001048 Contact Us For Availability
1
MAY 41001029 MAY 41001029 Contact Us For Availability
1
MAY 749061 MAY 749061 Contact Us For Availability
2
MAY 11100011 MAY 11100011 Contact Us For Availability
2
MAY 749032 MAY 749032 Contact Us For Availability
2
MAY 41001009 MAY 41001009 Contact Us For Availability
2
MAY 41001041 MAY 41001041 Contact Us For Availability
2
MAY 749127 MAY 749127 Contact Us For Availability
2
MAY 749077 MAY 749077 Contact Us For Availability
2
MAY 749019 MAY 749019 Contact Us For Availability
3
MAY 749101 MAY 749101 Contact Us For Availability
3
MAY 749102 MAY 749102 Contact Us For Availability
3
MAY 749063 MAY 749063 Contact Us For Availability
3
MAY 749068 MAY 749068 Contact Us For Availability
3
MAY Y777941 MAY Y777941 Contact Us For Availability
3
MAY 11100014 MAY 11100014 Contact Us For Availability
3
MAY 749048 MAY 749048 Contact Us For Availability
4
MAY 749103 MAY 749103 Contact Us For Availability
4
SCREW MAY 776076 Contact Us For Availability
4
MAY 749115 MAY 749115 Contact Us For Availability
4
MAY 749050 MAY 749050 Contact Us For Availability
4
MAY 749038 MAY 749038 Contact Us For Availability
4
MAY Y776327 MAY Y776327 Contact Us For Availability
4
MAY 749022 MAY 749022 Contact Us For Availability
5
MAY 749104 MAY 749104 Contact Us For Availability
5
MAY 749116 MAY 749116 Contact Us For Availability
5
MAY 41001036 MAY 41001036 Contact Us For Availability
5
MAY 11100005 MAY 11100005 Contact Us For Availability
5
MAY 749039 MAY 749039 Contact Us For Availability
5
LOCKNUT MAY 776338 Contact Us For Availability
5
MAY 749047 MAY 749047 Contact Us For Availability
6
MAY 749014 MAY 749014 Contact Us For Availability
6
MAY 41001012 MAY 41001012 Contact Us For Availability
6
MAY 41001055 MAY 41001055 Contact Us For Availability
6
DEODORIZER MAY 777635 Contact Us For Availability
6
MAY 749046 MAY 749046 Contact Us For Availability
6
MAY Y4149667 MAY Y4149667 Contact Us For Availability
6
MAY 749084 MAY 749084 Contact Us For Availability
7
MAY 749125 MAY 749125 Contact Us For Availability
7
MAY 41001045 MAY 41001045 Contact Us For Availability
7
MAY 11100002 MAY 11100002 Contact Us For Availability
7
MAY 41001035 MAY 41001035 Contact Us For Availability
7
MAY 749008 MAY 749008 Contact Us For Availability
7
MAY Y777385 MAY Y777385 Contact Us For Availability
7
MAY 749057 MAY 749057 Contact Us For Availability
8
MAY 749042 MAY 749042 Contact Us For Availability
8
MAY 41001019 MAY 41001019 Contact Us For Availability
8
MAY 749033 MAY 749033 Contact Us For Availability
8
MAY 749030 MAY 749030 Contact Us For Availability
8
MAY 11100007 MAY 11100007 Contact Us For Availability
9
MAY 749105 MAY 749105 Contact Us For Availability
9
MAY 749106 MAY 749106 Contact Us For Availability
9
MAY 41001056 MAY 41001056 Contact Us For Availability
9
MAY 749041 MAY 749041 Contact Us For Availability
9
MAY 749049 MAY 749049 Contact Us For Availability
9
MAY 749006 MAY 749006 Contact Us For Availability
10
MAY 749078 MAY 749078 Contact Us For Availability
10
MAY 749028 MAY 749028 Contact Us For Availability
10
MAY 749119 MAY 749119 Contact Us For Availability
10
MAY 41001024 MAY 41001024 Contact Us For Availability
10
MAY 41001049 MAY 41001049 Contact Us For Availability
10
MAY 749043 MAY 749043 Contact Us For Availability
10
MAY 749021 MAY 749021 Contact Us For Availability
11
MAY 749126 MAY 749126 Contact Us For Availability
11
MAY 749111 MAY 749111 Contact Us For Availability
11
MAY Y675395 MAY Y675395 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE RAM ASSY. (NOT MAY W10124350 Contact Us For Availability
11
MAY 749009 MAY 749009 Contact Us For Availability
11
MAY 749031 MAY 749031 Contact Us For Availability
11
MAY 41001032 MAY 41001032 Contact Us For Availability
12
MAY 749056 MAY 749056 Contact Us For Availability
12
MAY 11100013 MAY 11100013 Contact Us For Availability
12
MAY 41001021 MAY 41001021 Contact Us For Availability
12
MAY 749065 MAY 749065 Contact Us For Availability
12
MAY Y777849 MAY Y777849 Contact Us For Availability
12
MAY 749051 MAY 749051 Contact Us For Availability
13
MAY 749081 MAY 749081 Contact Us For Availability
13
MAY Y4152058 MAY Y4152058 Contact Us For Availability
13
MAY 749117 MAY 749117 Contact Us For Availability
13
MAY 41001022 MAY 41001022 Contact Us For Availability
13
MAY Y4149378 MAY Y4149378 Contact Us For Availability
13
MAY Y701447 MAY Y701447 Contact Us For Availability
14
MAY 41001057 MAY 41001057 Contact Us For Availability
14
MAY 749005 MAY 749005 Contact Us For Availability
14
MAY 749066 MAY 749066 Contact Us For Availability
14
MAY 41001033 MAY 41001033 Contact Us For Availability
14
MAY 11100018 MAY 11100018 Contact Us For Availability
15
MAY 11100012 MAY 11100012 Contact Us For Availability
15
MAY 41001014 MAY 41001014 Contact Us For Availability
15
MAY 41001052 MAY 41001052 Contact Us For Availability
15
MAY 749097 MAY 749097 Contact Us For Availability
15
MAY Y4149672 MAY Y4149672 Contact Us For Availability
15
MAY 749045 MAY 749045 Contact Us For Availability
15
MAY 11100019 MAY 11100019 Contact Us For Availability
16
PLATE MAY 775676 Contact Us For Availability
16
MAY 11100020 MAY 11100020 Contact Us For Availability
17
CLIP MAY 776017 Contact Us For Availability
17
MAY 41001046 MAY 41001046 Contact Us For Availability
17
MAY 11100016 MAY 11100016 Contact Us For Availability
17
MAY 41001025 MAY 41001025 Contact Us For Availability
17
MAY 11100021 MAY 11100021 Contact Us For Availability
18
MAY 41001015 MAY 41001015 Contact Us For Availability
18
MAY 749029 MAY 749029 Contact Us For Availability
18
MAY 749091 MAY 749091 Contact Us For Availability
18
MAY Y775526 MAY Y775526 Contact Us For Availability
18
MAY Y780034 MAY Y780034 Contact Us For Availability
19
MAY 749055 MAY 749055 Contact Us For Availability
19
MAY 41001050 MAY 41001050 Contact Us For Availability
19
MAY 749011 MAY 749011 Contact Us For Availability
19
MAY 41001034 MAY 41001034 Contact Us For Availability
19
MAY 11100015 MAY 11100015 Contact Us For Availability
20
MAY 749044 MAY 749044 Contact Us For Availability
20
MAY 749000 MAY 749000 Contact Us For Availability
21
MAY 749027 MAY 749027 Contact Us For Availability
21
MAY 749034 MAY 749034 Contact Us For Availability
21
MAY 41001028 MAY 41001028 Contact Us For Availability
22
MAY 749026 MAY 749026 Contact Us For Availability
23
MAY 749098 MAY 749098 Contact Us For Availability
23
MAY 749058 MAY 749058 Contact Us For Availability
25
MAY 749025 MAY 749025 Contact Us For Availability
26
MAY 41001038 MAY 41001038 Contact Us For Availability
26
GUARD, TOE PLATE (BLK) MAY 777328 Contact Us For Availability
NI
MAY 11100022 MAY 11100022 Contact Us For Availability
NI
MAY 11100024 MAY 11100024 Contact Us For Availability
NI
MAY 41001016 MAY 41001016 Contact Us For Availability
NI
MAY 41001017 MAY 41001017 Contact Us For Availability
NI
MAY 4152081 MAY 4152081 Contact Us For Availability
NI
MAY 41001001 MAY 41001001 Contact Us For Availability
NI
MAY 15001727 MAY 15001727 Contact Us For Availability
× ![]()
