Model GE TBX25PAYDRAA Refrigerator – Common Parts & Diagrams

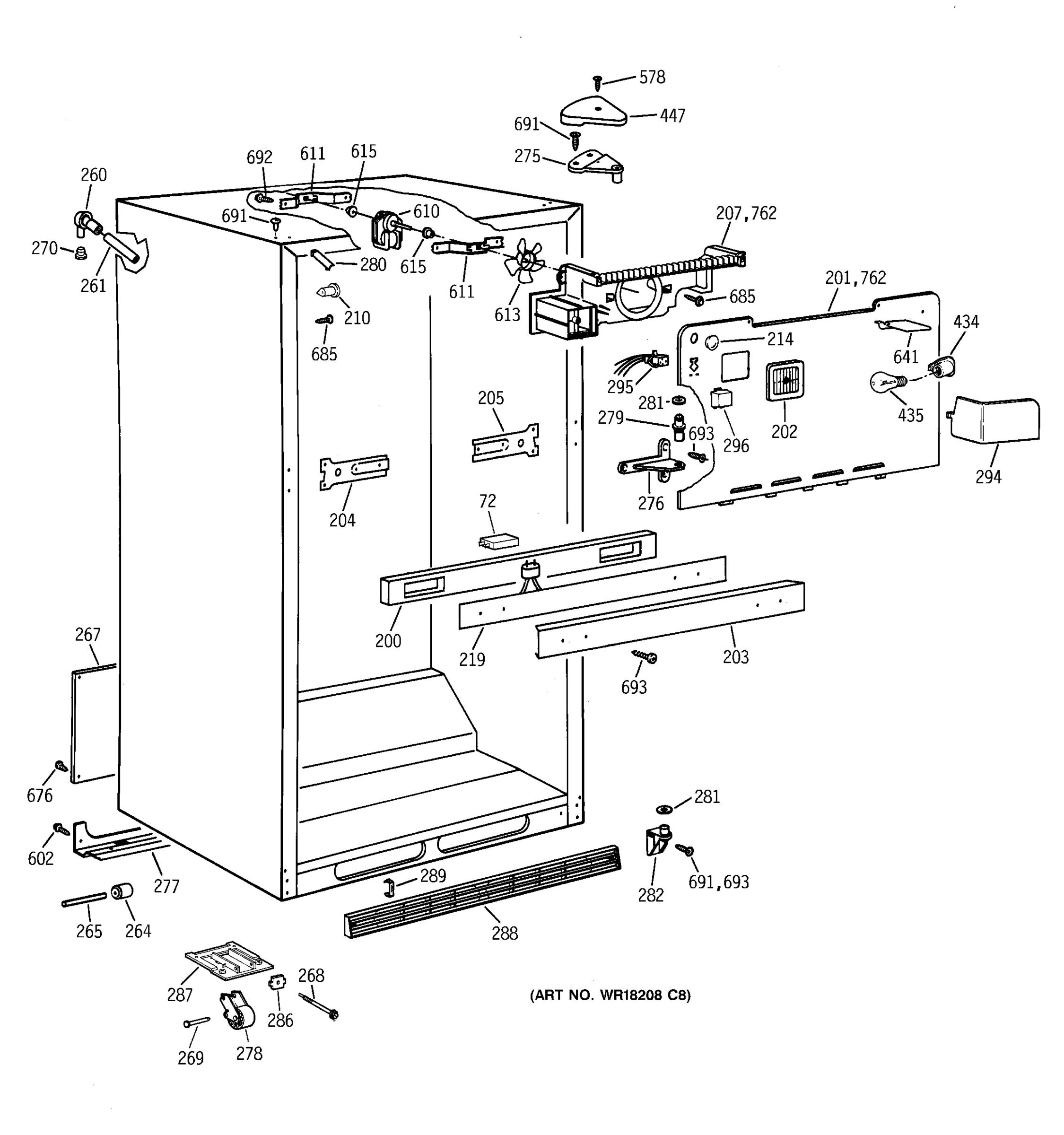

CABINET PARTS

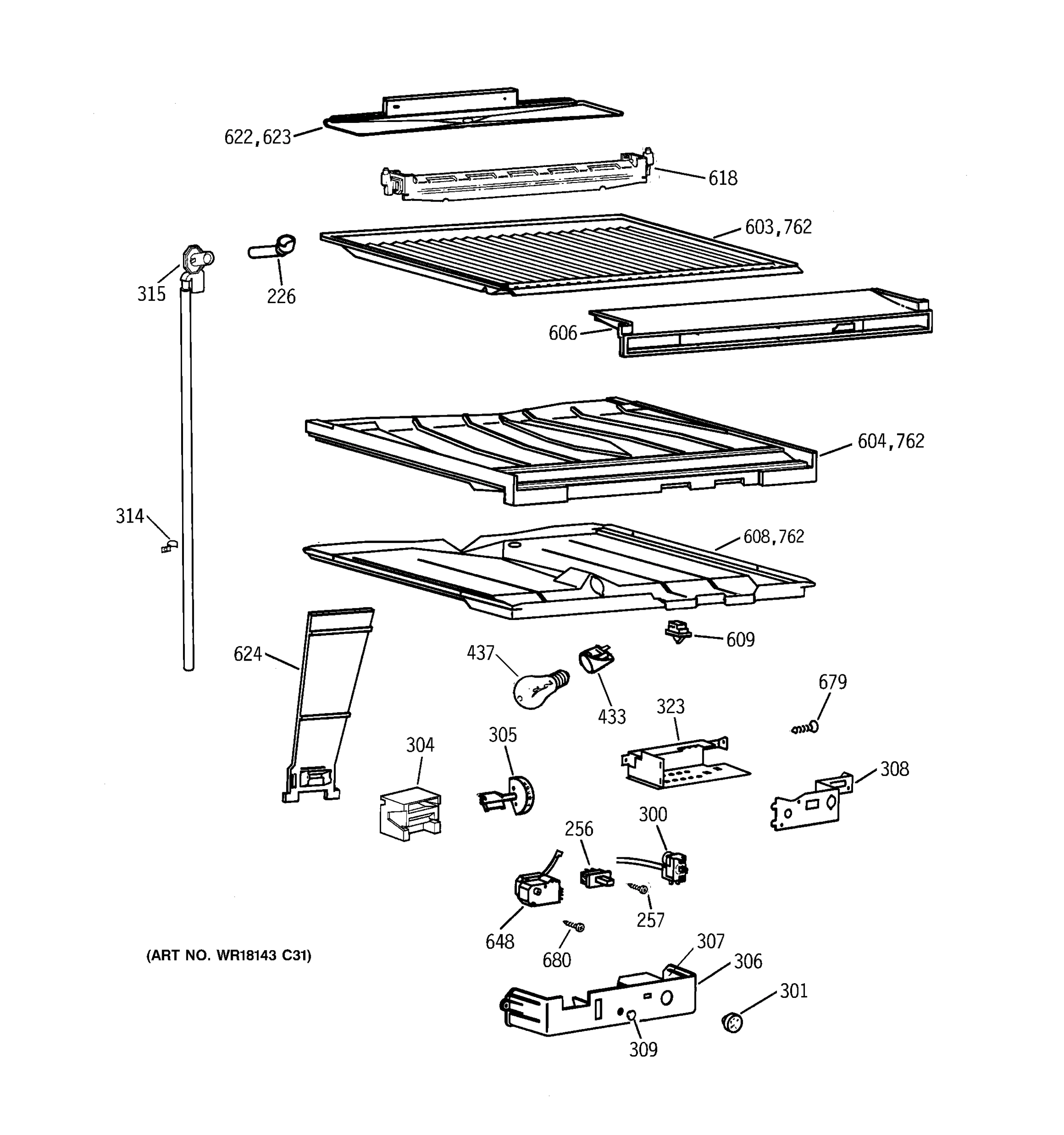

COMPARTMENT SEPARATOR PARTS

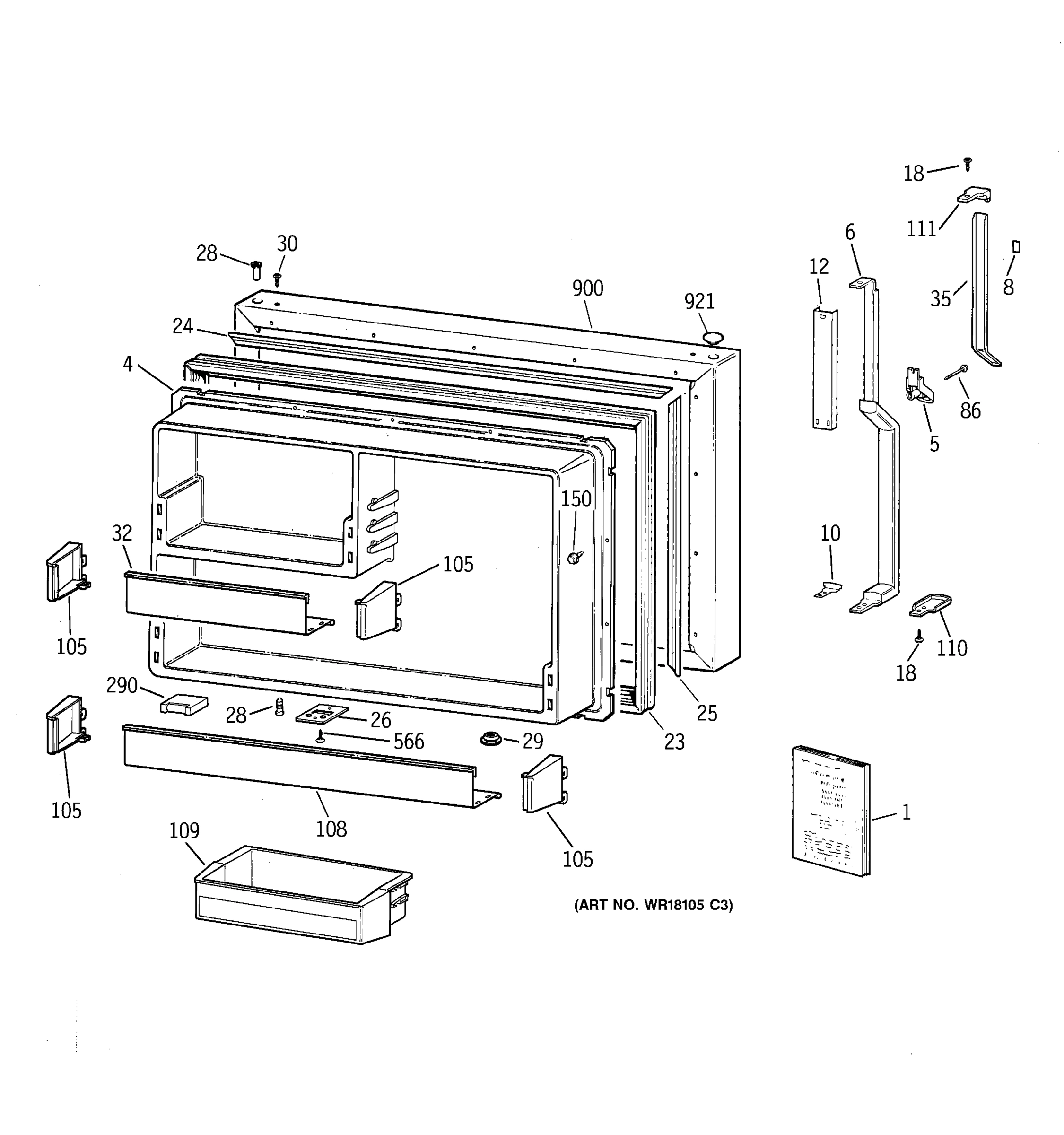

FREEZER DOOR

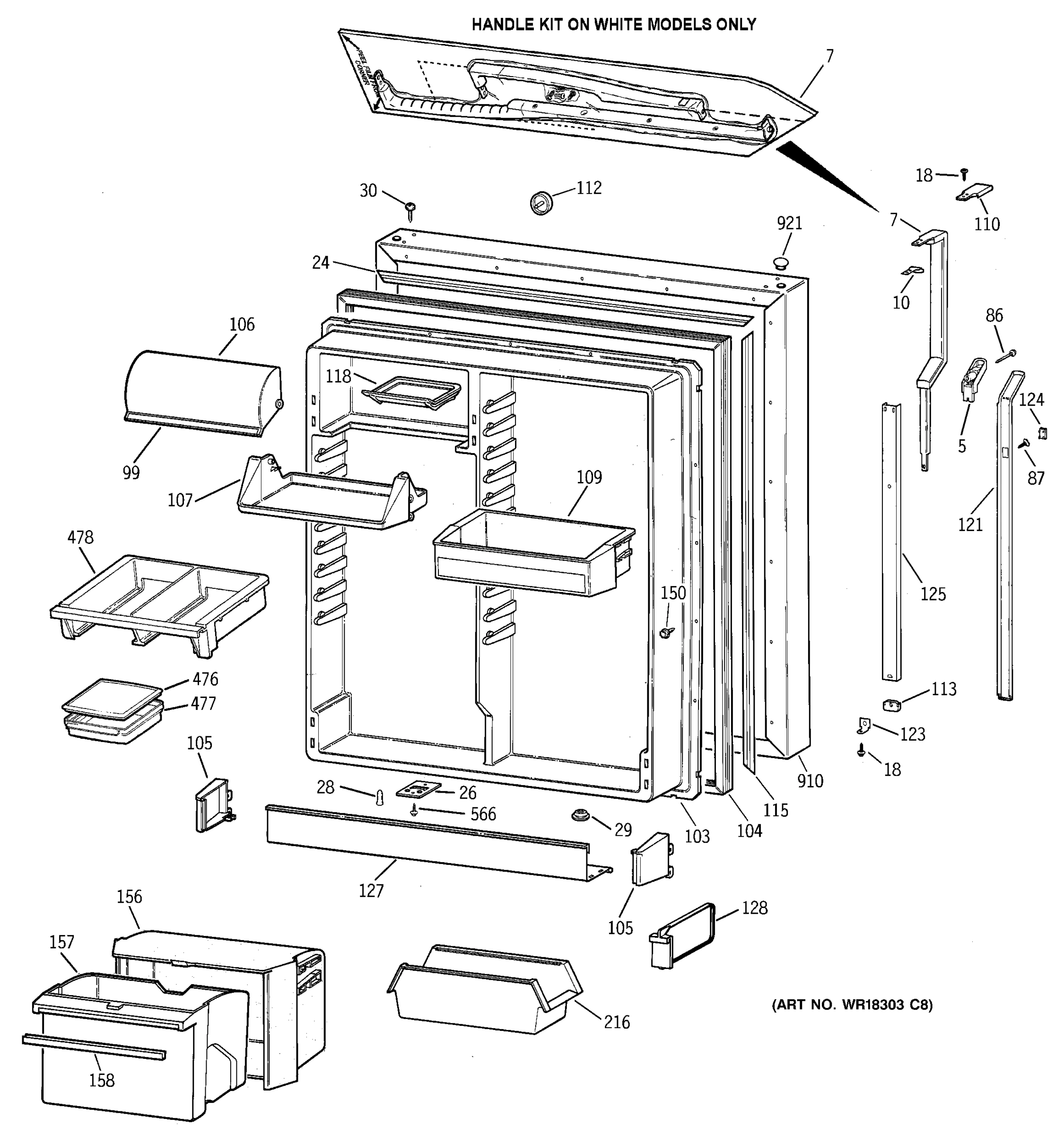

FRESH FOOD DOOR

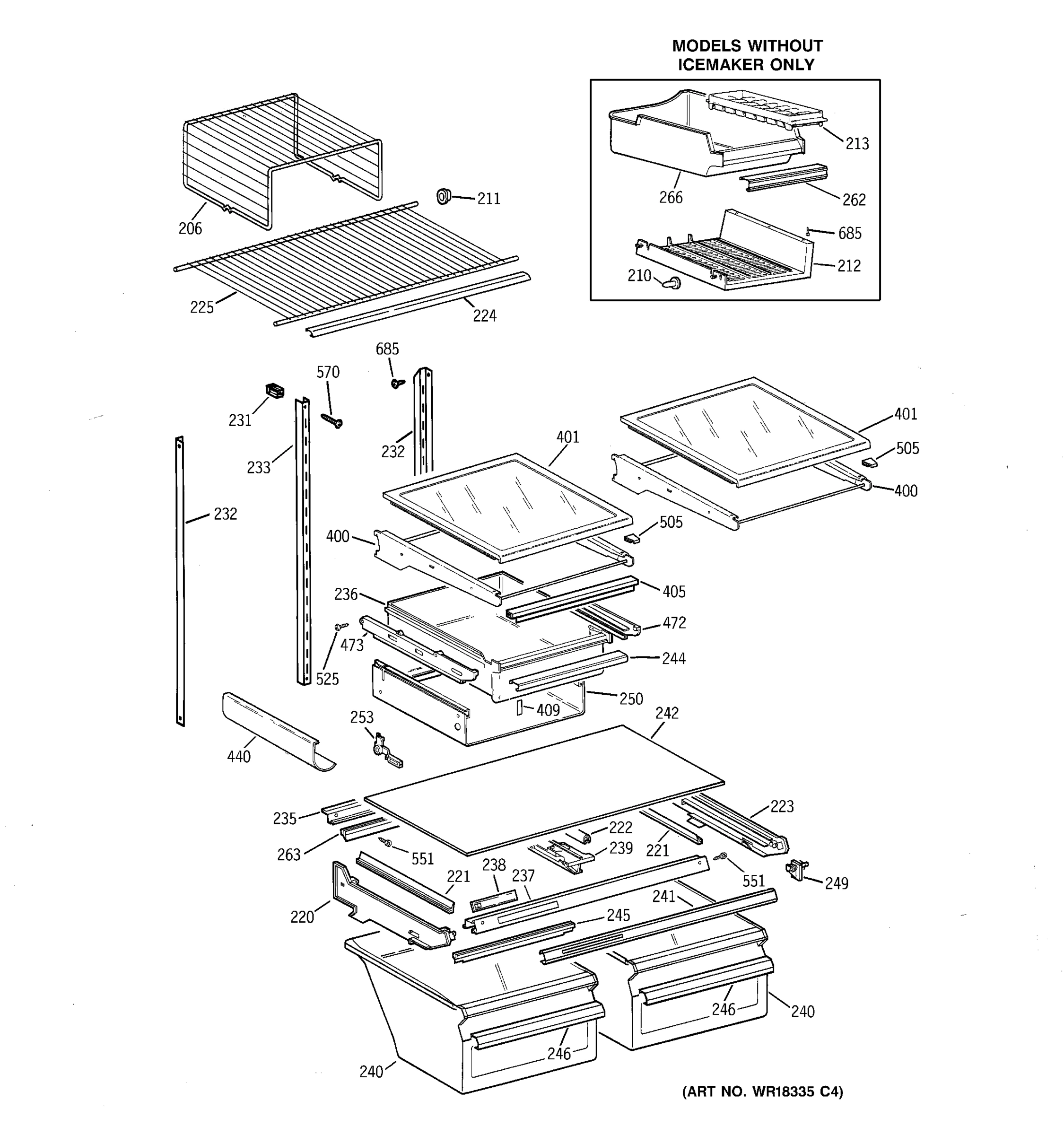

SHELF PARTS

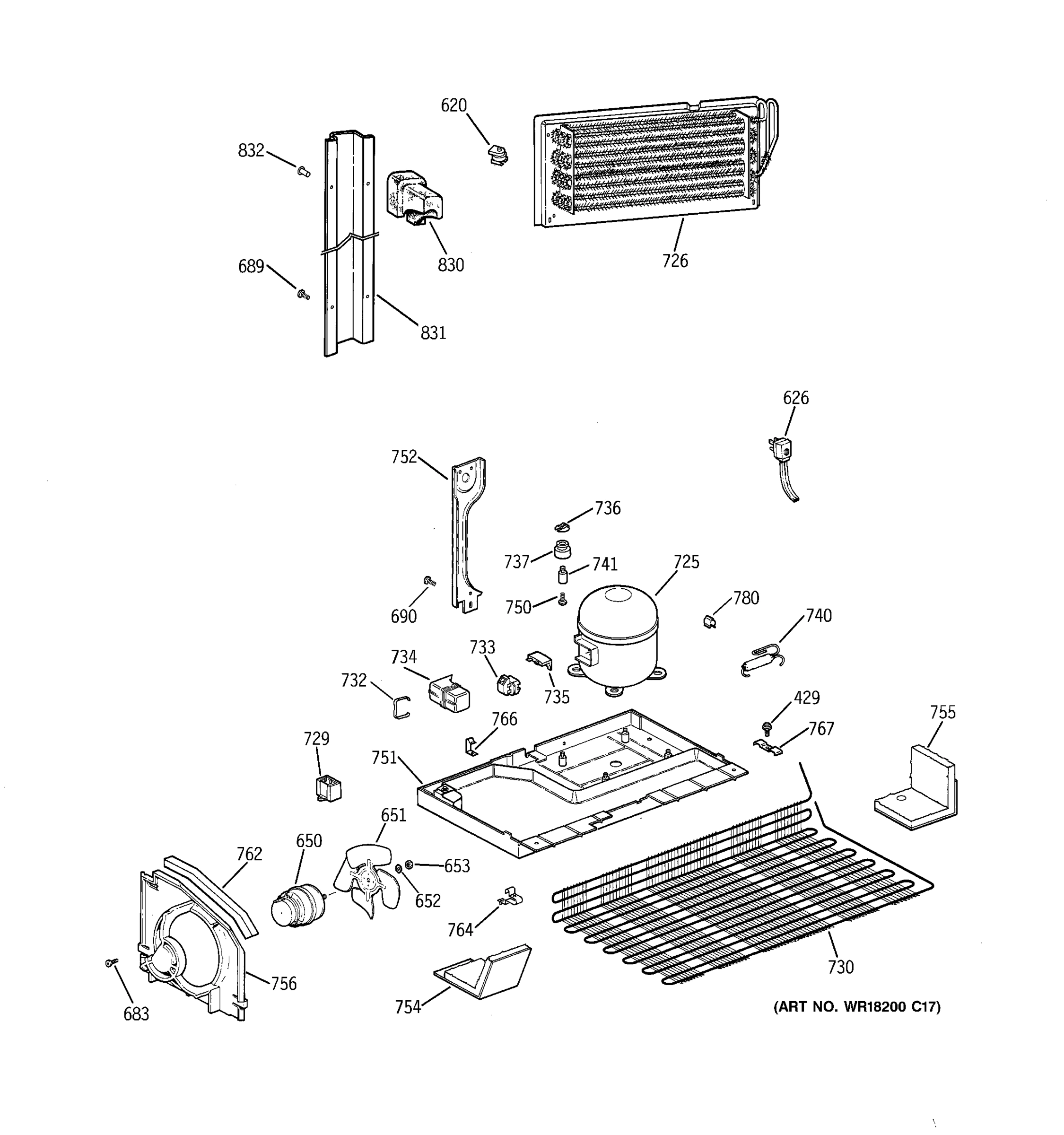

UNIT PARTS
Common parts from model GE TBX25PAYDRAA Refrigerator
1
GEN 31-51105 GEN 31-51105 Contact Us For Availability
1
INSTALL INSTRUCTION GEN 49-6483 Contact Us For Availability
1
GEN 49-6904 GEN 49-6904 Contact Us For Availability
4
GEN WR77X0606 GEN WR77X0606 Contact Us For Availability
5
GEN WR02X8714 GEN WR02X8714 Contact Us For Availability
6
GEN WR12X0886 GEN WR12X0886 Contact Us For Availability
7
GEN WR12X0889 GEN WR12X0889 Contact Us For Availability
8
GEN WR04X0213 GEN WR04X0213 Contact Us For Availability
10
GEN WR02X8002 GEN WR02X8002 Contact Us For Availability
12
GEN WR12X0913 GEN WR12X0913 Contact Us For Availability
23
GASKET DOOR FZ WH GEN WR24X0438 Contact Us For Availability
24
GEN WR17X2136 GEN WR17X2136 Contact Us For Availability
25
GEN WR17X2135 GEN WR17X2135 Contact Us For Availability
26
GEN WR02X7681 GEN WR02X7681 Contact Us For Availability
28
THIMBLE WH GEN WR02X7627 Contact Us For Availability
29
GEN WR02X8088 GEN WR02X8088 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
32
GEN WR71X2601 GEN WR71X2601 Contact Us For Availability
35
GEN WR12X0903 GEN WR12X0903 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
99
GEN WR38X2255 GEN WR38X2255 Contact Us For Availability
103
GEN WR77X0605 GEN WR77X0605 Contact Us For Availability
105
GEN WR02X8699 GEN WR02X8699 Contact Us For Availability
105
GEN WR02X8700 GEN WR02X8700 Contact Us For Availability
106
GEN WR22X0514 GEN WR22X0514 Contact Us For Availability
107
GEN WR22X0471 GEN WR22X0471 Contact Us For Availability
108
GEN WR71X2600 GEN WR71X2600 Contact Us For Availability
109
GEN WR71X2602 GEN WR71X2602 Contact Us For Availability
110
GEN WR02X8210 GEN WR02X8210 Contact Us For Availability
111
GEN WR02X7979 GEN WR02X7979 Contact Us For Availability
112
GEN WR02X8697 GEN WR02X8697 Contact Us For Availability
113
GEN WR02X7980 GEN WR02X7980 Contact Us For Availability
115
GEN WR17X2137 GEN WR17X2137 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
121
GEN WR12X0900 GEN WR12X0900 Contact Us For Availability
123
GEN WR02X8009 GEN WR02X8009 Contact Us For Availability
124
GEN WR12X0722 GEN WR12X0722 Contact Us For Availability
125
GEN WR12X0912 GEN WR12X0912 Contact Us For Availability
127
GEN WR71X2599 GEN WR71X2599 Contact Us For Availability
128
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
156
GEN WR32X1321 GEN WR32X1321 Contact Us For Availability
157
GEN WR32X1015 GEN WR32X1015 Contact Us For Availability
158
GEN WR38X2256 GEN WR38X2256 Contact Us For Availability
206
GEN WR71X2317 GEN WR71X2317 Contact Us For Availability
207
GEN WR17X2990 GEN WR17X2990 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
212
GEN WR30X0300 GEN WR30X0300 Contact Us For Availability
216
GEN WR32X1435 GEN WR32X1435 Contact Us For Availability
219
GEN WR51X0357 GEN WR51X0357 Contact Us For Availability
220
SLIDE VEG PAN LH GEN WR17X2770 Contact Us For Availability
221
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
222
GASKET SLIDE CTR VP GEN WR14X0366 Contact Us For Availability
223
SLIDE VEG PAN RH GEN WR17X2769 Contact Us For Availability
224
GEN WR38X2133 GEN WR38X2133 Contact Us For Availability
225
GEN WR71X1961 GEN WR71X1961 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
231
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
232
TRACK SHELF FF R/L GEN WR72X0096 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR17X3168 GEN WR17X3168 Contact Us For Availability
236
GEN WR32X1019 GEN WR32X1019 Contact Us For Availability
237
GEN WR17X2766 GEN WR17X2766 Contact Us For Availability
238
GEN WR17X3905 GEN WR17X3905 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
240
GEN WR32X1578 GEN WR32X1578 Contact Us For Availability
241
GEN WR17X4184 GEN WR17X4184 Contact Us For Availability
242
GEN WR32X1491 GEN WR32X1491 Contact Us For Availability
244
GEN WR17X4183 GEN WR17X4183 Contact Us For Availability
245
GEN WR14X0354 GEN WR14X0354 Contact Us For Availability
246
GEN WR38X2153 GEN WR38X2153 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
250
GEN WR17X2846 GEN WR17X2846 Contact Us For Availability
253
GEN WR02X8446 GEN WR02X8446 Contact Us For Availability
256
GEN WR23X0309 GEN WR23X0309 Contact Us For Availability
260
GEN WR02X7773 GEN WR02X7773 Contact Us For Availability
261
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
262
GEN WR17X4176 GEN WR17X4176 Contact Us For Availability
263
GEN WR14X0397 GEN WR14X0397 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
267
GEN WR82X0319 GEN WR82X0319 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
275
HINGE TOP ASM GEN WR13X0626 Contact Us For Availability
276
GEN WR13X0712 GEN WR13X0712 Contact Us For Availability
277
GEN WR17X2165 GEN WR17X2165 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0770 GEN WR13X0770 Contact Us For Availability
280
CAP CORNER O.C. AD GEN WR02X7657 Contact Us For Availability
282
GEN WR13X0649 GEN WR13X0649 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR74X0271 GEN WR74X0271 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
290
MAGNET PAD GEN WR02X8376 Contact Us For Availability
294
GEN WR02X9010 GEN WR02X9010 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X8444 GEN WR02X8444 Contact Us For Availability
300
GEN WR09X0559 GEN WR09X0559 Contact Us For Availability
301
GEN WR02X8692 GEN WR02X8692 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
305
GEN WR02X9298 GEN WR02X9298 Contact Us For Availability
306
GEN WR17X3196 GEN WR17X3196 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
309
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GROMMET DRAIN & TUBE GEN WR02X8504 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
400
GEN WR32X1580 GEN WR32X1580 Contact Us For Availability
401
GEN WR32X1582 GEN WR32X1582 Contact Us For Availability
405
GEN WR14X0473 GEN WR14X0473 Contact Us For Availability
409
GEN WR02X9440 GEN WR02X9440 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
434
GEN WR02X8005 GEN WR02X8005 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
447
GEN WR02X8479 GEN WR02X8479 Contact Us For Availability
472
GEN WR72X0286 GEN WR72X0286 Contact Us For Availability
473
GEN WR72X0287 GEN WR72X0287 Contact Us For Availability
476
GEN WR02X8520 GEN WR02X8520 Contact Us For Availability
477
GEN WR17X3327 GEN WR17X3327 Contact Us For Availability
478
GEN WR71X2316 GEN WR71X2316 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
525
GEN WR01X1763 GEN WR01X1763 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
603
GEN WR17X2138 GEN WR17X2138 Contact Us For Availability
604
INSUL DIVIDER GEN WR17X2764 Contact Us For Availability
606
GEN WR17X2380 GEN WR17X2380 Contact Us For Availability
608
GEN WR17X10030 GEN WR17X10030 Contact Us For Availability
610
GEN WR60X0190 GEN WR60X0190 Contact Us For Availability
611
GEN WR02X7664 GEN WR02X7664 Contact Us For Availability
615
GROMMET EVAP. MOTOR GEN WR02X7391 Contact Us For Availability
622
GEN WR17X2160 GEN WR17X2160 Contact Us For Availability
623
GEN WR14X0348 GEN WR14X0348 Contact Us For Availability
624
GEN WR17X3934 GEN WR17X3934 Contact Us For Availability
641
GEN WR02X8816 GEN WR02X8816 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
652
WASHER COND MTR GEN WR01X1714 Contact Us For Availability
653
NUT COND. MOTOR GEN WR01X1715 Contact Us For Availability
679
SCR 8-18 B HXW 7/16 GEN WZ06X0133 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
691
GEN WR01X2139 GEN WR01X2139 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
693
GEN WR01X2137 GEN WR01X2137 Contact Us For Availability
726
GEN WR85X0313 GEN WR85X0313 Contact Us For Availability
730
GEN WR84X0203 GEN WR84X0203 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0170 GEN WR08X0170 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
BRACE BUMPER ASM GEN WR17X3858 Contact Us For Availability
754
GEN WR17X3769 GEN WR17X3769 Contact Us For Availability
755
GEN WR17X2416 GEN WR17X2416 Contact Us For Availability
756
COND FAN HSG LEGS GEN WR17X3760 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
780
GEN WR02X9501 GEN WR02X9501 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
831
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
900
GEN WR78X8755 GEN WR78X8755 Contact Us For Availability
910
GEN WR78X8754 GEN WR78X8754 Contact Us For Availability
921
PLUG BUTTON AD GEN WR02X7625 Contact Us For Availability
× ![]()
