Model GE TBX24JABCRWW Refrigerator – Common Parts & Diagrams

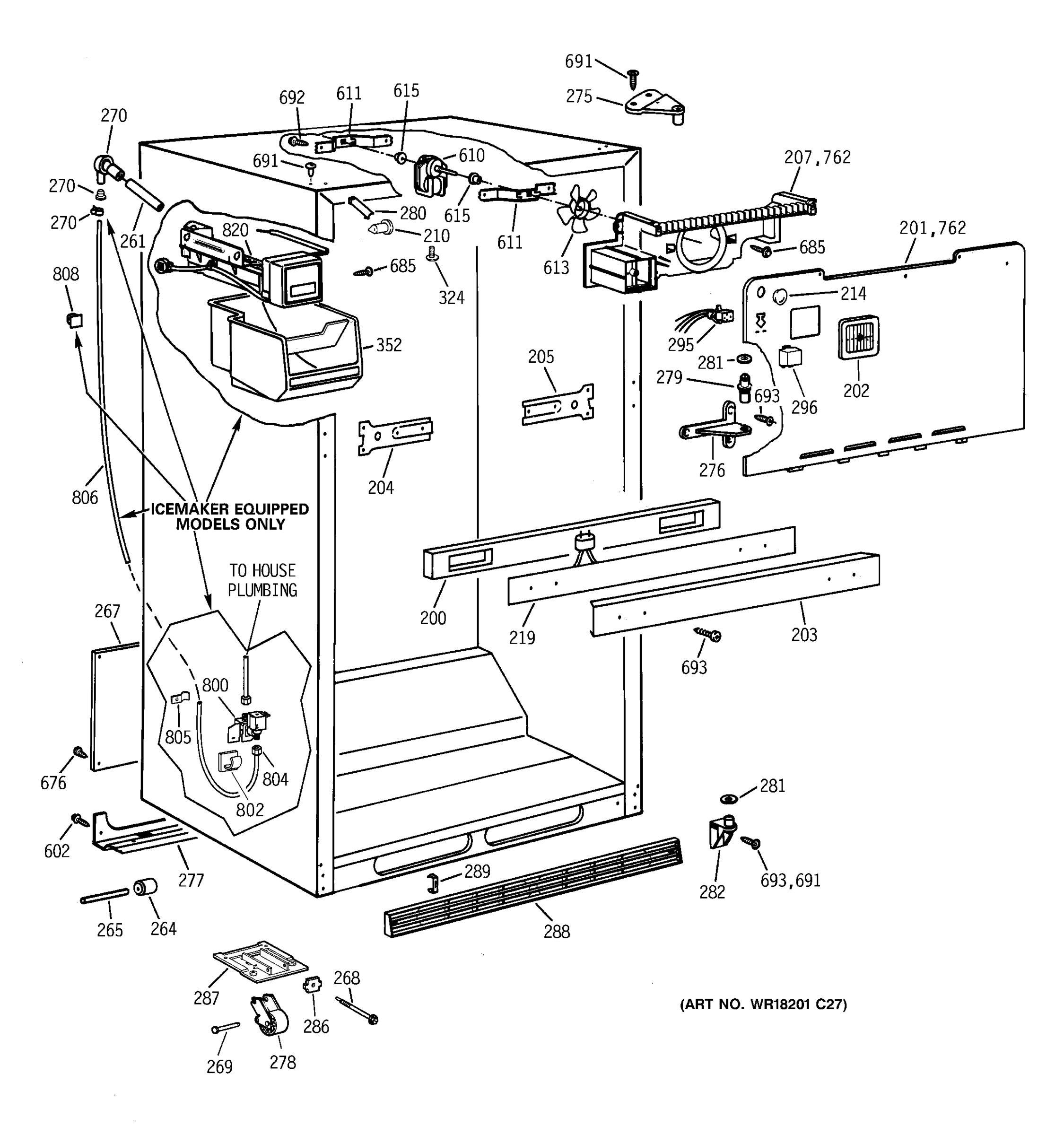

CABINET PARTS

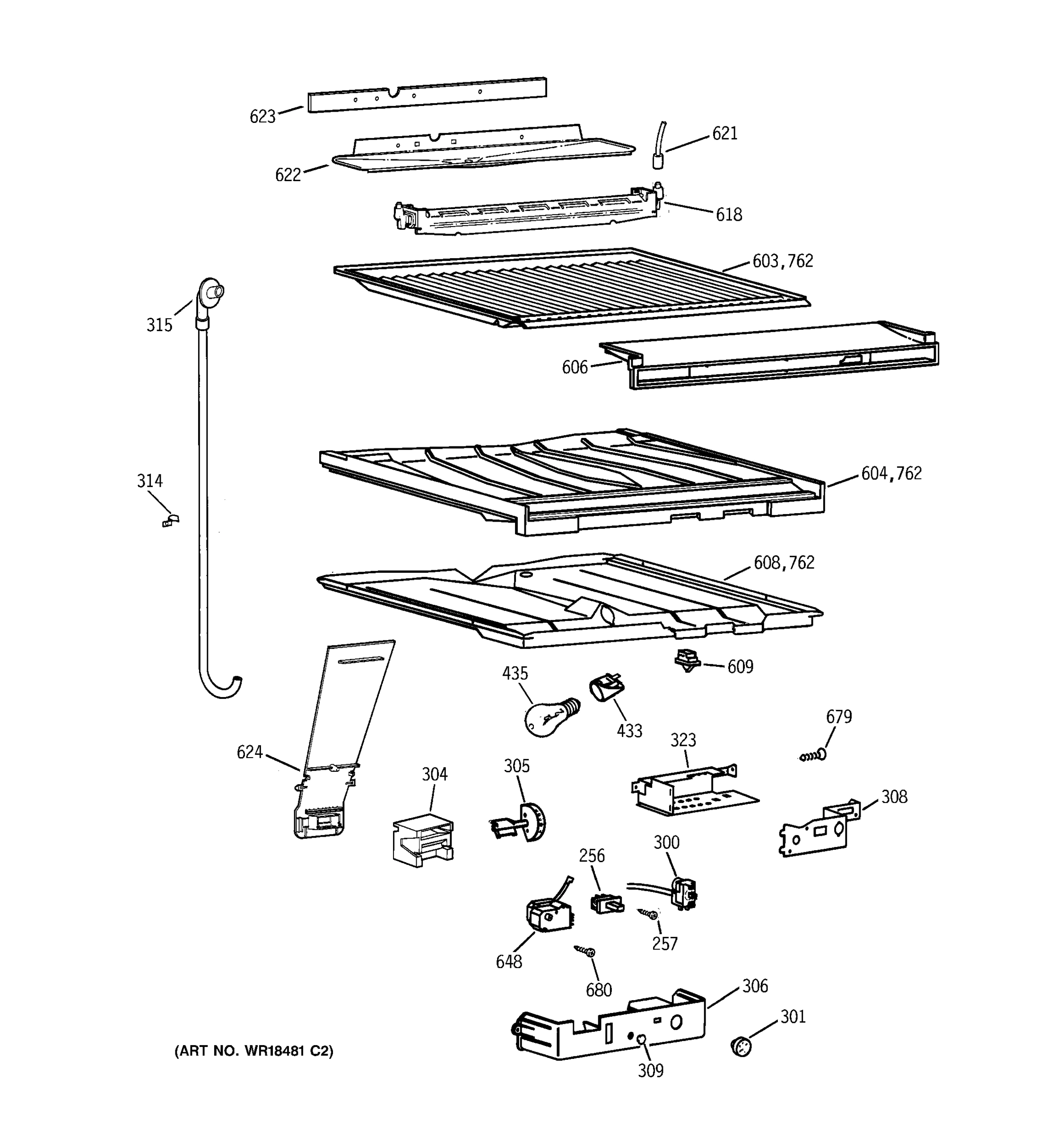

COMPARTMENT SEPARATOR PARTS

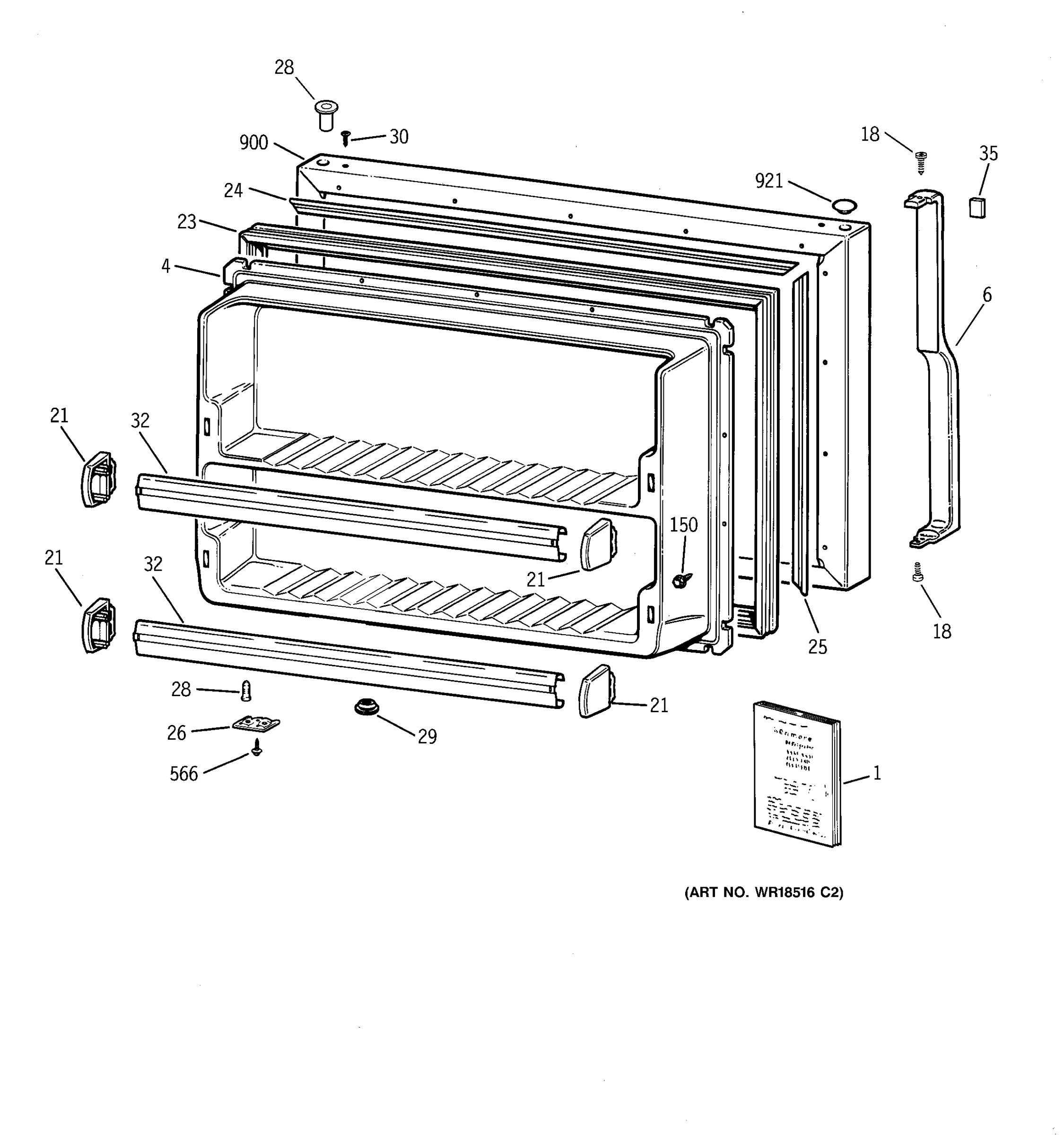

FREEZER DOOR

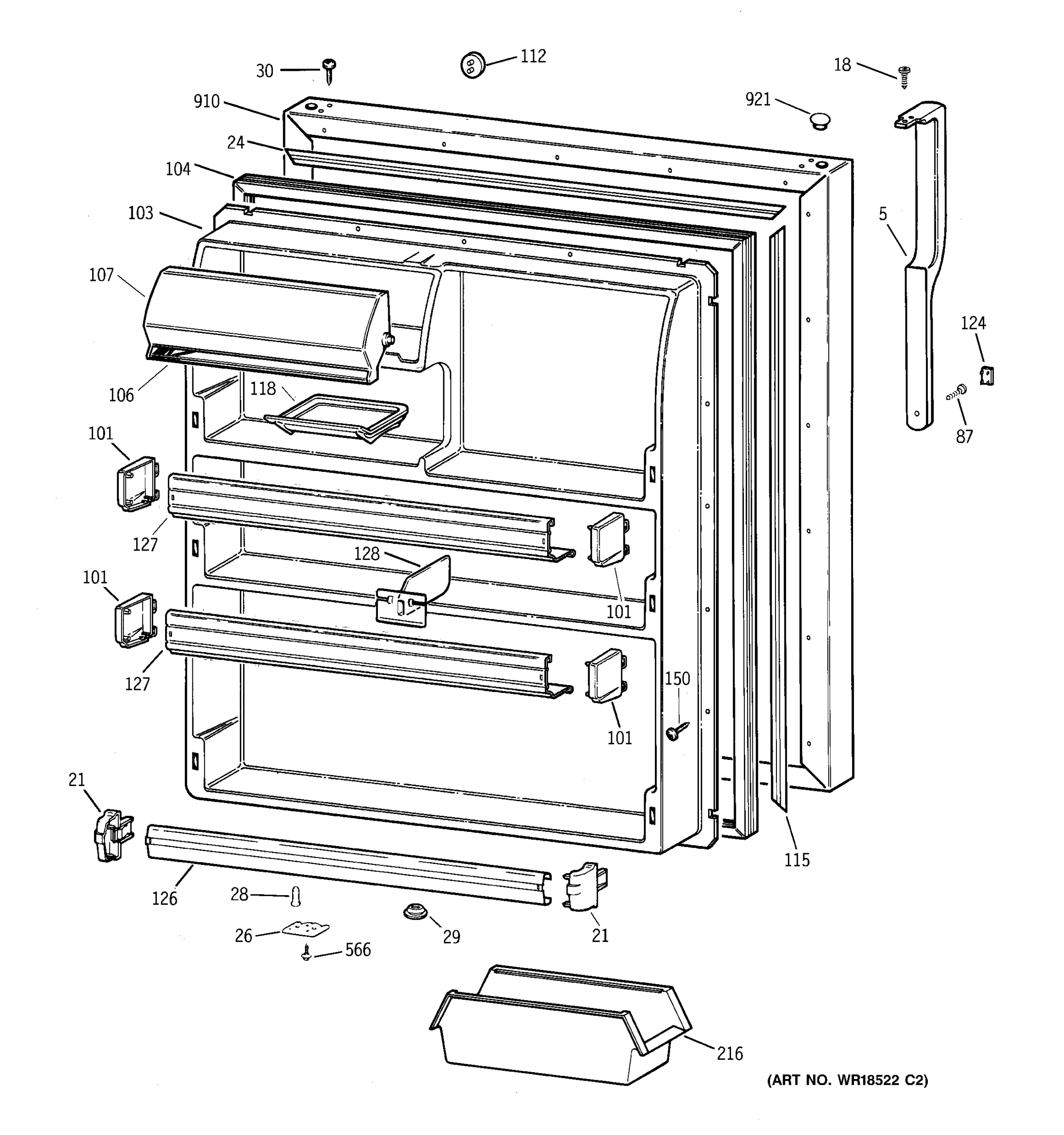

FRESH FOOD DOOR

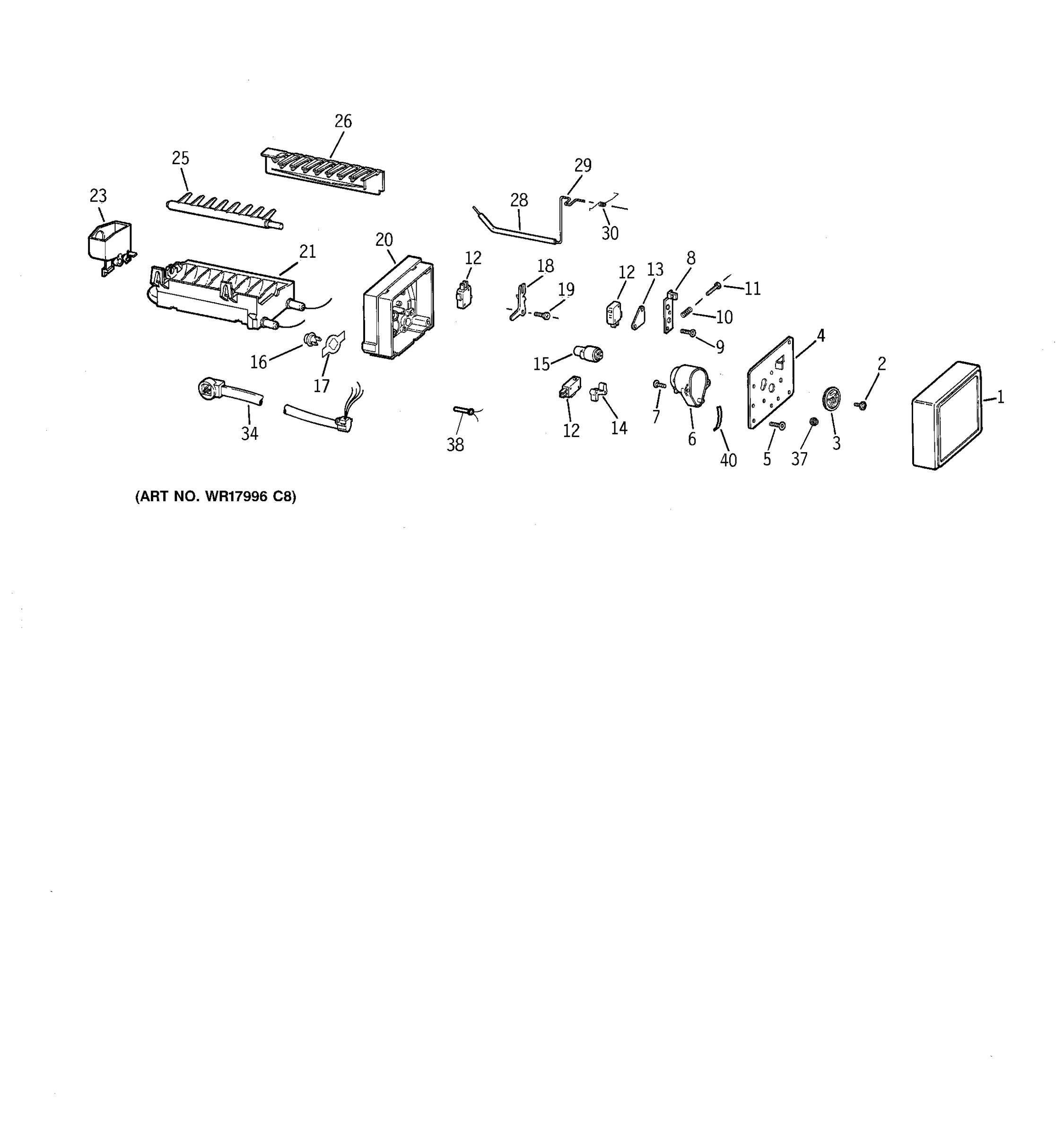

ICEMAKER WR30X0327

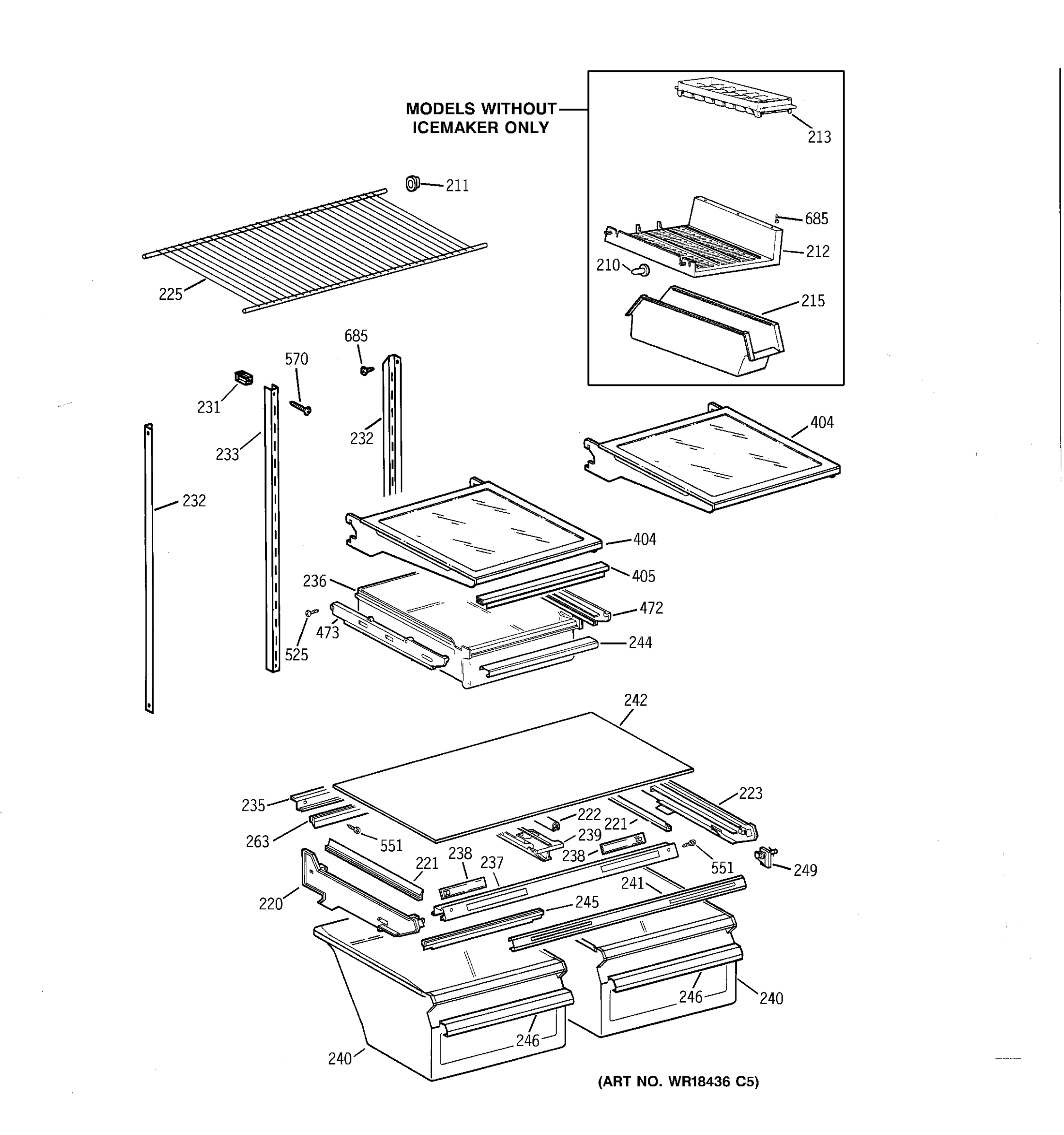

SHELF PARTS

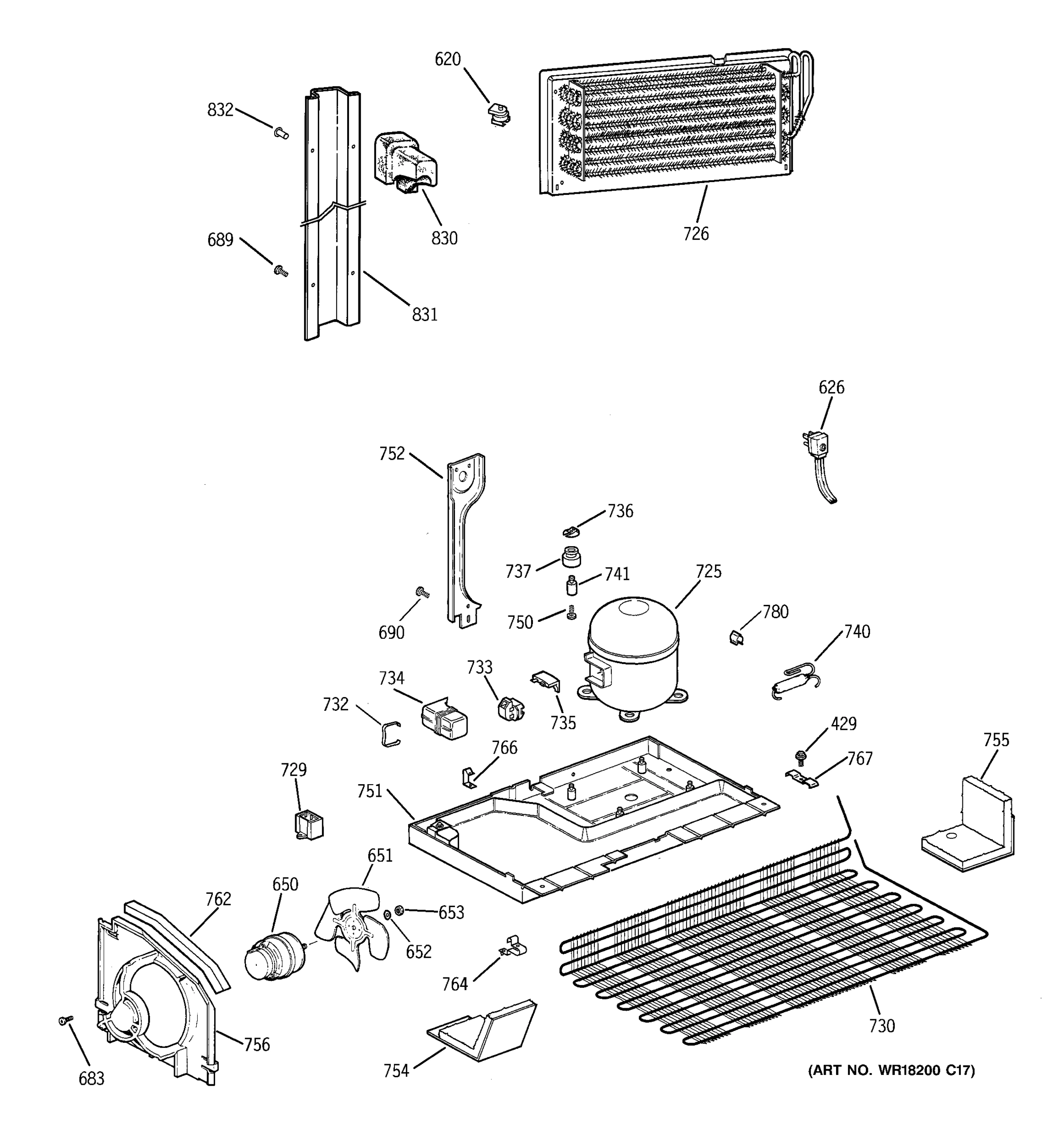

UNIT PARTS
Common parts from model GE TBX24JABCRWW Refrigerator
1
MINI MANUAL WIRING GEN 31-51021 Contact Us For Availability
1
GEN 49-6971 GEN 49-6971 Contact Us For Availability
1
COVER-WHITE GEN WR29X0182 Contact Us For Availability
2
SCREW GEN WR29X5109 Contact Us For Availability
4
GEN WR77X0608 GEN WR77X0608 Contact Us For Availability
4
PLATE-MTG GEN WR29X5163 Contact Us For Availability
5
GEN WR12X10128 GEN WR12X10128 Contact Us For Availability
5
SCREW-PLATE TO SUPPORT GEN WR29X5112 Contact Us For Availability
6
GEN WR12X10148 GEN WR12X10148 Contact Us For Availability
7
SCREW-MOTOR TO PLATE GEN WR29X5135 Contact Us For Availability
9
SCREW ARM TO SWITCH GEN WR29X5140 Contact Us For Availability
11
SCREW GEN WR29X5139 Contact Us For Availability
12
SWITCH GEN WR29X5171 Contact Us For Availability
13
GEN WR29X5188 GEN WR29X5188 Contact Us For Availability
14
GEN WR29X5186 GEN WR29X5186 Contact Us For Availability
15
GEN WR29X5167 GEN WR29X5167 Contact Us For Availability
18
GEN WR29X5183 GEN WR29X5183 Contact Us For Availability
19
SCREW-ARM GEN WR29X5122 Contact Us For Availability
21
MOLD & HEATER ASM GEN WR29X0204 Contact Us For Availability
23
GASKET DOOR FZ WH GEN WR24X0438 Contact Us For Availability
23
FILL CUP GEN WR29X0153 Contact Us For Availability
24
GEN WR17X2136 GEN WR17X2136 Contact Us For Availability
25
GEN WR17X2135 GEN WR17X2135 Contact Us For Availability
25
GEN WR29X5174 GEN WR29X5174 Contact Us For Availability
26
GEN WR02X7628 GEN WR02X7628 Contact Us For Availability
28
THIMBLE WH GEN WR02X7627 Contact Us For Availability
28
GEN WR29X5178 GEN WR29X5178 Contact Us For Availability
29
GEN WR02X8087 GEN WR02X8087 Contact Us For Availability
29
GEN WR29X5179 GEN WR29X5179 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
32
GEN WR71X10105 GEN WR71X10105 Contact Us For Availability
34
GEN WR29X0186 GEN WR29X0186 Contact Us For Availability
35
LENS NAMEPLATE GEN WR04X10028 Contact Us For Availability
37
GEN WR29X5153 GEN WR29X5153 Contact Us For Availability
101
CAP SHELF FRONT L.H. GEN WR02X9295 Contact Us For Availability
101
GEN WR02X9296 GEN WR02X9296 Contact Us For Availability
103
GEN WR77X0607 GEN WR77X0607 Contact Us For Availability
106
GEN WR38X10120 GEN WR38X10120 Contact Us For Availability
107
GEN WR22X0521 GEN WR22X0521 Contact Us For Availability
115
GEN WR17X2137 GEN WR17X2137 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
124
GEN WR12X10129 GEN WR12X10129 Contact Us For Availability
127
GEN WR71X10107 GEN WR71X10107 Contact Us For Availability
128
GEN WR02X9297 GEN WR02X9297 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
212
GEN WR30X0300 GEN WR30X0300 Contact Us For Availability
215
GEN WR32X1560 GEN WR32X1560 Contact Us For Availability
220
SLIDE VEG PAN LH GEN WR17X2770 Contact Us For Availability
221
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
222
GASKET SLIDE CTR VP GEN WR14X0366 Contact Us For Availability
223
SLIDE VEG PAN RH GEN WR17X2769 Contact Us For Availability
225
GEN WR71X1961 GEN WR71X1961 Contact Us For Availability
231
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
232
TRACK SHELF FF R/L GEN WR72X0096 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR17X3168 GEN WR17X3168 Contact Us For Availability
236
GEN WR32X1019 GEN WR32X1019 Contact Us For Availability
237
GEN WR17X2766 GEN WR17X2766 Contact Us For Availability
238
GEN WR17X10234 GEN WR17X10234 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
240
GEN WR32X1128 GEN WR32X1128 Contact Us For Availability
241
GEN WR17X10211 GEN WR17X10211 Contact Us For Availability
242
GEN WR32X10039 GEN WR32X10039 Contact Us For Availability
244
GEN WR38X10119 GEN WR38X10119 Contact Us For Availability
245
GEN WR14X0354 GEN WR14X0354 Contact Us For Availability
246
GEN WR38X10100 GEN WR38X10100 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
256
GEN WR23X0309 GEN WR23X0309 Contact Us For Availability
263
GEN WR14X0397 GEN WR14X0397 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
267
GEN WR82X0319 GEN WR82X0319 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
275
HINGE TOP PIN ASM WH GEN WR13X0715 Contact Us For Availability
276
GEN WR13X0714 GEN WR13X0714 Contact Us For Availability
277
GEN WR17X2165 GEN WR17X2165 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0587 GEN WR13X0587 Contact Us For Availability
280
CAP CORNER O.C. WH GEN WR02X7656 Contact Us For Availability
282
GEN WR13X0648 GEN WR13X0648 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR74X0272 GEN WR74X0272 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X8444 GEN WR02X8444 Contact Us For Availability
300
GEN WR09X0559 GEN WR09X0559 Contact Us For Availability
301
GEN WR02X8692 GEN WR02X8692 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
305
GEN WR02X9298 GEN WR02X9298 Contact Us For Availability
306
GEN WR17X3196 GEN WR17X3196 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
309
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GEN WR02X10068 GEN WR02X10068 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
404
GEN WR32X10057 GEN WR32X10057 Contact Us For Availability
405
GEN WR14X0473 GEN WR14X0473 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
472
GEN WR72X0286 GEN WR72X0286 Contact Us For Availability
473
GEN WR72X0288 GEN WR72X0288 Contact Us For Availability
525
GEN WR01X1763 GEN WR01X1763 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
603
GEN WR17X2138 GEN WR17X2138 Contact Us For Availability
604
INSUL DIVIDER GEN WR17X2764 Contact Us For Availability
606
GEN WR17X2380 GEN WR17X2380 Contact Us For Availability
608
GEN WR17X10030 GEN WR17X10030 Contact Us For Availability
610
GEN WR60X0190 GEN WR60X0190 Contact Us For Availability
611
GEN WR02X7664 GEN WR02X7664 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
622
GEN WR17X2160 GEN WR17X2160 Contact Us For Availability
623
GEN WR14X0348 GEN WR14X0348 Contact Us For Availability
624
GEN WR17X3934 GEN WR17X3934 Contact Us For Availability
651
GEN WR60X0212 GEN WR60X0212 Contact Us For Availability
652
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
653
NUT COND. MOTOR GEN WR01X1715 Contact Us For Availability
679
SCREW BRKT. EVAP. FAN GEN WZ06X0133 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
693
SCREW 12-24 WH GEN WR01X2136 Contact Us For Availability
726
GEN WR85X0313 GEN WR85X0313 Contact Us For Availability
730
GEN WR84X0203 GEN WR84X0203 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0170 GEN WR08X0170 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
BRACE BUMPER ASM GEN WR17X3858 Contact Us For Availability
754
GEN WR17X3769 GEN WR17X3769 Contact Us For Availability
755
GEN WR17X2416 GEN WR17X2416 Contact Us For Availability
756
COND FAN HSG LEGS GEN WR17X3760 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
780
GEN WR02X9501 GEN WR02X9501 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
831
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
900
GEN WR78X8753 GEN WR78X8753 Contact Us For Availability
910
GEN WR78X8752 GEN WR78X8752 Contact Us For Availability
921
PLUG BUTTON WH GEN WR02X7624 Contact Us For Availability
× ![]()
