Model GE TBX22VIBDRAA Refrigerator – Common Parts & Diagrams

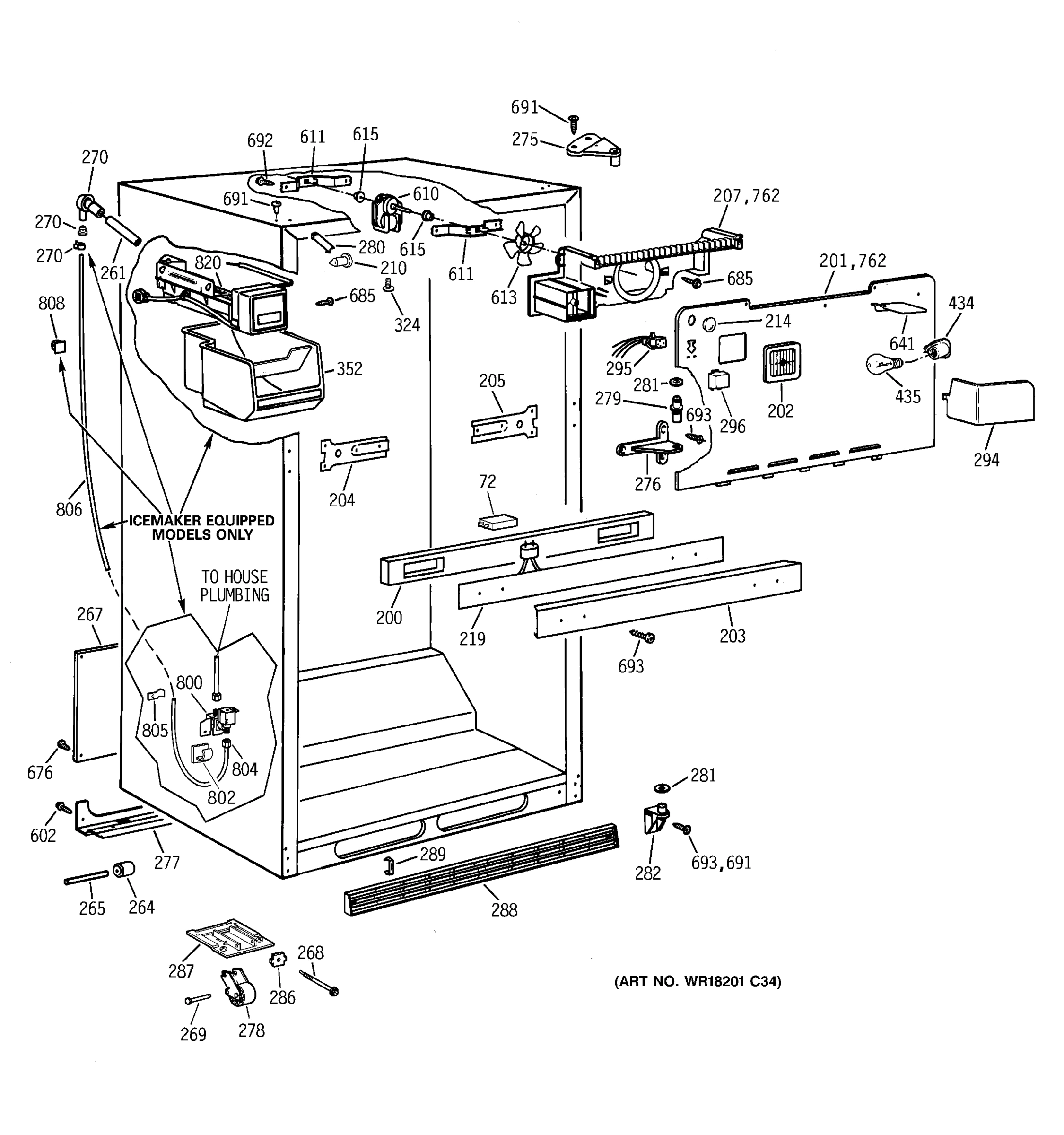

CABINET PARTS

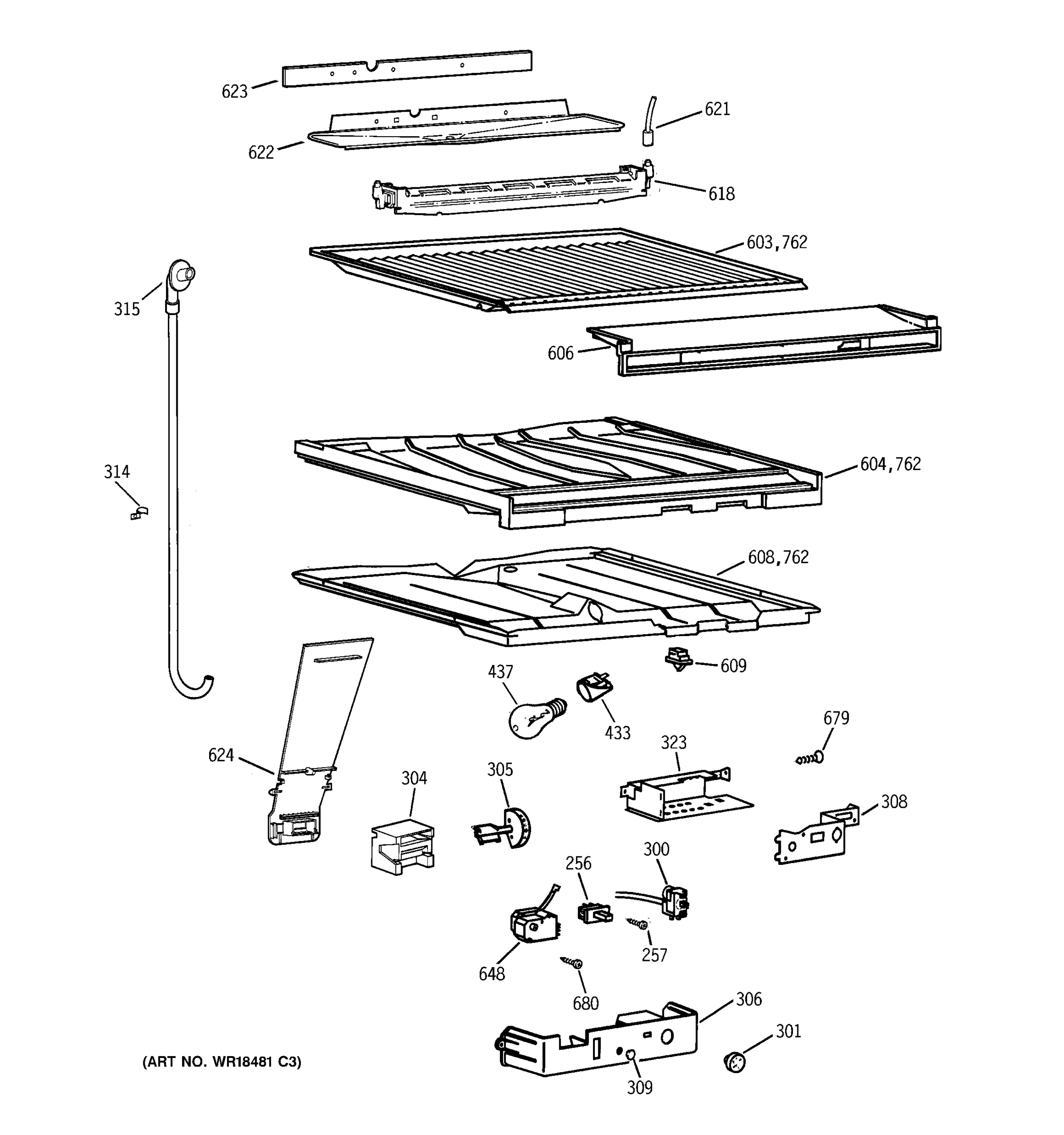

COMPARTMENT SEPARATOR PARTS

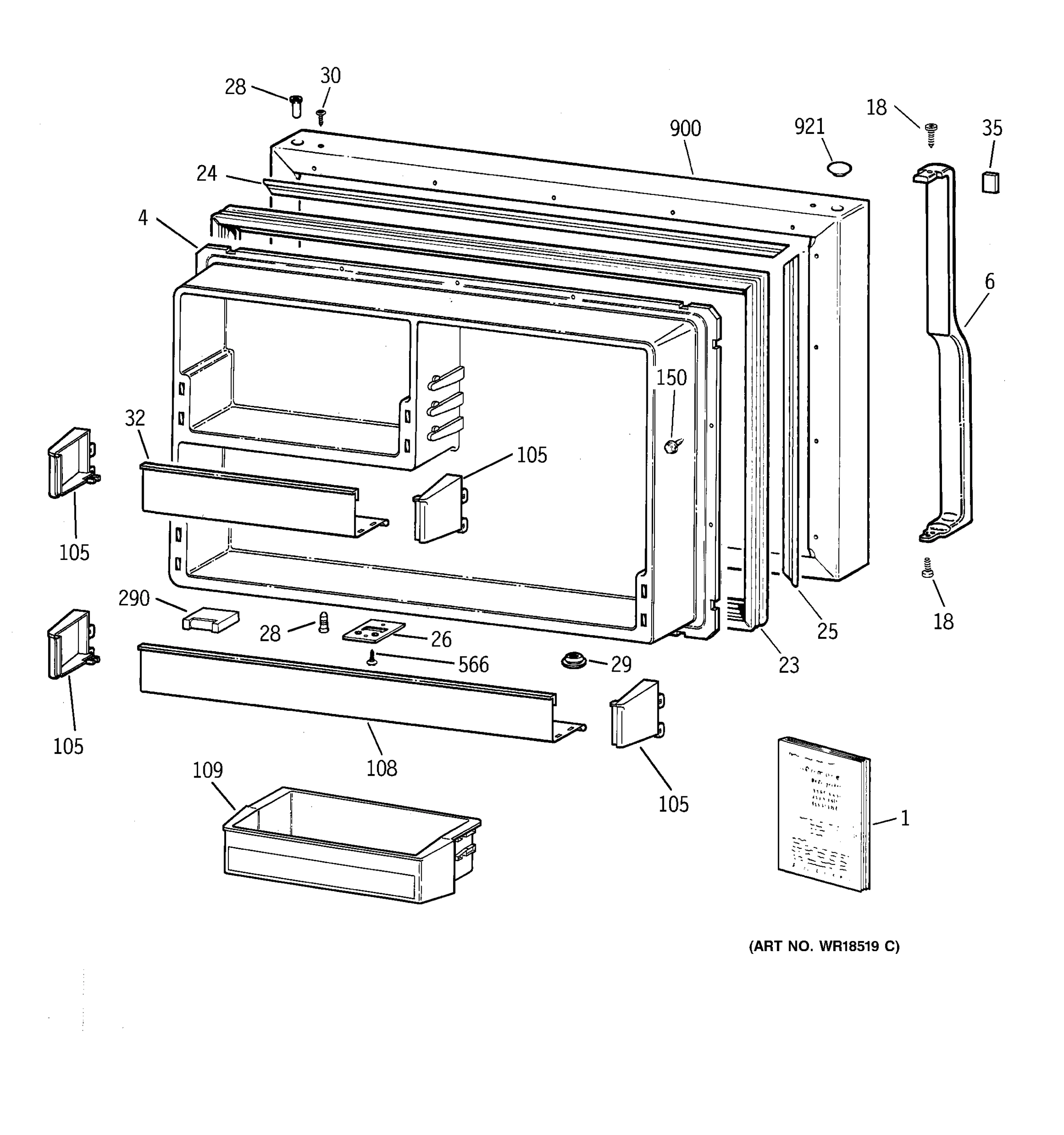

FREEZER DOOR

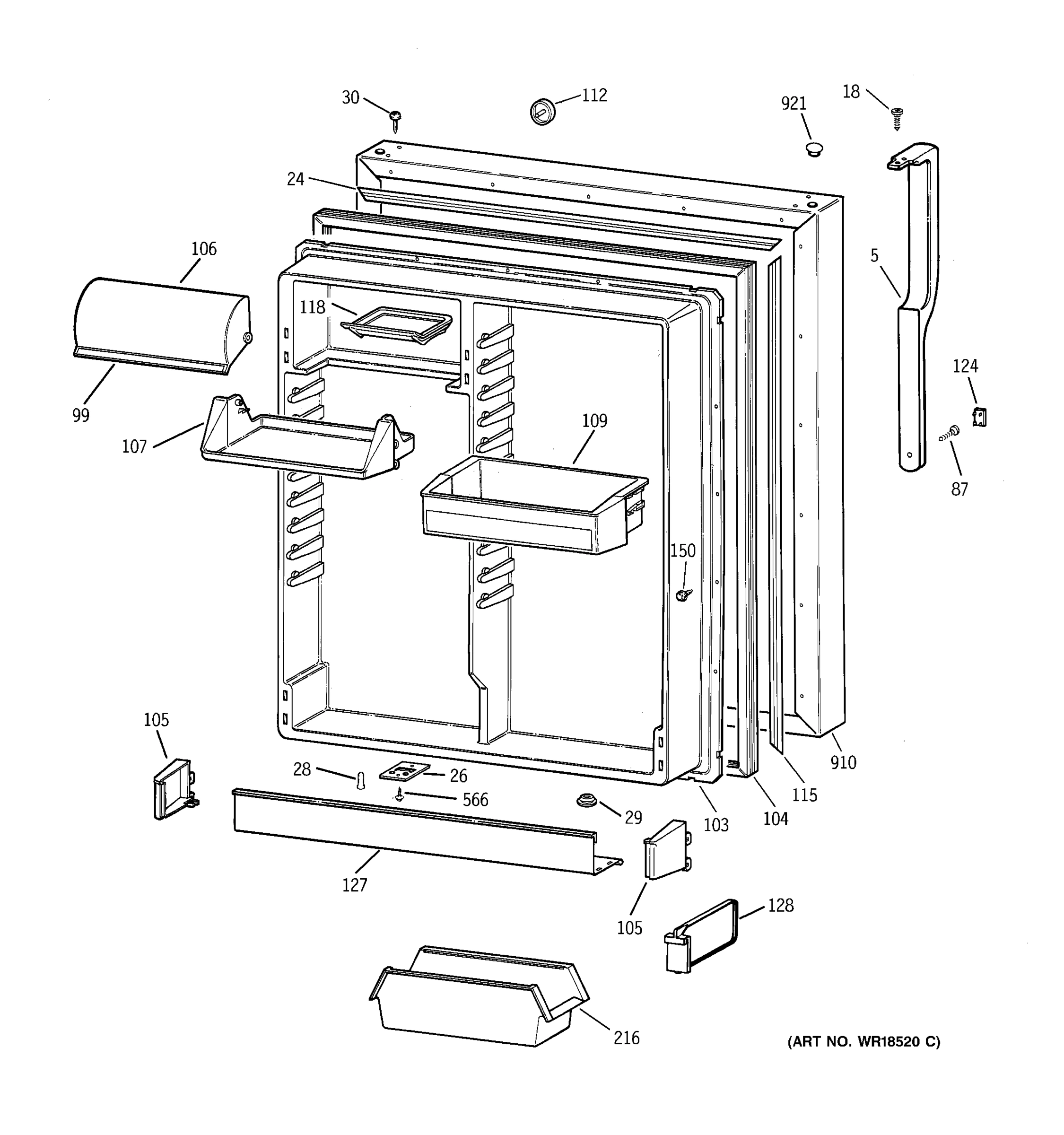

FRESH FOOD DOOR

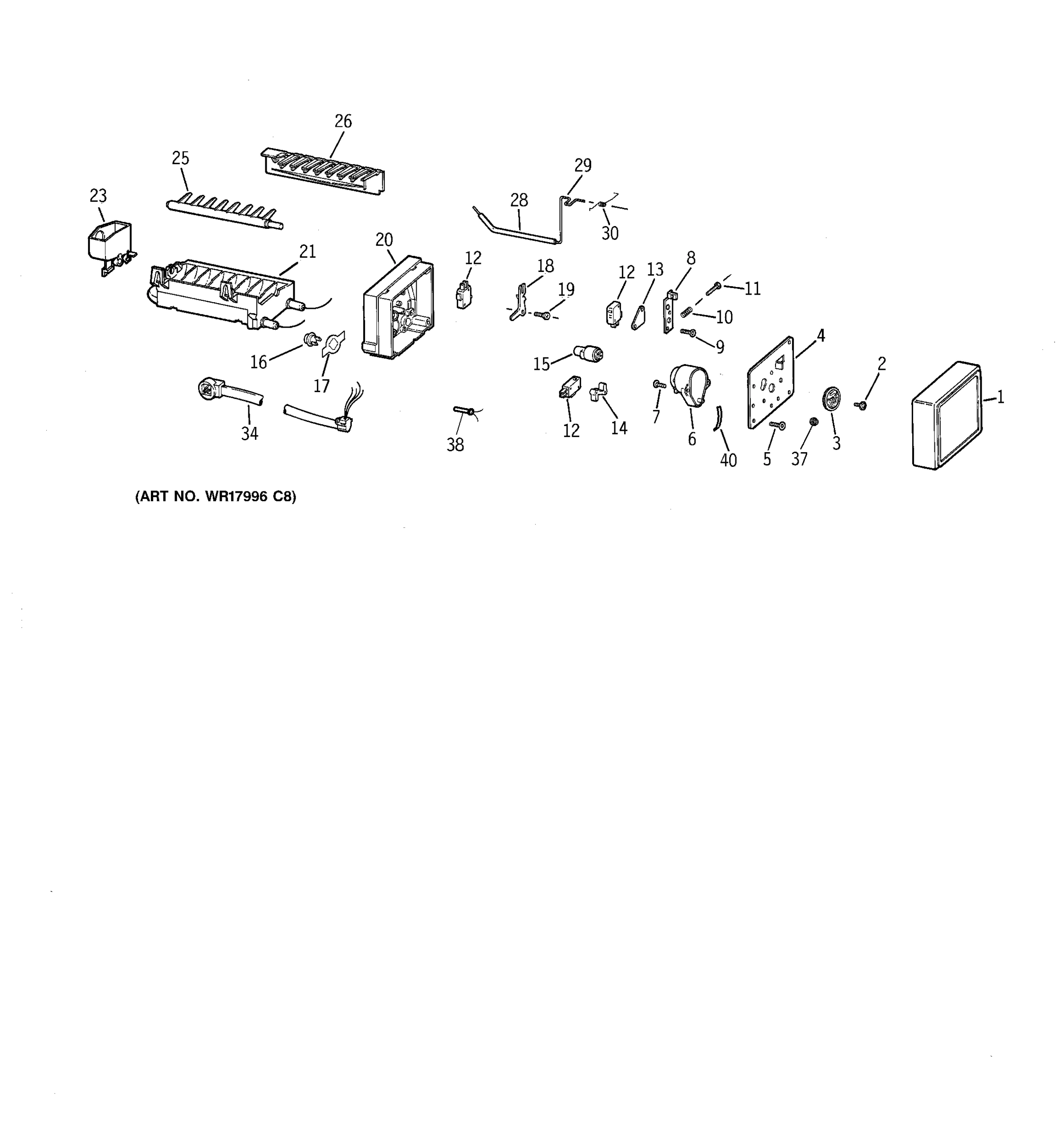

ICEMAKER WR30X0327

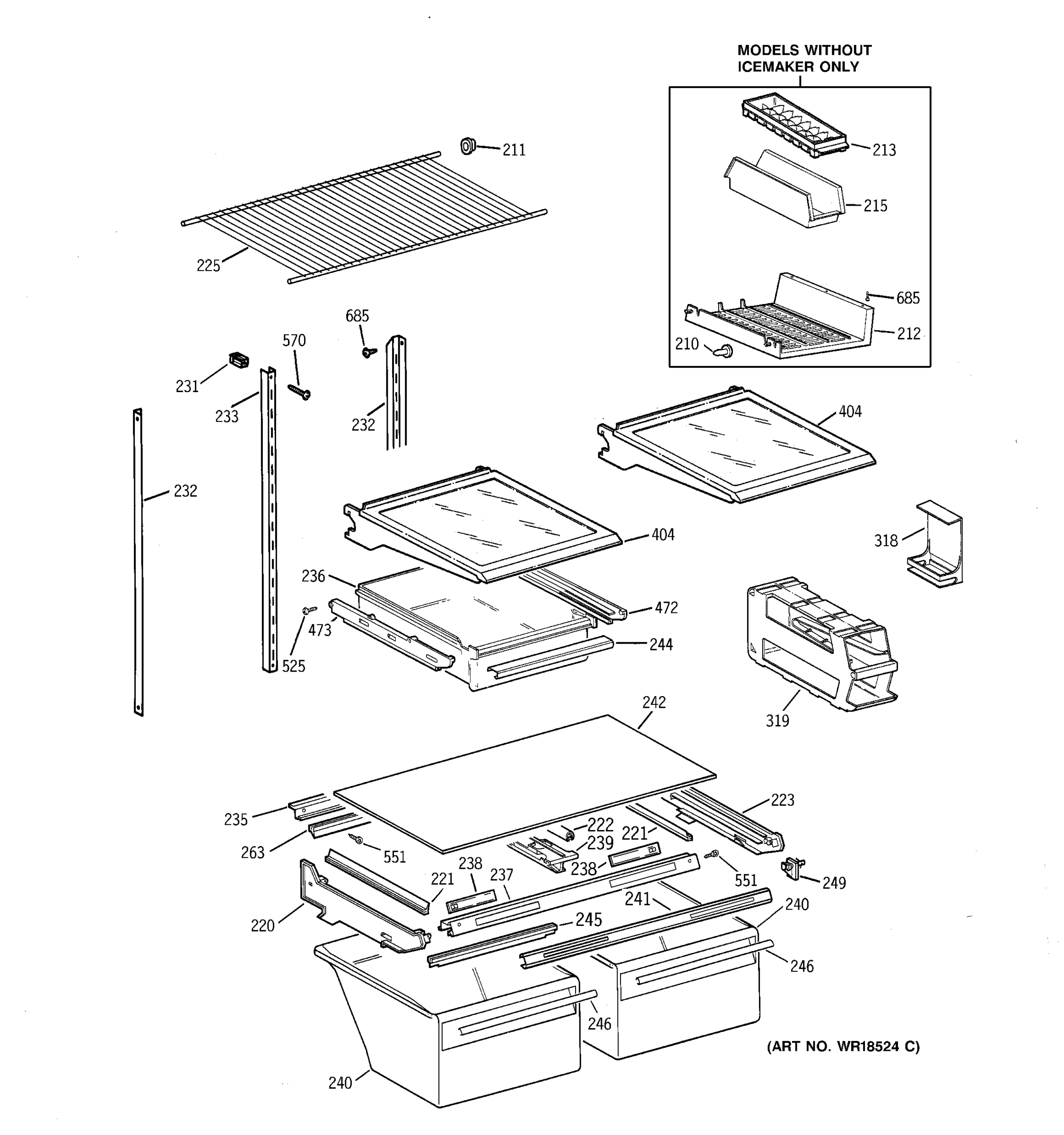

SHELF PARTS

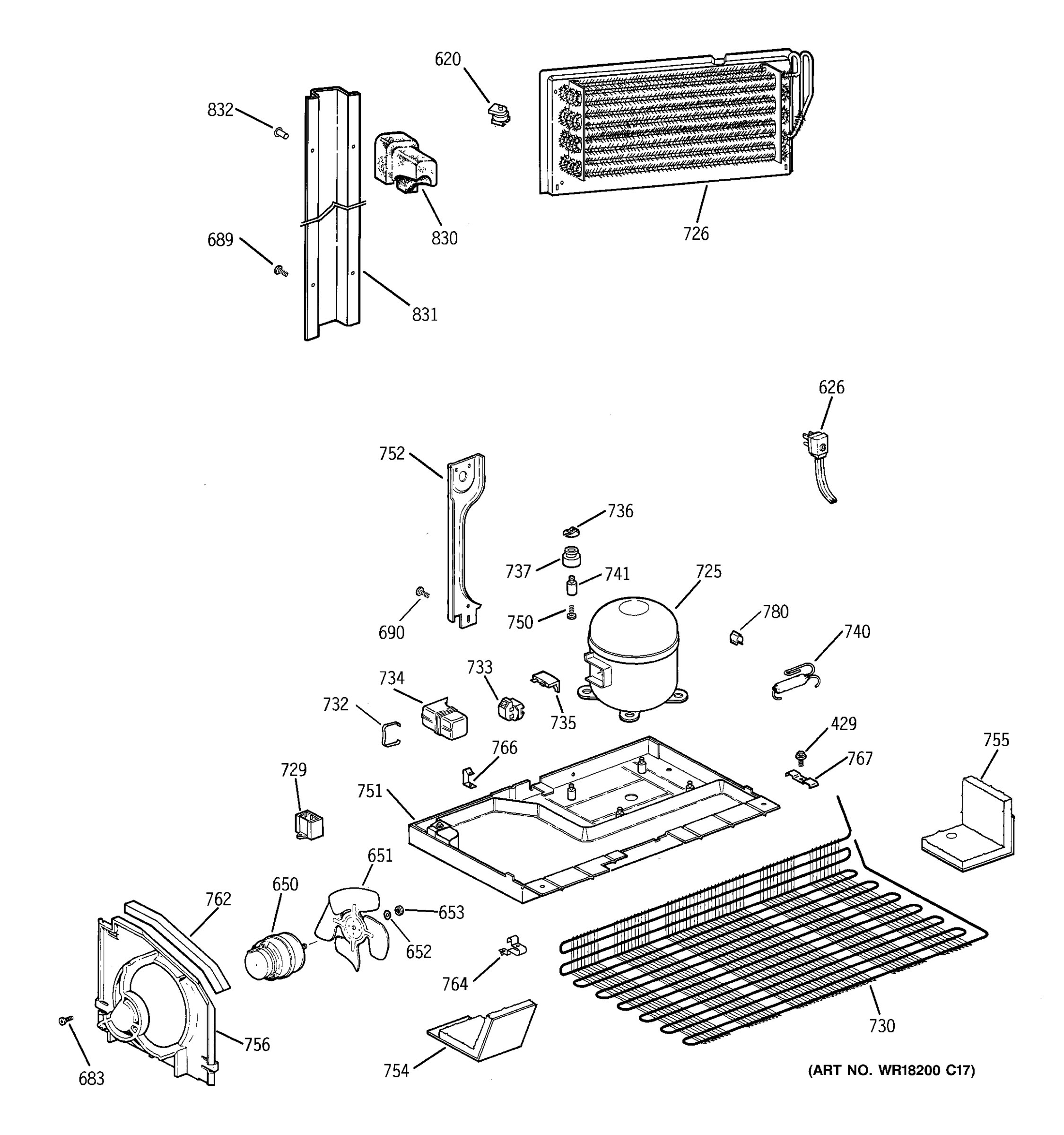

UNIT PARTS
Common parts from model GE TBX22VIBDRAA Refrigerator
1
GEN 49-6971 GEN 49-6971 Contact Us For Availability
1
GEN 51-51106 GEN 51-51106 Contact Us For Availability
1
COVER-WHITE GEN WR29X0182 Contact Us For Availability
2
SCREW GEN WR29X5109 Contact Us For Availability
4
GEN WR77X0612 GEN WR77X0612 Contact Us For Availability
4
PLATE-MTG GEN WR29X5163 Contact Us For Availability
5
GEN WR12X10124 GEN WR12X10124 Contact Us For Availability
5
SCREW-PLATE TO SUPPORT GEN WR29X5112 Contact Us For Availability
6
GEN WR12X10140 GEN WR12X10140 Contact Us For Availability
7
SCREW-MOTOR TO PLATE GEN WR29X5135 Contact Us For Availability
9
SCREW ARM TO SWITCH GEN WR29X5140 Contact Us For Availability
11
SCREW GEN WR29X5139 Contact Us For Availability
12
SWITCH GEN WR29X5171 Contact Us For Availability
13
GEN WR29X5188 GEN WR29X5188 Contact Us For Availability
14
GEN WR29X5186 GEN WR29X5186 Contact Us For Availability
15
GEN WR29X5167 GEN WR29X5167 Contact Us For Availability
18
GEN WR29X5183 GEN WR29X5183 Contact Us For Availability
19
SCREW-ARM GEN WR29X5122 Contact Us For Availability
21
MOLD & HEATER ASM GEN WR29X0204 Contact Us For Availability
23
FILL CUP GEN WR29X0153 Contact Us For Availability
24
GEN WR17X2237 GEN WR17X2237 Contact Us For Availability
25
GEN WR17X2239 GEN WR17X2239 Contact Us For Availability
25
GEN WR29X5174 GEN WR29X5174 Contact Us For Availability
26
GEN WR02X7681 GEN WR02X7681 Contact Us For Availability
28
THIMBLE WH GEN WR02X7627 Contact Us For Availability
28
GEN WR29X5178 GEN WR29X5178 Contact Us For Availability
29
GEN WR02X8088 GEN WR02X8088 Contact Us For Availability
29
GEN WR29X5179 GEN WR29X5179 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
32
GEN WR71X10099 GEN WR71X10099 Contact Us For Availability
34
GEN WR29X0186 GEN WR29X0186 Contact Us For Availability
35
LENS NAMEPLATE GEN WR04X10029 Contact Us For Availability
37
GEN WR29X5153 GEN WR29X5153 Contact Us For Availability
99
GEN WR38X10117 GEN WR38X10117 Contact Us For Availability
103
GEN WR77X0611 GEN WR77X0611 Contact Us For Availability
105
GEN WR02X8699 GEN WR02X8699 Contact Us For Availability
105
GEN WR02X8700 GEN WR02X8700 Contact Us For Availability
106
GEN WR22X0512 GEN WR22X0512 Contact Us For Availability
107
GEN WR22X0472 GEN WR22X0472 Contact Us For Availability
108
GEN WR71X10098 GEN WR71X10098 Contact Us For Availability
109
GEN WR71X10100 GEN WR71X10100 Contact Us For Availability
112
GEN WR02X8697 GEN WR02X8697 Contact Us For Availability
115
GEN WR17X2238 GEN WR17X2238 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
124
GEN WR12X10125 GEN WR12X10125 Contact Us For Availability
127
GEN WR71X10097 GEN WR71X10097 Contact Us For Availability
128
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
220
SLIDE VEG PAN LH GEN WR17X2770 Contact Us For Availability
221
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
222
GASKET SLIDE CTR VP GEN WR14X0366 Contact Us For Availability
223
SLIDE VEG PAN RH GEN WR17X2769 Contact Us For Availability
225
GEN WR71X2312 GEN WR71X2312 Contact Us For Availability
231
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
232
TRACK SHELF FF R/L GEN WR72X0096 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR17X3161 GEN WR17X3161 Contact Us For Availability
236
GEN WR32X1022 GEN WR32X1022 Contact Us For Availability
237
GEN WR17X3288 GEN WR17X3288 Contact Us For Availability
238
GEN WR17X10234 GEN WR17X10234 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
240
GEN WR32X1141 GEN WR32X1141 Contact Us For Availability
241
GEN WR17X10235 GEN WR17X10235 Contact Us For Availability
242
GEN WR32X10052 GEN WR32X10052 Contact Us For Availability
244
GEN WR38X10115 GEN WR38X10115 Contact Us For Availability
245
GEN WR14X0358 GEN WR14X0358 Contact Us For Availability
246
GEN WR38X10089 GEN WR38X10089 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
256
GEN WR23X0309 GEN WR23X0309 Contact Us For Availability
263
GEN WR14X0398 GEN WR14X0398 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
267
GEN WR82X0320 GEN WR82X0320 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
275
HINGE TOP PIN ASM AD GEN WR13X0713 Contact Us For Availability
276
GEN WR13X0712 GEN WR13X0712 Contact Us For Availability
277
GEN WR17X3744 GEN WR17X3744 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0587 GEN WR13X0587 Contact Us For Availability
280
CAP CORNER O.C. AD GEN WR02X7657 Contact Us For Availability
282
GEN WR13X0649 GEN WR13X0649 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR74X0268 GEN WR74X0268 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
290
GEN WR02X10095 GEN WR02X10095 Contact Us For Availability
294
GEN WR02X9010 GEN WR02X9010 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X8444 GEN WR02X8444 Contact Us For Availability
300
GEN WR09X0559 GEN WR09X0559 Contact Us For Availability
301
GEN WR02X8692 GEN WR02X8692 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
305
GEN WR02X9303 GEN WR02X9303 Contact Us For Availability
306
GEN WR17X3196 GEN WR17X3196 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
309
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GEN WR02X10068 GEN WR02X10068 Contact Us For Availability
318
GEN WR02X10108 GEN WR02X10108 Contact Us For Availability
319
GEN WR02X10109 GEN WR02X10109 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
404
GEN WR32X10051 GEN WR32X10051 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
434
GEN WR02X8005 GEN WR02X8005 Contact Us For Availability
472
GEN WR72X0273 GEN WR72X0273 Contact Us For Availability
473
GEN WR72X0274 GEN WR72X0274 Contact Us For Availability
525
GEN WR01X1763 GEN WR01X1763 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
603
GEN WR17X2234 GEN WR17X2234 Contact Us For Availability
604
GEN WR17X3495 GEN WR17X3495 Contact Us For Availability
606
GEN WR17X2401 GEN WR17X2401 Contact Us For Availability
608
GEN WR17X10029 GEN WR17X10029 Contact Us For Availability
610
GEN WR60X0190 GEN WR60X0190 Contact Us For Availability
611
GEN WR02X7664 GEN WR02X7664 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
623
GEN WR14X0348 GEN WR14X0348 Contact Us For Availability
624
GEN WR17X3910 GEN WR17X3910 Contact Us For Availability
641
GEN WR02X8816 GEN WR02X8816 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
652
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
653
NUT COND. MOTOR GEN WR01X1715 Contact Us For Availability
679
SCREW BRKT. EVAP. FAN GEN WZ06X0133 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
691
GEN WR01X2139 GEN WR01X2139 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
693
GEN WR01X2137 GEN WR01X2137 Contact Us For Availability
726
GEN WR85X0310 GEN WR85X0310 Contact Us For Availability
730
GEN WR84X0193 GEN WR84X0193 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
BRACE BUMPER ASM GEN WR17X3858 Contact Us For Availability
754
GEN WR17X3770 GEN WR17X3770 Contact Us For Availability
755
GEN WR17X2227 GEN WR17X2227 Contact Us For Availability
756
COND FAN HSG LEGS GEN WR17X3760 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
780
GEN WR02X9501 GEN WR02X9501 Contact Us For Availability
802
GEN WR01X1360 GEN WR01X1360 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
831
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
900
DOOR ASM FZ AD GEN WR78X8739 Contact Us For Availability
910
DOOR ASM FF AD GEN WR78X8738 Contact Us For Availability
921
PLUG BUTTON AD GEN WR02X7625 Contact Us For Availability
× ![]()
