Model GE TBX22PAXBRWW Refrigerator – Common Parts & Diagrams

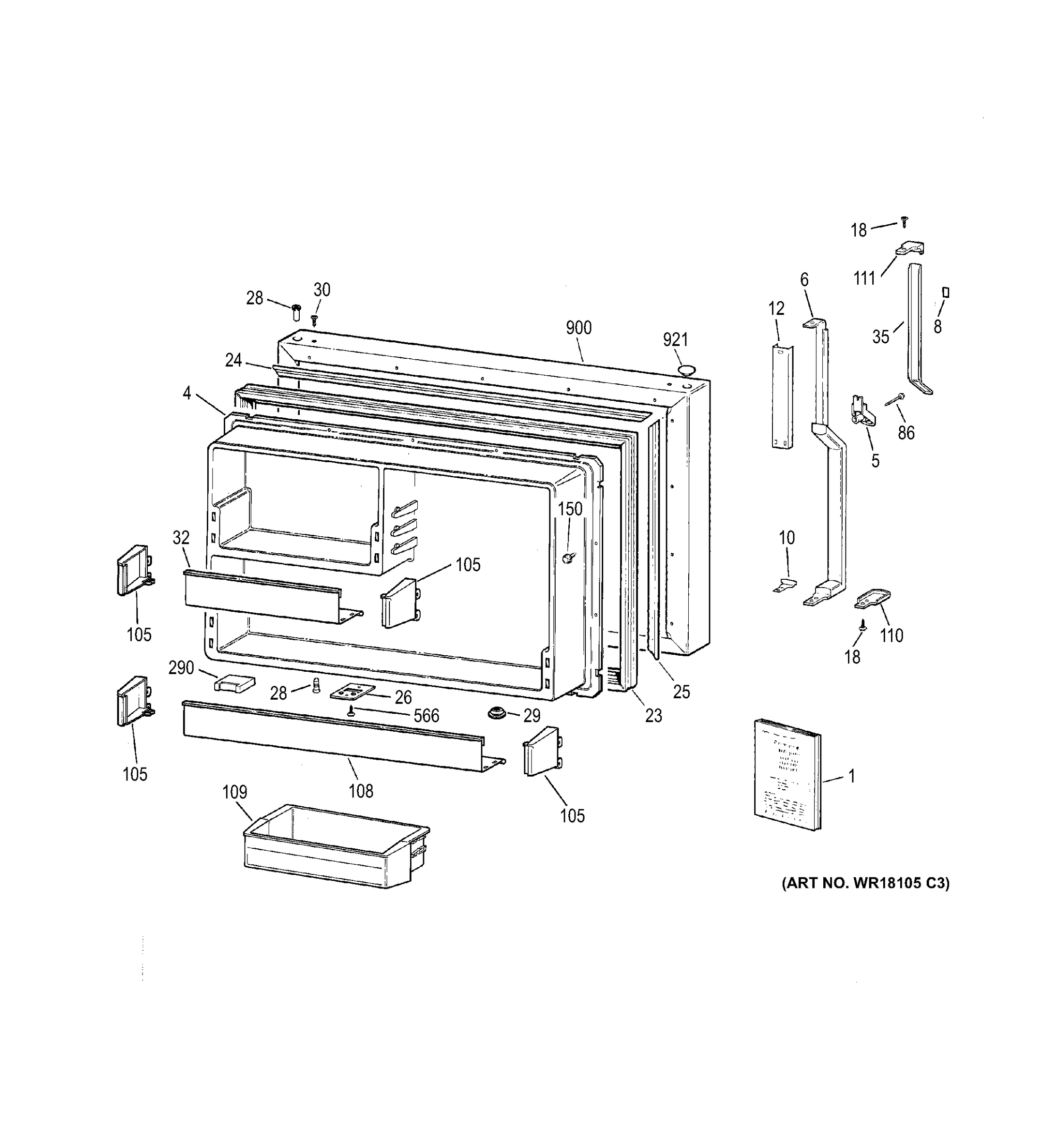

FREEZER DOOR

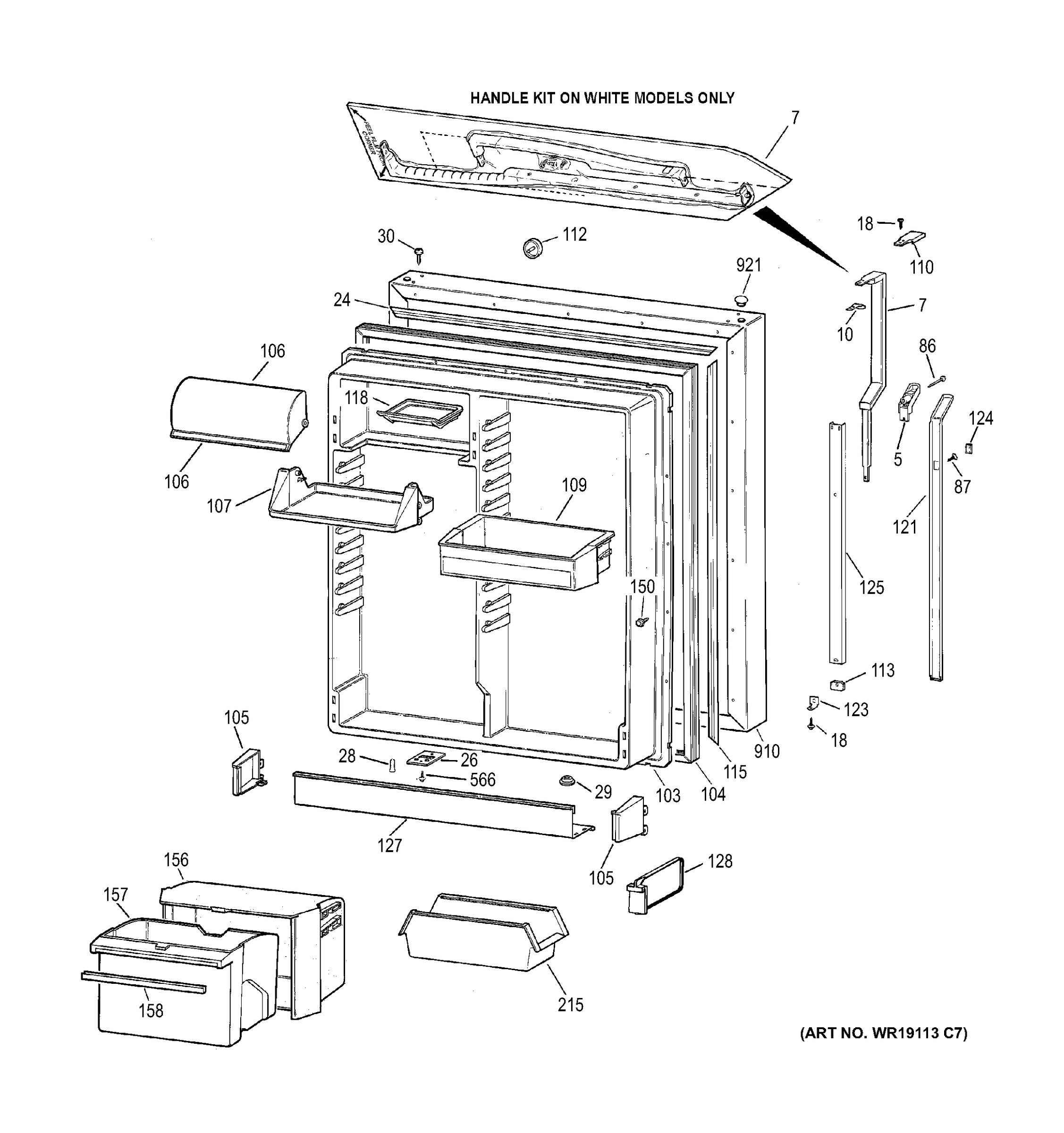

FRESH FOOD DOOR

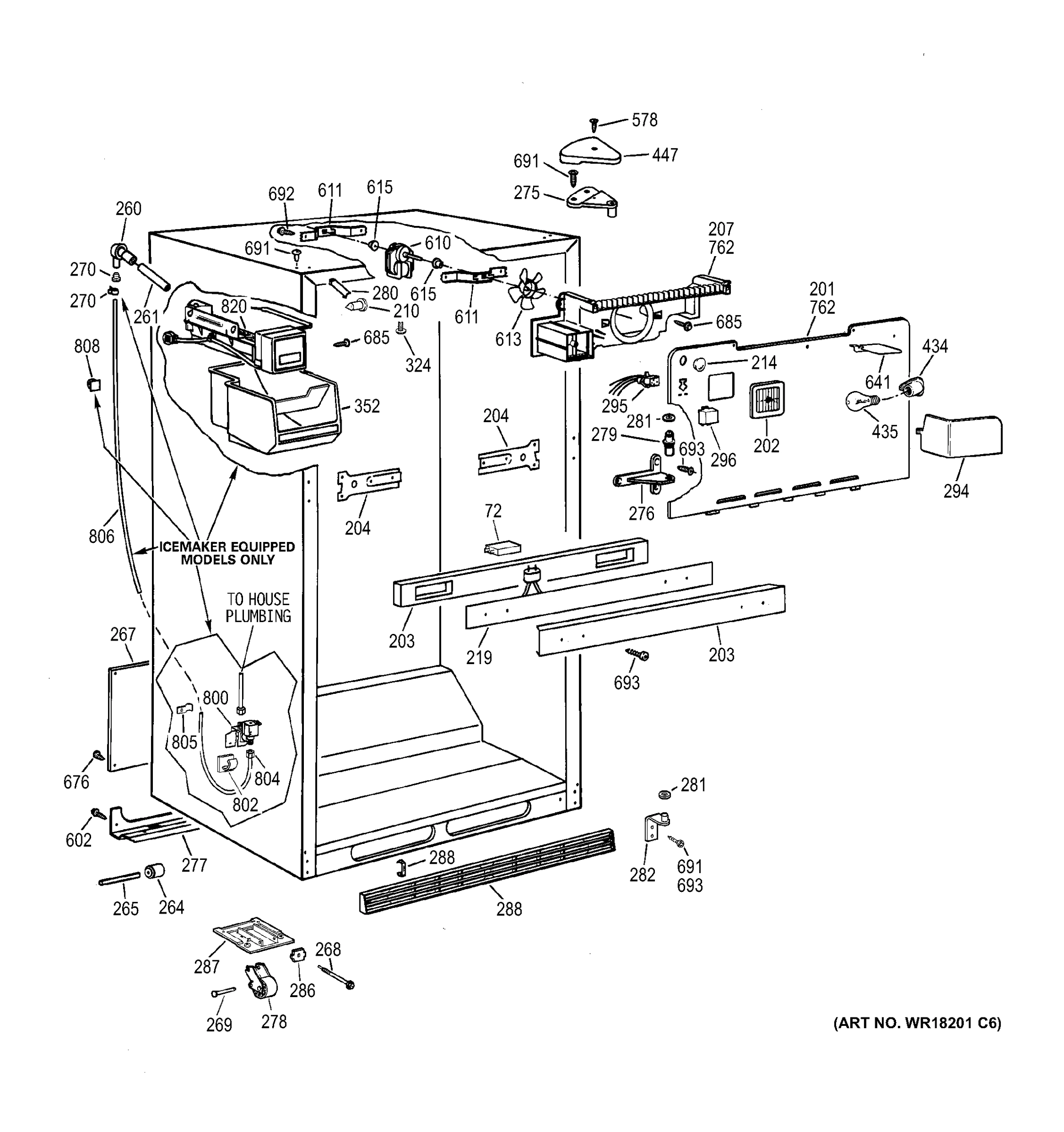

CABINET

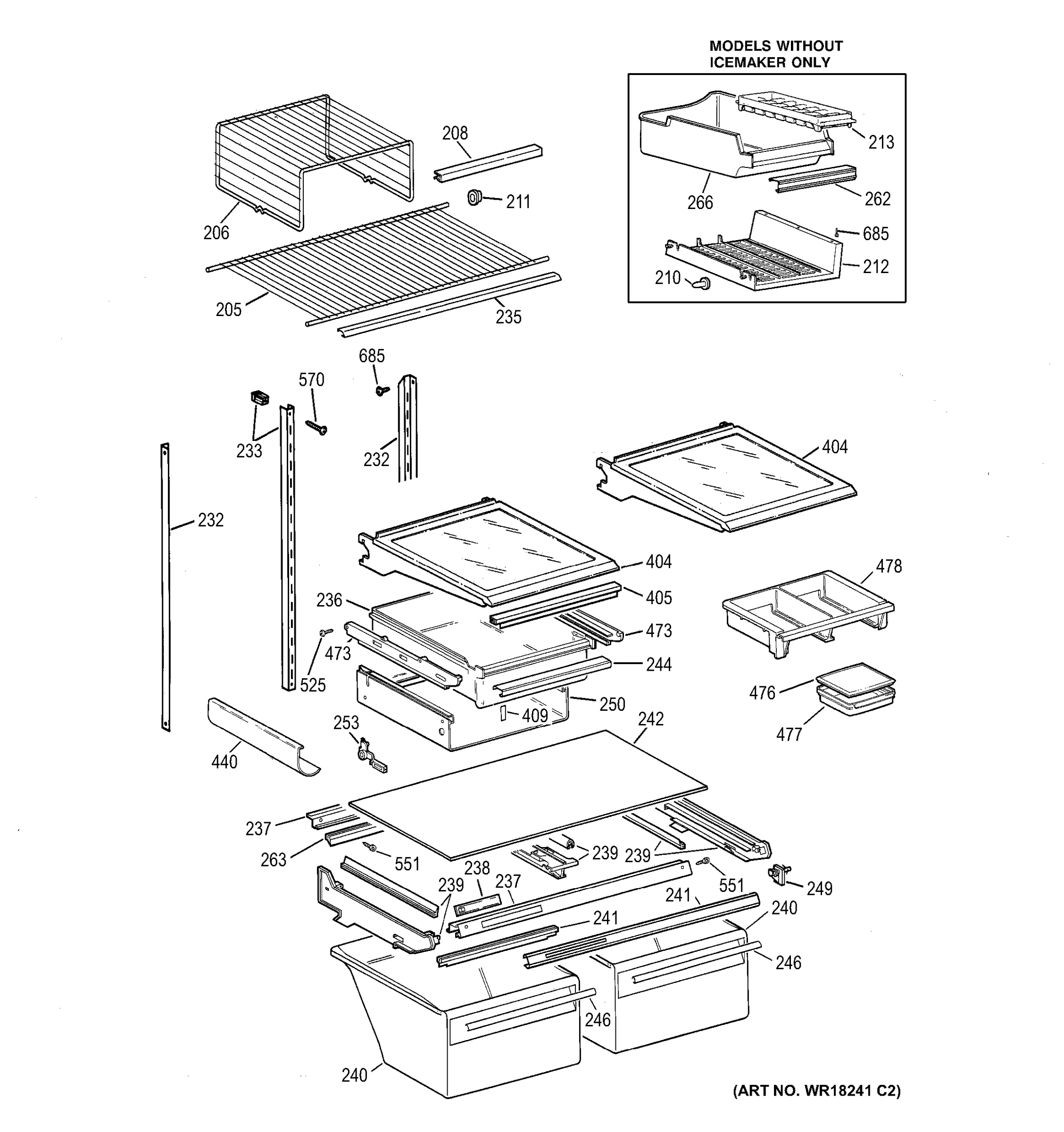

SHELF PARTS

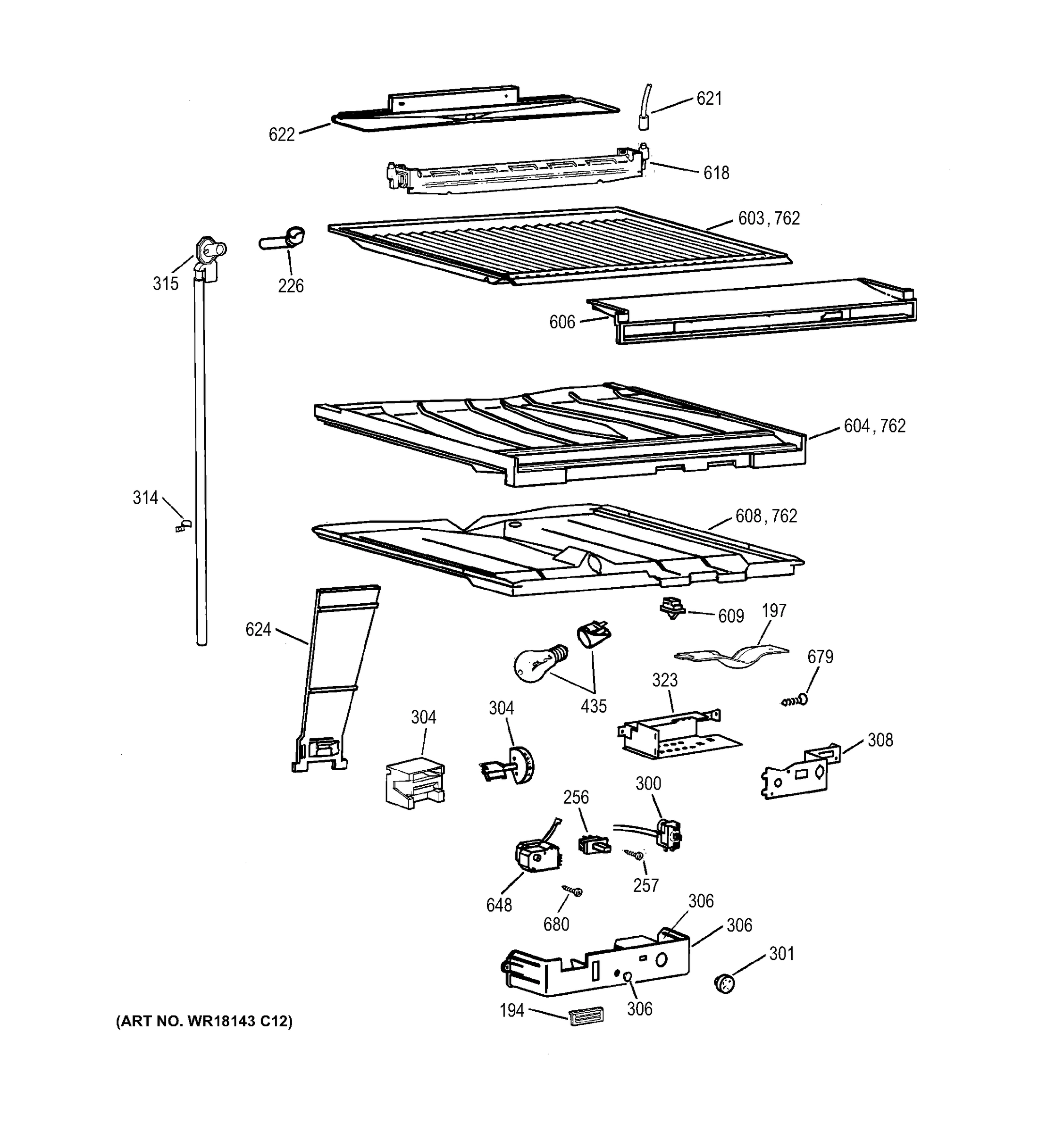

COMPARTMENT SEPARATOR PARTS

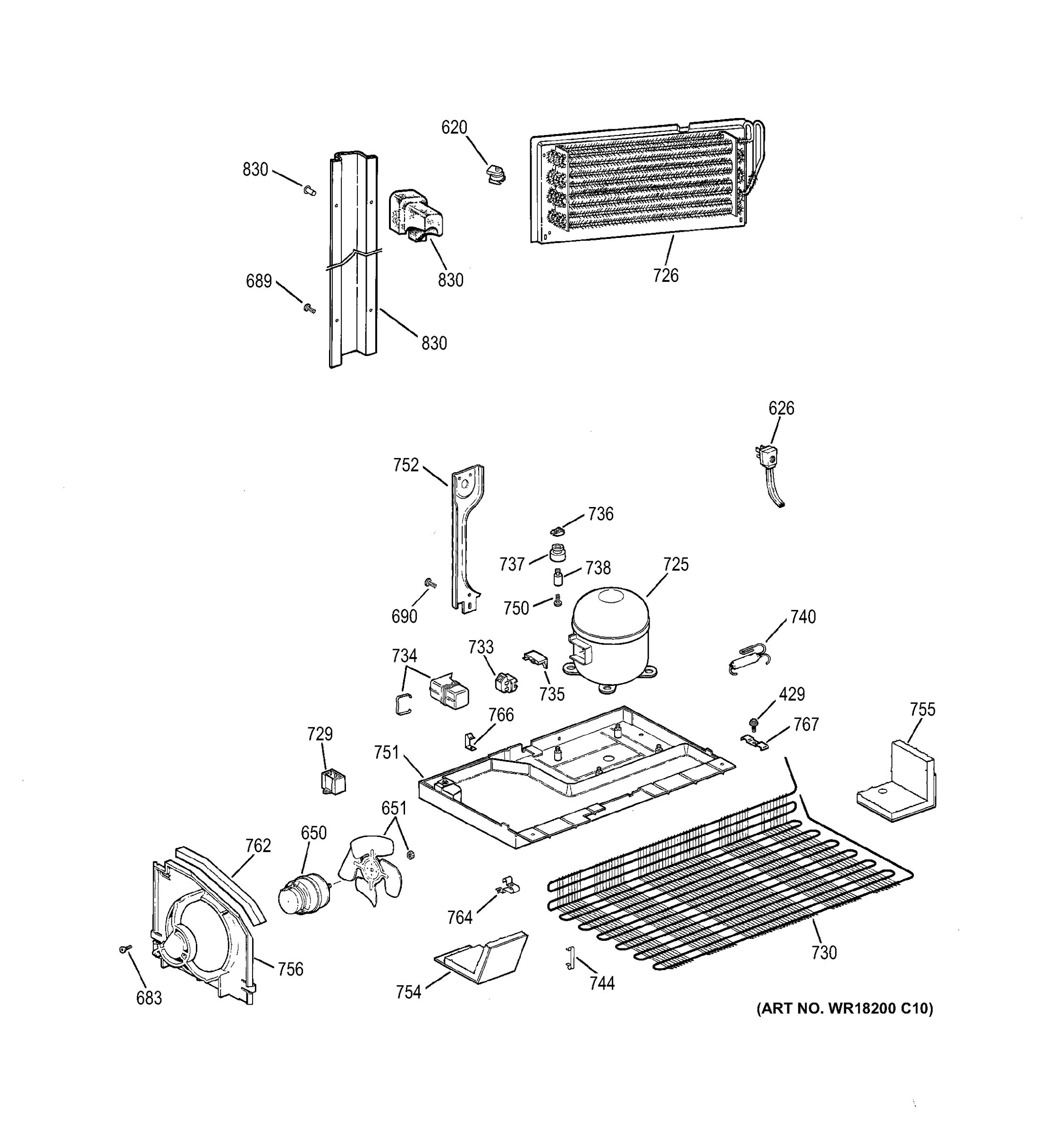

MACHINE COMPARTMENT
Common parts from model GE TBX22PAXBRWW Refrigerator
5
CAP END GEN WR02X8714 Contact Us For Availability
7
PK HANDLE ASSY WHITE GEN WR12X10227 Contact Us For Availability
10
SHIM HANDLE DOOR GEN WR02X8002 Contact Us For Availability
24
RETAINER STRIP H GEN WR17X2237 Contact Us For Availability
25
RETAINER STRIP V GEN WR17X2239 Contact Us For Availability
26
STOP DOOR WH GEN WR02X9309 Contact Us For Availability
28
THIMBLE WH GEN WR02X7627 Contact Us For Availability
29
PLUG BUTTON INSERT WH GEN WR02X8087 Contact Us For Availability
30
SCR 8/10-16 AB PA 5/8 GEN WR01X5475 Contact Us For Availability
32
SHELF FRONT FZ 1/2 GEN WR71X2580 Contact Us For Availability
35
INSERT HANDLE FZ WH GEN WR12X0898 Contact Us For Availability
72
SWITCH LAMP REED GEN WR23X0334 Contact Us For Availability
86
SCR 8-32 TT FL 1/2 S GEN WH02X0940 Contact Us For Availability
103
DOOR INNER FF DP GEN WR77X0611 Contact Us For Availability
105
CAP SHELF FRONT LH GEN WR02X8699 Contact Us For Availability
105
CAP SHELF FRONT RH GEN WR02X8700 Contact Us For Availability
106
DOOR DAIRY (NO TRIM) GEN WR22X0429 Contact Us For Availability
106
TRIM DAIRY DOOR GEN WR38X1988 Contact Us For Availability
107
EXTENSION DAIRY GEN WR22X0472 Contact Us For Availability
108
SHELF FRONT FZ FULL GEN WR71X2581 Contact Us For Availability
109
SHELF MODULE ASSY GEN WR71X2583 Contact Us For Availability
110
CAP TOP GEN WR02X8210 Contact Us For Availability
111
CAP TRIM HANDLE GEN WR02X7979 Contact Us For Availability
113
CAP TRIM HANDLE BTM GEN WR02X7980 Contact Us For Availability
115
RETAINER STRIP V GEN WR17X2238 Contact Us For Availability
118
DISH BUTTER GEN WR19X5003 Contact Us For Availability
121
INSERT HANDLE FF WH GEN WR12X0895 Contact Us For Availability
123
TRIM HANDLE BTM GEN WR02X8009 Contact Us For Availability
124
PLUG BUTTON INSERT GEN WR12X0721 Contact Us For Availability
125
CHANNEL HANDLE FF GEN WR12X0916 Contact Us For Availability
127
SHELF FRONT FF FULL GEN WR71X2582 Contact Us For Availability
128
SNUGGER MODULE GEN WR02X7971 Contact Us For Availability
156
YOKE QUICK SERVE GEN WR32X1327 Contact Us For Availability
157
BIN QUICK STORE GEN WR32X1140 Contact Us For Availability
158
TRIM QUICK STORE GEN WR38X1949 Contact Us For Availability
197
SHIELD LIGHT GEN WR02X8378 Contact Us For Availability
201
COVER EVAP ASSY GEN WR17X2471 Contact Us For Availability
202
GRILLE ICE SERV SNAP-IN GEN WR02X8629 Contact Us For Availability
203
FOAM STRIP MULLION GEN WR14X0352 Contact Us For Availability
204
BRACKET MULLION RH GEN WR02X7822 Contact Us For Availability
204
BRACKET MULLION LH GEN WR02X7823 Contact Us For Availability
205
SHELF ASM FZ GEN WR71X2312 Contact Us For Availability
206
SHELF FREEZER GEN WR71X2317 Contact Us For Availability
207
PLENUM GEN WR17X2990 Contact Us For Availability
208
TRIM SHELF GEN WR38X2107 Contact Us For Availability
210
GROMMET FZ SHELF GEN WR02X6261 Contact Us For Availability
211
SUPPORT SHELF GEN WR02X7973 Contact Us For Availability
212
SHELF ICE TRAY GEN WR30X0300 Contact Us For Availability
215
BUCKET EGG ASSY GEN WR32X1435 Contact Us For Availability
219
HEATER MULLION GEN WR51X0356 Contact Us For Availability
226
FUNNEL DRAIN GEN WR02X7640 Contact Us For Availability
232
TRACK SHELF FF R/L GEN WR72X0096 Contact Us For Availability
233
SPACER TRACK GEN WR02X7018 Contact Us For Availability
233
TRACK CENTER FF GEN WR72X0097 Contact Us For Availability
235
TRIM SHELF GEN WR38X2100 Contact Us For Availability
236
PAN MEAT GEN WR32X1022 Contact Us For Availability
237
RAIL VEG PAN REAR GEN WR17X3161 Contact Us For Availability
237
RAIL VEG PAN FRONT GEN WR17X3288 Contact Us For Availability
238
SLIDE ASSY CONTROL VP GEN WR17X3905 Contact Us For Availability
239
SLIDE VEG PAN R/S GEN WR17X2769 Contact Us For Availability
239
SLIDE VEG PAN SIDE GEN WR17X2770 Contact Us For Availability
239
SLIDE COVER CENTER GEN WR17X2768 Contact Us For Availability
239
GASKET SLIDE CTR VP GEN WR14X0366 Contact Us For Availability
239
GASKET VEG PAN SLIDE GEN WR14X0384 Contact Us For Availability
240
PAN 1/2 GEN WR32X1141 Contact Us For Availability
241
GASKET CVR PAN FRONT GEN WR14X0358 Contact Us For Availability
241
TRIM FRAME VP GEN WR17X3193 Contact Us For Availability
242
SHELF CANT GLASS GEN WR32X1187 Contact Us For Availability
244
HANDLE PAN MT GEN WR38X2105 Contact Us For Availability
246
HANDLE VEG PAN GEN WR38X2106 Contact Us For Availability
249
SUPPORT TWIST VP CVR GEN WR02X8695 Contact Us For Availability
250
SHROUD ASM GEN WR17X2843 Contact Us For Availability
253
LEVER GEN WR02X8446 Contact Us For Availability
256
SWITCH POWER SAVER GEN WR23X0309 Contact Us For Availability
260
GROMMET WTR FILL GEN WR02X7773 Contact Us For Availability
261
TUBE WATER FILL GEN WR02X6087 Contact Us For Availability
262
HANDLE I B GEN WR17X3908 Contact Us For Availability
263
GASKET CVR PAN REAR GEN WR14X0398 Contact Us For Availability
265
AXLE WHEEL REAR GEN WR01X1774 Contact Us For Availability
266
BUCKET ICE CL GEN WR30X0273 Contact Us For Availability
267
COVER ACCESS ASM GEN WR82X0320 Contact Us For Availability
268
SCREW MOBILITY GEN WR01X1816 Contact Us For Availability
269
KEY PIVOT GEN WR01X1803 Contact Us For Availability
275
HINGE TOP ASM GEN WR13X0626 Contact Us For Availability
276
HINGE CENTER ASM WH GEN WR13X0714 Contact Us For Availability
277
RAIL REAR GEN WR17X3744 Contact Us For Availability
278
MOBILITY FRONT ASM GEN WR02X8842 Contact Us For Availability
279
PIN HINGE CTR GEN WR13X0587 Contact Us For Availability
280
CAP CORNER O.C. WH GEN WR02X7656 Contact Us For Availability
282
HINGE BTM ASM WH GEN WR13X0648 Contact Us For Availability
286
LEVELING NUT GEN WR01X1815 Contact Us For Availability
287
GUSSET GEN WR02X9168 Contact Us For Availability
288
CLIP BASE GRILLE GEN WR02X7646 Contact Us For Availability
288
GRILLE BASE ASM WH GEN WR74X0219 Contact Us For Availability
290
MAGNET PAD GEN WR02X8376 Contact Us For Availability
294
SHIELD LIGHT FZ GEN WR02X9010 Contact Us For Availability
295
RECEPTACLE ICEMAKER GEN WR23X0315 Contact Us For Availability
296
COVER PLUG I M GEN WR02X8444 Contact Us For Availability
300
CONTROL TEMP GEN WR09X0559 Contact Us For Availability
301
SHIM HINGE TOP FZ GEN WR02X8692 Contact Us For Availability
304
NOZZLE FOAM GEN WR02X8363 Contact Us For Availability
304
SHAFT KNOB DAMPER GEN WR02X9303 Contact Us For Availability
306
PLUG BUTTON GEN WR02X7652 Contact Us For Availability
306
INSUL ELECT GEN WR02X7669 Contact Us For Availability
306
HOUSING CONTROL GEN WR17X3196 Contact Us For Availability
308
BRACKET CONTROL HSG GEN WR02X7768 Contact Us For Availability
314
CLAMP TUBE GEN WR02X8503 Contact Us For Availability
315
GROMMET DRAIN & TUBE GEN WR02X8504 Contact Us For Availability
323
BRKT CONTROL BACK GEN WR02X7767 Contact Us For Availability
404
SHELF CANT FF ENCAP GEN WR32X1484 Contact Us For Availability
405
GASKET MEAT PAN GEN WR14X0471 Contact Us For Availability
409
DECAL MEAT PAN GEN WR02X8454 Contact Us For Availability
429
SCREW 1/4-14 3/8 B HXW GEN WH02X0795 Contact Us For Availability
434
SOCKET LAMP GEN WR02X8005 Contact Us For Availability
435
SOCKET ASM WH GEN WR02X8202 Contact Us For Availability
440
WINE RACK GEN WR17X3364 Contact Us For Availability
447
COVER HINGE WH GEN WR02X8478 Contact Us For Availability
473
SLIDE M PAN RH WH GEN WR72X0124 Contact Us For Availability
473
SLIDE M PAN LH WH GEN WR72X0165 Contact Us For Availability
476
LID DISH SNACK SM GEN WR02X8537 Contact Us For Availability
477
DISH SNACK TRAY GEN WR17X3328 Contact Us For Availability
478
MODULE QUICK SERVE GEN WR71X2329 Contact Us For Availability
525
SCR 8-18 T WAFER 5/8 GEN WR01X1763 Contact Us For Availability
551
SCREW-FRONT GEN WZ04X0244 Contact Us For Availability
603
LINER BOTTOM FZ GEN WR17X2234 Contact Us For Availability
604
INSUL DIVIDER GEN WR17X3495 Contact Us For Availability
606
FRONT LINER FZ GEN WR17X2401 Contact Us For Availability
608
LINER TOP FF GEN WR17X2796 Contact Us For Availability
610
MOTOR EVAP FAN GEN WR60X0190 Contact Us For Availability
611
BRACKET EVAP FAN GEN WR02X7664 Contact Us For Availability
615
GROMMET EVAP FAN GEN WR02X7391 Contact Us For Availability
621
CONNECTOR W/LEAD GEN WR02X4495 Contact Us For Availability
622
GASKET TROUGH GEN WR14X0348 Contact Us For Availability
624
COVER FF SUPPLY GEN WR17X3910 Contact Us For Availability
641
HEAT SHIELD GEN WR02X8816 Contact Us For Availability
651
WASHER,CUSION GEN WR01X1714 Contact Us For Availability
651
NUT GEN WR01X1715 Contact Us For Availability
651
BLADE COND FAN ASM GEN WR60X0212 Contact Us For Availability
679
SCREW BRKT. EVAP. FAN GEN WZ06X0133 Contact Us For Availability
683
SCREW COND HSG GEN WR01X1825 Contact Us For Availability
691
SCREW 12-24 GEN WR01X1753 Contact Us For Availability
692
SCR 8-18 AB HXW 3/4 GEN WZ04X0416 Contact Us For Availability
726
LOW SIDE ASM GEN WR85X0310 Contact Us For Availability
730
21/22 COND KIT DL M MTG GEN WR84X0202 Contact Us For Availability
734
CLAMP COVER GEN WR02X7226 Contact Us For Availability
734
COVER GEN WR02X7834 Contact Us For Availability
736
CLIP COMPRESSOR MOUNT GEN WR02X8203 Contact Us For Availability
737
GROMMET COMP MTG GEN WR02X7238 Contact Us For Availability
744
CLIP COND (DL) GEN WR02X9209 Contact Us For Availability
751
UNIMOUNT HS GEN WR17X3759 Contact Us For Availability
752
INSUL DIVIDER GEN WR17X3858 Contact Us For Availability
754
BAFFLE ASSY LH GEN WR17X3770 Contact Us For Availability
755
BAFFLE ASSY RH GEN WR17X2227 Contact Us For Availability
756
COND FAN HSG LEGS GEN WR17X3760 Contact Us For Availability
762
COND TOP BAFFLE FOAM GEN WR14X0313 Contact Us For Availability
764
CLIP COND UPPER GEN WR02X9208 Contact Us For Availability
766
CLIP DRAIN PAN GEN WR02X9206 Contact Us For Availability
767
CLIP COND GEN WR02X9207 Contact Us For Availability
830
POP RIVET GEN WR01X1841 Contact Us For Availability
830
COVER SUCT LINE GEN WR17X3056 Contact Us For Availability
830
FOAM PLUG S.L. GEN WR82X0360 Contact Us For Availability
900
DOOR FOAM ASSY FZ DP GEN WR78X8741 Contact Us For Availability
910
DOOR ASSY FF WHITE GEN WR78X8740 Contact Us For Availability
921
PLUG BUTTON WH GEN WR02X7624 Contact Us For Availability
× ![]()
