Model GE TBX19PAXHRBB Refrigerator – Common Parts & Diagrams
CABINET PARTS
COMPARTMENT SEPARATOR PARTS

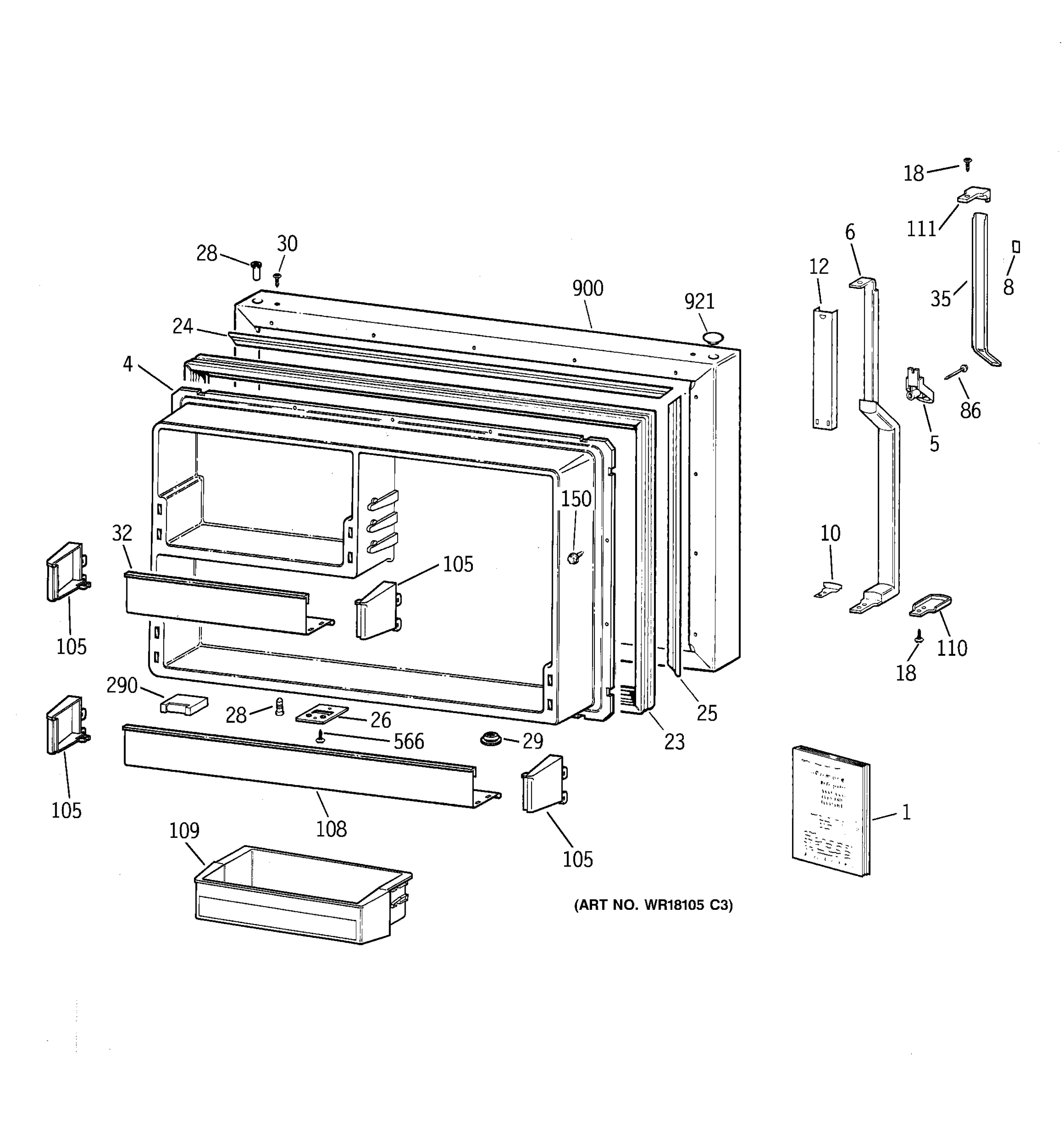

FREEZER DOOR

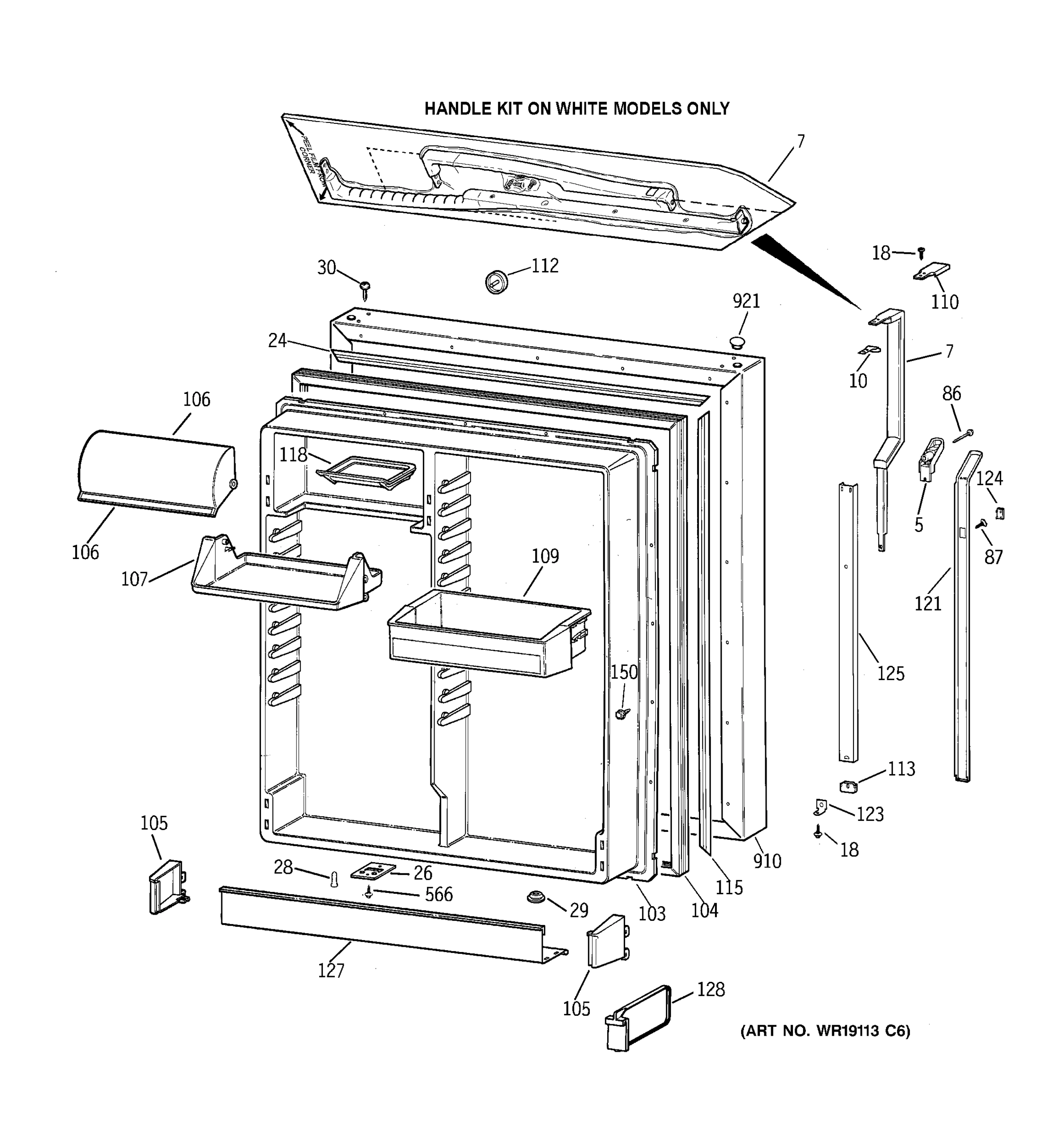

FRESH FOOD DOOR

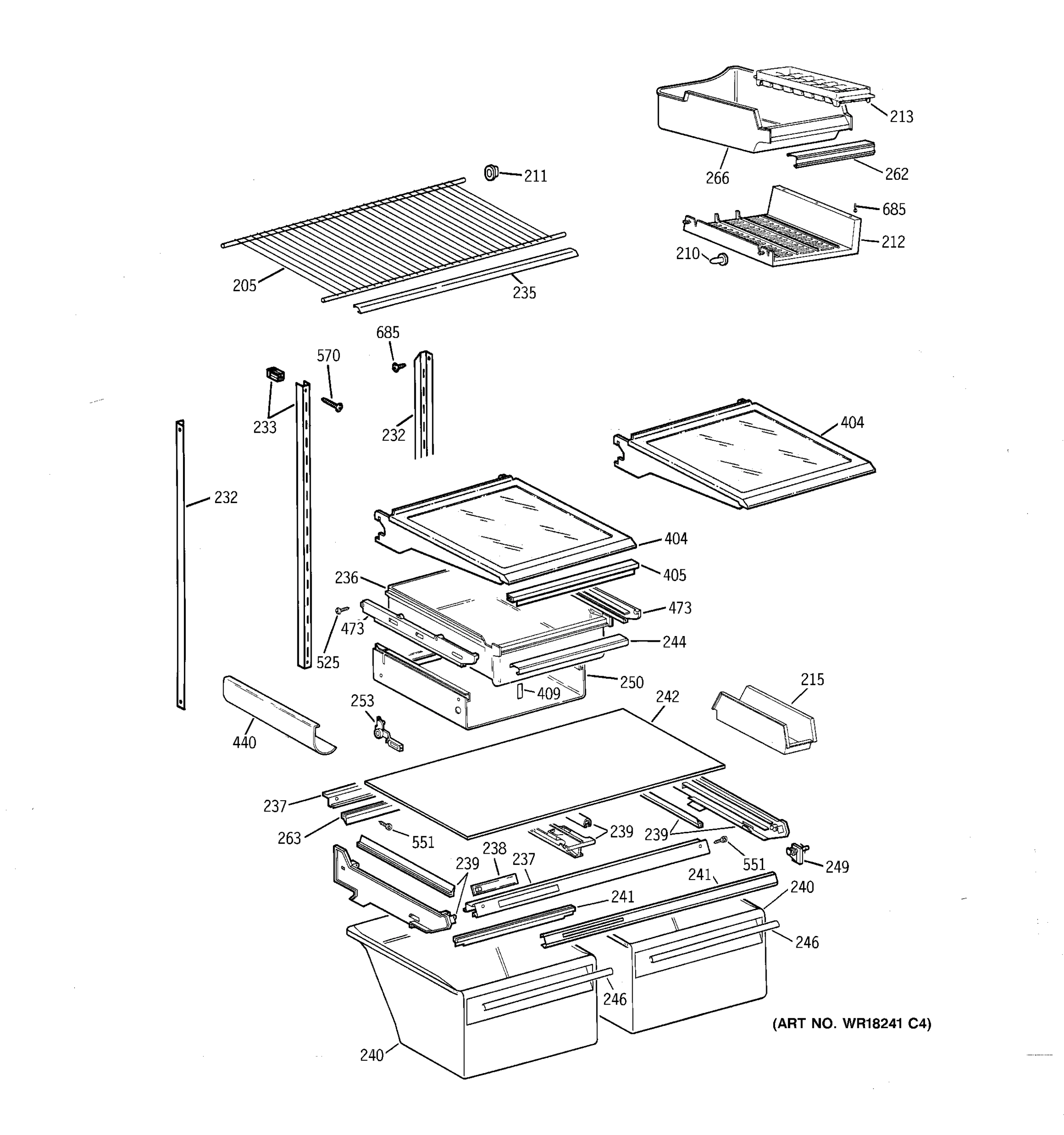

SHELF PARTS

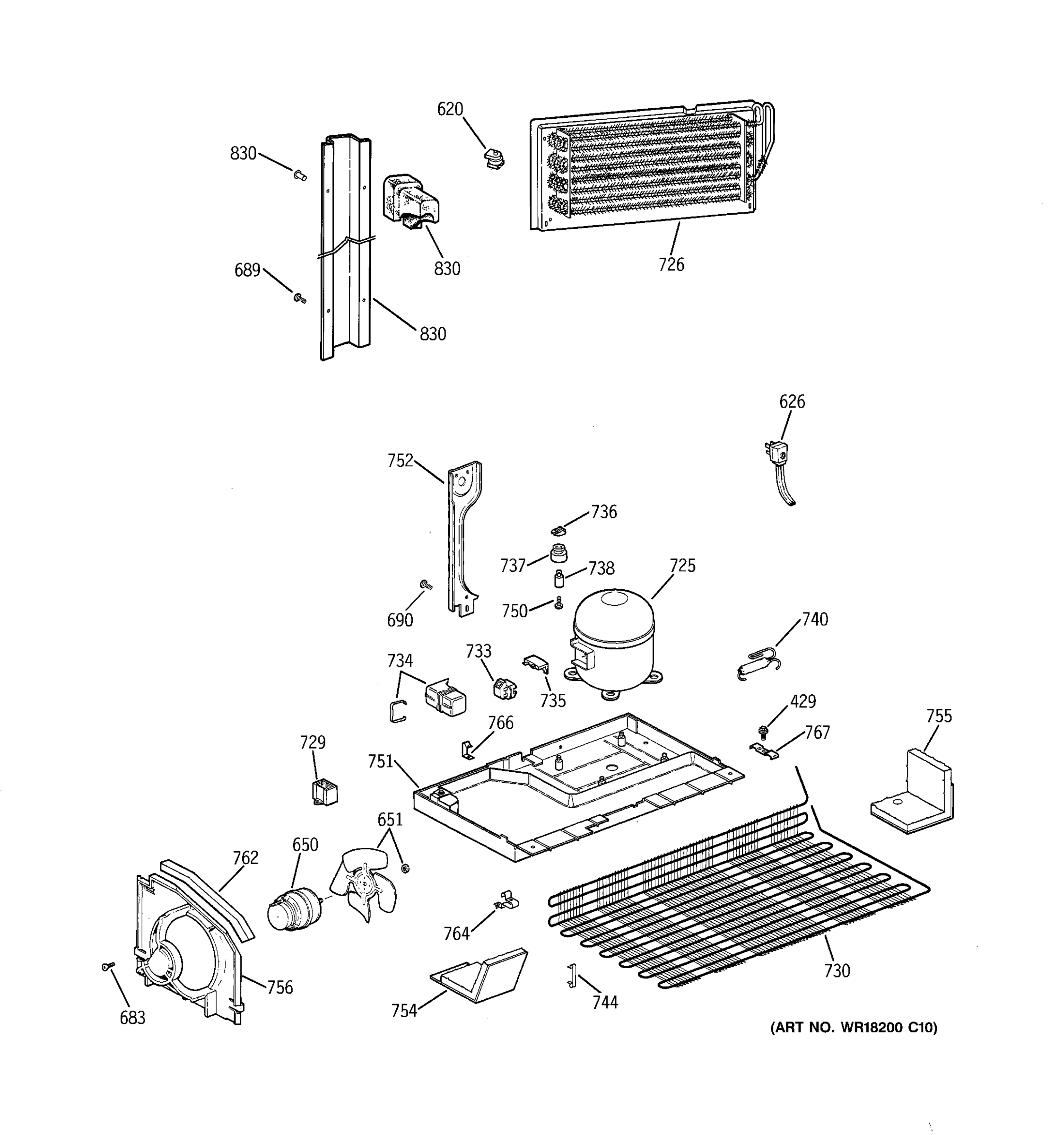

UNIT PARTS
Common parts from model GE TBX19PAXHRBB Refrigerator
1
GEN 31-51047 GEN 31-51047 Contact Us For Availability
1
GEN 49-6483 GEN 49-6483 Contact Us For Availability
1
GEN 49-6802 GEN 49-6802 Contact Us For Availability
4
GEN WR77X0613 GEN WR77X0613 Contact Us For Availability
5
GEN WR02X8714 GEN WR02X8714 Contact Us For Availability
6
HANDLE FZ BK GEN WR12X0892 Contact Us For Availability
7
GEN WR12X0893 GEN WR12X0893 Contact Us For Availability
8
GEN WR04X0214 GEN WR04X0214 Contact Us For Availability
10
GEN WR02X8002 GEN WR02X8002 Contact Us For Availability
12
GEN WR12X0915 GEN WR12X0915 Contact Us For Availability
23
GEN WR24X0539 GEN WR24X0539 Contact Us For Availability
24
GEN WR17X2279 GEN WR17X2279 Contact Us For Availability
25
GEN WR17X2281 GEN WR17X2281 Contact Us For Availability
26
GEN WR02X7681 GEN WR02X7681 Contact Us For Availability
28
GEN WR02X8543 GEN WR02X8543 Contact Us For Availability
29
GEN WR02X8542 GEN WR02X8542 Contact Us For Availability
30
GEN WR01X1823 GEN WR01X1823 Contact Us For Availability
32
GEN WR71X2568 GEN WR71X2568 Contact Us For Availability
35
GEN WR12X0911 GEN WR12X0911 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
103
GEN WR77X0614 GEN WR77X0614 Contact Us For Availability
104
GEN WR24X0540 GEN WR24X0540 Contact Us For Availability
105
GEN WR02X8699 GEN WR02X8699 Contact Us For Availability
105
GEN WR02X8700 GEN WR02X8700 Contact Us For Availability
106
GEN WR22X0519 GEN WR22X0519 Contact Us For Availability
106
GEN WR38X1986 GEN WR38X1986 Contact Us For Availability
107
GEN WR22X0474 GEN WR22X0474 Contact Us For Availability
108
GEN WR71X2569 GEN WR71X2569 Contact Us For Availability
109
GEN WR71X2566 GEN WR71X2566 Contact Us For Availability
110
GEN WR02X8210 GEN WR02X8210 Contact Us For Availability
111
GEN WR02X7979 GEN WR02X7979 Contact Us For Availability
113
GEN WR02X7980 GEN WR02X7980 Contact Us For Availability
115
GEN WR17X2280 GEN WR17X2280 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
121
GEN WR12X0908 GEN WR12X0908 Contact Us For Availability
123
GEN WR02X8009 GEN WR02X8009 Contact Us For Availability
124
GEN WR12X0564 GEN WR12X0564 Contact Us For Availability
125
GEN WR12X0914 GEN WR12X0914 Contact Us For Availability
127
GEN WR71X2567 GEN WR71X2567 Contact Us For Availability
128
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
197
GEN WR02X8378 GEN WR02X8378 Contact Us For Availability
205
GEN WR71X1955 GEN WR71X1955 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
212
GEN WR30X0300 GEN WR30X0300 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
232
GEN WR72X0096 GEN WR72X0096 Contact Us For Availability
233
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR38X2082 GEN WR38X2082 Contact Us For Availability
236
GEN WR32X1073 GEN WR32X1073 Contact Us For Availability
237
GEN WR17X2779 GEN WR17X2779 Contact Us For Availability
237
GEN WR17X3182 GEN WR17X3182 Contact Us For Availability
238
GEN WR17X3905 GEN WR17X3905 Contact Us For Availability
239
GEN WR17X2769 GEN WR17X2769 Contact Us For Availability
239
GEN WR17X2770 GEN WR17X2770 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
239
GEN WR14X0366 GEN WR14X0366 Contact Us For Availability
239
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
240
GEN WR32X1132 GEN WR32X1132 Contact Us For Availability
241
GEN WR14X0371 GEN WR14X0371 Contact Us For Availability
241
GEN WR17X3192 GEN WR17X3192 Contact Us For Availability
242
GEN WR32X1472 GEN WR32X1472 Contact Us For Availability
244
GEN WR17X3906 GEN WR17X3906 Contact Us For Availability
246
GEN WR17X3907 GEN WR17X3907 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
250
GEN WR17X2844 GEN WR17X2844 Contact Us For Availability
253
GEN WR02X8446 GEN WR02X8446 Contact Us For Availability
256
GEN WR23X0309 GEN WR23X0309 Contact Us For Availability
261
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
262
GEN WR17X3908 GEN WR17X3908 Contact Us For Availability
263
GEN WR14X0399 GEN WR14X0399 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
266
GEN WR30X0273 GEN WR30X0273 Contact Us For Availability
267
GEN WR82X0321 GEN WR82X0321 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
275
HINGE TOP ASM GEN WR13X0626 Contact Us For Availability
276
GEN WR13X0726 GEN WR13X0726 Contact Us For Availability
277
GEN WR17X3743 GEN WR17X3743 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0587 GEN WR13X0587 Contact Us For Availability
280
GEN WR02X8539 GEN WR02X8539 Contact Us For Availability
282
GEN WR13X0651 GEN WR13X0651 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
288
GRILLE BASE ASM BK GEN WR74X0203 Contact Us For Availability
290
GEN WR02X8376 GEN WR02X8376 Contact Us For Availability
294
GEN WR02X9010 GEN WR02X9010 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X8444 GEN WR02X8444 Contact Us For Availability
300
GEN WR09X0559 GEN WR09X0559 Contact Us For Availability
301
GEN WR02X8692 GEN WR02X8692 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
304
GEN WR02X9298 GEN WR02X9298 Contact Us For Availability
306
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
306
GEN WR02X7669 GEN WR02X7669 Contact Us For Availability
306
GEN WR17X3196 GEN WR17X3196 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GROMMET&TUBE DRAIN GEN WR02X8504 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
404
GEN WR32X1471 GEN WR32X1471 Contact Us For Availability
405
GEN WR14X0468 GEN WR14X0468 Contact Us For Availability
409
GEN WR02X8454 GEN WR02X8454 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
435
GEN WR02X8202 GEN WR02X8202 Contact Us For Availability
440
GEN WR17X3364 GEN WR17X3364 Contact Us For Availability
447
GEN WR02X8540 GEN WR02X8540 Contact Us For Availability
473
GEN WR72X0124 GEN WR72X0124 Contact Us For Availability
473
SLIDE M PAN LH WH GEN WR72X0165 Contact Us For Availability
525
SCREW GEN WR01X1763 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
603
LINER BOTTOM FZ GEN WR17X2275 Contact Us For Availability
604
GEN WR17X3494 GEN WR17X3494 Contact Us For Availability
606
GEN WR17X2385 GEN WR17X2385 Contact Us For Availability
608
GEN WR17X2774 GEN WR17X2774 Contact Us For Availability
610
GEN WR60X0190 GEN WR60X0190 Contact Us For Availability
611
GEN WR02X7664 GEN WR02X7664 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
622
GEN WR17X2283 GEN WR17X2283 Contact Us For Availability
622
GEN WR14X0357 GEN WR14X0357 Contact Us For Availability
624
GEN WR17X3883 GEN WR17X3883 Contact Us For Availability
641
GEN WR02X8816 GEN WR02X8816 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
651
GEN WR60X0212 GEN WR60X0212 Contact Us For Availability
679
GEN WZ06X0133 GEN WZ06X0133 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
691
SCREW 12-24 BK GEN WR01X1821 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
693
SCREW 12-24 BK GEN WR01X1822 Contact Us For Availability
726
GEN WR85X0311 GEN WR85X0311 Contact Us For Availability
730
GEN WR84X0201 GEN WR84X0201 Contact Us For Availability
734
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
744
GEN WR02X9209 GEN WR02X9209 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
GEN WR17X3858 GEN WR17X3858 Contact Us For Availability
754
GEN WR17X3771 GEN WR17X3771 Contact Us For Availability
755
GEN WR17X2268 GEN WR17X2268 Contact Us For Availability
756
GEN WR17X3760 GEN WR17X3760 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
830
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
900
GEN WR78X8733 GEN WR78X8733 Contact Us For Availability
910
DOOR FOAM ASM FF DP GEN WR78X8732 Contact Us For Availability
921
GEN WR02X8541 GEN WR02X8541 Contact Us For Availability
× ![]()
