Model GE TBT24JAXFRWW Refrigerator – Common Parts & Diagrams
CABINET PARTS
COMPARTMENT SEPARATOR PARTS

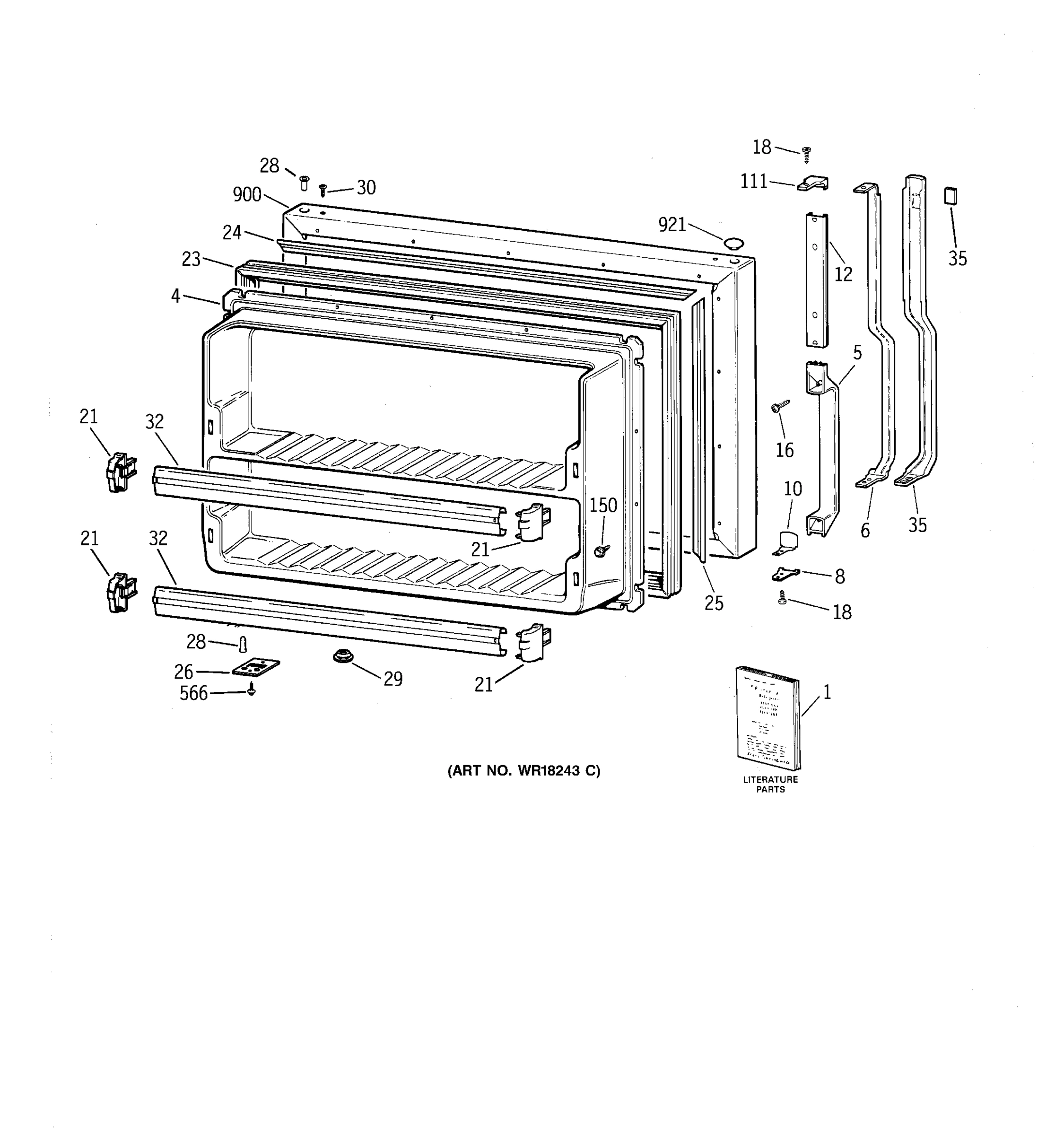

FREEZER DOOR

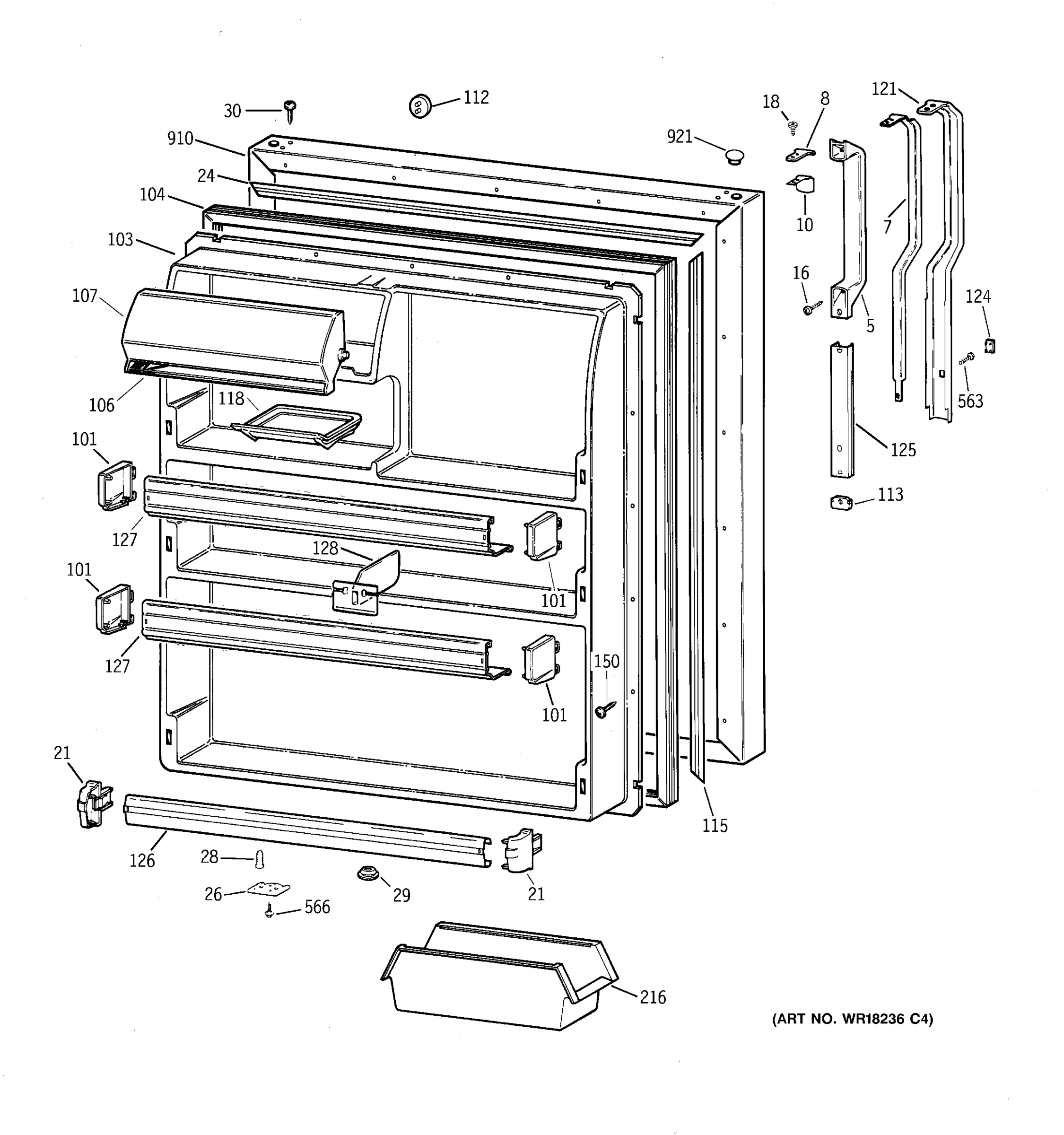

FRESH FOOD DOOR

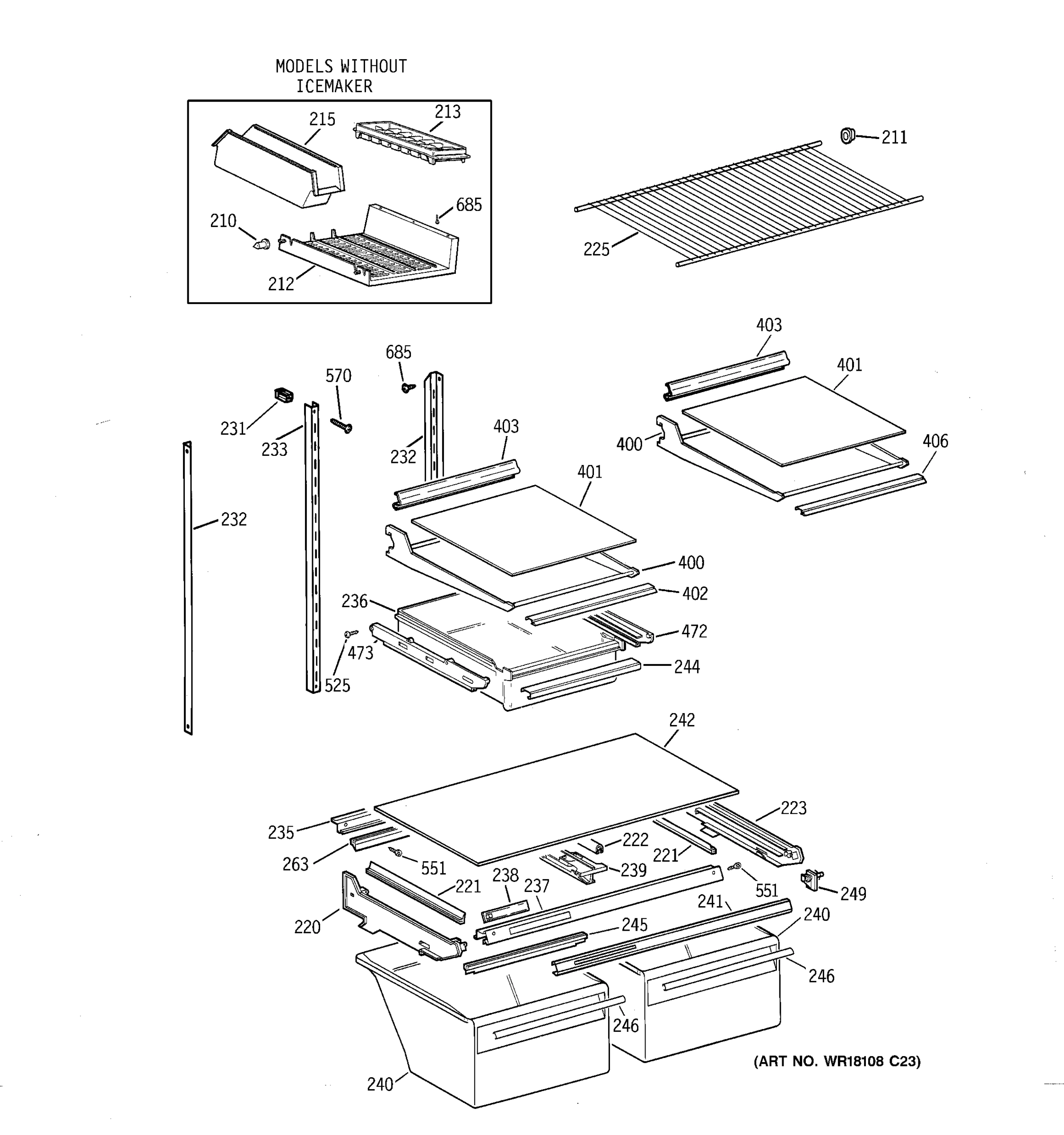

SHELF PARTS

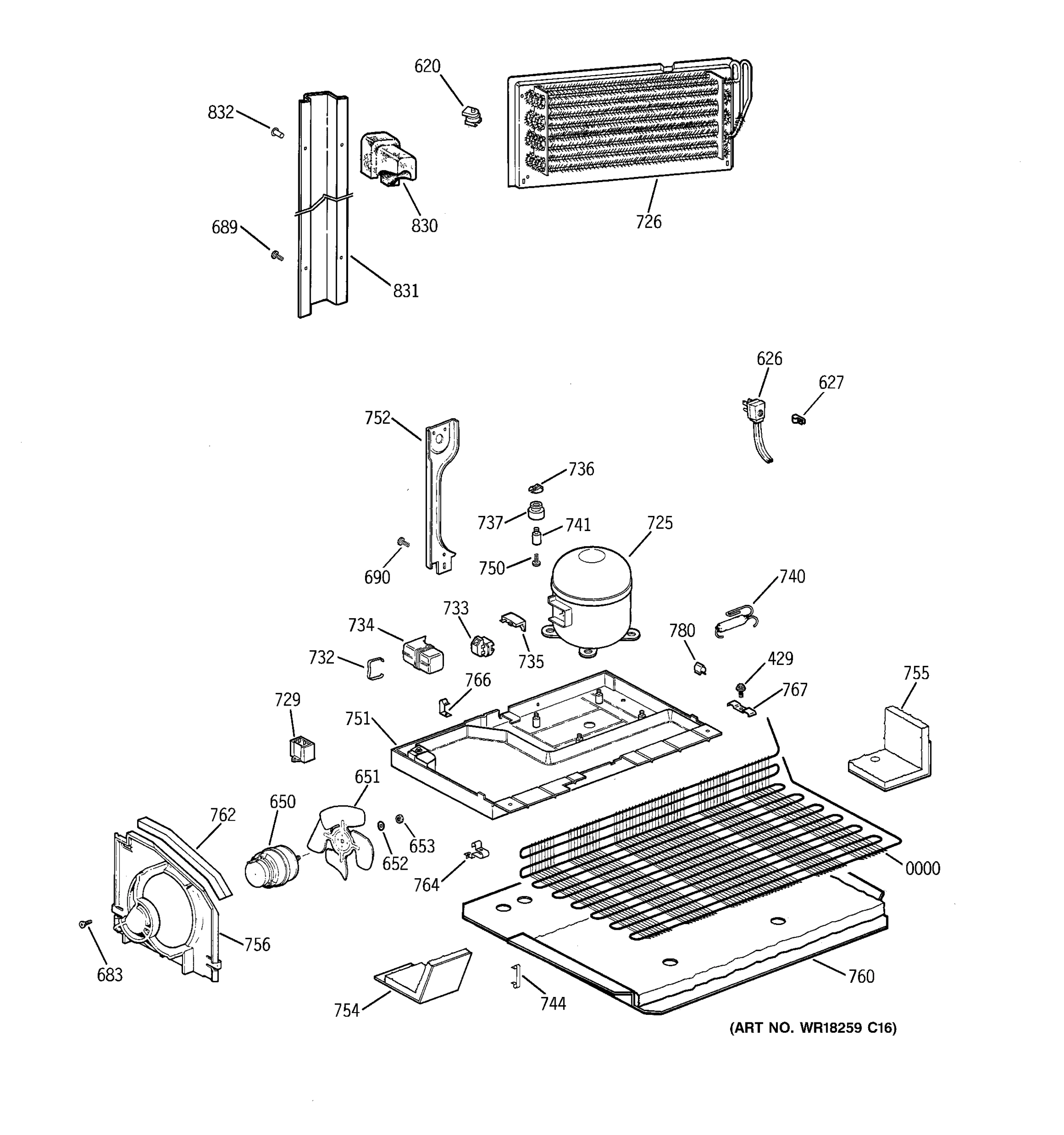

UNIT PARTS
Common parts from model GE TBT24JAXFRWW Refrigerator
1
GEN 31-45502 GEN 31-45502 Contact Us For Availability
1
GEN 49-6828 GEN 49-6828 Contact Us For Availability
4
GEN WR77X0608 GEN WR77X0608 Contact Us For Availability
5
GEN WR12X0553 GEN WR12X0553 Contact Us For Availability
6
GEN WR12X0554 GEN WR12X0554 Contact Us For Availability
7
GEN WR12X0598 GEN WR12X0598 Contact Us For Availability
8
GEN WR02X8089 GEN WR02X8089 Contact Us For Availability
10
GEN WR02X7613 GEN WR02X7613 Contact Us For Availability
16
GEN WR01X1724 GEN WR01X1724 Contact Us For Availability
23
GASKET DOOR FZ WH GEN WR24X0438 Contact Us For Availability
24
GEN WR17X2136 GEN WR17X2136 Contact Us For Availability
25
GEN WR17X2135 GEN WR17X2135 Contact Us For Availability
26
GEN WR02X9009 GEN WR02X9009 Contact Us For Availability
28
THIMBLE DOOR WH GEN WR02X7627 Contact Us For Availability
29
GEN WR02X8087 GEN WR02X8087 Contact Us For Availability
30
SCREW GEN WR01X5475 Contact Us For Availability
32
GEN WR71X2593 GEN WR71X2593 Contact Us For Availability
35
GEN WR04X0220 GEN WR04X0220 Contact Us For Availability
35
INSERT/NP HNDL FZ WH GEN WR12X0740 Contact Us For Availability
101
CAP SHELF FRONT L.H. GEN WR02X9295 Contact Us For Availability
101
GEN WR02X9296 GEN WR02X9296 Contact Us For Availability
103
GEN WR77X0607 GEN WR77X0607 Contact Us For Availability
106
GEN WR38X2131 GEN WR38X2131 Contact Us For Availability
107
GEN WR22X0521 GEN WR22X0521 Contact Us For Availability
111
GEN WR02X7610 GEN WR02X7610 Contact Us For Availability
113
GEN WR02X7611 GEN WR02X7611 Contact Us For Availability
115
GEN WR17X2137 GEN WR17X2137 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
121
GEN WR12X0708 GEN WR12X0708 Contact Us For Availability
124
GEN WR12X0721 GEN WR12X0721 Contact Us For Availability
125
GEN WR12X0557 GEN WR12X0557 Contact Us For Availability
126
GEN WR71X2594 GEN WR71X2594 Contact Us For Availability
127
GEN WR71X2592 GEN WR71X2592 Contact Us For Availability
128
GEN WR02X9297 GEN WR02X9297 Contact Us For Availability
197
GEN WR02X8378 GEN WR02X8378 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
212
GEN WR30X0300 GEN WR30X0300 Contact Us For Availability
215
GEN WR32X0897 GEN WR32X0897 Contact Us For Availability
216
GEN WR32X1575 GEN WR32X1575 Contact Us For Availability
219
GEN WR51X0408 GEN WR51X0408 Contact Us For Availability
220
SLIDE VEG PAN LH GEN WR17X2770 Contact Us For Availability
221
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
222
GASKET SLIDE CTR VP GEN WR14X0366 Contact Us For Availability
223
SLIDE VEG PAN RH GEN WR17X2769 Contact Us For Availability
225
GEN WR71X7646 GEN WR71X7646 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
231
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
232
TRACK SHELF FF R/L GEN WR72X0096 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR17X3168 GEN WR17X3168 Contact Us For Availability
236
GEN WR32X1019 GEN WR32X1019 Contact Us For Availability
237
GEN WR17X2766 GEN WR17X2766 Contact Us For Availability
238
GEN WR17X4202 GEN WR17X4202 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
240
GEN WR32X1128 GEN WR32X1128 Contact Us For Availability
241
GEN WR38X2132 GEN WR38X2132 Contact Us For Availability
242
GEN WR32X1491 GEN WR32X1491 Contact Us For Availability
244
GEN WR38X2227 GEN WR38X2227 Contact Us For Availability
245
GEN WR14X0354 GEN WR14X0354 Contact Us For Availability
246
GEN WR38X2130 GEN WR38X2130 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
256
GEN WR23X0309 GEN WR23X0309 Contact Us For Availability
260
GEN WR02X9001 GEN WR02X9001 Contact Us For Availability
261
GEN WR02X9015 GEN WR02X9015 Contact Us For Availability
263
GEN WR14X0397 GEN WR14X0397 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
267
GEN WR82X0369 GEN WR82X0369 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
274
GEN WR13X0717 GEN WR13X0717 Contact Us For Availability
275
HINGE TOP & PIN ASM WH GEN WR13X0715 Contact Us For Availability
276
GEN WR13X0714 GEN WR13X0714 Contact Us For Availability
277
GEN WR17X2165 GEN WR17X2165 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0716 GEN WR13X0716 Contact Us For Availability
280
CAP CORNER O.C. WH GEN WR02X7656 Contact Us For Availability
282
GEN WR13X0648 GEN WR13X0648 Contact Us For Availability
284
GEN WR02X9367 GEN WR02X9367 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR74X0272 GEN WR74X0272 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X8444 GEN WR02X8444 Contact Us For Availability
300
GEN WR09X0558 GEN WR09X0558 Contact Us For Availability
301
GEN WR02X9151 GEN WR02X9151 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
305
GEN WR02X9465 GEN WR02X9465 Contact Us For Availability
306
GEN WR17X3696 GEN WR17X3696 Contact Us For Availability
307
GEN WR02X7669 GEN WR02X7669 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
309
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GROMMET&TUBE DRAIN GEN WR02X8504 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
400
GEN WR71X2172 GEN WR71X2172 Contact Us For Availability
401
GEN WR32X1537 GEN WR32X1537 Contact Us For Availability
402
GEN WR38X2230 GEN WR38X2230 Contact Us For Availability
403
GEN WR38X2228 GEN WR38X2228 Contact Us For Availability
406
GEN WR38X2229 GEN WR38X2229 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
433
GEN WR02X8202 GEN WR02X8202 Contact Us For Availability
472
GEN WR72X0286 GEN WR72X0286 Contact Us For Availability
473
GEN WR72X0288 GEN WR72X0288 Contact Us For Availability
525
SCR 8-18 T WAFER 5/8S GEN WR01X1763 Contact Us For Availability
551
SCR 8-18 RNDW 5/8SS GEN WZ04X0244 Contact Us For Availability
603
GEN WR17X2138 GEN WR17X2138 Contact Us For Availability
604
INSUL DIVIDER GEN WR17X2764 Contact Us For Availability
606
GEN WR17X2380 GEN WR17X2380 Contact Us For Availability
607
GEN WR51X0409 GEN WR51X0409 Contact Us For Availability
608
GEN WR17X2765 GEN WR17X2765 Contact Us For Availability
610
GEN WR60X0253 GEN WR60X0253 Contact Us For Availability
611
GEN WR02X8817 GEN WR02X8817 Contact Us For Availability
613
GEN WR60X0258 GEN WR60X0258 Contact Us For Availability
615
GROMMET EVAP FAN MTR GEN WR02X7391 Contact Us For Availability
617
GEN WR01X2118 GEN WR01X2118 Contact Us For Availability
622
GEN WR17X2160 GEN WR17X2160 Contact Us For Availability
623
GEN WR14X0348 GEN WR14X0348 Contact Us For Availability
624
GEN WR17X3934 GEN WR17X3934 Contact Us For Availability
625
GEN WR17X4059 GEN WR17X4059 Contact Us For Availability
630
GEN WR17X3694 GEN WR17X3694 Contact Us For Availability
631
GEN WR17X3695 GEN WR17X3695 Contact Us For Availability
648
GEN WR09X0566 GEN WR09X0566 Contact Us For Availability
650
GEN WR60X0249 GEN WR60X0249 Contact Us For Availability
651
GEN WR60X0257 GEN WR60X0257 Contact Us For Availability
652
GEN WR01X2117 GEN WR01X2117 Contact Us For Availability
653
NUT COND MTR GEN WR01X1715 Contact Us For Availability
679
GEN WZ06X0133 GEN WZ06X0133 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 NS GEN WR01X1825 Contact Us For Availability
692
SCR 8-18 AB HXW 3/4 S GEN WZ04X0416 Contact Us For Availability
693
SCREW 12-24 WH GEN WR01X2136 Contact Us For Availability
694
GEN WR01X2120 GEN WR01X2120 Contact Us For Availability
725
GEN WR87X0477 GEN WR87X0477 Contact Us For Availability
726
GEN WR85X0313 GEN WR85X0313 Contact Us For Availability
732
CLIP RELAY COVER GEN WR02X7226 Contact Us For Availability
733
PTCR GEN WR07X0253 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0171 GEN WR08X0171 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
744
GEN WR02X9209 GEN WR02X9209 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
GEN WR17X3858 GEN WR17X3858 Contact Us For Availability
754
GEN WR17X0458 GEN WR17X0458 Contact Us For Availability
755
GEN WR17X2416 GEN WR17X2416 Contact Us For Availability
756
GEN WR17X4049 GEN WR17X4049 Contact Us For Availability
760
GEN WR82X0370 GEN WR82X0370 Contact Us For Availability
762
FOAM STRIP SE ADH GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
780
GEN WR02X9501 GEN WR02X9501 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
831
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
832
GEN WR01X1841 GEN WR01X1841 Contact Us For Availability
900
GEN WR78X8753 GEN WR78X8753 Contact Us For Availability
910
GEN WR78X8752 GEN WR78X8752 Contact Us For Availability
921
PLUG BUTTON WH GEN WR02X7624 Contact Us For Availability
32767
GEN WR84X0210 GEN WR84X0210 Contact Us For Availability
× ![]()
