Model Speed Queen SX018BVQA7 Washer – Common Parts & Diagrams

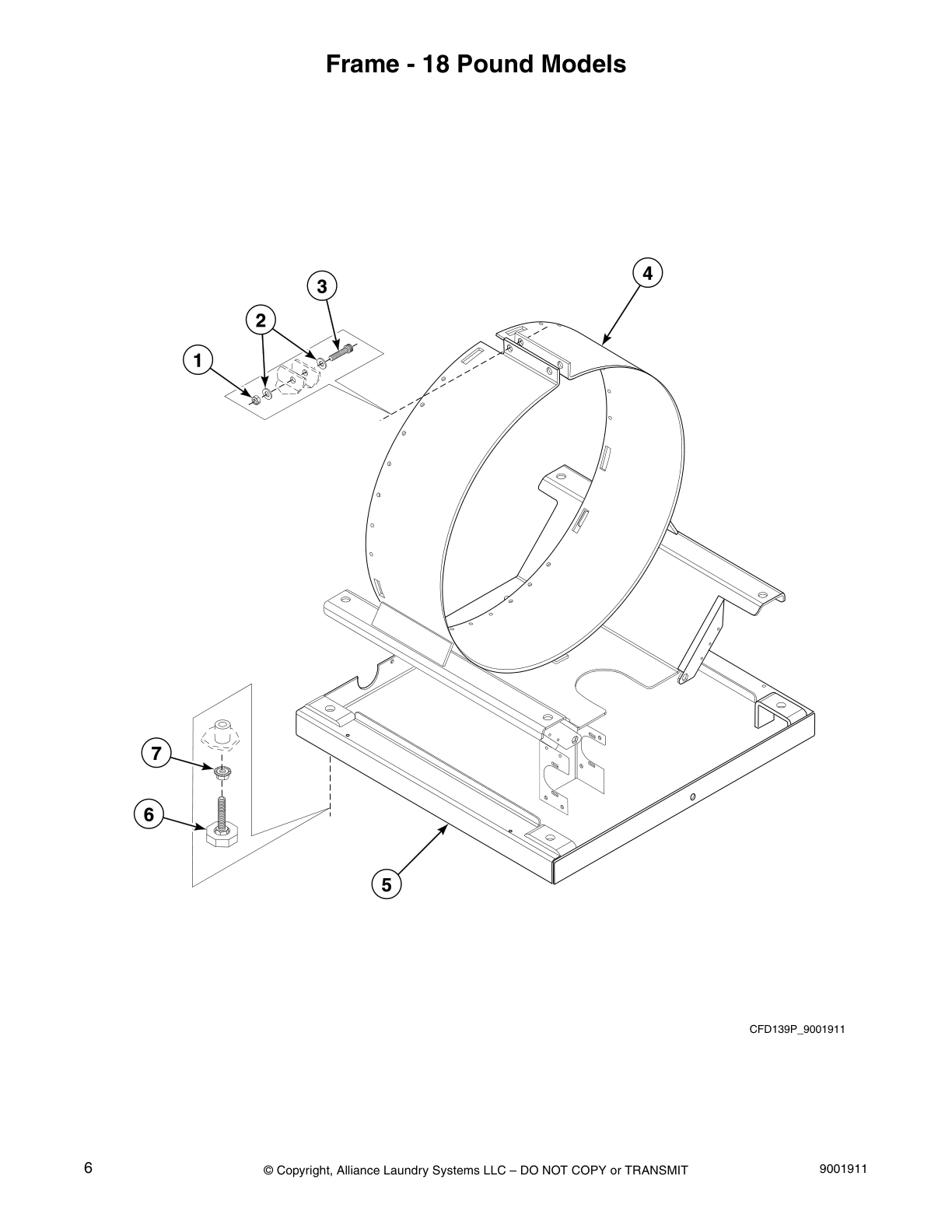

Frame - 18 Pound Models

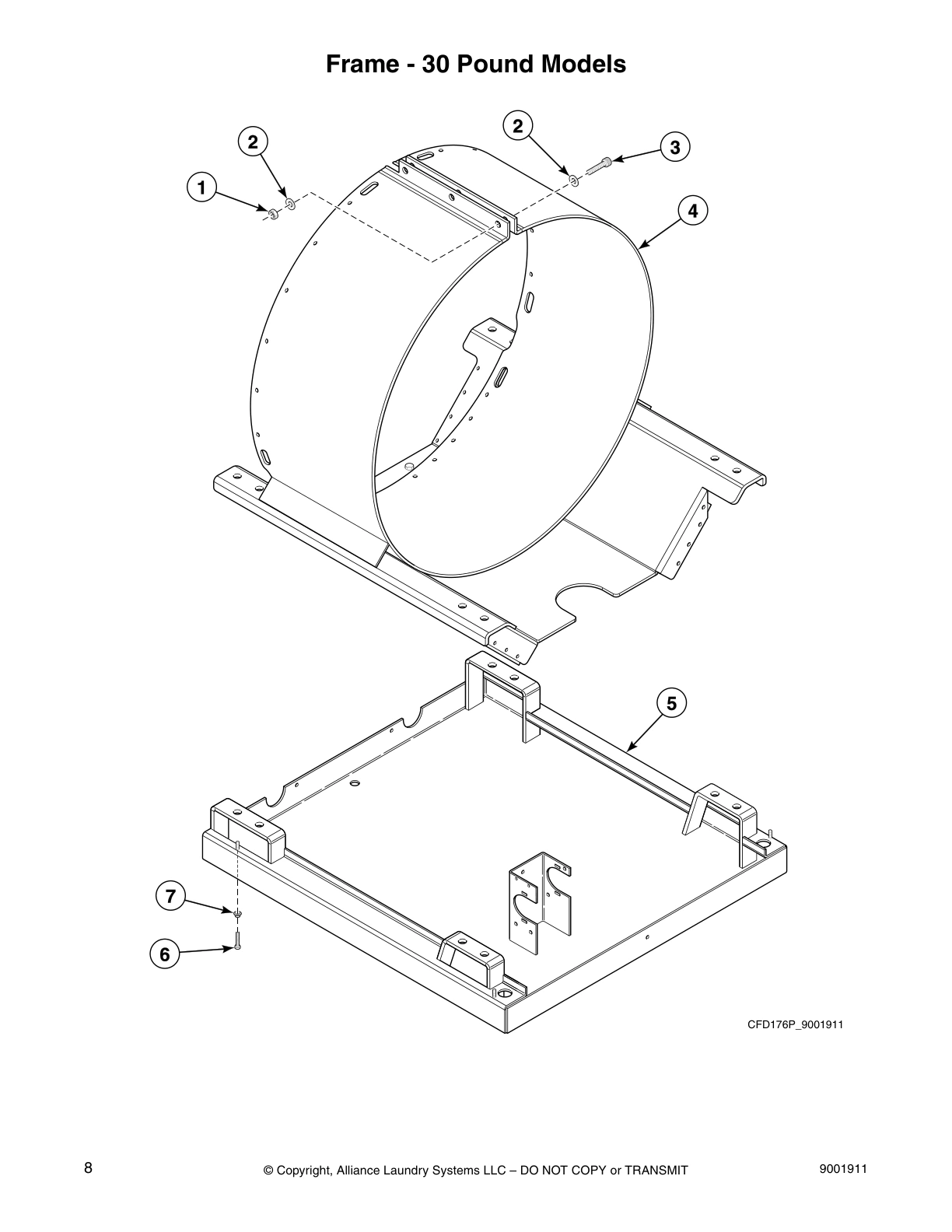

Frame - 30 Pound Models

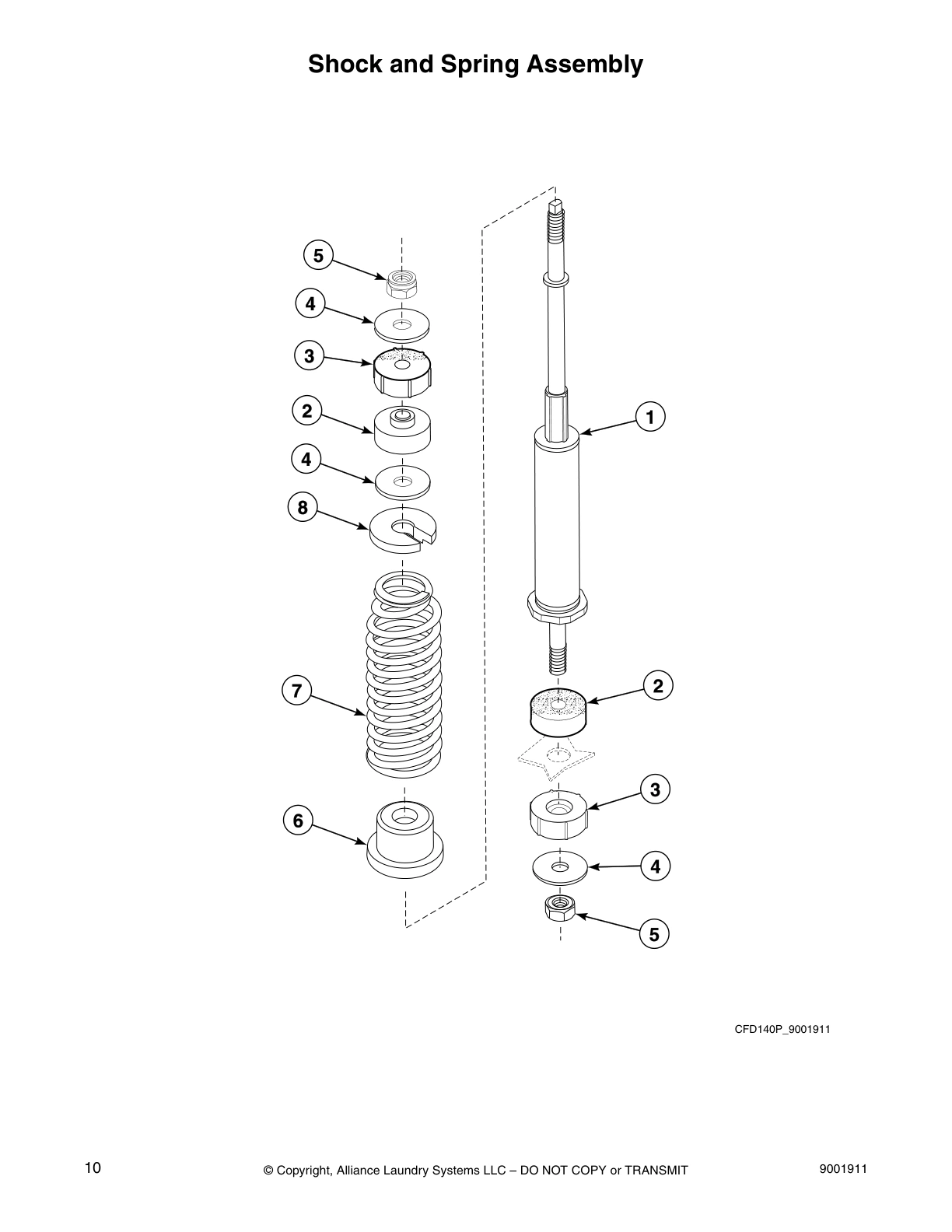

Shock and Spring Assembly

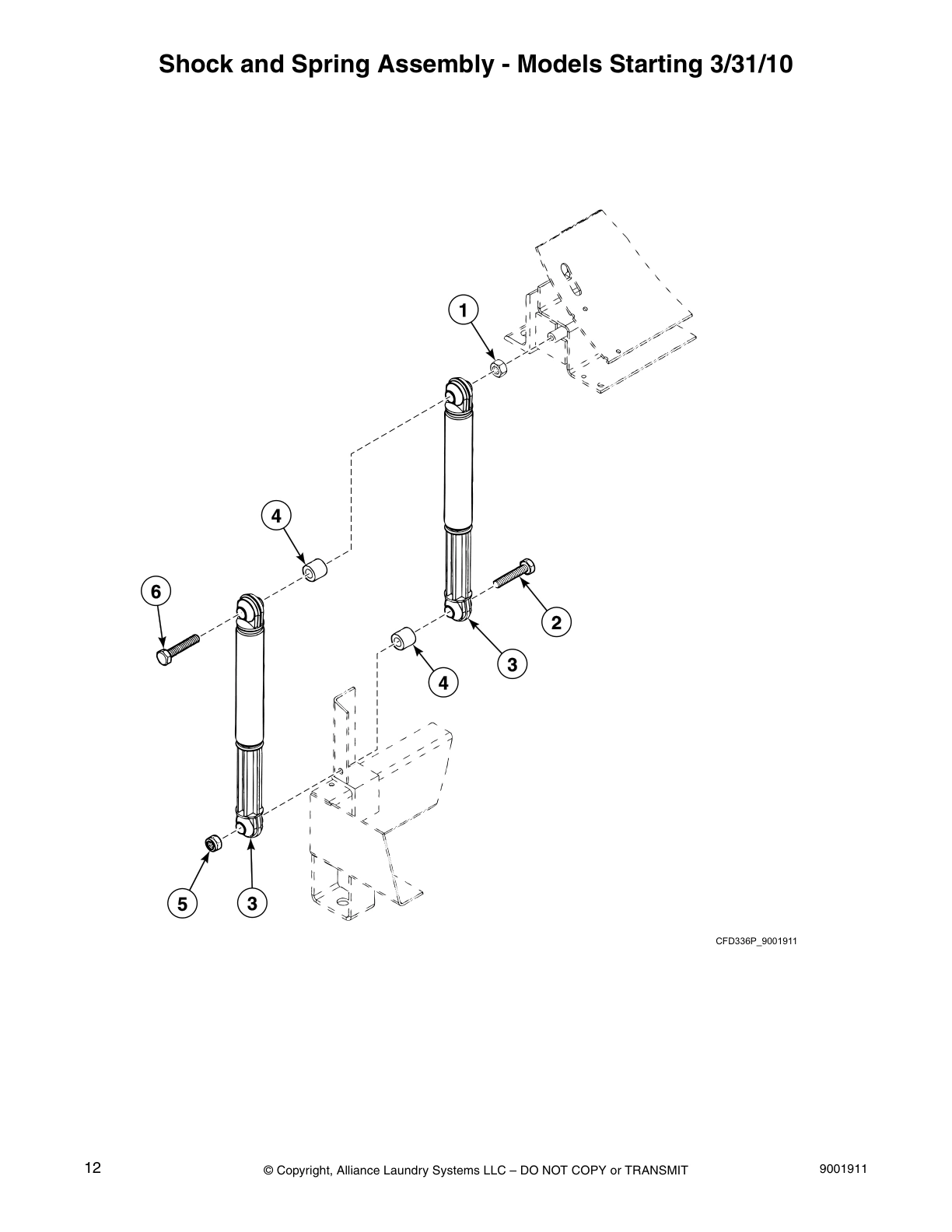

Shock and Spring Assembly - Models Starting 3/31/10

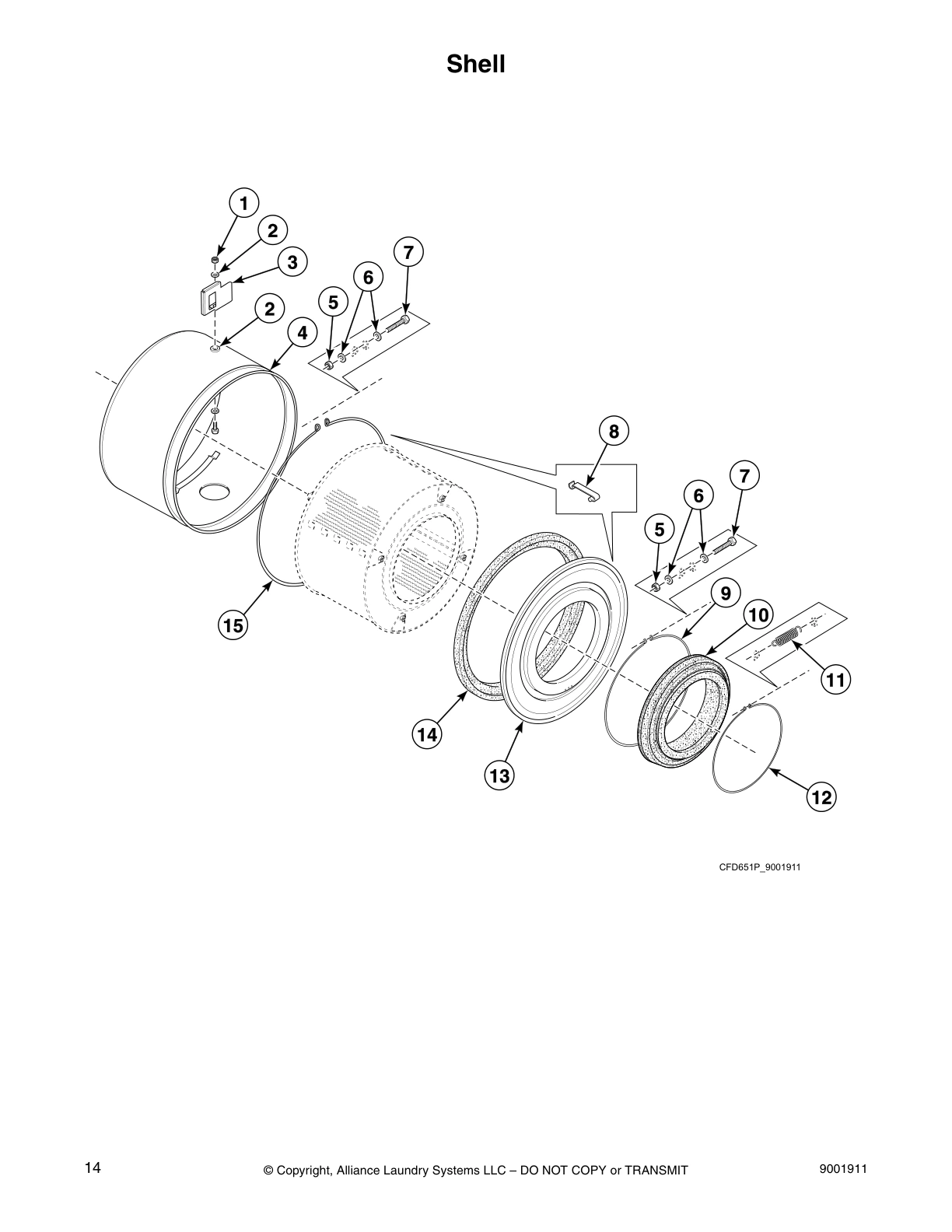

Shell

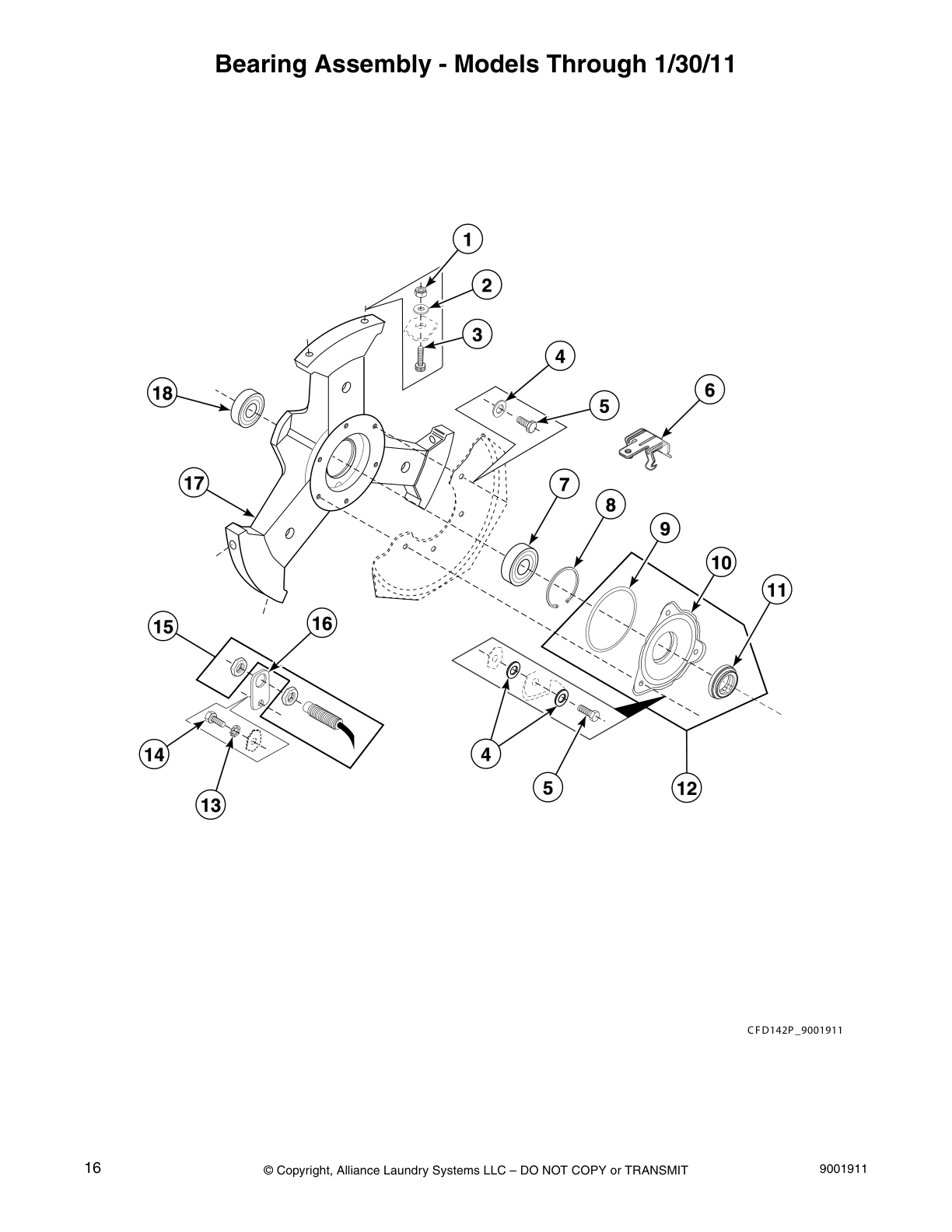

Bearing Assembly - Models Through 1/30/11

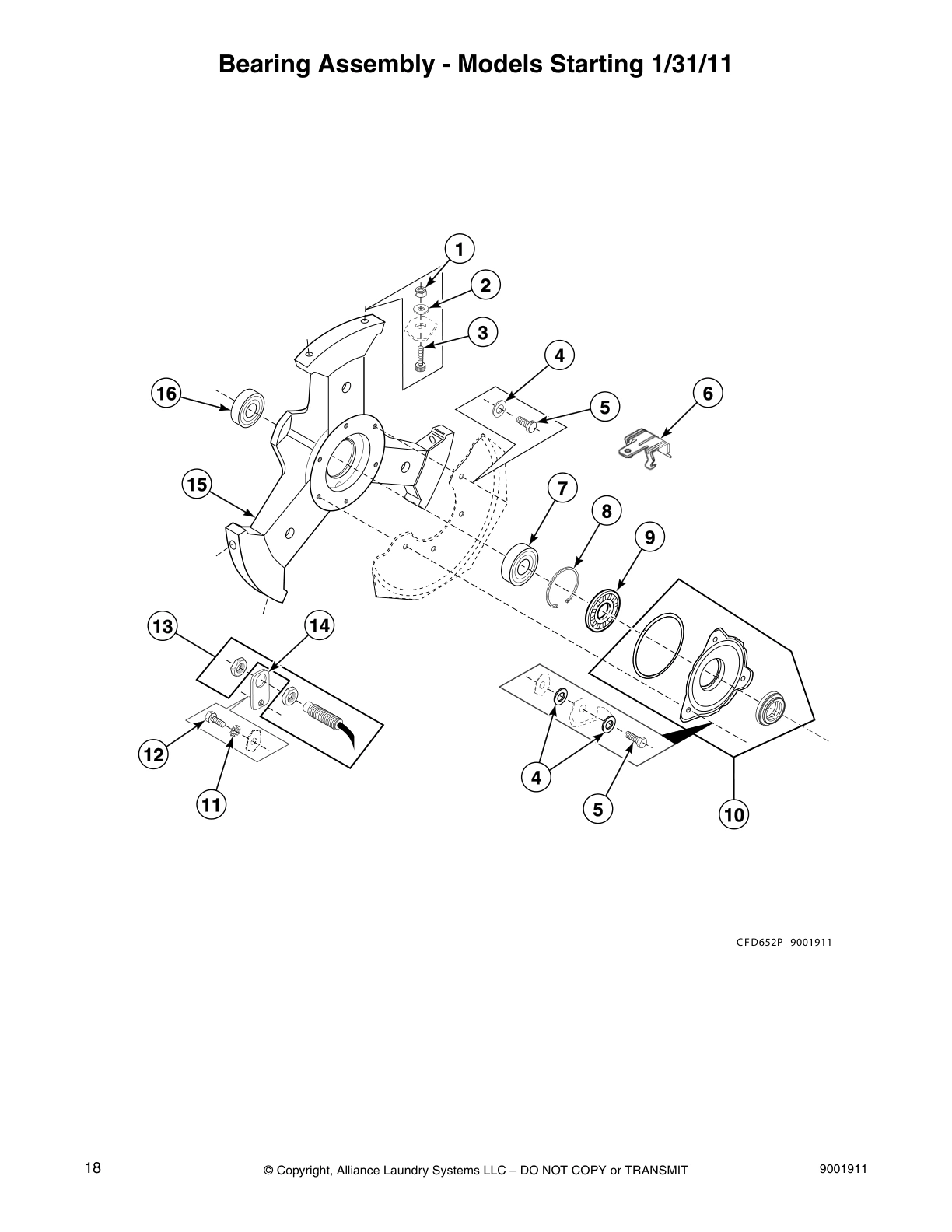

Bearing Assembly - Models Starting 1/31/11

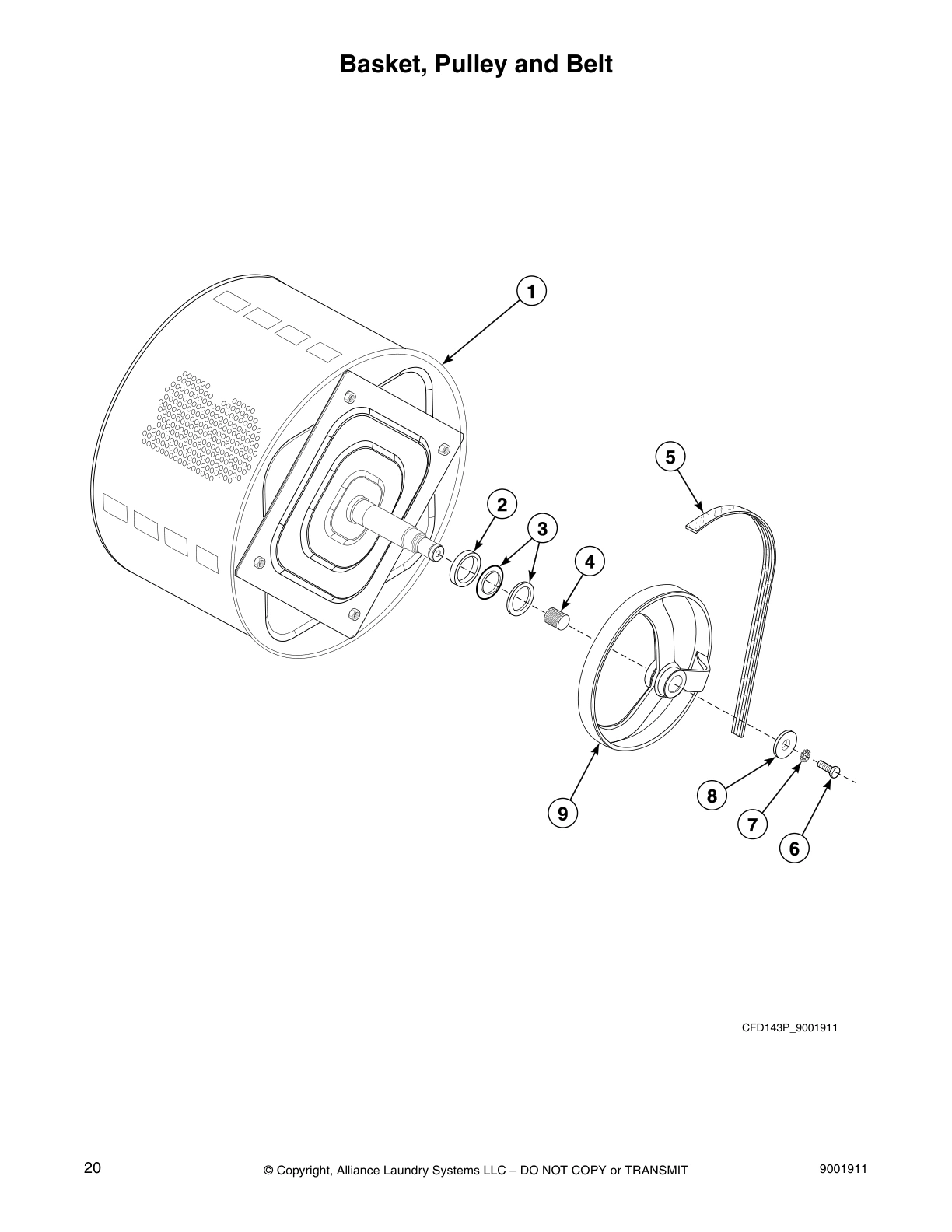

Basket, Pulley and Belt

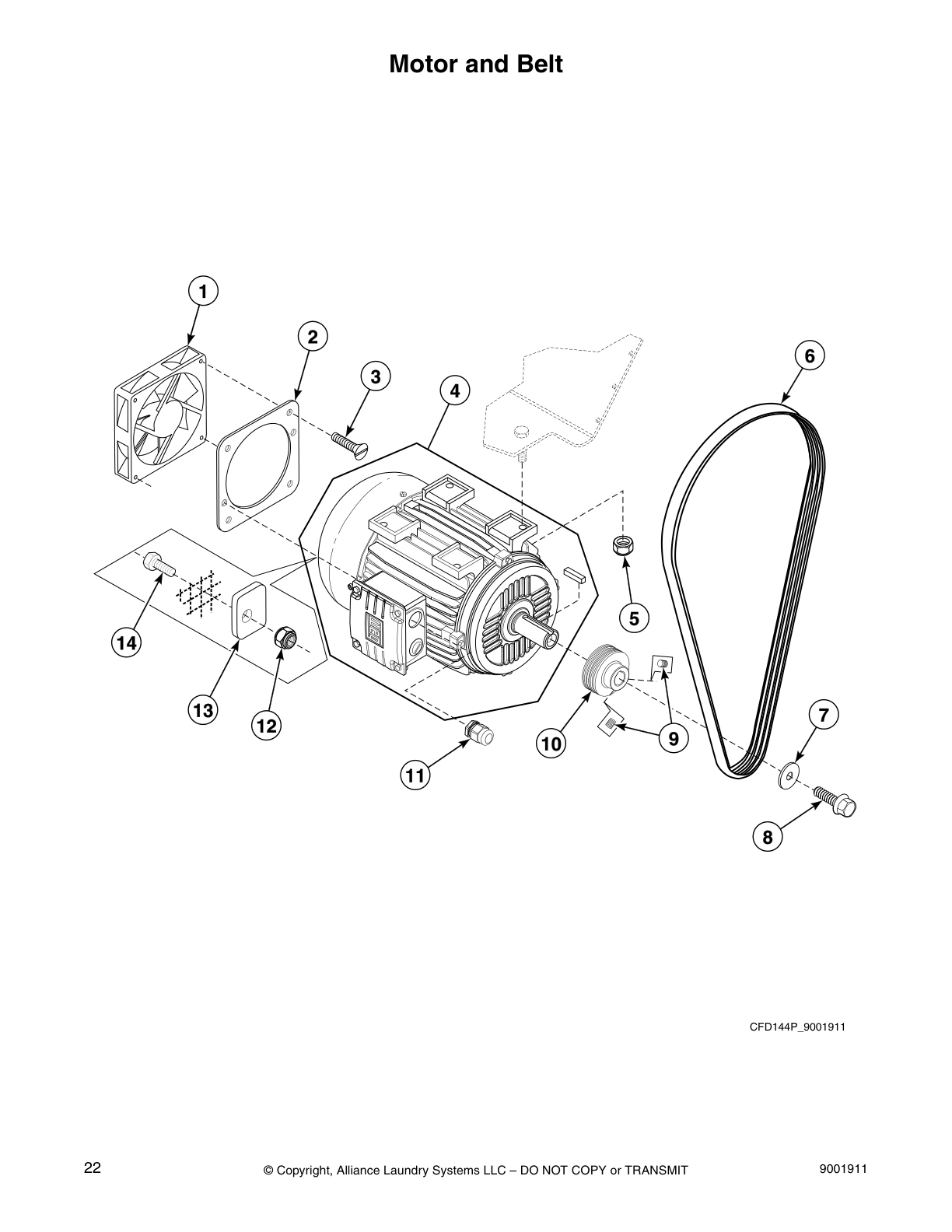

Motor and Belt

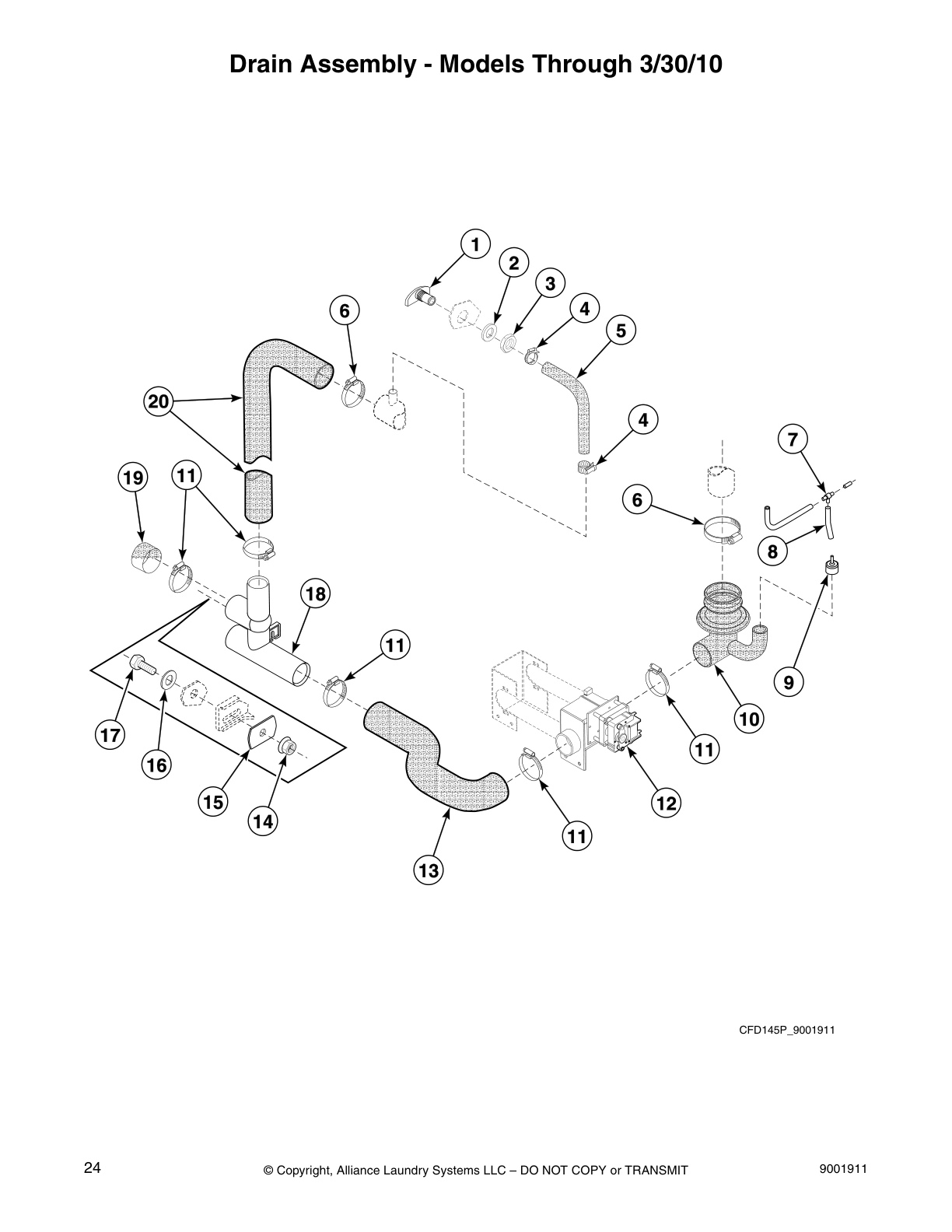

Drain Assembly - Models Through 3/30/10

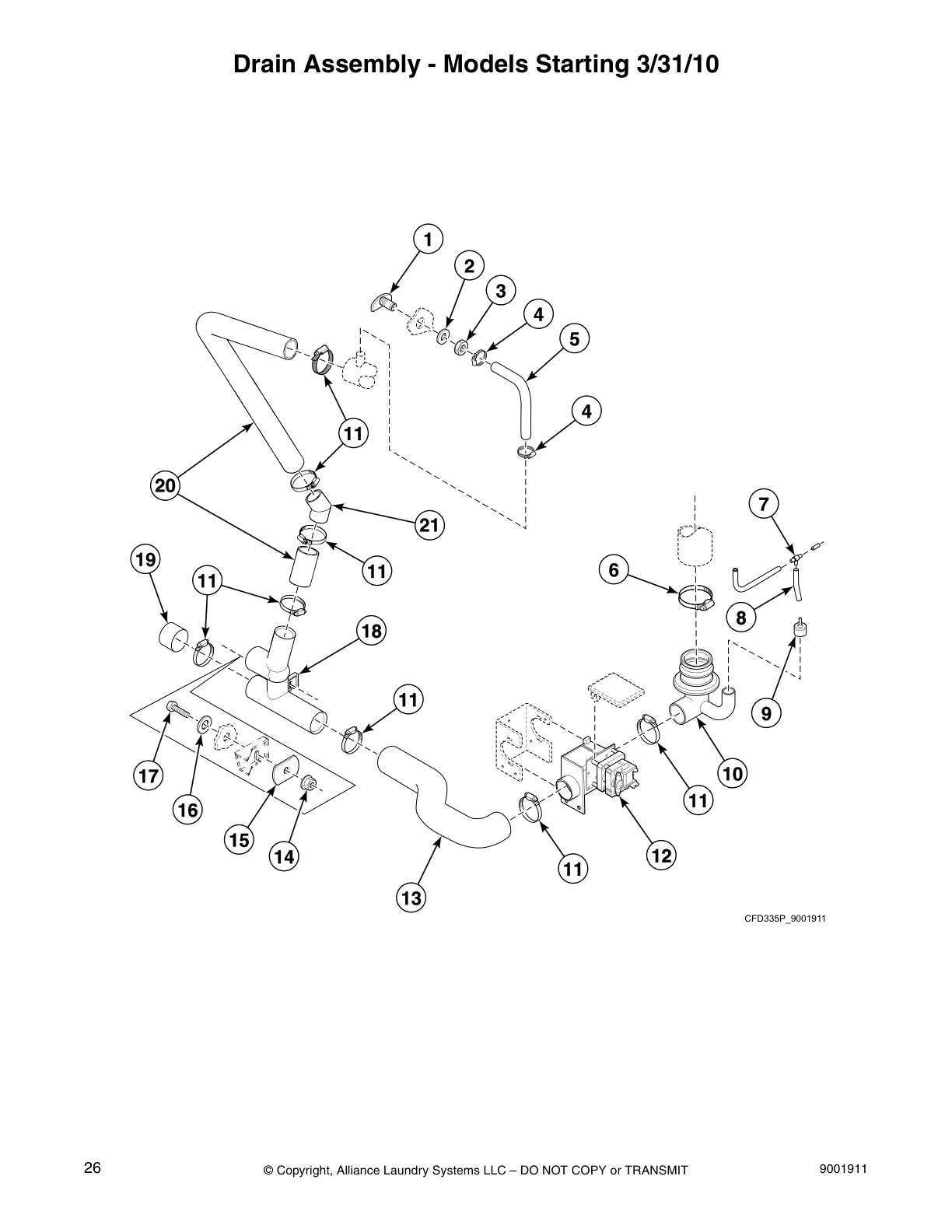

Drain Assembly - Models Starting 3/31/10

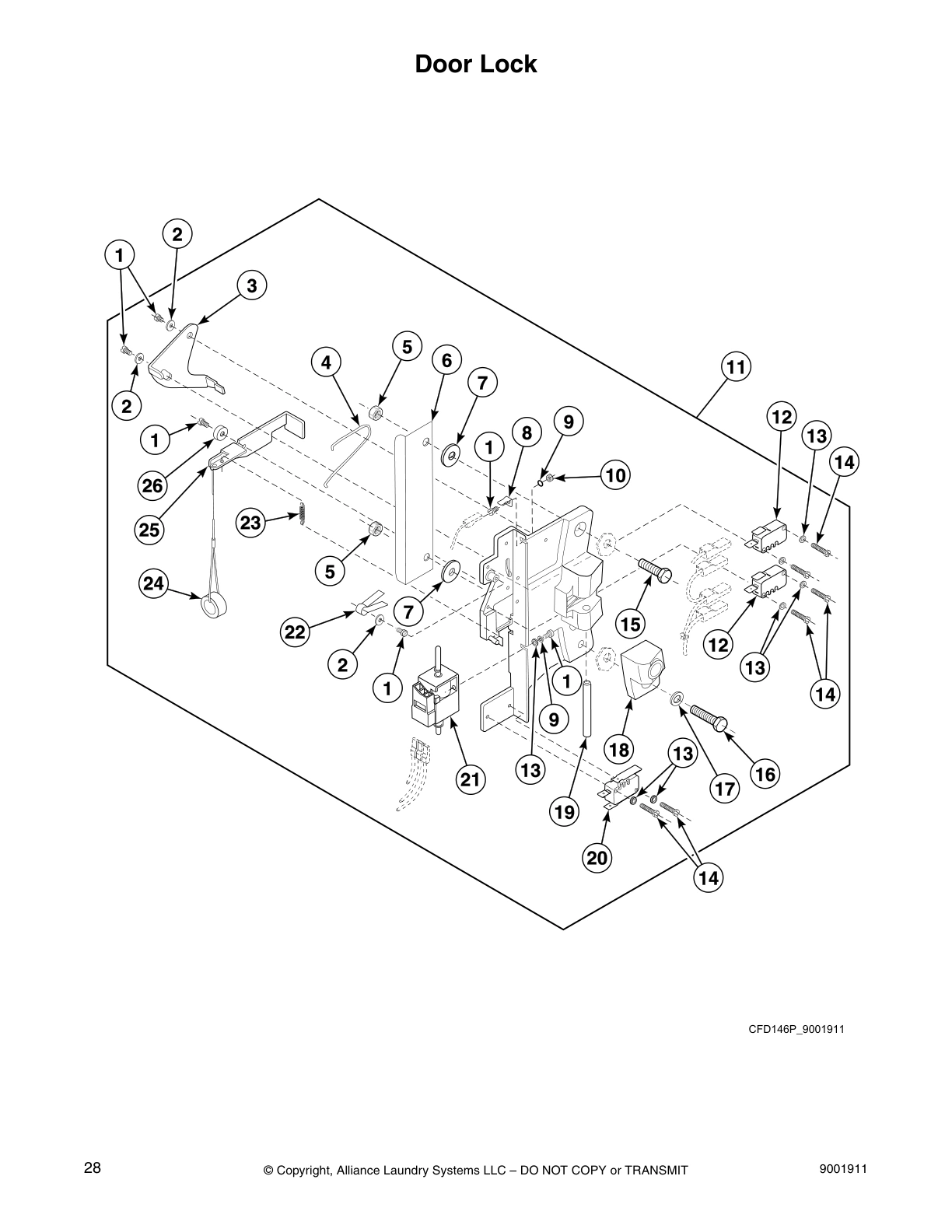

Door Lock

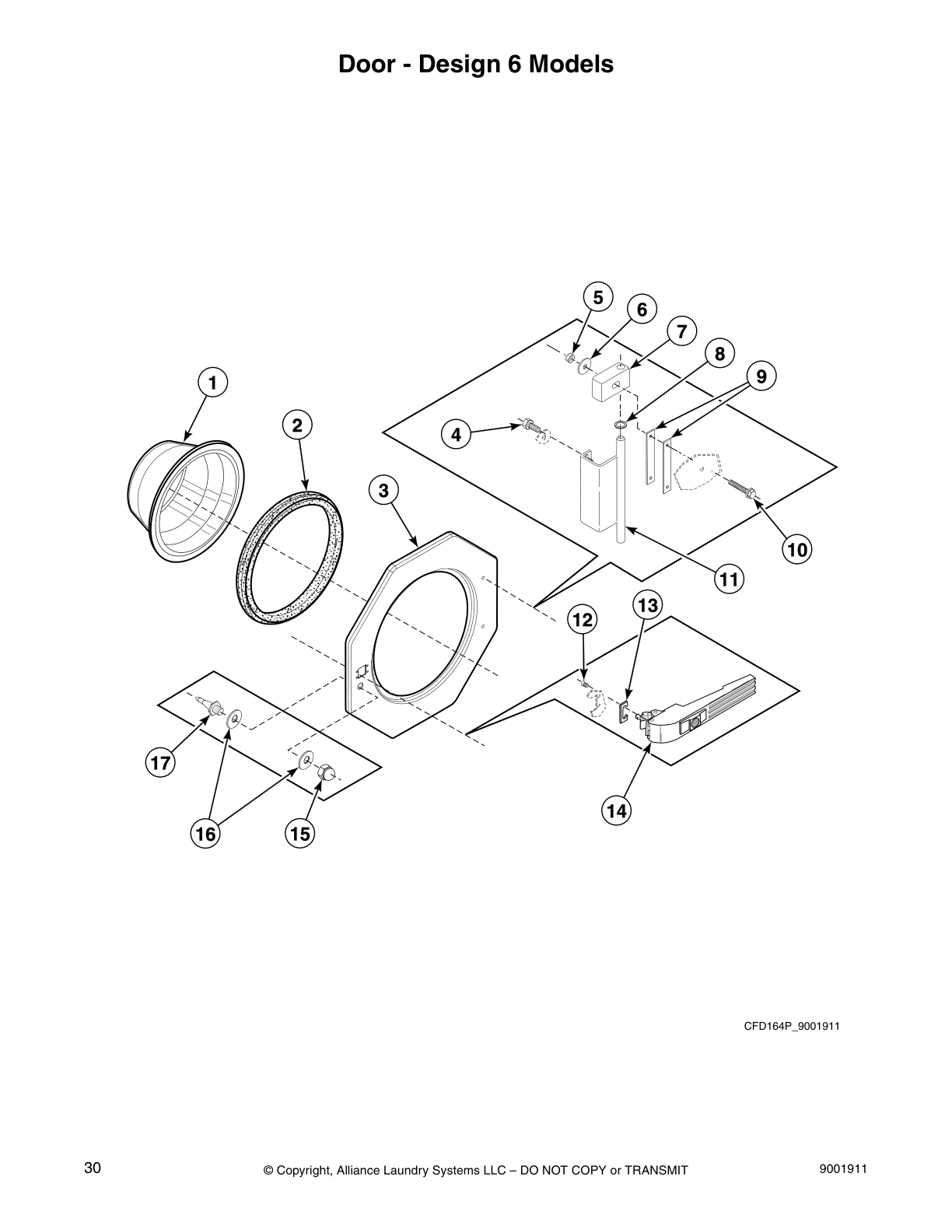

Door - Design 6 Models

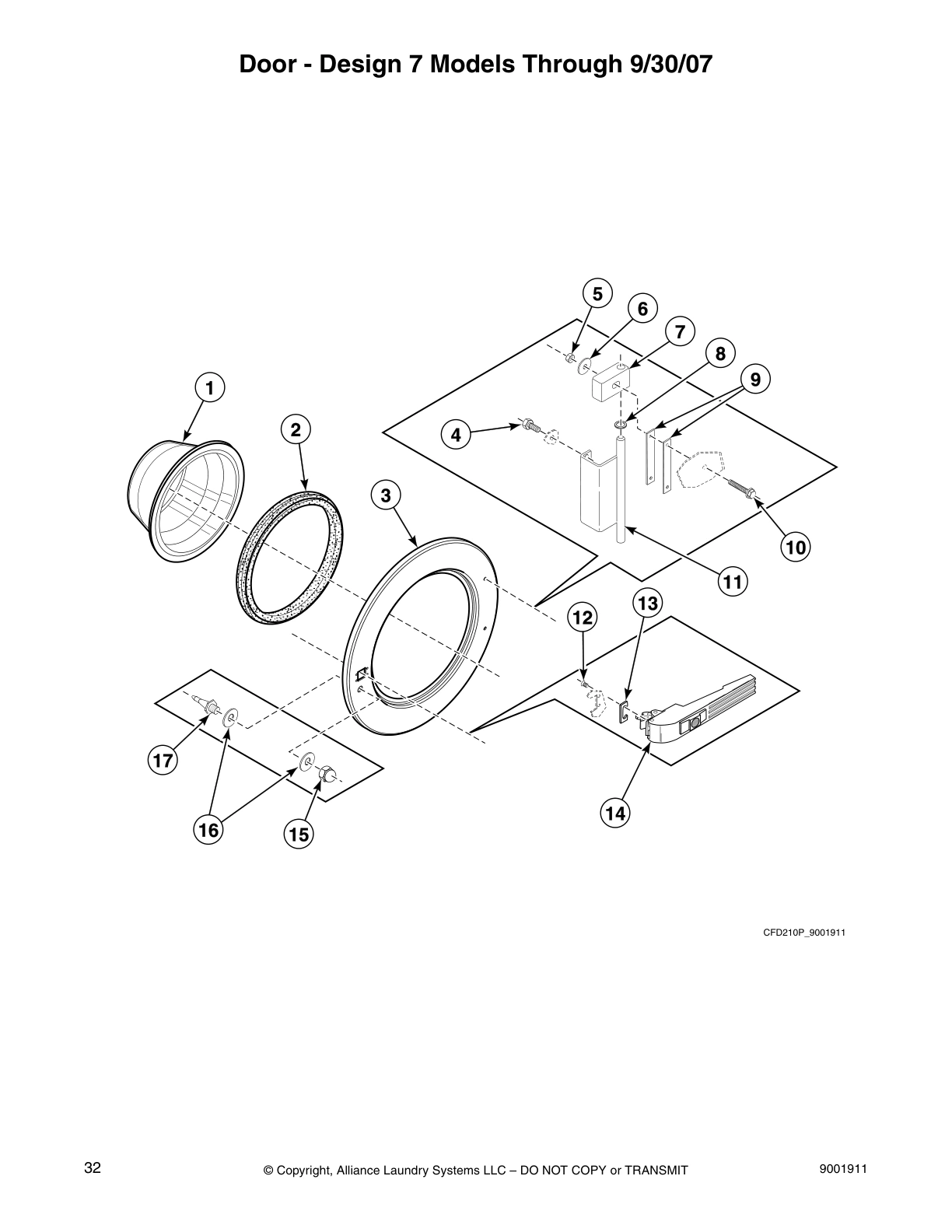

Door - Design 7 Models Through 9/30/07

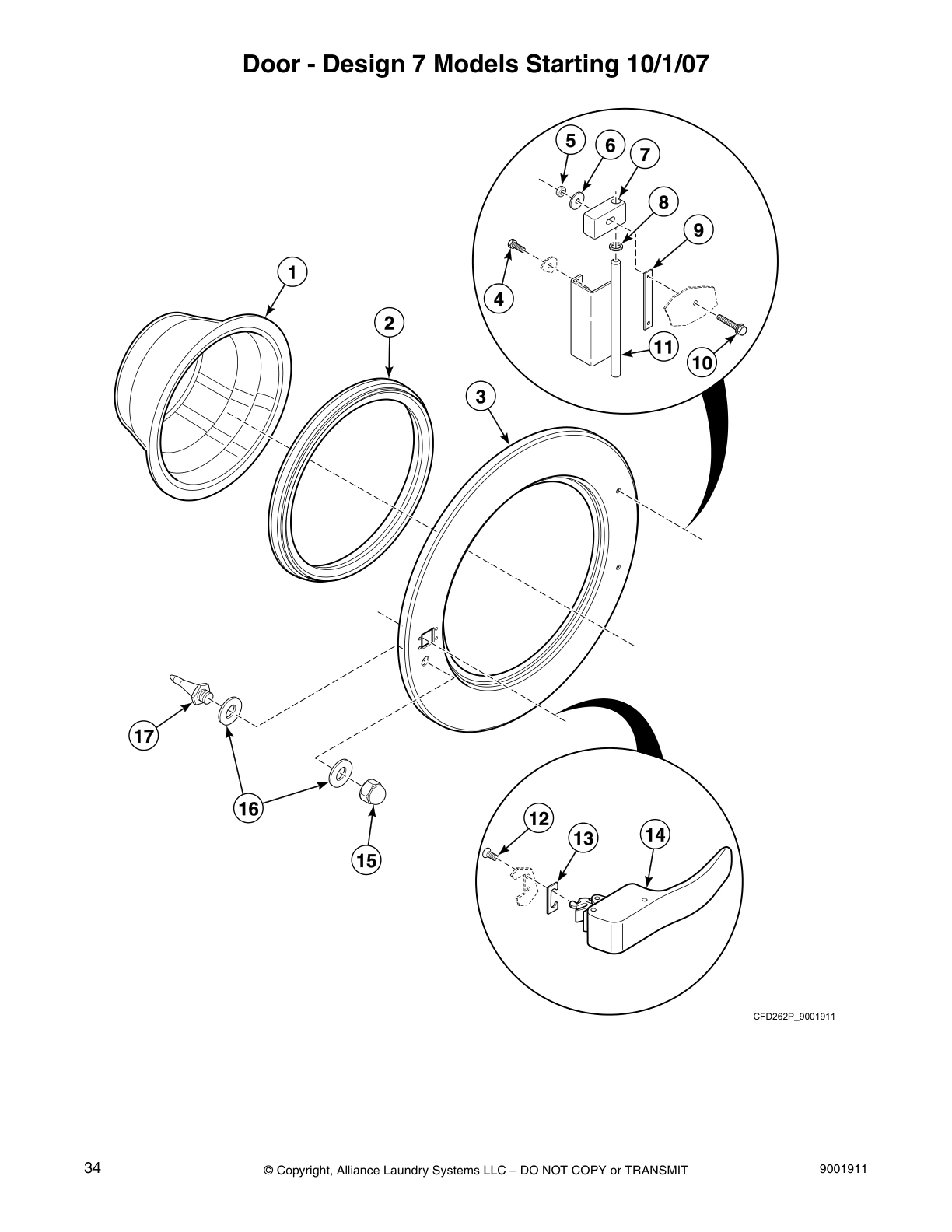

Door - Design 7 Models Starting 10/1/07

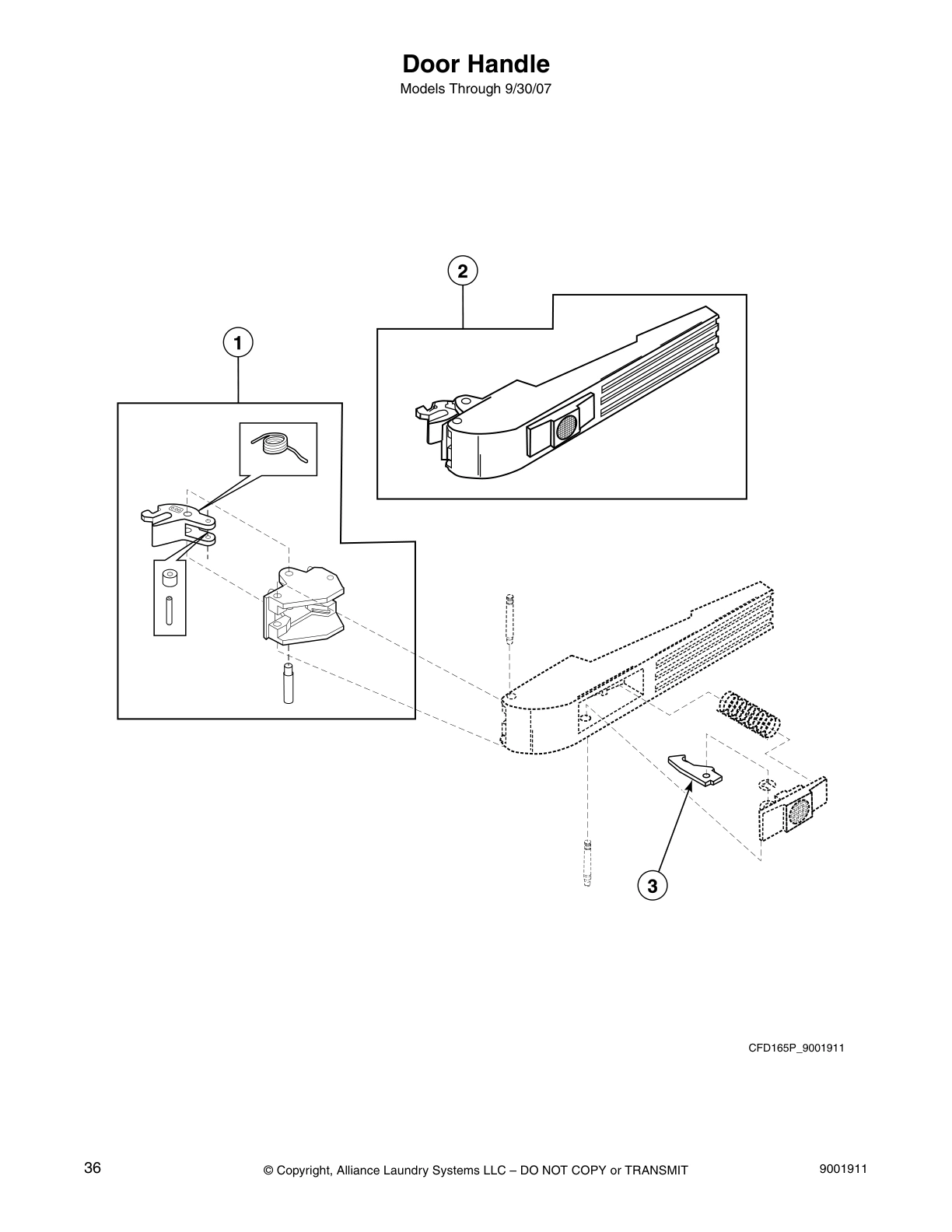

Door Handle

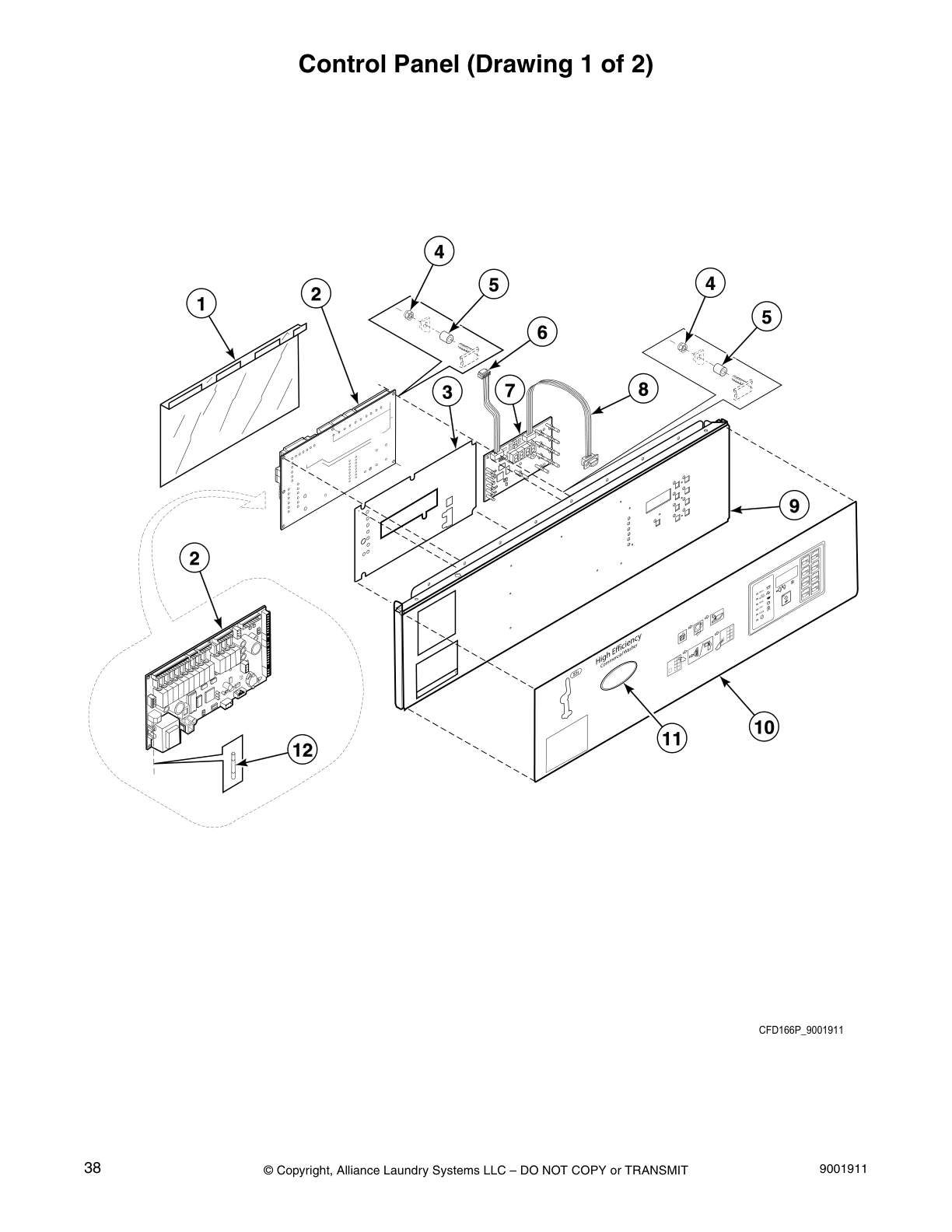

Control Panel (Drawing 1 of 2)

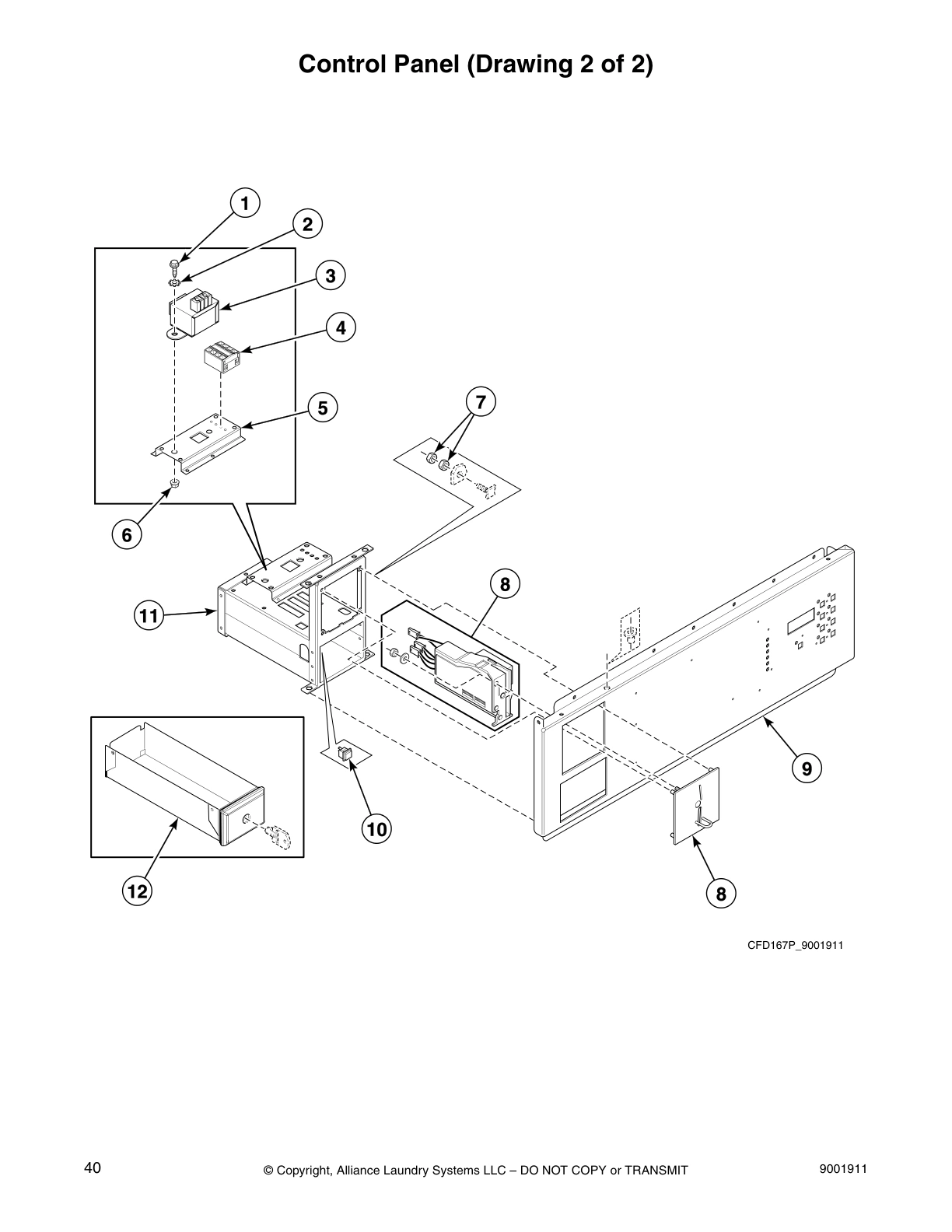

Control Panel (Drawing 2 of 2)

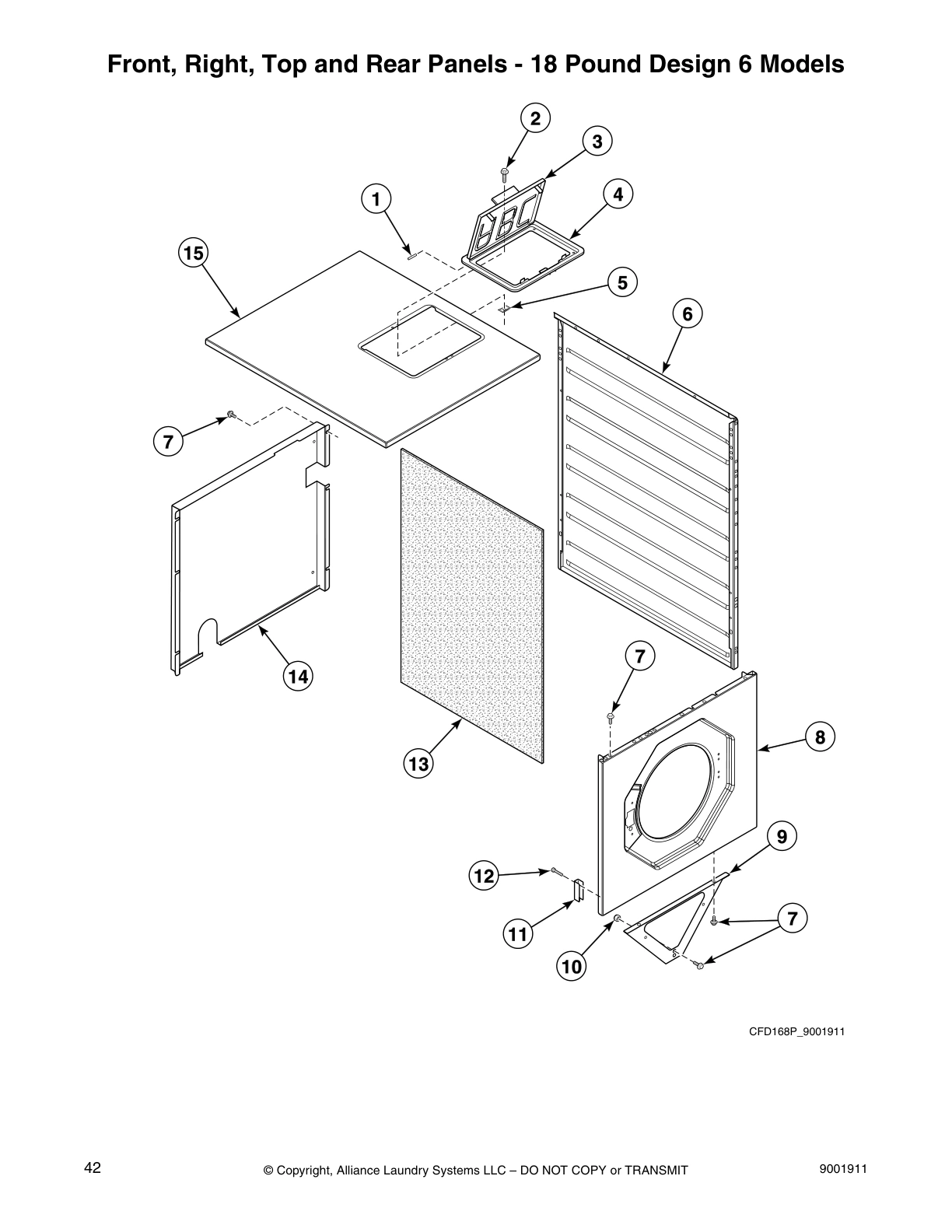

Front, Right, Top and Rear Panels - 18 Pound Design 6 Models

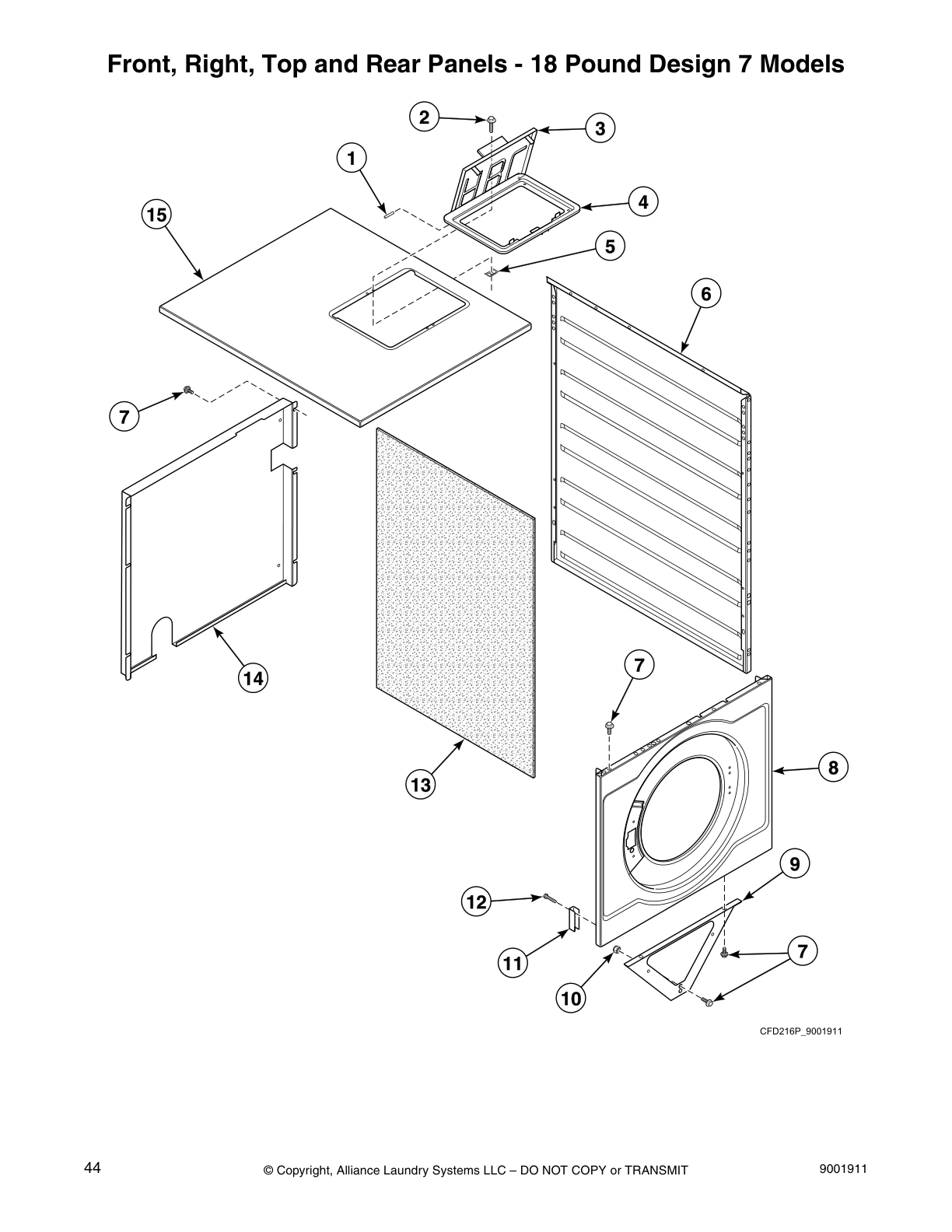

Front, Right, Top and Rear Panels - 18 Pound Design 7 Models

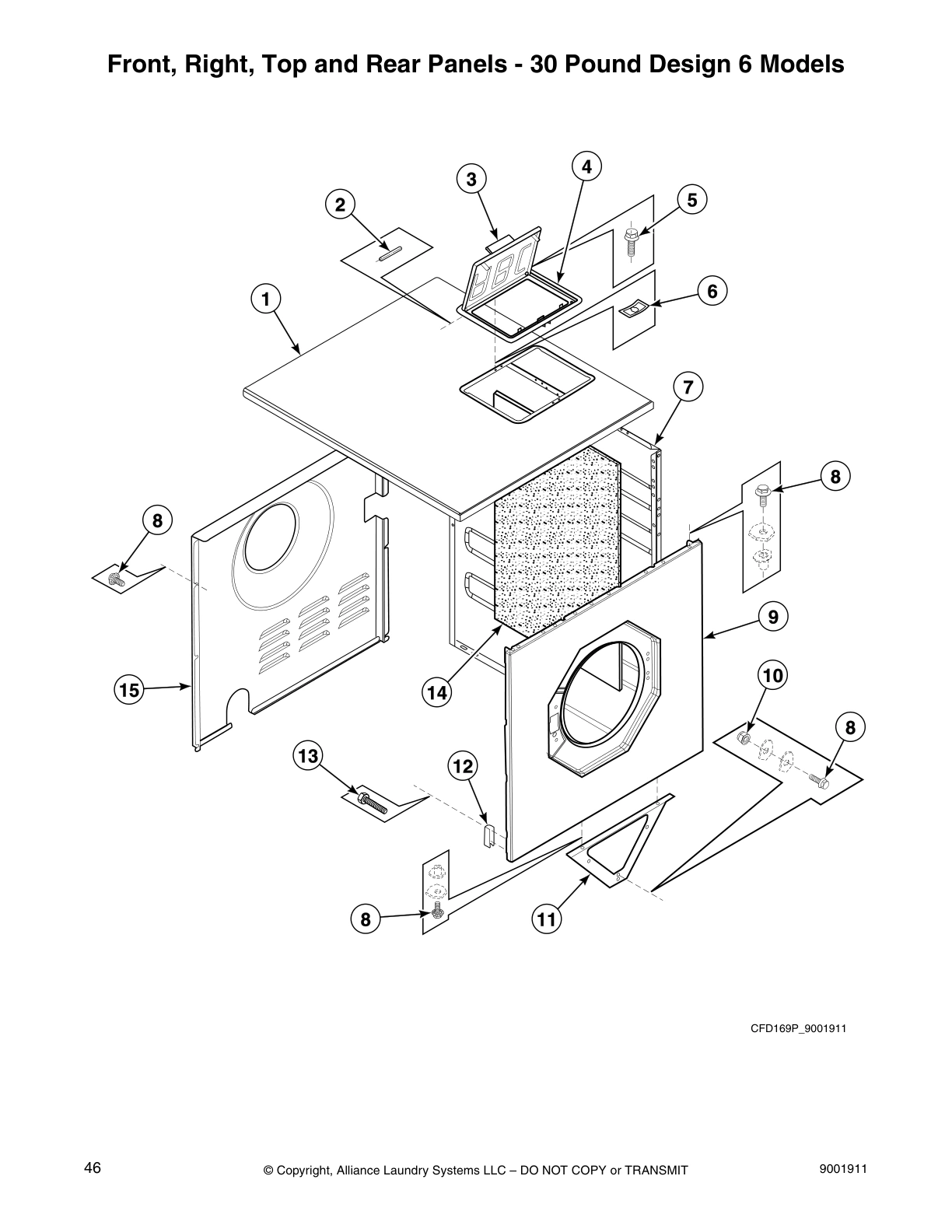

Front, Right, Top and Rear Panels - 30 Pound Design 6 Models

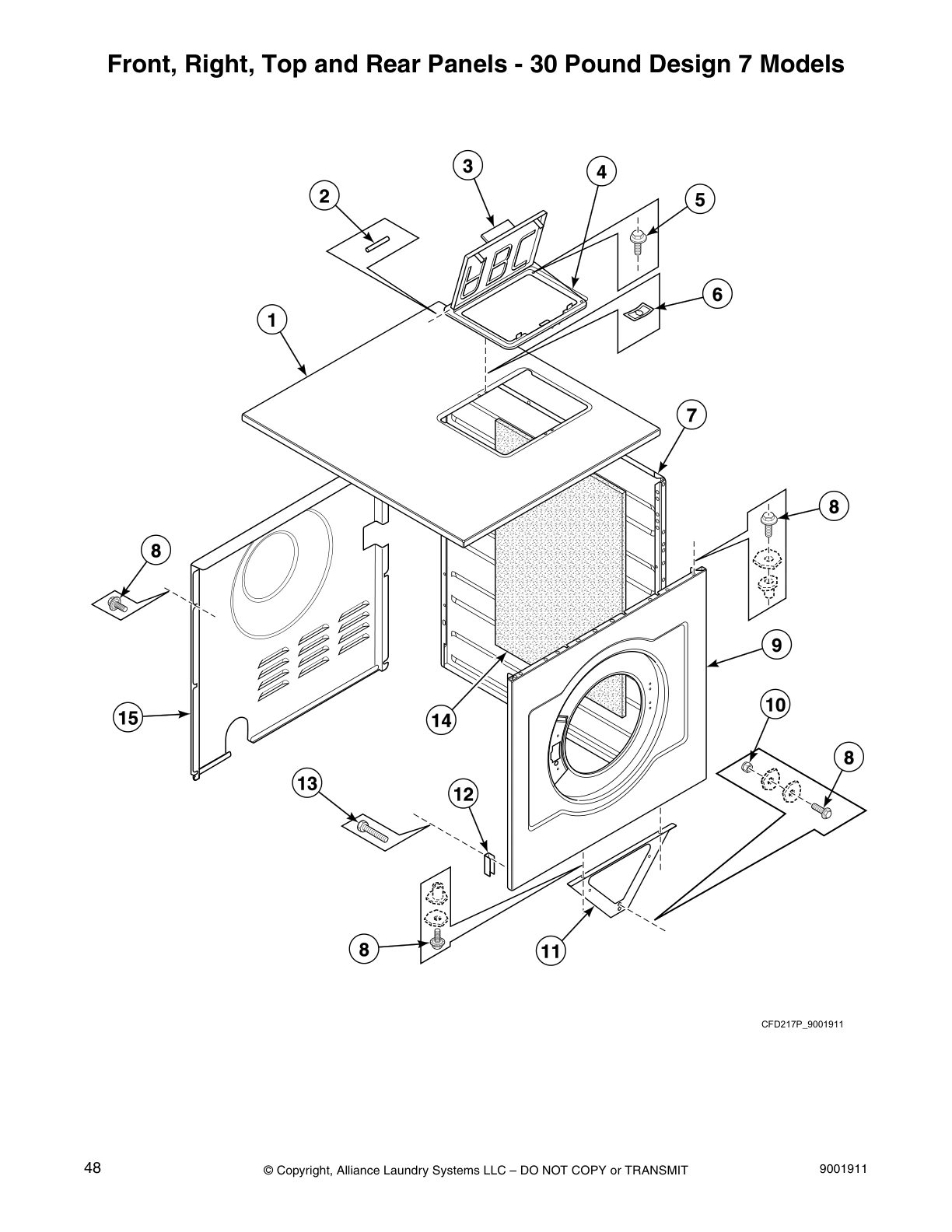

Front, Right, Top and Rear Panels - 30 Pound Design 7 Models

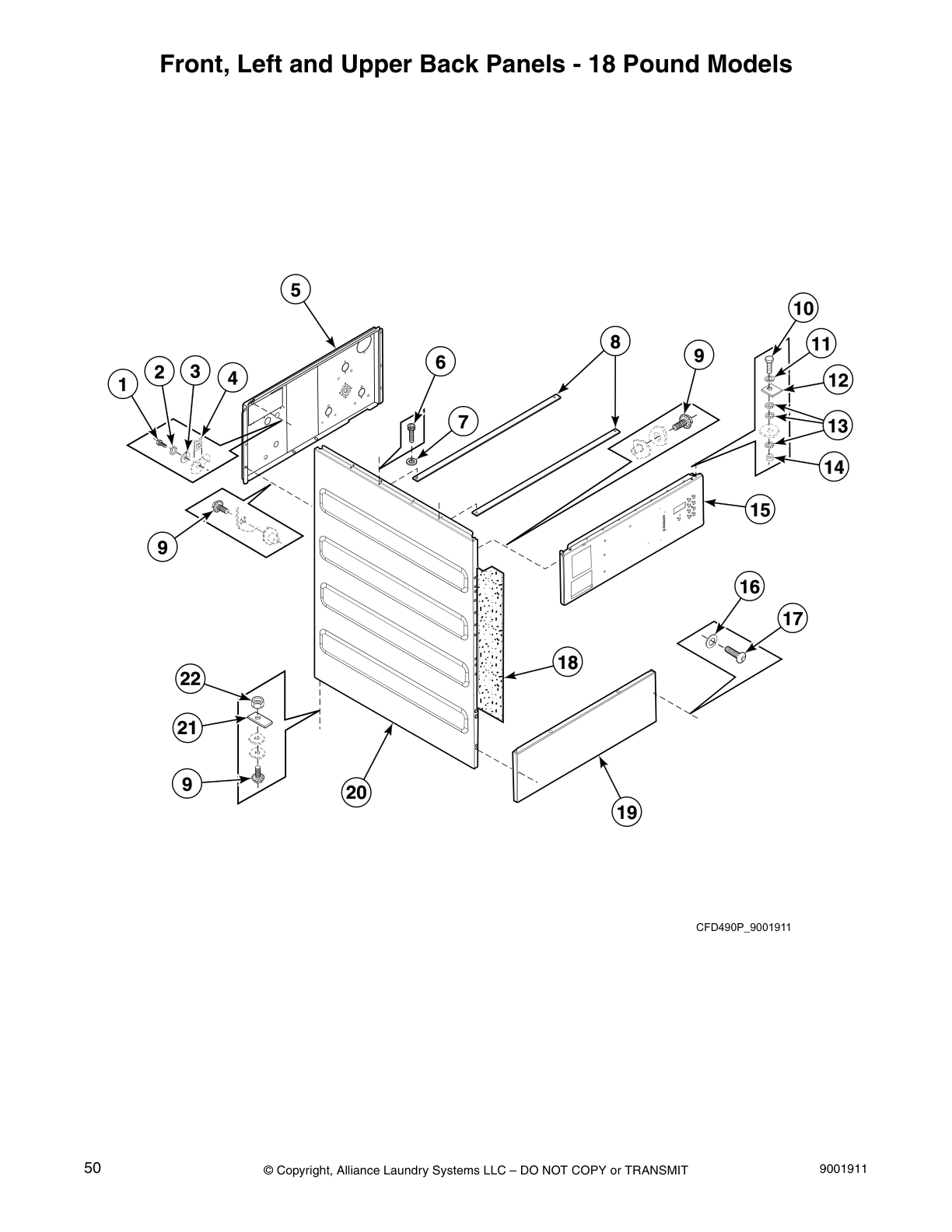

Front, Left and Upper Back Panels - 18 Pound Models

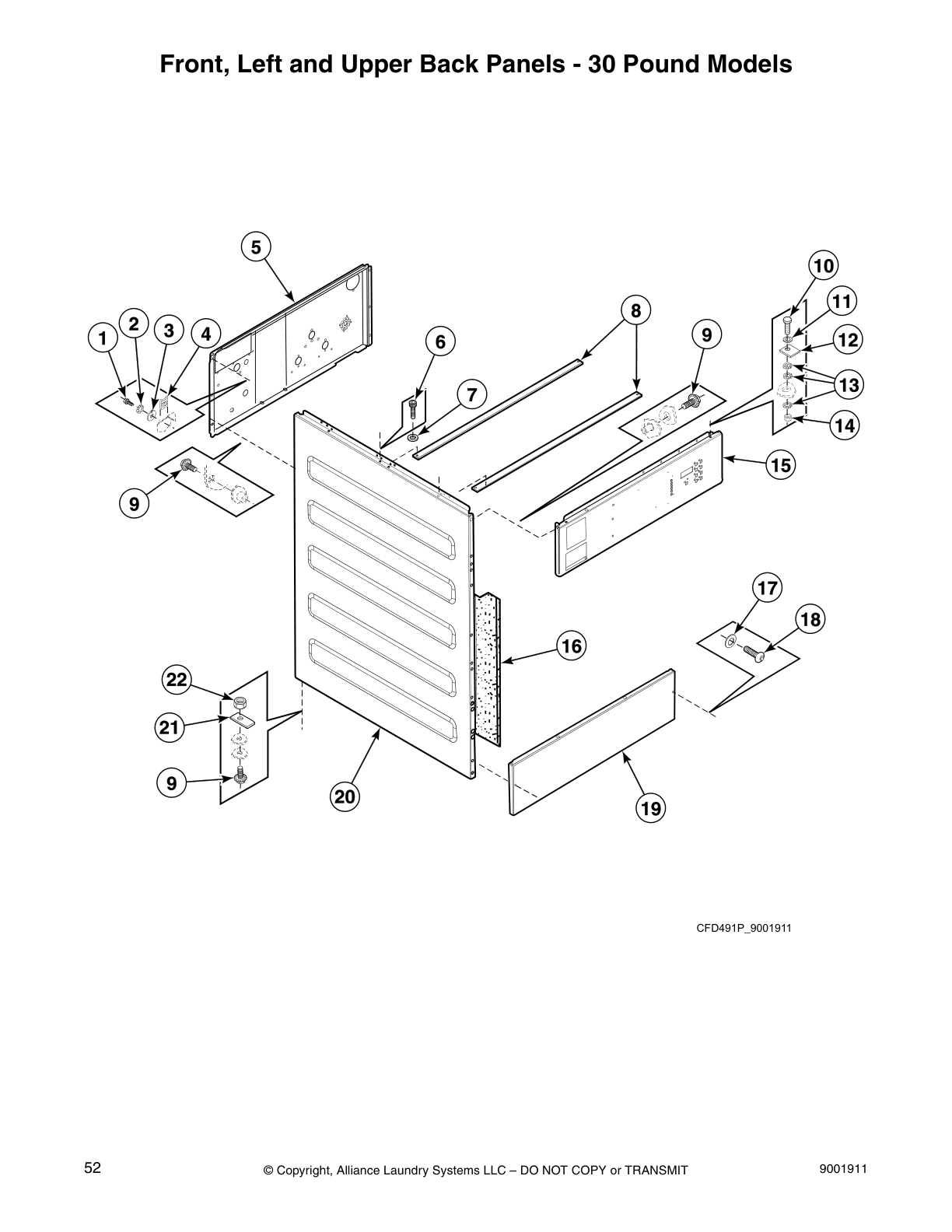

Front, Left and Upper Back Panels - 30 Pound Models

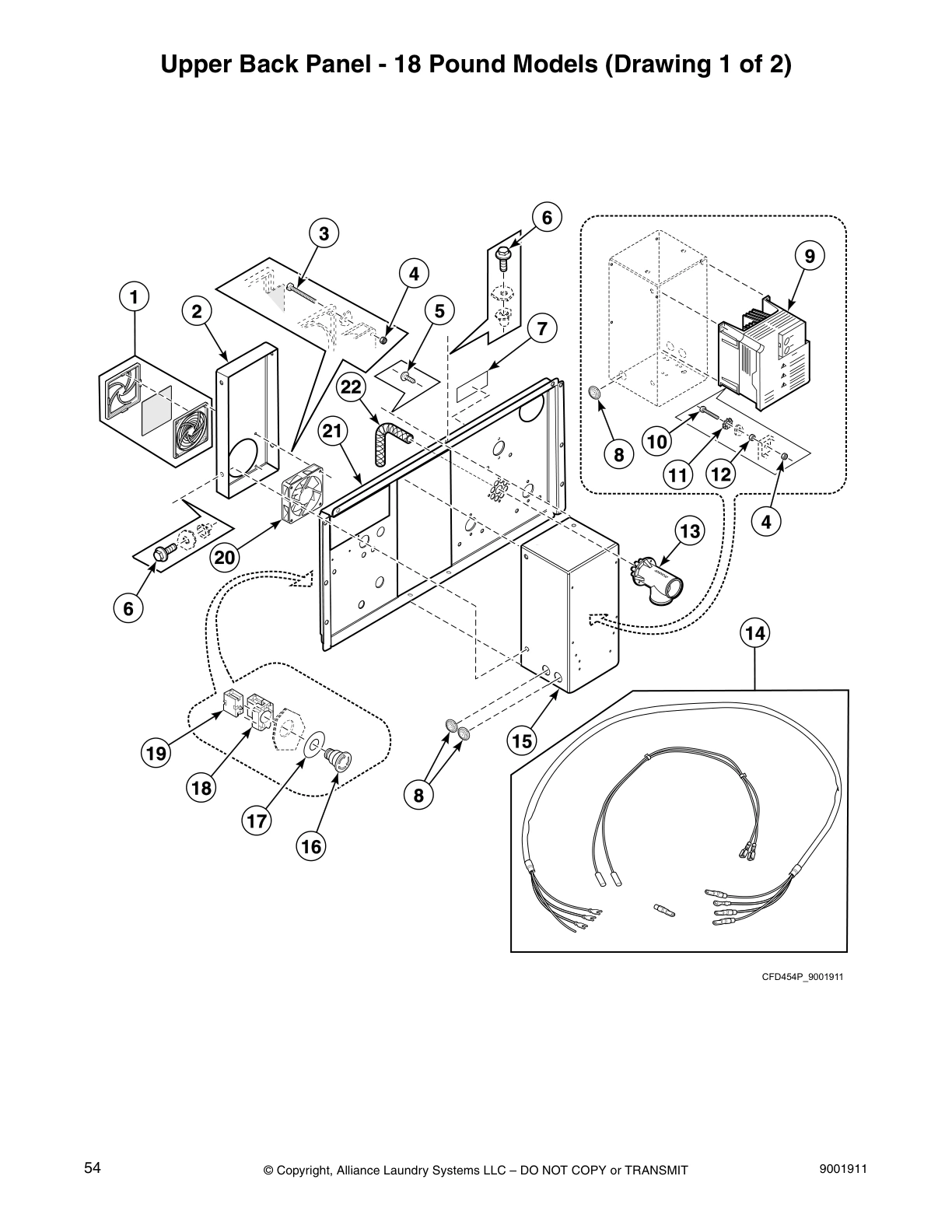

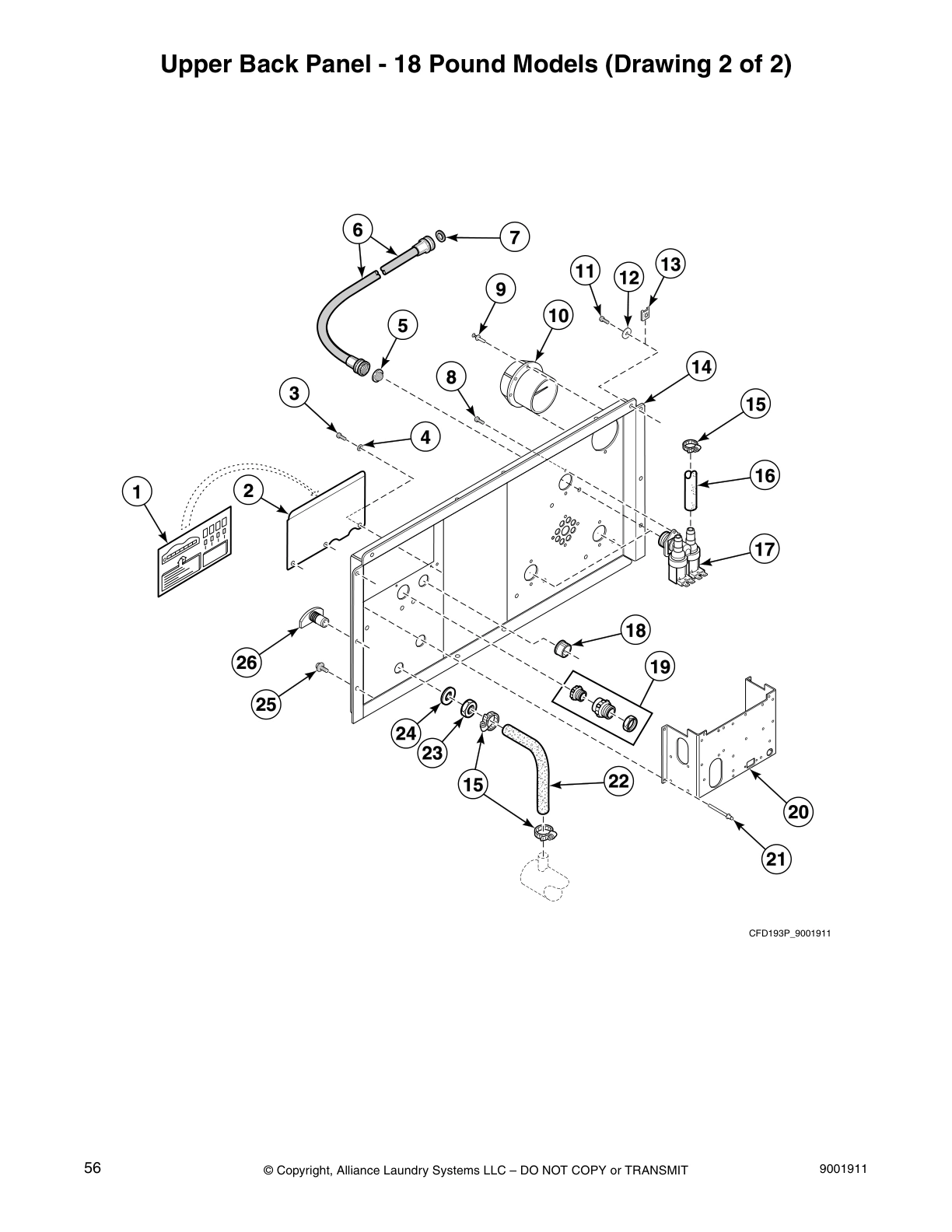

Upper Back Panel - 18 Pound Models (Drawing 1 of 2)
Upper Back Panel - 18 Pound Models (Drawing 2 of 2)

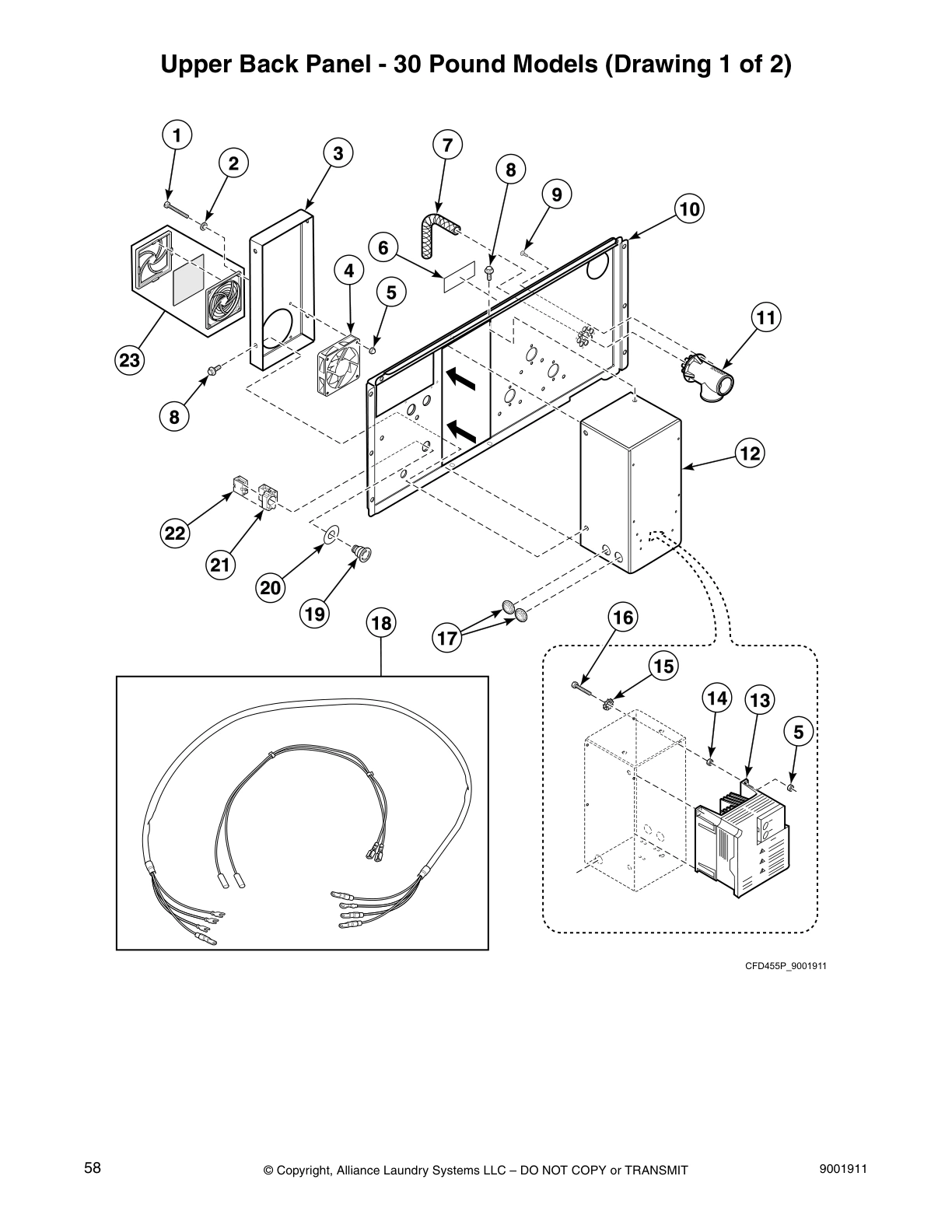

Upper Back Panel - 30 Pound Models (Drawing 1 of 2)

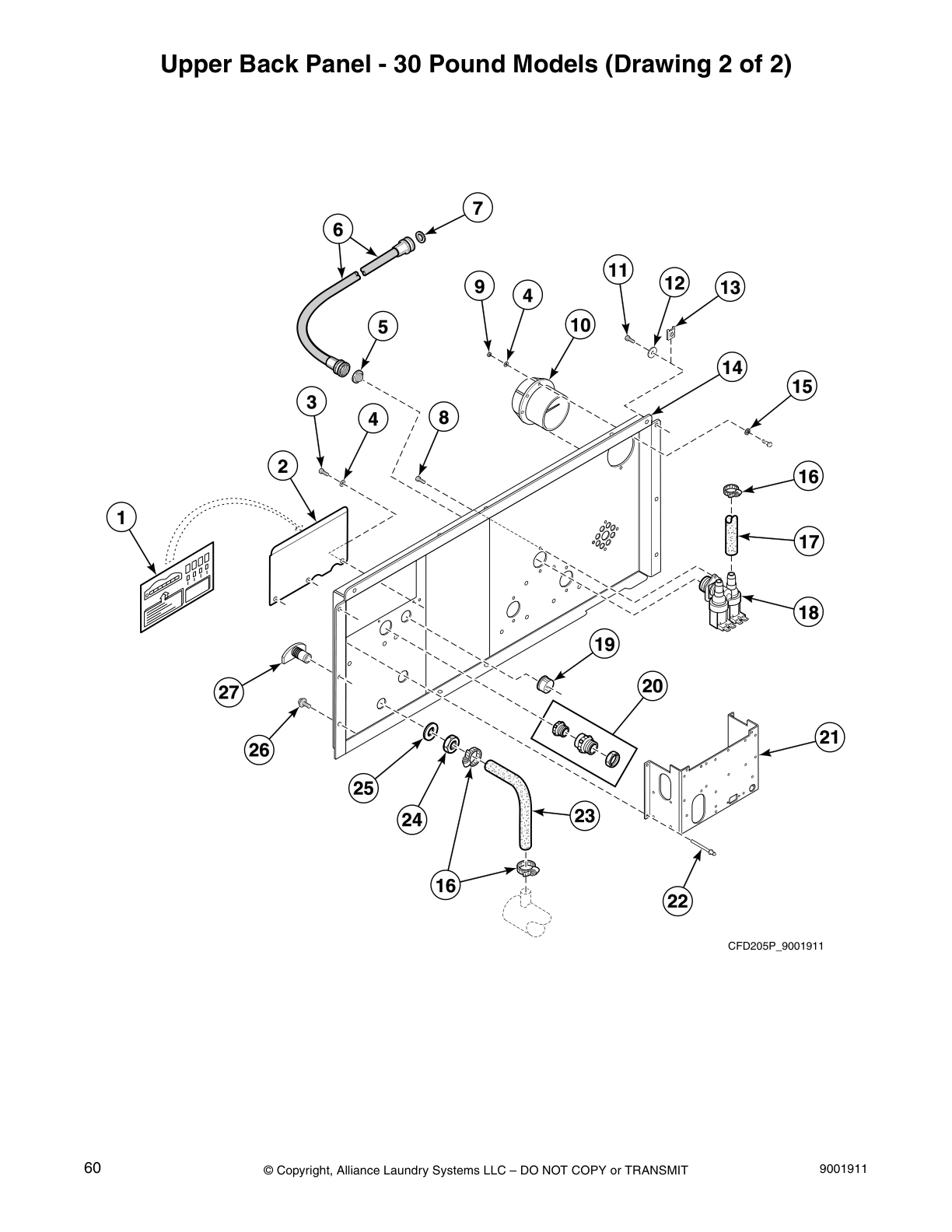

Upper Back Panel - 30 Pound Models (Drawing 2 of 2)

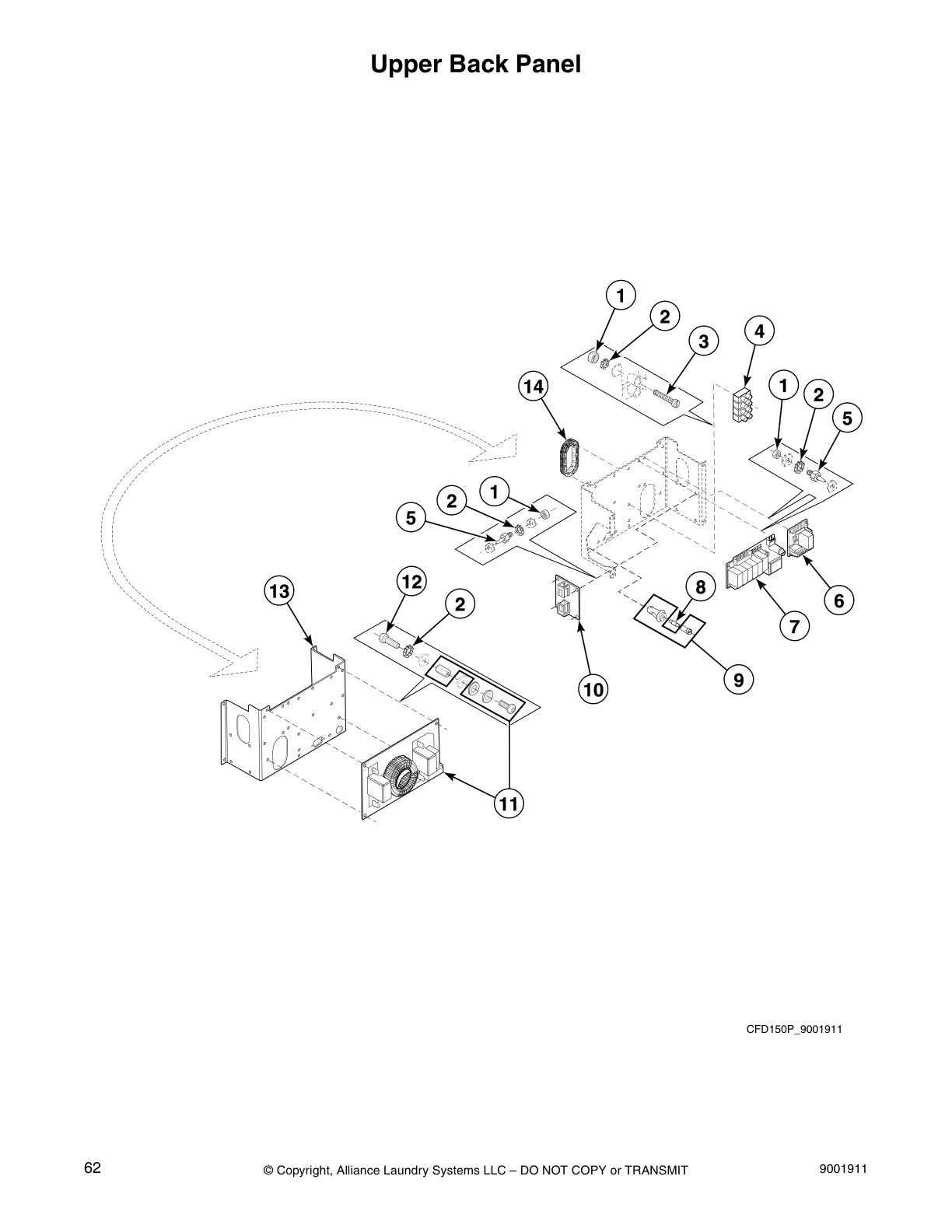

Upper Back Panel

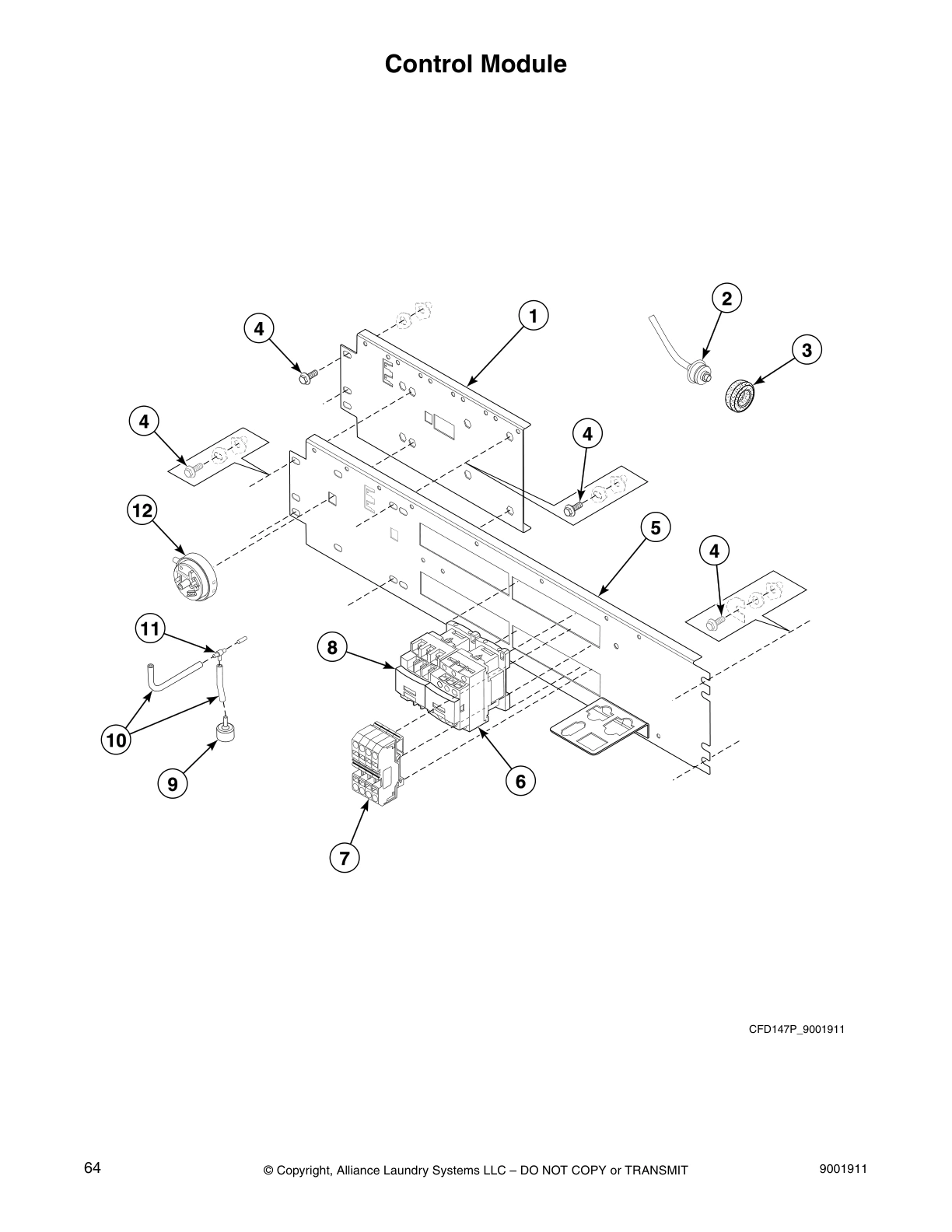

Control Module

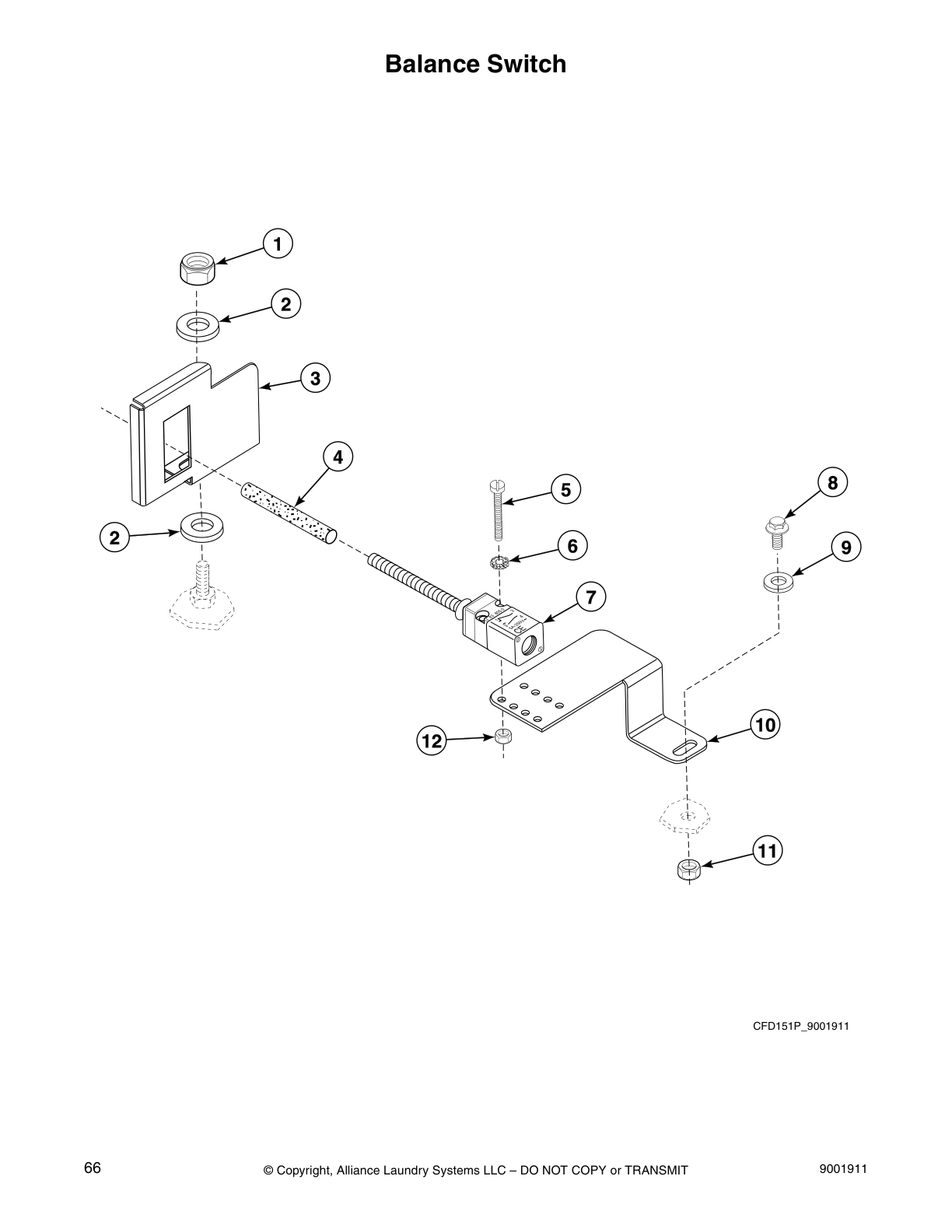

Balance Switch

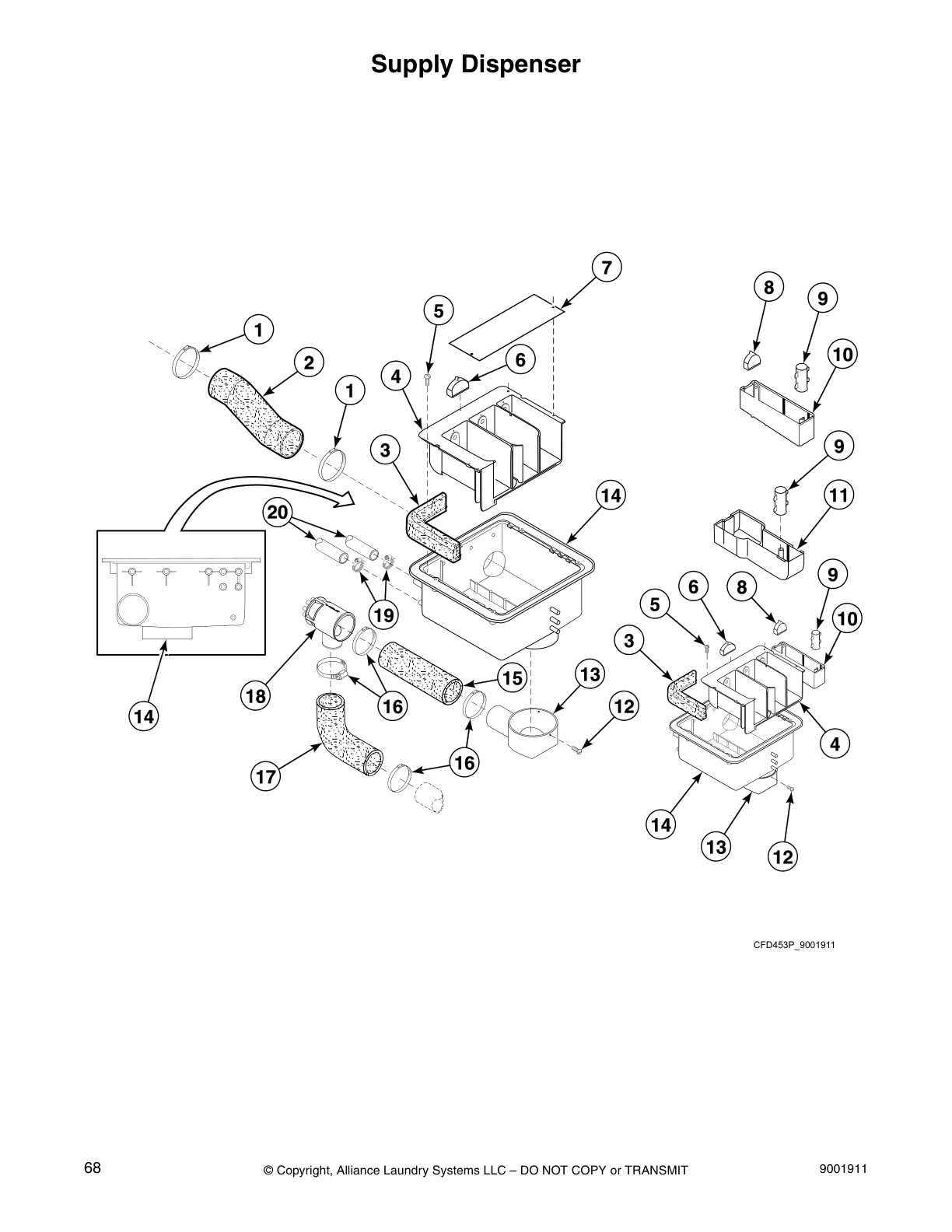

Supply Dispenser

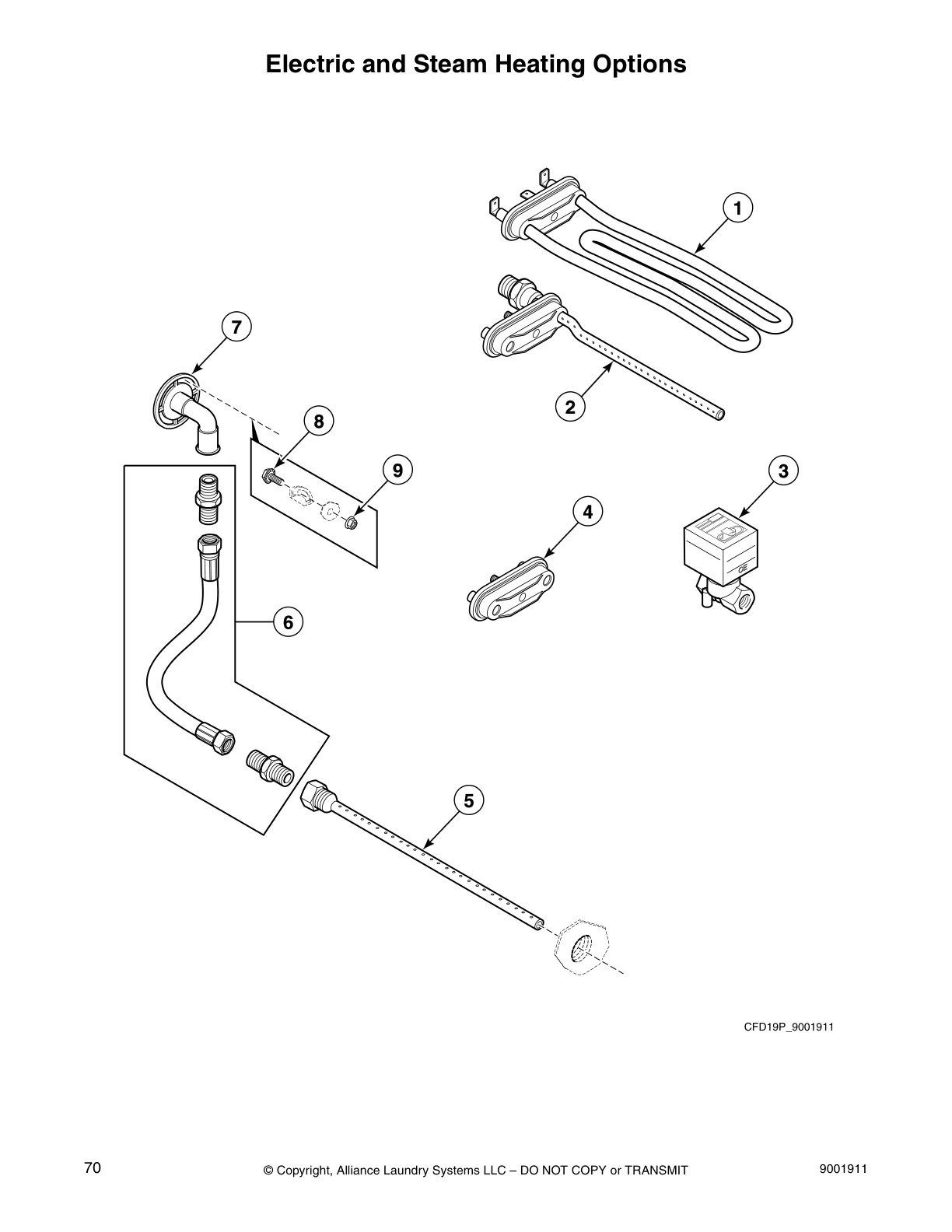

Electric and Steam Heating Options
Common parts from model Speed Queen SX018BVQA7 Washer
SPQ 9001425 SPQ 9001425 Contact Us For Availability
SPQ 227/00167/00 SPQ 227/00167/00 Contact Us For Availability
1
Nut SPQ 9001264 Contact Us For Availability
1
Shock Absorber SPQ 9001613 Contact Us For Availability
1
Nut SPQ 9001263 Contact Us For Availability
1
Nut SPQ 9001248 Contact Us For Availability
1
Cylinder and Shaft Assembly SPQ 9001923 Contact Us For Availability
1
Hose Clamp SPQ 9001495 Contact Us For Availability
1
Door Glass SPQ B12449701 Contact Us For Availability
1
Door Handle Latch SPQ 9001474 Contact Us For Availability
1
Screw SPQ 9001338 Contact Us For Availability
1
Electrical Component Mounting Plate SPQ 9001958 Contact Us For Availability
1
Heating Element SPQ 209/00562/20 Contact Us For Availability
2
Washer SPQ 9001212 Contact Us For Availability
2
Fastening Rubber SPQ 9001615 Contact Us For Availability
2
Bolt SPQ 206/00052/00 Contact Us For Availability
2
Out-of-Balance Switch Boot SPQ 9001216 Contact Us For Availability
2
Screw SPQ 9001218 Contact Us For Availability
2
Basket Kit SPQ B12542701 Contact Us For Availability
2
Door Frame SPQ 9001466 Contact Us For Availability
2
Main Control SPQ 800922 Contact Us For Availability
2
Washer SPQ 9002008 Contact Us For Availability
2
Rivet SPQ 9001040 Contact Us For Availability
2
Washer SPQ 9001292 Contact Us For Availability
2
Soap Dispenser Gasket SPQ 9001519 Contact Us For Availability
2
Steam Injector SPQ 9001104 Contact Us For Availability
3
Caddy Bracket SPQ 9001300 Contact Us For Availability
3
Washer SPQ 9001616 Contact Us For Availability
3
Shock Absorber SPQ 9001614 Contact Us For Availability
3
Screw SPQ 9001917 Contact Us For Availability
3
Screw SPQ 9001336 Contact Us For Availability
3
Pressure Switch Hose Tee SPQ 9001527 Contact Us For Availability
3
Ground Terminal SPQ 9001479 Contact Us For Availability
3
Bolt SPQ 118/00046/10 Contact Us For Availability
3
Door Handle Catch SPQ 9001473 Contact Us For Availability
3
Voltage Discharge Decal SPQ 9001080 Contact Us For Availability
3
SPQ 9001291 SPQ 9001291 Contact Us For Availability
3
Thermostat Seal SPQ 9001564 Contact Us For Availability
3
Soap Box Assembly Plate SPQ 9001522 Contact Us For Availability
4
Separator SPQ 224/00054/00 Contact Us For Availability
4
SPQ 9001225 SPQ 9001225 Contact Us For Availability
4
Input Block SPQ 9001241 Contact Us For Availability
4
Door Hinge Spacer SPQ 9001274 Contact Us For Availability
4
Basket and Shaft Assembly SPQ B12379801 Contact Us For Availability
4
SPQ 9001553 SPQ 9001553 Contact Us For Availability
4
Nut SPQ 800921 Contact Us For Availability
4
Soap Dispenser Frame SPQ 9001515 Contact Us For Availability
4
SPQ 9001347 SPQ 9001347 Contact Us For Availability
4
SPQ 9001229 SPQ 9001229 Contact Us For Availability
4
Terminal Block SPQ 9001329 Contact Us For Availability
4
Out-of-Balance Switch SPQ 9001766 Contact Us For Availability
4
Softener Spray Nozzle SPQ 223/00102/30 Contact Us For Availability
4
Heating Element Plug SPQ F360202 Contact Us For Availability
5
Frame SPQ 9001915 Contact Us For Availability
5
Washer SPQ 9001262 Contact Us For Availability
5
SPQ 9001260 SPQ 9001260 Contact Us For Availability
5
Spacer SPQ 9001379 Contact Us For Availability
5
Transformer Mounting Bracket SPQ 209/00683/00 Contact Us For Availability
5
Pressure Hose SPQ 9001267 Contact Us For Availability
5
Standoff SPQ 9001354 Contact Us For Availability
5
Support Connector SPQ 9001960 Contact Us For Availability
5
Bolt SPQ 9001325 Contact Us For Availability
5
Soap Dispenser Rinse Siphon SPQ B12347501 Contact Us For Availability
5
Steam Inlet SPQ 9001118 Contact Us For Availability
6
Leveling Leg SPQ 9001621 Contact Us For Availability
6
Suspension Spring SPQ 9001610 Contact Us For Availability
6
SPQ 206/00060/00 SPQ 206/00060/00 Contact Us For Availability
6
SPQ 9001560 SPQ 9001560 Contact Us For Availability
6
Bearing Spacer SPQ 217/00100/00 Contact Us For Availability
6
SPQ 9001951 SPQ 9001951 Contact Us For Availability
6
SPQ 9001235 SPQ 9001235 Contact Us For Availability
6
Nut SPQ 152/00112/05 Contact Us For Availability
6
SPQ 9001349 SPQ 9001349 Contact Us For Availability
6
SPQ 9002018 SPQ 9002018 Contact Us For Availability
6
SPQ B12355001 SPQ B12355001 Contact Us For Availability
6
SPQ 9001243 SPQ 9001243 Contact Us For Availability
6
SPQ F200166 SPQ F200166 Contact Us For Availability
6
SPQ 9001509 SPQ 9001509 Contact Us For Availability
7
SPQ 9001916 SPQ 9001916 Contact Us For Availability
7
Spring Holder Top SPQ 9001618 Contact Us For Availability
7
Clamp SPQ 206/00032/00 Contact Us For Availability
7
Tolerance Ring SPQ 9001928 Contact Us For Availability
7
SPQ 9001531 SPQ 9001531 Contact Us For Availability
7
SPQ F200164 SPQ F200164 Contact Us For Availability
7
SPQ 123/00103/06 SPQ 123/00103/06 Contact Us For Availability
7
Bolt SPQ 9001107 Contact Us For Availability
8
SPQ 9001611 SPQ 9001611 Contact Us For Availability
8
SPQ 9001464 SPQ 9001464 Contact Us For Availability
8
Bolt SPQ 9001285 Contact Us For Availability
8
Nut SPQ 9001310 Contact Us For Availability
8
SPQ 9001419 SPQ 9001419 Contact Us For Availability
8
Control Panel SPQ 9001253 Contact Us For Availability
8
SPQ 9001232 SPQ 9001232 Contact Us For Availability
8
SPQ 111/00284/00 SPQ 111/00284/00 Contact Us For Availability
8
SPQ 9001992 SPQ 9001992 Contact Us For Availability
8
Fuse SPQ 9001429 Contact Us For Availability
8
SPQ 9001508 SPQ 9001508 Contact Us For Availability
9
SPQ 238/00017/00 SPQ 238/00017/00 Contact Us For Availability
9
Washer SPQ 9001239 Contact Us For Availability
9
SPQ 9001213 SPQ 9001213 Contact Us For Availability
9
SPQ 9001302 SPQ 9001302 Contact Us For Availability
9
SPQ 9001311 SPQ 9001311 Contact Us For Availability
9
SPQ 9001244 SPQ 9001244 Contact Us For Availability
9
SPQ 9001033 SPQ 9001033 Contact Us For Availability
9
Control Panel SPQ 9002098 Contact Us For Availability
9
SPQ 70429001 SPQ 70429001 Contact Us For Availability
9
SPQ 208/00130/00 SPQ 208/00130/00 Contact Us For Availability
9
Fuse Holder SPQ 9001384 Contact Us For Availability
9
Pressure Switch Cap SPQ 9001959 Contact Us For Availability
9
SPQ 9001507 SPQ 9001507 Contact Us For Availability
10
Boot SPQ 255/00123/00 Contact Us For Availability
10
Motor Pulley SPQ 9001931 Contact Us For Availability
10
Tub to Drain Valve Hose SPQ 9001933 Contact Us For Availability
10
Screw SPQ 9001341 Contact Us For Availability
10
Control Panel Decal SPQ 9002003 Contact Us For Availability
10
Pushbutton SPQ 9002005 Contact Us For Availability
10
Bolt SPQ 9001276 Contact Us For Availability
10
Hose Vent SPQ 9001510 Contact Us For Availability
10
Tilt Switch Support SPQ 9001964 Contact Us For Availability
10
Rinse Insert SPQ 9001506 Contact Us For Availability
11
Fastening Ring SPQ 238/00013/00 Contact Us For Availability
11
Cordlock SPQ 9001433 Contact Us For Availability
11
Hinge SPQ 9001485 Contact Us For Availability
11
Domed Label SPQ 9002004 Contact Us For Availability
11
Screw SPQ 9001984 Contact Us For Availability
11
Coin Meter Housing SPQ 9002007 Contact Us For Availability
11
Tub Support SPQ 9001025 Contact Us For Availability
11
Washer SPQ 9001228 Contact Us For Availability
11
Screw SPQ 9001343 Contact Us For Availability
11
Filter SPQ 9001899 Contact Us For Availability
11
Washer SPQ 9001250 Contact Us For Availability
11
Liquid Soap Dispenser Insert SPQ 9001511 Contact Us For Availability
12
Spring SPQ 238/00014/00 Contact Us For Availability
12
Nut SPQ 9001268 Contact Us For Availability
12
Drain Valve SPQ 9001934 Contact Us For Availability
12
Fuse SPQ 800923 Contact Us For Availability
12
Coin Box SPQ 9002006 Contact Us For Availability
12
Reinforcement Plate SPQ 9002013 Contact Us For Availability
12
Tilt Detector Plate SPQ 9001252 Contact Us For Availability
12
Bolt SPQ 9001898 Contact Us For Availability
12
Pressure Switch SPQ 209/00027/10 Contact Us For Availability
12
Screw SPQ B12350903 Contact Us For Availability
13
Tub Front SPQ 9001922 Contact Us For Availability
13
Drain Valve to Drain Hose SPQ 9001935 Contact Us For Availability
13
Washer SPQ 9001222 Contact Us For Availability
13
Nut SPQ 9001344 Contact Us For Availability
13
Bolt SPQ 9002012 Contact Us For Availability
13
Nut SPQ 9001242 Contact Us For Availability
13
Dispenser Drain Funnel SPQ 9001537 Contact Us For Availability
14
Tub Front Gasket SPQ 9001548 Contact Us For Availability
14
Bolt SPQ 9001301 Contact Us For Availability
14
Bolt SPQ 9001324 Contact Us For Availability
14
Backbridge SPQ 9001081 Contact Us For Availability
14
Side Panel Gasket SPQ 9001251 Contact Us For Availability
14
Motor and Fan Harness SPQ 9002076 Contact Us For Availability
14
Soap Dispenser Assembly SPQ 9001745 Contact Us For Availability
15
Tub Front Ring Clamp SPQ 9001463 Contact Us For Availability
15
Side Panel Gasket SPQ 9002001 Contact Us For Availability
15
Top Panel SPQ 9001084 Contact Us For Availability
15
Inverter Drive Box SPQ 9001079 Contact Us For Availability
15
Siphon Break Dispenser Hose SPQ 9001664 Contact Us For Availability
16
Washer SPQ 9001214 Contact Us For Availability
16
Liquid Soap Manifold SPQ 9001494 Contact Us For Availability
16
Lock Shaft SPQ 9001949 Contact Us For Availability
16
Outlet Pipe Plate Assembly SPQ 9001606 Contact Us For Availability
16
Bolt SPQ 9001309 Contact Us For Availability
16
Pushbutton SPQ 111/10425/50 Contact Us For Availability
17
Bolt SPQ 9001295 Contact Us For Availability
17
Light Microswitch SPQ 9001230 Contact Us For Availability
17
Backbridge SPQ 9001236 Contact Us For Availability
17
Grommet SPQ 9001530 Contact Us For Availability
18
Drain Pipe SPQ 9001936 Contact Us For Availability
18
SPQ 9001662 SPQ 9001662 Contact Us For Availability
18
Vent Hose SPQ 9001551 Contact Us For Availability
19
Water Hose SPQ F200205 Contact Us For Availability
19
Drain Pipe Cap SPQ 9001937 Contact Us For Availability
19
Door Lock Spring SPQ 9001468 Contact Us For Availability
19
Crossbar SPQ 9002016 Contact Us For Availability
19
Pushbutton SPQ 44018801 Contact Us For Availability
19
Electrical Connection Plate SPQ 9001421 Contact Us For Availability
20
Soap Spray Nozzle SPQ 9001499 Contact Us For Availability
20
Elbow SPQ 9001983 Contact Us For Availability
20
Contact Block SPQ 209/00520/00 Contact Us For Availability
20
Bolt SPQ 9001420 Contact Us For Availability
21
SPQ 9001037 SPQ 9001037 Contact Us For Availability
21
Water Hose SPQ 223/00419/00 Contact Us For Availability
22
SPQ 9001254 SPQ 9001254 Contact Us For Availability
22
Door Lock Spacer SPQ 9001558 Contact Us For Availability
22
Inverter Box Cover SPQ 44018901 Contact Us For Availability
22
Backbridge SPQ 111/10425/11 Contact Us For Availability
22
Prewash and Mainwash Nozzle SPQ 9001346 Contact Us For Availability
23
Switch Lever SPQ 9001554 Contact Us For Availability
23
SPQ 9001498 SPQ 9001498 Contact Us For Availability
24
SPQ 9001270 SPQ 9001270 Contact Us For Availability
25
SPQ 9001209 SPQ 9001209 Contact Us For Availability
25
Lever Spring SPQ 9001478 Contact Us For Availability
26
Lock Protection Plate SPQ 9001477 Contact Us For Availability
27
SPQ 9001487 SPQ 9001487 Contact Us For Availability
NI
Pulley SPQ 9001220 Contact Us For Availability
NI
SPQ 9001559 SPQ 9001559 Contact Us For Availability
NI
SPQ 9001460 SPQ 9001460 Contact Us For Availability
NI
SPQ 9001930 SPQ 9001930 Contact Us For Availability
NI
SPQ 9001932 SPQ 9001932 Contact Us For Availability
NI
SPQ 9001269 SPQ 9001269 Contact Us For Availability
NI
SPQ F8420905 SPQ F8420905 Contact Us For Availability
NI
SPQ F8420805 SPQ F8420805 Contact Us For Availability
NI
SPQ 9001953 SPQ 9001953 Contact Us For Availability
NI
SPQ 9001364 SPQ 9001364 Contact Us For Availability
× ![]()
