Model Speed Queen STB30XG Dryer – Common Parts & Diagrams

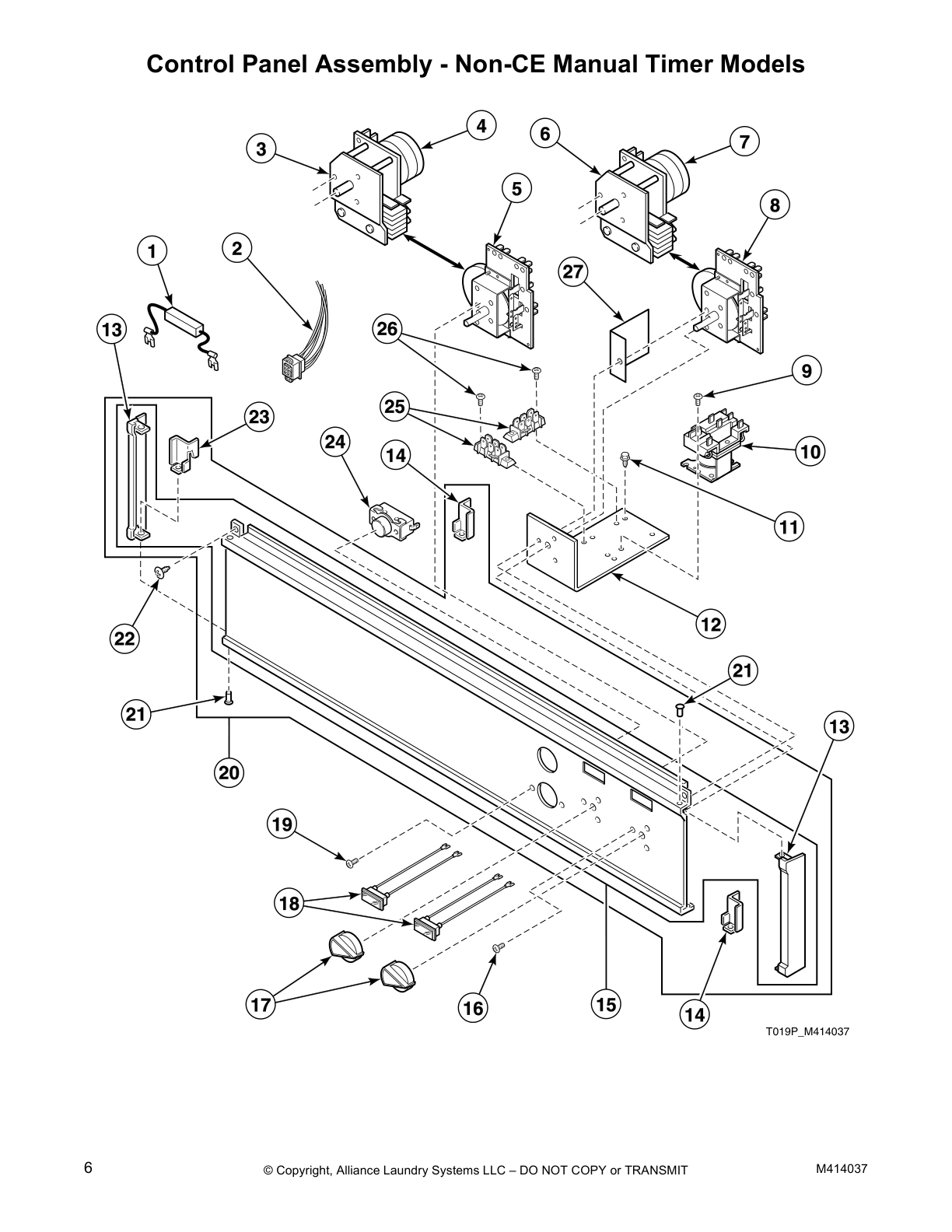

Control Panel Assembly - Non-CE Manual Timer Models

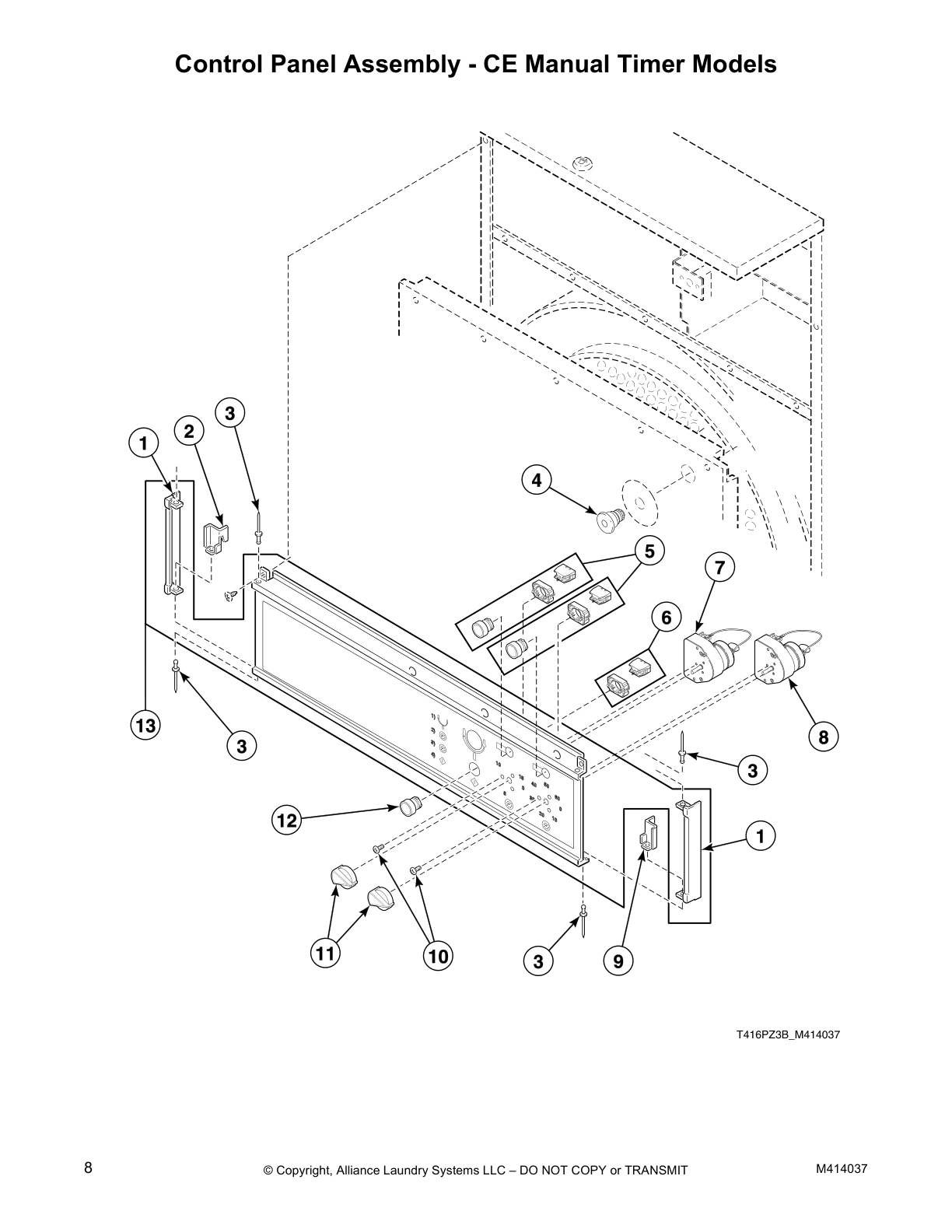

Control Panel Assembly - CE Manual Timer Models

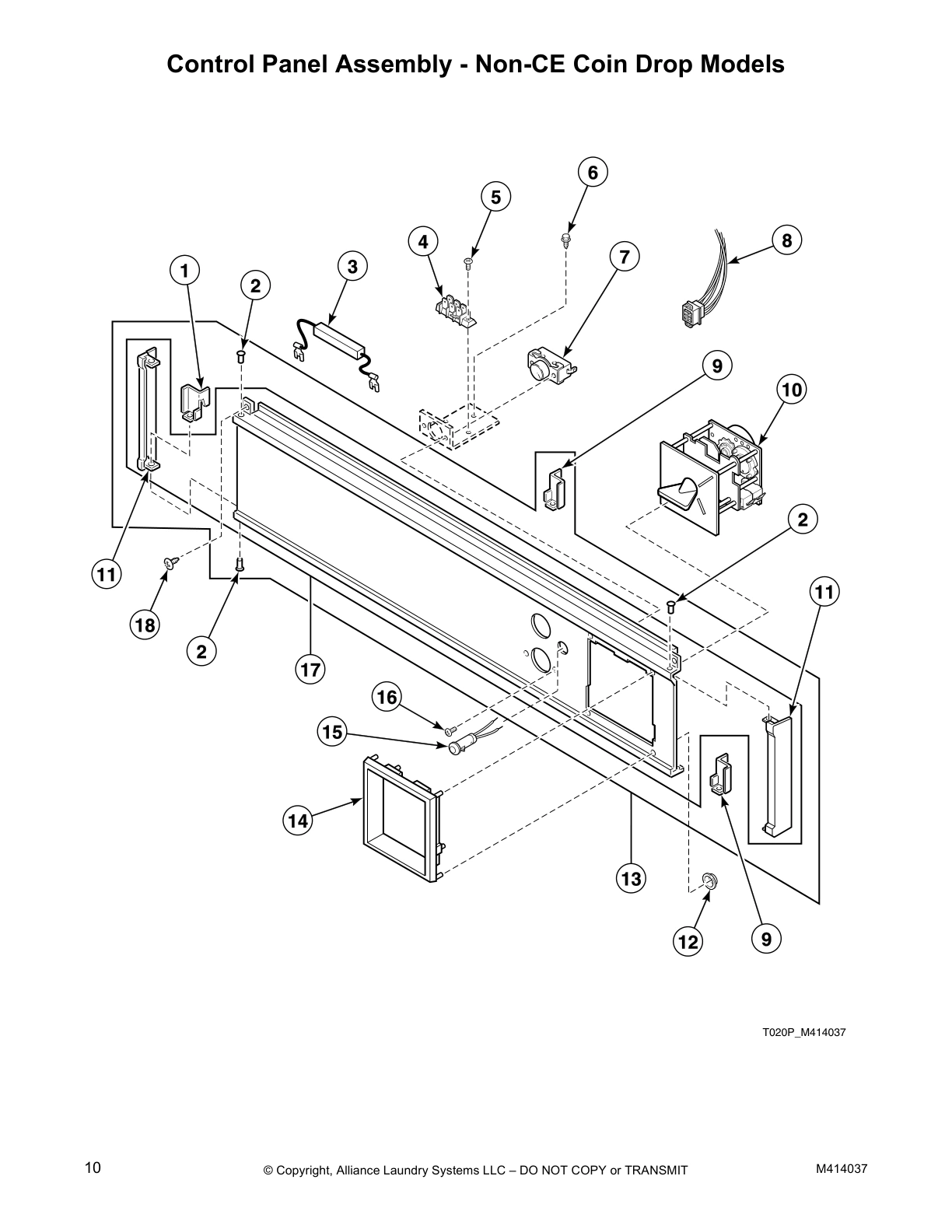

Control Panel Assembly - Non-CE Coin Drop Models

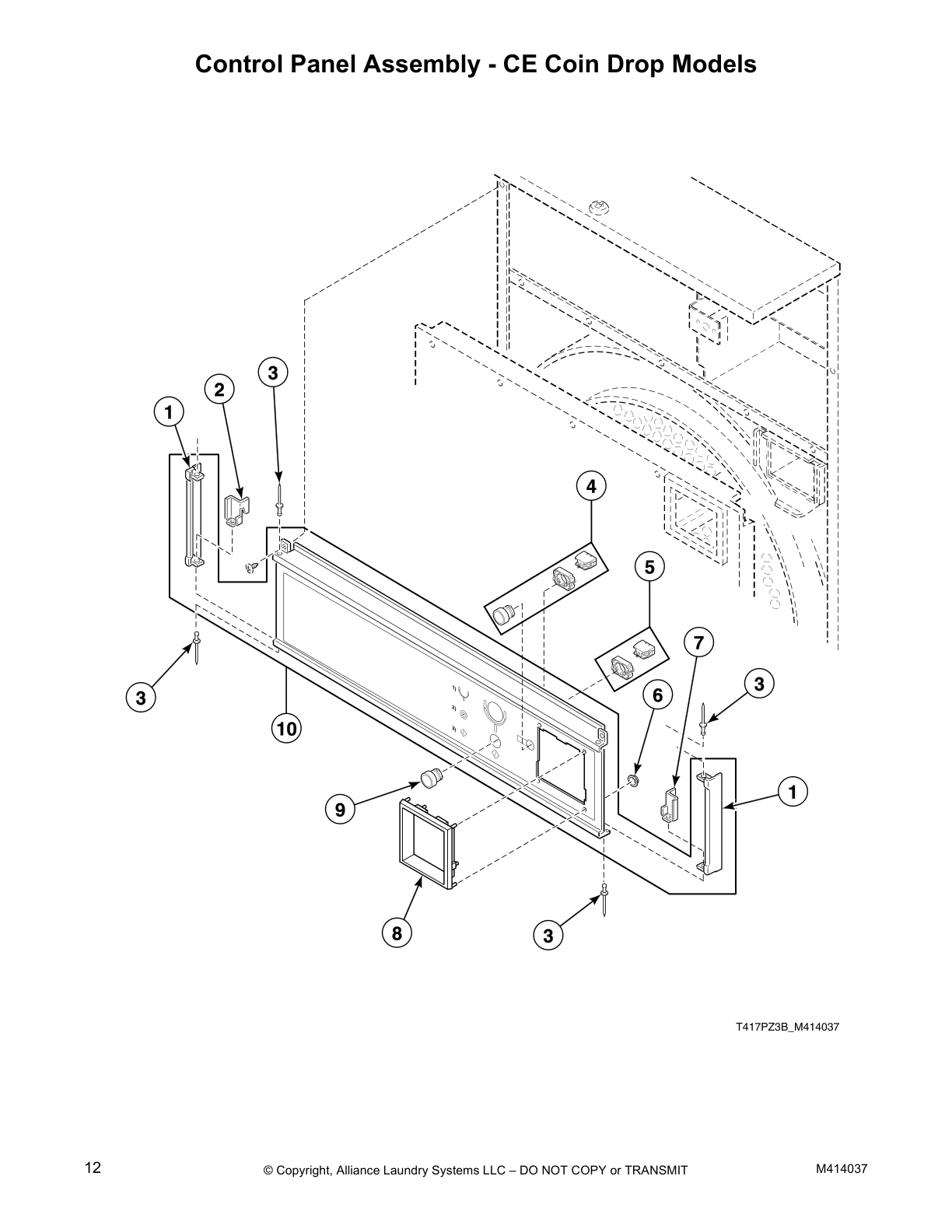

Control Panel Assembly - CE Coin Drop Models

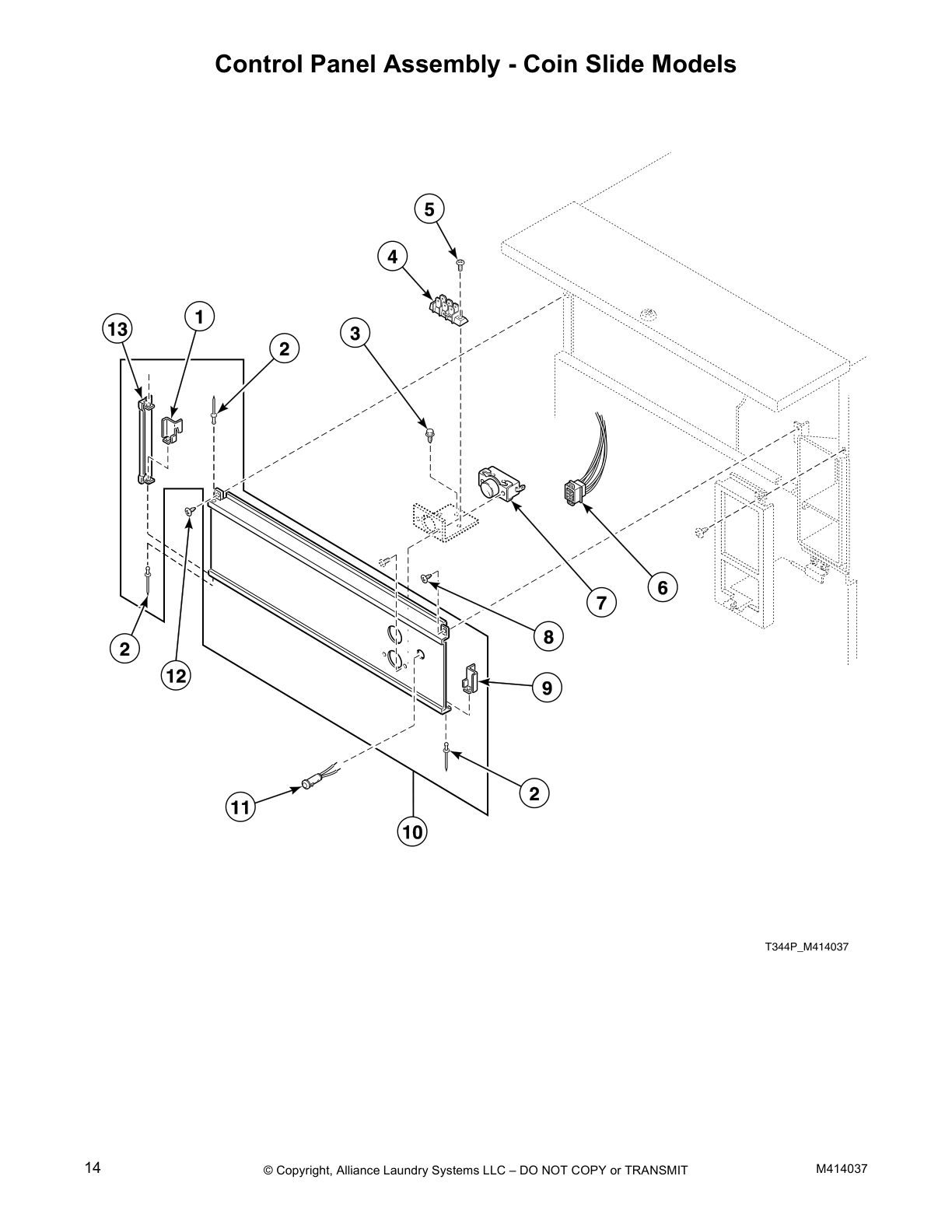

Control Panel Assembly - Coin Slide Models

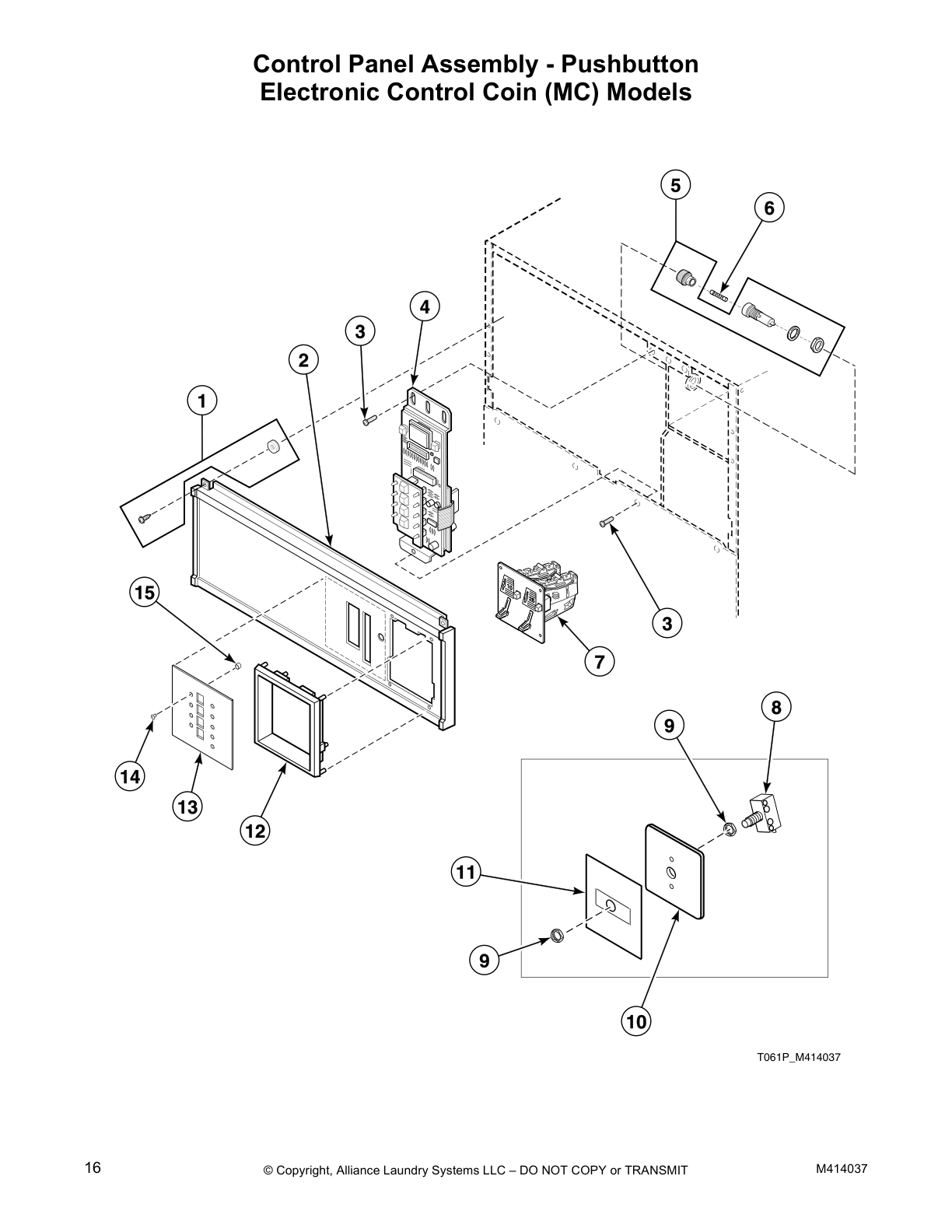

Control Panel Assembly - Pushbutton
Electronic Control Coin (MC) Models

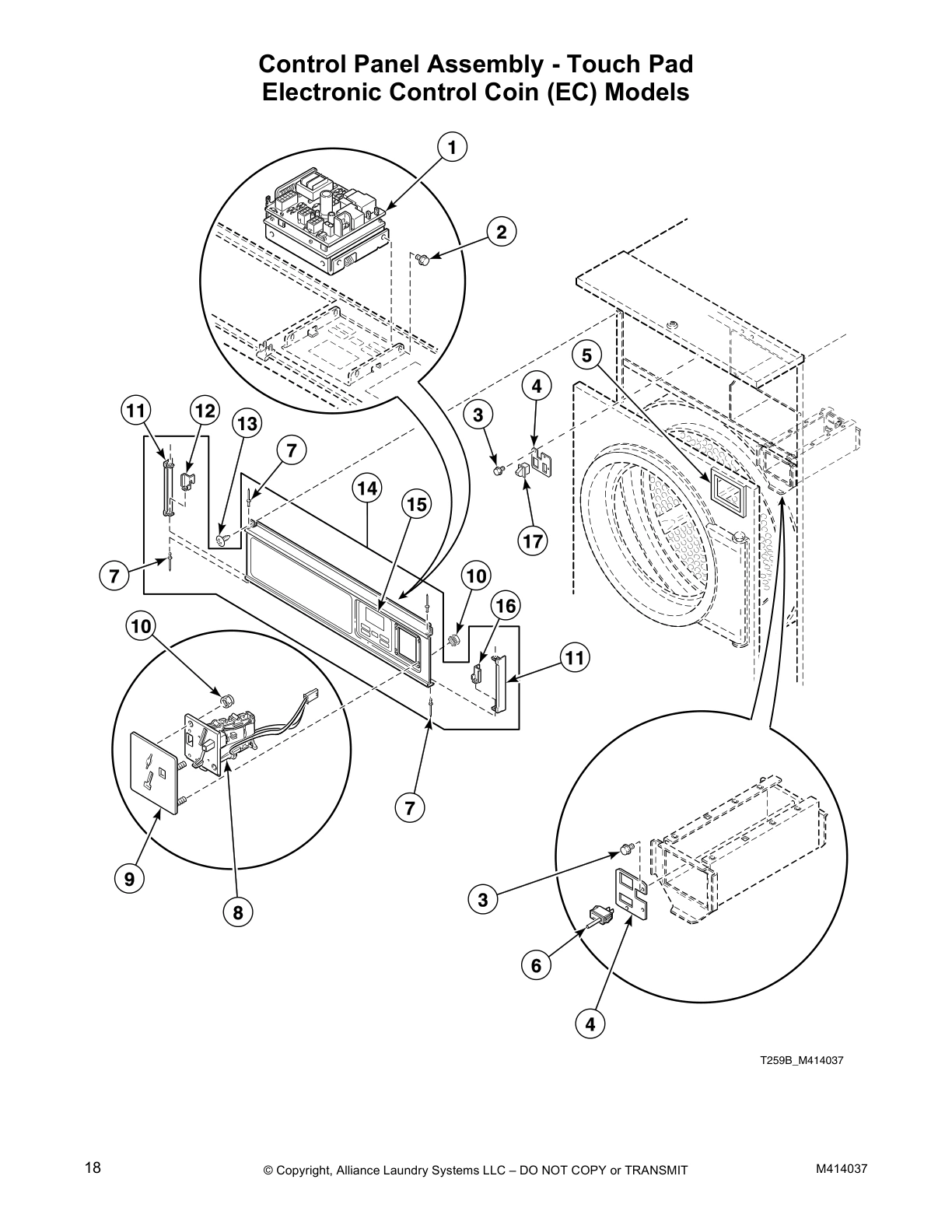

Control Panel Assembly - Touch Pad
Electronic Control Coin (EC) Models

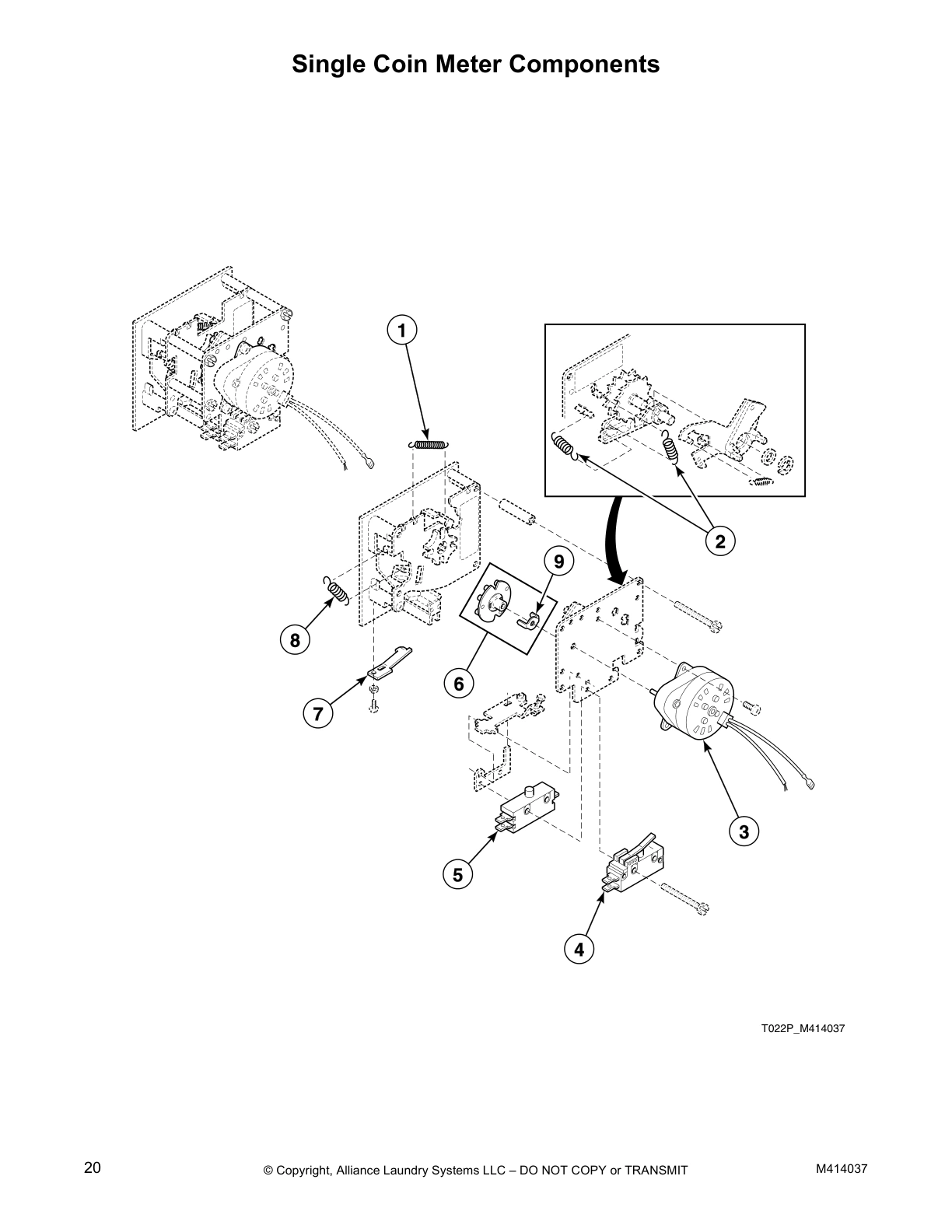

Single Coin Meter Components

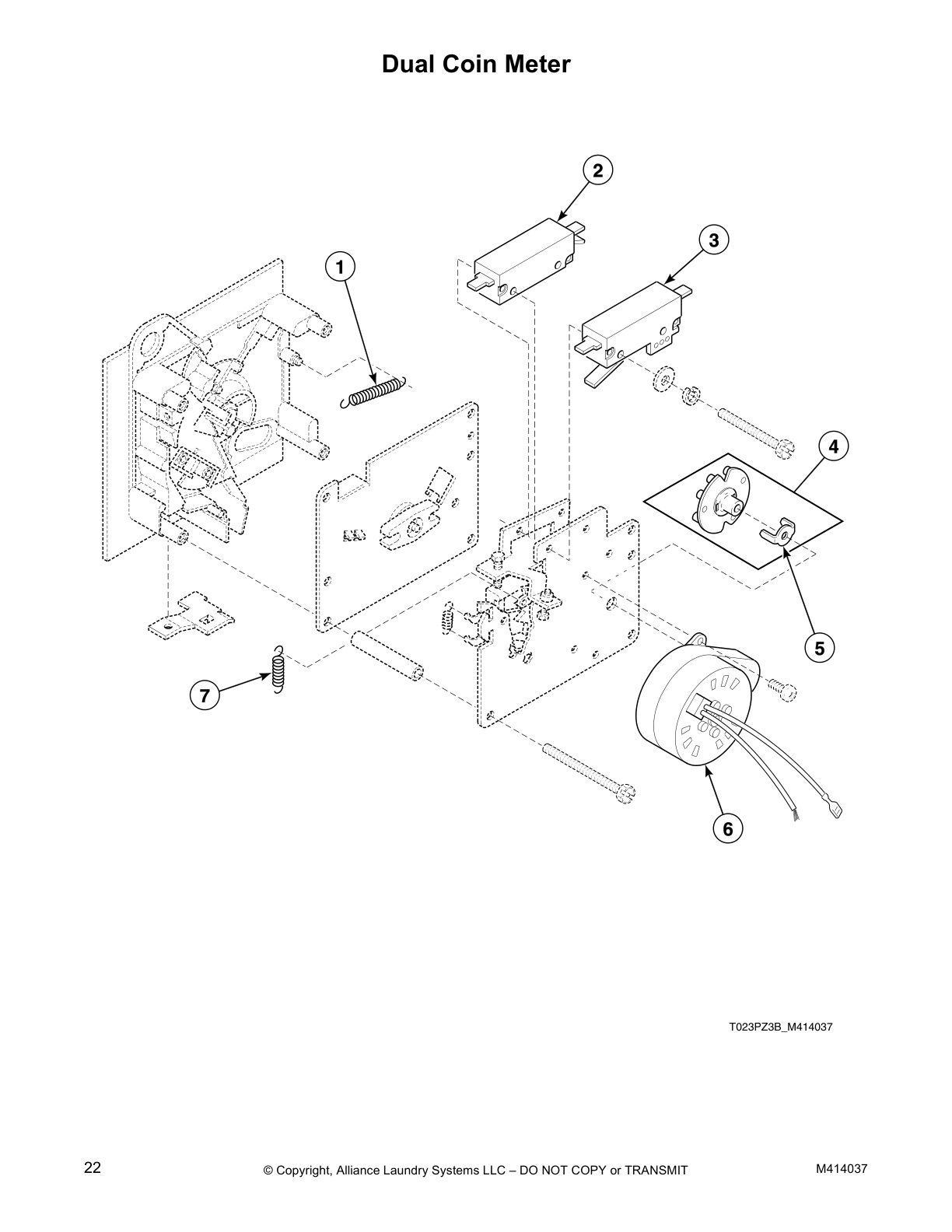

Dual Coin Meter

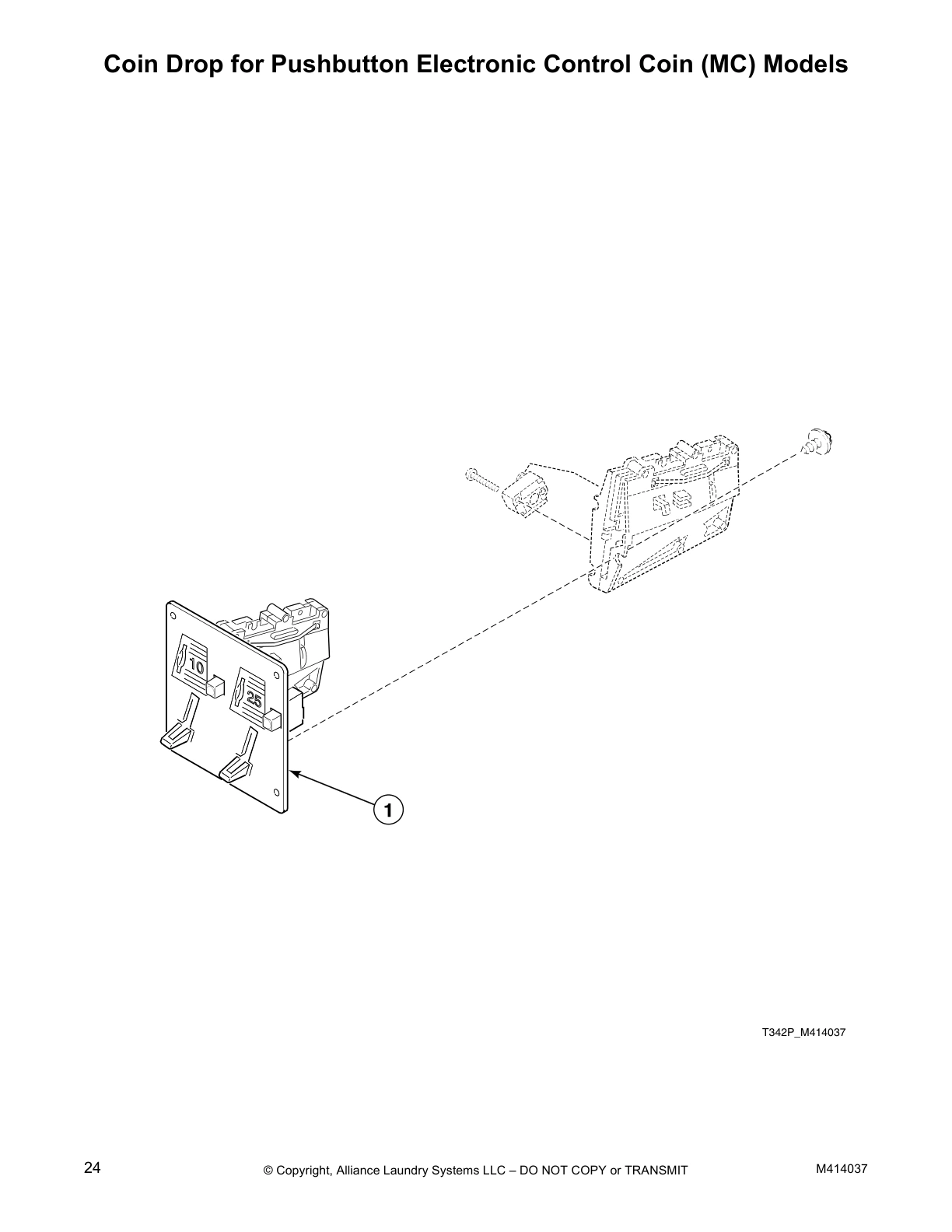

Coin Drop for Pushbutton Electronic Control Coin (MC) Models

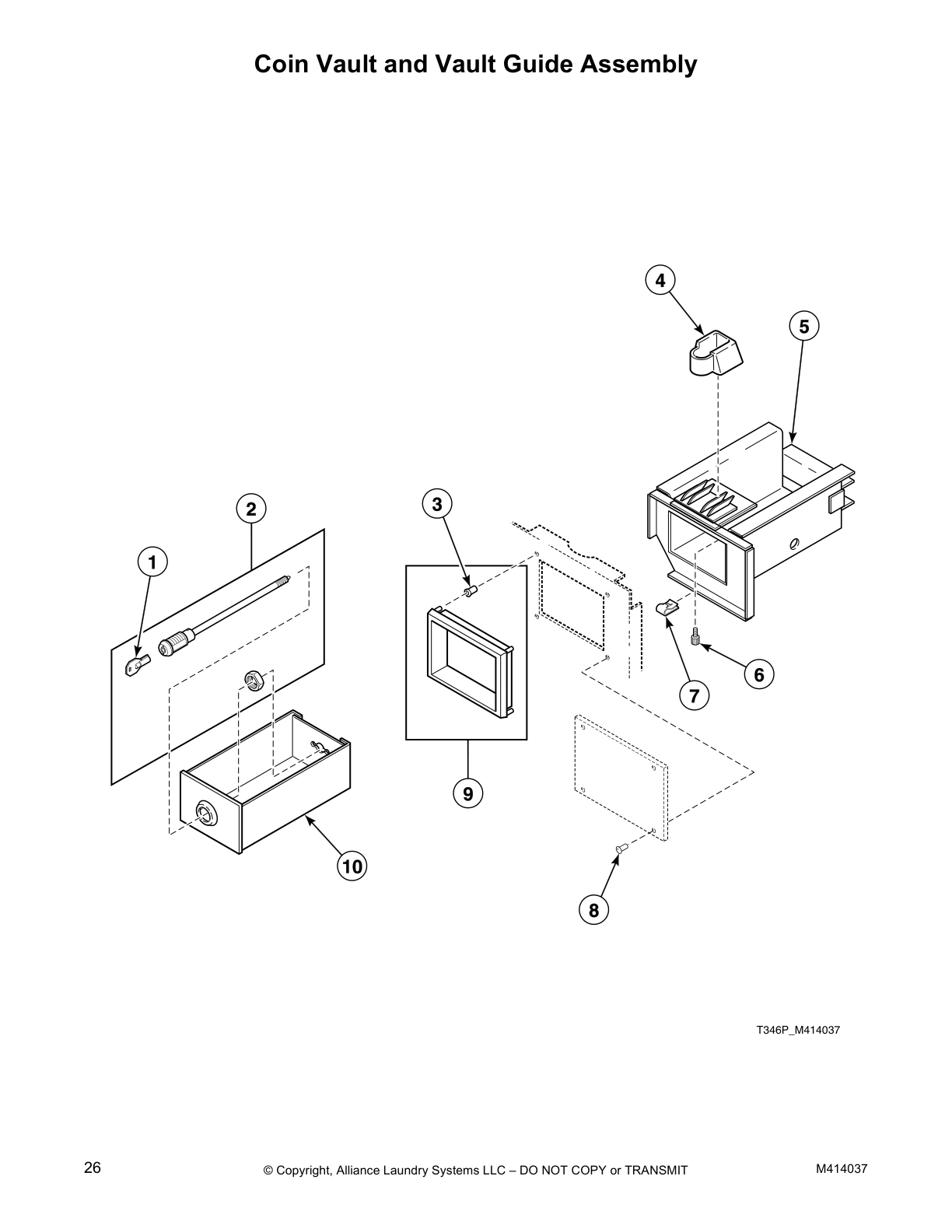

Coin Vault and Vault Guide Assembly

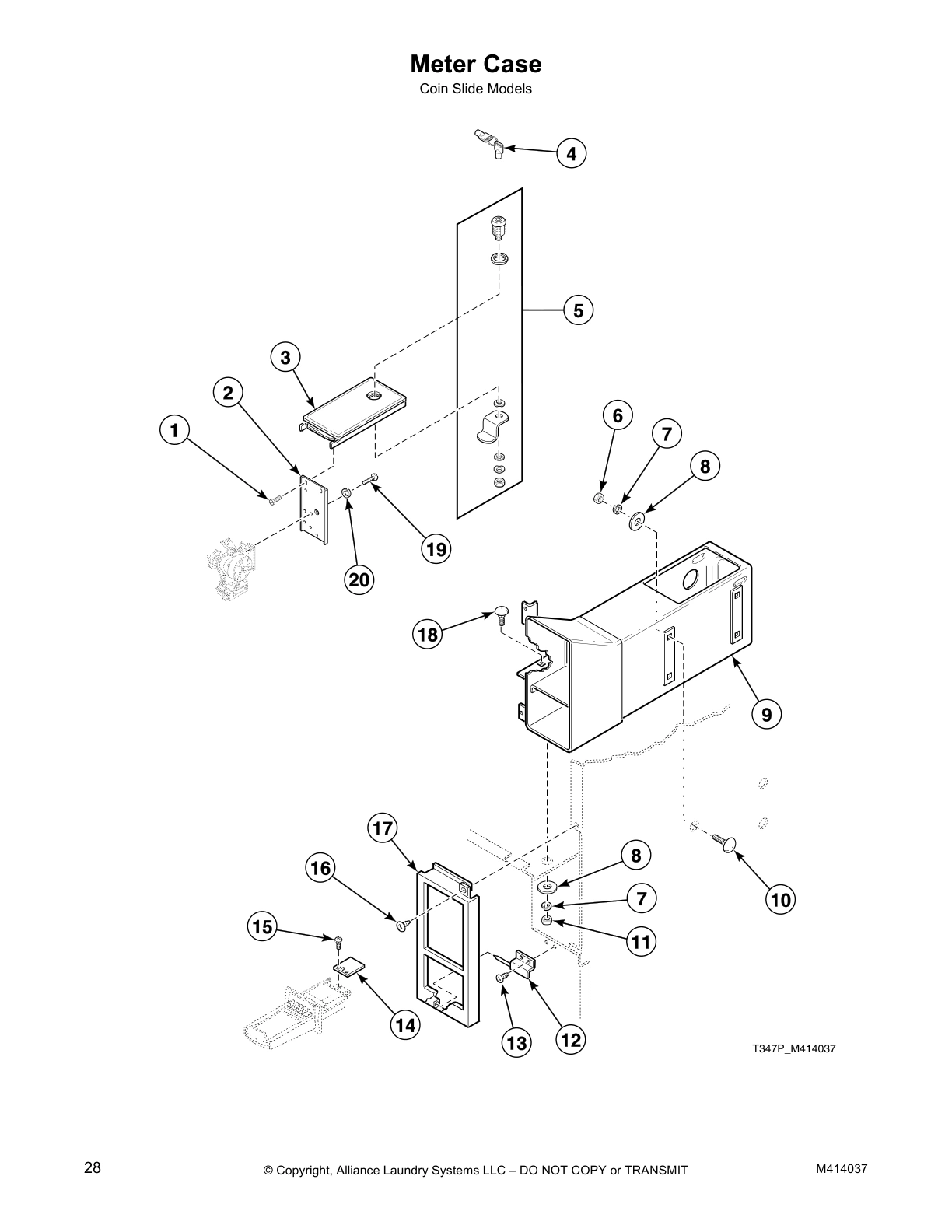

Meter Case

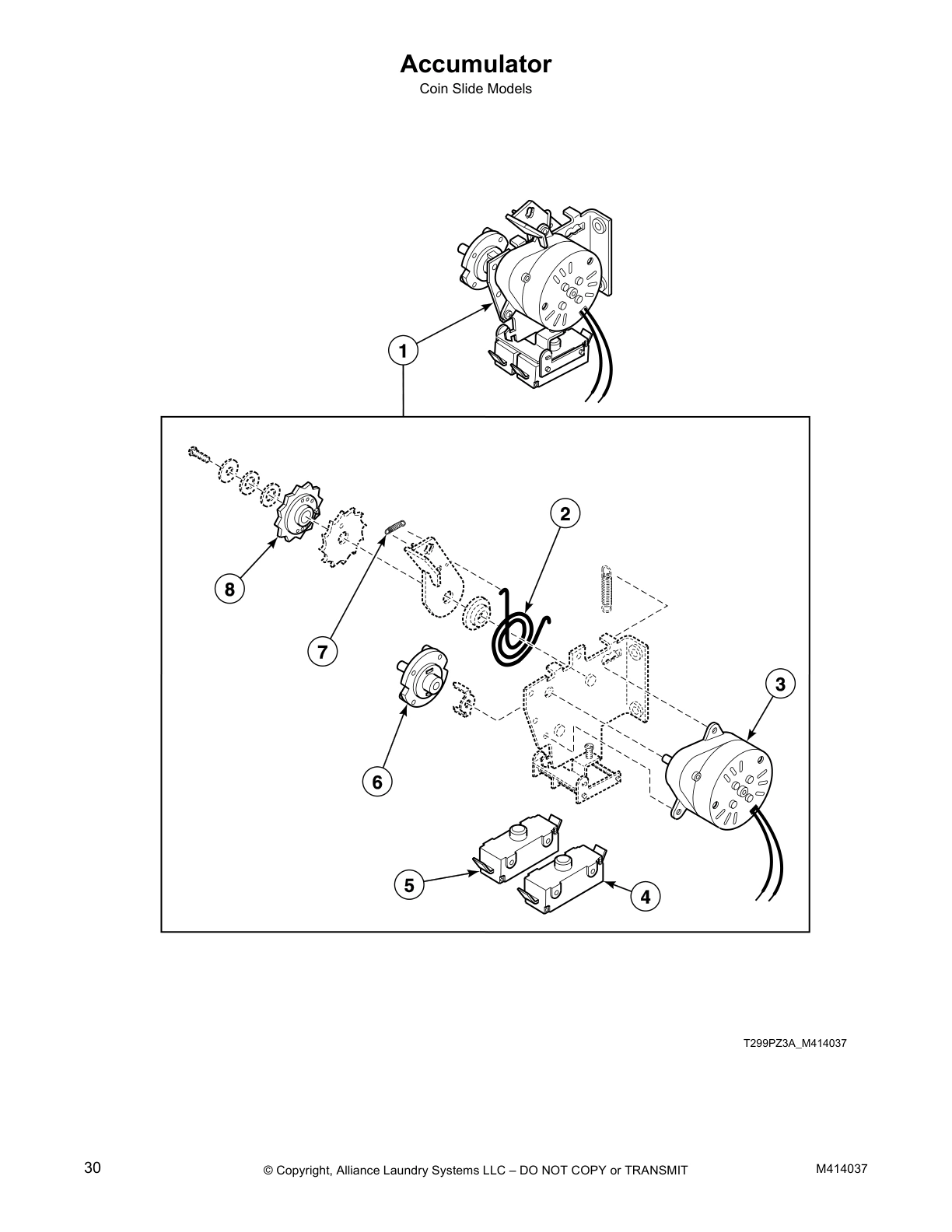

Accumulator

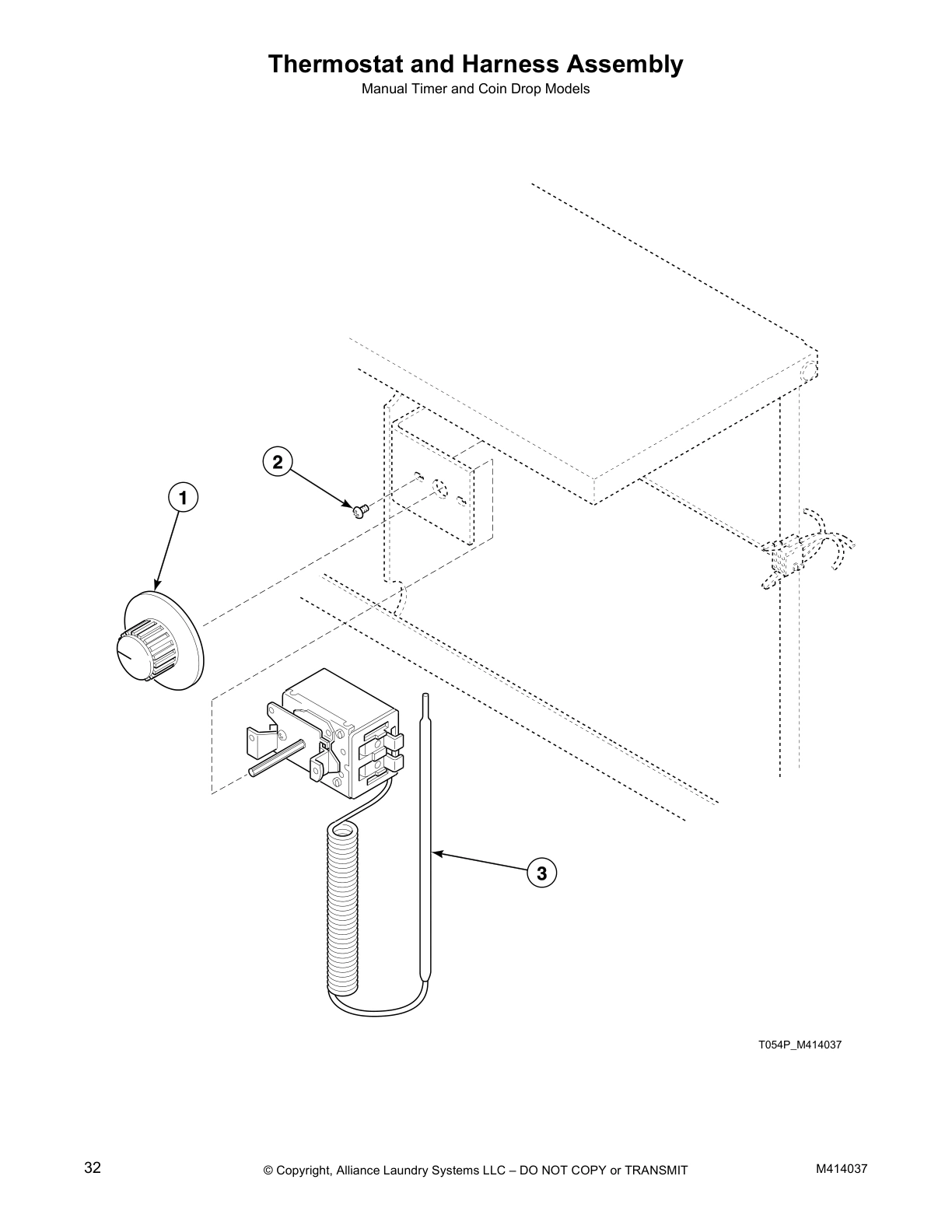

Thermostat and Harness Assembly

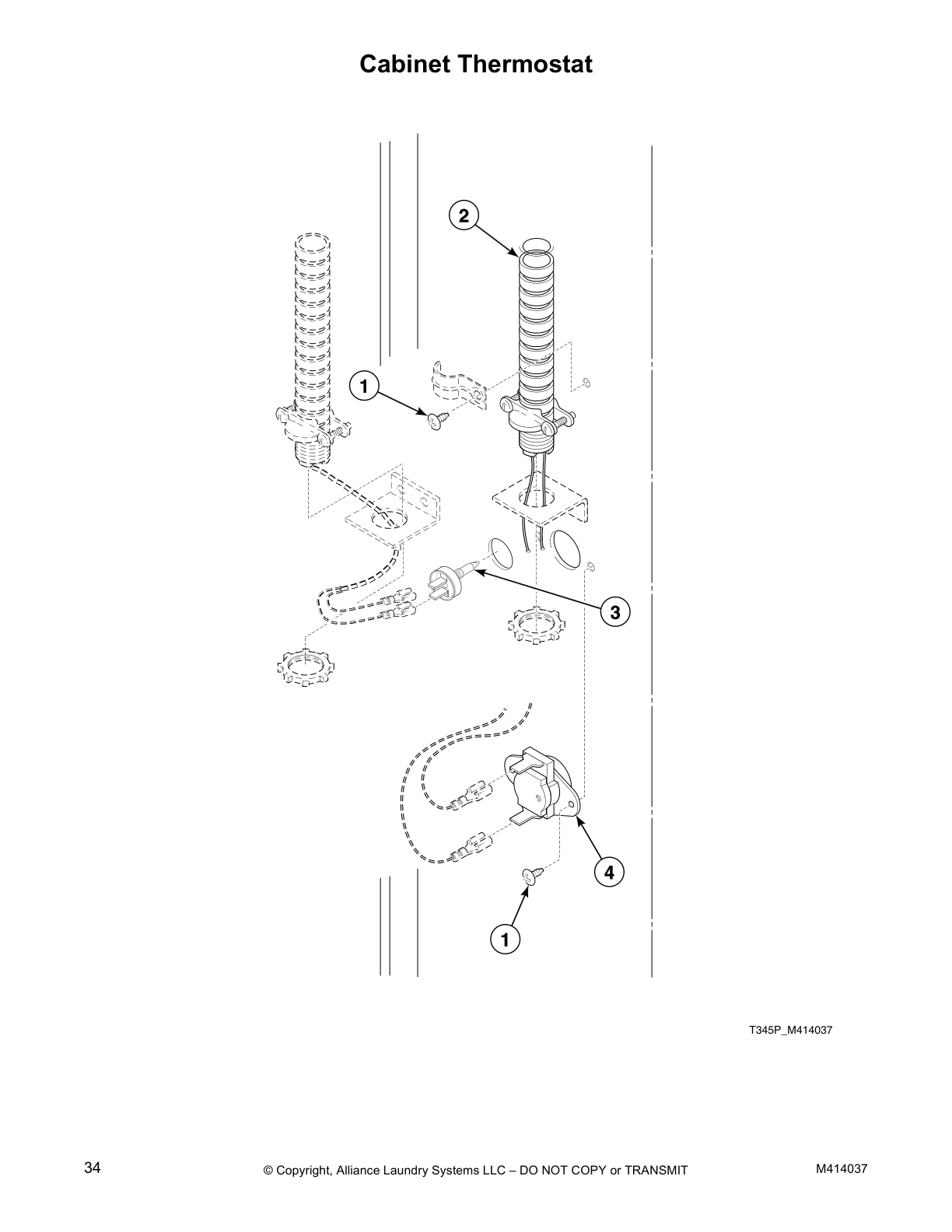

Cabinet Thermostat

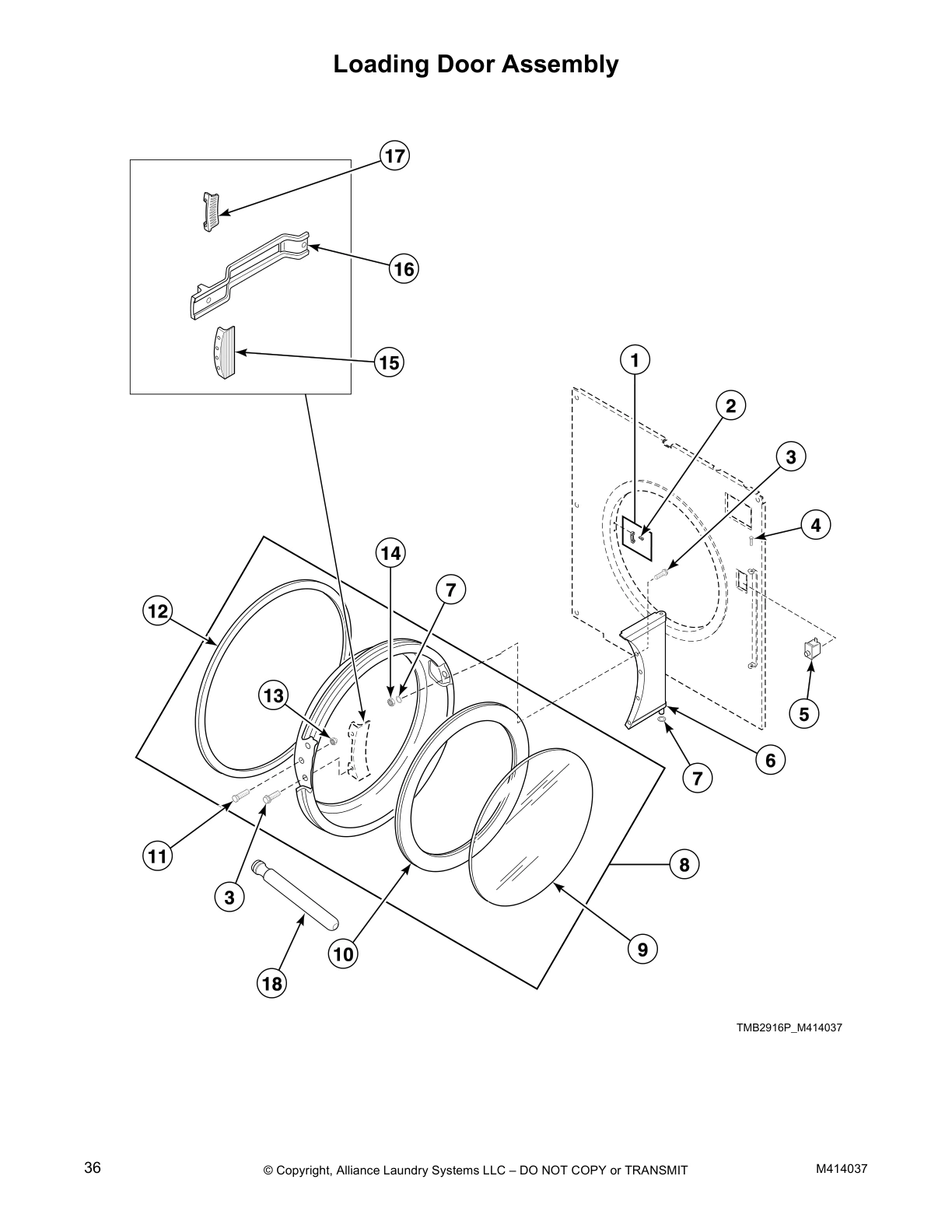

Loading Door Assembly

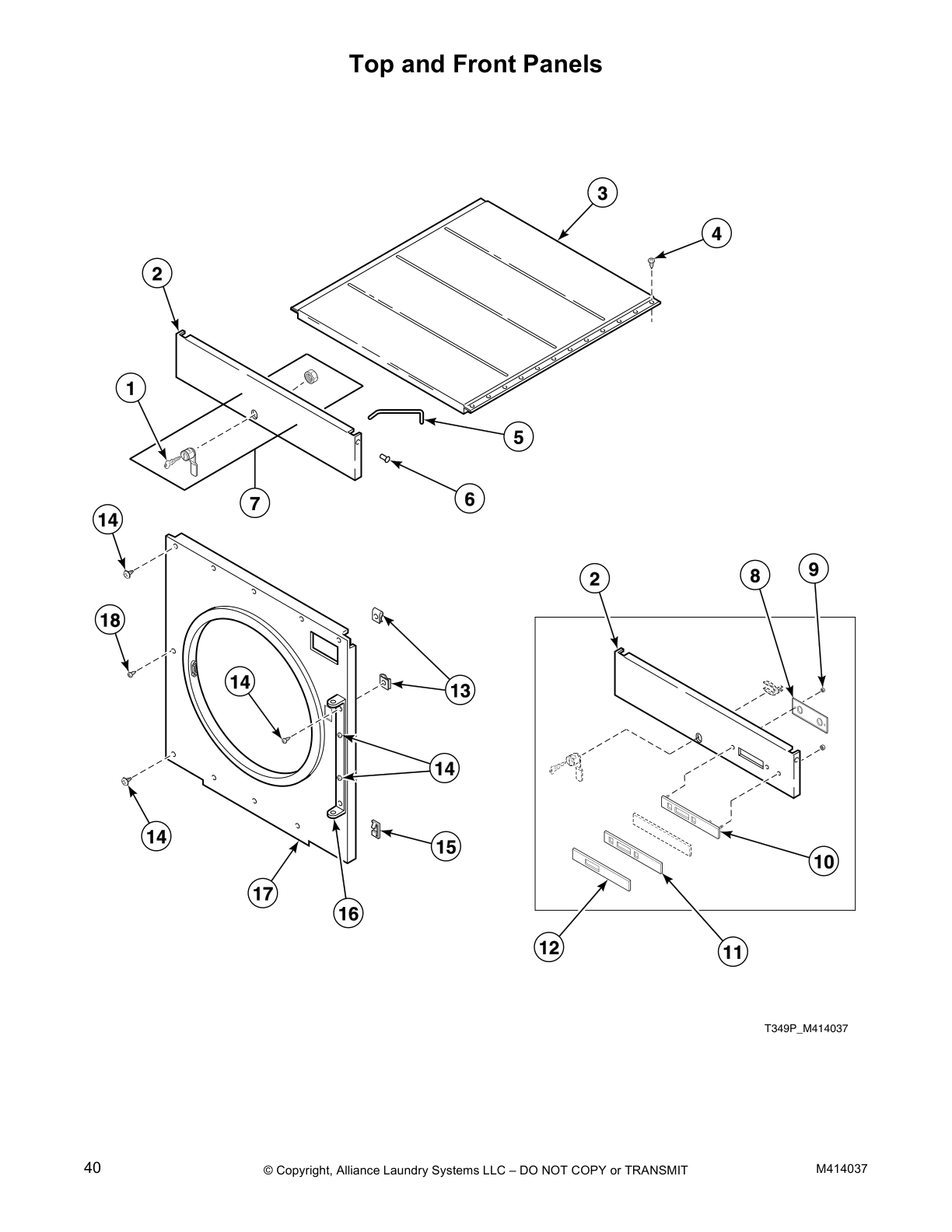

Top and Front Panels

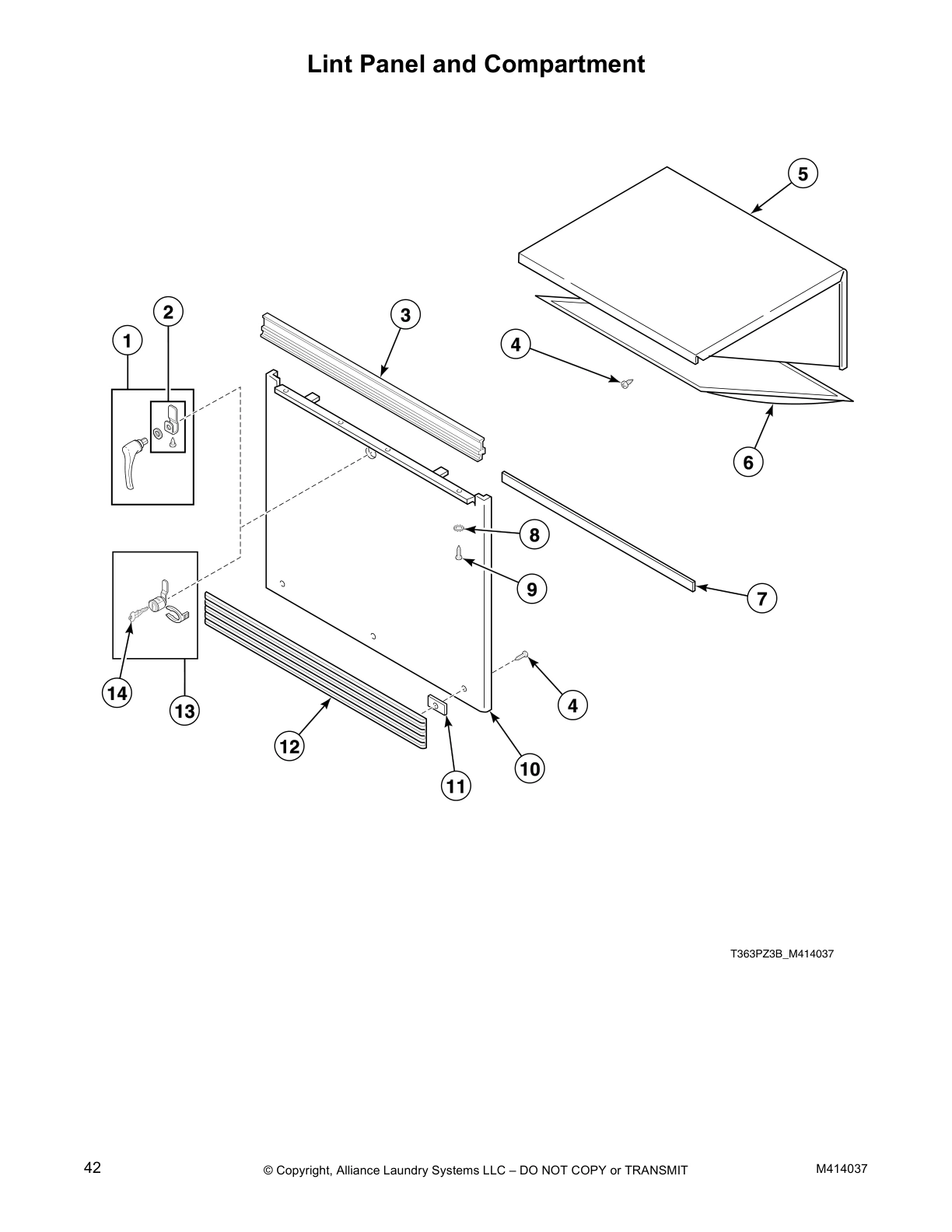

Lint Panel and Compartment

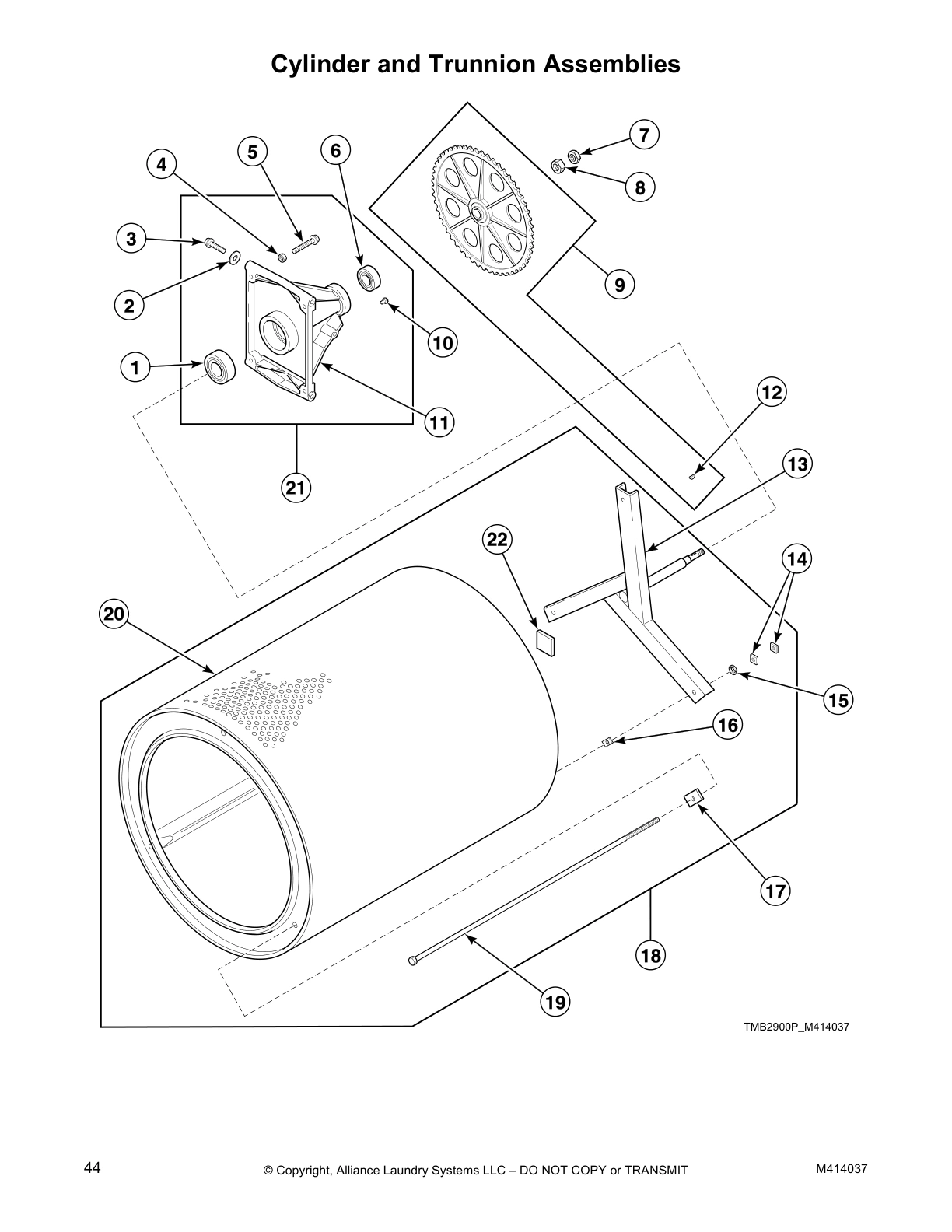

Cylinder and Trunnion Assemblies

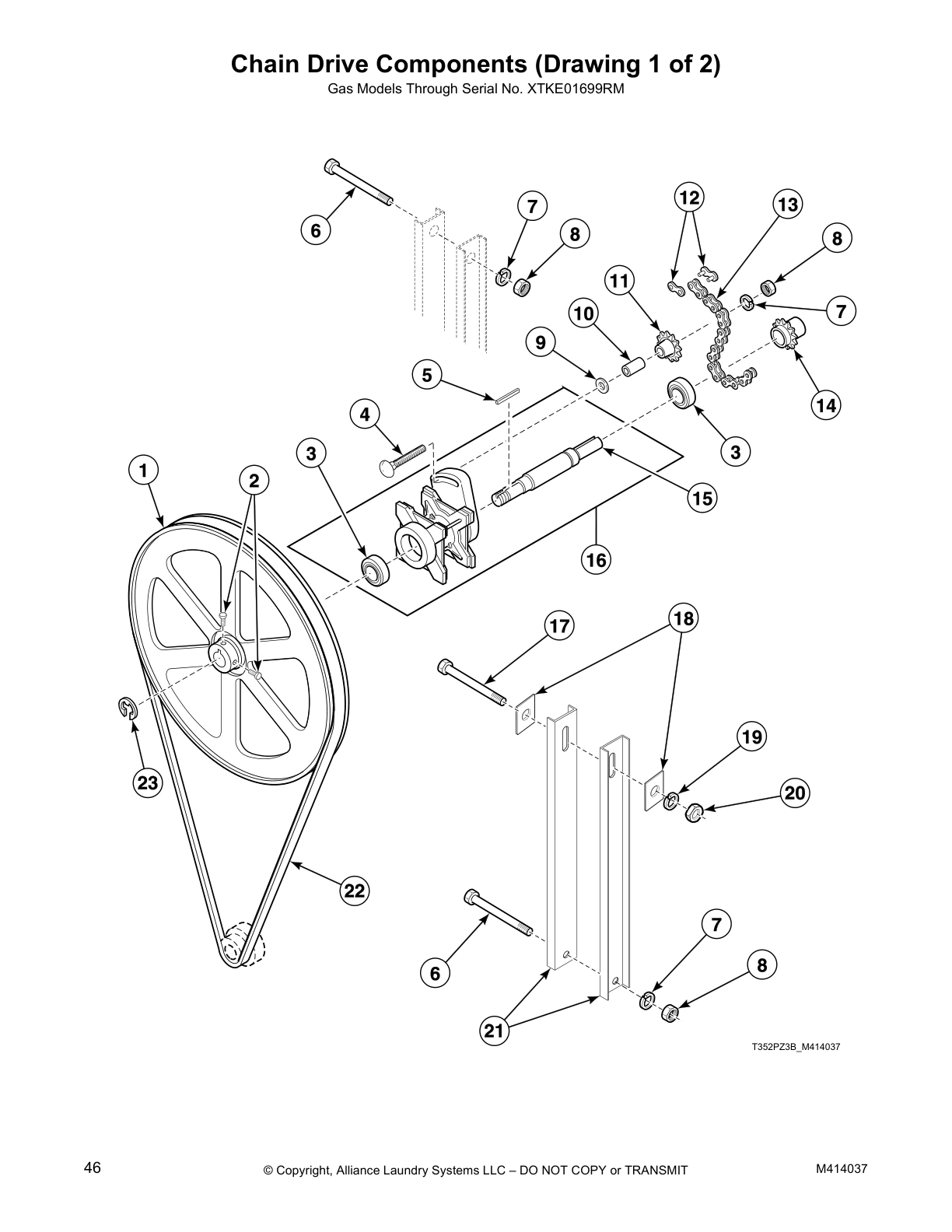

Chain Drive Components (Drawing 1 of 2)

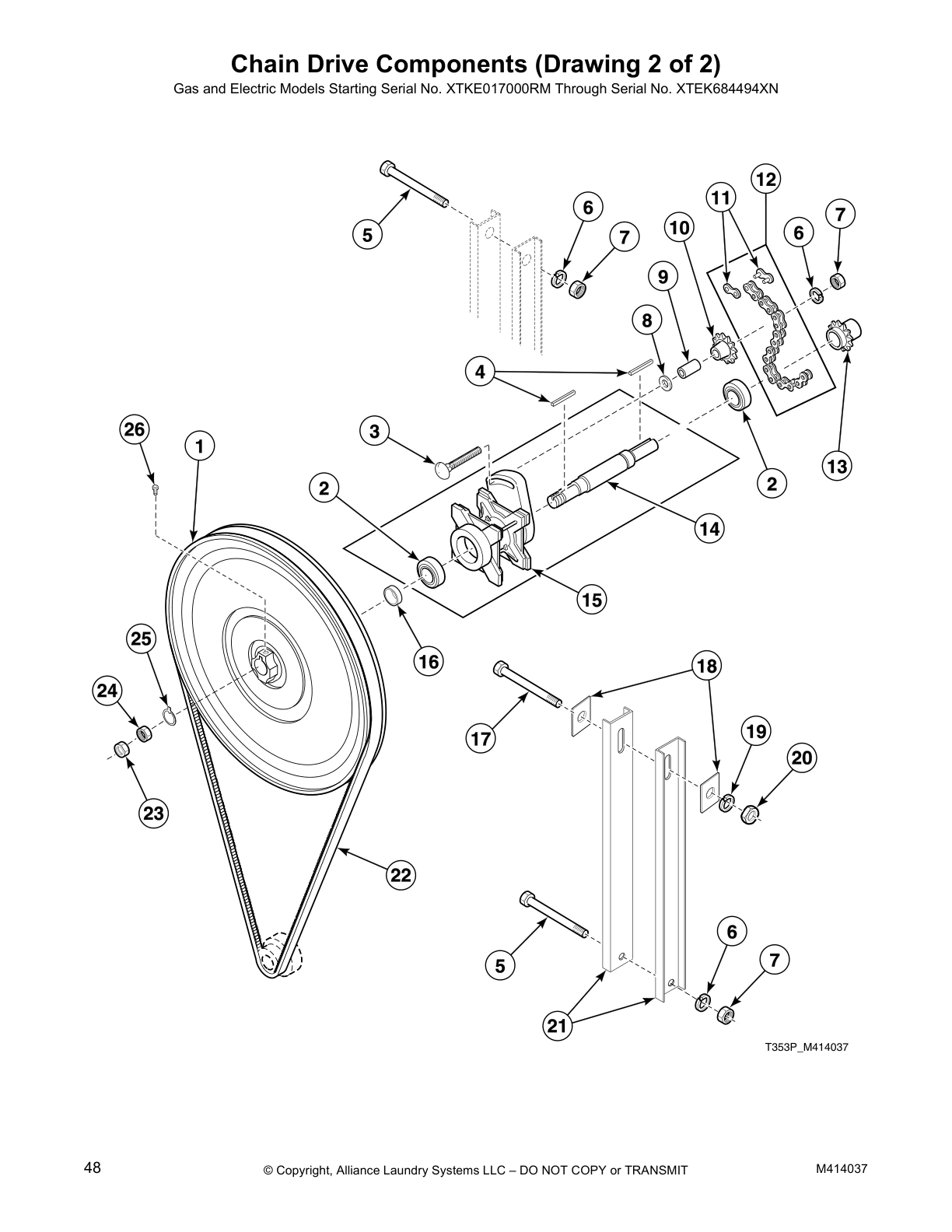

Chain Drive Components (Drawing 2 of 2)

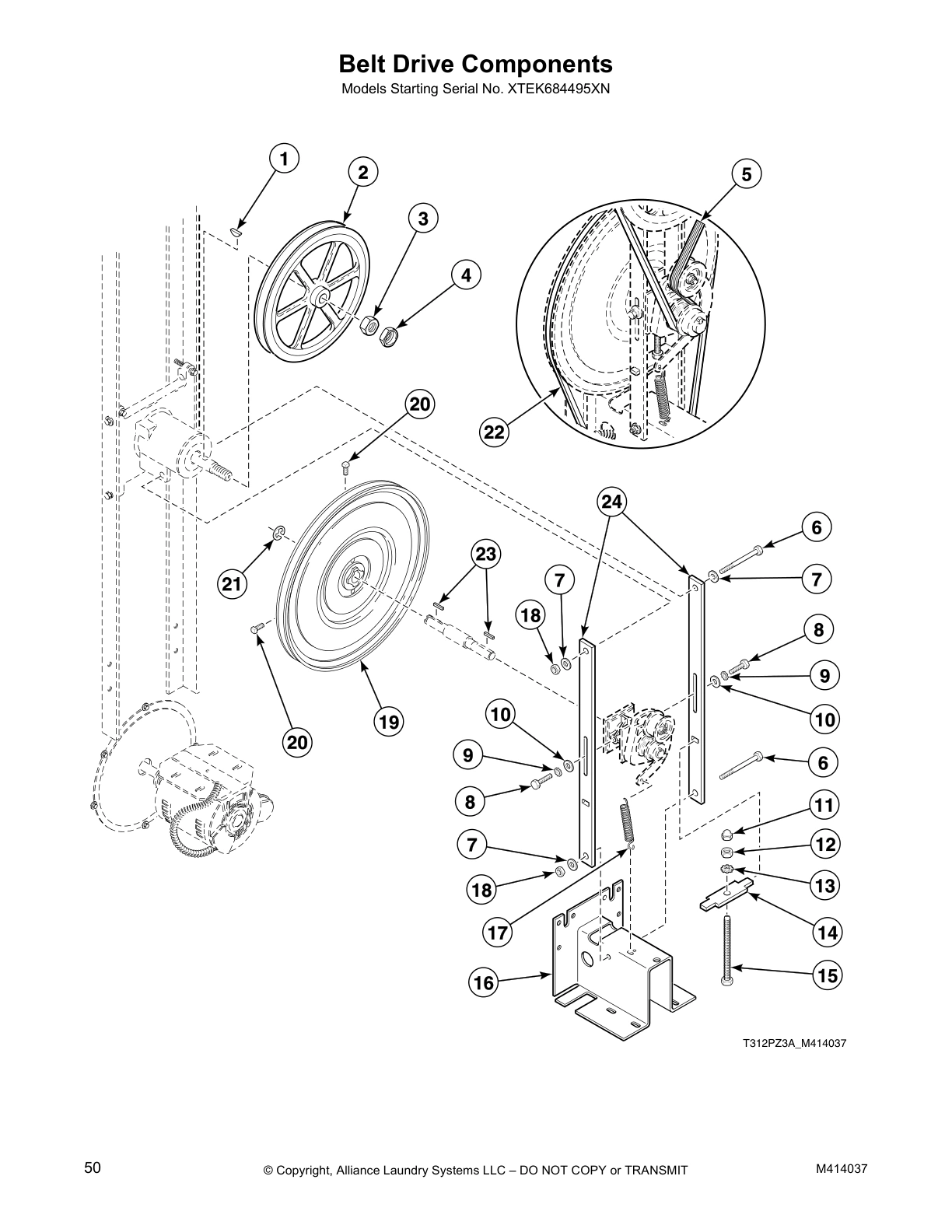

Belt Drive Components

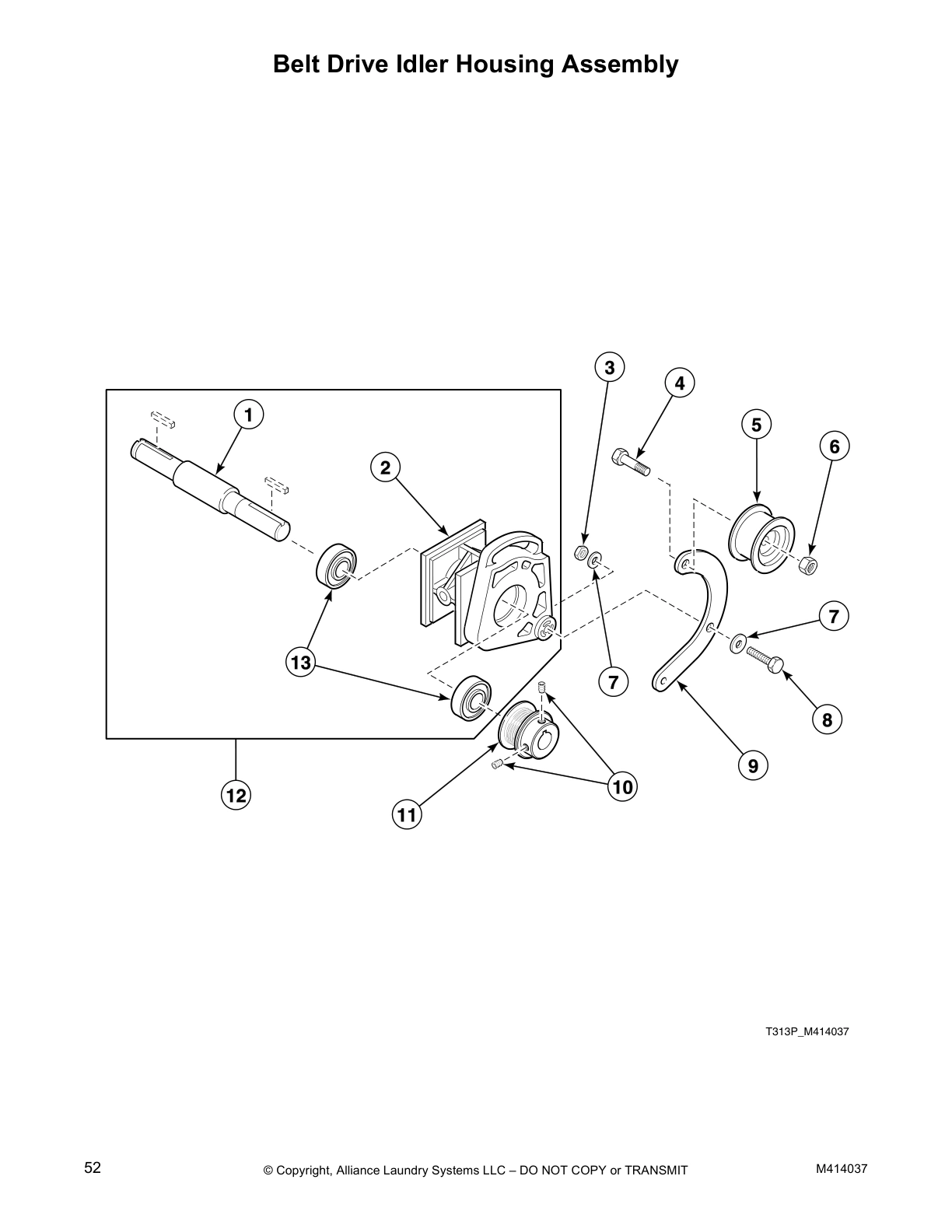

Belt Drive Idler Housing Assembly

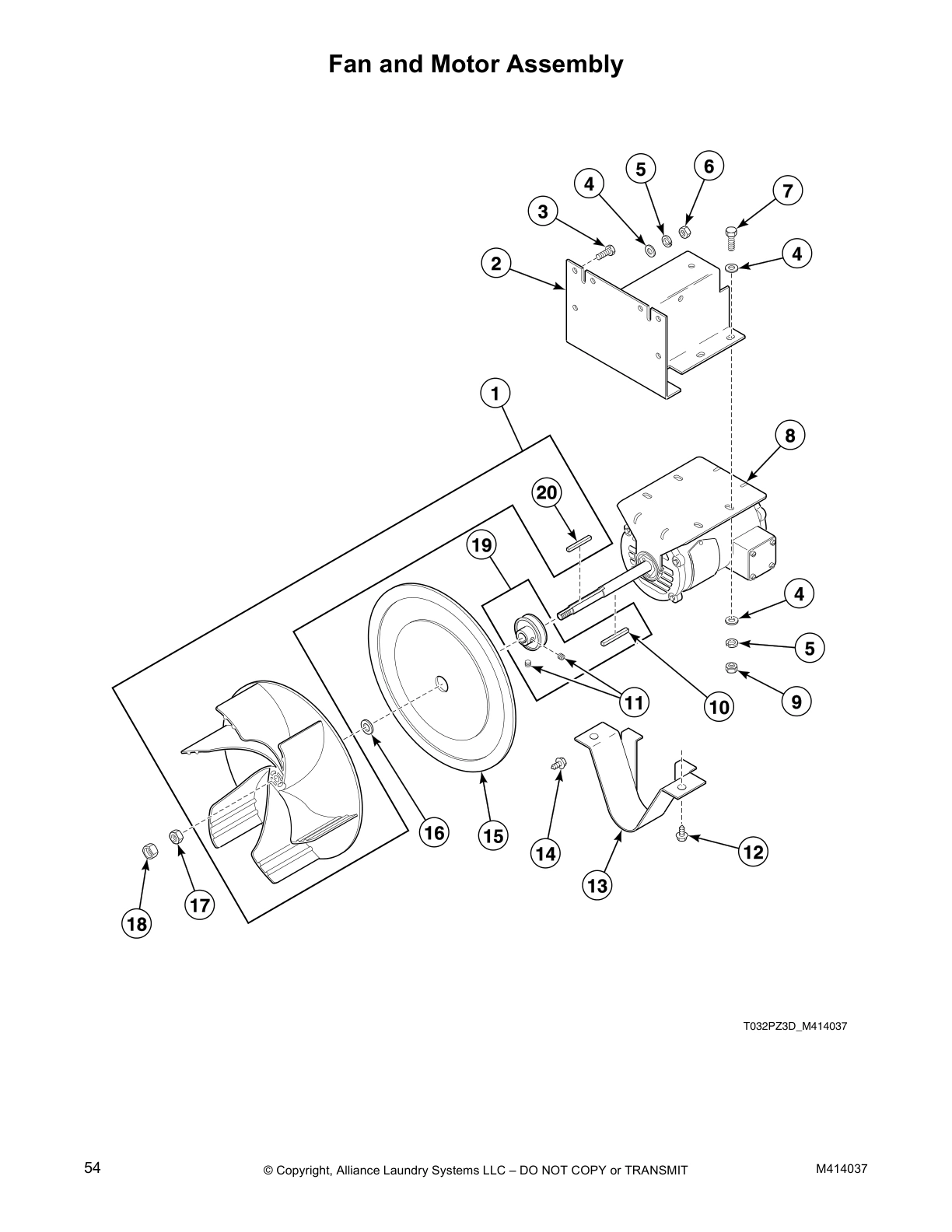

Fan and Motor Assembly

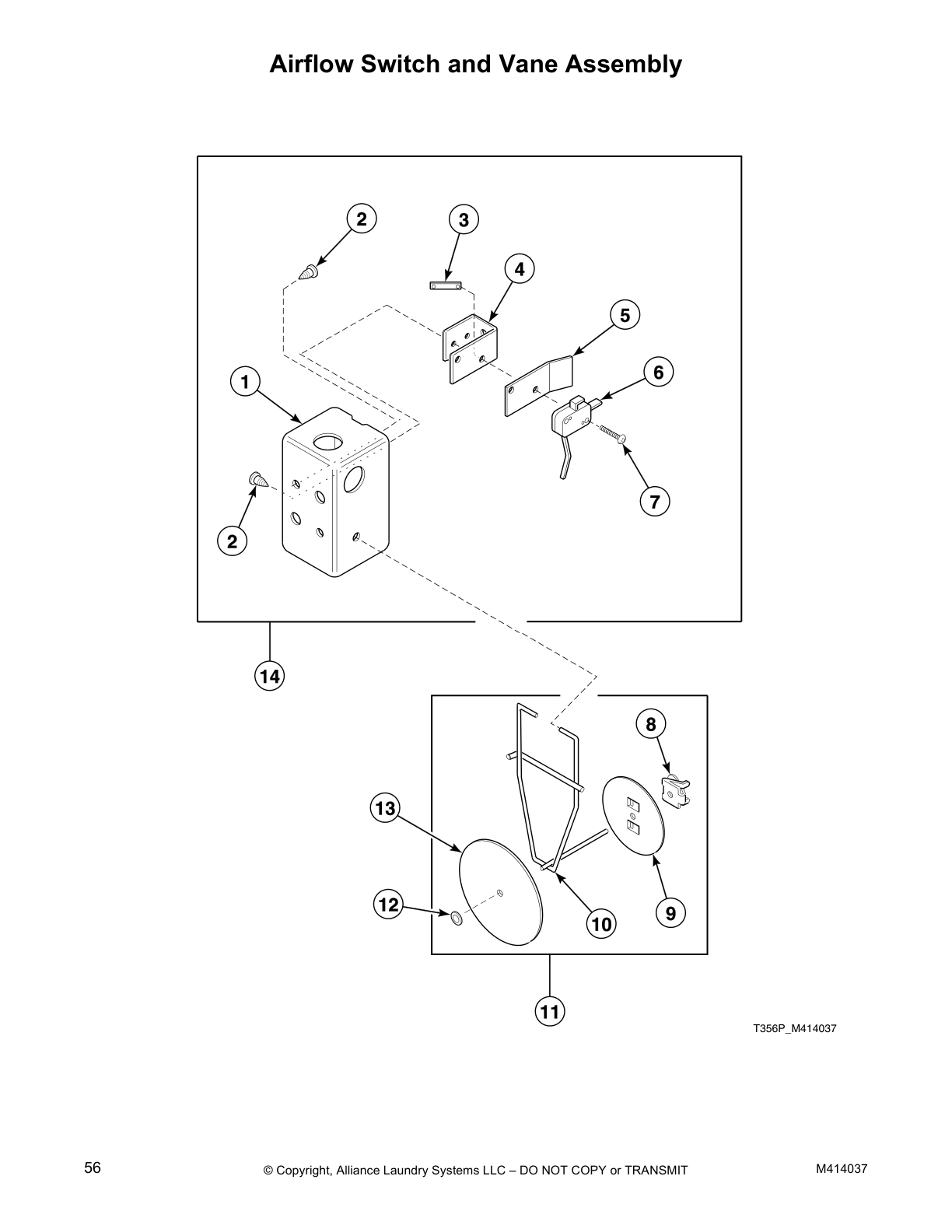

Airflow Switch and Vane Assembly

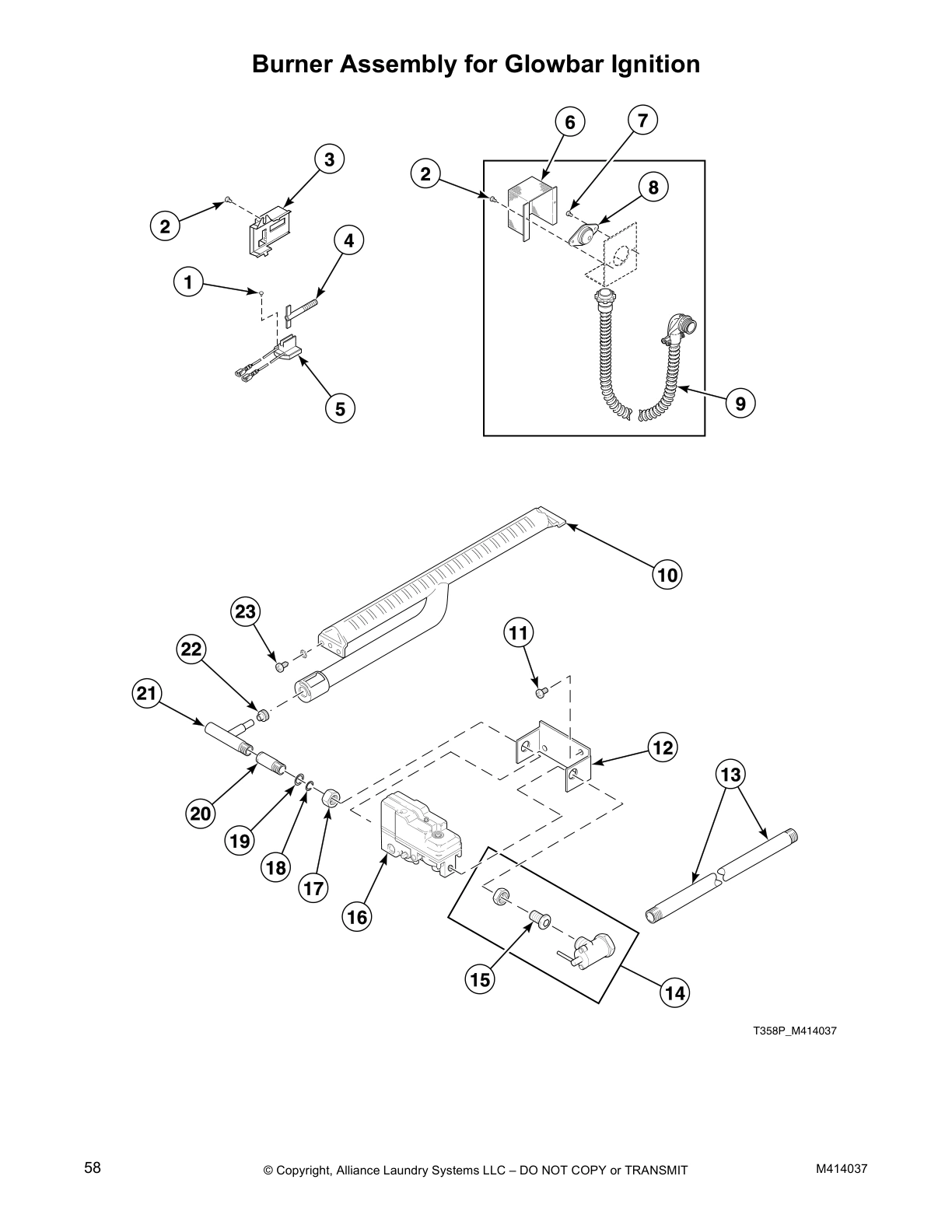

Burner Assembly for Glowbar Ignition

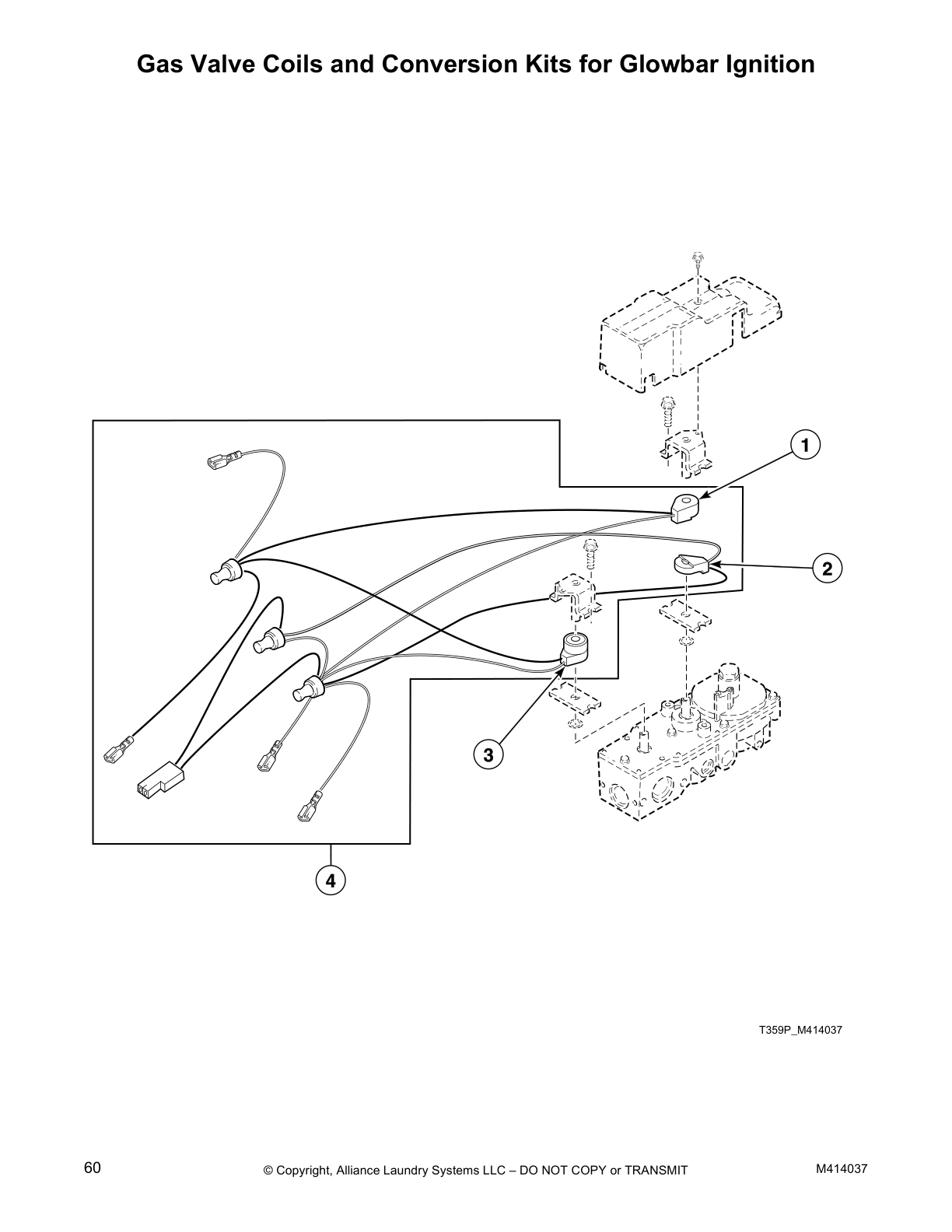

Gas Valve Coils and Conversion Kits for Glowbar Ignition

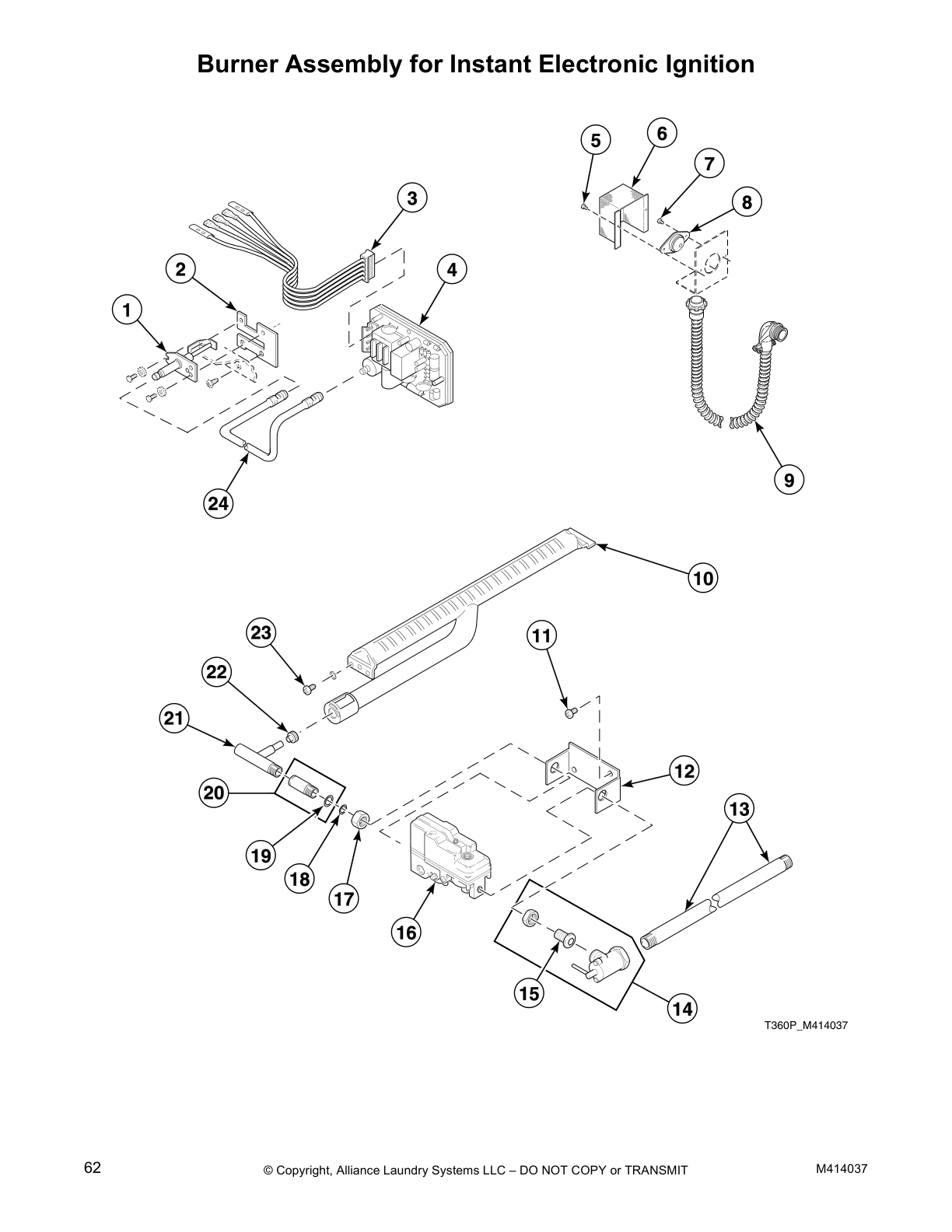

Burner Assembly for Instant Electronic Ignition

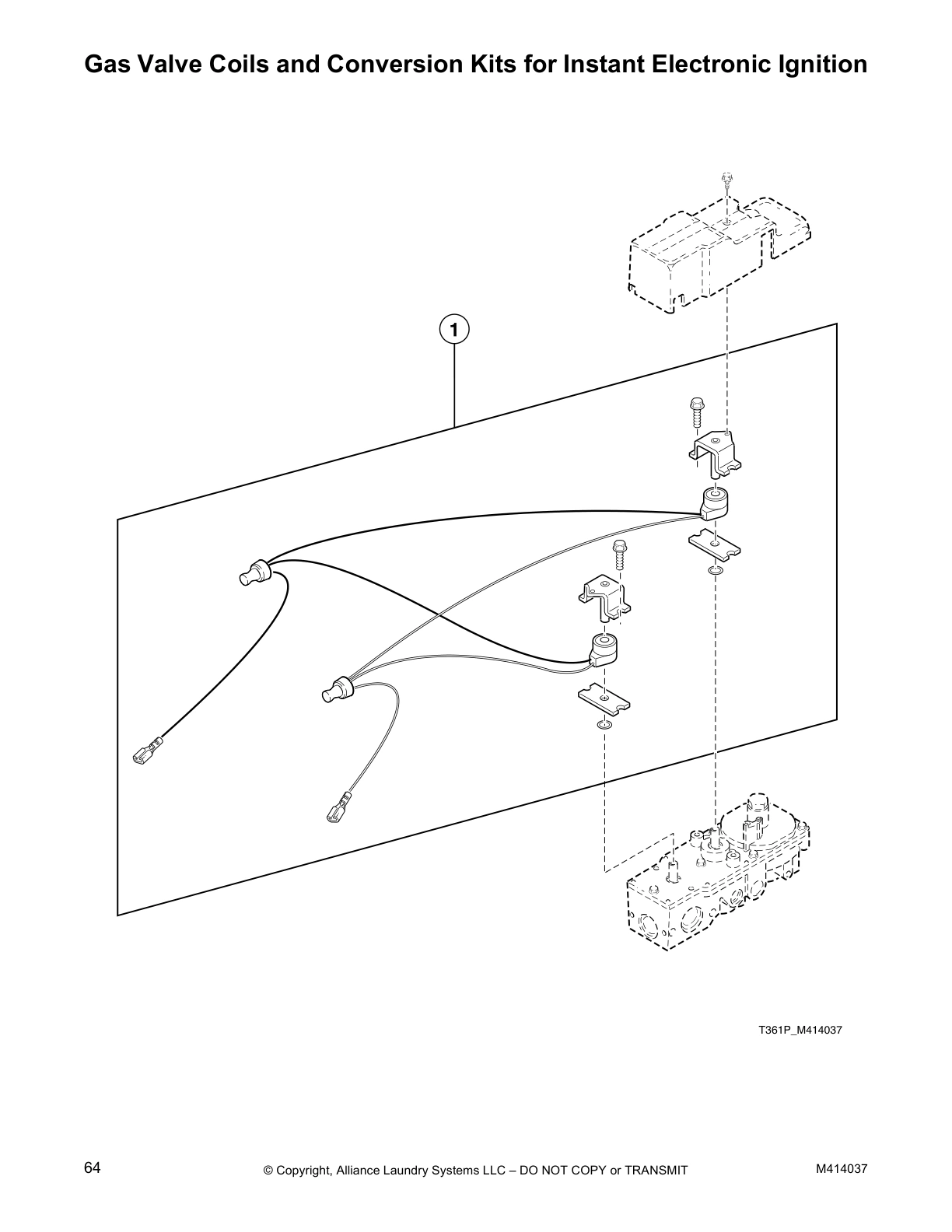

Gas Valve Coils and Conversion Kits for Instant Electronic Ignition

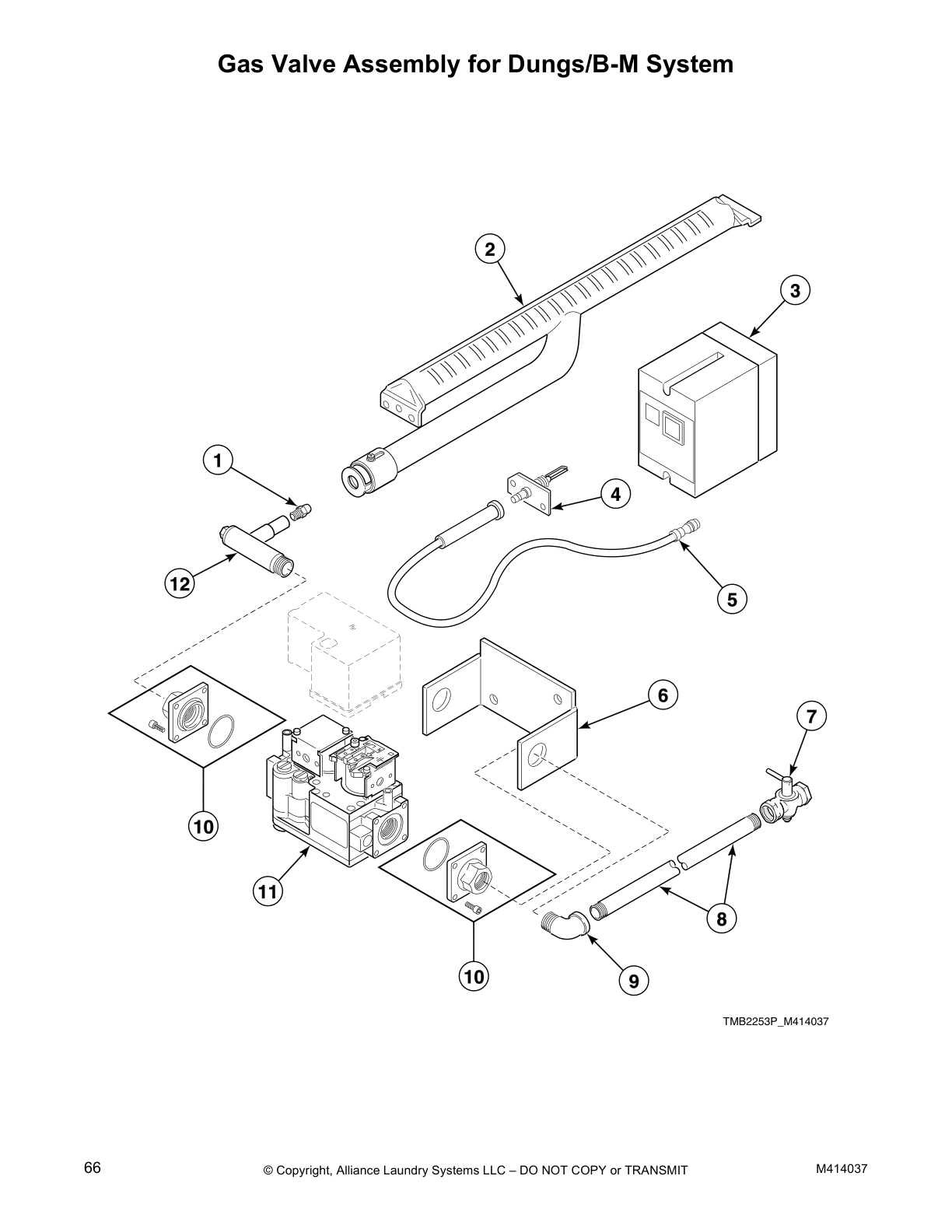

Gas Valve Assembly for Dungs/B-M System

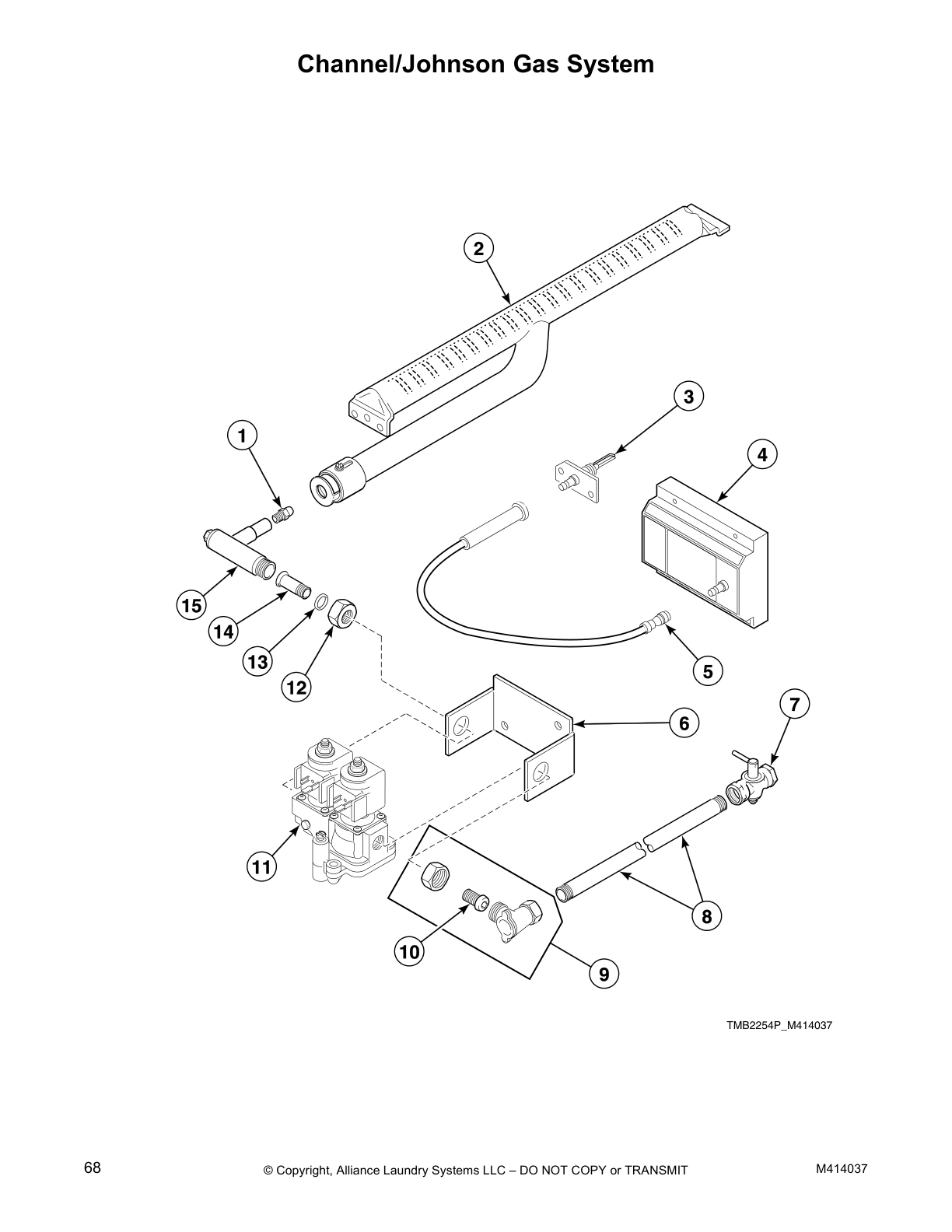

Channel/Johnson Gas System

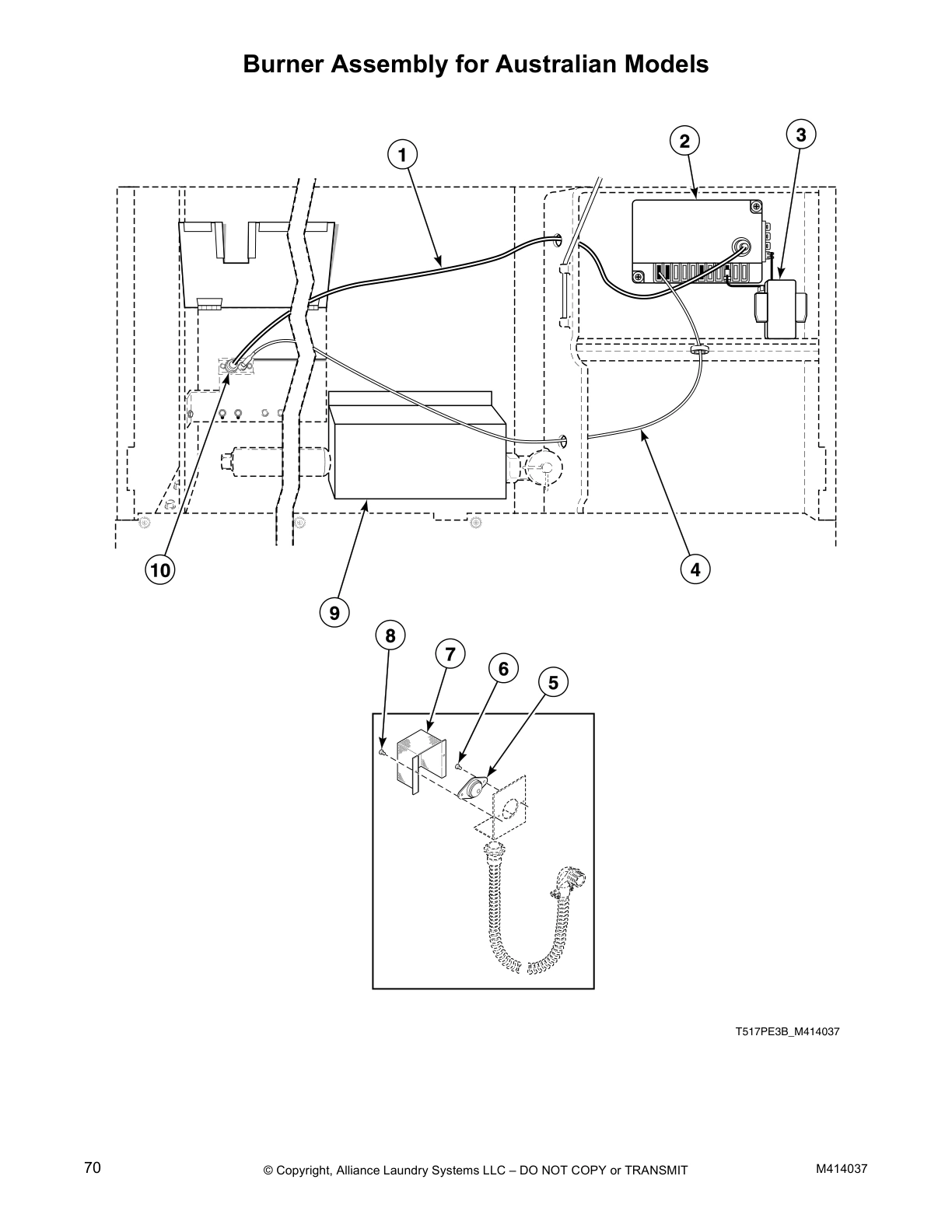

Burner Assembly for Australian Models

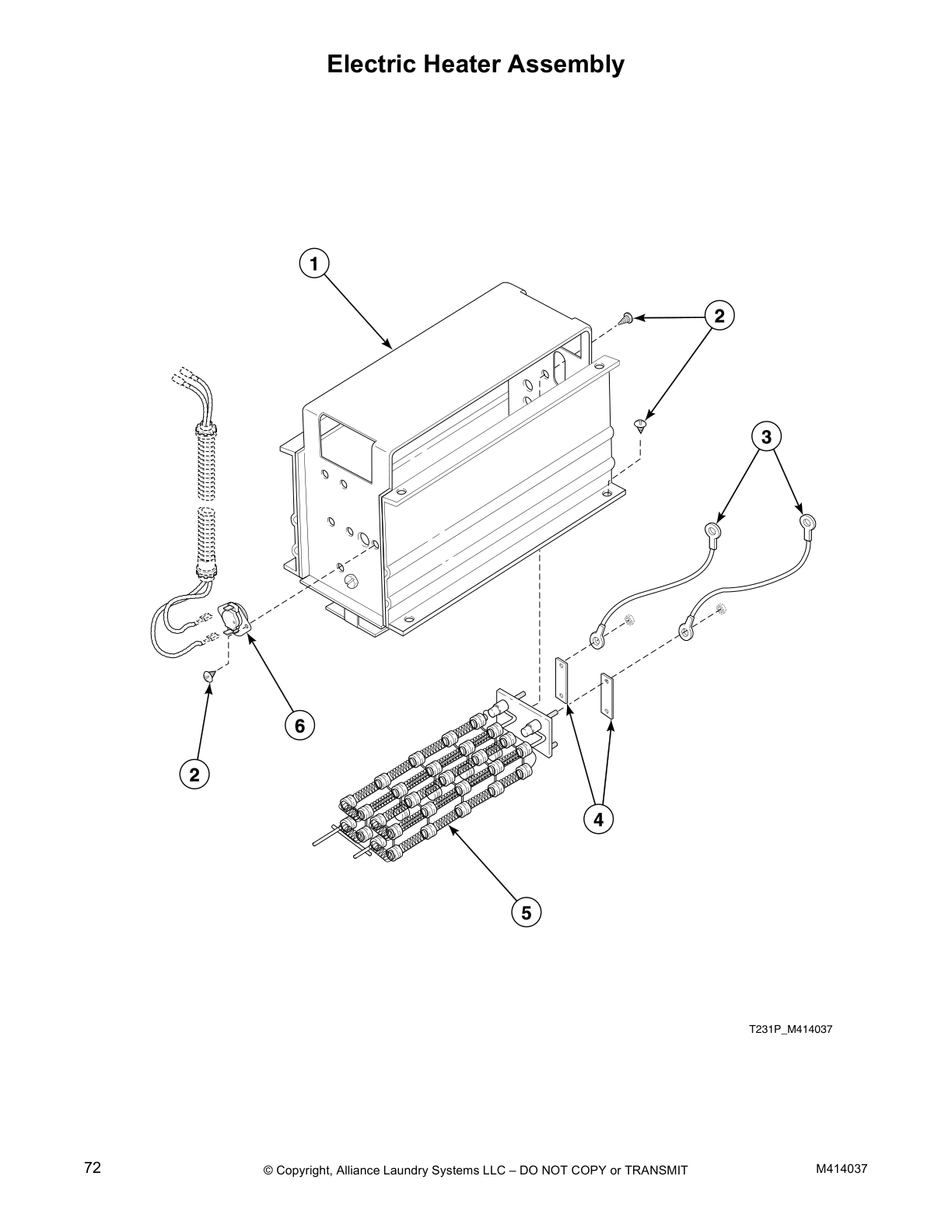

Electric Heater Assembly

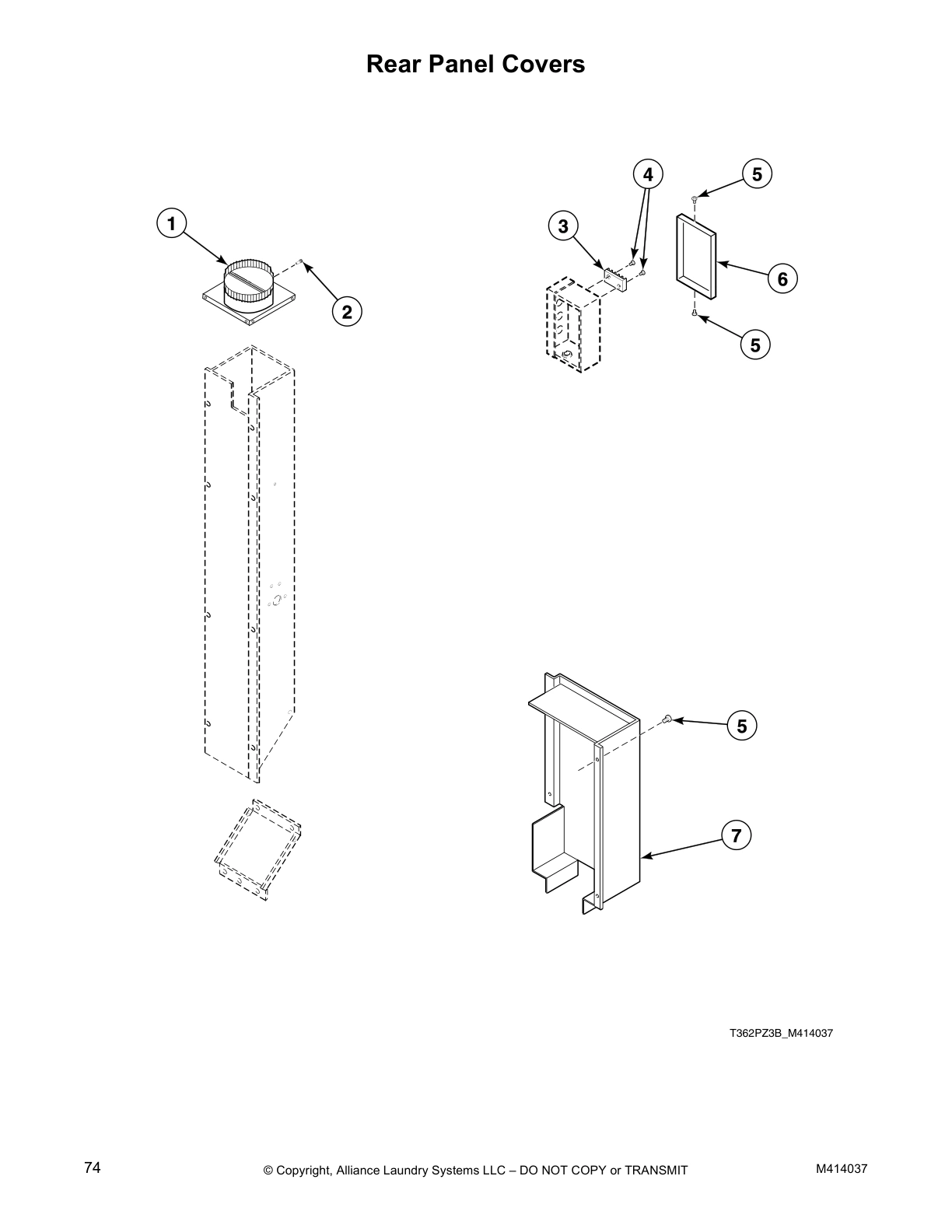

Rear Panel Covers

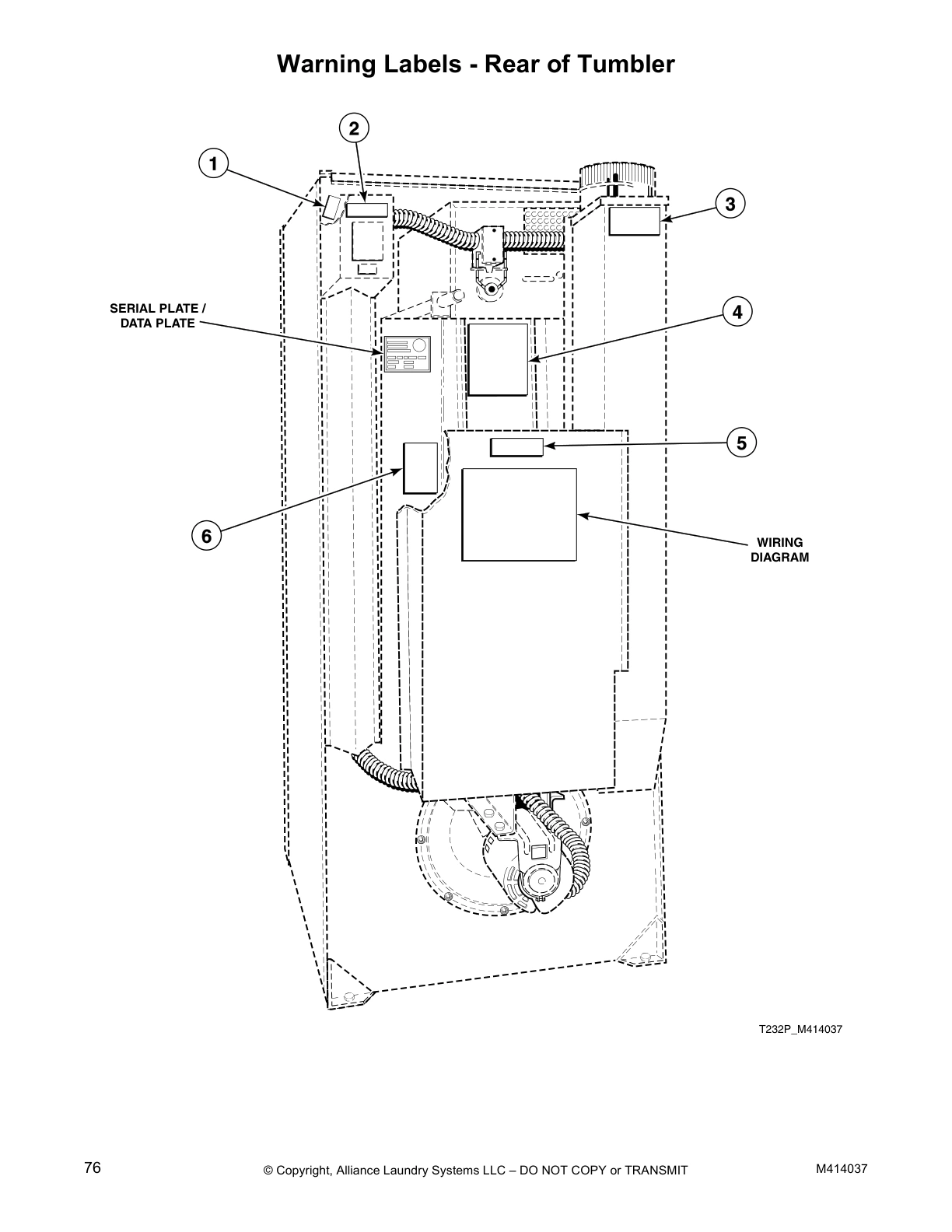

Warning Labels - Rear of Tumbler

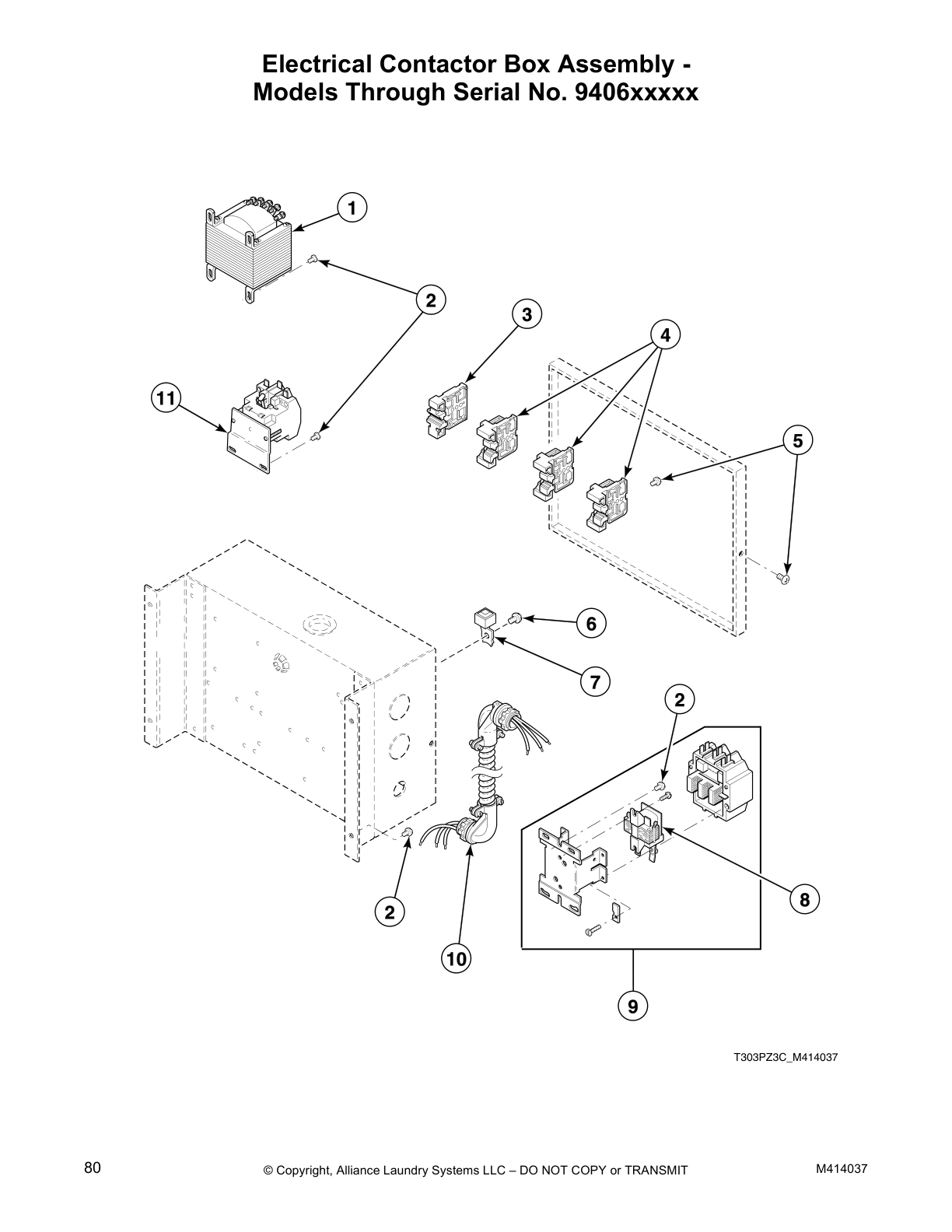

Electrical Contactor Box Assembly -
Models Through Serial No. 9406xxxxx

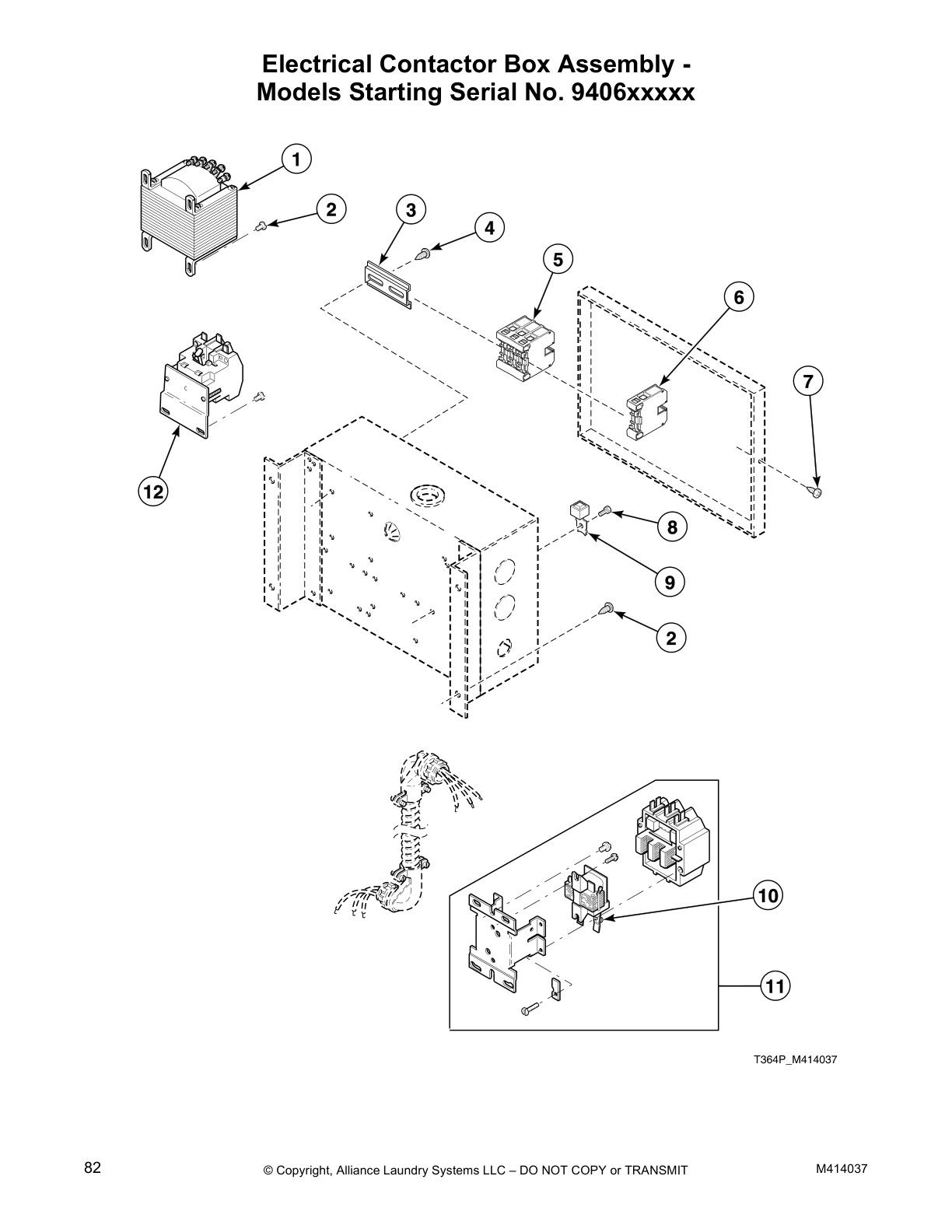

Electrical Contactor Box Assembly -
Models Starting Serial No. 9406xxxxx

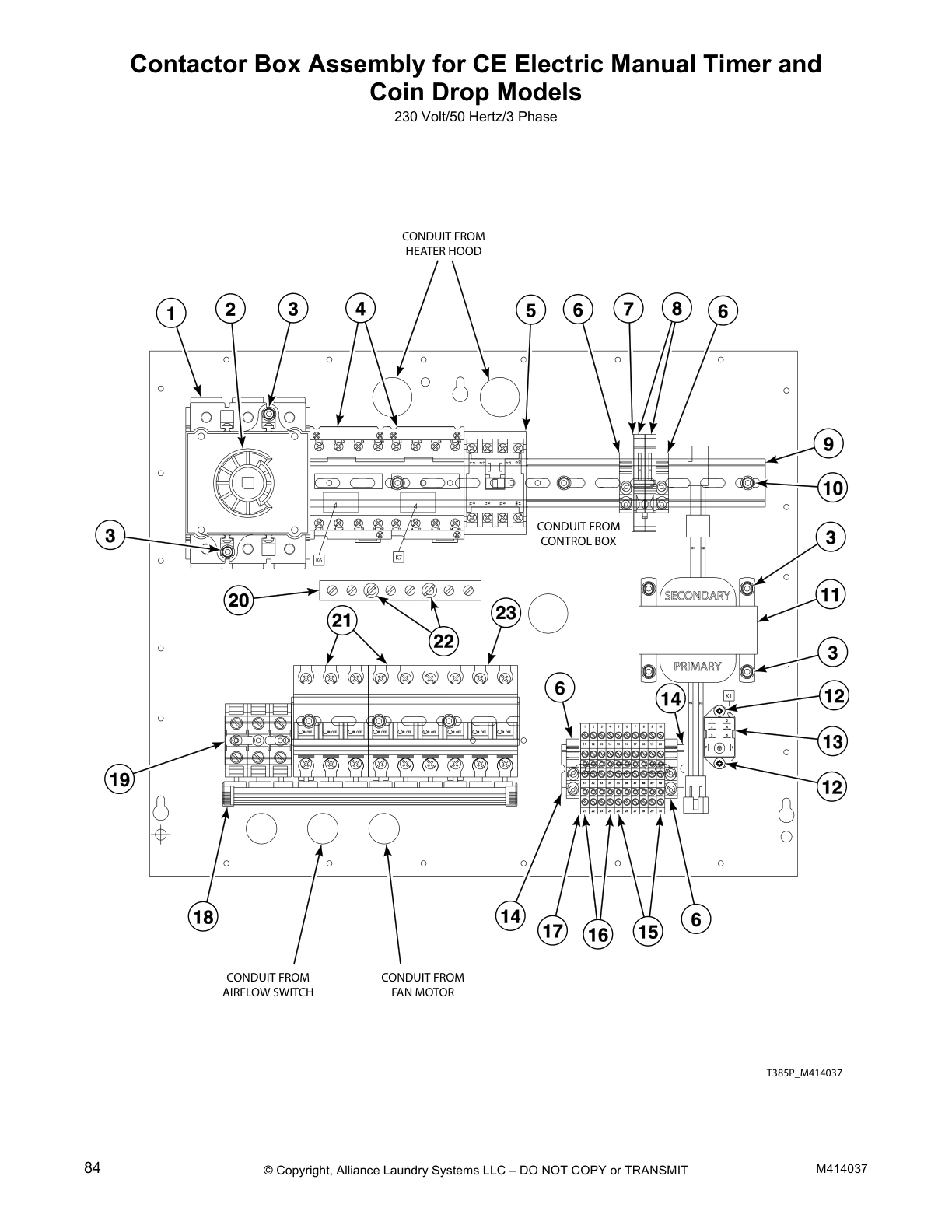

Contactor Box Assembly for CE Electric Manual Timer and
Coin Drop Models

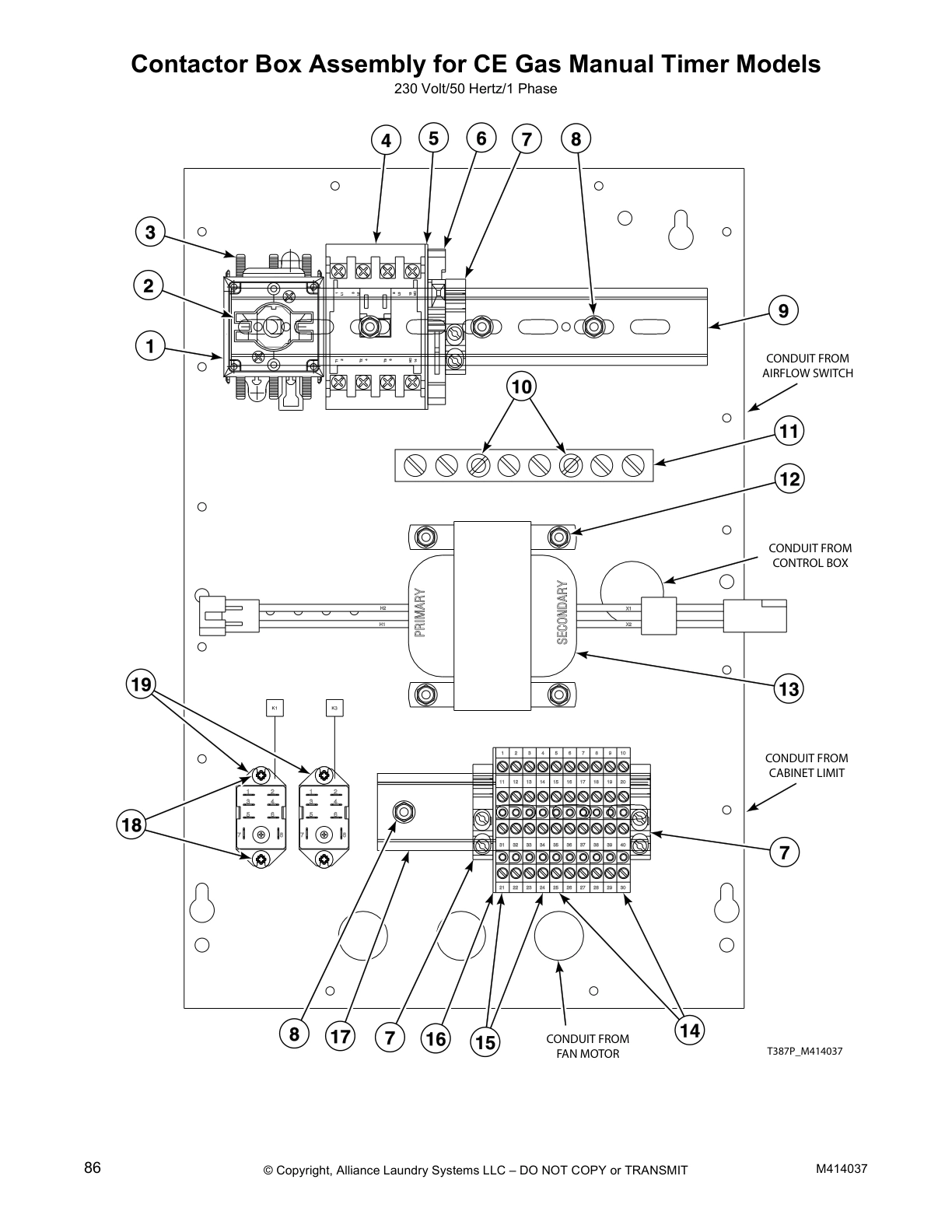

Contactor Box Assembly for CE Gas Manual Timer Models

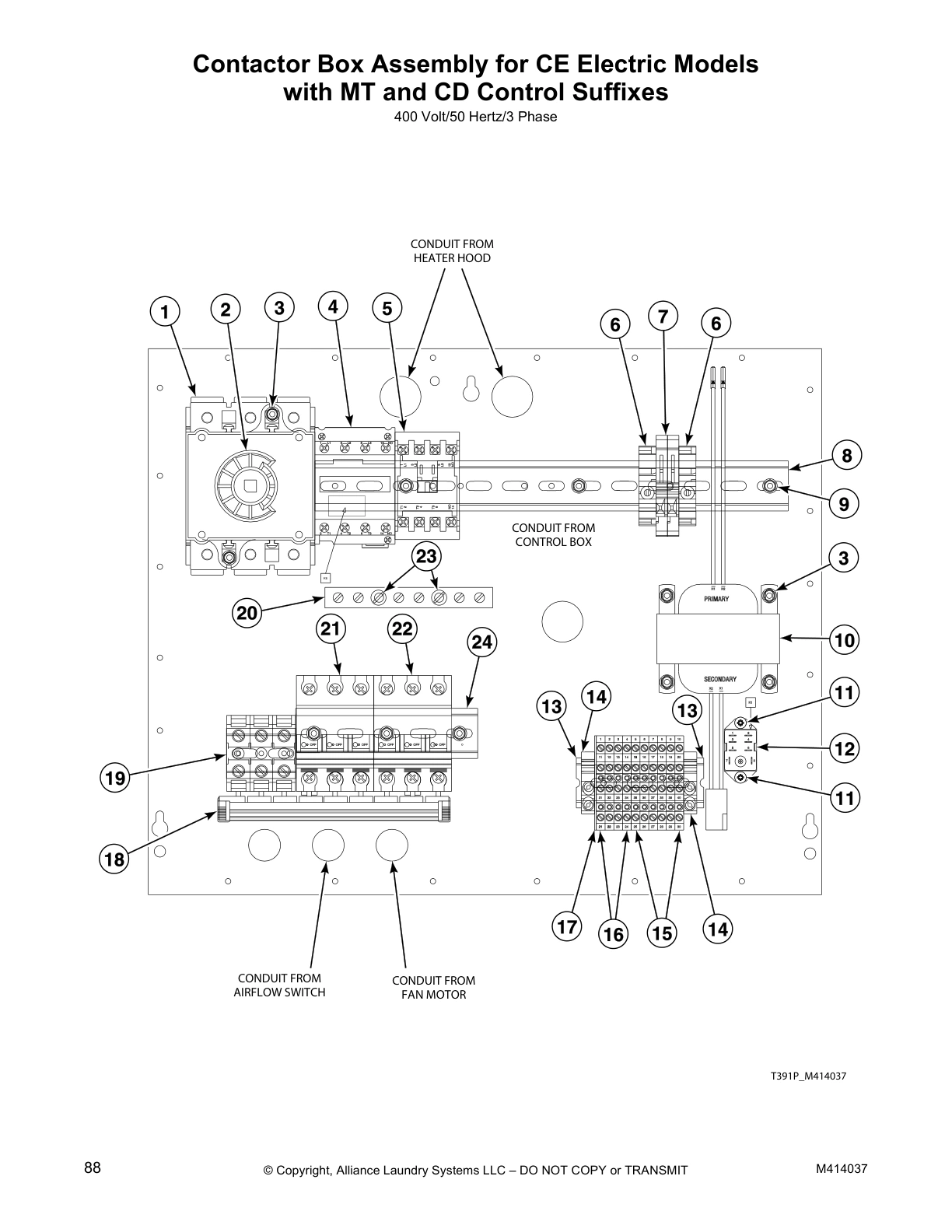

Contactor Box Assembly for CE Electric Models
with MT and CD Control Suffixes

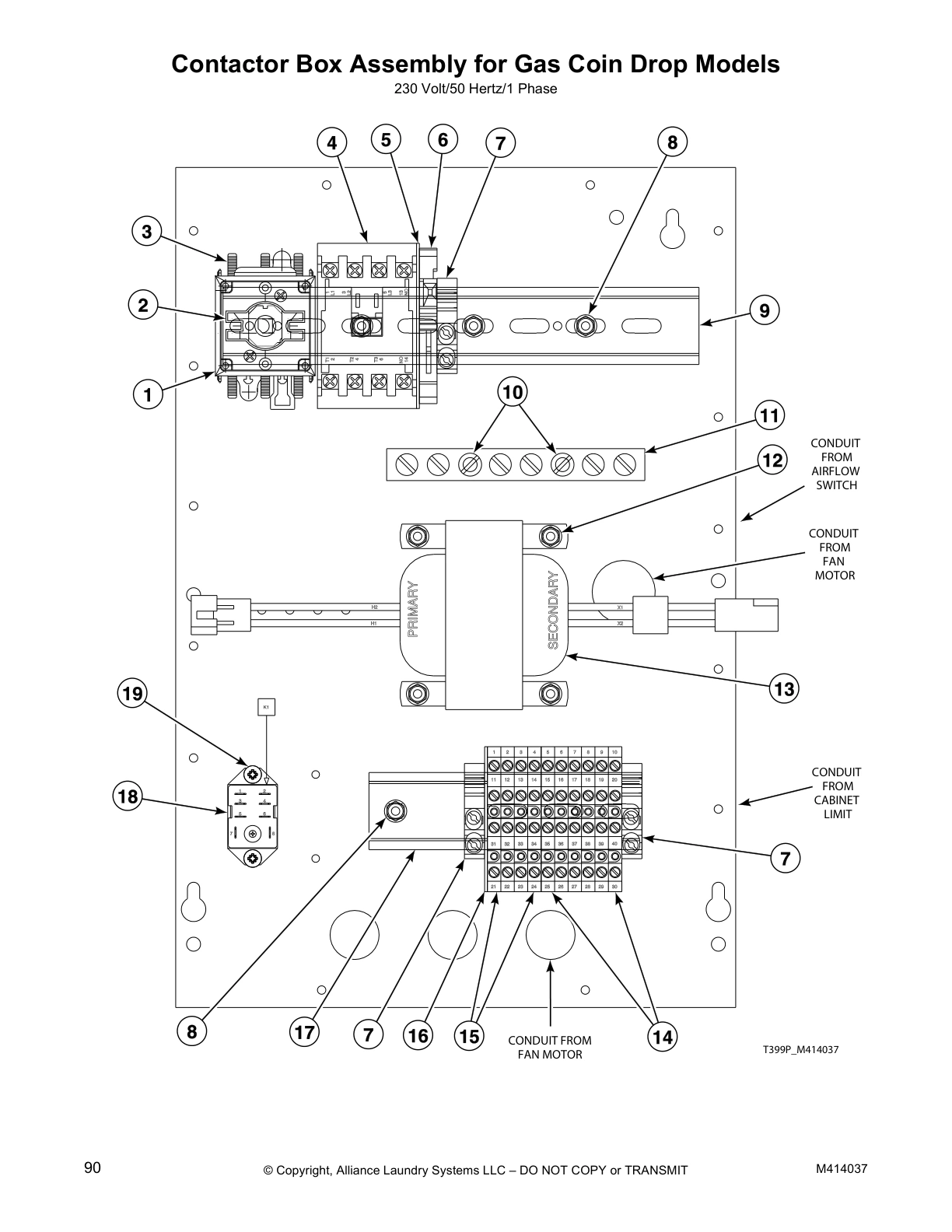

Contactor Box Assembly for Gas Coin Drop Models

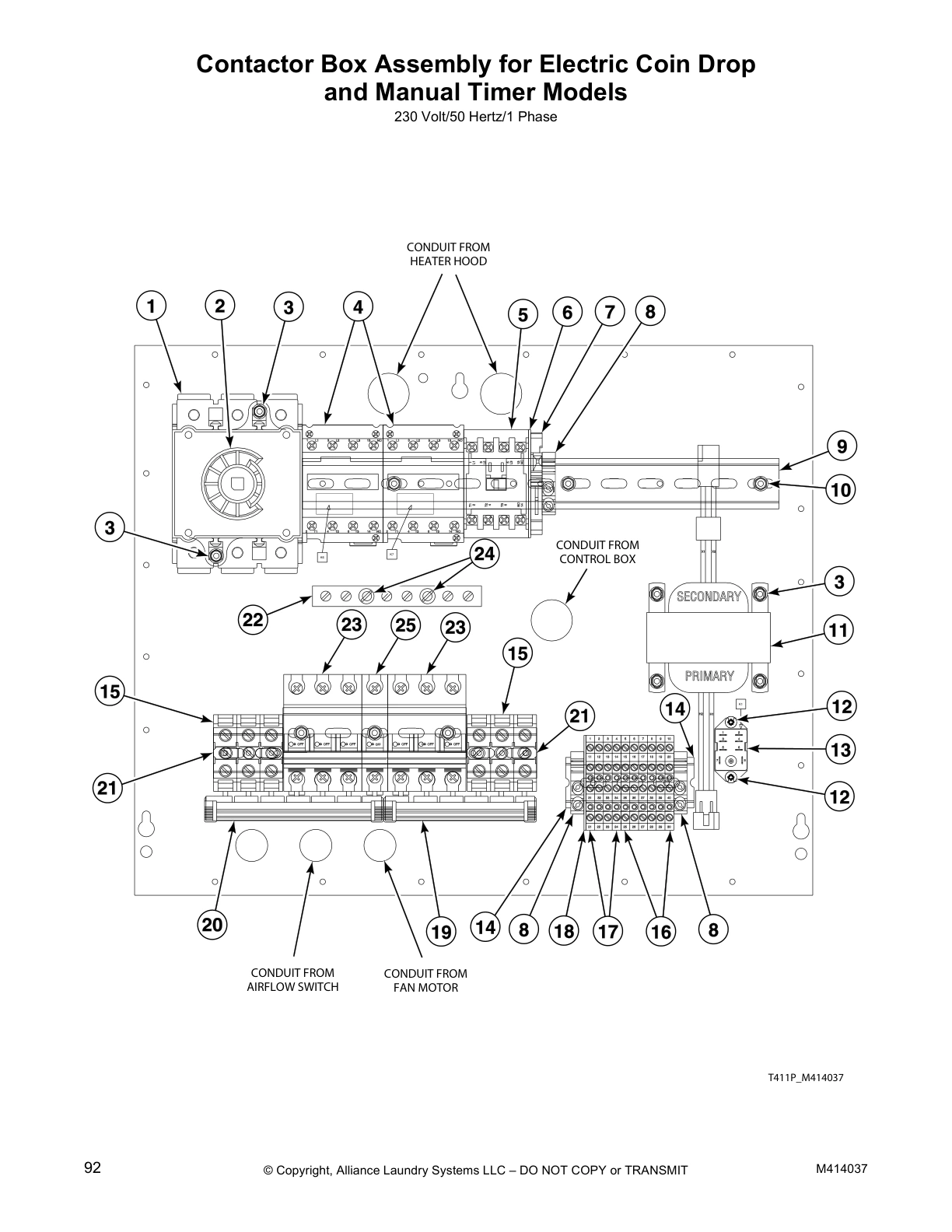

Contactor Box Assembly for Electric Coin Drop
and Manual Timer Models
Common parts from model Speed Queen STB30XG Dryer
SPQ M406789P SPQ M406789P Contact Us For Availability
Manual Reset Thermostat SPQ M411945 Contact Us For Availability
SPQ 02428 SPQ 02428 Contact Us For Availability
Limit Thermostat SPQ M403162 Contact Us For Availability
SPQ M400749 SPQ M400749 Contact Us For Availability
SPQ M406788 SPQ M406788 Contact Us For Availability
SPQ 44253701P SPQ 44253701P Contact Us For Availability
SPQ M412568 SPQ M412568 Contact Us For Availability
SPQ M4898P3 SPQ M4898P3 Contact Us For Availability
SPQ 604P3 SPQ 604P3 Contact Us For Availability
SPQ M406814 SPQ M406814 Contact Us For Availability
1
Ball Bearing SPQ M413921P Contact Us For Availability
1
Fan Kit SPQ M4936P3 Contact Us For Availability
1
Handle and Cam Assembly SPQ M410243P Contact Us For Availability
1
Panel Key SPQ M401680 Contact Us For Availability
1
Sheave Kit SPQ 44086901P Contact Us For Availability
1
Accumulator SPQ M403422P Contact Us For Availability
1
Door Latch SPQ M401223 Contact Us For Availability
1
Key SPQ M400010 Contact Us For Availability
1
Sheave SPQ M400328 Contact Us For Availability
1
Idler Shaft SPQ M412223P Contact Us For Availability
1
Airflow Switch Handy Box SPQ M403235 Contact Us For Availability
1
Burner Orifice SPQ M406184 Contact Us For Availability
1
Instant Electronic Ignition Valve SPQ M409253P Contact Us For Availability
1
Mounting Switch Base SPQ M412187P Contact Us For Availability
2
Nut SPQ 70448701 Contact Us For Availability
2
Nut SPQ M400592 Contact Us For Availability
2
Door Switch SPQ M400003 Contact Us For Availability
2
Spring SPQ 53261 Contact Us For Availability
2
Screw SPQ M400072 Contact Us For Availability
2
Guide Rail SPQ M412155 Contact Us For Availability
2
Fan Motor SPQ M411483 Contact Us For Availability
2
Spud Holder SPQ M401011 Contact Us For Availability
2
Instant Electronic Ignition Control SPQ M410904P Contact Us For Availability
2
Contactor SPQ M412370 Contact Us For Availability
3
Drum Idler Wheel Assembly SPQ 943P3P Contact Us For Availability
3
Thermostat SPQ M401251P Contact Us For Availability
3
SPQ 35798WP SPQ 35798WP Contact Us For Availability
3
Timer Motor SPQ M400609 Contact Us For Availability
3
Cam and Screw SPQ M400595 Contact Us For Availability
3
SPQ M400023 SPQ M400023 Contact Us For Availability
3
SPQ M412475 SPQ M412475 Contact Us For Availability
3
Motor Replacement Kit SPQ M401393 Contact Us For Availability
3
Igniter SPQ M4452P3 Contact Us For Availability
3
Burner Assembly SPQ M401007 Contact Us For Availability
3
Terminal Block SPQ M405364 Contact Us For Availability
3
Vent and Thimble Caution Label SPQ M411815 Contact Us For Availability
3
End Section SPQ M412366 Contact Us For Availability
4
Coil Assembly Kit SPQ 56225A Contact Us For Availability
4
SPQ 35798LP SPQ 35798LP Contact Us For Availability
4
Sensor SPQ M409114 Contact Us For Availability
4
Bumper Assembly SPQ M406112 Contact Us For Availability
4
Bolt SPQ M402144 Contact Us For Availability
4
SPQ M400036 SPQ M400036 Contact Us For Availability
4
Airflow Switch Insulator Barrier SPQ M409202 Contact Us For Availability
4
Screw SPQ M405363 Contact Us For Availability
5
SPQ M410900P SPQ M410900P Contact Us For Availability
5
Coin Vault Assembly SPQ 44102801 Contact Us For Availability
5
Door Assembly SPQ M406103 Contact Us For Availability
5
Motor Mounting Ring Kit SPQ M400013 Contact Us For Availability
5
SPQ M405525 SPQ M405525 Contact Us For Availability
5
SPQ M411424P SPQ M411424P Contact Us For Availability
5
Bolt SPQ 430648 Contact Us For Availability
5
Airflow Switch SPQ M400712 Contact Us For Availability
5
Spark Electrode SPQ M401002 Contact Us For Availability
5
Limit Thermostat SPQ M410220 Contact Us For Availability
5
Chain Guard Assembly SPQ M405824 Contact Us For Availability
6
Door Glass SPQ M406324 Contact Us For Availability
6
Nut SPQ M400713 Contact Us For Availability
6
Lint Hood Assembly SPQ M400515 Contact Us For Availability
6
Drywall Screw Magnet Kit SPQ M400650 Contact Us For Availability
6
Resilient Ring Kit SPQ 70142 Contact Us For Availability
6
Clip SPQ M400944 Contact Us For Availability
6
Screw SPQ M402797 Contact Us For Availability
6
Fuse SPQ M412540 Contact Us For Availability
7
SPQ 44106901P SPQ 44106901P Contact Us For Availability
7
Clip SPQ M400974 Contact Us For Availability
7
Lint Screen Assembly SPQ M400523 Contact Us For Availability
7
Counterweight SPQ M401938 Contact Us For Availability
7
Gas Valve Bracket SPQ 44092202 Contact Us For Availability
7
Thermostat Cover SPQ M414477 Contact Us For Availability
7
SPQ M412537 SPQ M412537 Contact Us For Availability
8
Motor Harness Assembly SPQ 44046001P Contact Us For Availability
8
SPQ 20279 SPQ 20279 Contact Us For Availability
8
SPQ M410887 SPQ M410887 Contact Us For Availability
8
Bumper Trim SPQ M406113P Contact Us For Availability
8
SPQ M405535 SPQ M405535 Contact Us For Availability
8
SPQ M400976 SPQ M400976 Contact Us For Availability
8
Gas Shut-Off Valve SPQ 44092201 Contact Us For Availability
8
SPQ M402917 SPQ M402917 Contact Us For Availability
8
SPQ 70121001 SPQ 70121001 Contact Us For Availability
9
SPQ M4833P3 SPQ M4833P3 Contact Us For Availability
9
Shadow Box and Clip SPQ M400131P Contact Us For Availability
9
SPQ M400447P SPQ M400447P Contact Us For Availability
9
SPQ M400672 SPQ M400672 Contact Us For Availability
9
SPQ M412119 SPQ M412119 Contact Us For Availability
9
SPQ M400822 SPQ M400822 Contact Us For Availability
9
Pipe SPQ M413332P Contact Us For Availability
9
SPQ M410907P SPQ M410907P Contact Us For Availability
10
Burner Assembly SPQ M405938 Contact Us For Availability
10
Screw SPQ M409385 Contact Us For Availability
10
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
10
Lint/Access Panel Handle SPQ M400594P Contact Us For Availability
10
Chain Sprocket SPQ M401369P Contact Us For Availability
10
Screw SPQ M401374P Contact Us For Availability
10
Key SPQ M400993 Contact Us For Availability
10
Airflow Switch Vane Lever SPQ M400753 Contact Us For Availability
10
Burner Orifice SPQ M403017 Contact Us For Availability
10
Spark Igniter SPQ M410905P Contact Us For Availability
11
Chain Connecting Link SPQ M401360P Contact Us For Availability
11
Run Light SPQ M404151 Contact Us For Availability
11
Screw SPQ M400661 Contact Us For Availability
11
Trunnion Housing Casting SPQ M400144 Contact Us For Availability
11
Nut SPQ M412626 Contact Us For Availability
11
Screw SPQ M400077 Contact Us For Availability
11
Vane Assembly SPQ M400541 Contact Us For Availability
11
Tailpiece SPQ M402997 Contact Us For Availability
11
Transformer SPQ M412477P Contact Us For Availability
12
Roller Chain SPQ M401425 Contact Us For Availability
12
Door Ring Gasket SPQ M406129 Contact Us For Availability
12
Hinge Assembly SPQ M405931 Contact Us For Availability
12
Lint Panel Assembly SPQ M406327P Contact Us For Availability
12
Idler Housing Kit SPQ M411466P Contact Us For Availability
12
Nut SPQ M400977 Contact Us For Availability
12
Gas Valve SPQ M402996 Contact Us For Availability
13
Sprocket SPQ M401366P Contact Us For Availability
13
Nut SPQ M414215 Contact Us For Availability
13
Trunnion Assembly SPQ M406073P Contact Us For Availability
13
Support Bearing SPQ M412229P Contact Us For Availability
13
Screw SPQ M412188 Contact Us For Availability
13
Cover Plate SPQ M413008 Contact Us For Availability
13
Vane SPQ M400253 Contact Us For Availability
13
Nut SPQ M402995 Contact Us For Availability
13
Terminal Block SPQ M412534 Contact Us For Availability
14
Airflow Switch Box Assembly SPQ M400539 Contact Us For Availability
14
Washer SPQ 61031 Contact Us For Availability
14
Kickplate Kit SPQ M414436P Contact Us For Availability
14
Nut SPQ M401930 Contact Us For Availability
14
Motor Bracket SPQ M414405 Contact Us For Availability
14
Washer SPQ M410059 Contact Us For Availability
15
Door Handle SPQ 70133501P Contact Us For Availability
15
Clip SPQ M400984 Contact Us For Availability
15
Extension Spring SPQ M412627 Contact Us For Availability
15
Nut SPQ M401362 Contact Us For Availability
15
Anti-Torque Ring SPQ M401015 Contact Us For Availability
16
Pulley SPQ M400991 Contact Us For Availability
16
Door Glass Installation Tool SPQ 430117 Contact Us For Availability
16
Spacer SPQ M401402 Contact Us For Availability
16
End Barrier SPQ M412631 Contact Us For Availability
17
Pop Rivet SPQ M400133 Contact Us For Availability
17
Front Panel Kit SPQ M409088P Contact Us For Availability
17
Cylinder and Trunnion Assembly SPQ M401947 Contact Us For Availability
17
Bolt SPQ M400078 Contact Us For Availability
17
Micro V Sheave SPQ M412121 Contact Us For Availability
17
Motor Bracket SPQ M400022 Contact Us For Availability
17
L.P. Valve Kit SPQ M4744P3 Contact Us For Availability
17
Ground Buss Assembly SPQ M412632 Contact Us For Availability
18
Key and Instruction Kit SPQ M400034 Contact Us For Availability
18
Hinge Pin SPQ M4221P4 Contact Us For Availability
18
Ring SPQ M400026 Contact Us For Availability
18
Rib Rod SPQ M406072P Contact Us For Availability
18
Washer SPQ M400832 Contact Us For Availability
18
Anti-Torque Ring SPQ M4987P3 Contact Us For Availability
18
Nut SPQ M4745P3 Contact Us For Availability
18
Nut SPQ M412633 Contact Us For Availability
19
Key SPQ 03203 Contact Us For Availability
19
Bolt SPQ M406379P Contact Us For Availability
19
Washer SPQ M4986P3 Contact Us For Availability
20
Lock Kit SPQ 21734 Contact Us For Availability
20
Cylinder SPQ M409758 Contact Us For Availability
20
Micro V Belt SPQ M400065 Contact Us For Availability
20
Motor Replacement Kit SPQ M400994P Contact Us For Availability
20
Bracket SPQ M400606 Contact Us For Availability
21
Trunnion Housing Assembly SPQ M406075P Contact Us For Availability
21
SPQ M400399 SPQ M400399 Contact Us For Availability
21
Motor Pulley Belt SPQ M413718 Contact Us For Availability
21
Manifold Pipe Assembly SPQ M406936 Contact Us For Availability
22
Screw SPQ M406386 Contact Us For Availability
22
Felt Pad SPQ M401349P Contact Us For Availability
22
Spud Holder SPQ M406308 Contact Us For Availability
22
Contactor SPQ M412656 Contact Us For Availability
23
Ring SPQ M406083P Contact Us For Availability
23
SPQ M401327 SPQ M401327 Contact Us For Availability
24
SPQ M412476 SPQ M412476 Contact Us For Availability
24
End Section SPQ M412688 Contact Us For Availability
NI
SPQ M410541P SPQ M410541P Contact Us For Availability
NI
SPQ M414320P SPQ M414320P Contact Us For Availability
NI
SPQ M400784P SPQ M400784P Contact Us For Availability
NI
Coin Drop Switch SPQ 70286101P Contact Us For Availability
NI
SPQ M400239 SPQ M400239 Contact Us For Availability
NI
SPQ 53243 SPQ 53243 Contact Us For Availability
NI
Sensor Kit SPQ M4449P3 Contact Us For Availability
NI
High Limit Thermostat SPQ M401257 Contact Us For Availability
NI
SPQ 430475 SPQ 430475 Contact Us For Availability
NI
SPQ M400091P SPQ M400091P Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 44045901P SPQ 44045901P Contact Us For Availability
NI
SPQ M409735P SPQ M409735P Contact Us For Availability
NI
SPQ M405419P SPQ M405419P Contact Us For Availability
NI
SPQ M409487 SPQ M409487 Contact Us For Availability
NI
Shut-Off Valve Kit SPQ M401548 Contact Us For Availability
NI
SPQ M4983P3 SPQ M4983P3 Contact Us For Availability
NI
Pushbutton Switch SPQ M400605 Contact Us For Availability
NI
SPQ M409433 SPQ M409433 Contact Us For Availability
NI
SPQ M410058 SPQ M410058 Contact Us For Availability
NI
N.G. Conversion Kit SPQ M4389P3 Contact Us For Availability
NI
SPQ M410599 SPQ M410599 Contact Us For Availability
NI
SPQ M412562P SPQ M412562P Contact Us For Availability
NI
SPQ H86070034 SPQ H86070034 Contact Us For Availability
NI
SPQ M406881 SPQ M406881 Contact Us For Availability
NI
SPQ M410908 SPQ M410908 Contact Us For Availability
NI
SPQ M409467 SPQ M409467 Contact Us For Availability
NI
SPQ M412641 SPQ M412641 Contact Us For Availability
NI
SPQ M412642 SPQ M412642 Contact Us For Availability
× ![]()
