Model Whirlpool SS333PSTT0 SLIDE-IN GAS RANGE – Common Parts & Diagrams

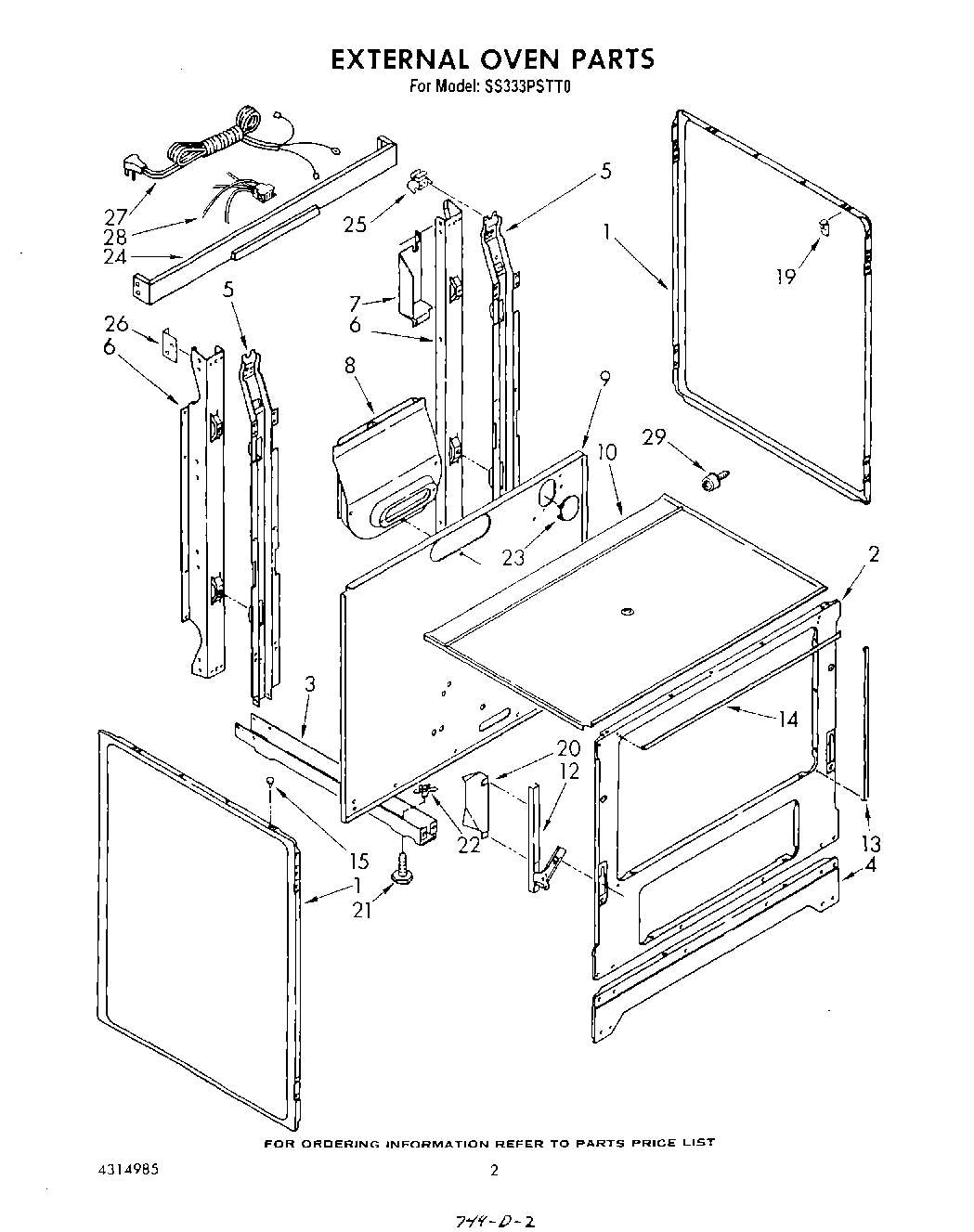

02 - EXTERNAL OVEN , NOT ILLUSTRATED AND OPTIONAL

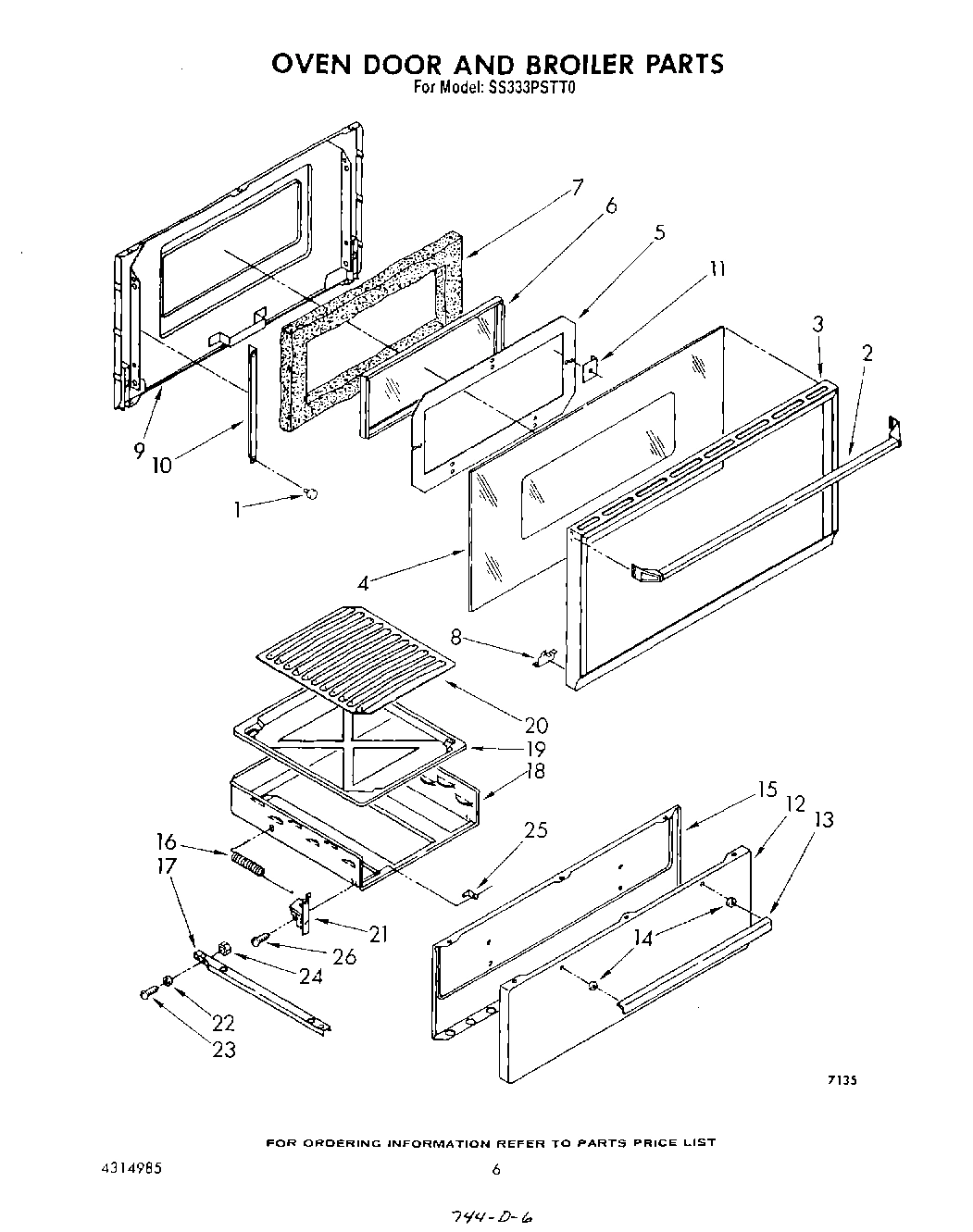

05 - OVEN DOOR AND BROILER
03 - INTERNAL OVEN
06 - COOK TOP AND MANIFOLD
04 - CONTROL PANEL
Common parts from model Whirlpool SS333PSTT0 SLIDE-IN GAS RANGE
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Panel, Side (2) WPL 4157130 Contact Us For Availability
1
Bumper (4) WPL 4157128 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4157136 Contact Us For Availability
1
Cooktop, Chrome WPL 4314913 Contact Us For Availability
1
Panel, Manifold WPL 4314970 Contact Us For Availability
2
Frame, Front WPL 4157002 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Liner, Oven Top WPL 4157137 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Frame, Door WPL 4157029 Contact Us For Availability
3
Baffle, Bottom WPL 4157004 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Glass WPL 4157885 Contact Us For Availability
4
Track, Broiler (2) WPL 4157007 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Ring, Hold Down WPL 4157031 Contact Us For Availability
5
Roller (2) WPL 4157008 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Window WPL 4157032 Contact Us For Availability
6
Pin, Roller (2) WPL 4157009 Contact Us For Availability
6
Filter, Pilot (Incls. Item No. 12) WPL 4314982 Contact Us For Availability
6
Mounting Bracket, Clock WPL 4314915 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Liner, Oven Back WPL 4157138 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
7
Clock WPL 4314972 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Support, Glass WPL 4157034 Contact Us For Availability
8
Burner, Rear (2) WPL 4179101 Contact Us For Availability
8
Endcap (R.H.) WPL 4314980 Contact Us For Availability
8
Endcap (L.H.) WPL 4314981 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Panel, Rear WPL 4157015 Contact Us For Availability
9
Liner, Door WPL 4157140 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Burner, Front (2) WPL 4179100 Contact Us For Availability
9
Knob, Clock WPL 786434 Contact Us For Availability
10
Burner Box WPL 4157017 Contact Us For Availability
10
Support, Glass (2) WPL 4157037 Contact Us For Availability
10
Retainer, Roller (2) WPL 4157026 Contact Us For Availability
10
Tubing, Pilot WPL 4157081 Contact Us For Availability
11
Plate (2) WPL 4157131 Contact Us For Availability
11
Bottom, Oven WPL 4157139 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Panel, Broiler WPL 4314931 Contact Us For Availability
12
Rack, Oven (2) WPL 4157102 Contact Us For Availability
12
Screw & Gasket Assembly WPL 4314983 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157948 Contact Us For Availability
13
Screw, 10-12 X 5/8 (4) WPL 4157118 Contact Us For Availability
13
Washer (4) WPL 4157119 Contact Us For Availability
13
Handle, Door (2) WPL 4157208 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Seal, Door (Top) WPL 4157025 Contact Us For Availability
14
Spacer (2) WPL 4314916 Contact Us For Availability
14
Manifold WPL 4314971 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Liner, Broiler Door WPL 4157042 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 31) WPL 4314821 Contact Us For Availability
17
Track, Upper (2) WPL 4157044 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
18
Liner, Brolier WPL 4157172 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4314820 Contact Us For Availability
19
Wire Clip WPL 4157127 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid WPL 4157047 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat (Includes Ill. No. 30) WPL 4314984 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Roller (2) WPL 4157050 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Plug, Hole WPL 4179041 Contact Us For Availability
23
Pin, Roller (2) WPL 4157051 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
24
Rail, Backguard WPL 4314935 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Bracket, Top Support WPL 4314910 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Bracket, Mounting (R.H.) WPL 4314911 Contact Us For Availability
26
Bracket, Mounting (L.H.) WPL 4314912 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Block, Disconnect WPL 4157220 Contact Us For Availability
29
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
29
Stud, Locator WPL 4314933 Contact Us For Availability
30
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
31
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
39
Ignitor, Oven WPL 4157184 Contact Us For Availability
× ![]()
