Model Whirlpool SS313PETT1 SLIDE-IN GAS RANGE – Common Parts & Diagrams

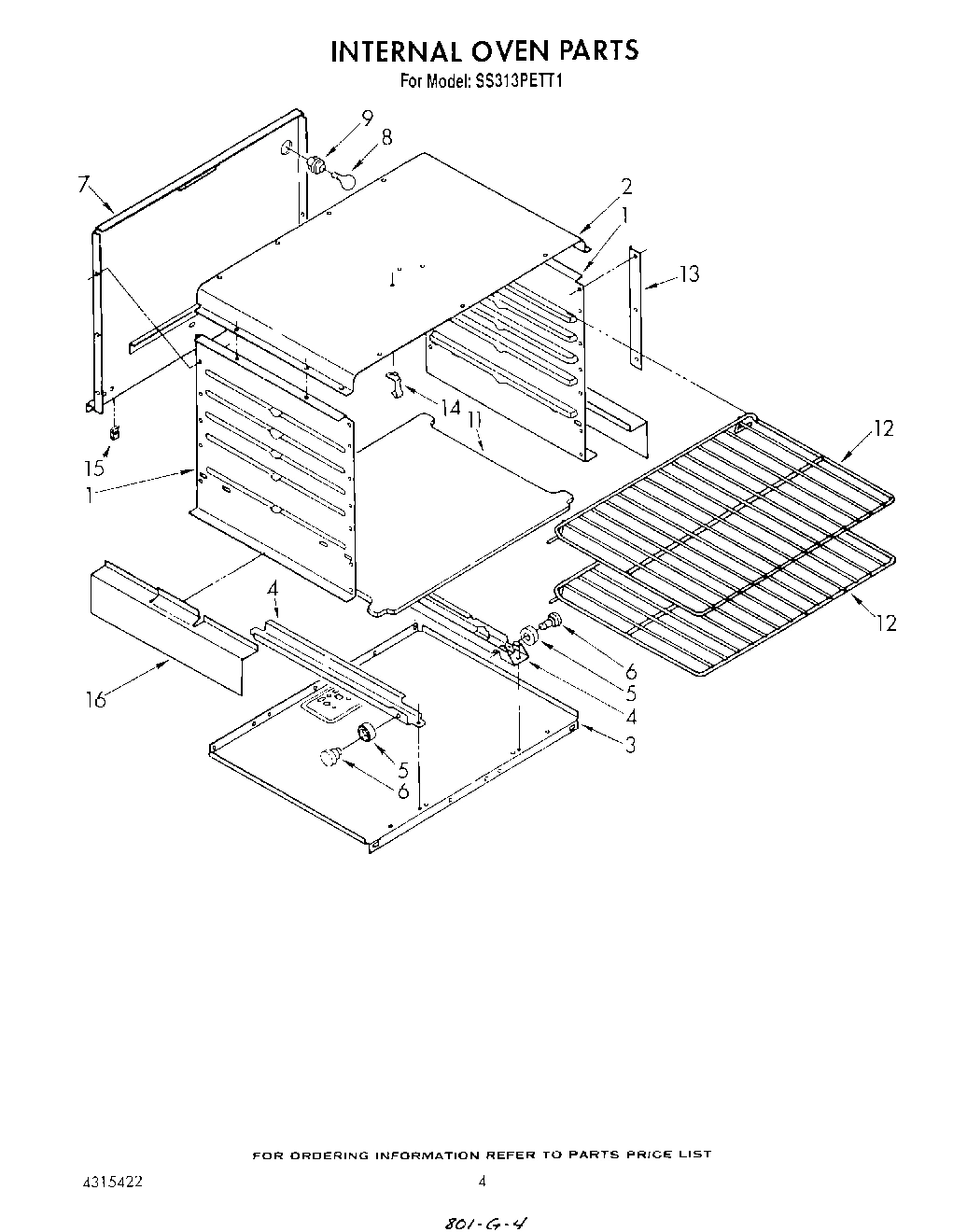

03 - INTERNAL OVEN

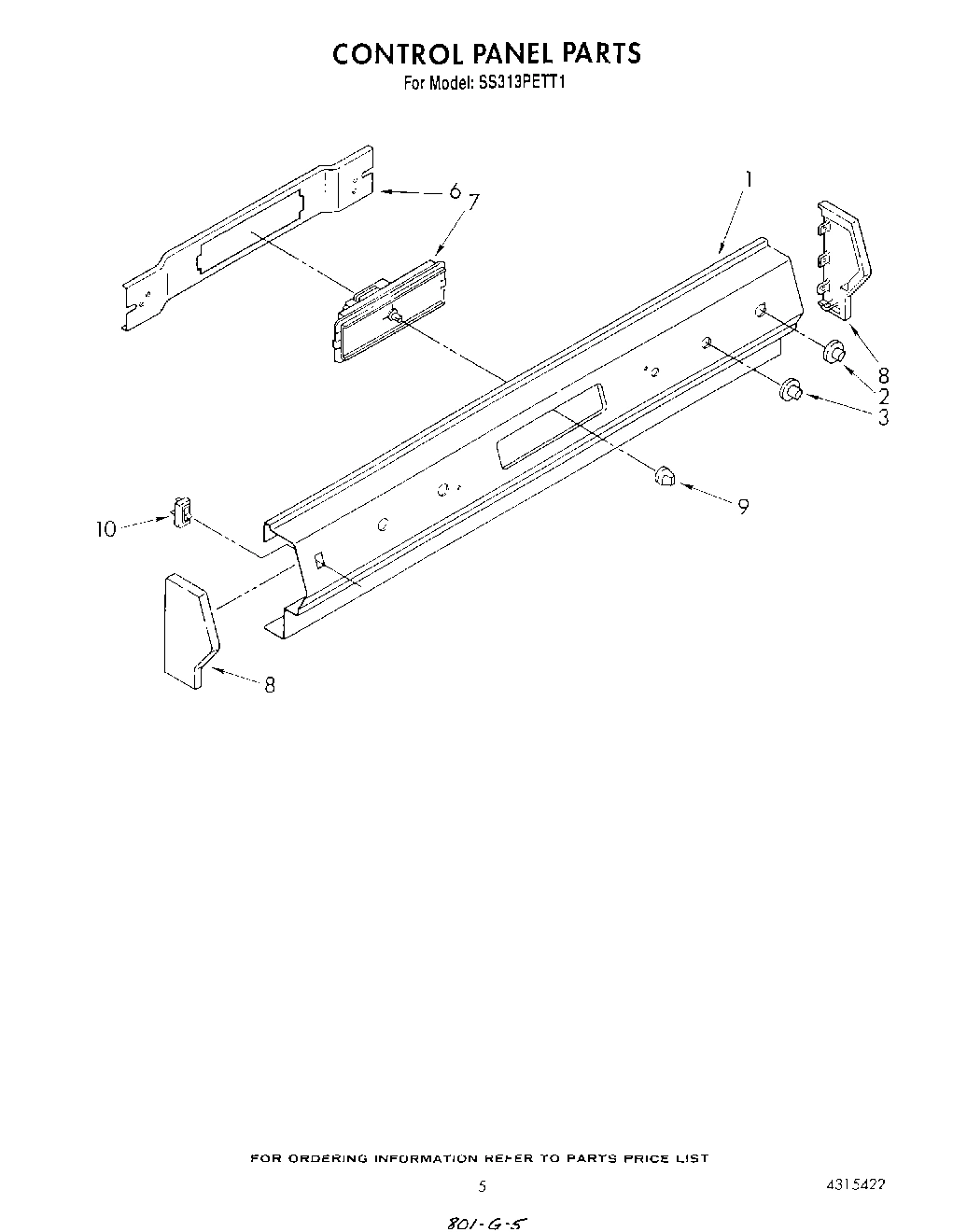

04 - CONTROL PANEL
02 - EXTERNAL OVEN , LITERATURE AND OPTIONAL
05 - OVEN DOOR AND BROILER
06 - COOKTOP AND MANIFOLD
Common parts from model Whirlpool SS313PETT1 SLIDE-IN GAS RANGE
Guide, Use & Care WPL LIT4314834 Contact Us For Availability
Instuctions, Installation WPL LIT4314836 Contact Us For Availability
List, Repair Parts WPL LIT4315422 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Panel, Manifold WPL 4314973 Contact Us For Availability
1
Panel, Side (2) WPL 4157130 Contact Us For Availability
1
Bumper (4) WPL 4157128 Contact Us For Availability
1
Cooktop, Chrome WPL 4314913 Contact Us For Availability
2
Frame, Front WPL 4315083 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Frame, Door WPL 4157029 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Glass WPL 4157885 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Ring, Hold Down WPL 4157031 Contact Us For Availability
6
Mounting Bracket, Clock WPL 4314915 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Window WPL 4157032 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Clock WPL 4314972 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
8
Endcap (R.H.) WPL 4314980 Contact Us For Availability
8
Endcap (L.H.) WPL 4314981 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Support, Glass WPL 4157034 Contact Us For Availability
8
Burner, Rear (2) WPL 4179101 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Knob, Clock WPL 786434 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
Liner, Door WPL 4315061 Contact Us For Availability
9
Burner, Front (2) WPL 4179100 Contact Us For Availability
10
Burner Box WPL 4315080 Contact Us For Availability
10
Support, Glass (2) WPL 4157037 Contact Us For Availability
11
Bottom, Oven WPL 4315071 Contact Us For Availability
11
Plate (2) WPL 4157131 Contact Us For Availability
12
Rack, Oven (2) WPL 4157102 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Panel, Broiler WPL 4314931 Contact Us For Availability
12
Clamp WPL 4157185 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Screw, 10-12 X 5/8 (4) WPL 4157118 Contact Us For Availability
13
Washer (4) WPL 4157119 Contact Us For Availability
13
Handle, Door (2) WPL 4157208 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Seal, Door (Top) WPL 4315333 Contact Us For Availability
14
Spacer (2) WPL 4314916 Contact Us For Availability
14
Manifold WPL 4314914 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 31) WPL 4314821 Contact Us For Availability
17
Safe Edge WPL 4157132 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4314820 Contact Us For Availability
19
Wire Clip WPL 4157127 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat (Includes Ill. No. 30) WPL 4314890 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Plug, Hole WPL 4179041 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Rail, Backguard WPL 4314935 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Bracket, Top Support WPL 4314910 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Bracket, Mounting (R.H.) WPL 4314911 Contact Us For Availability
26
Bracket, Mounting (L.H.) WPL 4314912 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Block, Disconnect WPL 4157220 Contact Us For Availability
29
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
29
Stud, Locator (2) WPL 4315408 Contact Us For Availability
29
Screw, 6-32 X 7/8 (2) WPL 4315409 Contact Us For Availability
29
Hole Plug (2) WPL 4315386 Contact Us For Availability
30
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
31
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
32
Plate, Module WPL 4157171 Contact Us For Availability
33
Module, Spark WPL 4315322 Contact Us For Availability
34
Ignitor (R.H.) WPL 4179204 Contact Us For Availability
34
Ignitor (L.H.) WPL 4179205 Contact Us For Availability
39
Ignitor, Oven WPL 4315316 Contact Us For Availability
40
Spacer, Manifold WPL 4315207 Contact Us For Availability
× ![]()
