Model Maytag SMV9165SC MICROWAVE – Common Parts & Diagrams
01 - BODY/CAVITY/ELEMENTS
02 - CONTROL PANEL/DOOR ASSEMBLY

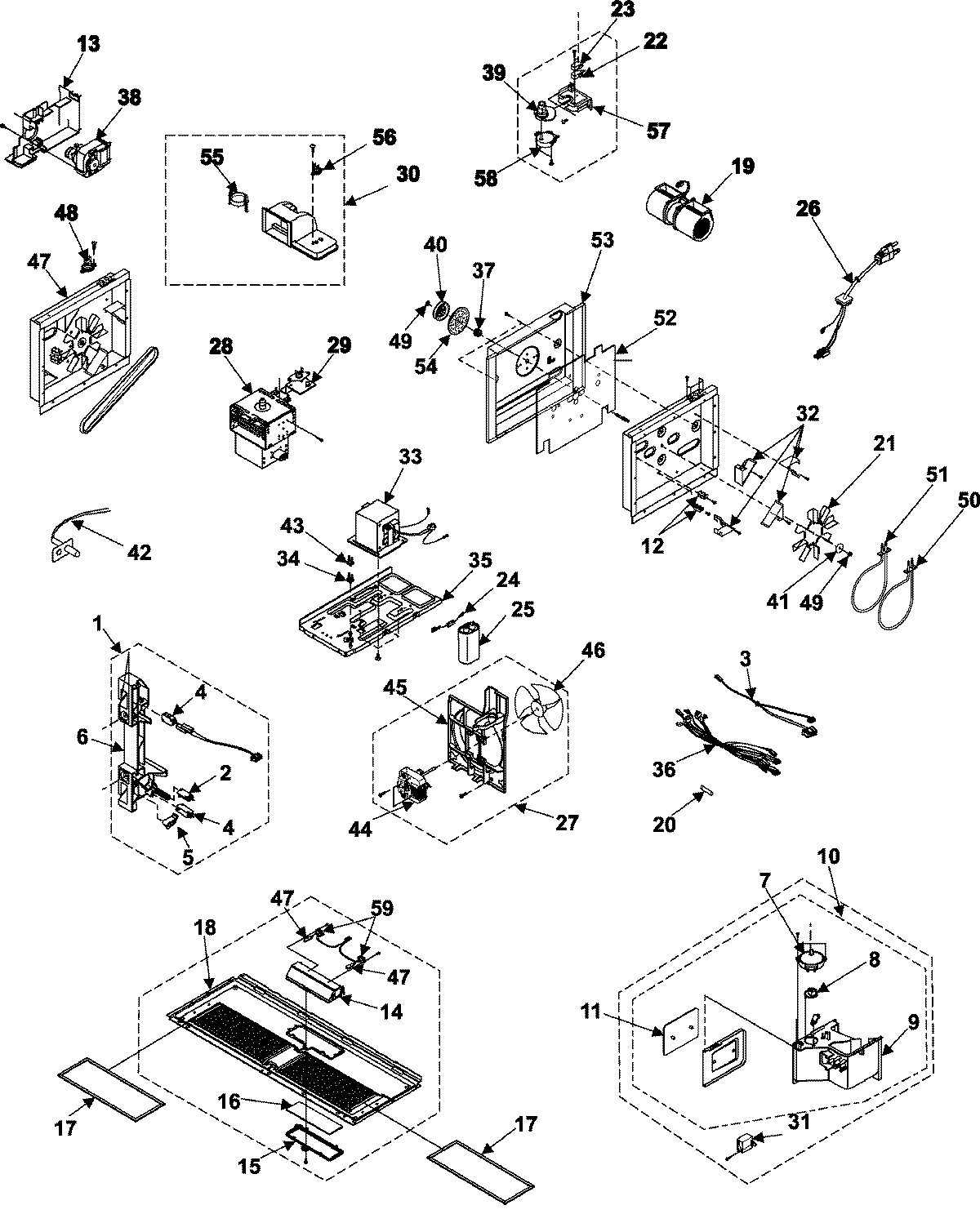

03 - INTERNAL CONTROLS/LATCH ASY/BASE
Common parts from model Maytag SMV9165SC MICROWAVE
1
MAY DE94-00954D MAY DE94-00954D Contact Us For Availability
1
MAY DE96-00308A MAY DE96-00308A Contact Us For Availability
2
MAY DE64-00855D MAY DE64-00855D Contact Us For Availability
3
MAY DE64-00860D MAY DE64-00860D Contact Us For Availability
3
MAY DE39-00358A MAY DE39-00358A Contact Us For Availability
4
MAY DE64-00926B MAY DE64-00926B Contact Us For Availability
5
MAY 6107-001175 MAY 6107-001175 Contact Us For Availability
6
MAY DE64-00760A MAY DE64-00760A Contact Us For Availability
6
LATCH-BODY MAY DE66-00084A Contact Us For Availability
7
MOTOR, DRIVE MAY DE31-10172A Contact Us For Availability
7
MAY DE39-00362A MAY DE39-00362A Contact Us For Availability
7
MAY DE31-10095B MAY DE31-10095B Contact Us For Availability
8
MAY DE94-00952A MAY DE94-00952A Contact Us For Availability
8
MAY DE66-00136A MAY DE66-00136A Contact Us For Availability
9
MAY DE67-00181A MAY DE67-00181A Contact Us For Availability
9
MAY DE64-00853A MAY DE64-00853A Contact Us For Availability
9
MAY DE61-00498A MAY DE61-00498A Contact Us For Availability
11
MAY W10127144 MAY W10127144 Contact Us For Availability
11
MAY DE66-00154A MAY DE66-00154A Contact Us For Availability
12
MAY DE97-00419A MAY DE97-00419A Contact Us For Availability
12
MAY DE34-00186A MAY DE34-00186A Contact Us For Availability
12
MAY DE61-00602A MAY DE61-00602A Contact Us For Availability
13
MAY DE64-01088A MAY DE64-01088A Contact Us For Availability
13
MAY DE64-00857D MAY DE64-00857D Contact Us For Availability
13
MAY DE97-00413A MAY DE97-00413A Contact Us For Availability
14
MAY DE64-00766B MAY DE64-00766B Contact Us For Availability
14
BRACKET-BOTTOM LAMP MAY DE61-00407B Contact Us For Availability
15
MAY DE94-00955A MAY DE94-00955A Contact Us For Availability
16
MAY W10127145 MAY W10127145 Contact Us For Availability
17
MAY DE97-00414A MAY DE97-00414A Contact Us For Availability
18
MAY DE47-00032A MAY DE47-00032A Contact Us For Availability
18
MAY DE61-00406B MAY DE61-00406B Contact Us For Availability
19
MAY DE31-00028C MAY DE31-00028C Contact Us For Availability
19
MAY 6502-000127 MAY 6502-000127 Contact Us For Availability
20
MAY DE97-00456C MAY DE97-00456C Contact Us For Availability
21
MAY DE39-00360A MAY DE39-00360A Contact Us For Availability
21
MAY DE67-00175A MAY DE67-00175A Contact Us For Availability
22
MAY DE63-00221D MAY DE63-00221D Contact Us For Availability
22
MAY 3405-001051 MAY 3405-001051 Contact Us For Availability
23
MAY DE97-00426A MAY DE97-00426A Contact Us For Availability
23
MAY 3405-001050 MAY 3405-001050 Contact Us For Availability
24
MAY DE92-90242A MAY DE92-90242A Contact Us For Availability
25
MAY DE97-00456B MAY DE97-00456B Contact Us For Availability
26
MAY DE97-00456A MAY DE97-00456A Contact Us For Availability
27
HINGE-GRILLE(L) MAY DE61-00129A Contact Us For Availability
27
MAY DE96-00311A MAY DE96-00311A Contact Us For Availability
28
HINGE-GRILLE(R) MAY DE61-00128A Contact Us For Availability
28
ASSY-MAGNETRON MAY W10126785 Contact Us For Availability
29
MAY DE64-01144A MAY DE64-01144A Contact Us For Availability
30
MAY DE74-20016A MAY DE74-20016A Contact Us For Availability
30
MAY DE97-00424A MAY DE97-00424A Contact Us For Availability
31
MAY DE59-50002A MAY DE59-50002A Contact Us For Availability
31
MAY DE97-00368B MAY DE97-00368B Contact Us For Availability
32
MAY DE97-00363A MAY DE97-00363A Contact Us For Availability
32
MAY DE61-00550A MAY DE61-00550A Contact Us For Availability
34
MAY DE97-00433A MAY DE97-00433A Contact Us For Availability
35
MAY DE66-00127A MAY DE66-00127A Contact Us For Availability
35
MAY DE61-00490A MAY DE61-00490A Contact Us For Availability
36
HOLDER-STIRRED MAY DE61-00160A Contact Us For Availability
36
MAY DE39-00359A MAY DE39-00359A Contact Us For Availability
37
MAY DE61-00150A MAY DE61-00150A Contact Us For Availability
37
MAY DE66-10017A MAY DE66-10017A Contact Us For Availability
38
MAY DE47-70030E MAY DE47-70030E Contact Us For Availability
38
MAY DE31-00032A MAY DE31-00032A Contact Us For Availability
39
MAY DE61-00574A MAY DE61-00574A Contact Us For Availability
39
MAY DE72-00145A MAY DE72-00145A Contact Us For Availability
40
MAY DE66-00155A MAY DE66-00155A Contact Us For Availability
41
MAY DE61-00489A MAY DE61-00489A Contact Us For Availability
41
MAY DE60-40019A MAY DE60-40019A Contact Us For Availability
42
MAY DE97-00432A MAY DE97-00432A Contact Us For Availability
43
MAY DE61-00502A MAY DE61-00502A Contact Us For Availability
44
MAY DE60-30015A MAY DE60-30015A Contact Us For Availability
45
MAY DE61-00481A MAY DE61-00481A Contact Us For Availability
45
MAY DE63-00186A MAY DE63-00186A Contact Us For Availability
46
MAY DE66-00121A MAY DE66-00121A Contact Us For Availability
46
BLADE, FAN MAY DE31-90051A Contact Us For Availability
47
MAY DE97-00428A MAY DE97-00428A Contact Us For Availability
48
MAY DE47-20029A MAY DE47-20029A Contact Us For Availability
49
MAY 6021-001149 MAY 6021-001149 Contact Us For Availability
50
MAY DE47-00030A MAY DE47-00030A Contact Us For Availability
51
MAY DE47-00031A MAY DE47-00031A Contact Us For Availability
52
MAY DE62-00032A MAY DE62-00032A Contact Us For Availability
53
MAY DE63-00176A MAY DE63-00176A Contact Us For Availability
54
MAY DE61-00619A MAY DE61-00619A Contact Us For Availability
55
MAY DE61-00599A MAY DE61-00599A Contact Us For Availability
57
BRACKET-CAM PLATE MAY DE61-00118A Contact Us For Availability
58
MOTOR-DRIVE MAY DE31-10154C Contact Us For Availability
59
SOCKET-LAMP HALOGEN MAY DE47-00019A Contact Us For Availability
× ![]()
