Model Whirlpool SM958PESW4 GAS RANGE WITH MICROWAVE – Common Parts & Diagrams

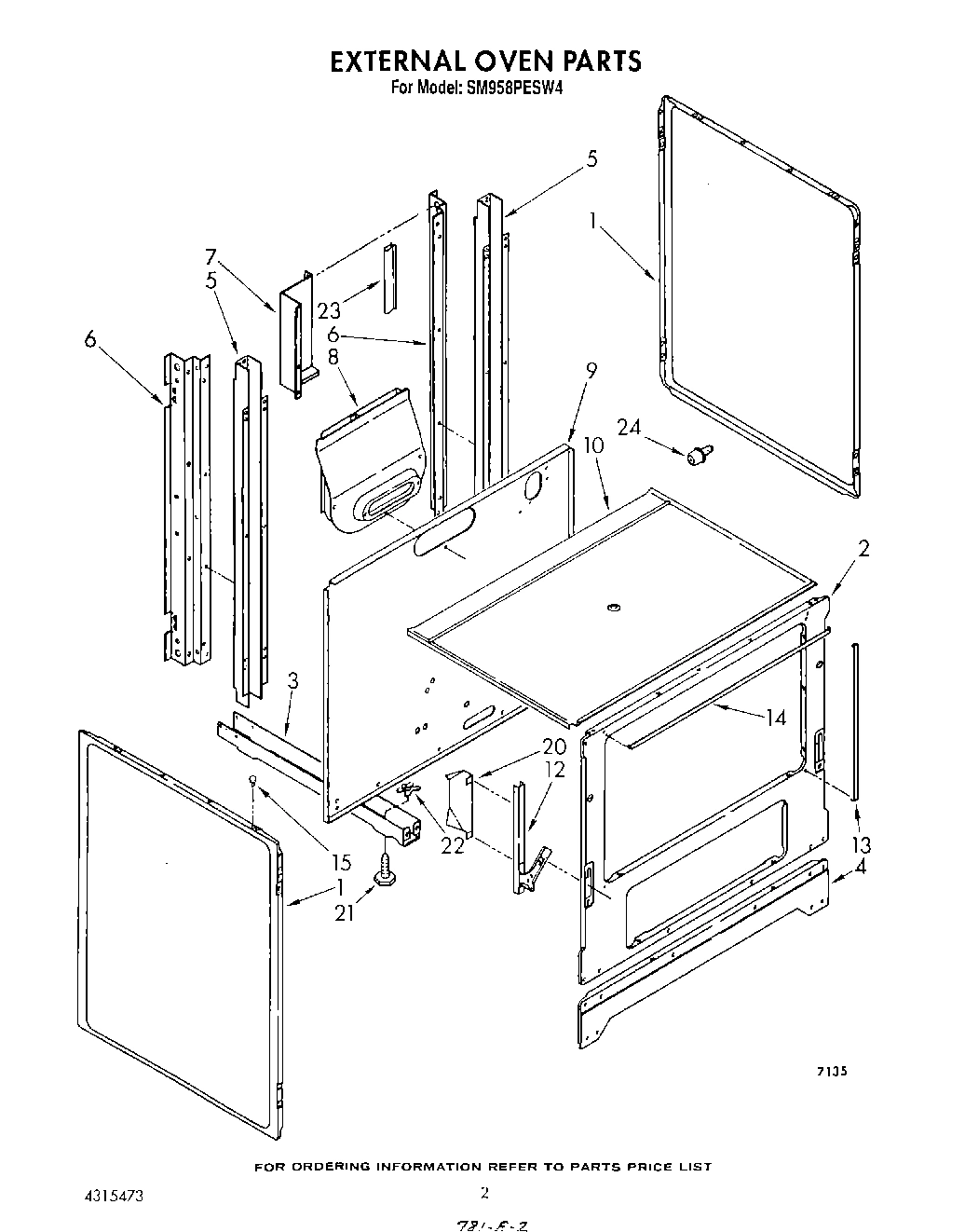

02 - EXTERNAL OVEN

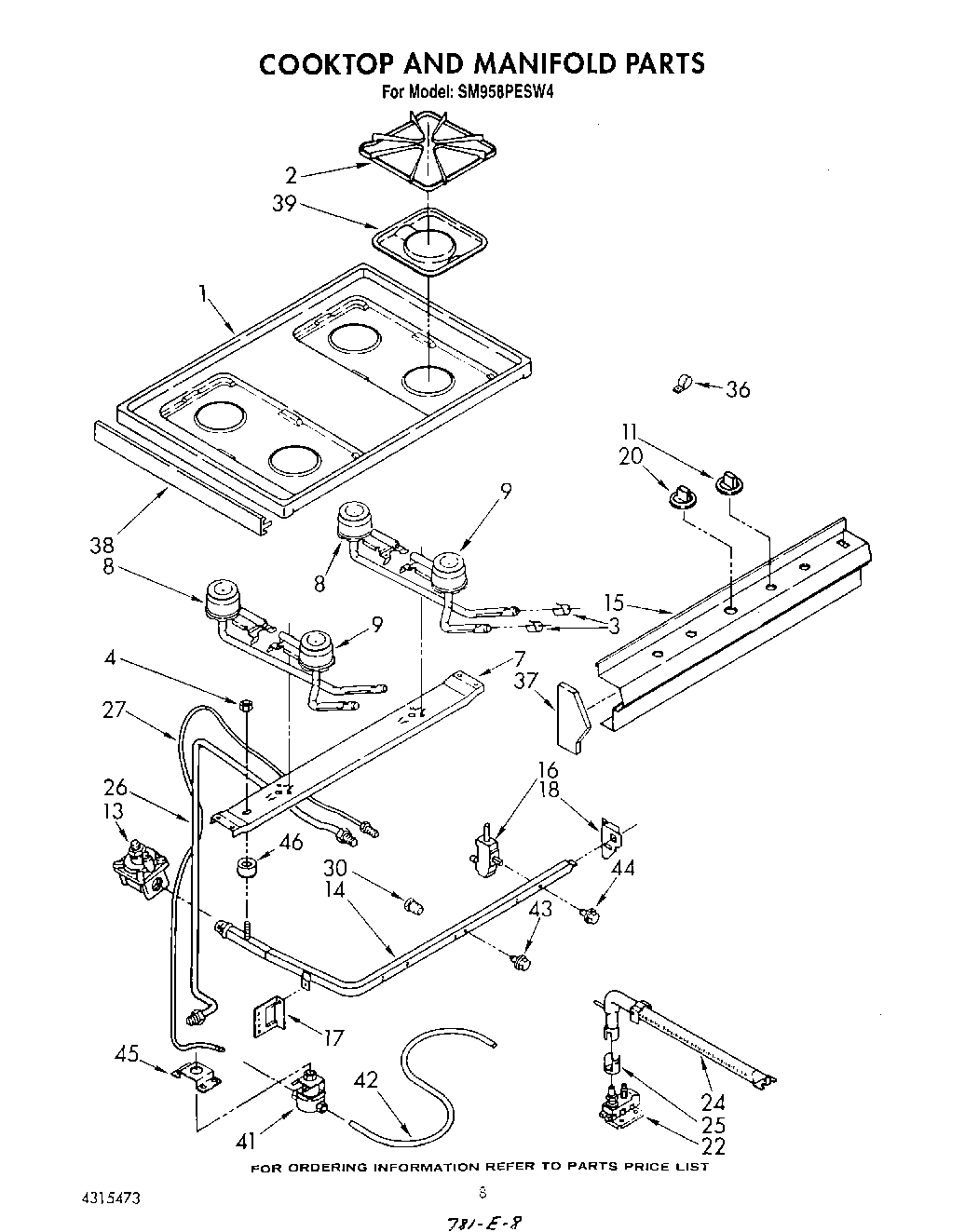

06 - COOKTOP AND MANIFOLD
13 - CABINET AND HINGE
08 - MAGNETRON AND AIRFLOW
10 - CONTROL PANEL
09 - CABINET AND STIRRER
11 - DOOR AND LATCH
12 - WIRING HARNESS , LITERATURE AND OPTIONAL
04 - OVEN ELECTRICAL
03 - INTERNAL OVEN
05 - OVEN DOOR AND BROILER
07 - UPPER OVEN
Common parts from model Whirlpool SM958PESW4 GAS RANGE WITH MICROWAVE
Cookbook WPL LIT311895 Contact Us For Availability
Guide, Use & Care (Microwave) WPL LIT312890 Contact Us For Availability
Installation Instructions WPL LIT4179113 Contact Us For Availability
Guide, Use & Care (Range) WPL LIT4314874 Contact Us For Availability
List, Repair Parts WPL LIT4315473 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Cooktop (White) WPL 4179344 Contact Us For Availability
1
Cooktop (Almond) WPL 4179345 Contact Us For Availability
1
Rivet (3) WPL 313456 Contact Us For Availability
1
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
1
Seal, Foam WPL 313753 Contact Us For Availability
1
Transformer (Alt.) WPL 3147272 Contact Us For Availability
1
Transformer (Alt.) WPL 3147273 Contact Us For Availability
1
Transformer WPL 661173 Contact Us For Availability
1
Frame, Control Panel WPL 3148090 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Harness, Wiring (Control) Microwave WPL 3147560 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315042 Contact Us For Availability
1
Bumper (4) WPL 4157128 Contact Us For Availability
1
Support, Upper Oven (R.H.) WPL 4179240 Contact Us For Availability
1
Support, Upper Oven (L.H.) WPL 4179241 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Shelf, Cavity (Install W/Solastic NO. 482338) WPL 313639 Contact Us For Availability
2
Switch Membrane (Control Module) WPL 3147197 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Harness, Wiring (Main) Microwave WPL 3148064 Contact Us For Availability
2
Socket, Light (2) WPL 4157164 Contact Us For Availability
2
Liner, Oven Top WPL 4315046 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Shield, Heat WPL 786499 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Screw, 8-32 x 3/16 (4) WPL 313818 Contact Us For Availability
3
Bracket, Control (Mounting) WPL 3147283 Contact Us For Availability
3
Base, Cabinet (Not Serviceable) WPL ARI130502A Contact Us For Availability
3
Switch (Alt.) WPL 313075 Contact Us For Availability
3
Switch (Alt.) WPL 313123 Contact Us For Availability
3
Switch WPL 661144 Contact Us For Availability
3
Harness Wiring Vent Motor WPL 3147906 Contact Us For Availability
3
Support Bracket, Socket WPL 786592 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Frame, Door WPL 4157029 Contact Us For Availability
3
Trim, Lower WPL 4179349 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Socket, Startor WPL 786542 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Glass WPL 4157885 Contact Us For Availability
4
Glass, Splashplate WPL 4179360 Contact Us For Availability
5
Screw, 10-32 X 1/2 WPL 4157123 Contact Us For Availability
5
Support, Main (2) WPL 4314932 Contact Us For Availability
5
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Connector Holding WPL 308565 Contact Us For Availability
5
Starter, Light WPL 4157199 Contact Us For Availability
5
Ring, Hold Down WPL 4157031 Contact Us For Availability
5
Trim, Glass WPL 786489 Contact Us For Availability
6
Support, Rear (2) WPL 4179361 Contact Us For Availability
6
Light, Indicator WPL 3147867 Contact Us For Availability
6
Thermal Fuse (Includes Illus. 7) WPL 313855 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313076 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313124 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Disconnect Block WPL 3147362 Contact Us For Availability
6
Strain Relief WPL 4157221 Contact Us For Availability
6
Window WPL 4157032 Contact Us For Availability
6
Trim, Rear WPL 4179243 Contact Us For Availability
7
Cover, Wire WPL 4179364 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Disconnect Block, Female WPL 310960 Contact Us For Availability
7
Liner, Oven Back WPL 4315055 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Panel, Surface Light WPL 786460 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
8
capacitor (alt.) WPL 312631 Contact Us For Availability
8
Capacitor (Alt.) WPL 312632 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Housing, Plug WPL 310241 Contact Us For Availability
8
Receptacle, Light WPL 4157020 Contact Us For Availability
8
Support, Glass WPL 4157035 Contact Us For Availability
8
Speed Clip (2) WPL 4157115 Contact Us For Availability
8
Bumper (4) WPL 312783 Contact Us For Availability
8
Seal, Foam WPL 3147593 Contact Us For Availability
8
Panel, Bottom WPL 4179239 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Block, Disconnect WPL 4157220 Contact Us For Availability
9
Liner, Door WPL 4315062 Contact Us For Availability
9
Support, Side (L.H.) (White) WPL 3147649 Contact Us For Availability
9
Support, Side (L.H.) (Almond) WPL 3147650 Contact Us For Availability
9
(Support, Side (R.H.)) (White) WPL 3147654 Contact Us For Availability
9
(Support, Side (R.H.)) (Almond) WPL 3147655 Contact Us For Availability
10
Burner Box WPL 4315080 Contact Us For Availability
10
Socket, Complete WPL 330514 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Connector, Housing WPL 311574 Contact Us For Availability
10
Clip, Wire (2) WPL 4157127 Contact Us For Availability
10
Support, Glass (2) WPL 4157037 Contact Us For Availability
10
Spacer, Wall WPL 4179242 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Fastener (2) WPL 313740 Contact Us For Availability
11
Bottom, Oven WPL 4315072 Contact Us For Availability
11
Plate (2) WPL 4157131 Contact Us For Availability
11
Panel, Cover WPL 4179341 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
12
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
12
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
12
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
12
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
12
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
12
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
12
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
12
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
12
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
12
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
12
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
12
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
12
Recirculating Kit WPL 814023 Contact Us For Availability
12
Rack, Oven (2) WPL 4157102 Contact Us For Availability
12
Panel, Broiler (White) WPL 4315262 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4315263 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Switch, Miniture WPL 313120 Contact Us For Availability
13
Ignitor, Oven WPL 4315316 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Filter, Mesh (2) WPL 3147606 Contact Us For Availability
14
Seal, Door (Top) WPL 4315333 Contact Us For Availability
14
Manifold WPL 4179355 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Pilot WPL 4157179 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Support, Frame WPL 3170224 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Panel, Manifold WPL 4179353 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
15
Plate, Module WPL 4157171 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
15
Top Panel WPL 3170472 Contact Us For Availability
16
Valve, 180~ (4) (Includes Ill. No. 44) WPL 4179356 Contact Us For Availability
16
Spark Module WPL 4179347 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Deflector, Air WPL 3148435 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
17
Ignitor (R.H.) WPL 4179204 Contact Us For Availability
17
Ignitor (L.H.) WPL 4179205 Contact Us For Availability
17
Track, Upper (2) WPL 4157044 Contact Us For Availability
17
Nut (3) WPL 3147378 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI130501A Contact Us For Availability
18
Switch, Oven Light WPL 4315472 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Motor, Fan WPL 3147817 Contact Us For Availability
19
Frame, Door WPL 3170441 Contact Us For Availability
19
Thermostat WPL 4179354 Contact Us For Availability
19
Cover, Access WPL 3147798 Contact Us For Availability
19
Nut, Hex WPL 3147866 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Thermostat WPL 3147274 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
20
Door, Inner WPL 3171012 Contact Us For Availability
20
Relay WPL 4179346 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Screw, 8-32 x 1/2 (4) WPL 311945 Contact Us For Availability
20
Frame WPL 3170131 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Seal, Foam WPL 3147602 Contact Us For Availability
21
Clip, Wire (4) (Light Housing) WPL 4179352 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Seal, Foam (2) WPL 3147595 Contact Us For Availability
21
Seal, Foam WPL 3147596 Contact Us For Availability
21
Panel, Vent Door WPL 3147712 Contact Us For Availability
21
Screw, Shoulder (2) WPL 3147724 Contact Us For Availability
21
Seal, Foam (4) WPL 3147751 Contact Us For Availability
21
Spring, Vent Door (2) WPL 3147764 Contact Us For Availability
21
Rivet (2) WPL 3147858 Contact Us For Availability
21
Rivet, Plastic (2) WPL 3148294 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
rack, wire WPL 313663 Contact Us For Availability
22
Ballast WPL 4157207 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Screw, 6-32 x 9/32 (3) WPL 313806 Contact Us For Availability
22
Handle, Vent Door WPL 3147710 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
23
Plate, Tuning WPL 313735 Contact Us For Availability
23
Cord, Power WPL 4179363 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Door, Vent WPL 3170269 Contact Us For Availability
24
Stud, Locator WPL 4314933 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
24
Seal, Air Duct WPL 313752 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Cover, Exhaust WPL 3147726 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Damper WPL 3147843 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
26
Magnetron (Alt.) WPL 311992 Contact Us For Availability
26
Magnetron (Alt.) WPL 311993 Contact Us For Availability
26
Magnetron (Alt.) WPL 311994 Contact Us For Availability
26
Magnetron (Alt.) WPL 311995 Contact Us For Availability
26
Magnetron (Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Flue, Air WPL 3148009 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Solenoid) WPL 4179104 Contact Us For Availability
27
Nut, Hex 6-32 (2) WPL 307602 Contact Us For Availability
27
Motor, Fan WPL 312389 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
28
Mount, Fan Motor WPL 310420 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 312782 Contact Us For Availability
29
Baffle, Air Exhaust WPL 3147002 Contact Us For Availability
29
Seal, Foam WPL 3147599 Contact Us For Availability
29
Hole Plug (2) WPL 4315386 Contact Us For Availability
29
Blade, Fan WPL 307535 Contact Us For Availability
30
Latch Assembly WPL 329066 Contact Us For Availability
30
Seal, Foam WPL 3147590 Contact Us For Availability
30
Separator, Air WPL 3148007 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Bushing, Snap WPL 3148008 Contact Us For Availability
32
Handle, Door WPL 314169 Contact Us For Availability
33
(Side Panel, R.H.) (White) WPL 3147142 Contact Us For Availability
33
Side Panel L.H. (White) WPL 3147143 Contact Us For Availability
33
(Side Panel, R.H.) (Almond) WPL 3147144 Contact Us For Availability
33
Side Panel L.H. (Almond) WPL 3147145 Contact Us For Availability
33
(side panel, r.h.) (toast) WPL 3147146 Contact Us For Availability
33
WPL 3147147 WPL 3147147 Contact Us For Availability
33
WPL 3147148 WPL 3147148 Contact Us For Availability
33
WPL 3147149 WPL 3147149 Contact Us For Availability
33
WPL 3147591 WPL 3147591 Contact Us For Availability
33
WPL 3147592 WPL 3147592 Contact Us For Availability
34
Screw, 11-16 x 1/2 Double Load Space Thread ( WPL 346893 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
WPL 4179343 WPL 4179343 Contact Us For Availability
35
Screw (2) WPL 313820 Contact Us For Availability
35
WPL 3147525 WPL 3147525 Contact Us For Availability
35
WPL 3147607 WPL 3147607 Contact Us For Availability
36
Strain Relief WPL 4157185 Contact Us For Availability
36
Transmotor WPL 313641 Contact Us For Availability
36
WPL 4179342 WPL 4179342 Contact Us For Availability
37
Endcap (L.H.) WPL 4157186 Contact Us For Availability
37
Endcap (R.H.) WPL 4157187 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
WPL 4314934 WPL 4314934 Contact Us For Availability
38
Trim, Cooktop (R.H.) WPL 4179350 Contact Us For Availability
38
Trim, Cooktop (L.H.) WPL 4179351 Contact Us For Availability
38
Jack, Probe WPL 3147071 Contact Us For Availability
38
End Cap WPL 3148297 Contact Us For Availability
39
Washer, Internal Lock WPL 313105 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
40
Screw, 8-22 (5) WPL 313823 Contact Us For Availability
41
Valve, Solenoid WPL 4179103 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
42
Tubing 3/16`` (Solenoid To Burner Pilot) WPL 4179105 Contact Us For Availability
43
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
43
Probe, Temperature WPL 313527 Contact Us For Availability
44
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
45
Bracket, Solenoid WPL 4179110 Contact Us For Availability
46
Spacer, Manifold WPL 4315207 Contact Us For Availability
51
Cover, Light WPL 313593 Contact Us For Availability
54
Jumper, High Voltage Black 6-5/16`` WPL 312793 Contact Us For Availability
55
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
55
Screw, 8-32 x 1/2 (4) WPL 313816 Contact Us For Availability
55
Cover, Side WPL 3147004 Contact Us For Availability
58
High Voltage Lead, Gray 6-3/4`` (2) WPL 3147863 Contact Us For Availability
59
Clip WPL 311311 Contact Us For Availability
60
Relay, Vent (24V, Clear) WPL 3147902 Contact Us For Availability
62
Extension, Air Duct WPL 3147262 Contact Us For Availability
63
Insulator, Power Relay WPL 3148083 Contact Us For Availability
64
Thermostat, Fixed WPL 3147834 Contact Us For Availability
× ![]()
