Model Whirlpool SHF5884P2 PORTABLE DISHWASHER – Common Parts &amp; Diagrams

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

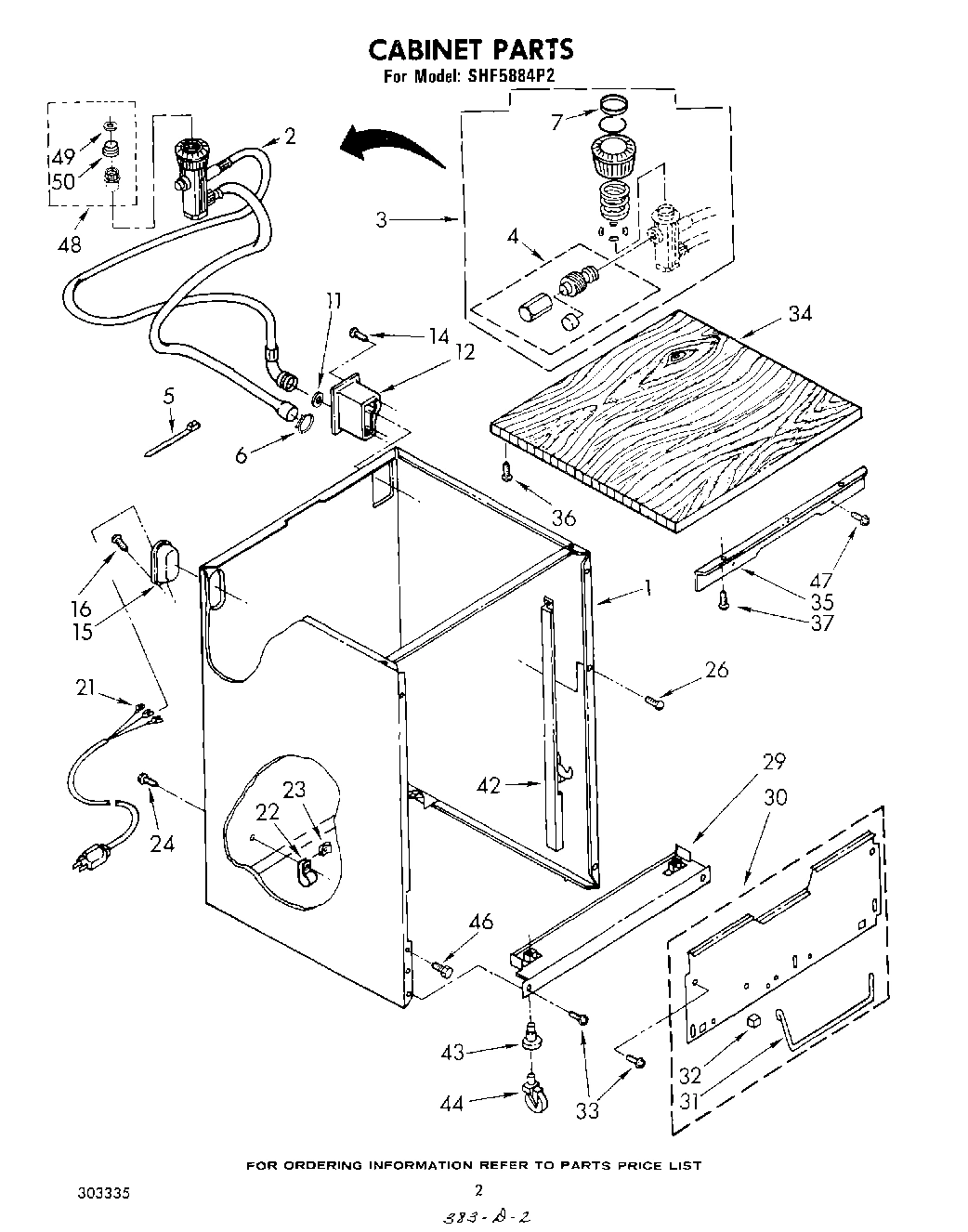

Shell Assembly (Almond) WPL 302898 Contact Us For Availability

1

Bracket, Control WPL 300754 Contact Us For Availability

1

Door, Inner (Includes Illus. 4) WPL 303269 Contact Us For Availability

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Coupler Assembly WPL 302902 Contact Us For Availability

2

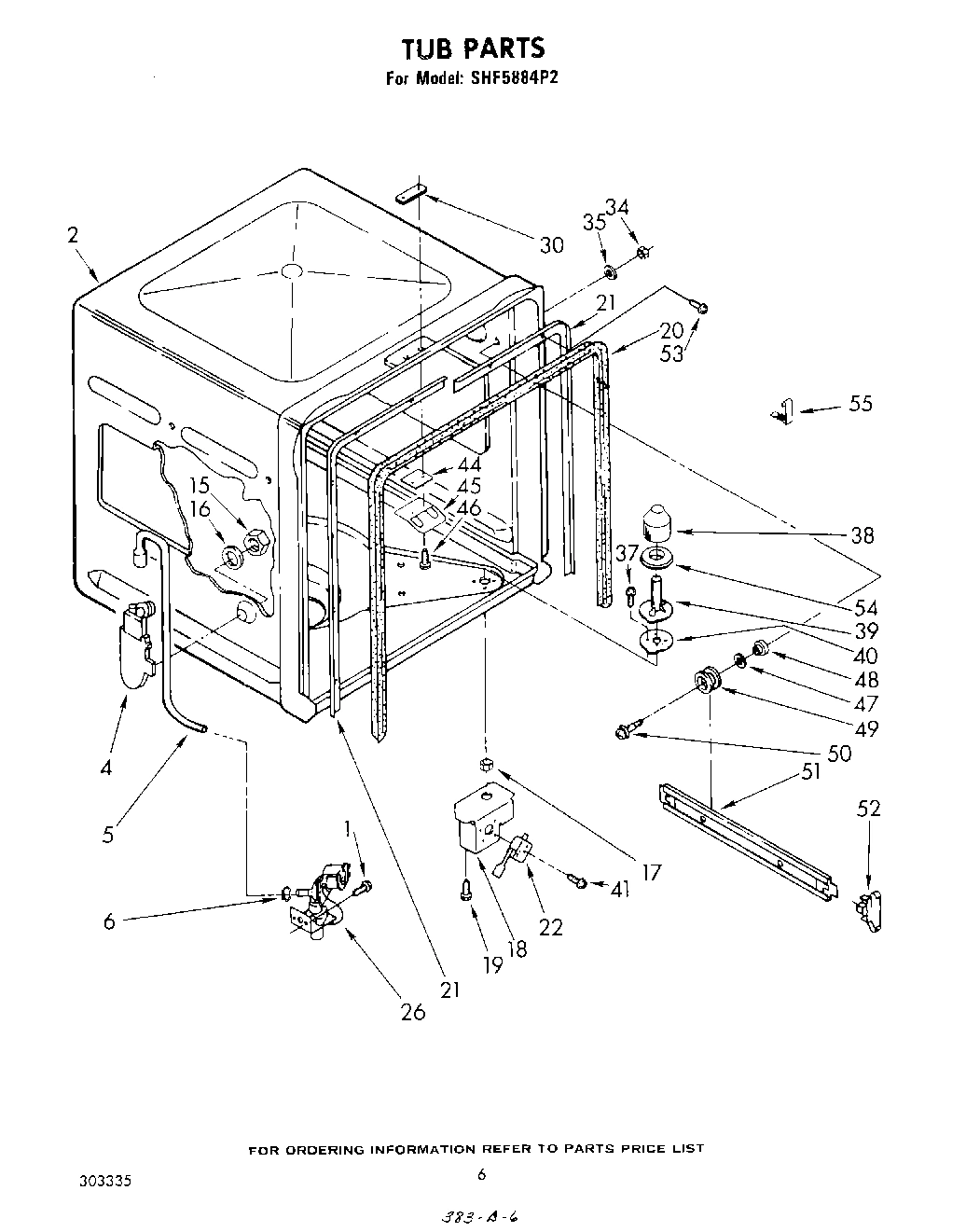

Tub Assembly WPL 303110 Contact Us For Availability

2

Console Assembly WPL 303013 Contact Us For Availability

2

Support Door (L.H.) WPL 303196 Contact Us For Availability

2

Support, Door (R.H.) WPL 303197 Contact Us For Availability

3

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

3

WP285170 Whirlpool Collar In Stock WPL WP285170 $28.27

3

Motor, Timer WPL 301062 Contact Us For Availability

3

Gasket, Door WPL 717921 Contact Us For Availability

4

Valve, Pressure Relief WPL 285171 Contact Us For Availability

4

Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability

4

Inlet, Water WPL 300974 Contact Us For Availability

4

Relay, Start (Alternate) WPL 300516 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301536 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301620 Contact Us For Availability

4

Liner, Door WPL 303202 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

5

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

5

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

5

Hose, Inlet WPL 301053 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Clamp, Hose WPL 719953 Contact Us For Availability

6

Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability

6

Timer WPL 302846 Contact Us For Availability

6

Retainer (2) WPL 301596 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

7

Seal WPL 711696 Contact Us For Availability

8

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

8

Pin, Pivot (2) WPL 300234 Contact Us For Availability

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

9

Grommet WPL 356592 Contact Us For Availability

10

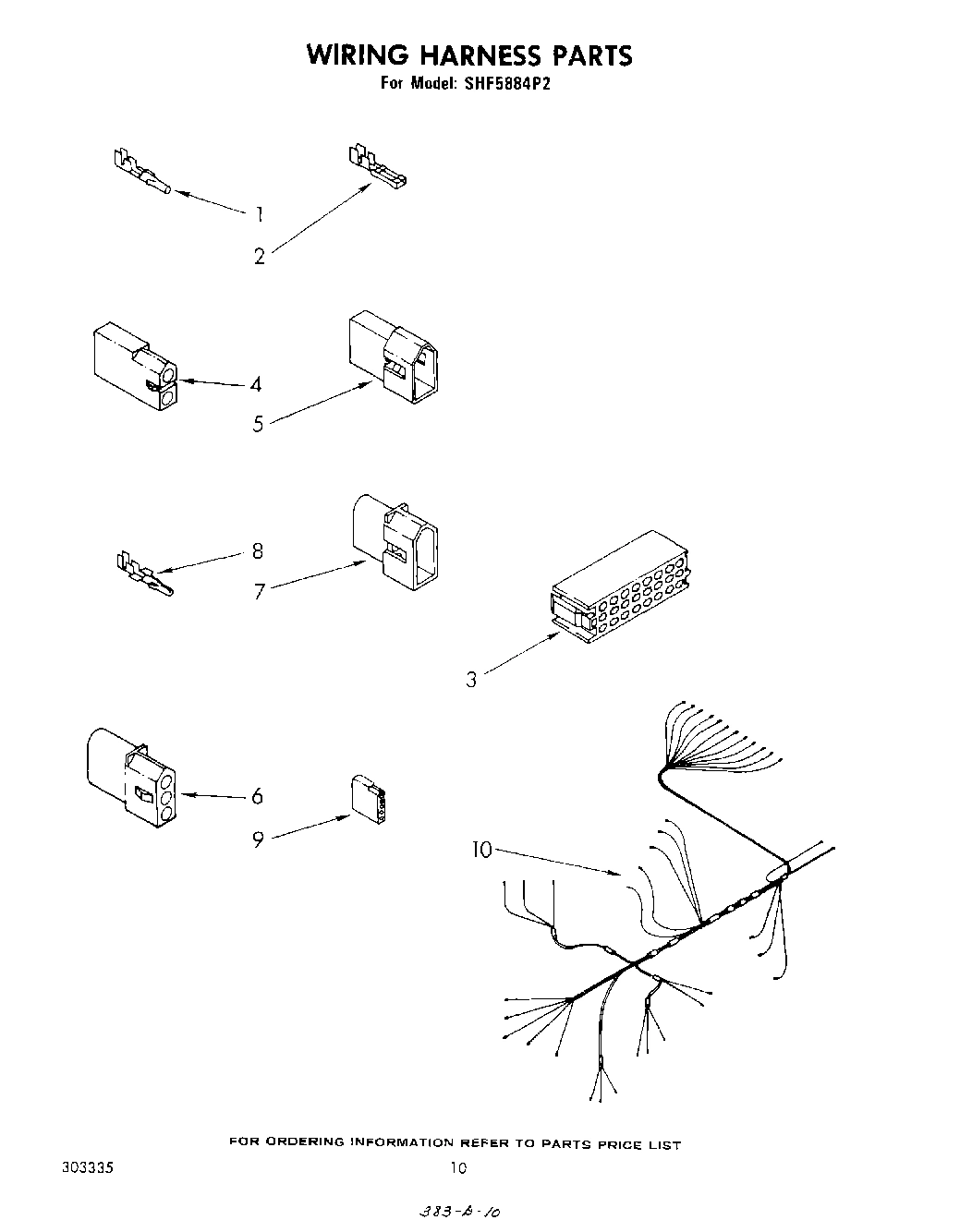

Harness, Wiring WPL 302167 Contact Us For Availability

10

Screen, Vent WPL 300246 Contact Us For Availability

11

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

11

Switch, Pushbutton WPL 302076 Contact Us For Availability

12

Housing, Hose WPL 302891 Contact Us For Availability

12

Button (6) WPL 301977 Contact Us For Availability

12

Latch Assembly WPL 300235 Contact Us For Availability

13

Barrier, Pushbutton WPL 303129 Contact Us For Availability

14

Screw, 8-18 x 5/8 (2) WPL 303090 Contact Us For Availability

14

Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability

14

Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability

15

Housing, Cord WPL 716234 Contact Us For Availability

15

Nut, 7/18-16 WPL 713799 Contact Us For Availability

16

Gasket WPL 713878 Contact Us For Availability

17

Nut, .125 WPL 717488 Contact Us For Availability

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

18

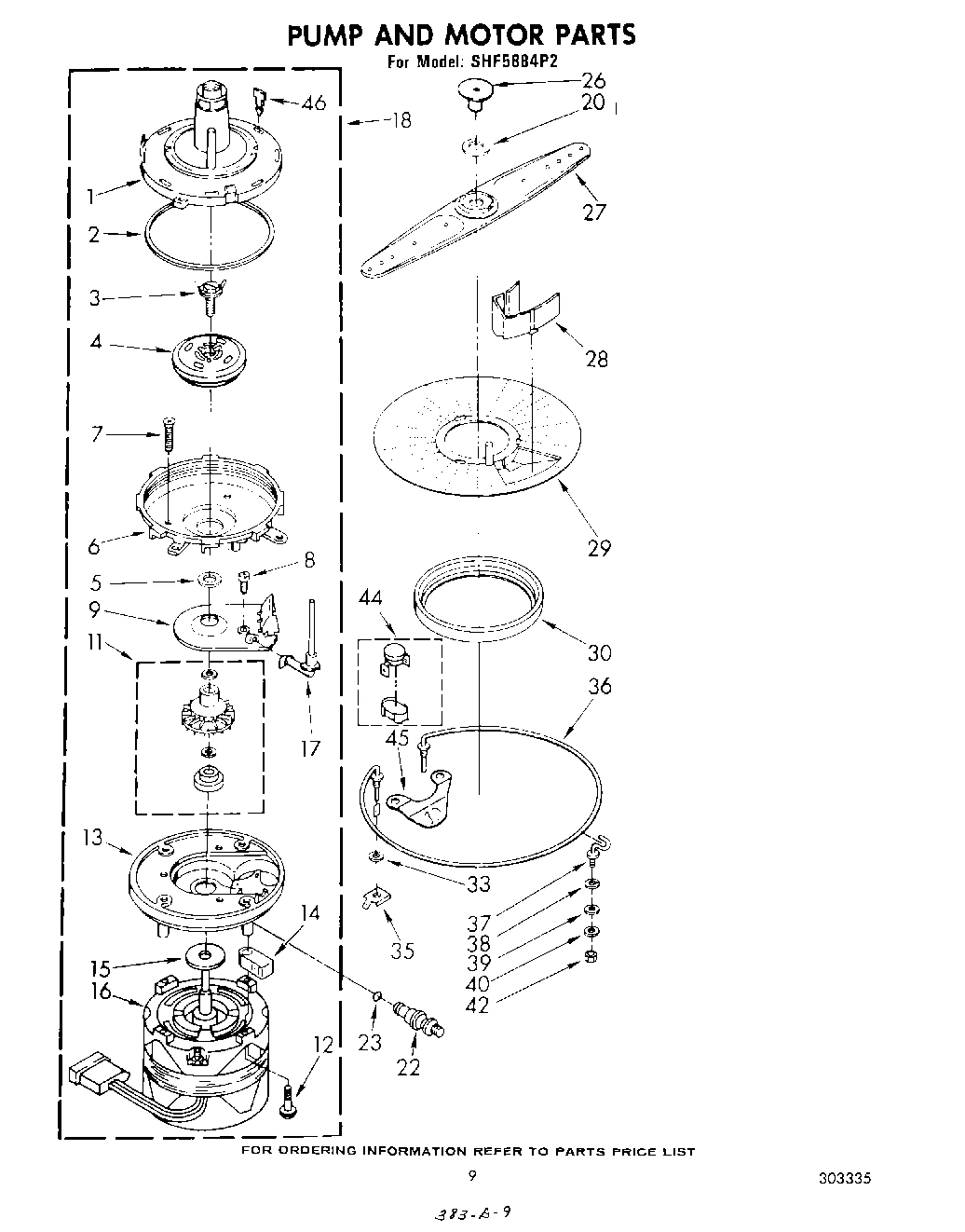

Pump & Motor Assembly (Alternate) WPL 301861 Contact Us For Availability

18

Bracket, Overflow Switch WPL 719342 Contact Us For Availability

19

Dispenser, Wetting Agent WPL 719341 Contact Us For Availability

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

Gasket (Alternate) WPL 302090 Contact Us For Availability

Gasket (Alternate) WPL 302091 Contact Us For Availability

Washer WPL 713080 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

Cord, Power WPL 302325 Contact Us For Availability

Retainer (R.H.) WPL 302093 Contact Us For Availability

Retainer (L.H.) WPL 302094 Contact Us For Availability

Nut WPL 718575 Contact Us For Availability

Adapter, Hose WPL 719930 Contact Us For Availability

Clamp, Strain Relief WPL 596553 Contact Us For Availability

Switch, Pressure WPL 301671 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

Cap WPL 718577 Contact Us For Availability

``O`` Ring WPL 95080 Contact Us For Availability

Nut, J-Type WPL 717337 Contact Us For Availability

Insert WPL 303004 Contact Us For Availability

Button, Retainer (3) WPL 300239 Contact Us For Availability

24

Screw, 8-18 x 3/8 (3) WPL 300250 Contact Us For Availability

25

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

26

Cap, Nozzle WPL 302816 Contact Us For Availability

26

Valve, Water Inlet WPL 719495 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

Spray Arm, Lower WPL 302767 Contact Us For Availability

28

Guard, Screen WPL 303069 Contact Us For Availability

28

Dial, Indicator WPL 300996 Contact Us For Availability

29

Screen, Sump WPL 303070 Contact Us For Availability

29

Toeplate Assembly (Includes Illus. 43) WPL 719513 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

Plate, Cover WPL 719091 Contact Us For Availability

Nut, Twin Spring WPL 303080 Contact Us For Availability

Knob, Timer WPL 301010 Contact Us For Availability

31

Bar, Torsion (R.H.) WPL 719093 Contact Us For Availability

31

Bar, Torsion (L.H.) WPL 719094 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

32

Bumper, Rubber WPL 719235 Contact Us For Availability

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

34

Panel, Top WPL 302182 Contact Us For Availability

34

Locknut (8) WPL 718829 Contact Us For Availability

34

Trim, Console WPL 301624 Contact Us For Availability

Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability

Trim, Front WPL 302250 Contact Us For Availability

Washer (8) WPL 717624 Contact Us For Availability

Retainer WPL 300104 Contact Us For Availability

Heater (Alternate) WPL 302113 Contact Us For Availability

Heater (Alternate) WPL 302562 Contact Us For Availability

Heater (Alternate) WPL 717141 Contact Us For Availability

Heater (Alternate) WPL 719687 Contact Us For Availability

Screw (2) WPL 343826 Contact Us For Availability

37

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

39

Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

40

Spacer, Timer WPL 302866 Contact Us For Availability

41

Screw, 4-40 x 3/4 WPL 98086 Contact Us For Availability

Nut, 10-32 (2) WPL 9420162 Contact Us For Availability

Leg Assembly, L.H. WPL 719621 Contact Us For Availability

Leg Assembly, R.H. WPL 719622 Contact Us For Availability

Barrier, Door WPL 303223 Contact Us For Availability

43

Socket, Caster (Alternate) WPL 300450 Contact Us For Availability

43

Socket, Caster (Alternate) WPL 717588 Contact Us For Availability

43

Edging, Panel WPL 301971 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP3370639 Whirlpool Caster Backorder WPL WP3370639 $25.57

Thermostat WPL 302104 Contact Us For Availability

Shim WPL 712302 Contact Us For Availability

45

Bracket WPL 715073 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Barrier, Console WPL 303222 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

Key, Pump Housing WPL 301936 Contact Us For Availability

47

Washer (8) WPL 718750 Contact Us For Availability

48

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $26.68

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI130390A Contact Us For Availability

Washer WPL 713747 Contact Us For Availability

Wheel Tub (8) WPL 300844 Contact Us For Availability

Trim, Door (R.H.) WPL 302593 Contact Us For Availability

Trim, Door (L.H.) WPL 302594 Contact Us For Availability

50

Bushing WPL 713748 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

54

Gasket, Standpipe (2) WPL 301662 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Clip, Gasket (2) WPL 301663 Contact Us For Availability

Tag, Energy Fact WPL 302774 Contact Us For Availability

Guide, Use & Care WPL 302961 Contact Us For Availability

Instructions, Installation WPL 303027 Contact Us For Availability

List, Repair Parts WPL 303335 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Kit, WPL 799640 Contact Us For Availability

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

62

Panel, Access WPL ARI130391A Contact Us For Availability

63

Cap, End (R.H.) WPL 302590 Contact Us For Availability

63

Cap, End (L.H.) WPL 302591 Contact Us For Availability

64

Foot (2) WPL 719581 Contact Us For Availability

65

Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability

66

Overlay Accessory Panel WPL 302595 Contact Us For Availability

67

Cap, Drip WPL 718576 Contact Us For Availability

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer (2) WPL 300237 Contact Us For Availability

82

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

84

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

85

Acutator Assembly WPL 718646 Contact Us For Availability

86

Plate WPL 718596 Contact Us For Availability

87

Diaphragm, Pin Assembly WPL 718595 Contact Us For Availability

88

Spring, Conical WPL 718592 Contact Us For Availability

89

WPL 300230 WPL 300230 Contact Us For Availability

90

WPL 301957 WPL 301957 Contact Us For Availability

91

WPL 301582 WPL 301582 Contact Us For Availability

92

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

93

WPL 715779 WPL 715779 Contact Us For Availability

94

WPL 301857 WPL 301857 Contact Us For Availability

95

WPL 303121 WPL 303121 Contact Us For Availability

96

WPL 303362 WPL 303362 Contact Us For Availability
