Model Whirlpool SHF5501W0 PORTABLE DISHWASHER – Common Parts & Diagrams

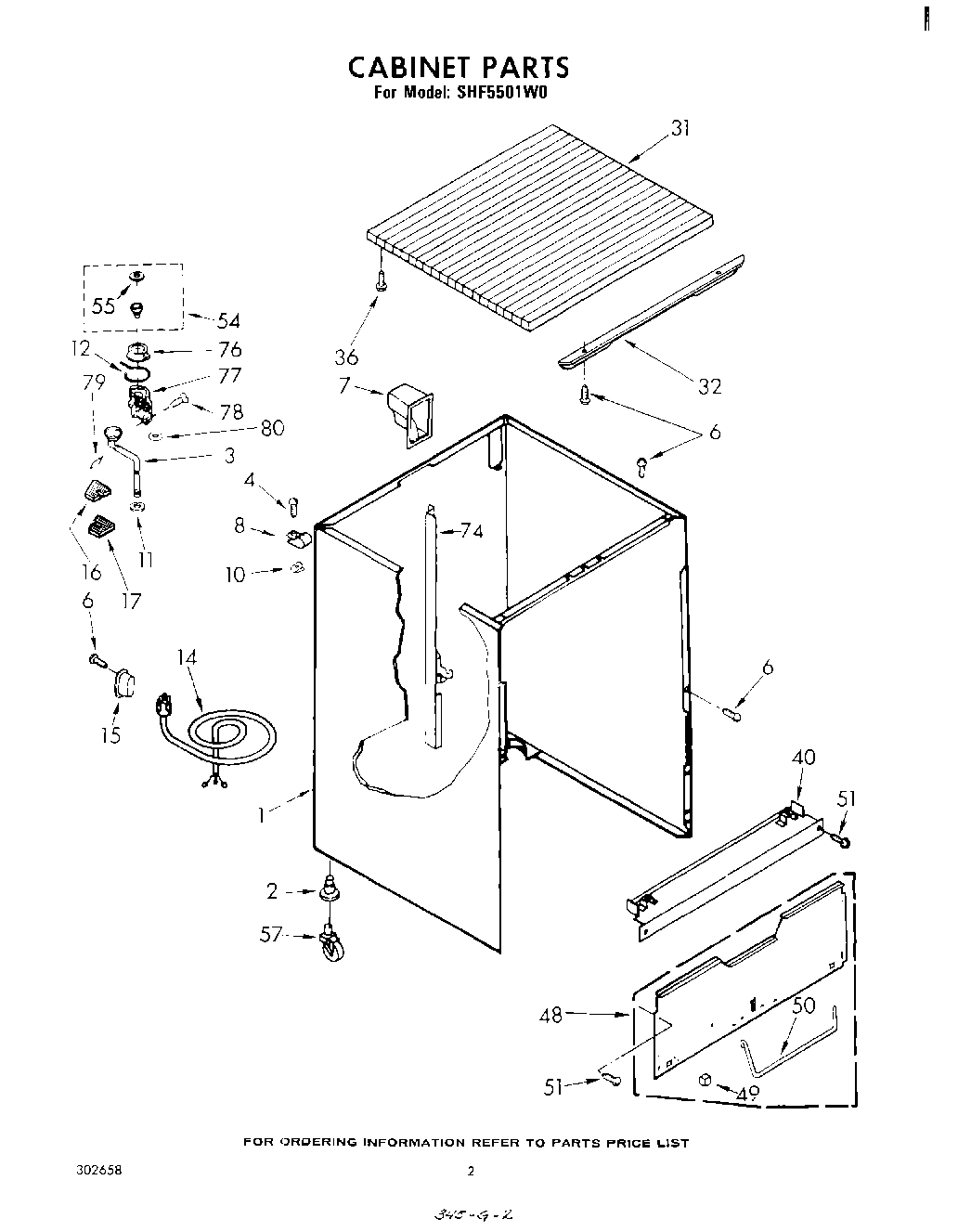

02 - CABINET

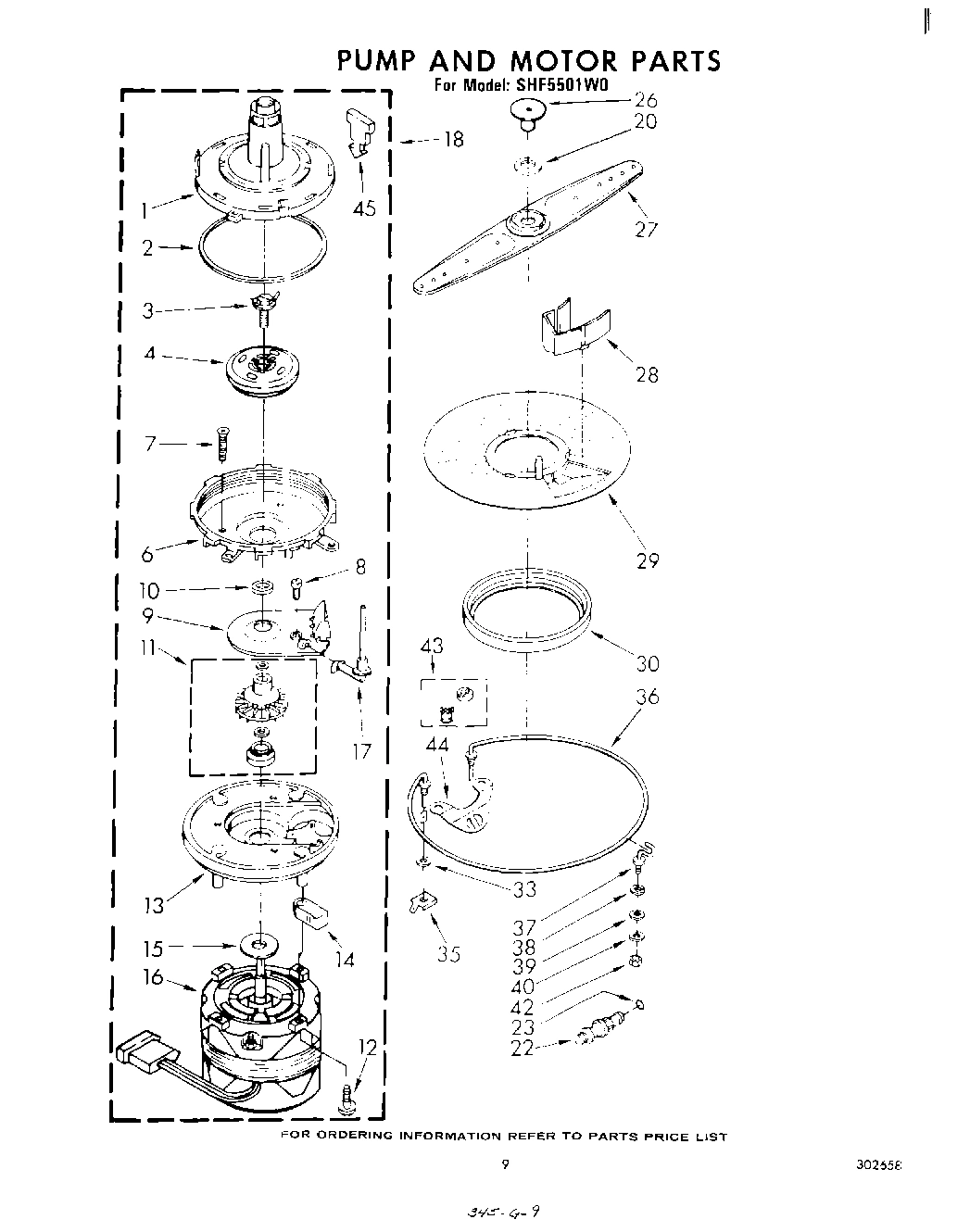

06 - PUMP AND MOTOR
01 - CONSOLE
04 - TUB, LIT/OPTIONAL
03 - DOOR
05 - DISHRACK
Common parts from model Whirlpool SHF5501W0 PORTABLE DISHWASHER
WPL ARI130373A WPL ARI130373A Contact Us For Availability
1
Pump Housing, Upper WPL 301558 Contact Us For Availability
1
Bracket, Control WPL 300754 Contact Us For Availability
1
Door, Inner (Includes Illus. 4) WPL 302035 Contact Us For Availability
1
Wheel & Gear Assembly (4) WPL 302025 Contact Us For Availability
2
Socket, Caster (Alternate) WPL 300450 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Console Assembly WPL 302539 Contact Us For Availability
2
Tub Assembly WPL 302095 Contact Us For Availability
2
Support, Door (L.H.) WPL 300225 Contact Us For Availability
2
Support, Door (R.H.) WPL 300226 Contact Us For Availability
3
Screw, 10-32 x .75 WPL 718326 Contact Us For Availability
3
Motor, Timer WPL 301062 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
4
Impeller WPL 719949 Contact Us For Availability
4
Relay, Start (Alternate) WPL 300516 Contact Us For Availability
4
Relay, Start (Alternate) WPL 301536 Contact Us For Availability
4
Relay, Start (Alternate) WPL 301620 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
4
Liner, Door WPL 302031 Contact Us For Availability
4
Cover, Housing WPL 302029 Contact Us For Availability
5
Hose, Inlet WPL 301053 Contact Us For Availability
5
Housing, Gear WPL 302028 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
6
Timer, Disconnect WPL 302571 Contact Us For Availability
6
Retainer WPL 301596 Contact Us For Availability
6
Worm, Adjustable WPL 302026 Contact Us For Availability
7
Clamp WPL 719953 Contact Us For Availability
8
Hose, Drain WPL 300275 Contact Us For Availability
8
Pin, Pivot WPL 300234 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
9
Grommet WPL 356592 Contact Us For Availability
10
Spacer WPL 301619 Contact Us For Availability
10
Retainer, Harness WPL 302162 Contact Us For Availability
10
Screen, Vent WPL 300246 Contact Us For Availability
11
Kit, Impeller Drain WPL 675297 Contact Us For Availability
11
Switch, Pushbutton WPL 302076 Contact Us For Availability
11
Screw WPL 162400 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
12
Button (6) WPL 301977 Contact Us For Availability
12
Latch Assembly WPL 300235 Contact Us For Availability
13
Base, Pump WPL 301812 Contact Us For Availability
13
Barrier, Pushbutton Switch WPL 300242 Contact Us For Availability
14
Support, Pump (4) WPL 718260 Contact Us For Availability
14
Switch, Interlock WPL 300232 Contact Us For Availability
14
Bumper (2) WPL 719964 Contact Us For Availability
15
Nut, 7/8-16 WPL 713799 Contact Us For Availability
15
Tower WPL 302030 Contact Us For Availability
16
Motor (Emerson) WPL 301811 Contact Us For Availability
16
Motor (General Electric) WPL 301858 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, .125 WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Terminal (Disconnect Block) WPL 352088 Contact Us For Availability
18
Pump & Motor Assembly WPL 301829 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Receptacle, Terminal (Timer Motor) WPL 717252 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 719341 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Gasket (Alternate) WPL 302090 Contact Us For Availability
20
Gasket (Alternate) WPL 302091 Contact Us For Availability
20
Gasket (Alternate) WPL 302092 Contact Us For Availability
20
Washer WPL 713080 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
21
Nut, 1-14 WPL 718575 Contact Us For Availability
22
Switch, Pressure WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
22
Cap WPL 718577 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Insert WPL 302538 Contact Us For Availability
23
Button, Retainer WPL 300239 Contact Us For Availability
24
Screw, 8-18 x 3/8 WPL 300250 Contact Us For Availability
26
Cap, Assembly WPL 300992 Contact Us For Availability
26
Connector, Terminal (Motor) WPL 719585 Contact Us For Availability
26
Valve, Water Inlet WPL 719495 Contact Us For Availability
27
Spray Arm, Lower WPL 719691 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
28
Dial, Indicator WPL 300996 Contact Us For Availability
28
Screw, 6-32 x 1 WPL 301582 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Knob, Timer WPL 302541 Contact Us For Availability
30
Nut, Twin Spring WPL 719455 Contact Us For Availability
31
Receptacle (Wetting Agent Dispenser) WPL 353425 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Trim, Console WPL 301624 Contact Us For Availability
34
Screw, 8 x 1/2 WPL 718250 Contact Us For Availability
34
Locknut (8) WPL 718829 Contact Us For Availability
35
Nut, 7/16-20 WPL 718537 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
36
Heater WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
37
Support, Heater WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Washer, Retainer WPL 717289 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Washer WPL 14351 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Washer WPL 711284 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 4-40 x 3/4 WPL 98086 Contact Us For Availability
42
Nut, 10-32 WPL 9420162 Contact Us For Availability
42
Clip, Ground WPL 718533 Contact Us For Availability
43
Thermostat WPL 302104 Contact Us For Availability
44
Bracket WPL 715073 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Key, Pump Housing WPL 301936 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
47
Washer WPL 718750 Contact Us For Availability
48
Washer, Cup WPL 718817 Contact Us For Availability
48
Panel, Front WPL ARI130371A Contact Us For Availability
49
Wheel Assembly WPL 300844 Contact Us For Availability
49
Trim, Door (L.H.) WPL 301019 Contact Us For Availability
49
Trim, Door (R.H.) WPL 301020 Contact Us For Availability
50
Bar, Torsion (R.H.) WPL 719093 Contact Us For Availability
50
Bar, Torsion (L.H.) WPL 719094 Contact Us For Availability
50
Screw, Shoulder WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track WPL 300845 Contact Us For Availability
53
Basket Silverware Assembly WPL 301994 Contact Us For Availability
54
Gasket WPL 301662 Contact Us For Availability
55
WPL 799344 WPL 799344 Contact Us For Availability
55
Washer WPL 300445 Contact Us For Availability
55
(13 Oz.) (Leveler (Thinner) (2 Oz.) Paint, To WPL 206925 Contact Us For Availability
55
(1 Qt.) (Coffee (Uncut)) WPL 261837 Contact Us For Availability
55
(13 Oz.) (Coffee) WPL 261886 Contact Us For Availability
55
(13 Oz.) (New Avocado) WPL 261888 Contact Us For Availability
55
(1 Qt.) (New Avocado (Uncut)) WPL 261889 Contact Us For Availability
55
(13 Oz.) (Golden Harvest) WPL 261890 Contact Us For Availability
55
(1 Qt.) (Golden Harvest (Uncut)) WPL 261891 Contact Us For Availability
55
Instructions, Installation WPL 301233 Contact Us For Availability
55
Clip, Gasket WPL 301663 Contact Us For Availability
55
Guide, Use & Care WPL 302017 Contact Us For Availability
55
Harness, Wiring WPL 302167 Contact Us For Availability
55
List, Parts WPL 302658 Contact Us For Availability
55
Tag, Energy Fact WPL 302753 Contact Us For Availability
55
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
55
WPL 799351 WPL 799351 Contact Us For Availability
55
WPL 799640 WPL 799640 Contact Us For Availability
55
WPL 978883 WPL 978883 Contact Us For Availability
55
Handle, Basket WPL 300086 Contact Us For Availability
57
Trim, Basket WPL 717528 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
62
Panel, Access WPL ARI130372A Contact Us For Availability
63
Cap, End (R.H.) WPL 302621 Contact Us For Availability
63
Cap, End (L.H.) WPL 302622 Contact Us For Availability
64
Foot WPL 719581 Contact Us For Availability
65
Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
74
Leg Assembly, L.H. WPL 719621 Contact Us For Availability
74
Leg Assembly, R.H. WPL 719622 Contact Us For Availability
76
Latch, Cap WPL 717939 Contact Us For Availability
77
Cover, R.H. WPL 717941 Contact Us For Availability
77
Cover, L.H. WPL 717942 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
78
Screw, 8-18 x 3/4 (3) WPL 718032 Contact Us For Availability
79
Coupler, Pull Ring WPL 718073 Contact Us For Availability
80
``O`` Ring WPL 718738 Contact Us For Availability
85
Acutator Assembly WPL 718646 Contact Us For Availability
86
Plate WPL 718596 Contact Us For Availability
87
Diaphragm Assembly WPL 718595 Contact Us For Availability
88
Spring WPL 718592 Contact Us For Availability
89
Lever, Release WPL 300230 Contact Us For Availability
90
Spacer WPL 300801 Contact Us For Availability
92
Bumper (2) WPL 715779 Contact Us For Availability
93
Clip, Wire WPL 301857 Contact Us For Availability
94
Barrier, Detergent Dispenser WPL 302159 Contact Us For Availability
× ![]()
