Model Whirlpool SHF3801W0 PORTABLE DISHWASHER – Common Parts & Diagrams

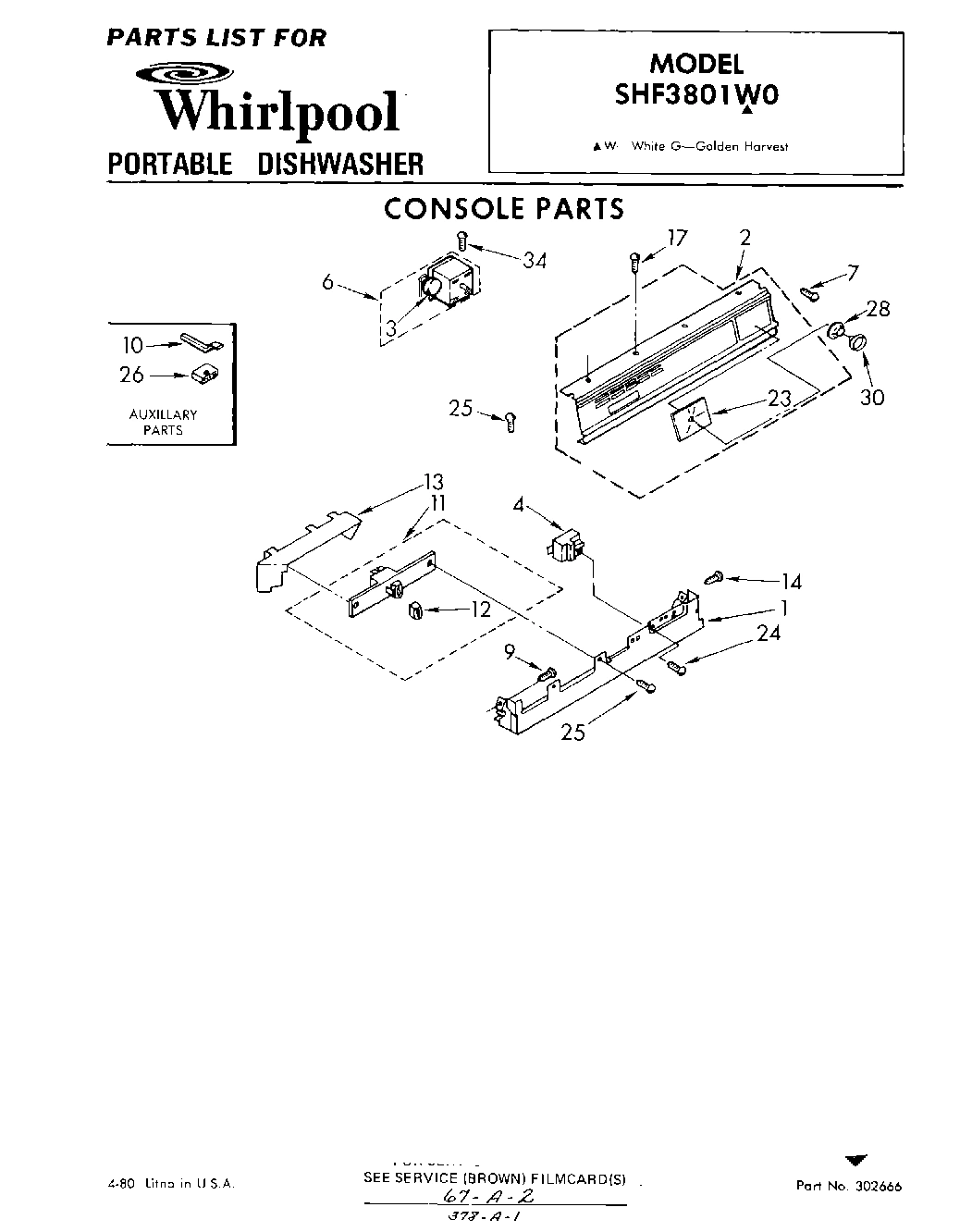

01 - CONSOLE

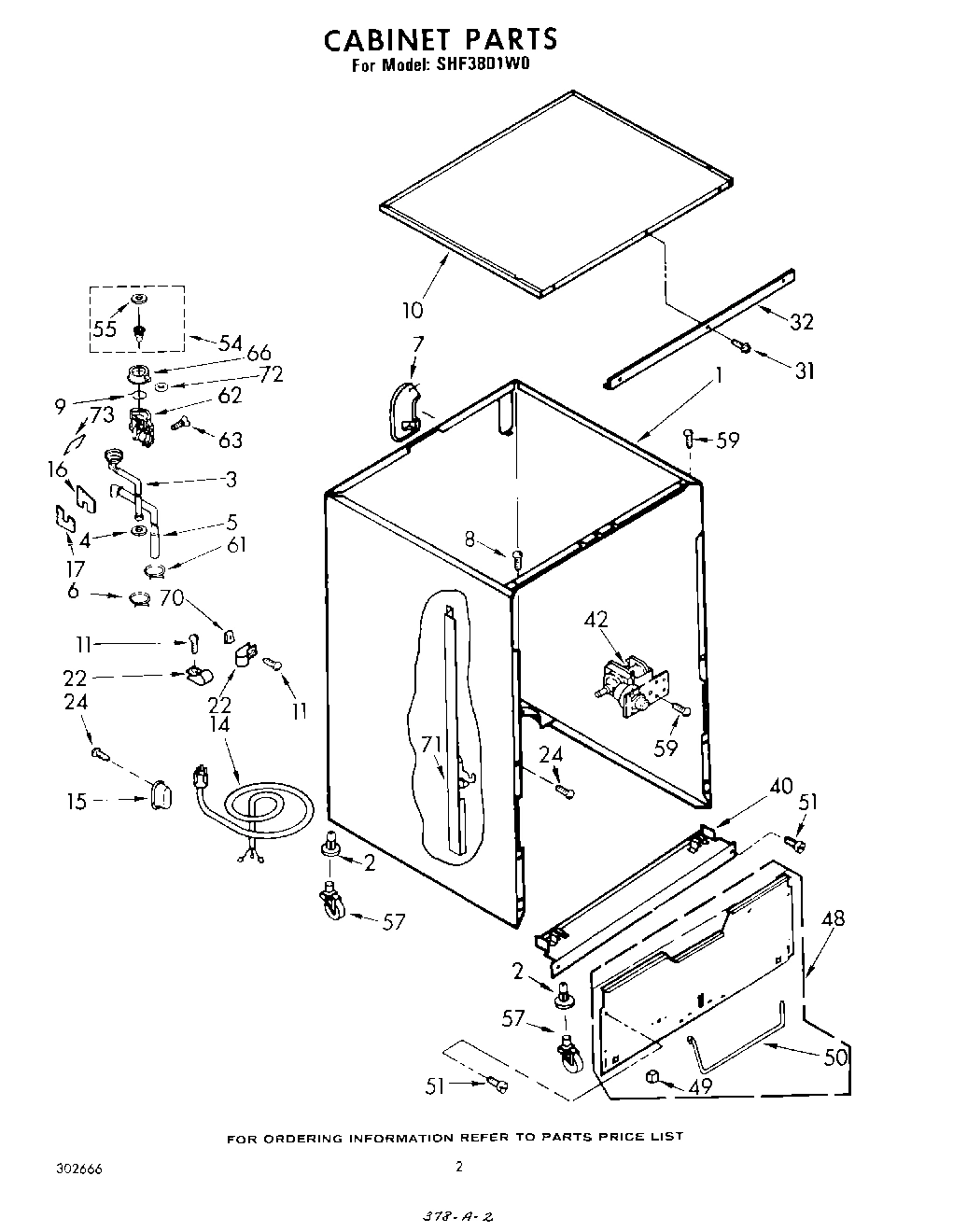

02 - CABINET
05 - DISHRACK
03 - DOOR
04 - TUB , LIT/OPTIONAL
06 - PUMP AND MOTOR
Common parts from model Whirlpool SHF3801W0 PORTABLE DISHWASHER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
xGolden Harvest (Uncut) WPL 261891 Contact Us For Availability
Paint, Touch-Up WPL ARI130365A Contact Us For Availability
Paint, Touch-Up WPL ARI130366A Contact Us For Availability
1
Shell Assembly (Golden Harvest) WPL 301736 Contact Us For Availability
1
Shell Assembly (White) WPL 719614 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
1
Door, Inner (Includes Illus. 4) WPL 302033 Contact Us For Availability
1
Pump Housing, Upper WPL 301558 Contact Us For Availability
2
Socket, Caster (Alternate) WPL 300450 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Socket, Caster (Alternate) WPL 717588 Contact Us For Availability
2
Support, Door (L.H.) WPL 300225 Contact Us For Availability
2
Support, Door (R.H.) WPL 300226 Contact Us For Availability
2
Tub Assembly WPL 302095 Contact Us For Availability
3
Coupler Assembly WPL 718056 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
3
Nut, 7/8-16 WPL 713799 Contact Us For Availability
3
Screw, 10-32 x .75 WPL 718326 Contact Us For Availability
4
Liner, Door WPL 302031 Contact Us For Availability
4
Gasket WPL 713878 Contact Us For Availability
4
Impeller WPL 719949 Contact Us For Availability
5
Hose, Drain WPL 300275 Contact Us For Availability
5
Inlet, Water WPL 300974 Contact Us For Availability
6
Hose, Inlet WPL 301053 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
7
Housing, Hose WPL 718030 Contact Us For Availability
8
Nut, .125 WPL 717488 Contact Us For Availability
8
Pin, Pivot WPL 300234 Contact Us For Availability
9
Spring, Coupler WPL 717958 Contact Us For Availability
9
Grommet WPL 356592 Contact Us For Availability
9
Nut, Twin Spring WPL 719455 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
Top, Vinyl Clad WPL 301563 Contact Us For Availability
10
Screen, Vent WPL 300246 Contact Us For Availability
10
Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability
10
Spacer WPL 301619 Contact Us For Availability
11
Gasket (Alternate) WPL 302090 Contact Us For Availability
11
Gasket (Alternate) WPL 302091 Contact Us For Availability
11
Gasket (Alternate) WPL 302092 Contact Us For Availability
11
Kit, Impeller Drain WPL 675297 Contact Us For Availability
12
Latch Assembly WPL 300235 Contact Us For Availability
12
Retainer (R.H.) WPL 302093 Contact Us For Availability
12
Retainer (L.H.) WPL 302094 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
13
Base, Pump WPL 301812 Contact Us For Availability
14
Cord, Power WPL 302325 Contact Us For Availability
14
Bumper WPL 719964 Contact Us For Availability
14
Switch, Interlock WPL 300232 Contact Us For Availability
14
Support, Pump (4) WPL 718260 Contact Us For Availability
15
Housing, Cord WPL 716234 Contact Us For Availability
15
Tower WPL 302030 Contact Us For Availability
16
Flow Divider, Upper WPL 300273 Contact Us For Availability
16
Motor (Emerson) WPL 301811 Contact Us For Availability
16
Motor (General Electric) WPL 301858 Contact Us For Availability
17
Flow Divider, Lower WPL 300274 Contact Us For Availability
17
Shim WPL 712302 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Strike WPL 300233 Contact Us For Availability
18
Pump & Motor Assembly WPL 301829 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
22
Clamp, Cable WPL 596553 Contact Us For Availability
22
Gasket WPL 719966 Contact Us For Availability
23
Bracket, Overflow WPL 719342 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
24
Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability
25
Float WPL 718035 Contact Us For Availability
26
Connector, Terminal (Motor) WPL 719585 Contact Us For Availability
26
Standpipe, Overflow WPL 719967 Contact Us For Availability
26
Cap, Assembly WPL 300992 Contact Us For Availability
27
Switch, Pressure (Alternate) WPL 301671 Contact Us For Availability
27
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
27
Spray Arm, Lower WPL 719691 Contact Us For Availability
28
Dial WPL 300996 Contact Us For Availability
28
Bumper WPL 715779 Contact Us For Availability
28
Screw, 4-40 x 3/4 WPL 98086 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
29
End Cap, Track (4) WPL 300845 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Knob, Timer WPL 301010 Contact Us For Availability
30
Track (2) WPL 300846 Contact Us For Availability
31
Screw (2) WPL 343826 Contact Us For Availability
31
Wheel Assembly WPL 300844 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Trim, Front WPL 301585 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
35
Nut, 7/16-20 WPL 718537 Contact Us For Availability
36
Heater WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
37
Support, Heater WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Washer, Retainer WPL 717289 Contact Us For Availability
39
Washer WPL 14351 Contact Us For Availability
40
Toeplate Assembly (Includes Illus. 2) WPL 719513 Contact Us For Availability
40
Washer WPL 711284 Contact Us For Availability
41
Screw, 6-32 x 1 WPL 301582 Contact Us For Availability
42
Valve, Water Inlet WPL 719495 Contact Us For Availability
42
Clip, Ground WPL 718533 Contact Us For Availability
42
Nut, 10-32 WPL 9420162 Contact Us For Availability
43
Key, Pump Housing WPL 301936 Contact Us For Availability
48
Plate, Cover WPL 719091 Contact Us For Availability
48
Panel, Front WPL ARI130363A Contact Us For Availability
48
Screw, Shoulder WPL 712499 Contact Us For Availability
49
Bumper, Rubber WPL 719235 Contact Us For Availability
49
Trim, Door (L.H.) WPL 301019 Contact Us For Availability
49
Trim, Door (R.H.) WPL 301020 Contact Us For Availability
49
Washer, Cup WPL 718817 Contact Us For Availability
50
Bar, Torsion (R.H.) WPL 719093 Contact Us For Availability
50
Bar, Torsion (L.H.) WPL 719094 Contact Us For Availability
50
Locknut WPL 718829 Contact Us For Availability
51
Washer WPL 717624 Contact Us For Availability
52
Washer WPL 718750 Contact Us For Availability
53
Gasket WPL 301662 Contact Us For Availability
54
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
54
Golden Harvest WPL 261890 Contact Us For Availability
54
Instructions, Installation WPL 301233 Contact Us For Availability
54
Clip WPL 301663 Contact Us For Availability
54
Harness, Wiring WPL 302345 Contact Us For Availability
54
Guide, Use & Care WPL 302629 Contact Us For Availability
54
List, Parts WPL 302666 Contact Us For Availability
54
Tag, Energy Fact WPL 302752 Contact Us For Availability
54
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
54
Kit, Epoxy Patch (White) WPL 799640 Contact Us For Availability
55
Washer WPL 300445 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
61
Clamp, Hose WPL 719953 Contact Us For Availability
62
Cover, R.H. WPL 717941 Contact Us For Availability
62
Cover, L.H. WPL 717942 Contact Us For Availability
62
Panel, Access WPL ARI130364A Contact Us For Availability
63
Screw, 8-18 x 3/4 (3) WPL 718032 Contact Us For Availability
63
Cap, End (R.H.) WPL 302621 Contact Us For Availability
63
Cap, End (L.H.) WPL 302622 Contact Us For Availability
64
Foot WPL 719581 Contact Us For Availability
66
Latch, Cap WPL 717939 Contact Us For Availability
70
Nut, J-Type WPL 717337 Contact Us For Availability
71
Leg Assembly, L.H. WPL 719621 Contact Us For Availability
71
Leg Assembly, R.H. WPL 719622 Contact Us For Availability
72
``O`` Ring WPL 718738 Contact Us For Availability
73
Coupler, Pull Ring WPL 718073 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
89
Lever, Release WPL 300230 Contact Us For Availability
90
Spacer WPL 300801 Contact Us For Availability
91
Retainer WPL 301596 Contact Us For Availability
94
Clip, Wire WPL 301857 Contact Us For Availability
× ![]()
