Model Whirlpool SGP335XW0 SLIDE-IN GAS RANGE – Common Parts & Diagrams

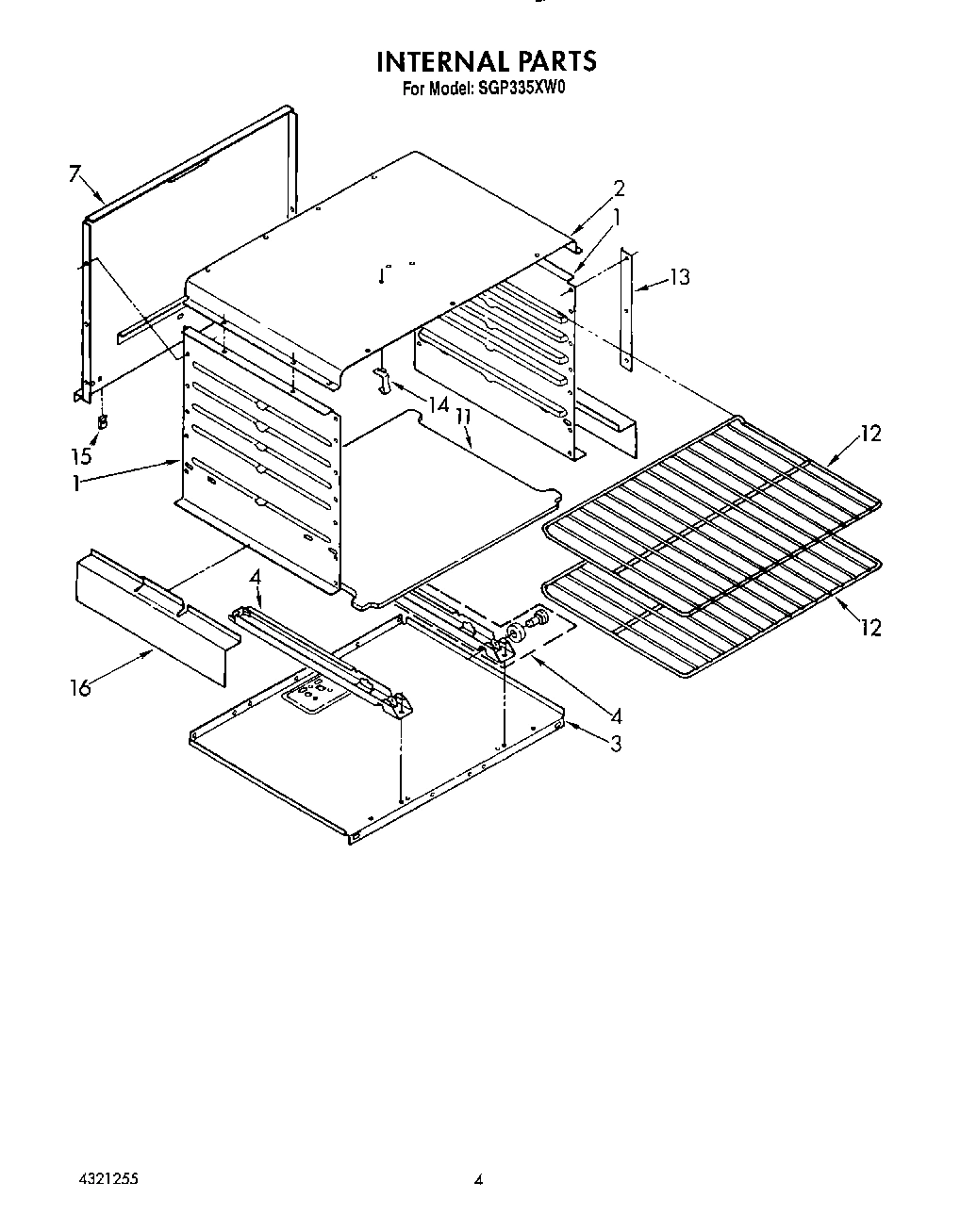

03 - INTERNAL

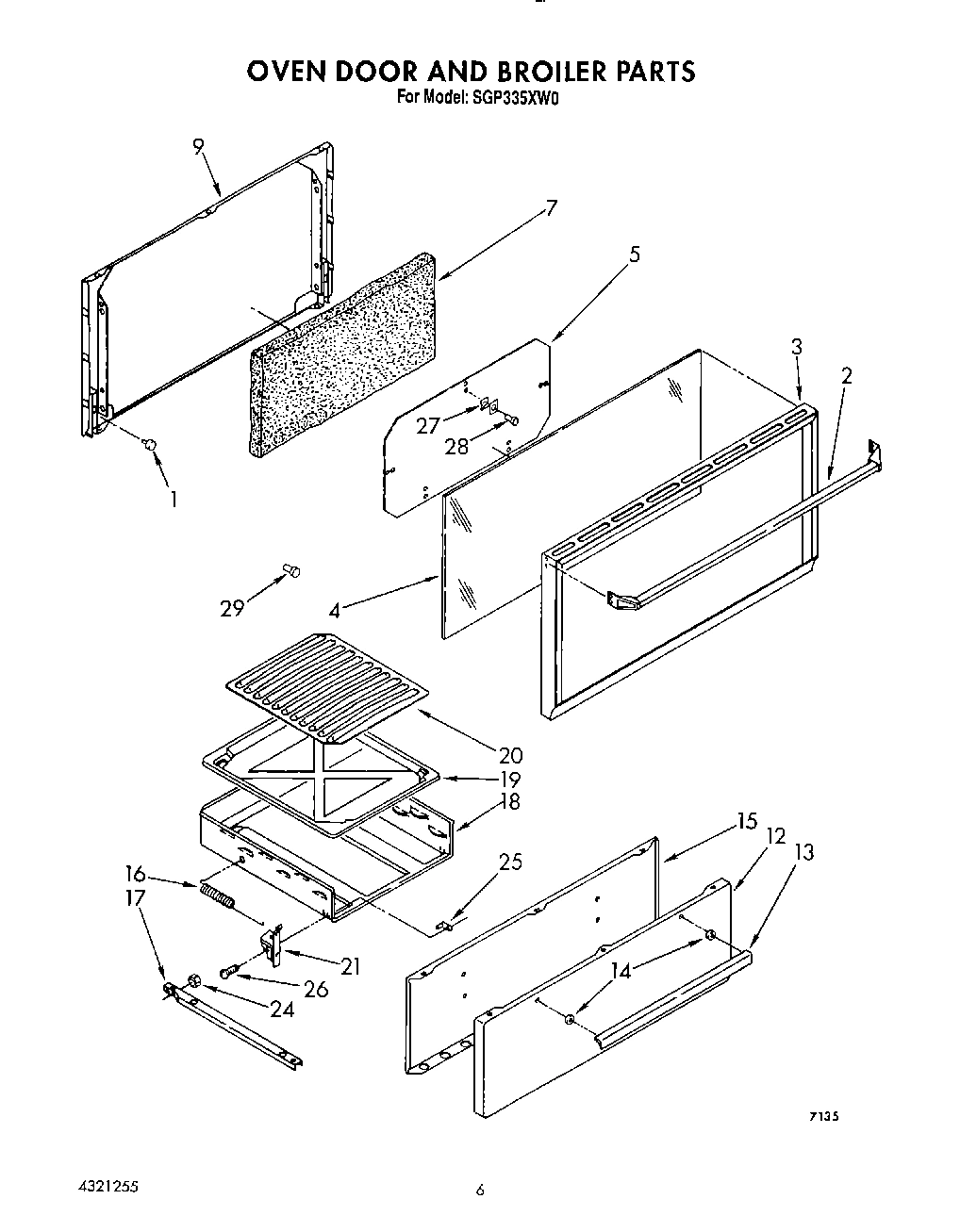

05 - OVEN DOOR AND BROILER
04 - CONTROL PANEL
06 - COOKTOP AND MANIFOLD
02 - EXTERNAL, LIT/OPTIONAL
Common parts from model Whirlpool SGP335XW0 SLIDE-IN GAS RANGE
Instuctions, Installation WPL LIT4320479 Contact Us For Availability
Guide, Use & Care WPL LIT4320748 Contact Us For Availability
List, Repair Parts WPL LIT4321255 Contact Us For Availability
1
Bumper (4) WPL 4157128 Contact Us For Availability
1
Panel, Manifold WPL 4321167 Contact Us For Availability
1
Cooktop, Chrome WPL 4320415 Contact Us For Availability
1
Panel, Side (2) WPL 4320455 Contact Us For Availability
2
Handle, Door WPL 4320473 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4320474 Contact Us For Availability
2
Knob, Thermostat WPL 4320339 Contact Us For Availability
2
Grate (4) WPL 4157056 Contact Us For Availability
2
Frame, Front WPL 4157002 Contact Us For Availability
3
Frame, Door WPL 4321161 Contact Us For Availability
3
Knob, Valve (4) WPL 4320408 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
4
Track, Broiler (Left Track Assy.) WPL 4320465 Contact Us For Availability
4
Track, Broiler (right Track Assy.) WPL 4320466 Contact Us For Availability
4
Glass WPL 4321253 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
5
Ring, Hold Down WPL 4320352 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
6
Mounting Bracket, Clock WPL 4314915 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Clock WPL 4321168 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
8
Endcap (R.H.) WPL 4314980 Contact Us For Availability
8
Endcap (L.H.) WPL 4314981 Contact Us For Availability
8
Burner, Rear (2) WPL 4179101 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
9
Liner, Door WPL 4321254 Contact Us For Availability
9
Knob, Clock WPL 4321164 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4179100 Contact Us For Availability
9
Panel, Rear WPL 4157015 Contact Us For Availability
10
Burner Box WPL 4157017 Contact Us For Availability
11
Bottom, Oven WPL 4320784 Contact Us For Availability
12
Rack, Oven (2) WPL 4320804 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle, Door WPL 4157208 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4320579 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157948 Contact Us For Availability
14
Spacer (2) WPL 4314916 Contact Us For Availability
14
Manifold WPL 4314914 Contact Us For Availability
14
Seal, Door (Top) WPL 4157025 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4321171 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 31) WPL 4314821 Contact Us For Availability
17
Track, Upper (Left Hand) WPL 4320467 Contact Us For Availability
17
Track, Upper (Right Assy.) WPL 4320468 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
18
Liner, Brolier WPL 4157172 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4314820 Contact Us For Availability
19
Wire, Tie WPL 4315726 Contact Us For Availability
20
Grid WPL 4157047 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat (Includes Ill. No. 30) WPL 4314890 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
23
Plug, Hole WPL 4179041 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
24
Rail, Backguard WPL 4314935 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Bracket, Top Support WPL 4314910 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
26
Bracket, Mounting (R.H.) WPL 4314911 Contact Us For Availability
26
Bracket, Mounting (L.H.) WPL 4314912 Contact Us For Availability
27
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Rubber Bumper (2) WPL 4320477 Contact Us For Availability
28
Block, Disconnect WPL 4157220 Contact Us For Availability
29
Rubber Bumper (2) WPL 4321083 Contact Us For Availability
29
Stud, Locator WPL 4314933 Contact Us For Availability
30
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
30
Cable Clamp (1) WPL 4157221 Contact Us For Availability
31
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
31
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
32
Plate, Module WPL 4157171 Contact Us For Availability
33
Module, Spark WPL 4315322 Contact Us For Availability
34
Ignitor (R.H.) WPL 4179204 Contact Us For Availability
34
Ignitor (L.H.) WPL 4315329 Contact Us For Availability
38
Chrome Bowl (4) WPL 4321173 Contact Us For Availability
39
Ignitor, Oven WPL 4315316 Contact Us For Availability
41
Flame Spreader WPL 4320440 Contact Us For Availability
× ![]()
