Model Whirlpool SFF1000CLN0 GARMENT CARE UNIT – Common Parts & Diagrams

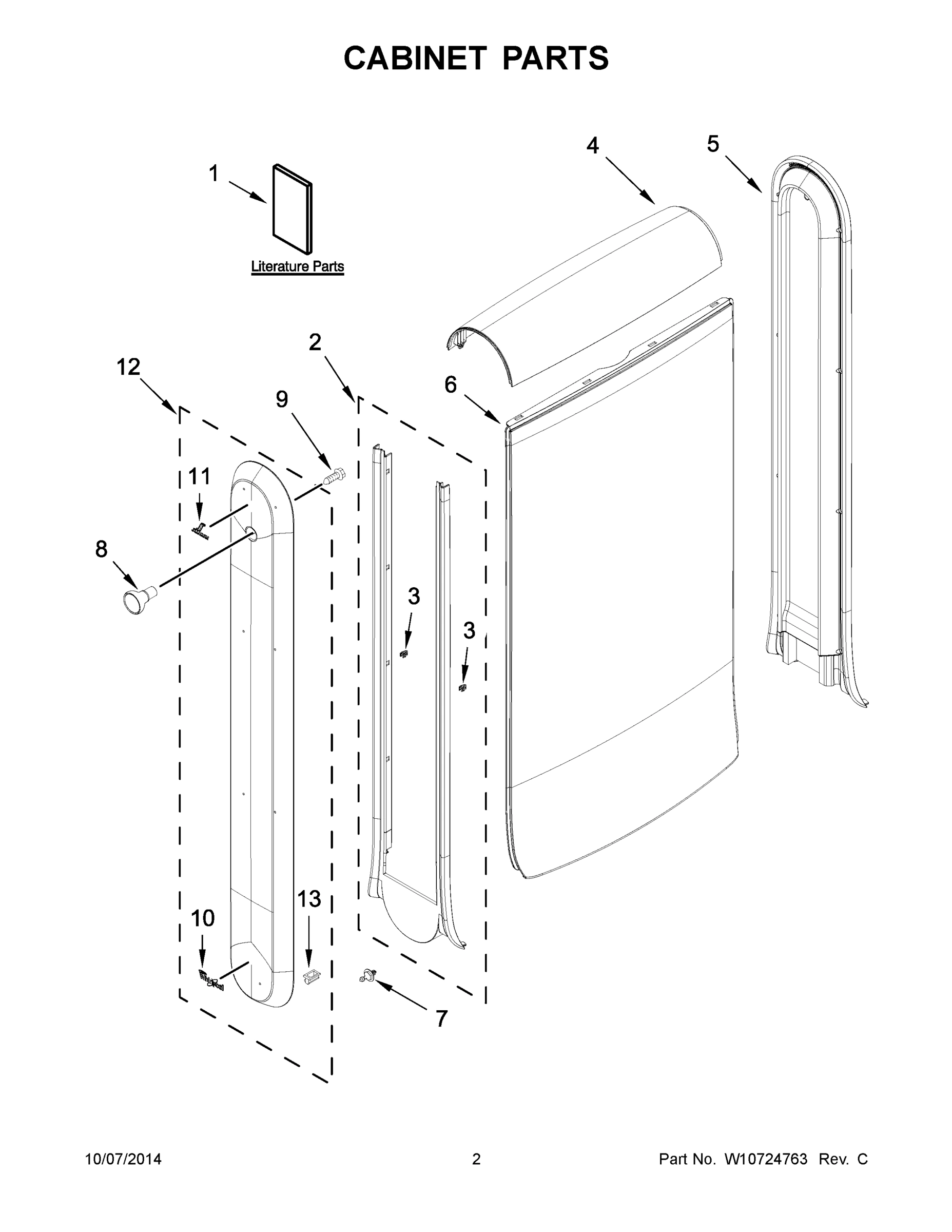

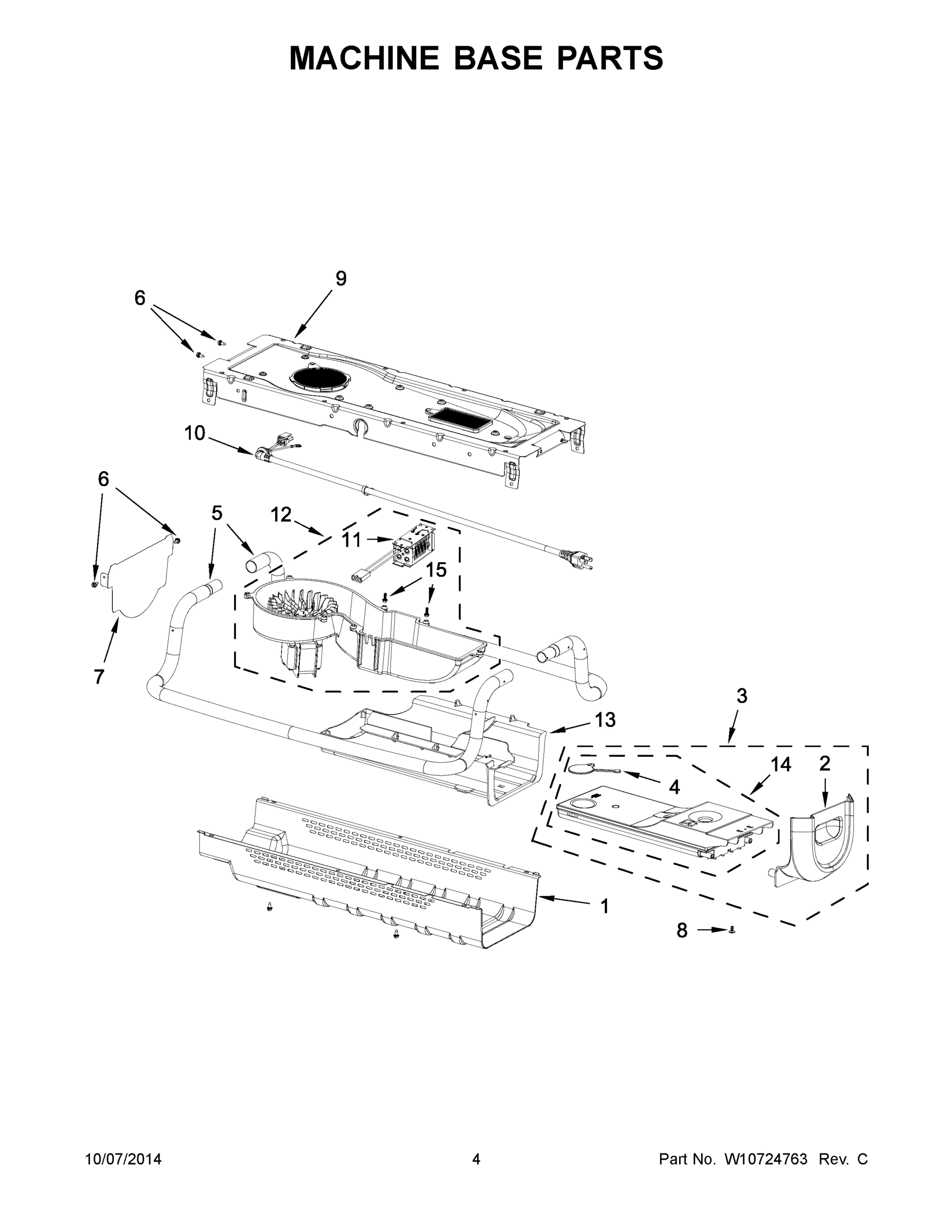

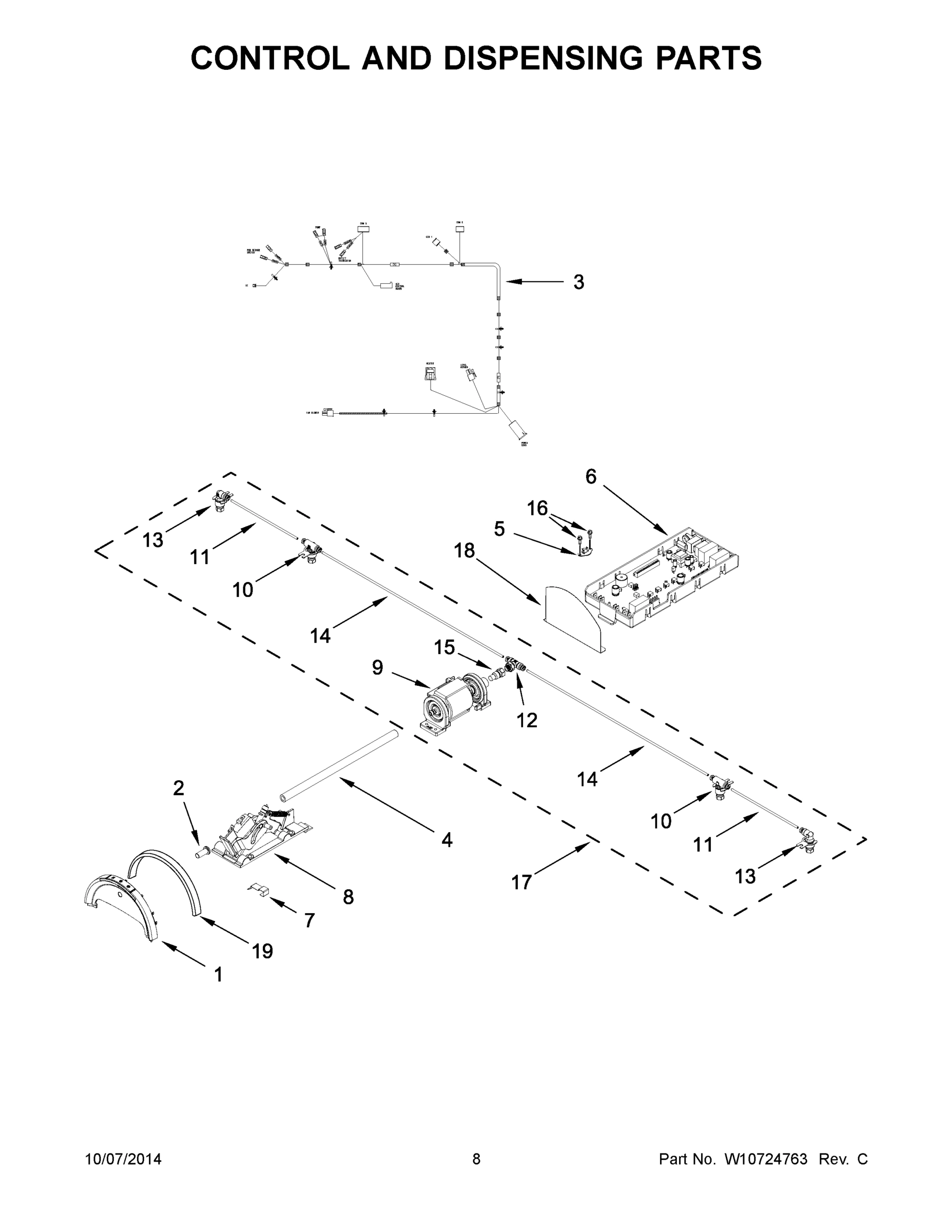

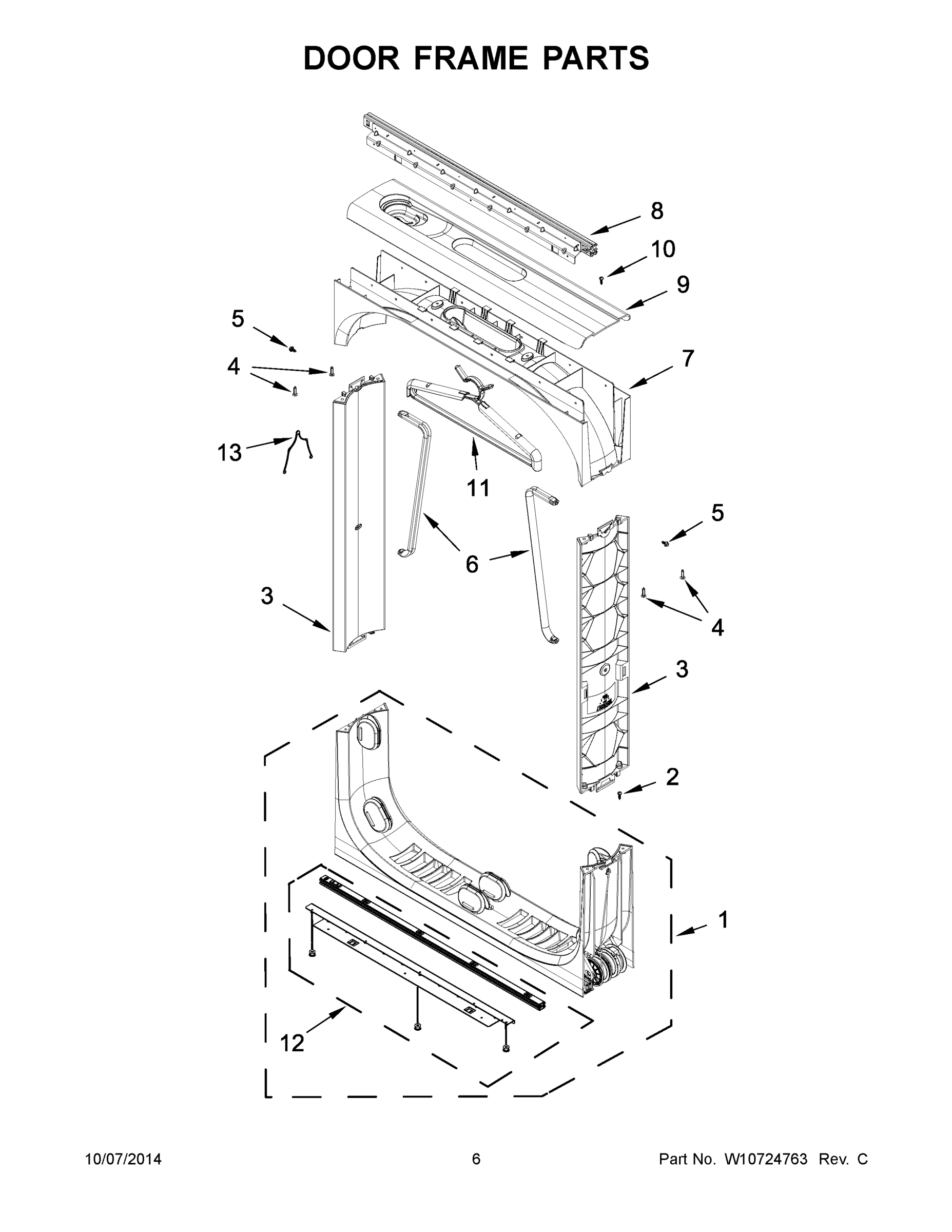

Common parts from model Whirlpool SFF1000CLN0 GARMENT CARE UNIT

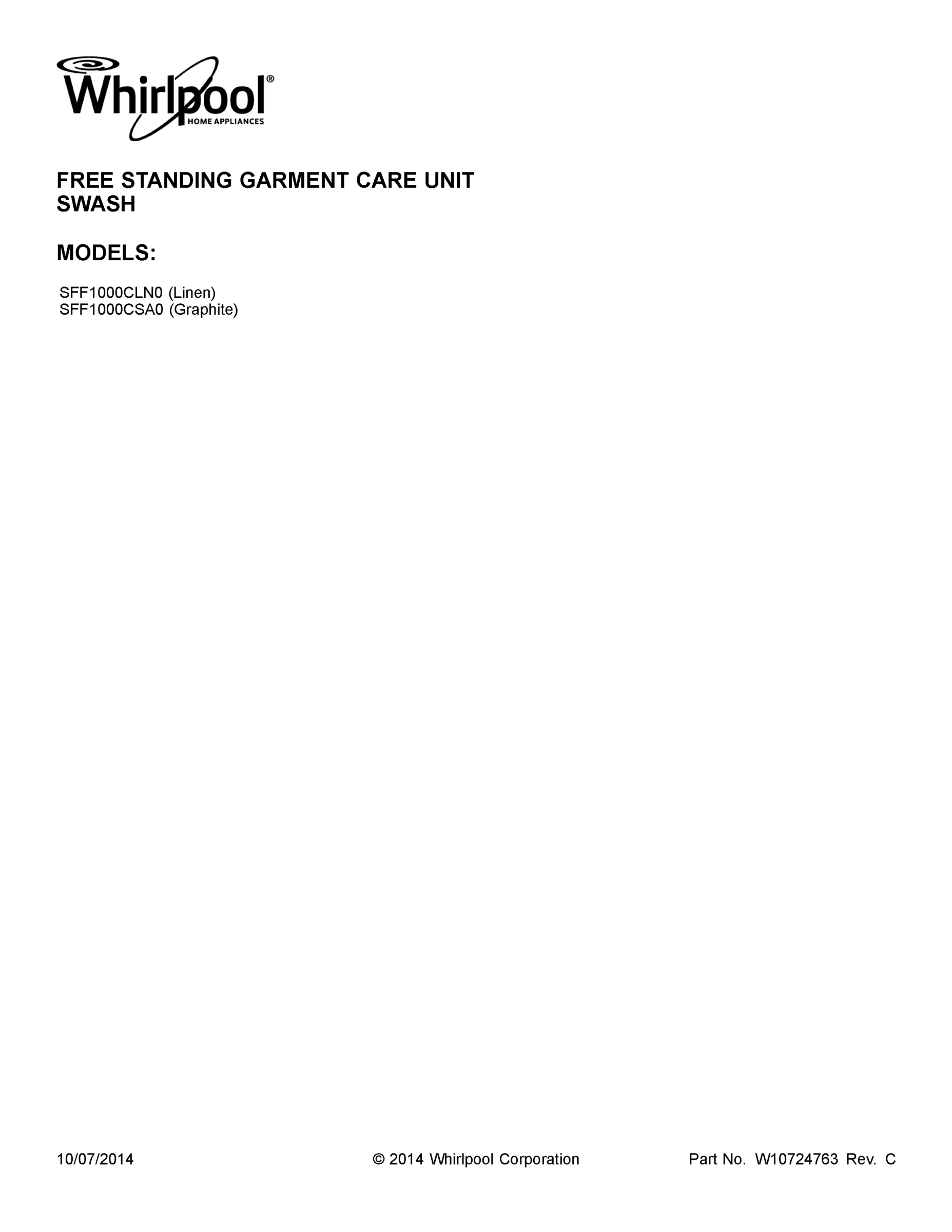

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

W10579398 Whirlpool Panel Backorder WPL W10579398 View Details $184.73

View on Model

1

WPW10718139-includeCORE Whirlpool WPW10718139 Backorder WPL WPW10718139-includeCORE View Details $211.32

View on Model

1

HOUSING, BOTTOM WPL W10526508 Contact Us For Availability

View on Model

1A

W10718140 Whirlpool Display Backorder WPL W10718140 View Details $127.72

View on Model

2

END CAP, FRONT (LINEN) WPL W10626367 Contact Us For Availability

View on Model

2

PLUNGER WPL W10626660 Contact Us For Availability

View on Model

2

HANDLE, DRAWER (LINEN) WPL W10649732 Contact Us For Availability

View on Model

2A

HANDLE, DRAWER (GRAPHITE) WPL W10657541 Contact Us For Availability

View on Model

3

ASSEMBLY, DRAWER (LINEN) WPL W10649746 Contact Us For Availability

View on Model

3A

W10692647 Whirlpool Drawer Backorder WPL W10692647 View Details $125.47

View on Model

4

SCREW WPL 8533842 Contact Us For Availability

View on Model

4

HOSE WPL W10526498 Contact Us For Availability

View on Model

4

RESERVOIR CAP WPL W10649745 Contact Us For Availability

View on Model

5

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 View Details $18.43

View on Model

5

SUPPORT, LEG WPL W10526577 Contact Us For Availability

View on Model

6

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 View Details $2.51

View on Model

6

WPW10556685-includeCORE Whirlpool WPW10556685 Backorder WPL WPW10556685-includeCORE View Details $193.52

View on Model

7

SHIELD, FRONT WPL W10711392 Contact Us For Availability

View on Model

7

LOWER ENCLOSURE, FRONT WPL W10570166 Contact Us For Availability

View on Model

8

W10556684 Whirlpool Knob Backorder WPL W10556684 View Details $70.77

View on Model

8

W10570153 Whirlpool Dispenser Backorder WPL W10570153 View Details $116.36

View on Model

8

W11230114 Whirlpool Screw Assembly Backorder WPL W11230114 View Details $9.59

View on Model

9

W10582604 Whirlpool Compactor Screw Backorder WPL W10582604 View Details $7.27

View on Model

9

W10652713 Whirlpool Air Duct Backorder WPL W10652713 View Details $64.58

View on Model

9

PUMP WPL W10526557 Contact Us For Availability

View on Model

10

W10673485 Whirlpool Power Cord Backorder WPL W10673485 View Details $41.61

View on Model

10

W11178521 Whirlpool Dishwasher Nameplate In Stock WPL W11178521 View Details $45.75

View on Model

10

SCREW WPL W10189731 Contact Us For Availability

View on Model

11

HANGER WPL W10526540 Contact Us For Availability

View on Model

11

HEATER WPL W10526521 Contact Us For Availability

View on Model

12

W10526515 Whirlpool Heater Backorder WPL W10526515 View Details $178.24

View on Model

12

RAIL ASSEMBLY, LOWER WPL W10705599 Contact Us For Availability

View on Model

13

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 View Details $3.70

View on Model

13

HOUSING, DRAWER WPL W10694236 Contact Us For Availability

View on Model

13

POCKET TENSIONER WPL W10617269 Contact Us For Availability

View on Model

14

W10526572 Whirlpool Hose Backorder WPL W10526572 View Details $7.92

View on Model

14

W10649747 Whirlpool Reservoir Backorder WPL W10649747 View Details $97.47

View on Model

17

W10621655 Whirlpool Hose Assembly Backorder WPL W10621655 View Details $190.84

View on Model

19

GASKET WPL W10719362 Contact Us For Availability

View on Model

×
