Model Whirlpool SF5140SRW4 GAS RANGE – Common Parts & Diagrams
02 - EXTERNAL OVEN
04 - INTERNAL OVEN

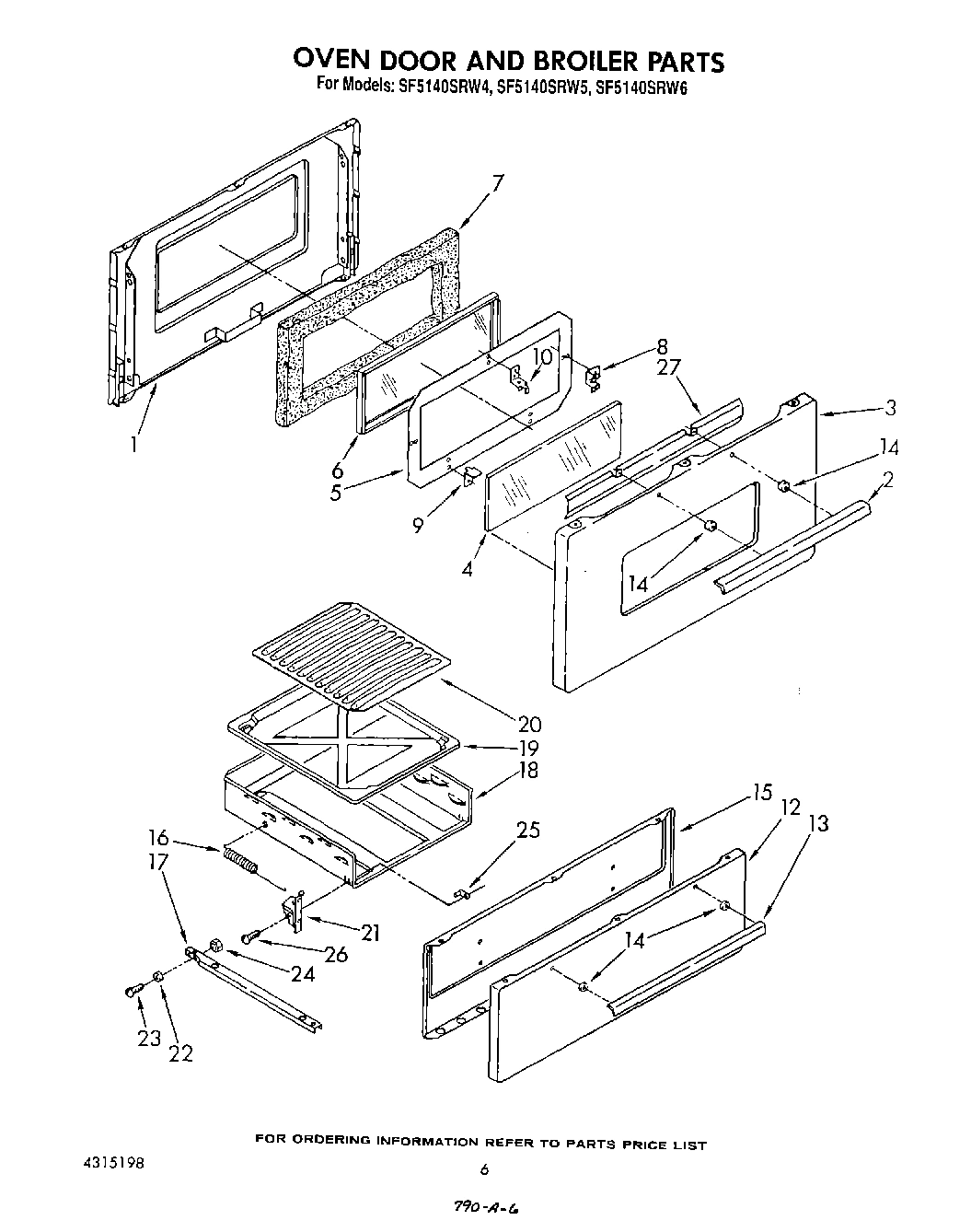

06 - OVEN DOOR AND BROILER

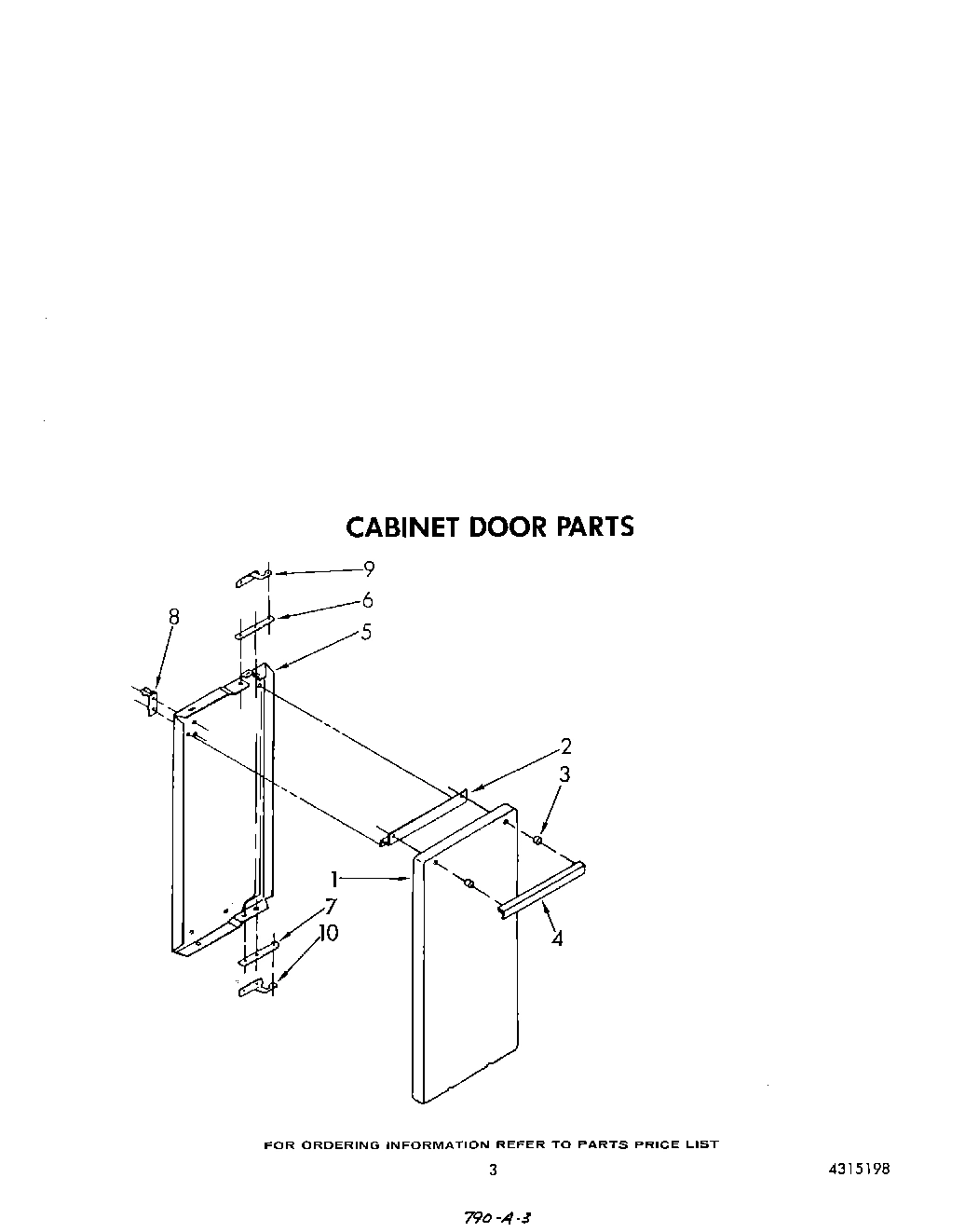

03 - CABINET DOOR

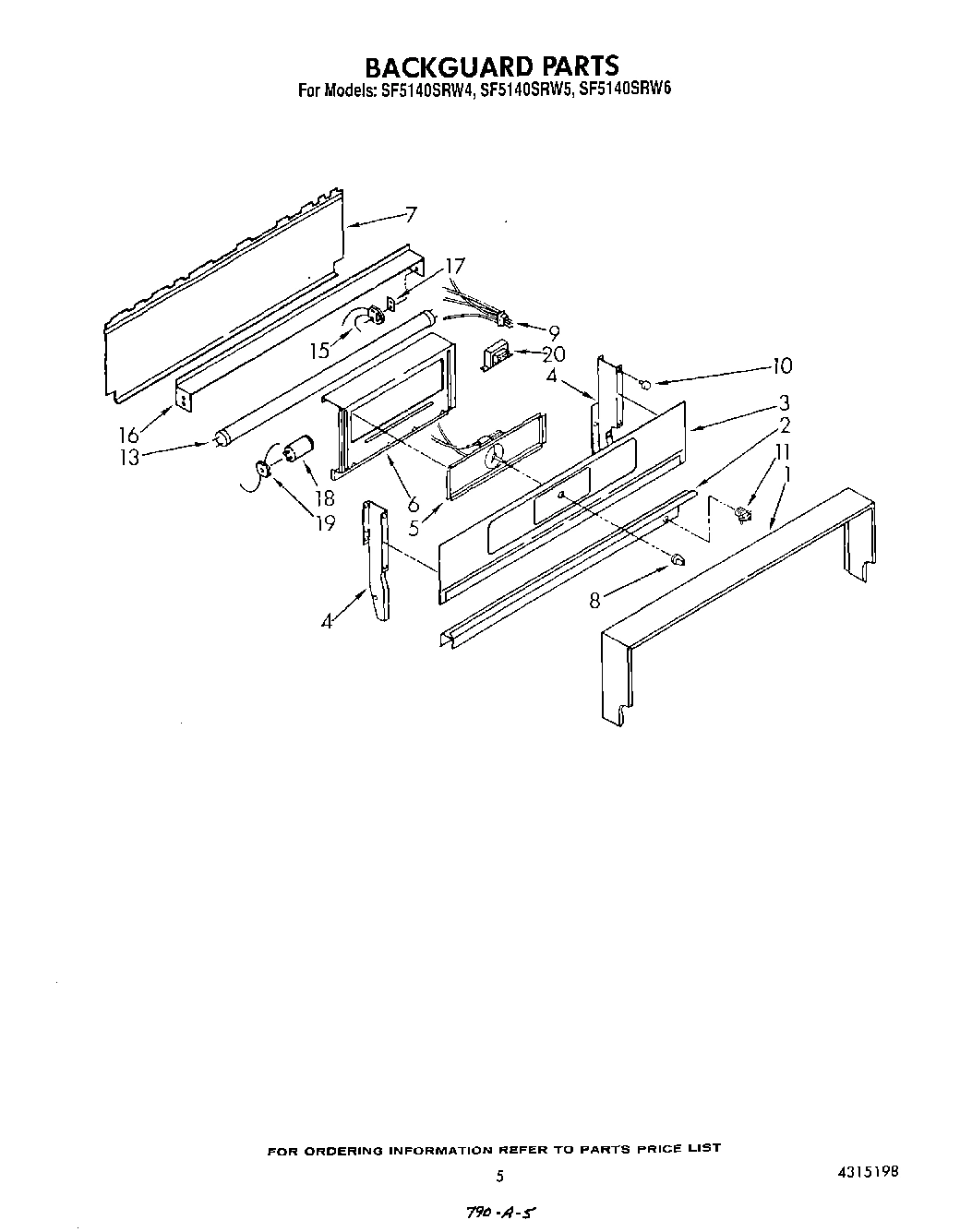

05 - BACKGUARD

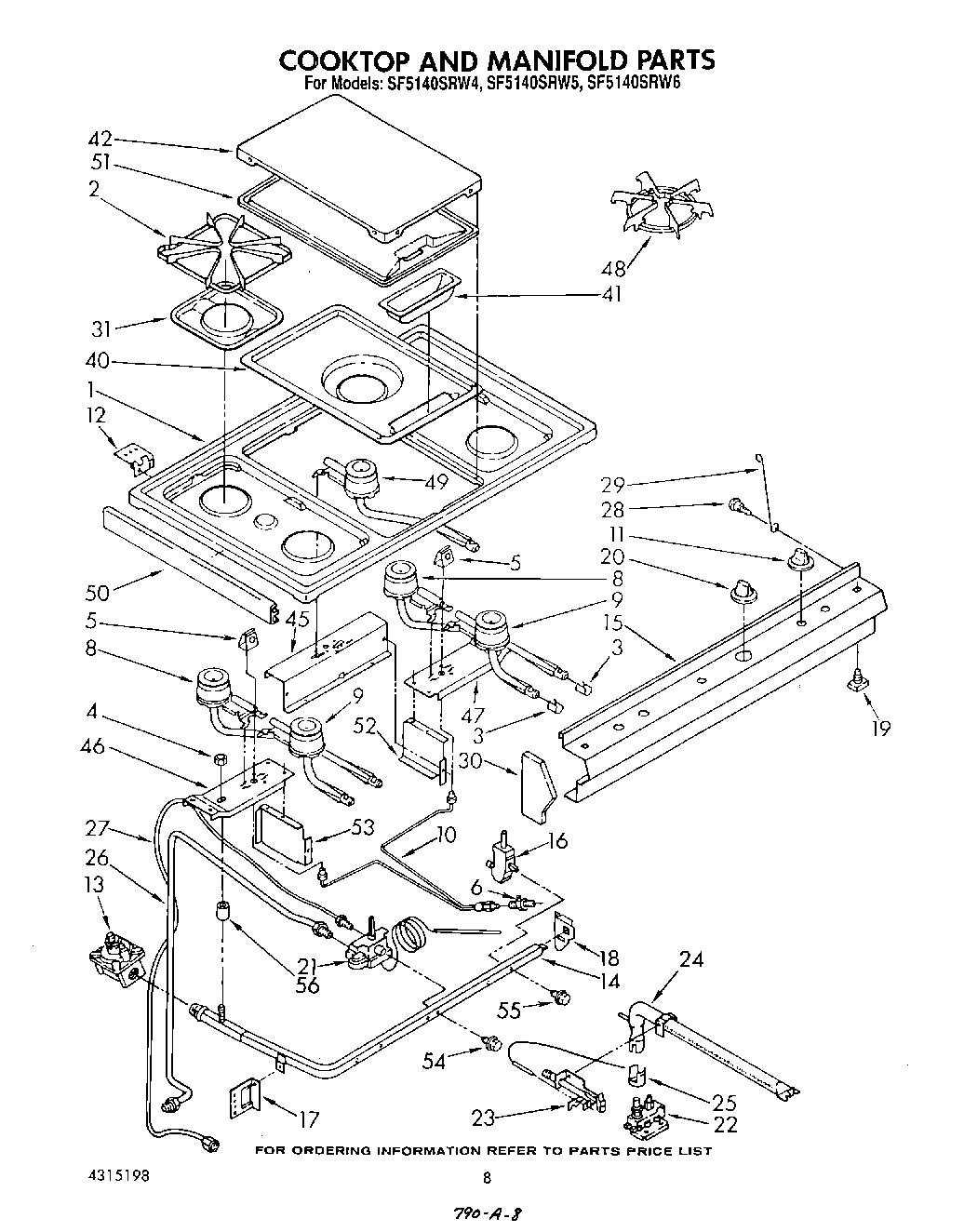

07 - COOKTOP AND MANIFOLD , LIT/OPTIONAL
Common parts from model Whirlpool SF5140SRW4 GAS RANGE
WPL LIT4315198 WPL LIT4315198 Contact Us For Availability
WPL LIT786302 WPL LIT786302 Contact Us For Availability
WPL LIT786738 WPL LIT786738 Contact Us For Availability
WPL LIT786775 WPL LIT786775 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315041 Contact Us For Availability
1
Liner, Door WPL 4315066 Contact Us For Availability
1
Panel, Door (White) WPL 4314845 Contact Us For Availability
1
Panel, Door (Almond) WPL 4314846 Contact Us For Availability
1
Frame WPL 4157798 Contact Us For Availability
1
Cooktop (White) WPL 4157898 Contact Us For Availability
1
Cooktop (Almond) WPL 4157899 Contact Us For Availability
2
Frame, Front WPL 4315205 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Liner, Oven Top WPL 4315050 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Bracket, Handle WPL 4157772 Contact Us For Availability
2
Bottom, Backguard WPL 4157757 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Baffle, Bottom WPL 4157754 Contact Us For Availability
3
Panel, Door (White) WPL 4157759 Contact Us For Availability
3
Panel, Door (Almond) WPL 4157760 Contact Us For Availability
3
Spacer (2) WPL 4157041 Contact Us For Availability
3
Glass WPL 4157905 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Base, Front WPL 4157805 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Track, Broiler (2) WPL 4157007 Contact Us For Availability
4
Glass WPL 4157148 Contact Us For Availability
4
Handle WPL 4157794 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Roller (2) WPL 4157008 Contact Us For Availability
5
Ring, Hold Down WPL 4157031 Contact Us For Availability
5
Liner, Door WPL 4314847 Contact Us For Availability
5
Clock WPL 4157214 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Pin, Roller (2) WPL 4157009 Contact Us For Availability
6
Window WPL 4157791 Contact Us For Availability
6
Arm, Top WPL 4157777 Contact Us For Availability
6
Bracket, Clock WPL 4157178 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
7
Liner, Oven Back WPL 4315057 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Arm, Bottom WPL 4157776 Contact Us For Availability
7
Panel, Rear WPL 4157861 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Clip, Side WPL 4157146 Contact Us For Availability
8
Catch WPL 4157770 Contact Us For Availability
8
Knob, Clock WPL 786434 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Panel, Rear WPL 4157753 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Clip, Bottom WPL 4157144 Contact Us For Availability
9
Hinge, Top WPL 4157774 Contact Us For Availability
9
Block, Disconnect WPL 4157112 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Burner Box WPL 4157756 Contact Us For Availability
10
Retainer, Roller (2) WPL 4157026 Contact Us For Availability
10
Clip, Top WPL 4157145 Contact Us For Availability
10
Hinge, Bottom WPL 4157773 Contact Us For Availability
10
Bumper (4) WPL 4157128 Contact Us For Availability
10
Tubing, Pilot WPL 4157912 Contact Us For Availability
11
Bottom, Oven WPL 4315075 Contact Us For Availability
11
Strain Relief WPL 4157133 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Rack, Oven (2) WPL 4157810 Contact Us For Availability
12
Panel, Broiler (White) WPL 4314842 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4314843 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157948 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle, Broiler Door WPL 4157040 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer WPL 4157119 Contact Us For Availability
13
Lamp, Fluorescent WPL 4157802 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Seal, Door (Top) WPL 4157789 Contact Us For Availability
14
Manifold WPL 4314887 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4315091 Contact Us For Availability
15
Socket, Light (2) WPL 4157164 Contact Us For Availability
15
Panel, Manifold WPL 4314872 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Bracket, Support WPL 4157862 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 55) WPL 4179356 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Track, Upper (2) WPL 4157044 Contact Us For Availability
17
Spacer, Light (4) WPL 4157170 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
18
Block, Disconnect WPL 4157149 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Starter, Light WPL 4157199 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
19
Clip, Wire WPL 4157127 Contact Us For Availability
19
Base, Light WPL 4157200 Contact Us For Availability
19
Switch, Light WPL 4179106 Contact Us For Availability
20
Shield, Insulation WPL 4157876 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Ballast WPL 4157207 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat (Includes Ill. No. 54) WPL 4314818 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Roller (2) WPL 4157050 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Support, Shelf WPL 4157775 Contact Us For Availability
23
Pin, Roller (2) WPL 4157051 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
24
Shelf WPL 4157771 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Side, Compartment WPL 4157755 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Frame, Front (Compartment) WPL 4315089 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Safe Edge WPL 4157132 Contact Us For Availability
27
Shield, Heat WPL 4157877 Contact Us For Availability
27
Tubing 3/8`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
29
Rod, Support WPL 4157797 Contact Us For Availability
30
Endcap (L.H.) WPL 4157186 Contact Us For Availability
30
Endcap (R.H.) WPL 4157187 Contact Us For Availability
40
Insert, Griddle (White) WPL 4157780 Contact Us For Availability
40
Insert, Griddle (Almond) WPL 4157845 Contact Us For Availability
41
Cup, Grease WPL 4157781 Contact Us For Availability
42
Cover, Griddle (White) WPL 4157782 Contact Us For Availability
42
Cover, Griddle (Almond) WPL 4157783 Contact Us For Availability
45
Support, Center WPL 4157806 Contact Us For Availability
46
Support, Burner (L.H.) WPL 4157807 Contact Us For Availability
47
Support, Burner (R.H.) WPL 4157808 Contact Us For Availability
48
Grate (1) WPL 4157056 Contact Us For Availability
49
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
49
Burner, Griddle WPL 4157799 Contact Us For Availability
50
Trim, Cook WPL 4314888 Contact Us For Availability
51
WPL 4157790 WPL 4157790 Contact Us For Availability
52
WPL 4157787 WPL 4157787 Contact Us For Availability
53
WPL 4157788 WPL 4157788 Contact Us For Availability
54
WPL 4314816 WPL 4314816 Contact Us For Availability
55
WPL 4314817 WPL 4314817 Contact Us For Availability
56
WPL 241430 WPL 241430 Contact Us For Availability
56
WPL 4315207 WPL 4315207 Contact Us For Availability
× ![]()
