Model Whirlpool SF5140EYW0 GAS RANGE – Common Parts & Diagrams
02 - INTERNAL
06 - CABINET DOOR

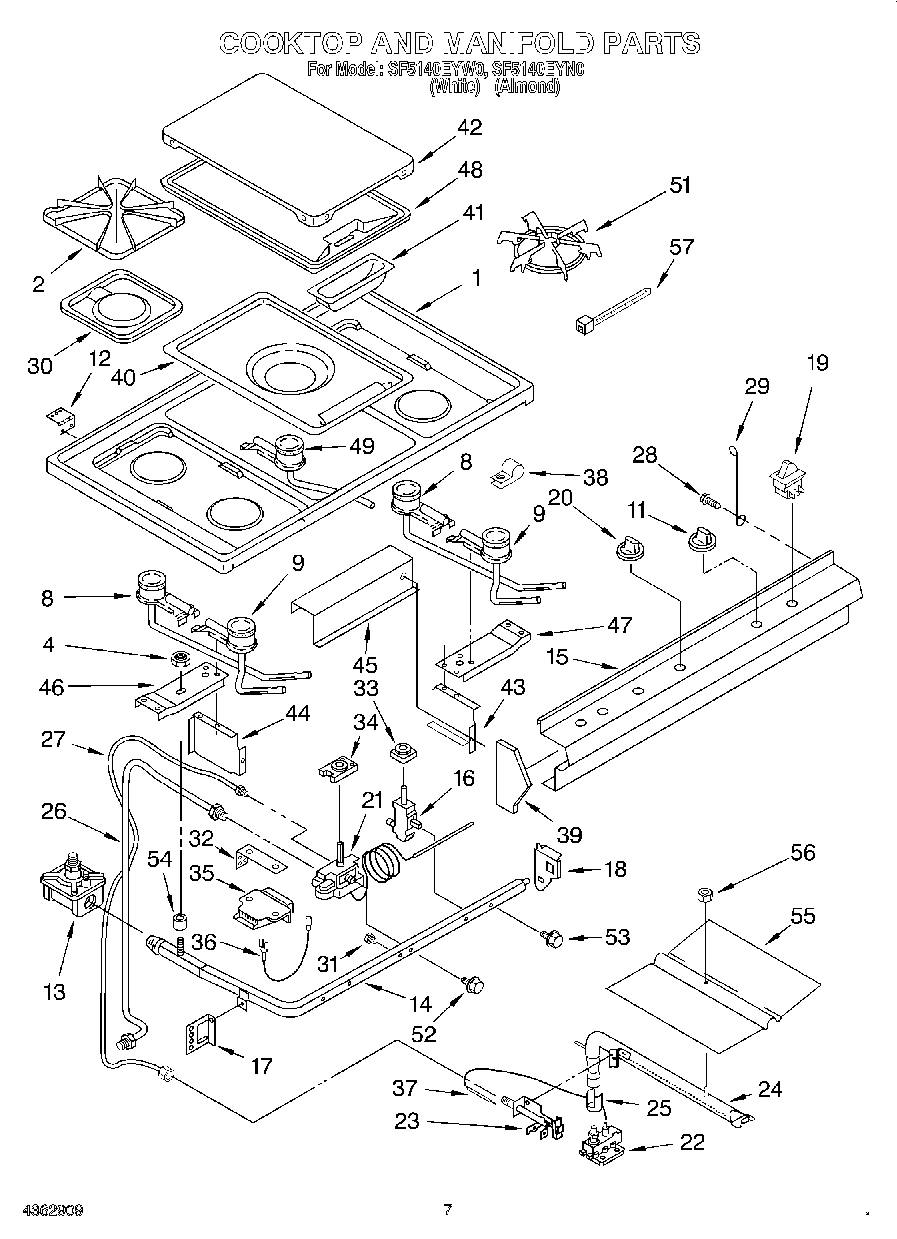

05 - COOKTOP AND MANIFOLD, LITERATURE

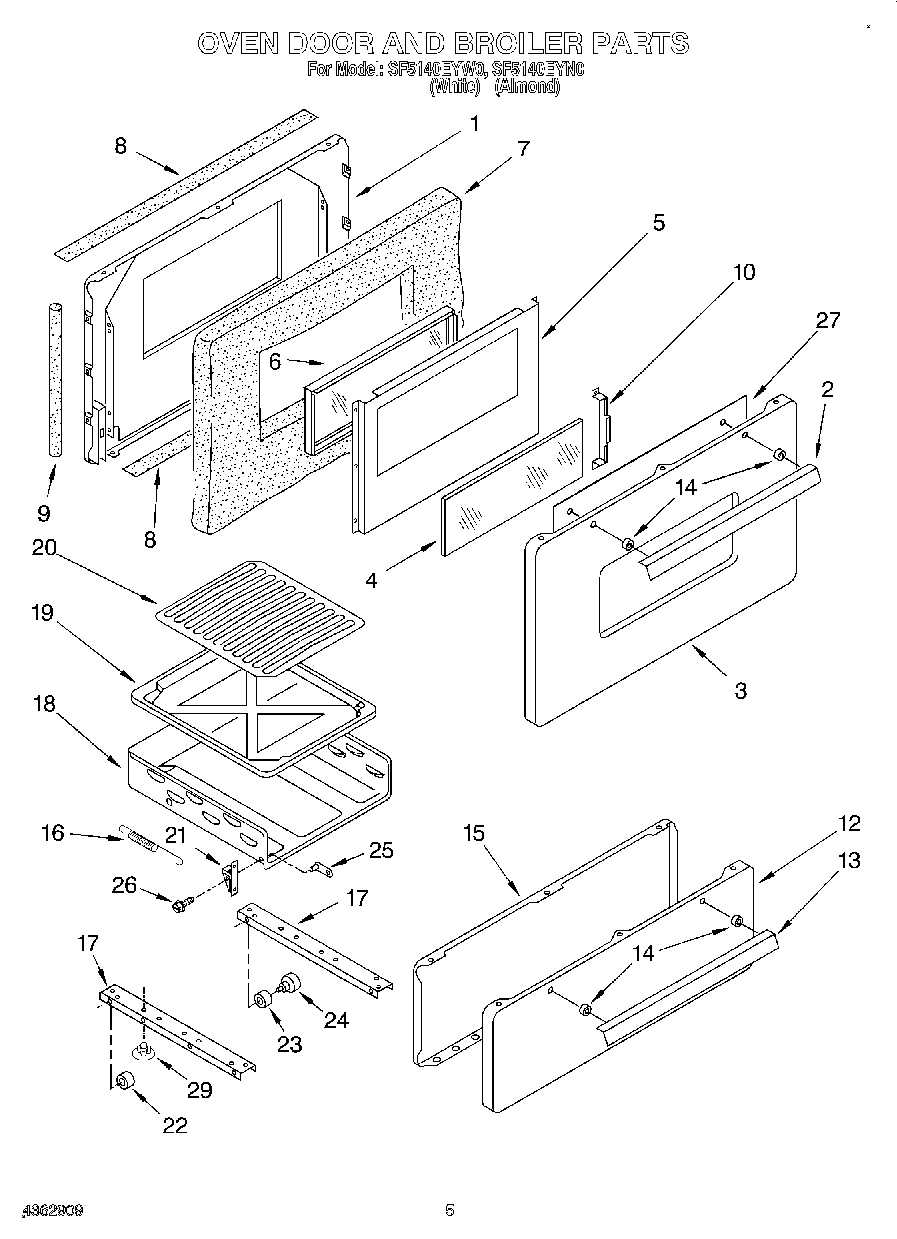

04 - OVEN DOOR AND BROILER

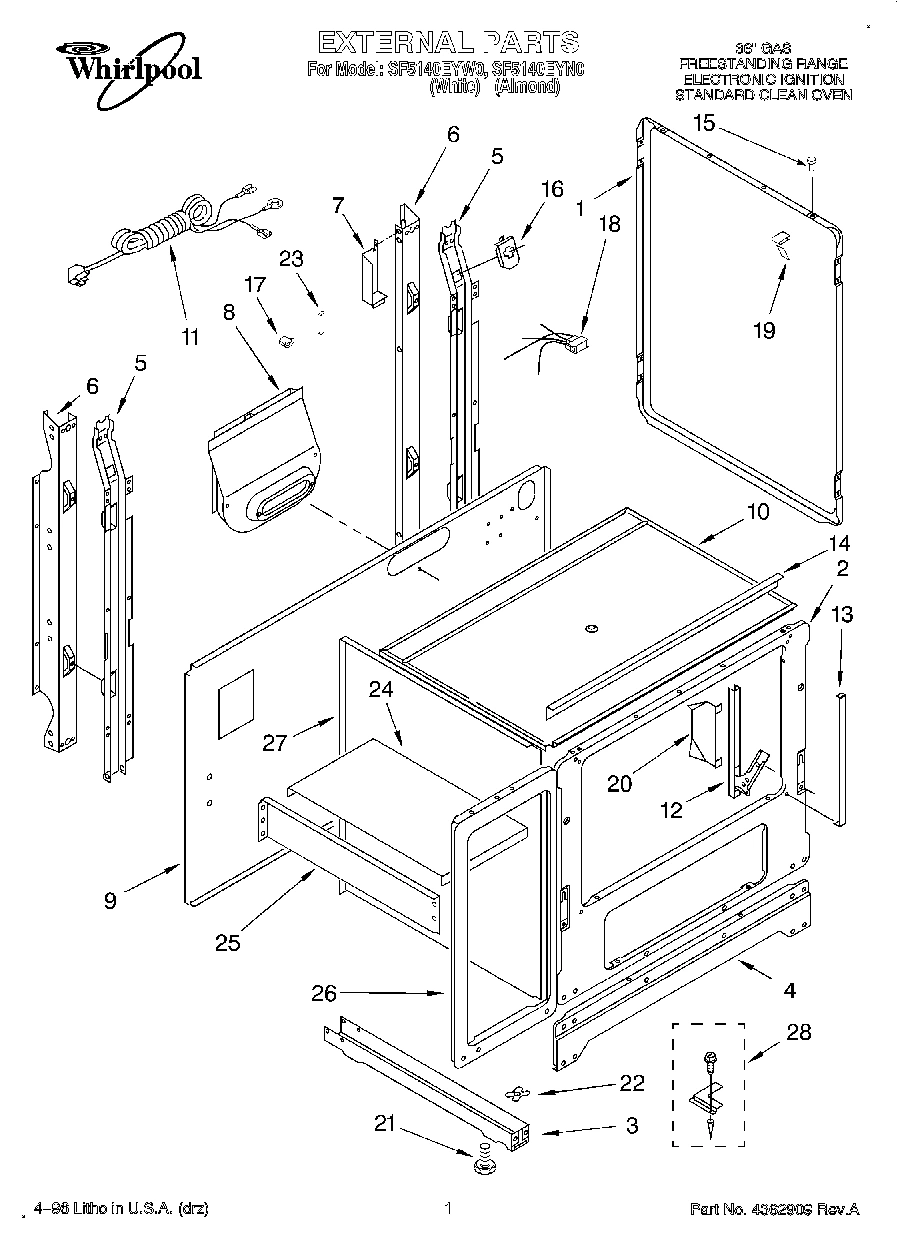

01 - EXTERNAL

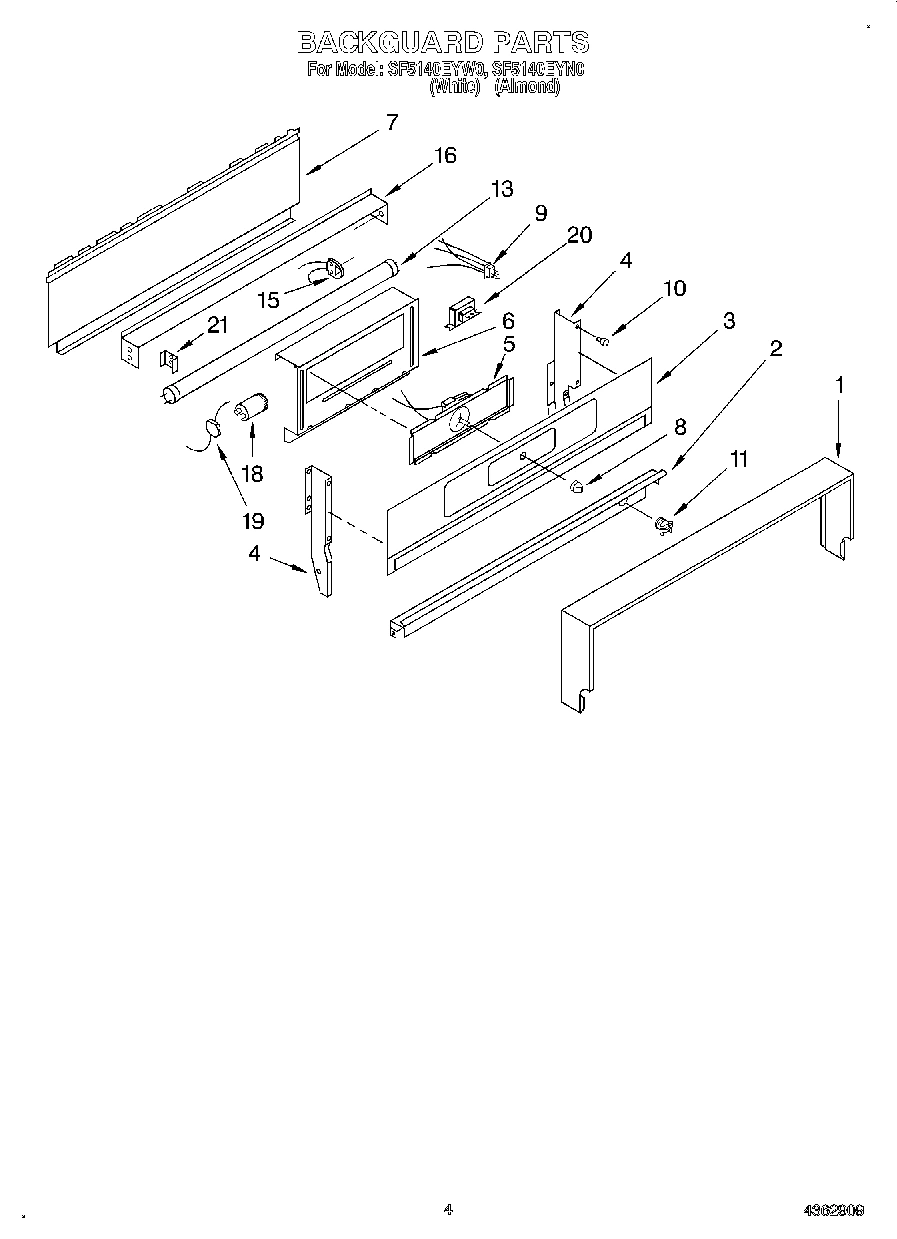

03 - BACKGUARD
Common parts from model Whirlpool SF5140EYW0 GAS RANGE
WPL LIT4362522 WPL LIT4362522 Contact Us For Availability
WPL LIT4362909 WPL LIT4362909 Contact Us For Availability
WPL LIT786738 WPL LIT786738 Contact Us For Availability
1
Panel, Door (White) WPL 4314845 Contact Us For Availability
1
Panel, Door (Almond) WPL 4314846 Contact Us For Availability
1
Cooktop (White) WPL 4157898 Contact Us For Availability
1
Cooktop (Almond) WPL 4157899 Contact Us For Availability
1
Liner, Door WPL 4321242 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Frame WPL 4362660 Contact Us For Availability
2
Bracket, Handle WPL 4157772 Contact Us For Availability
2
Grate (4) WPL 4314875 Contact Us For Availability
2
Screw, 8-18 X 3/8 (2) WPL 4157116 Contact Us For Availability
2
Frame, Front WPL 4315752 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Bottom, Backguard WPL 4157757 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Panel, Door (White) WPL 4362998 Contact Us For Availability
3
Panel, Door (Almond) WPL 4362999 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Glass WPL 4362658 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Handle WPL 4157794 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Window, Outer WPL 4363000 Contact Us For Availability
4
Base, Front WPL 4157805 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2) WPL 4157123 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
5
Liner, Door WPL 4314847 Contact Us For Availability
5
Baffle, Door WPL 4363005 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Clock WPL 4320728 Contact Us For Availability
6
Arm, Top WPL 4157777 Contact Us For Availability
6
Window WPL 4157791 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Bracket, Clock WPL 4157178 Contact Us For Availability
7
Liner, Oven Back WPL 4315057 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
7
Arm, Bottom WPL 4157776 Contact Us For Availability
7
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Panel, Rear WPL 4315349 Contact Us For Availability
8
Catch WPL 4157770 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
8
Knob, Clock WPL 786434 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Hinge, Bottom WPL 4157773 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
9
Panel, Rear WPL 4315432 Contact Us For Availability
9
Block, Disconnect WPL 4157149 Contact Us For Availability
10
Hinge, Top WPL 4157774 Contact Us For Availability
10
Bracket, Window WPL 4363004 Contact Us For Availability
10
Burner Box WPL 4157756 Contact Us For Availability
10
Bumper (4) WPL 4157128 Contact Us For Availability
11
Bottom, Oven WPL 4363001 Contact Us For Availability
11
Strain Relief WPL 4157133 Contact Us For Availability
12
Rack, Oven (2) WPL 4362871 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Panel, Broiler (White) WPL 4315266 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4315267 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Handle, Broiler Door WPL 4157040 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Lamp, Fluorescent WPL 4157802 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4314887 Contact Us For Availability
14
Seal, Door (Top) WPL 4315332 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Panel, Manifold WPL 4362659 Contact Us For Availability
15
Liner, Broiler Door WPL 4315091 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Socket, Light (2) WPL 4157164 Contact Us For Availability
16
Shield, Radiation WPL 4363006 Contact Us For Availability
16
Valve, 90~ (5) (Includes Ill. No. 53) WPL 4314814 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
16
Bracket, Support WPL 4157862 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
17
Assembly, Track (Left Hand) WPL 4364032 Contact Us For Availability
17
Assembly, Track (Right Hand) WPL 4364033 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Spacer, Light (4) WPL 4157170 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Starter, Light WPL 4157199 Contact Us For Availability
19
Switch, Oven Light WPL 4315435 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
19
Base, Light WPL 4157200 Contact Us For Availability
20
Knob, Thermostat WPL 4320644 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Shield, Insulation WPL 4157876 Contact Us For Availability
20
Ballast WPL 4157207 Contact Us For Availability
21
Thermostat (Includes Ill. No. 52) WPL 4179354 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Bracket, Spacer (2) WPL 4157873 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Screw, 10-24 X 1/4 WPL 4157126 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
24
Shelf WPL 4157771 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Support, Shelf WPL 4157775 Contact Us For Availability
26
Tubing 3/8`` (Thermostat Safety Valve) WPL 4157758 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Frame, Front (Compartment) WPL 4315089 Contact Us For Availability
27
Tubing 3/16`` (Thermostat Pilot) WPL 4157099 Contact Us For Availability
27
Shield, Heat WPL 4157877 Contact Us For Availability
27
Panel (Compartment) WPL 4157755 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
28
Anti-Tip Kit WPL 4321080 Contact Us For Availability
29
Rod, Support WPL 4157797 Contact Us For Availability
29
Hole Plug (2) WPL 4315386 Contact Us For Availability
32
Plate, Module WPL 4157171 Contact Us For Availability
35
Module, Spark WPL 4315323 Contact Us For Availability
36
Ignitor (Center) WPL 4179200 Contact Us For Availability
36
Ignitor (R.H.) WPL 4179201 Contact Us For Availability
36
Ignitor (L.H.) WPL 4179203 Contact Us For Availability
37
Ignitor, Oven WPL 4315316 Contact Us For Availability
38
Strain Relief WPL 4157185 Contact Us For Availability
39
Endcap (L.H.) WPL 4157186 Contact Us For Availability
39
Endcap (R.H.) WPL 4157187 Contact Us For Availability
40
Insert, Griddle (White) WPL 4157780 Contact Us For Availability
40
Insert, Griddle (Almond) WPL 4157845 Contact Us For Availability
41
Cup, Grease WPL 4157781 Contact Us For Availability
42
Cover, Griddle (White) WPL 4157782 Contact Us For Availability
42
Cover, Griddle (Almond) WPL 4157783 Contact Us For Availability
43
Support, Center (R.H.) WPL 4157787 Contact Us For Availability
44
WPL 4157788 WPL 4157788 Contact Us For Availability
45
WPL 4157806 WPL 4157806 Contact Us For Availability
46
WPL 4157807 WPL 4157807 Contact Us For Availability
47
WPL 4157808 WPL 4157808 Contact Us For Availability
48
WPL 4157790 WPL 4157790 Contact Us For Availability
49
WPL 4157799 WPL 4157799 Contact Us For Availability
51
WPL 4157056 WPL 4157056 Contact Us For Availability
52
WPL 4314816 WPL 4314816 Contact Us For Availability
53
WPL 4314817 WPL 4314817 Contact Us For Availability
54
WPL 4315207 WPL 4315207 Contact Us For Availability
55
WPL 4320440 WPL 4320440 Contact Us For Availability
57
WPL 241430 WPL 241430 Contact Us For Availability
57
WPL 4315726 WPL 4315726 Contact Us For Availability
× ![]()
