Model Whirlpool SF5140EYN5 GAS RANGE – Common Parts & Diagrams
01 - EXTERNAL
04 - OVEN DOOR AND BROILER

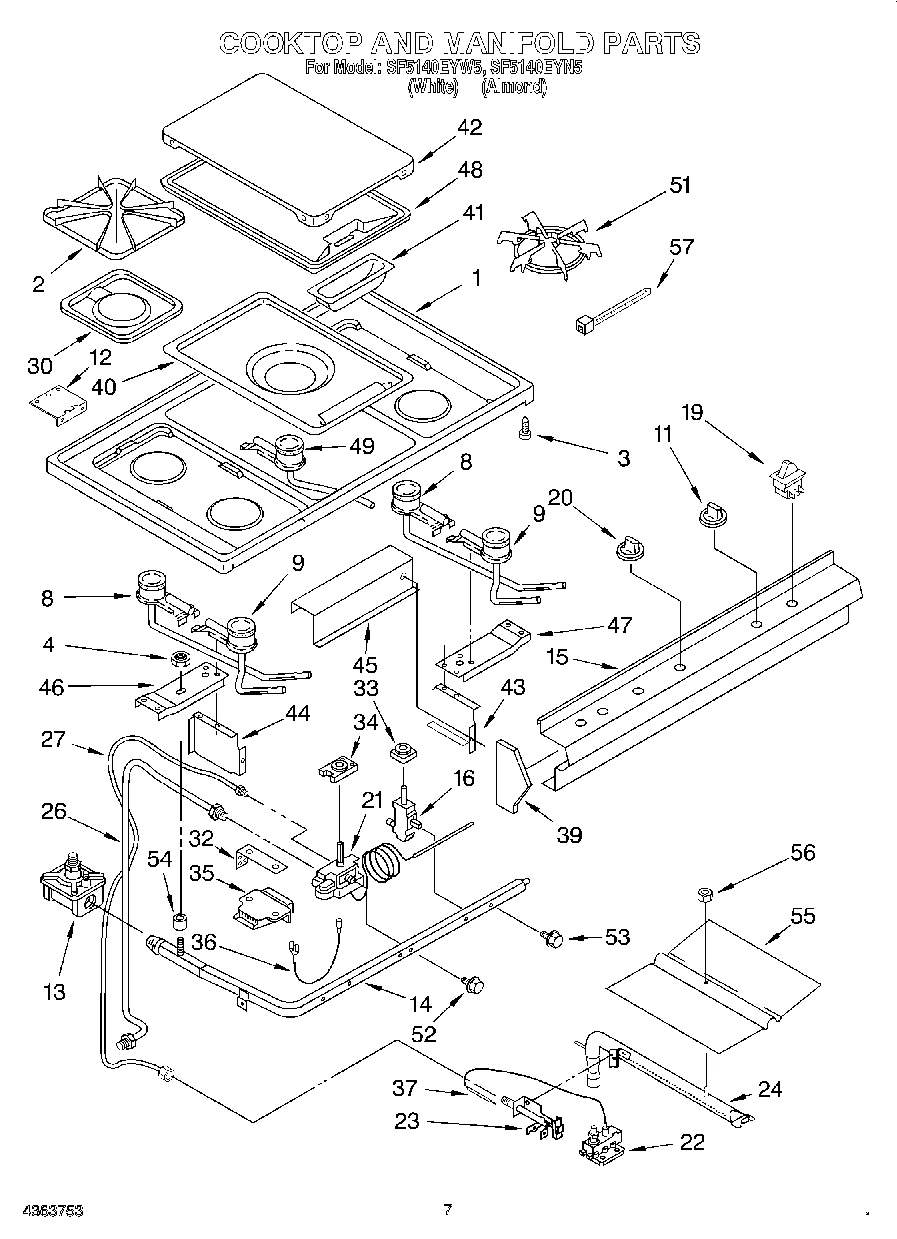

05 - COOKTOP AND MANIFOLD

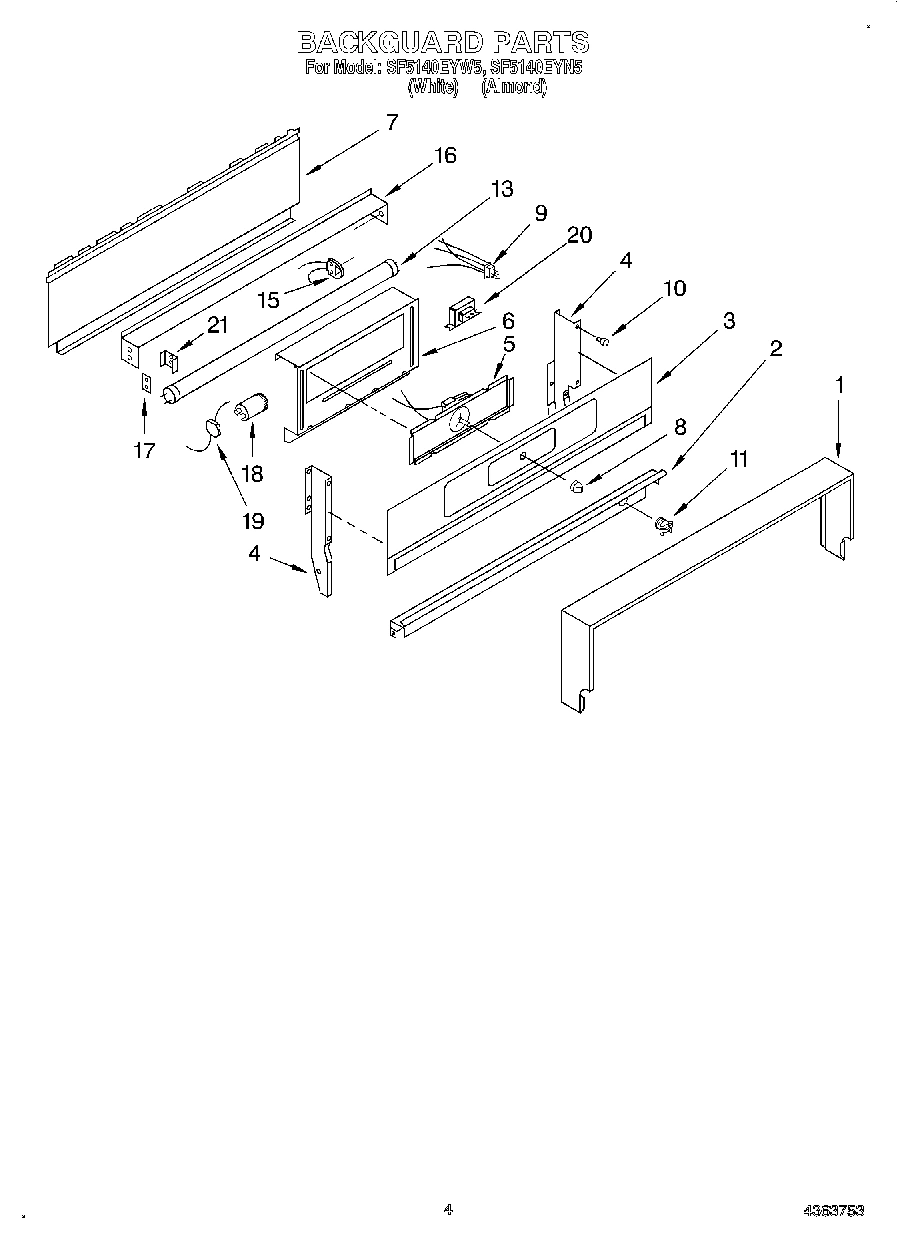

03 - BACKGUARD

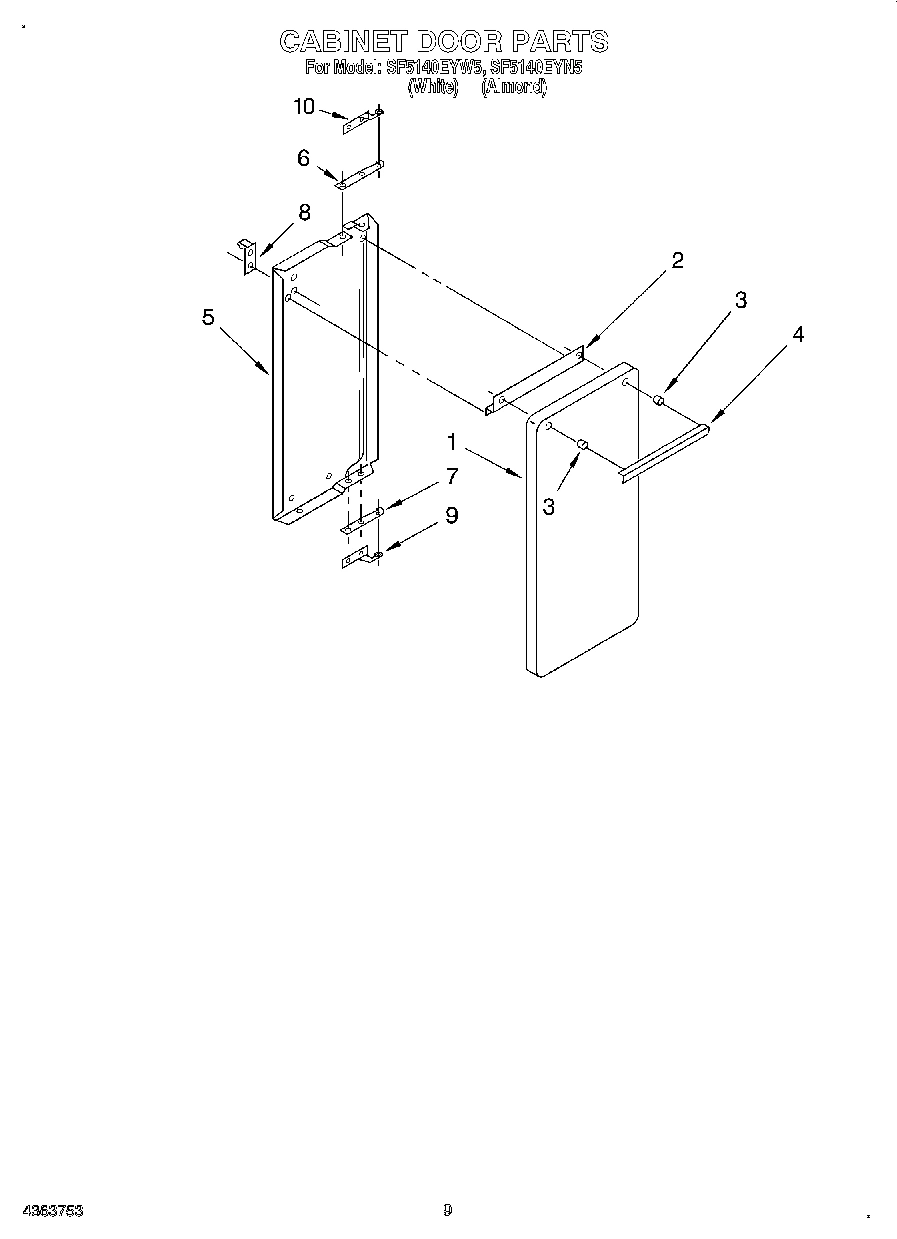

06 - CABINET DOOR

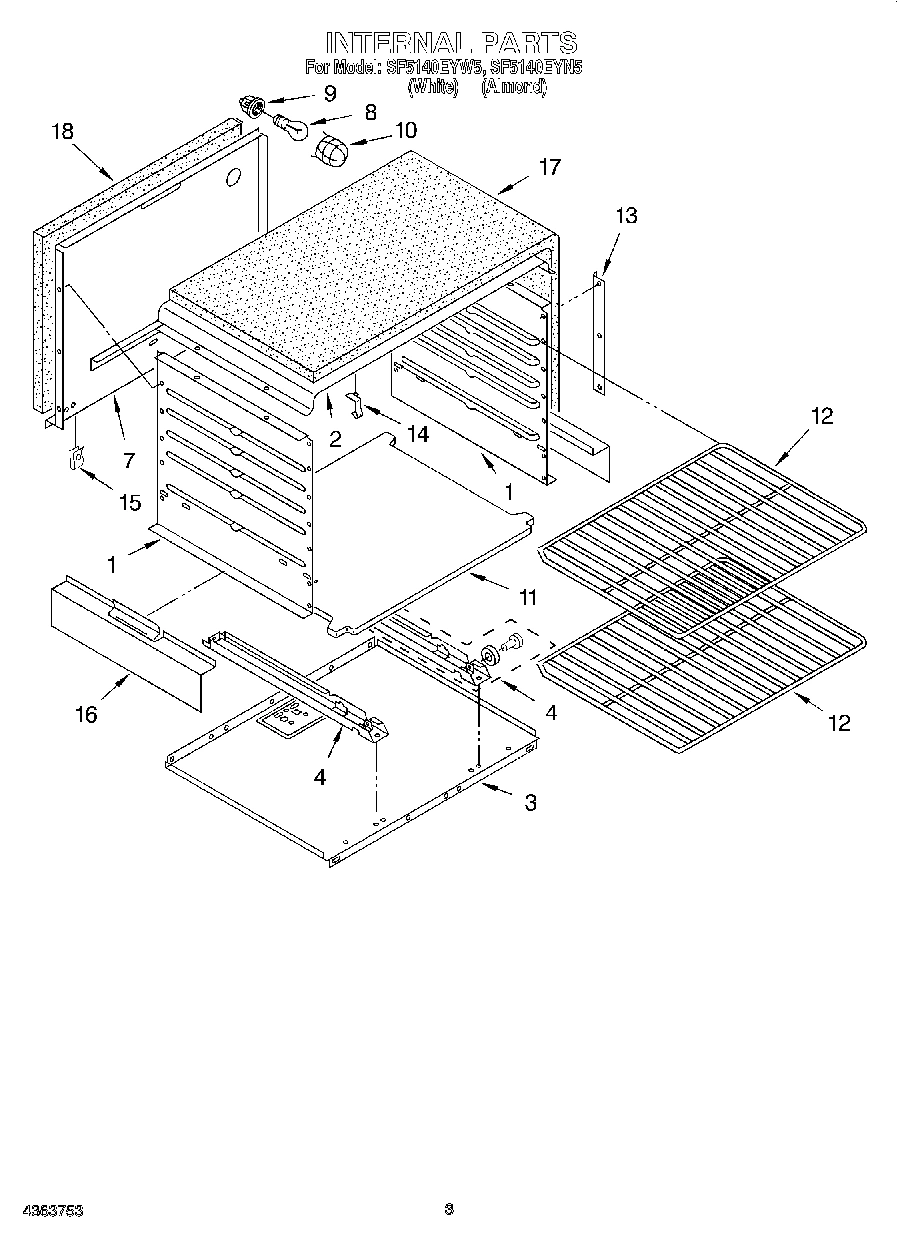

02 - INTERNAL
Common parts from model Whirlpool SF5140EYN5 GAS RANGE
WPL LIT4362951 WPL LIT4362951 Contact Us For Availability
WPL LIT786738 WPL LIT786738 Contact Us For Availability
1
Liner, Door WPL 4321242 Contact Us For Availability
1
Cooktop (White) WPL 4179172 Contact Us For Availability
1
Cooktop (Almond) WPL 4179173 Contact Us For Availability
1
Screw, 10-12 X 3/8 (6) WPL 4157121 Contact Us For Availability
1
Frame WPL 4362660 Contact Us For Availability
1
Panel, Door (White) WPL 4363075 Contact Us For Availability
1
Panel, Door (Almond) WPL 4363076 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
2
Screw, 10-12 x 1/2 (4) WPL 4320575 Contact Us For Availability
2
Grate (4) WPL 4363435 Contact Us For Availability
2
Bottom, Backguard WPL 4363229 Contact Us For Availability
2
Bracket, Handle WPL 4157772 Contact Us For Availability
2
Liner, Oven Top WPL 4315050 Contact Us For Availability
3
Panel, Door (White) WPL 4362998 Contact Us For Availability
3
Panel, Door (Almond) WPL 4362999 Contact Us For Availability
3
Spacer, Handle (2) WPL 4157041 Contact Us For Availability
3
Stud, Locator (2) WPL 4315408 Contact Us For Availability
3
Screw, 6-12 x 1 (2) WPL 4315409 Contact Us For Availability
3
Glass WPL 4362658 Contact Us For Availability
3
Baffle, Bottom WPL 4315433 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Base, Front WPL 4157805 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2) WPL 4157123 Contact Us For Availability
4
Window, Outer WPL 4363000 Contact Us For Availability
4
Screw, Handle 10-12 X 5/8 (2) WPL 4320579 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
4
Handle WPL 4157794 Contact Us For Availability
4
Track, Broiler (Left Track Assy.) WPL 4364032 Contact Us For Availability
4
Track, Broiler (Right Track Assy.) WPL 4364033 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Baffle, Door WPL 4363005 Contact Us For Availability
5
Clock WPL 4320728 Contact Us For Availability
5
Liner, Door WPL 4363196 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Window WPL 4157791 Contact Us For Availability
6
Bracket, Clock WPL 4157178 Contact Us For Availability
6
Arm, Top WPL 4157777 Contact Us For Availability
7
Panel, Rear WPL 4315349 Contact Us For Availability
7
Arm, Bottom WPL 4157776 Contact Us For Availability
7
Liner, Oven Back WPL 4363003 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
8
Seal, Top (2) WPL 4315332 Contact Us For Availability
8
Burner, Rear (2) WPL 4363108 Contact Us For Availability
8
Knob, Clock WPL 786434 Contact Us For Availability
8
Catch WPL 4157770 Contact Us For Availability
9
Panel, Rear WPL 4315432 Contact Us For Availability
9
Seal, Side (2) WPL 4315334 Contact Us For Availability
9
Block, Disconnect WPL 4157149 Contact Us For Availability
9
Burner, Front (2) WPL 4363107 Contact Us For Availability
9
Hinge, Bottom WPL 4157773 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
10
Burner Box WPL 4363071 Contact Us For Availability
10
Bracket, Window (2) WPL 4363004 Contact Us For Availability
10
Bumper (4) WPL 4157128 Contact Us For Availability
10
Hinge, Top WPL 4157774 Contact Us For Availability
10
Wire Cover, Oven Light WPL 4157013 Contact Us For Availability
11
Support, Window WPL 4363154 Contact Us For Availability
11
Strain Relief WPL 4157133 Contact Us For Availability
11
Bottom, Oven WPL 4363241 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Panel, Broiler (Screw, 10-12 X 1/2 (7)) WPL 4320742 Contact Us For Availability
12
Panel, Broiler (White) WPL 4363077 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4363078 Contact Us For Availability
12
Hinge, Cooktop WPL 4363527 Contact Us For Availability
12
Rack, Oven (2) WPL 4362871 Contact Us For Availability
13
Handle, Broiler Door WPL 4157040 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Lamp, Fluorescent WPL 4157802 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
14
Pipe, Manifold WPL 4314887 Contact Us For Availability
15
Bumper, Cooktop (4) WPL 4157027 Contact Us For Availability
15
Liner, Broiler Door WPL 4363070 Contact Us For Availability
15
Panel, Manifold WPL 4362659 Contact Us For Availability
15
Socket, Light (2) WPL 4157164 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
16
Spring (2) WPL 4363233 Contact Us For Availability
16
Screw, 10-12 x 5/16 (2) WPL 4320431 Contact Us For Availability
16
Valve, 90~ (5) (Includes Ill. No. 53) WPL 4314814 Contact Us For Availability
16
Bracket, Support WPL 4157862 Contact Us For Availability
16
Shield, Radiation WPL 4363006 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Rod, Push-Pull (2) WPL 4363047 Contact Us For Availability
17
Spacer, Light (4) WPL 4157170 Contact Us For Availability
18
Drawer, Broiler WPL 4363145 Contact Us For Availability
18
Starter, Light WPL 4157199 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
19
Switch, Oven Light WPL 4315435 Contact Us For Availability
19
Base, Light WPL 4157200 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Knob, Thermostat WPL 4320644 Contact Us For Availability
20
Ballast WPL 4157207 Contact Us For Availability
21
Leg, Leveler (4) WPL 4363195 Contact Us For Availability
21
Hinge, (2) Door WPL 4363046 Contact Us For Availability
21
Thermostat (Includes Ill. No. 52) WPL 4179354 Contact Us For Availability
21
Bracket, Spacer (2) WPL 4157873 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Carriage Broiler WPL 4362896 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Safe Edge (2) WPL 4157132 Contact Us For Availability
23
Screw, 10-24 X 1/4 WPL 4157126 Contact Us For Availability
23
Pilot WPL 4363115 Contact Us For Availability
24
Shelf WPL 4157771 Contact Us For Availability
24
Bracket, Door (2) WPL 4363048 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
25
Support, Shelf WPL 4157775 Contact Us For Availability
25
Clip, Broiler WPL 4157959 Contact Us For Availability
26
Frame, Front (Compartment) WPL 4315089 Contact Us For Availability
26
Tubing 3/8`` (Thermostat Safety Valve) WPL 4157758 Contact Us For Availability
27
Panel (Compartment) WPL 4157755 Contact Us For Availability
27
Shield, Heat WPL 4363230 Contact Us For Availability
27
Tubing 3/16`` (Thermostat Pilot) WPL 4157099 Contact Us For Availability
28
Anti-Tip Kit WPL 4363057 Contact Us For Availability
32
Plate, Module WPL 4157171 Contact Us For Availability
35
Module, Spark WPL 4363454 Contact Us For Availability
36
Ignitor (Center) WPL 4179200 Contact Us For Availability
36
Ignitor (R.H.) WPL 4179201 Contact Us For Availability
36
Ignitor (L.H.) WPL 4179203 Contact Us For Availability
37
Ignitor, Oven WPL 4363119 Contact Us For Availability
39
Endcap (L.H.) WPL 4157186 Contact Us For Availability
39
Endcap (R.H.) WPL 4157187 Contact Us For Availability
39
Endcap (Screw, Endcap 6-12 x 1/4 (6)) WPL 4320799 Contact Us For Availability
40
Insert, Griddle (White) WPL 4157780 Contact Us For Availability
40
Insert, Griddle (Almond) WPL 4157845 Contact Us For Availability
41
Cup, Grease WPL 4363152 Contact Us For Availability
42
Cover, Griddle (White) WPL 4157782 Contact Us For Availability
42
Cover, Griddle (Almond) WPL 4157783 Contact Us For Availability
43
Support, Center (R.H.) WPL 4363213 Contact Us For Availability
44
Support, Center (L.H.) WPL 4363214 Contact Us For Availability
45
Support, Center WPL 4363072 Contact Us For Availability
46
Support, Burner (L.H.) WPL 4363073 Contact Us For Availability
47
Support, Burner (R.H.) WPL 4363074 Contact Us For Availability
48
Griddle WPL 4157790 Contact Us For Availability
49
Burner, Griddle WPL 4363109 Contact Us For Availability
51
Grate (1) WPL 4157056 Contact Us For Availability
52
Bolt, Thermost WPL 4314816 Contact Us For Availability
53
WPL 4314817 WPL 4314817 Contact Us For Availability
54
WPL 4315207 WPL 4315207 Contact Us For Availability
55
WPL 4320440 WPL 4320440 Contact Us For Availability
57
WPL 241430 WPL 241430 Contact Us For Availability
57
WPL 4315726 WPL 4315726 Contact Us For Availability
× ![]()
