Model Whirlpool SF336PESW0 GAS RANGE – Common Parts & Diagrams
03 - INTERNAL OVEN
02 - EXTERNAL OVEN

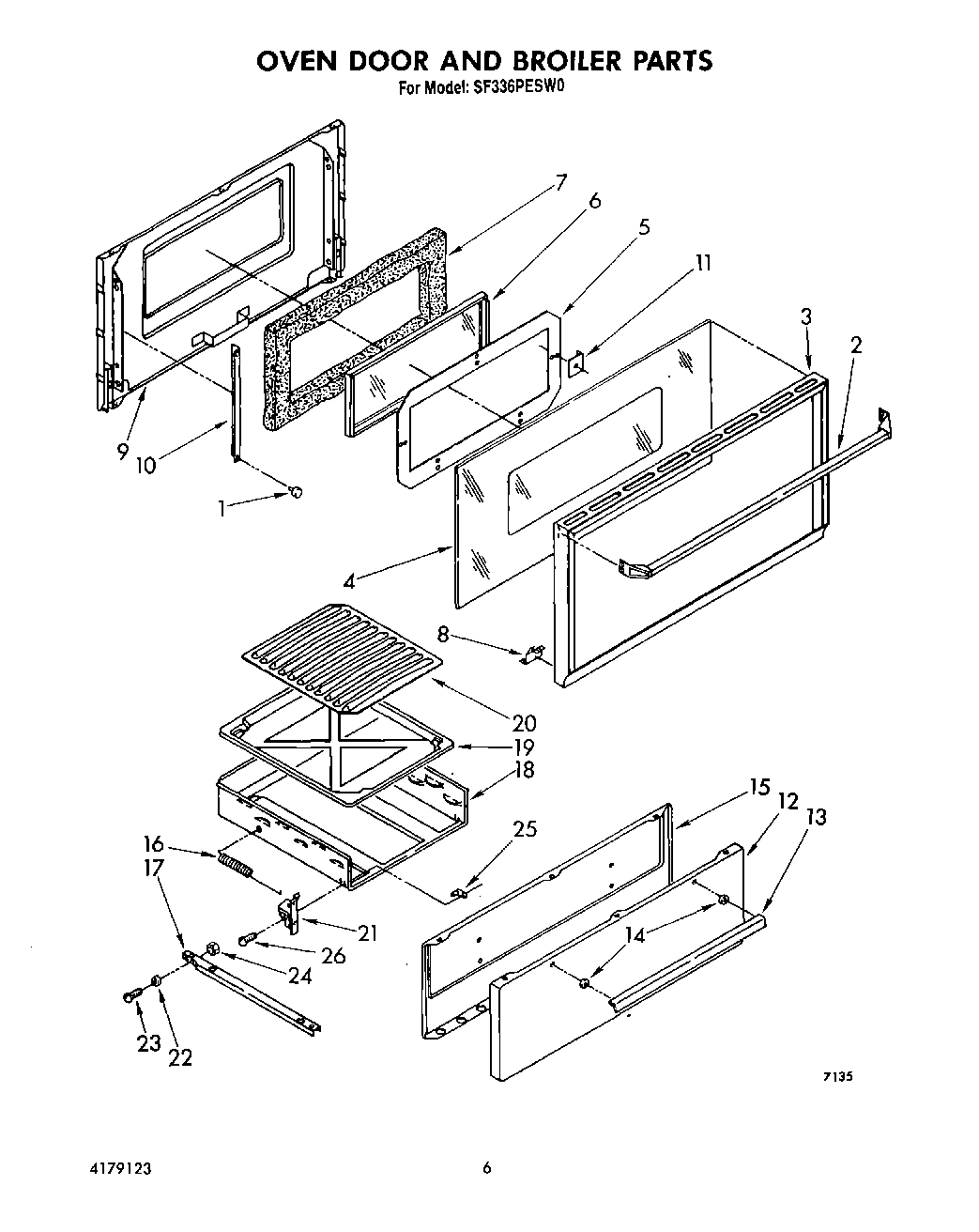

05 - OVEN DOOR AND BROILER

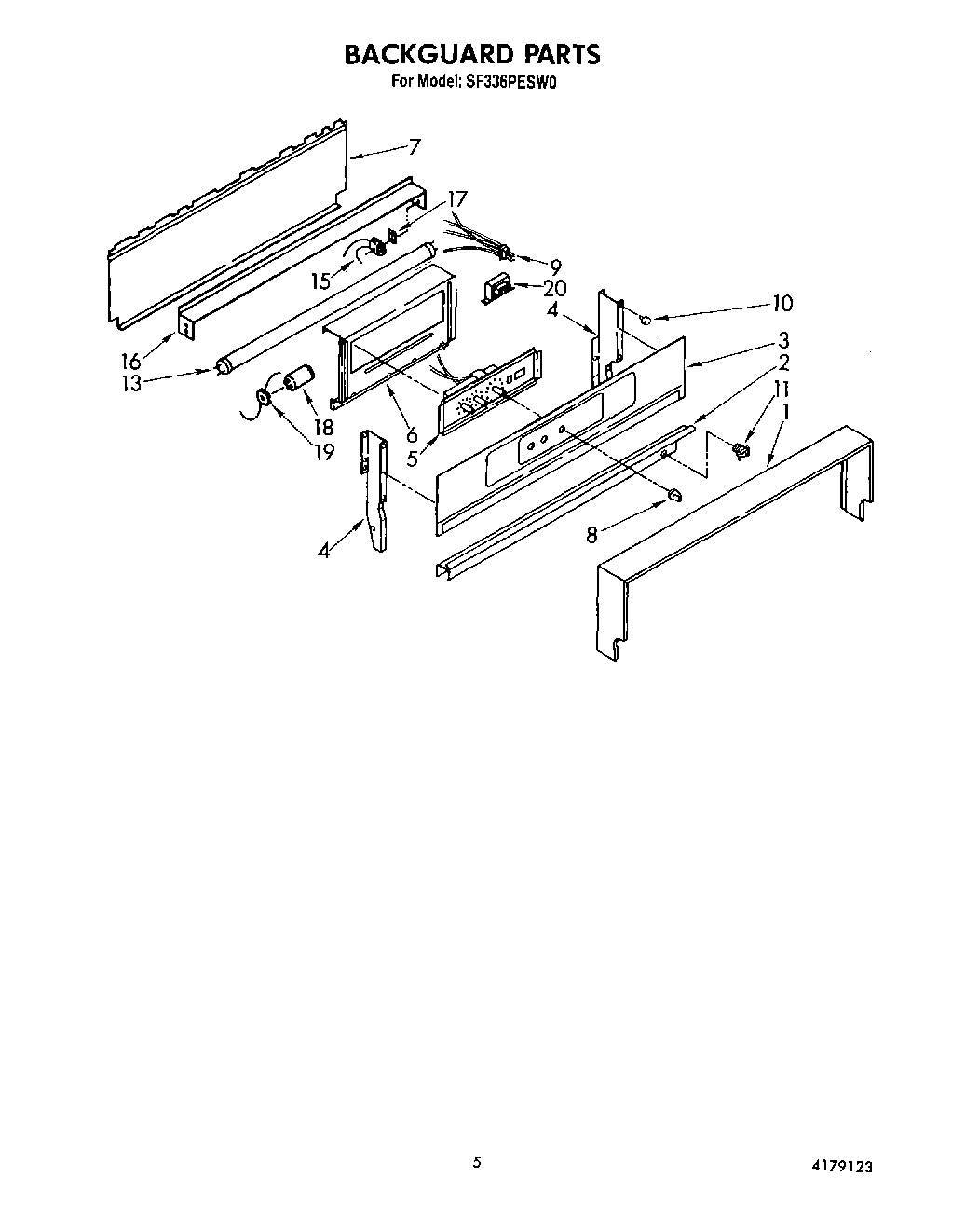

04 - BACKGUARD

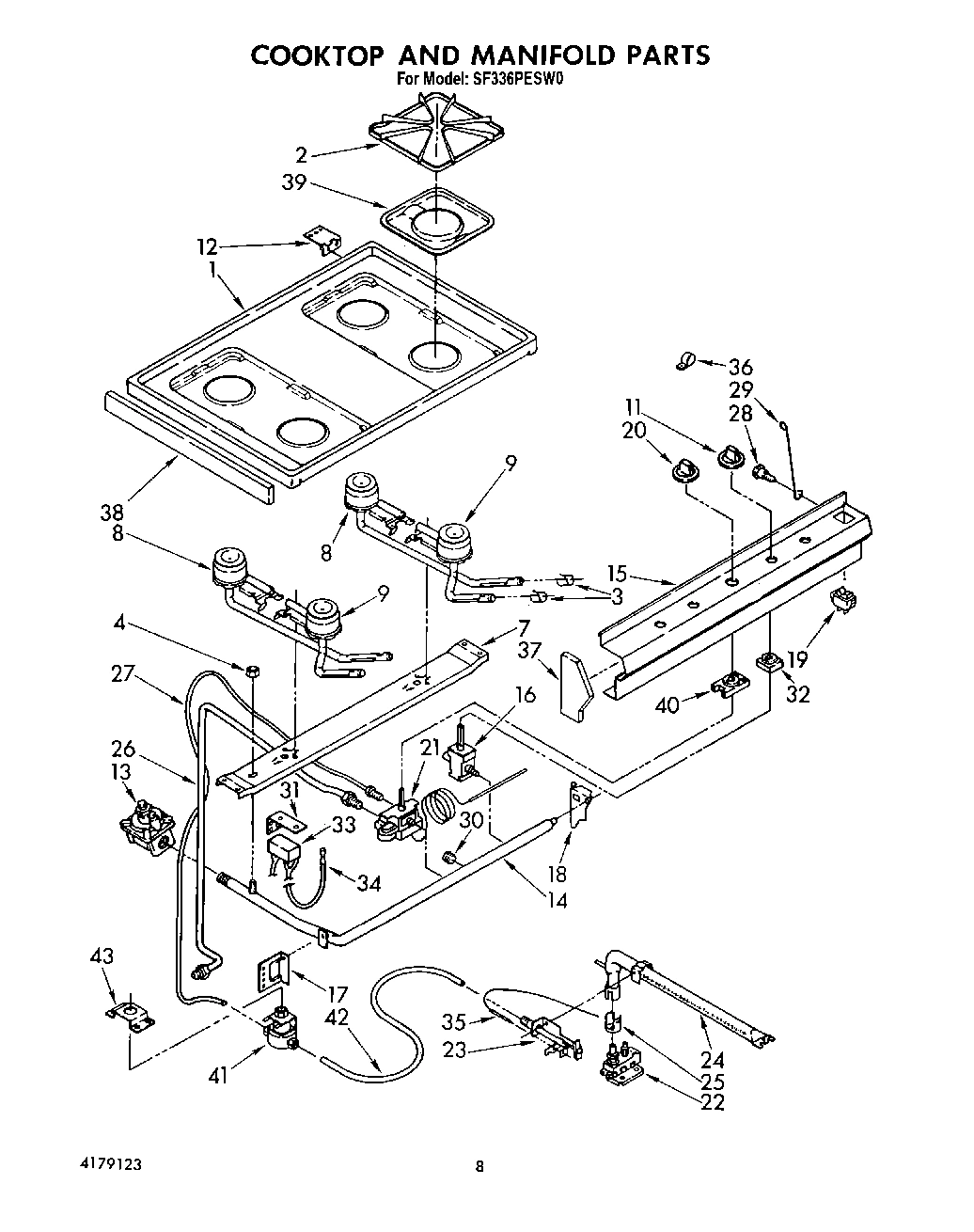

06 - COOKTOP AND MANIFOLD, LIT/OPTIONAL
Common parts from model Whirlpool SF336PESW0 GAS RANGE
WPL LIT4179034 WPL LIT4179034 Contact Us For Availability
WPL LIT4179123 WPL LIT4179123 Contact Us For Availability
WPL LIT786302 WPL LIT786302 Contact Us For Availability
WPL LIT786735 WPL LIT786735 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Panel, Side (2) (Toast) WPL 4157348 Contact Us For Availability
1
Panel, Side (2) (Platinum) WPL 4157349 Contact Us For Availability
1
Frame WPL 4157204 Contact Us For Availability
1
Cooktop (White) WPL 4157886 Contact Us For Availability
1
Cooktop (Almond) WPL 4157887 Contact Us For Availability
1
Cooktop (Toast) WPL 4157888 Contact Us For Availability
1
Cooktop (Platinum) WPL 4157889 Contact Us For Availability
2
Frame, Front WPL 4157002 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Bottom, Backugard WPL 4157150 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Frame, Door WPL 4157029 Contact Us For Availability
3
Glass, Backguard WPL 4179107 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Track, Broiler (2) WPL 4157007 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Glass WPL 4157885 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Roller (2) WPL 4157008 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Ring, Hold Down WPL 4157031 Contact Us For Availability
5
Clock WPL 4179108 Contact Us For Availability
6
Pin, Roller (2) WPL 4157009 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Window WPL 4157032 Contact Us For Availability
6
Bracket, Clock WPL 4157178 Contact Us For Availability
7
Liner, Oven Back WPL 4157138 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Panel, Rear WPL 4179043 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Support, Glass (Left Hand) WPL 4157034 Contact Us For Availability
8
Support, Glass (Right Hand) WPL 4157035 Contact Us For Availability
8
Knob, Clock WPL 786434 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Panel, Rear WPL 4157015 Contact Us For Availability
9
Liner, Door WPL 4157140 Contact Us For Availability
9
Block, Disconnect WPL 4157112 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Retainer, Roller (2) WPL 4157026 Contact Us For Availability
10
Burner Box WPL 4157017 Contact Us For Availability
10
Bumper (4) WPL 4157128 Contact Us For Availability
10
Support, Glass (2) WPL 4517037 Contact Us For Availability
11
Bottom, Oven WPL 4157139 Contact Us For Availability
11
Plate (2) WPL 4157131 Contact Us For Availability
11
Strain Relief WPL 4157133 Contact Us For Availability
12
Rack, Oven (2) WPL 4157102 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Panel, Broiler (White) WPL 4157039 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4157327 Contact Us For Availability
12
Panel, Broiler (Toast) WPL 4157346 Contact Us For Availability
12
Panel, Broiler (Platinum) WPL 4157347 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157024 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Lamp, Fluorscent WPL 4157162 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Seal, Door (Top) WPL 4157025 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4157188 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Liner, Broiler Door WPL 4157042 Contact Us For Availability
15
Socket, Light (2) WPL 4157164 Contact Us For Availability
15
Panel, Manifold WPL 4157197 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Bracket, Support WPL 4157169 Contact Us For Availability
16
Valve, 90~ (4) WPL 4157190 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Track, Upper (2) WPL 4157044 Contact Us For Availability
17
Spacer, Light (4) WPL 4157170 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
18
Block, Disconnect WPL 4157149 Contact Us For Availability
18
Liner, Brolier WPL 4157172 Contact Us For Availability
18
Starter, Light WPL 4157199 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4157177 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
19
Base, Light WPL 4157200 Contact Us For Availability
19
Switch, Oven Light WPL 4179106 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid WPL 4157047 Contact Us For Availability
20
Ballast WPL 4157207 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat WPL 4157211 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Roller (2) WPL 4157050 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Pin, Roller (2) WPL 4157051 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
24
Burner, Oven WPL 4157096 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing, (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing, (Thermostat To Solenoid) WPL 4179104 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
29
Rod, Support WPL 4157010 Contact Us For Availability
31
Plate, Module WPL 4157171 Contact Us For Availability
33
Module, Spark WPL 4157181 Contact Us For Availability
34
Ignitor (R.H.) WPL 4157182 Contact Us For Availability
34
Ignitor (L.H.) WPL 4157183 Contact Us For Availability
35
Ignitor, Oven WPL 4157184 Contact Us For Availability
36
Strain Relief WPL 4157185 Contact Us For Availability
37
Endcap (L.H.) WPL 4157186 Contact Us For Availability
37
Endcap (R.H.) WPL 4157187 Contact Us For Availability
38
Trim, Cooktop (2) WPL 4157189 Contact Us For Availability
41
Valve, Solenoid WPL 4179103 Contact Us For Availability
42
FOIL, ALUMINUM OVEN (18`` X 25 WPL 241430 Contact Us For Availability
42
WPL 4179105 WPL 4179105 Contact Us For Availability
42
WPL 4179110 WPL 4179110 Contact Us For Availability
× ![]()
