Model Whirlpool SF314PSWW0 GAS RANGE – Common Parts & Diagrams
03 - INTERNAL
02 - EXTERNAL

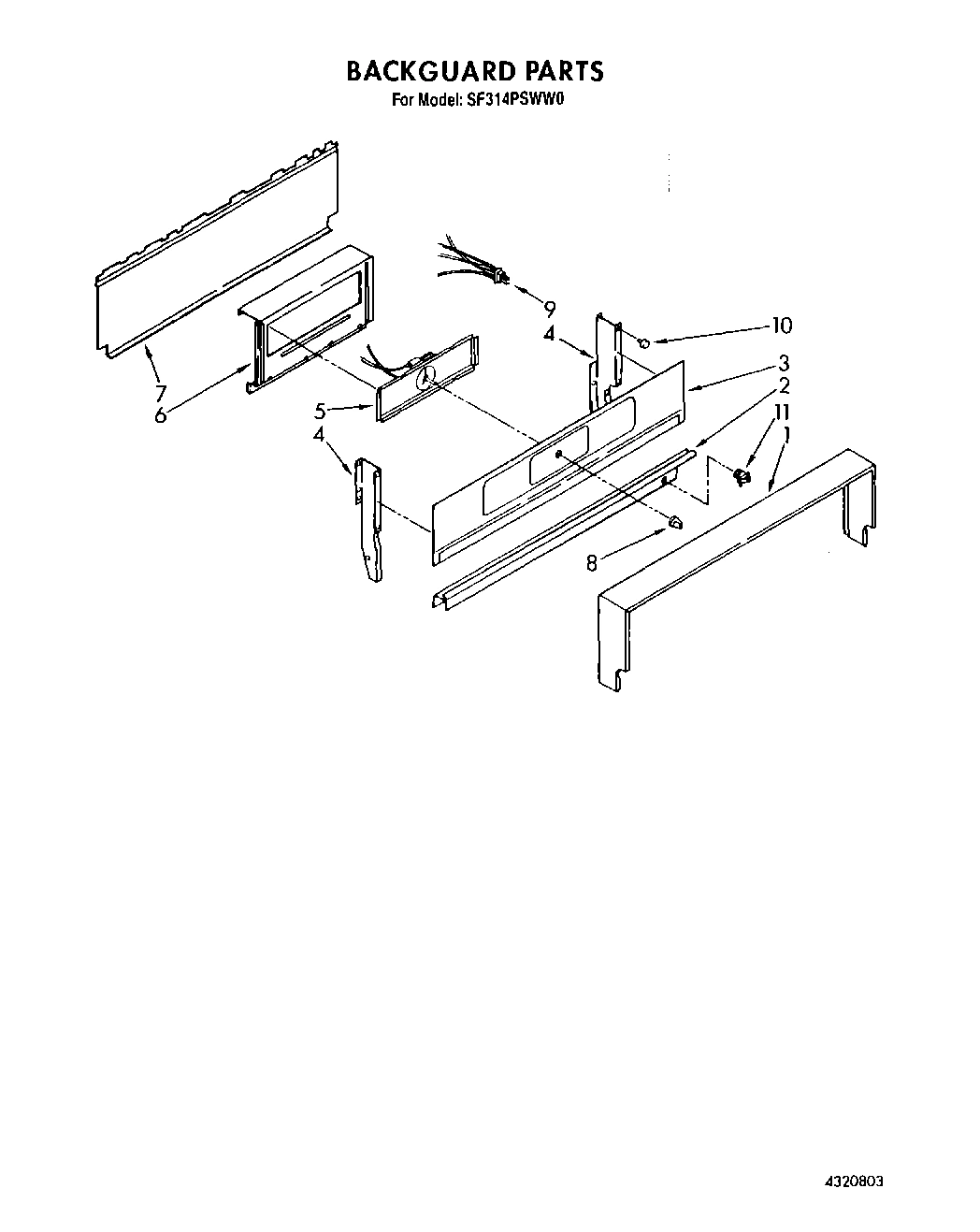

04 - BACK GUARD

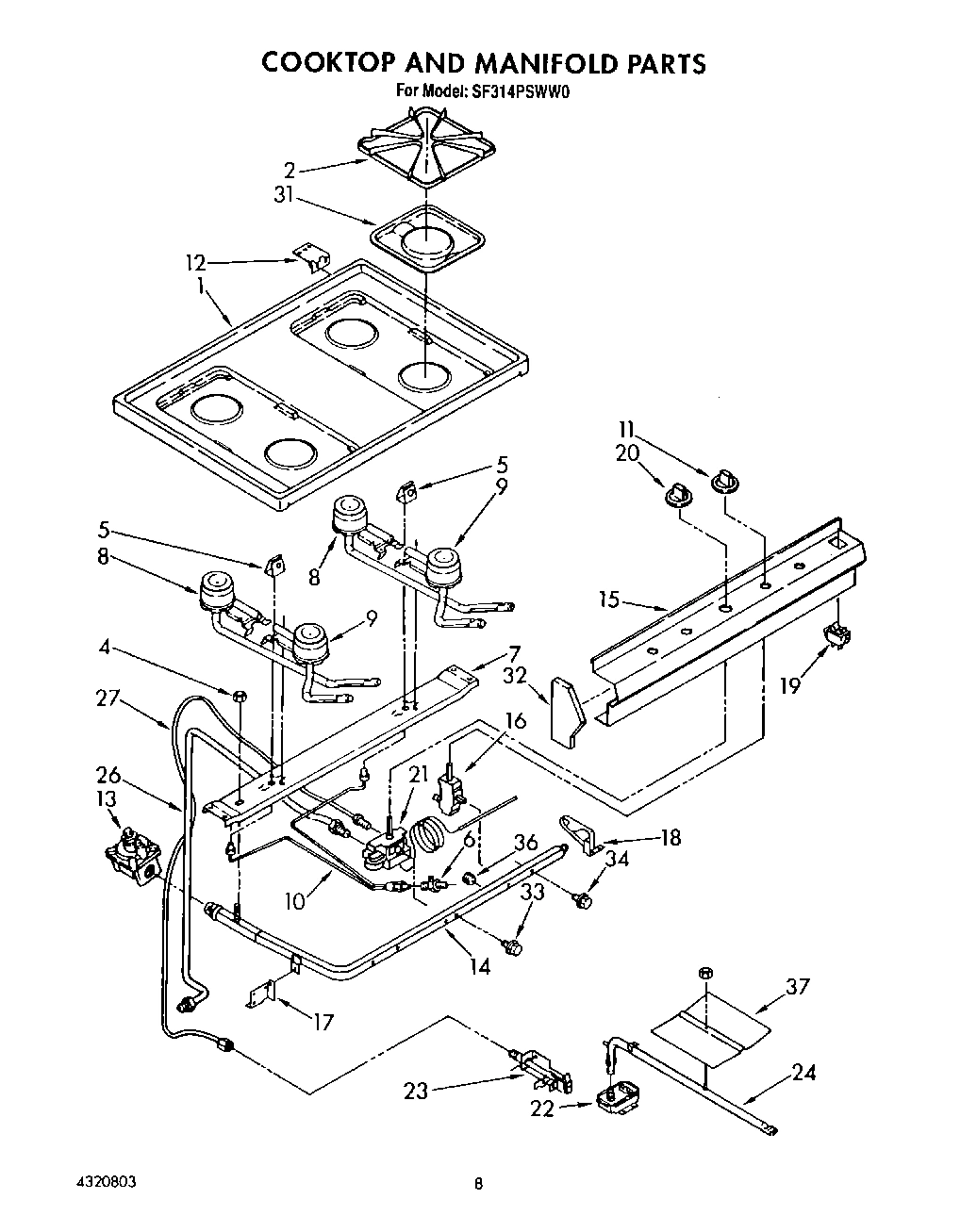

06 - COOK TOP AND MANIFOLD, LITERATURE

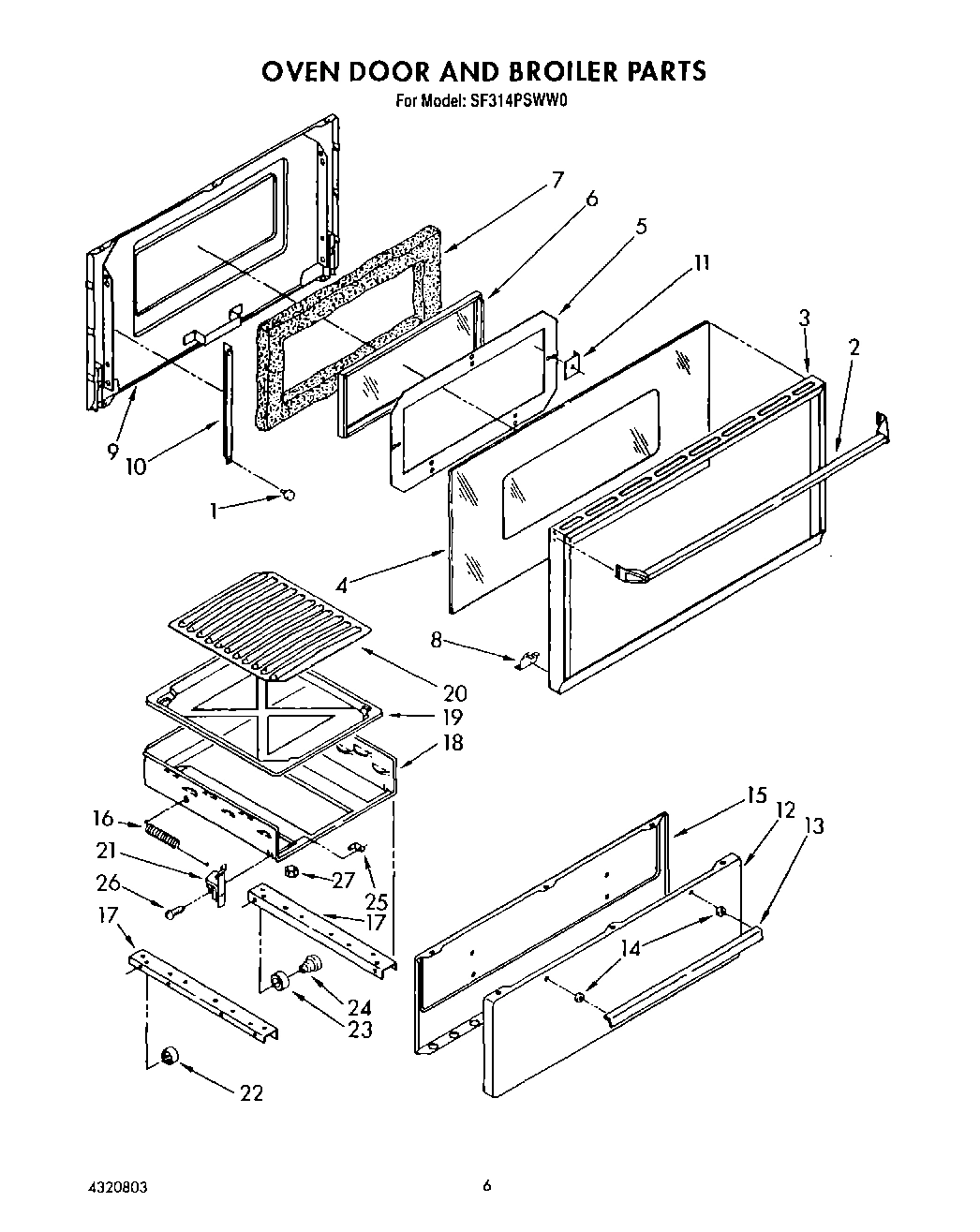

05 - OVEN DOOR AND BROILER
Common parts from model Whirlpool SF314PSWW0 GAS RANGE
Guide, Cooking WPL LIT3149508 Contact Us For Availability
Sheet, Conversion WPL LIT4179269 Contact Us For Availability
Use & WPL LIT4315702 Contact Us For Availability
WPL LIT4315709 WPL LIT4315709 Contact Us For Availability
WPL LIT4320803 WPL LIT4320803 Contact Us For Availability
1
Frame WPL 4320534 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Bumper (4) WPL 4157128 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Bottom, Backguard WPL 4157104 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
3
Glass WPL 4320756 Contact Us For Availability
3
Frame, Door WPL 4320578 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand 01) WPL 4157166 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Glass WPL 4320471 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Clock WPL 4320728 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
5
Ring, Hold Down WPL 4157031 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Bracket, Clock WPL 4179246 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
6
Window WPL 4157147 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
7
Panel, Rear WPL 4315348 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Knob, Clock WPL 786434 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
8
Speed Clip (2) WPL 4157115 Contact Us For Availability
8
Support, Glass WPL 4320536 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
Block, Disconnect WPL 4157149 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
9
Liner, Door WPL 4320475 Contact Us For Availability
10
Burner Box WPL 4320411 Contact Us For Availability
10
Tubing, Pilot WPL 4157081 Contact Us For Availability
10
Support, Glass (2) WPL 4157037 Contact Us For Availability
11
Bottom, Oven WPL 4320462 Contact Us For Availability
11
Strain Relief WPL 4157133 Contact Us For Availability
11
Plate (2) WPL 4157131 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320457 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320458 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Seal, Door WPL 4320693 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
14
Manifold WPL 4320581 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Panel, Manifold WPL 4320797 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
16
Valve, 180~ (4) (Includes Ill. No. 34) WPL 4314814 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
19
Switch, Oven Light WPL 4315435 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Knob, Thermostat WPL 4320644 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Thermostat (Includes Ill. No. 33) WPL 4314818 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Bracket, Top Support WPL 4314910 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
25
Extension Box, Burner WPL 4320479 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
29
Stud, Locator WPL 4315408 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
32
Anchor (2) WPL 4315786 Contact Us For Availability
32
Endcap (L.H.) WPL 4154186 Contact Us For Availability
32
Endcap (R.H.) WPL 4157187 Contact Us For Availability
33
Bracket WPL 4315792 Contact Us For Availability
33
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
34
Screw (2) WPL 4320348 Contact Us For Availability
34
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
37
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
37
Spreader, Flame WPL 4320440 Contact Us For Availability
× ![]()
