Model Whirlpool SF310PSRW5 GAS RANGE – Common Parts & Diagrams
05 - OVEN DOOR AND BROILER
06 - COOK TOP AND MANIFOLD , LITERATURE

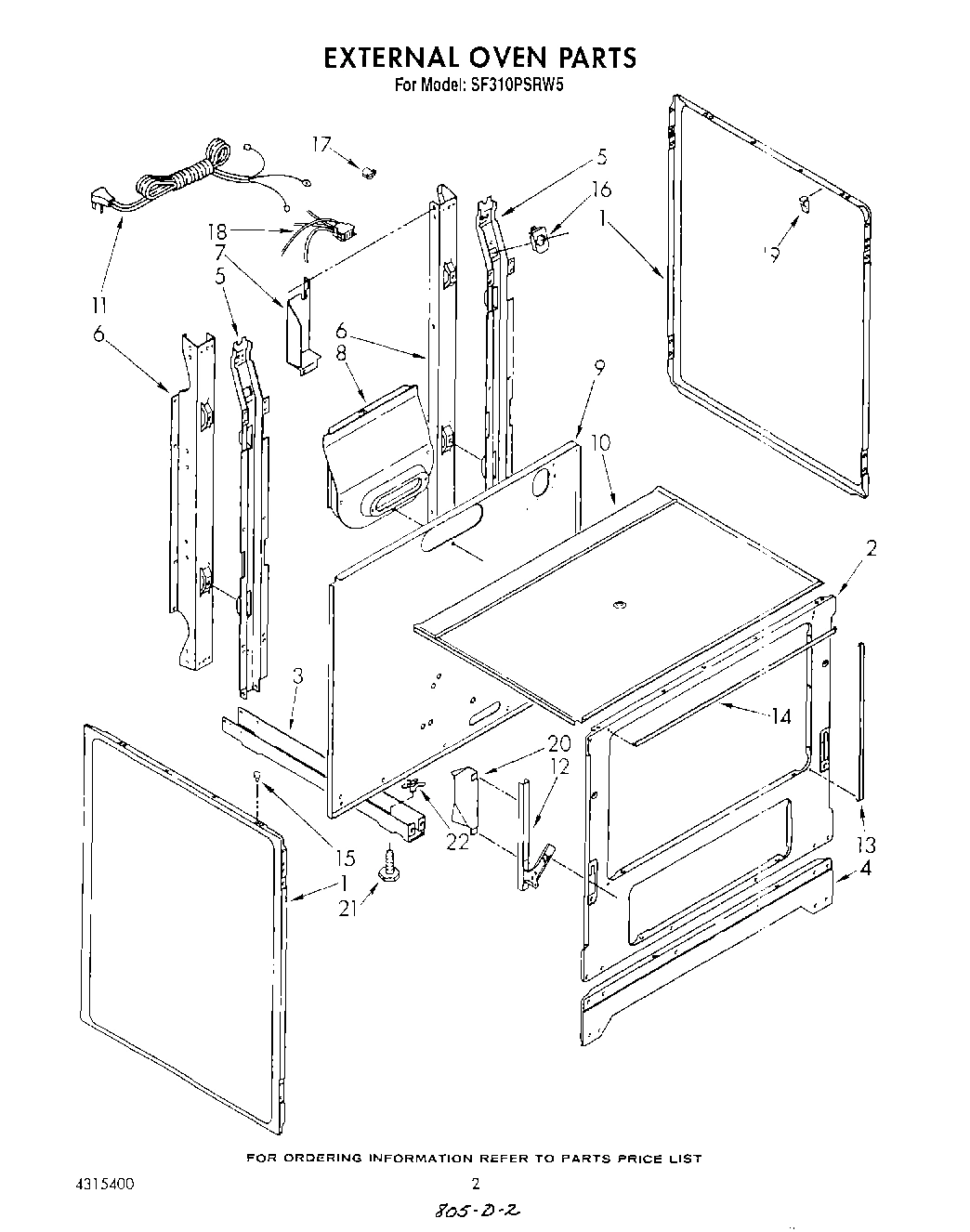

02 - EXTERNAL OVEN

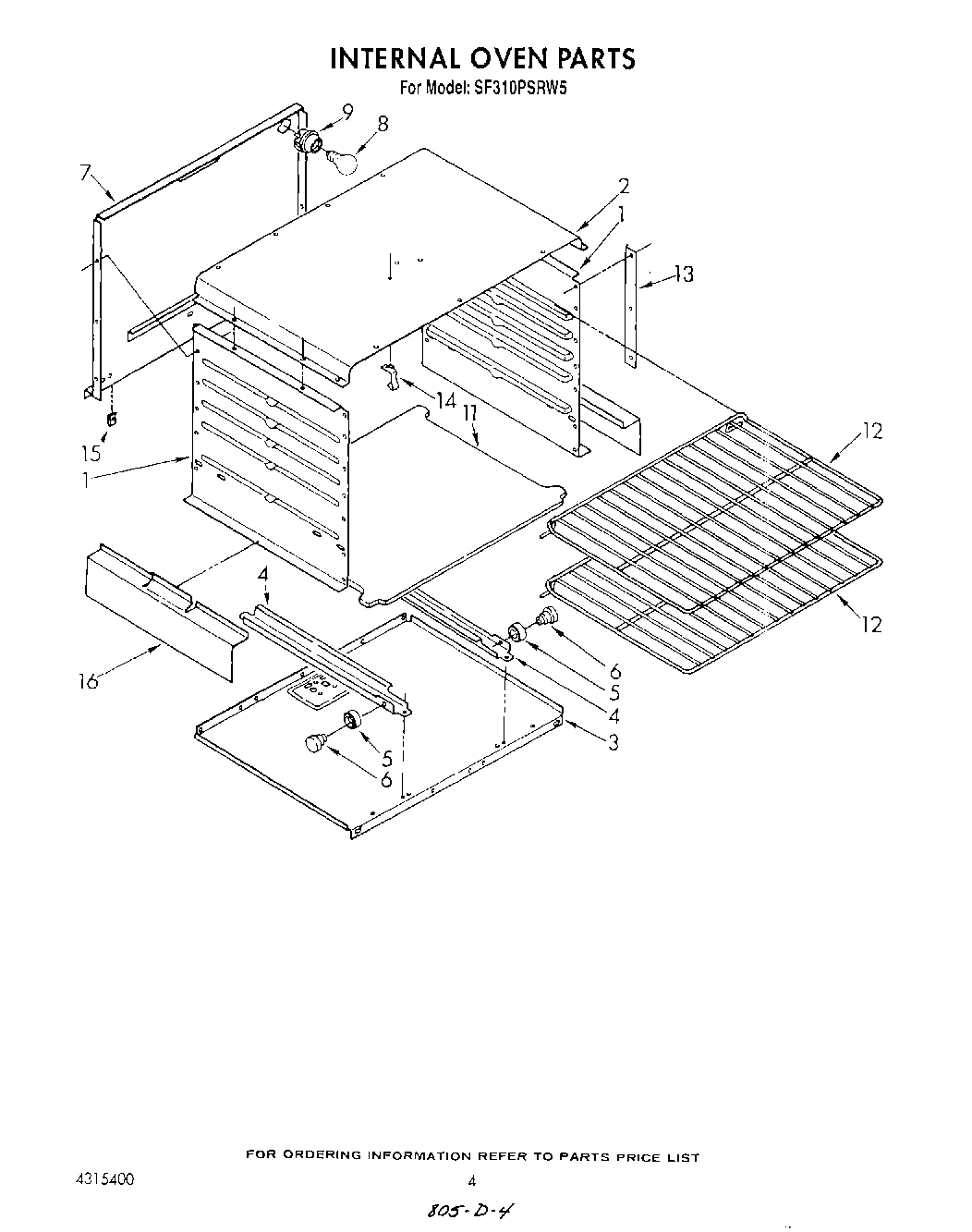

03 - INTERNAL OVEN

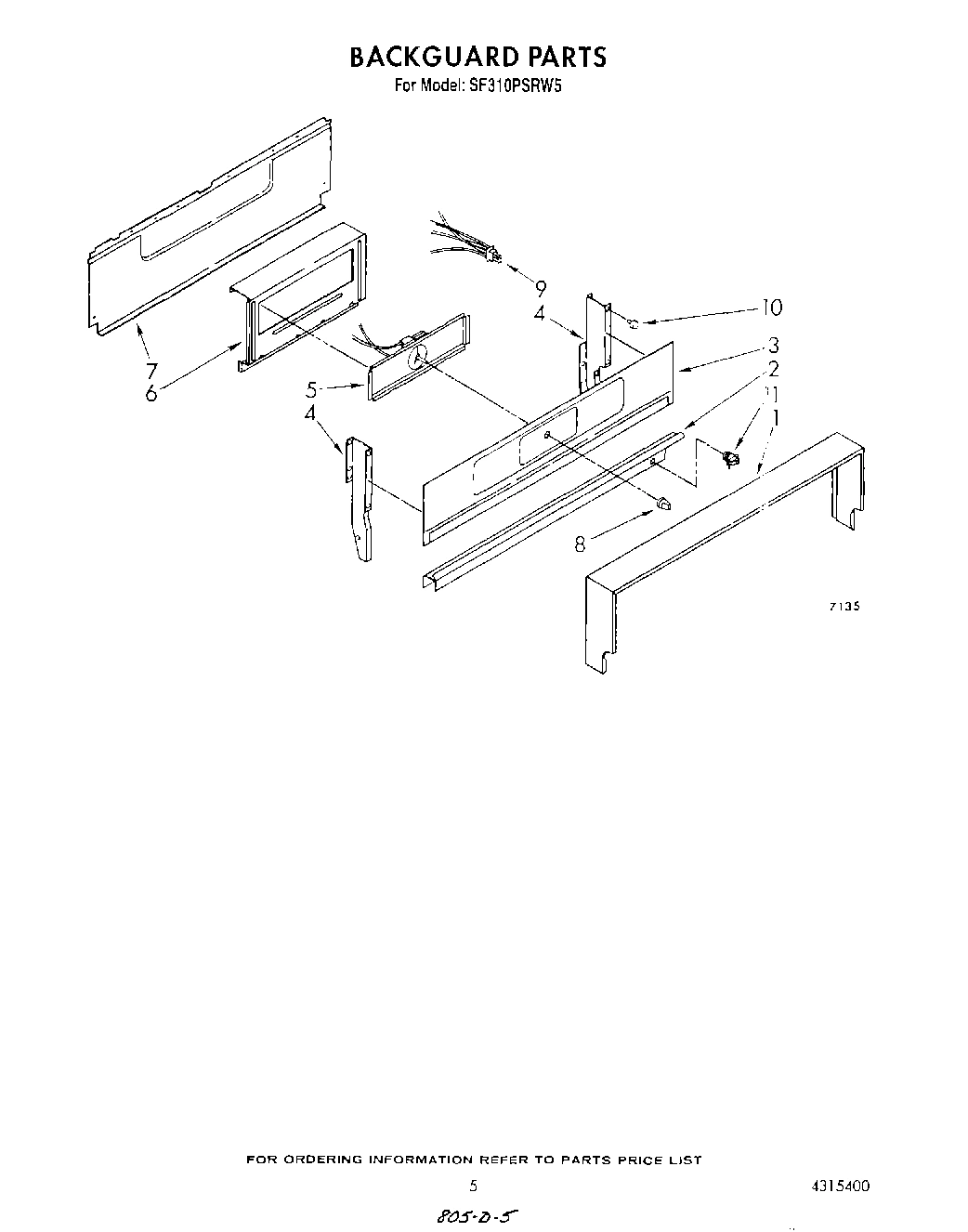

04 - BACKGUARD
Common parts from model Whirlpool SF310PSRW5 GAS RANGE
WPL LIT4315400 WPL LIT4315400 Contact Us For Availability
WPL LIT786302 WPL LIT786302 Contact Us For Availability
WPL LIT786735 WPL LIT786735 Contact Us For Availability
WPL LIT786768 WPL LIT786768 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315041 Contact Us For Availability
1
Frame WPL 4179274 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Frame, Front WPL 4315083 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Bottom, Backguard WPL 4157104 Contact Us For Availability
3
Frame, Door WPL 4157029 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Glass WPL 4157224 Contact Us For Availability
4
Glass WPL 4157885 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
5
Ring, Hold Down WPL 4157031 Contact Us For Availability
5
Roller (2) WPL 4315388 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Clock WPL 4157214 Contact Us For Availability
6
Window WPL 4157032 Contact Us For Availability
6
Pin, Roller (2) WPL 4315381 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Bracket, Clock WPL 4179246 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
7
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Panel, Rear WPL 4315348 Contact Us For Availability
8
Support, Glass WPL 4157034 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Knob, Clock WPL 786434 Contact Us For Availability
9
Liner, Door WPL 4315061 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Block, Disconnect WPL 4157112 Contact Us For Availability
10
Support, Glass (2) WPL 4157037 Contact Us For Availability
10
Tubing, Pilot WPL 4157081 Contact Us For Availability
10
Burner Box WPL 4315080 Contact Us For Availability
10
Bumper (4) WPL 4157128 Contact Us For Availability
11
Plate (2) WPL 4157131 Contact Us For Availability
11
Bottom, Oven WPL 4315071 Contact Us For Availability
11
Strain Relief WPL 4157133 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Panel, Broiler (White) WPL 4315262 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4315263 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Rack, Oven (2) WPL 4157102 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4179355 Contact Us For Availability
14
Seal, Door (Top) WPL 4315333 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
15
Panel, Manifold WPL 4314856 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 34) WPL 4314814 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
18
Block, Disconnect WPL 4157149 Contact Us For Availability
19
Switch, Oven Light WPL 4179106 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat (Includes Ill. No. 33) WPL 4314818 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
29
Hole Plug (2) WPL 4315386 Contact Us For Availability
29
Rod, Support WPL 4157010 Contact Us For Availability
32
Endcap (L.H.) WPL 4157186 Contact Us For Availability
32
Endcap (R.H.) WPL 4157187 Contact Us For Availability
33
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
34
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
35
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
35
S WPL 4315207 Contact Us For Availability
× ![]()
