Model Whirlpool SF305BSWN0 GAS RANGE – Common Parts & Diagrams
05 - INTERNAL

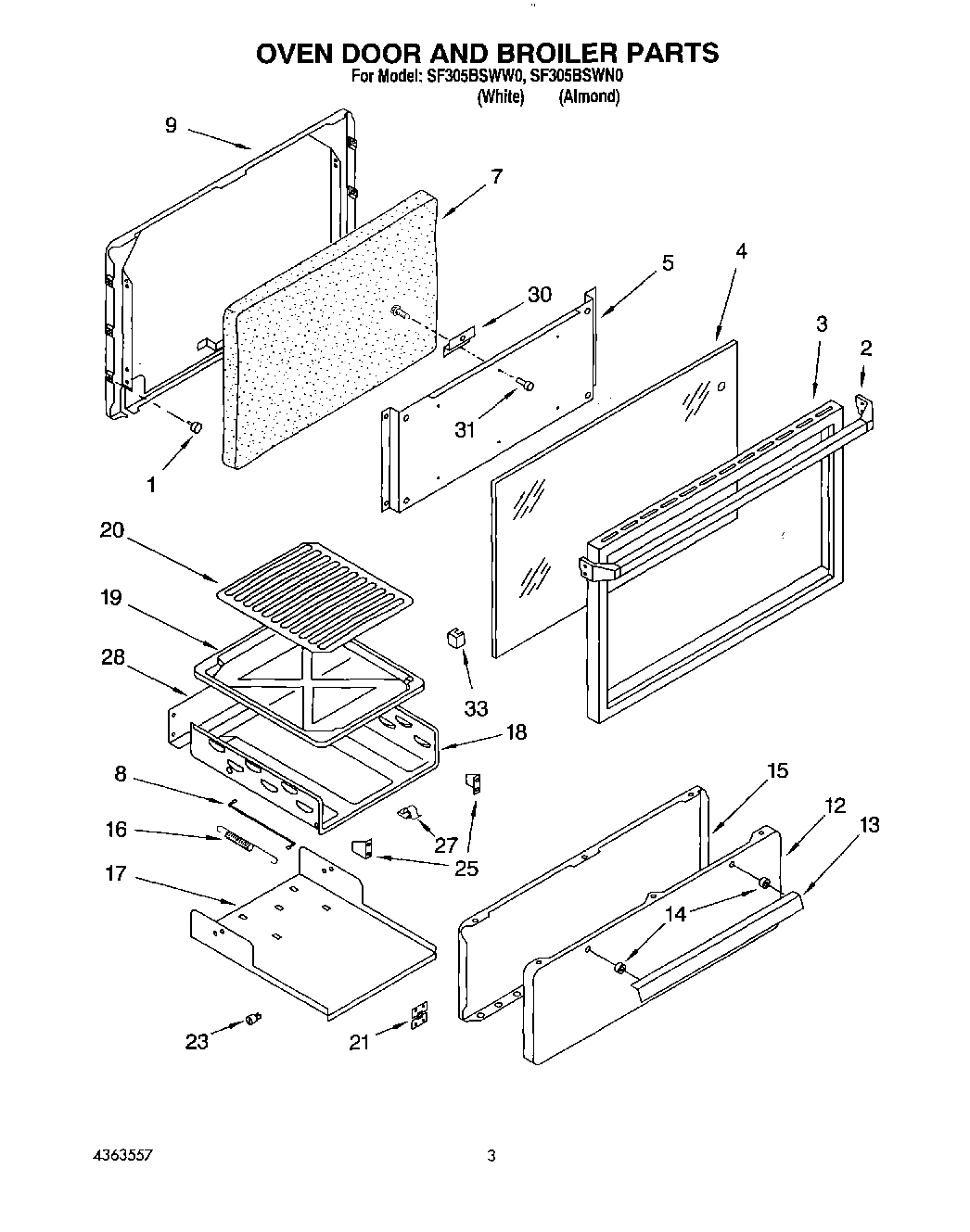

02 - OVEN DOOR AND BROILER

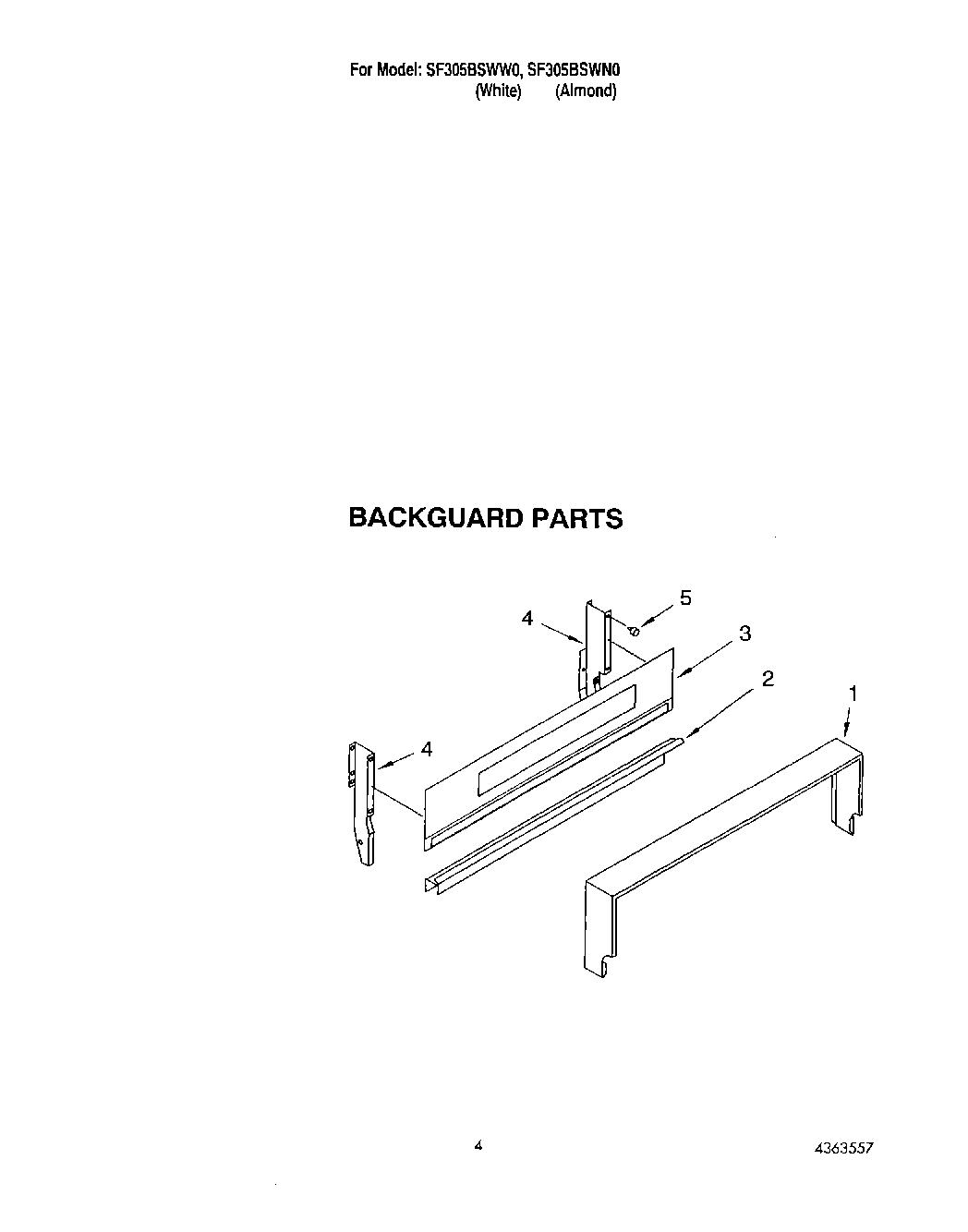

03 - BACKGUARD

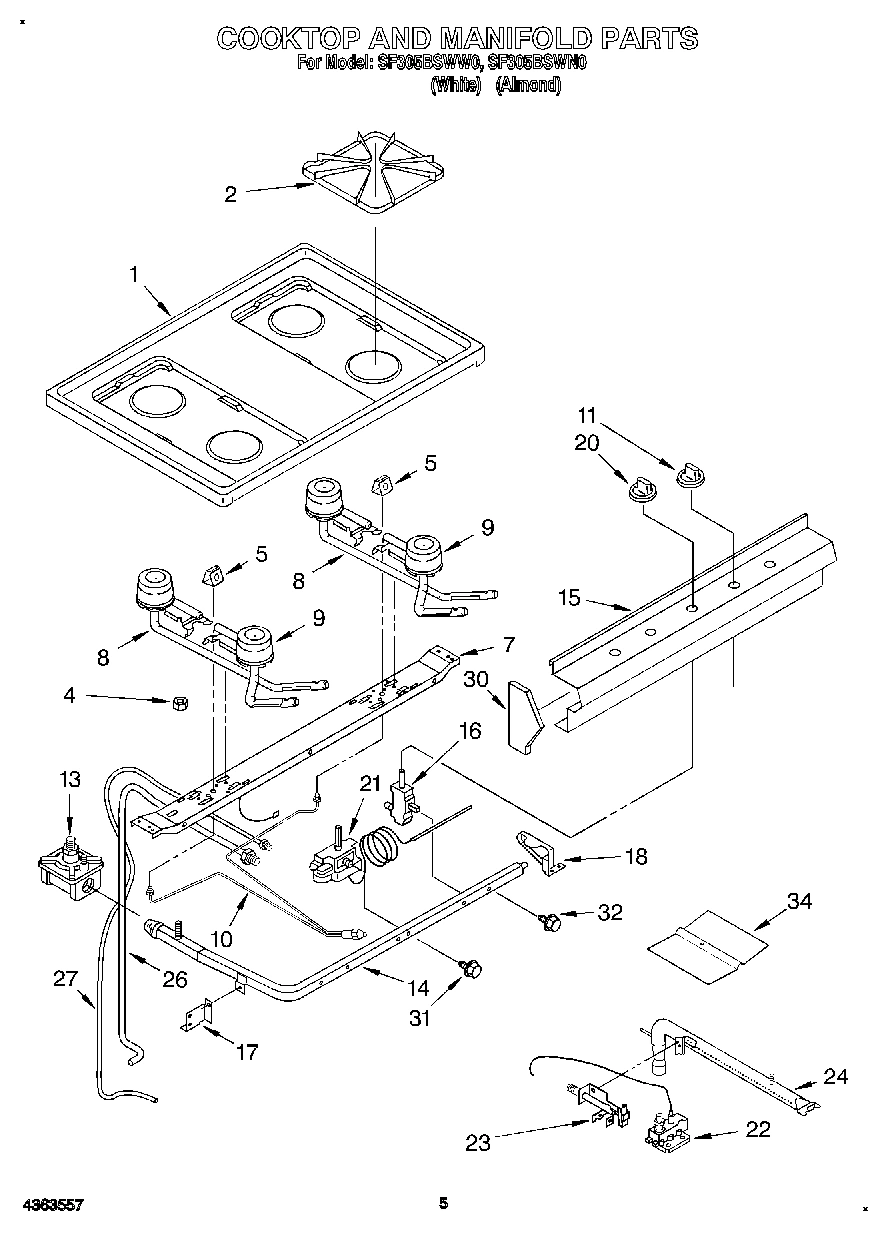

04 - COOKTOP AND MANIFOLD, LIT/OPTIONAL

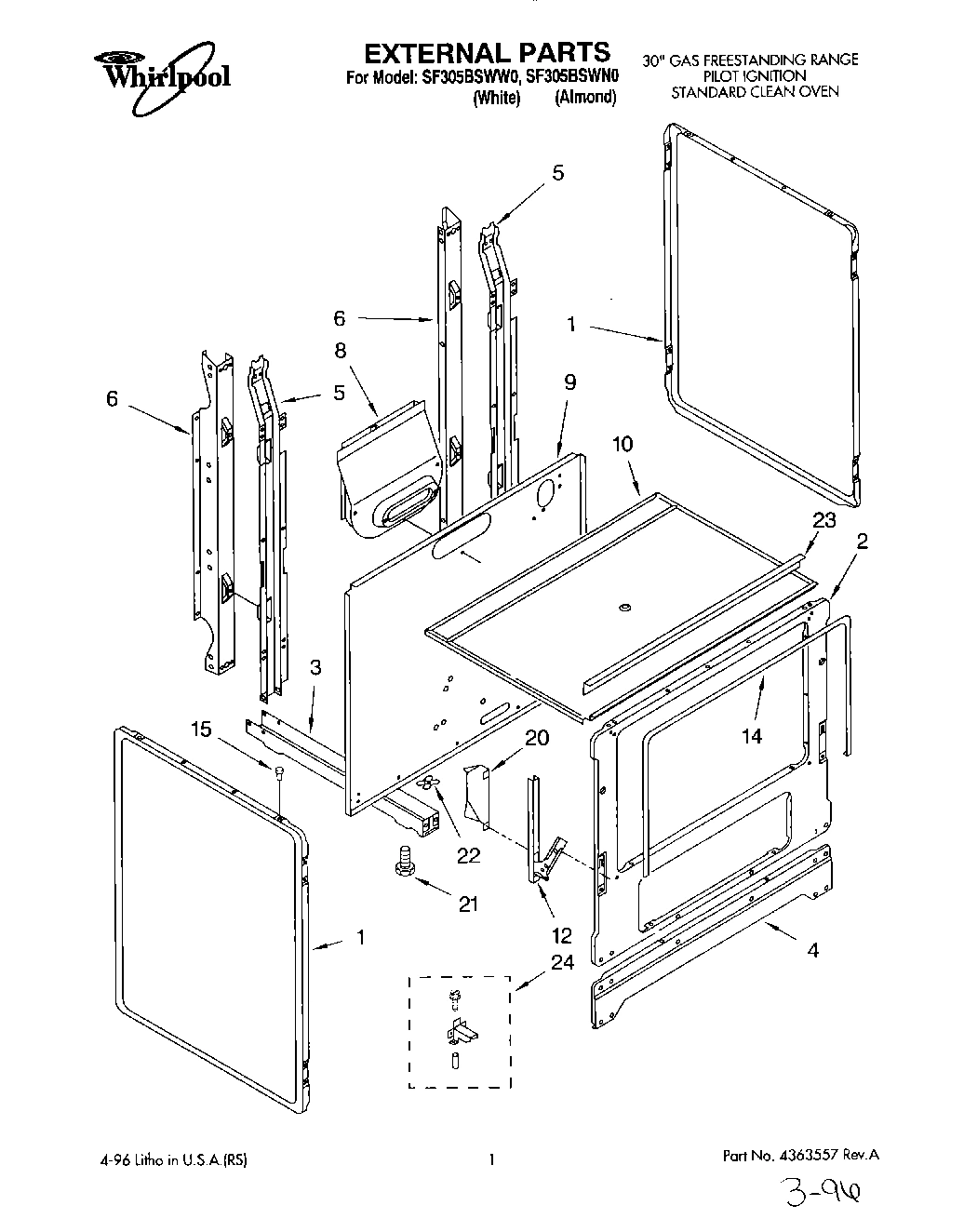

01 - EXTERNAL
Common parts from model Whirlpool SF305BSWN0 GAS RANGE
Diagram, Wiring WPL LIT4363086 Contact Us For Availability
Installation Instuctions WPL LIT4363121 Contact Us For Availability
Guide, Use & Care WPL LIT4363375 Contact Us For Availability
Guide, Cooking WPL LIT4363539 Contact Us For Availability
1
Frame WPL 4320574 Contact Us For Availability
1
Cooktop (Nut) WPL 4157115 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4363024 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4363025 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw WPL 4320474 Contact Us For Availability
2
Bottom, Backguard WPL 4315482 Contact Us For Availability
2
Screw WPL 4320575 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
3
Frame, Oven Door WPL 4320578 Contact Us For Availability
3
Screw WPL 4320742 Contact Us For Availability
3
Glass WPL 4320756 Contact Us For Availability
3
Rail, Base (2) WPL 4363194 Contact Us For Availability
4
Track, Broiler (Left Assy.) WPL 4364032 Contact Us For Availability
4
Track, Broiler (Right Assy.) WPL 4364033 Contact Us For Availability
4
Glass, Oven Door WPL 4320405 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4364001 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4364002 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw WPL 4315330 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Baffle, Door WPL 4320352 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw WPL 4320611 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Liner, Oven Back WPL 4363003 Contact Us For Availability
7
Insulation WPL 4363236 Contact Us For Availability
7
Screw WPL 4320431 Contact Us For Availability
7
Support, Burner WPL 4320798 Contact Us For Availability
8
Rod, Push/Pull Broiler WPL 4363047 Contact Us For Availability
8
Burner, Rear (2) WPL 4363108 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
9
Liner, Oven Door WPL 4363515 Contact Us For Availability
9
Screw, WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4363107 Contact Us For Availability
9
Panel, Rear WPL 4363085 Contact Us For Availability
10
Tubing, Pilot WPL 4157081 Contact Us For Availability
10
Burner Box WPL 4320411 Contact Us For Availability
11
Bottom, Oven WPL 4320784 Contact Us For Availability
12
Rack, Oven (2) WPL 4320534 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320807 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320816 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
12
Screw WPL 4320622 Contact Us For Availability
12
Screw WPL 4363537 Contact Us For Availability
13
Support, Liner (2) WPL 4363397 Contact Us For Availability
13
Handle, Broiler Door WPL 4157040 Contact Us For Availability
13
Screw WPL 4320579 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4363516 Contact Us For Availability
14
Seal, Door WPL 4320463 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4321171 Contact Us For Availability
15
Screw WPL 4314933 Contact Us For Availability
15
Panel, Manifold WPL 4363514 Contact Us For Availability
15
Bumper WPL 4152027 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Spring (2) WPL 4363233 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 32) WPL 4314814 Contact Us For Availability
17
Track, Upper WPL 4315383 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
18
Carriage Broiler WPL 4362896 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
20
Grid, Broiler WPL 4315094 Contact Us For Availability
20
Knob, Thermostat WPL 4320644 Contact Us For Availability
20
Shield, Insulation WPL 4157876 Contact Us For Availability
21
Hinge, Door (2) WPL 4363048 Contact Us For Availability
21
Thermostat (Includes Ill. No. 31) WPL 4314818 Contact Us For Availability
21
Leg, Leveler WPL 4363195 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Roller WPL 4315388 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Extension Burner Box WPL 4320479 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
24
Anti-Tip Kit WPL 4363057 Contact Us For Availability
25
Plate WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4320567 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Clip WPL 4157959 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Back, Broiler Carriage WPL 4320540 Contact Us For Availability
30
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
30
Endcap (L.H.) WPL 4320602 Contact Us For Availability
30
Endcap (R.H.) WPL 4320603 Contact Us For Availability
31
Bumper, Rubber (2) WPL 4320477 Contact Us For Availability
31
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
32
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
33
Bumper (2) WPL 4321083 Contact Us For Availability
34
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
34
Nut (10-24) WPL 4157012 Contact Us For Availability
34
Spreader, Flame WPL 4320440 Contact Us For Availability
× ![]()
