Model Whirlpool SF305BEWN0 GAS RANGE – Common Parts & Diagrams

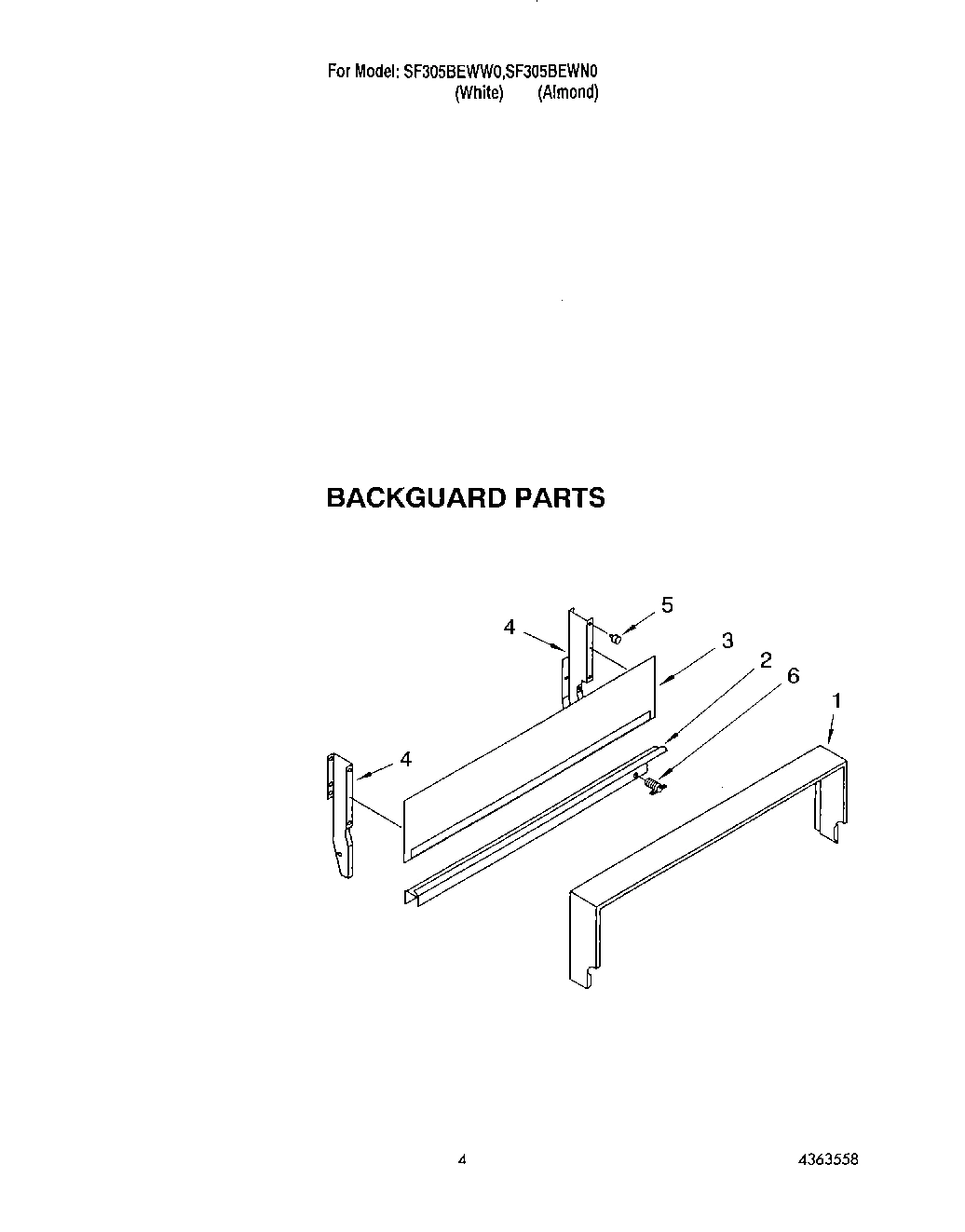

03 - BACKGUARD

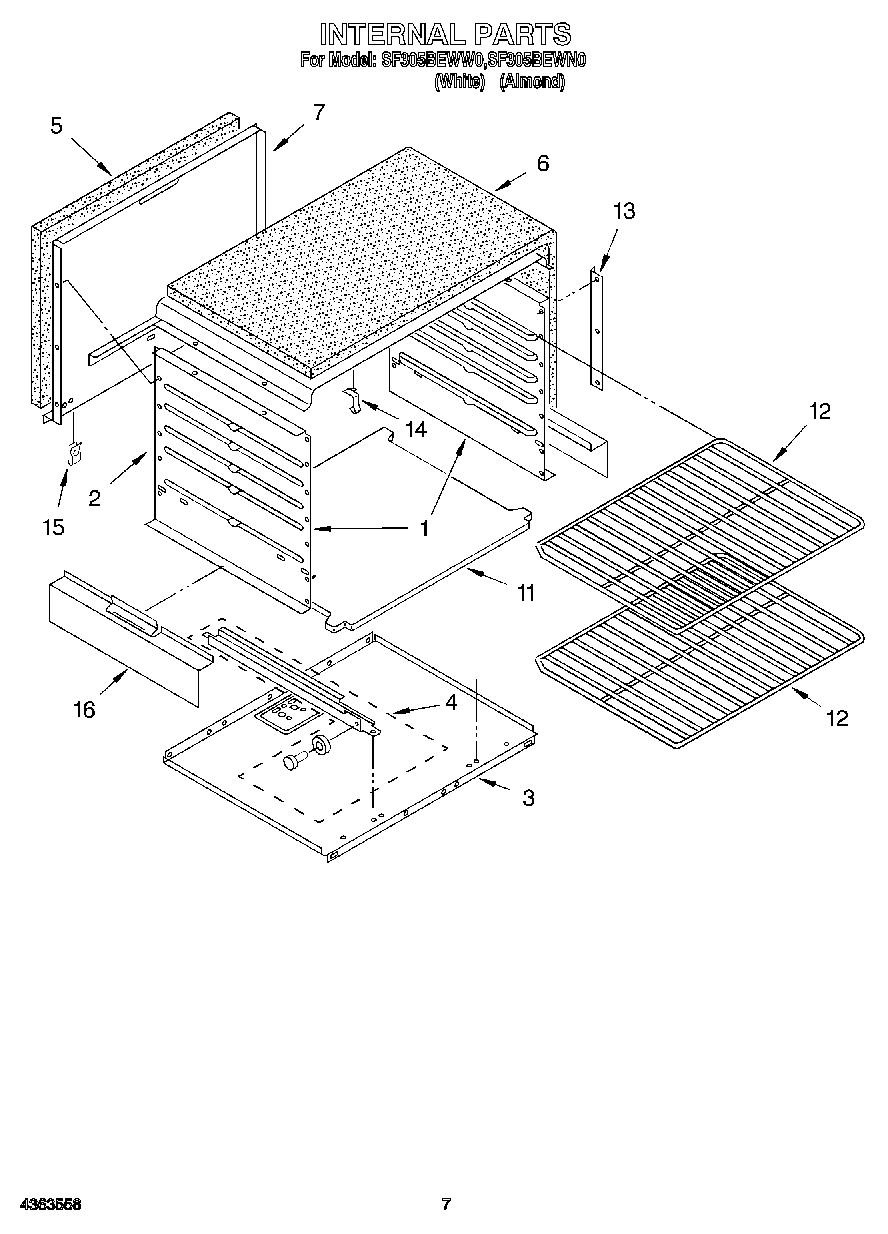

05 - INTERNAL
01 - EXTERNAL
02 - OVEN DOOR AND BROILER
04 - COOKTOP AND MANIFOLD, LIT/OPTIONAL
Common parts from model Whirlpool SF305BEWN0 GAS RANGE
Diagram, Wiring WPL LIT4363086 Contact Us For Availability
Guide, Use & Care WPL LIT4363407 Contact Us For Availability
Instuctions, Installation WPL LIT4363514 Contact Us For Availability
Guide, Cooking WPL LIT4363518 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
1
Screw WPL 4320662 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4363024 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4363025 Contact Us For Availability
1
Cooktop (Screw) WPL 4314933 Contact Us For Availability
1
Liner, Door WPL 4363515 Contact Us For Availability
1
Cooktop (Nut) WPL 4157115 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Glass WPL 4320756 Contact Us For Availability
3
Baffle, Bottom WPL 4363572 Contact Us For Availability
3
Rail, Base (2) WPL 4363194 Contact Us For Availability
3
Glass, Oven Door WPL 4320405 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4364001 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4364002 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4364032 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4364033 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Frame, Oven Door Glass WPL 4320578 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw WPL 4320611 Contact Us For Availability
5
Baffle, Oven Door WPL 4363287 Contact Us For Availability
6
Clamp, Cord WPL 4157221 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Liner, Oven Back WPL 4363003 Contact Us For Availability
7
Insulation WPL 4363236 Contact Us For Availability
7
Screw WPL 4363237 Contact Us For Availability
7
Support, Burner WPL 4320798 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
8
Rod, Push-Pull WPL 4363047 Contact Us For Availability
8
Burner, Rear (2) WPL 4363108 Contact Us For Availability
9
Panel, Rear WPL 4363085 Contact Us For Availability
9
Burner, Front (2) WPL 4363107 Contact Us For Availability
10
Burner Box WPL 4320411 Contact Us For Availability
11
Bottom, Oven WPL 4363242 Contact Us For Availability
11
Handle, Oven Door WPL 4157028 Contact Us For Availability
12
Screw WPL 4363537 Contact Us For Availability
12
Rack, Oven (2) WPL 4320804 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
12
Panel, Broiler (Screw) WPL 4320742 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320807 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320816 Contact Us For Availability
13
Support, Liner WPL 4363397 Contact Us For Availability
13
Seal, Broiler Door WPL 4315333 Contact Us For Availability
13
Handle, Door (2) WPL 4157040 Contact Us For Availability
13
Screw WPL 4320474 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Seal, Door WPL 4320463 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Screw WPL 4320579 Contact Us For Availability
14
Manifold WPL 4363516 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper WPL 4157027 Contact Us For Availability
15
Liner, Broiler Door WPL 4321171 Contact Us For Availability
15
Panel, Manifold WPL 4363544 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Spring (2) WPL 4363233 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 32) WPL 4314814 Contact Us For Availability
17
Carriage Broiler WPL 4362896 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
18
Drawer, Broiler WPL 4315520 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
19
Relief, Strain WPL 4157185 Contact Us For Availability
20
Shield, Insulation WPL 4157876 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Knob, Thermostat WPL 4320644 Contact Us For Availability
21
Leg, Leveler WPL 4363195 Contact Us For Availability
21
Hinge, Door WPL 4363046 Contact Us For Availability
21
Thermostat (Includes Ill. No. 31) WPL 4179354 Contact Us For Availability
22
Nut WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Extension Burner Box WPL 4320479 Contact Us For Availability
23
Screw WPL 4320604 Contact Us For Availability
23
Pilot WPL 4363115 Contact Us For Availability
24
Screw WPL 4320567 Contact Us For Availability
24
Anti-Tip Kit WPL 4363057 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
25
Bracket WPL 4363048 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Clip, Broiler WPL 4157959 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screw WPL 4315522 Contact Us For Availability
28
Backer, Carriage WPL 4320540 Contact Us For Availability
29
Bumper (6) WPL 4157128 Contact Us For Availability
30
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
30
Endcap (Screw) WPL 4320799 Contact Us For Availability
30
Endcap (L.H.) WPL 4320602 Contact Us For Availability
30
Endcap (R.H.) WPL 4320603 Contact Us For Availability
31
Bumper (2) WPL 4320477 Contact Us For Availability
31
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
32
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
33
Bumper (4) WPL 4321083 Contact Us For Availability
33
Ignitor (Screw) WPL 4320431 Contact Us For Availability
33
Ignitor (R.H.) WPL 4157694 Contact Us For Availability
33
Ignitor (L.H.) WPL 4157695 Contact Us For Availability
34
Spreader, Flame WPL 4320440 Contact Us For Availability
35
Bracket, Spark Module WPL 4157171 Contact Us For Availability
36
Module, Spark WPL 4179297 Contact Us For Availability
36
Screw WPL 4315330 Contact Us For Availability
39
Tie, Wire WPL 4315726 Contact Us For Availability
39
Ignitor, Oven WPL 4157184 Contact Us For Availability
39
Cord, Power WPL 4363111 Contact Us For Availability
39
Harness, Wiring WPL 4363577 Contact Us For Availability
× ![]()
