Model Whirlpool SF3040SRW0 GAS RANGE – Common Parts & Diagrams

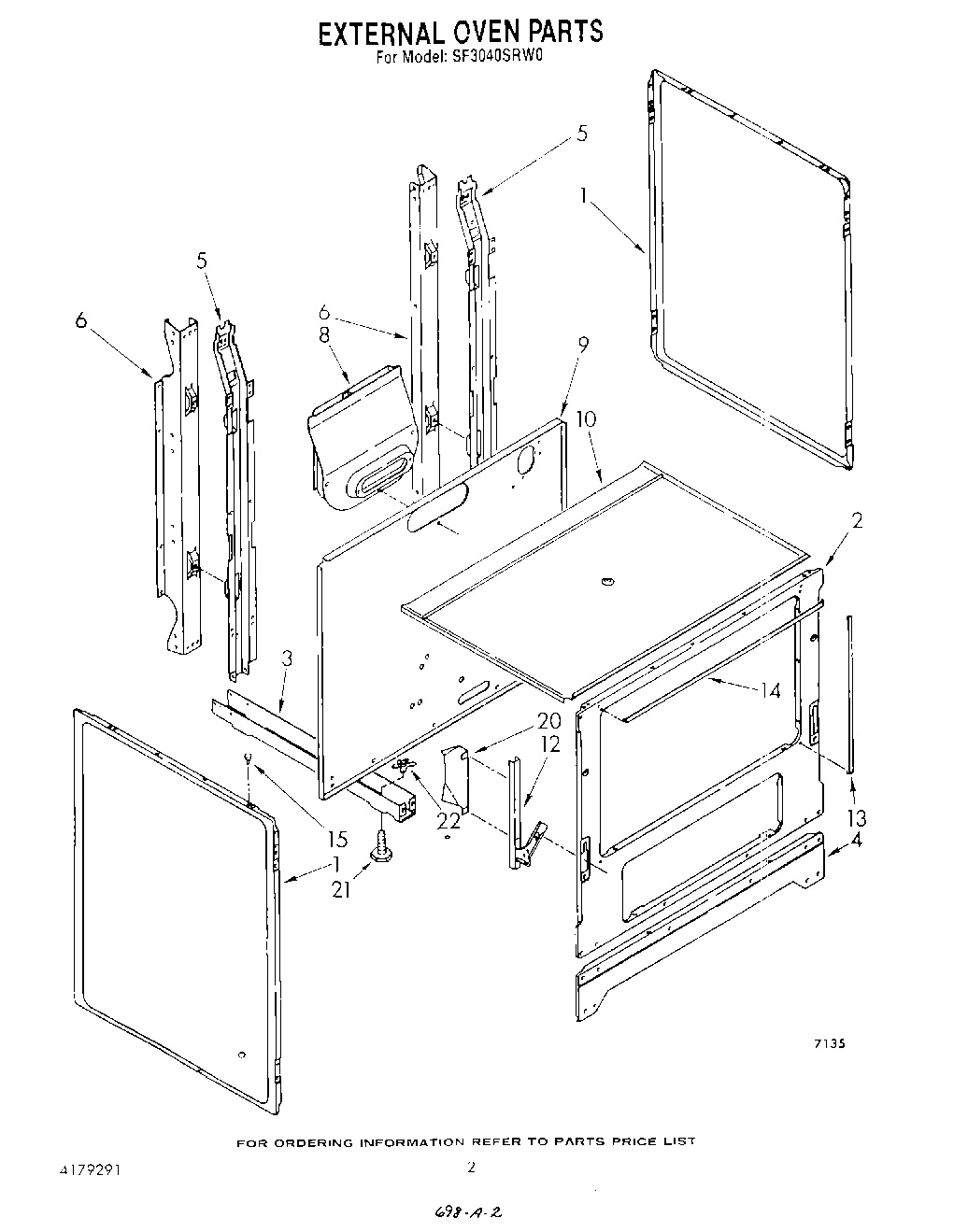

02 - EXTERNAL OVEN

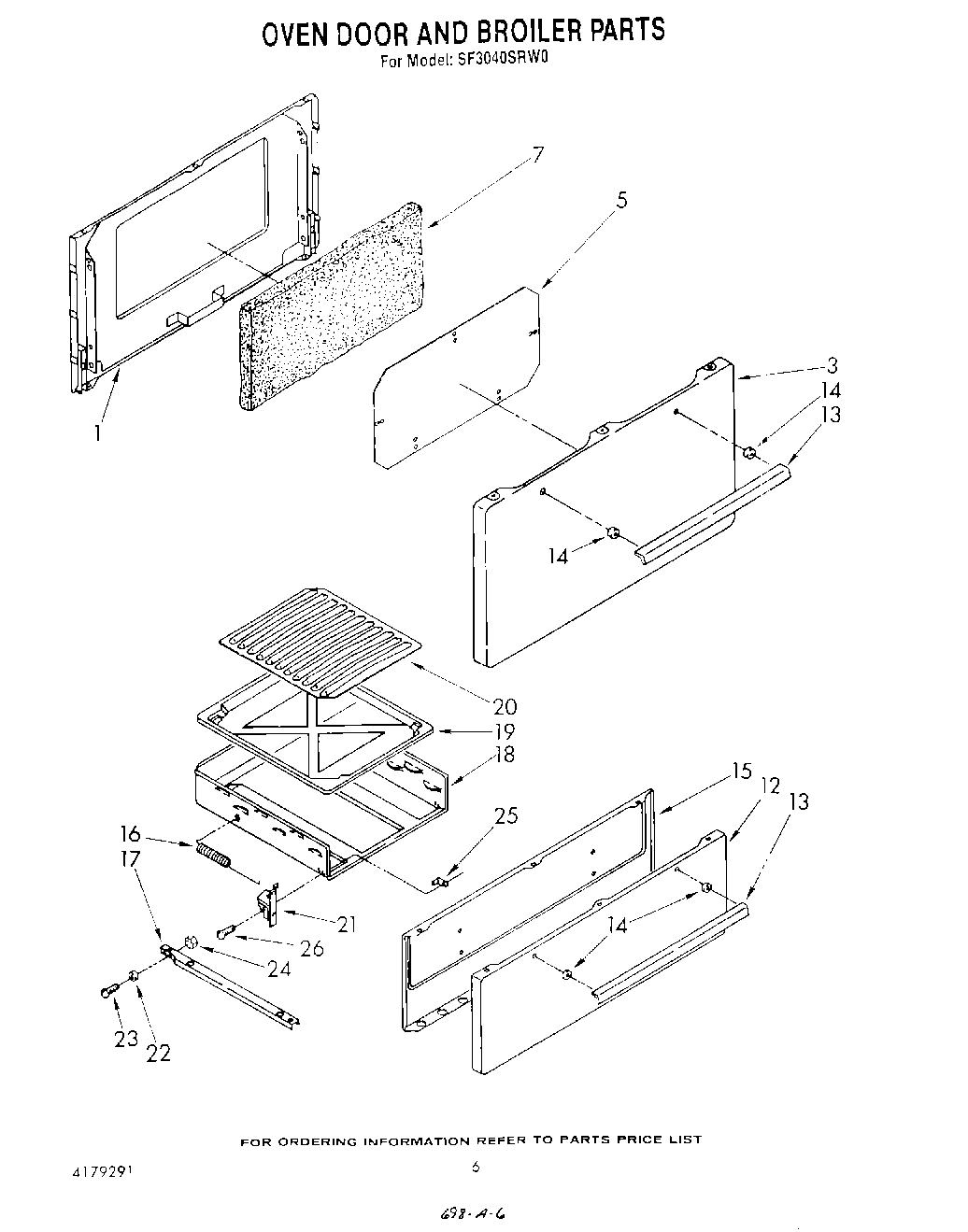

05 - OVEN DOOR AND BROILER

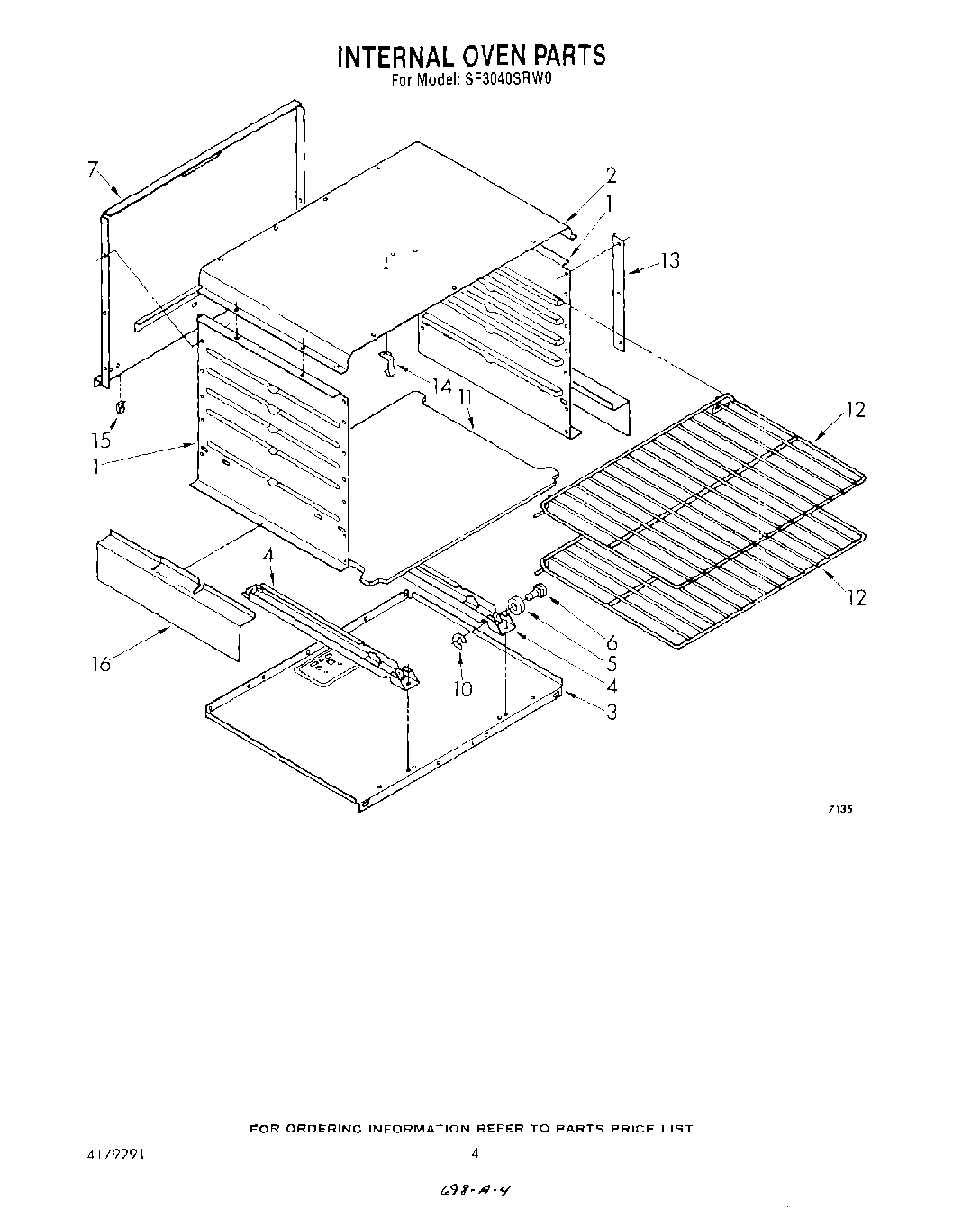

03 - INTERNAL OVEN

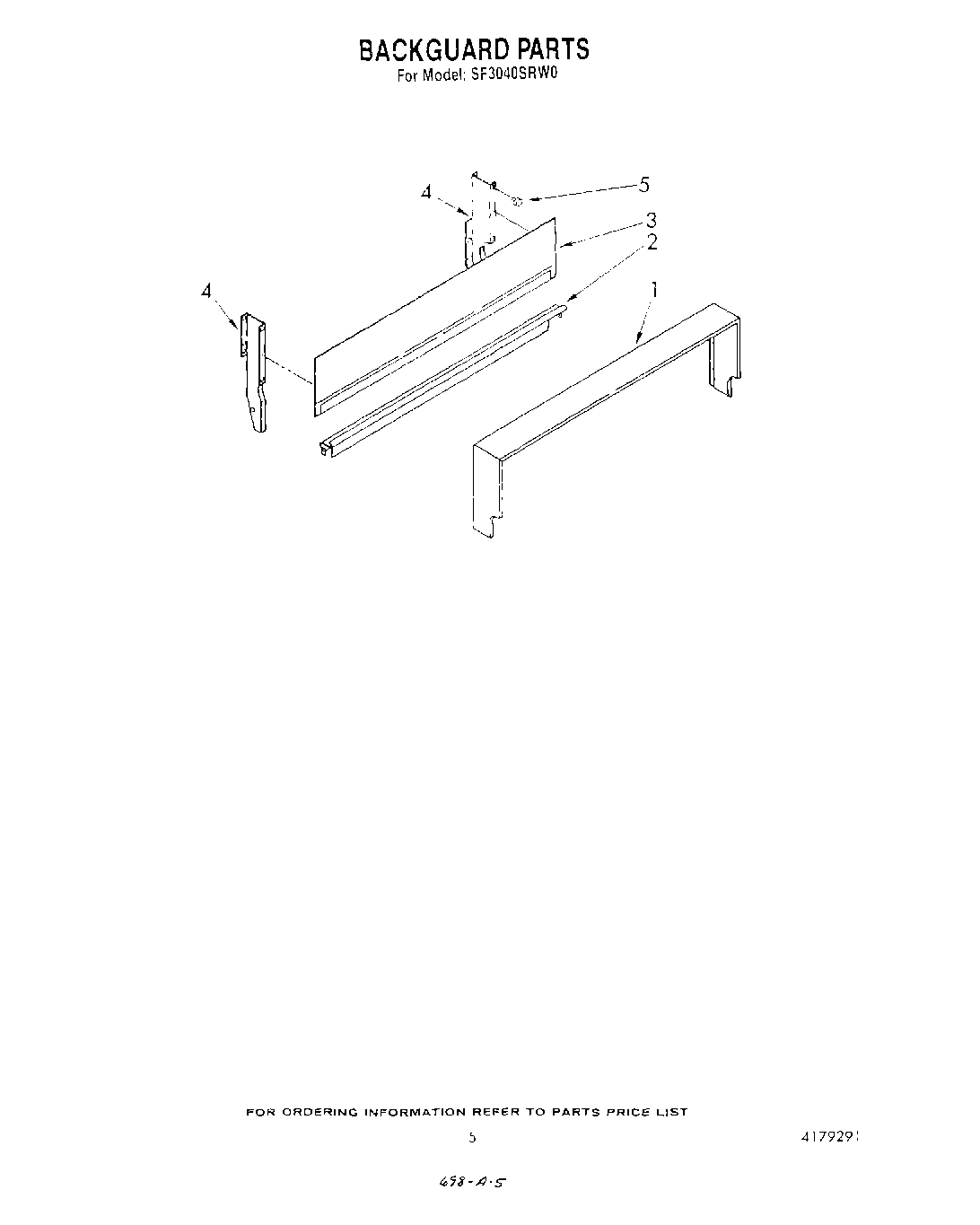

04 - BACKGUARD

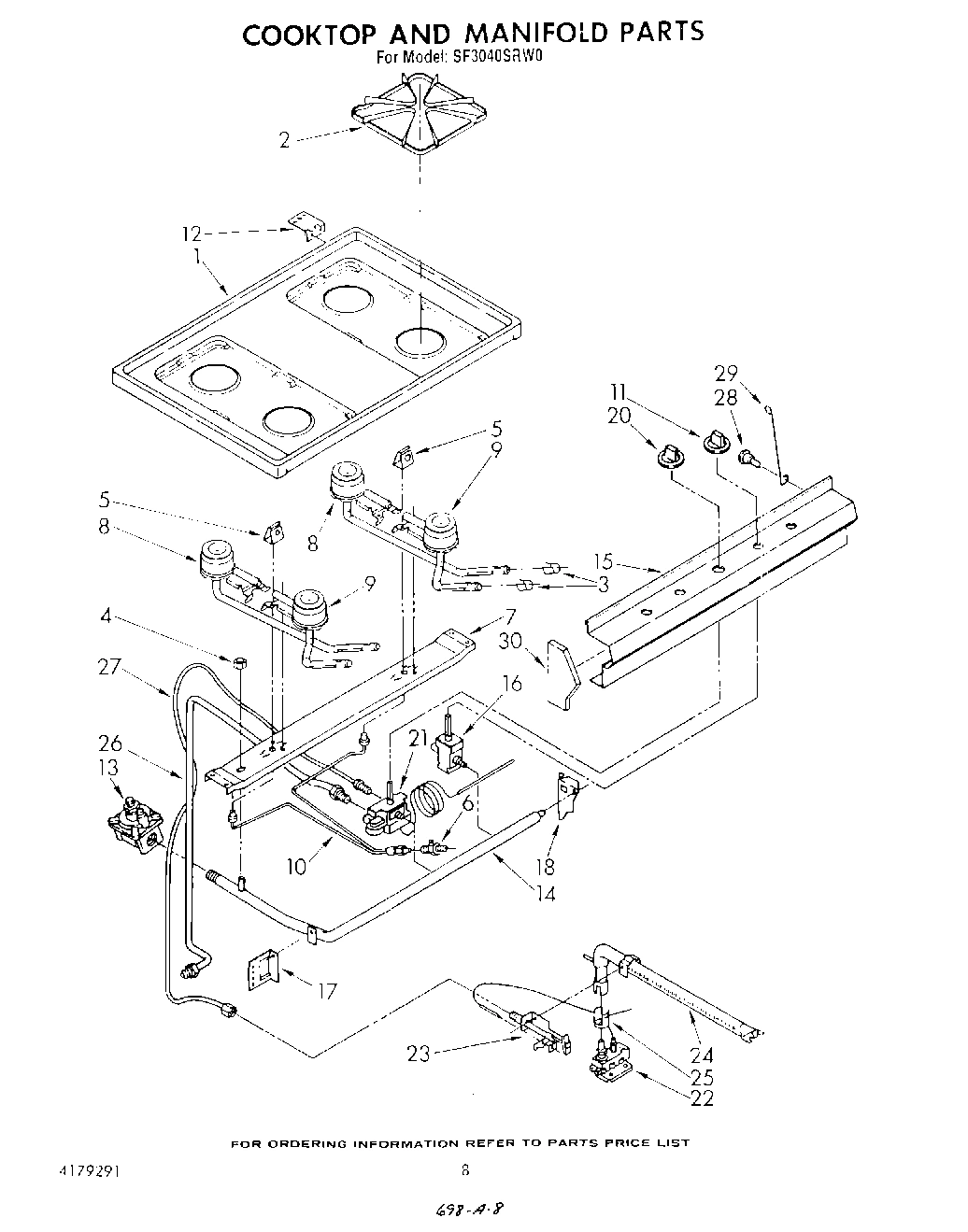

06 - COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL
Common parts from model Whirlpool SF3040SRW0 GAS RANGE
Sheet, Conversion WPL LIT4179269 Contact Us For Availability
List, Repair Parts WPL LIT4179291 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
Instuctions, Installation WPL LIT786735 Contact Us For Availability
Guide, Use & Care WPL LIT786767 Contact Us For Availability
1
Liner, door WPL 4157155 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4157001 Contact Us For Availability
1
Frame WPL 4179273 Contact Us For Availability
1
Cooktop (White) WPL 4157886 Contact Us For Availability
1
Cooktop (Almond) WPL 4157887 Contact Us For Availability
1
Cooktop (Harvest Gold) WPL 4179278 Contact Us For Availability
2
Frame, Front WPL 4157002 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Liner, Oven Top WPL 4157003 Contact Us For Availability
2
Bottom, Backugard WPL 4157150 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Panel, Door (White) WPL 4157152 Contact Us For Availability
3
Panel, Door (Almond) WPL 4157153 Contact Us For Availability
3
Panel, Door (Harvest Gold) WPL 4179287 Contact Us For Availability
3
Baffle, Bottom WPL 4157004 Contact Us For Availability
3
Glass WPL 4157151 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Track, Broiler (2) WPL 4157007 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157106 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157107 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Ring, Hold Down WPL 4157154 Contact Us For Availability
5
Roller (2) WPL 4157008 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Pin, Roller (2) WPL 4157009 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Liner, Oven Back WPL 4157016 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Panel, Rear WPL 4157015 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Burner Box WPL 4157017 Contact Us For Availability
10
Retainer, Roller (2) WPL 4157026 Contact Us For Availability
10
Tubing, Pilot WPL 4157081 Contact Us For Availability
11
Bottom, Oven WPL 4157101 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Panel, Broiler (White) WPL 4157039 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4157327 Contact Us For Availability
12
Panel, Broiler (Harvest Gold) WPL 4179286 Contact Us For Availability
12
Rack, Oven (2) WPL 4157102 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157024 Contact Us For Availability
13
Handle, Door (2) WPL 4157040 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Seal, Door (Top) WPL 4157025 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4157188 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Liner, Broiler Door WPL 4157042 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Panel, Manifold WPL 4157222 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Valve, 90~ (4) WPL 4157212 Contact Us For Availability
17
Track, Upper (2) WPL 4157044 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
18
Liner, Brolier WPL 4157172 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4157177 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid WPL 4157047 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat WPL 4157218 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Roller (2) WPL 4157050 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Pin, Roller (2) WPL 4157051 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/8`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
29
Rod, Support WPL 4157010 Contact Us For Availability
30
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
30
Endcap (L.H.) WPL 4157186 Contact Us For Availability
30
Endcap (R.H.) WPL 4157187 Contact Us For Availability
× ![]()
