Model Whirlpool SF302ESRW3 GAS RANGE – Common Parts & Diagrams

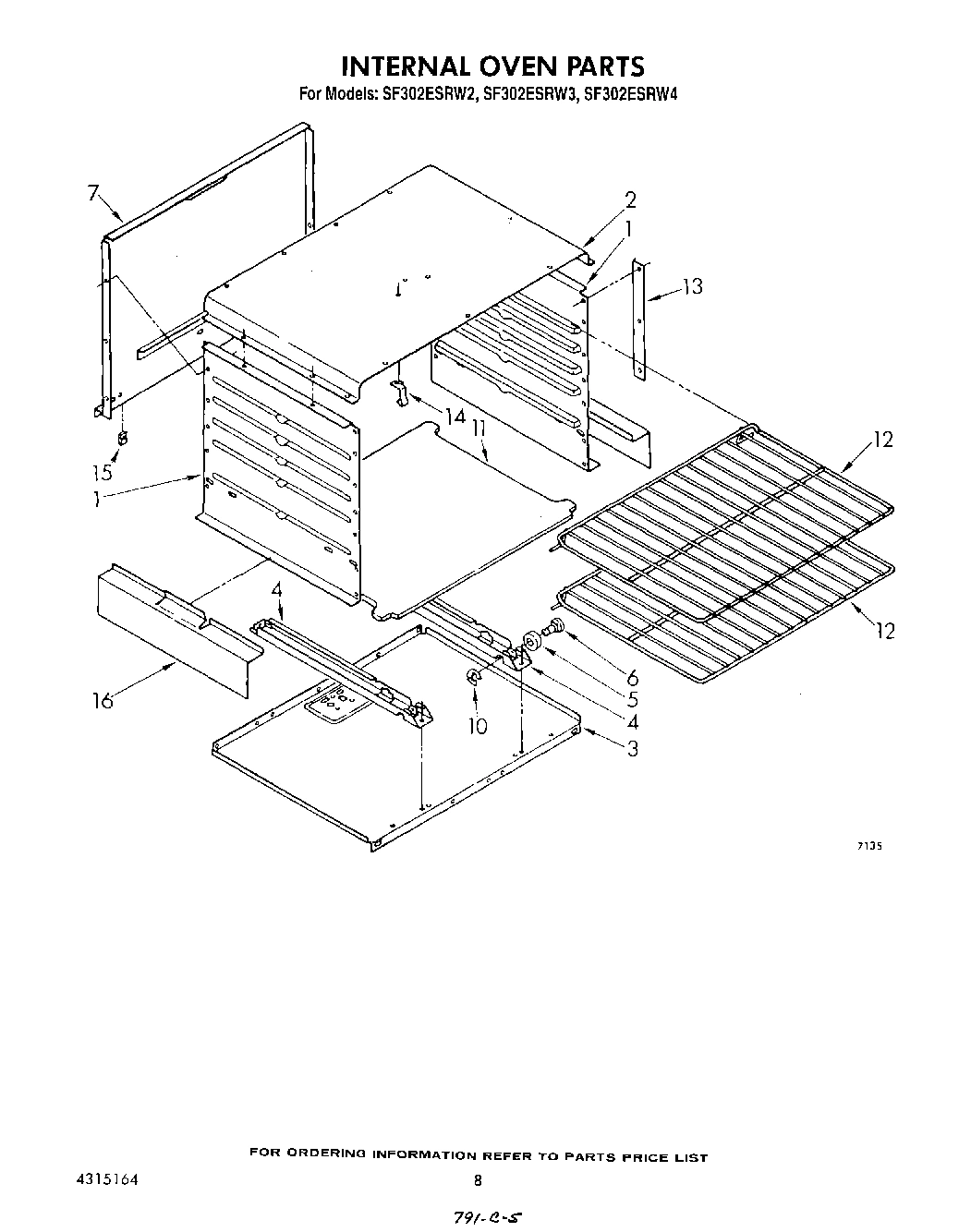

06 - INTERNAL OVEN

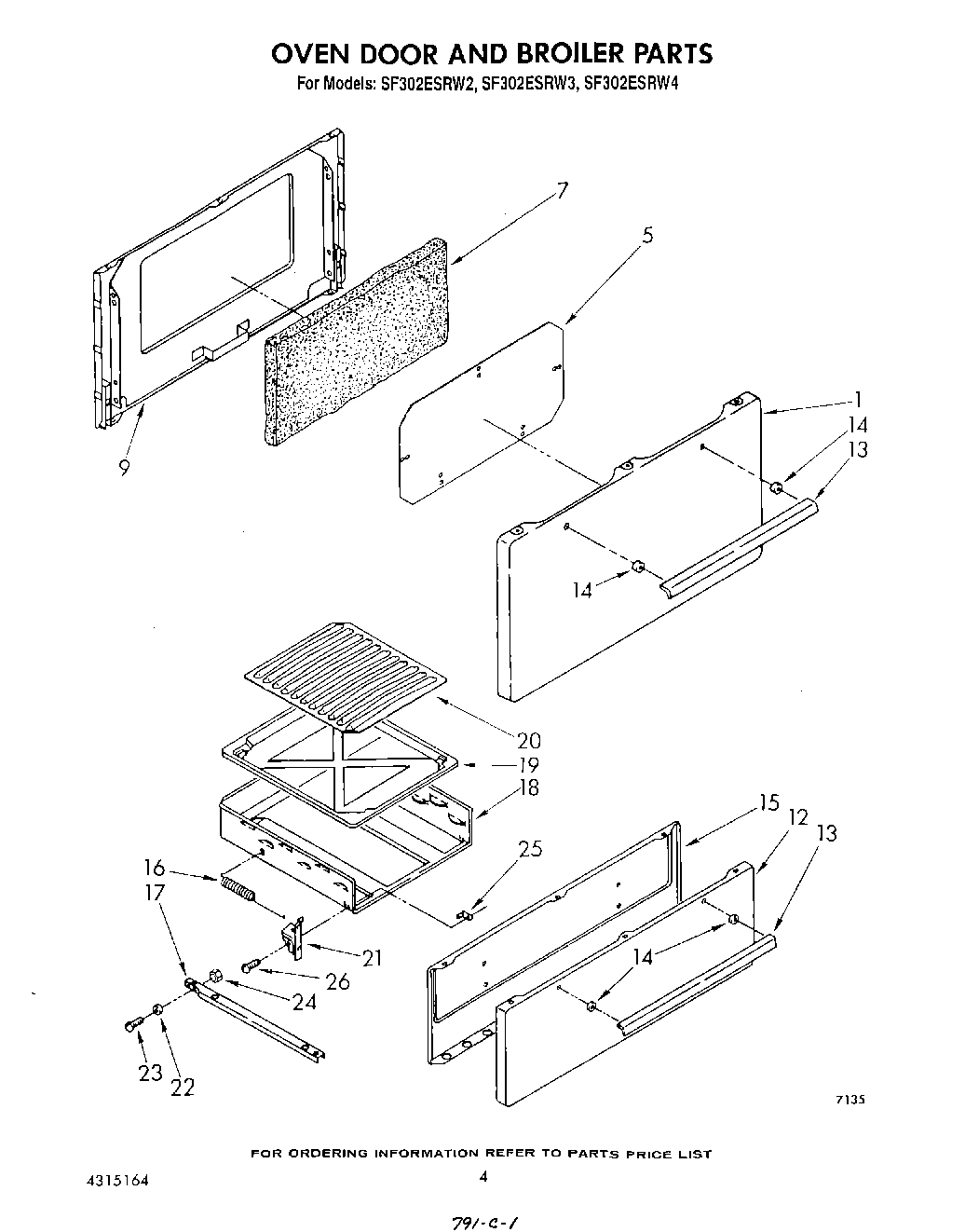

04 - OVEN DOOR AND BROILER

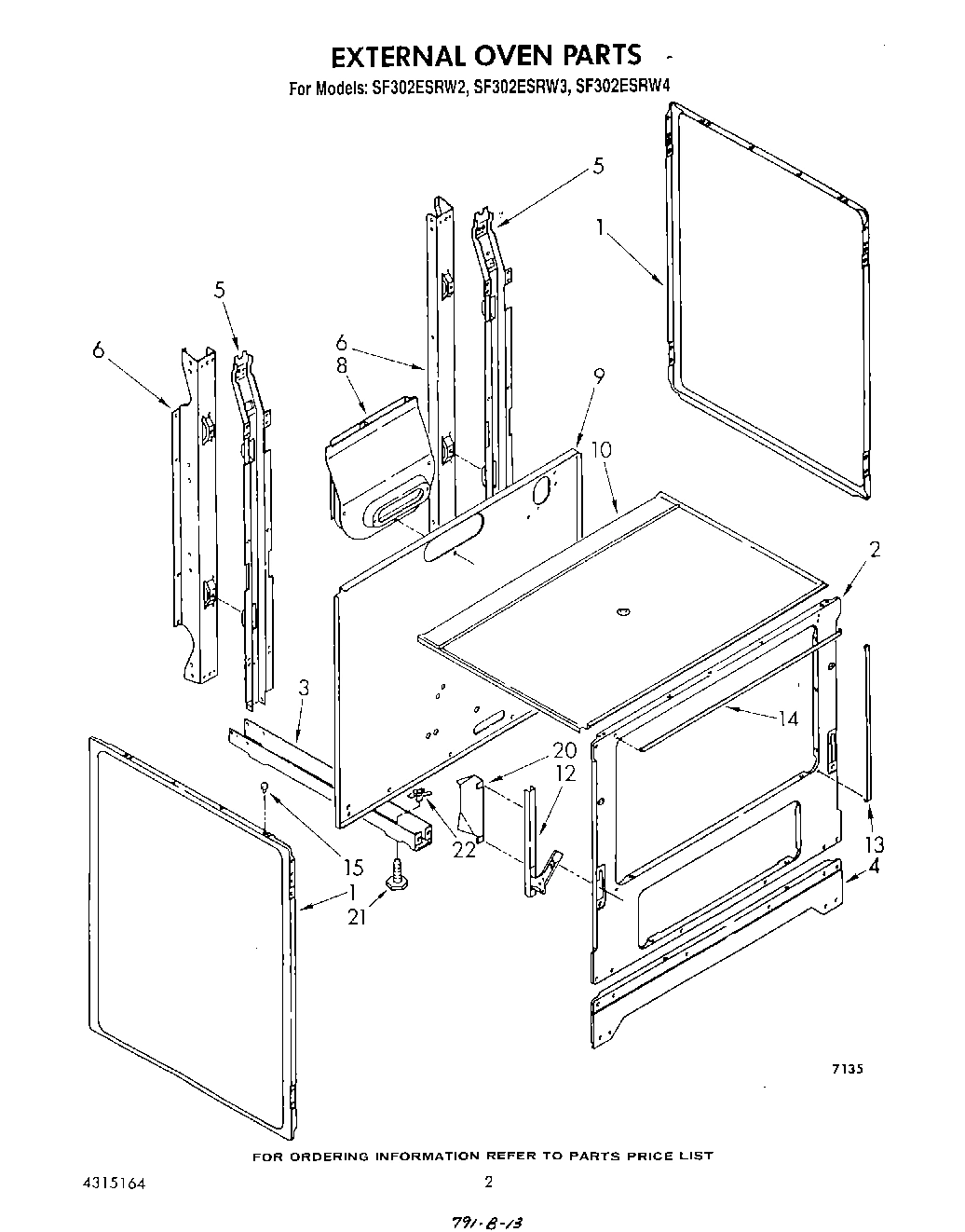

02 - EXTERNAL OVEN

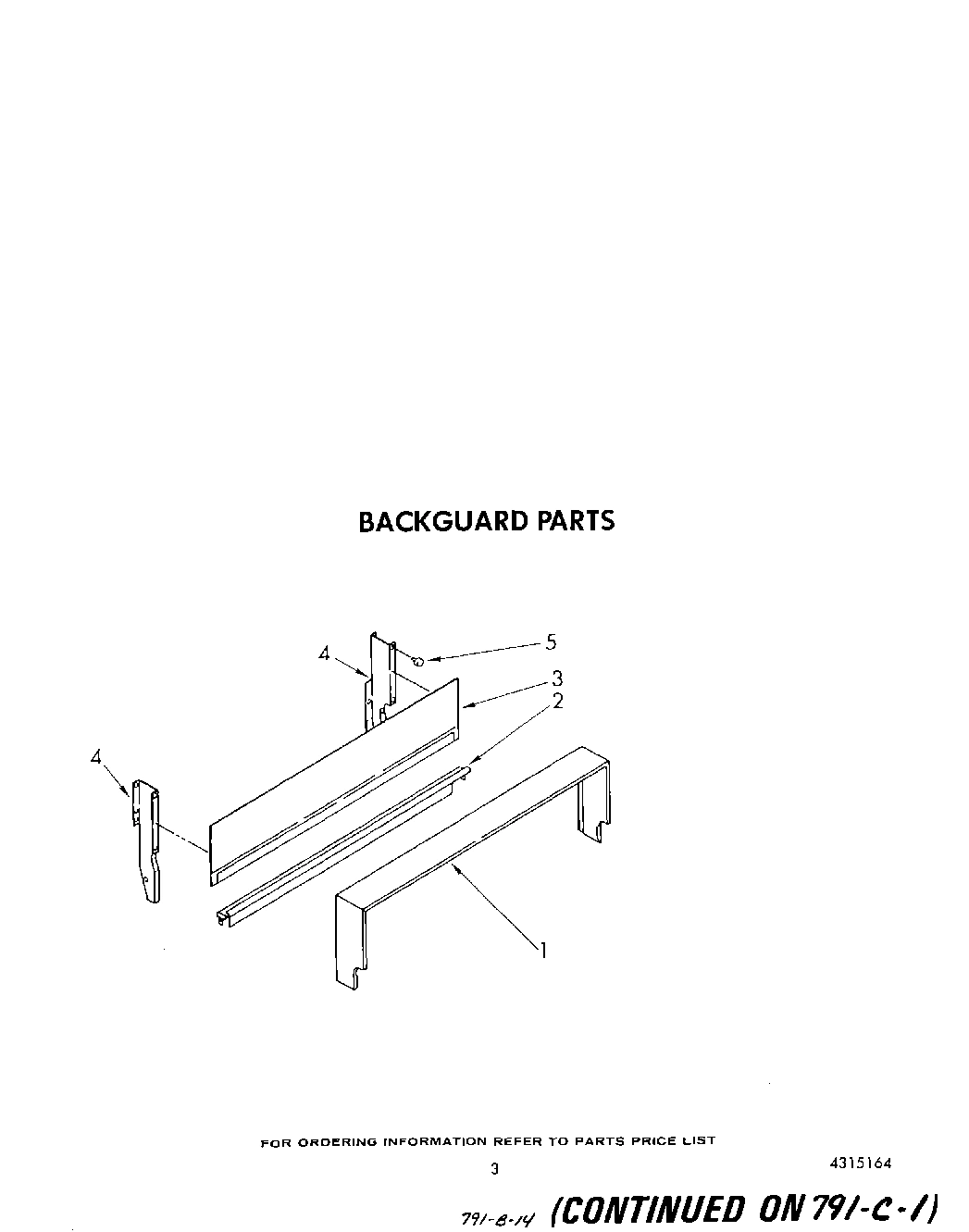

03 - BACK GUARD

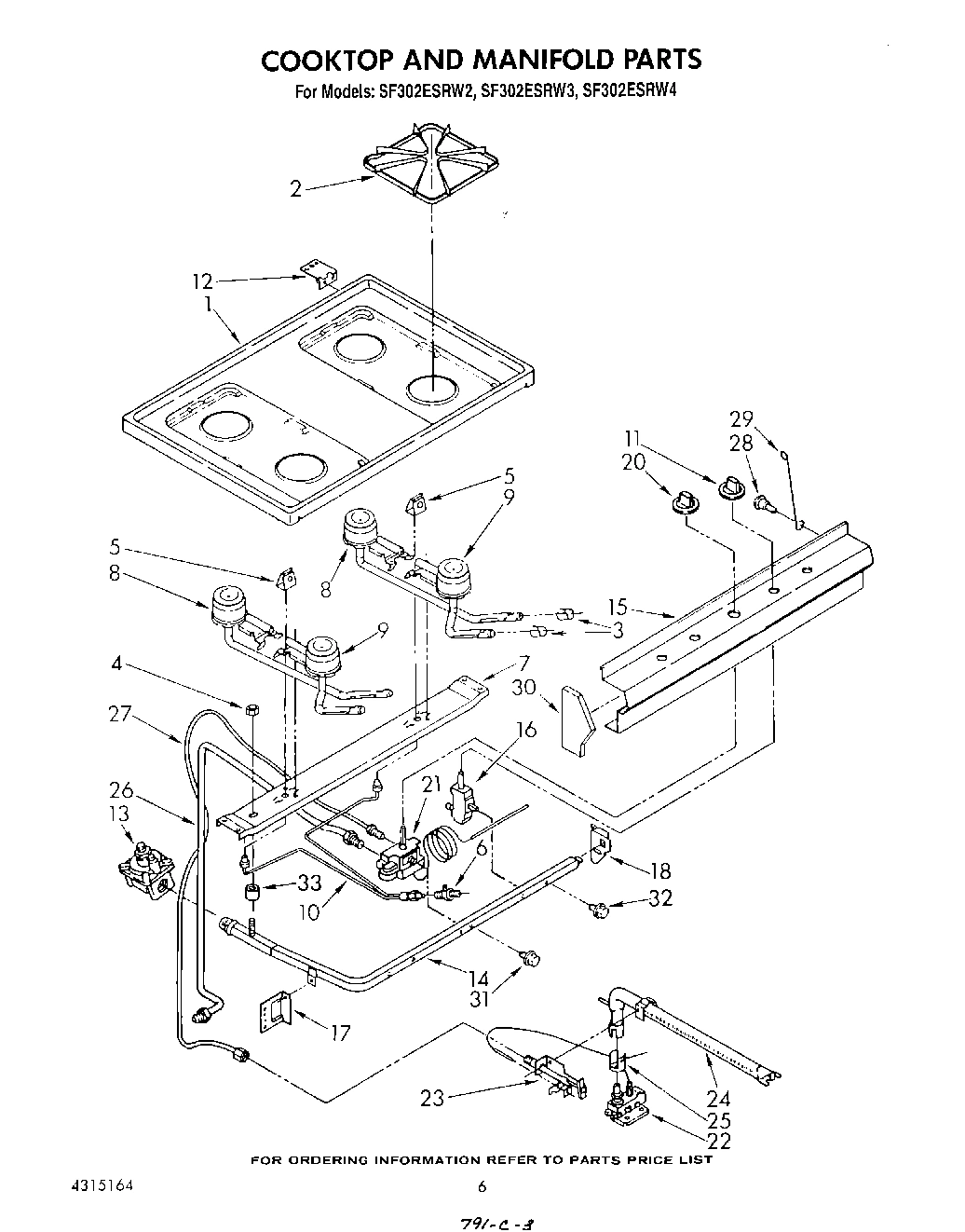

05 - COOKTOP AND MANIFOLD , LITERATURE A
Common parts from model Whirlpool SF302ESRW3 GAS RANGE
List, Repair Parts WPL LIT4315164 Contact Us For Availability
Gui WPL LIT786302 Contact Us For Availability
WPL LIT786735 WPL LIT786735 Contact Us For Availability
WPL LIT786767 WPL LIT786767 Contact Us For Availability
1
Panel, Door (White) WPL 4157152 Contact Us For Availability
1
Panel, Door (Almond) WPL 4157153 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Frame WPL 4179273 Contact Us For Availability
1
Cooktop (White) WPL 4157586 Contact Us For Availability
1
Cooktop (Almond) WPL 4157587 Contact Us For Availability
2
Frame, Front WPL 4315083 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Bottom, Backugard WPL 4157150 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Glass WPL 4179032 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Track, Broiler (2) WPL 4157007 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157106 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157107 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Roller (2) WPL 4157008 Contact Us For Availability
5
Ring, Hold Down WPL 4157154 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
6
Pin, Roller (2) WPL 4157009 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Liner, Door WPL 4315064 Contact Us For Availability
9
Panel, Rear WPL 4157015 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Retainer, Roller (2) WPL 4157026 Contact Us For Availability
10
Burner Box WPL 4315080 Contact Us For Availability
10
Tubing, Pilot WPL 4157081 Contact Us For Availability
11
Bottom, Oven WPL 4315071 Contact Us For Availability
12
Rack, Oven (2) WPL 4157102 Contact Us For Availability
12
Panel, Broiler (White) WPL 4157039 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4157327 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle, Broiler Door WPL 4157040 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157948 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Seal, Door (Top) WPL 4157025 Contact Us For Availability
14
Manifold WPL 4179355 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Panel, Manifold WPL 4314815 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 32) WPL 4314814 Contact Us For Availability
17
Track, Upper (2) WPL 4157044 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Thermostat (Includes Ill. No. 31) WPL 4314818 Contact Us For Availability
22
Roller (2) WPL 4157050 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Pin, Roller (2) WPL 4157051 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/8`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
29
Rod, Support WPL 4157010 Contact Us For Availability
30
Endcap (L.H.) WPL 4157186 Contact Us For Availability
30
Endcap (R.H.) WPL 4157187 Contact Us For Availability
31
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
32
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
33
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
33
Spacer, Manifold WPL 4315207 Contact Us For Availability
× ![]()
