Model Whirlpool SF302BSWW0 GAS RANGE – Common Parts & Diagrams
02 - EXTERNAL OVEN
03 - INTERNAL OVEN

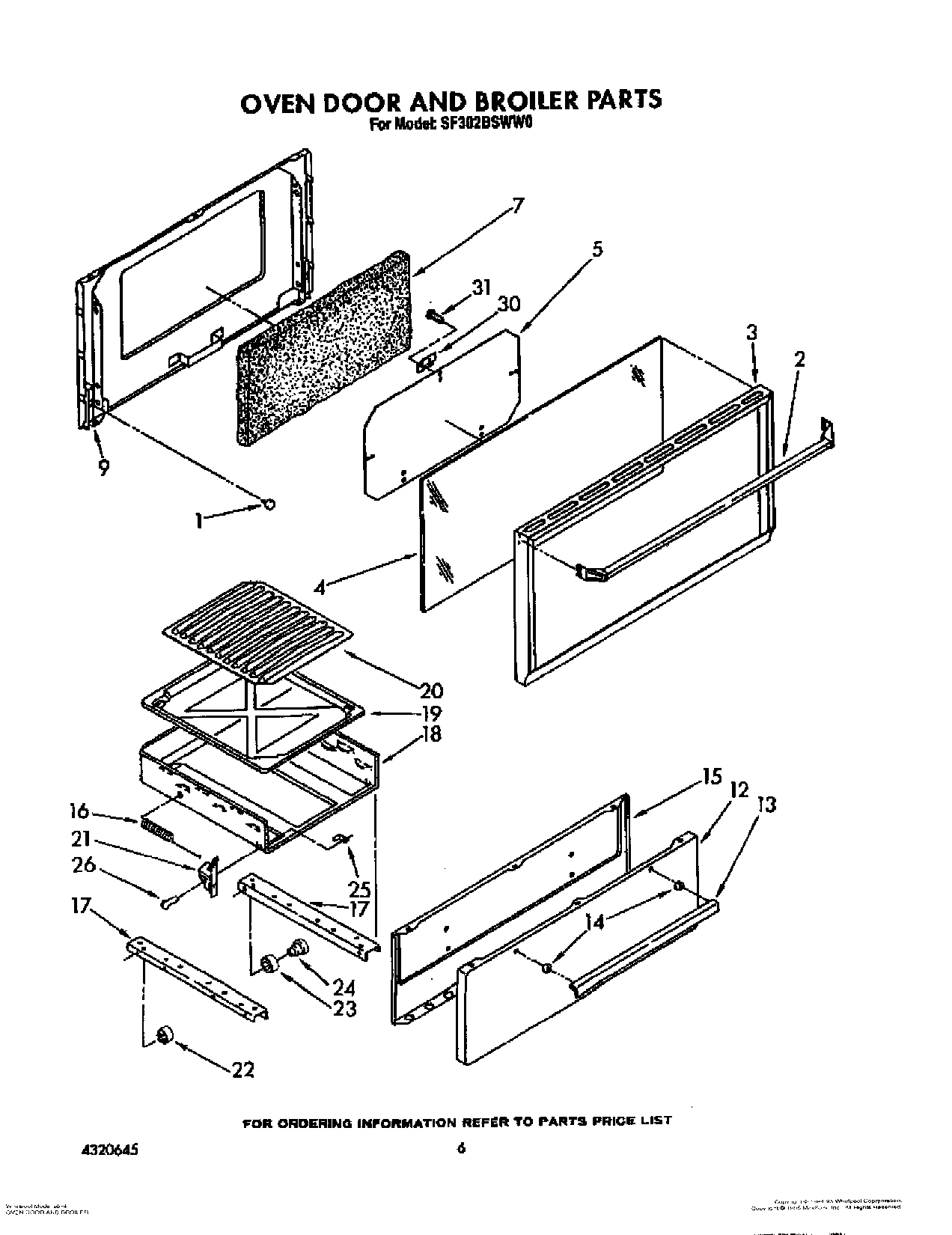

05 - OVEN DOOR AND BROILER

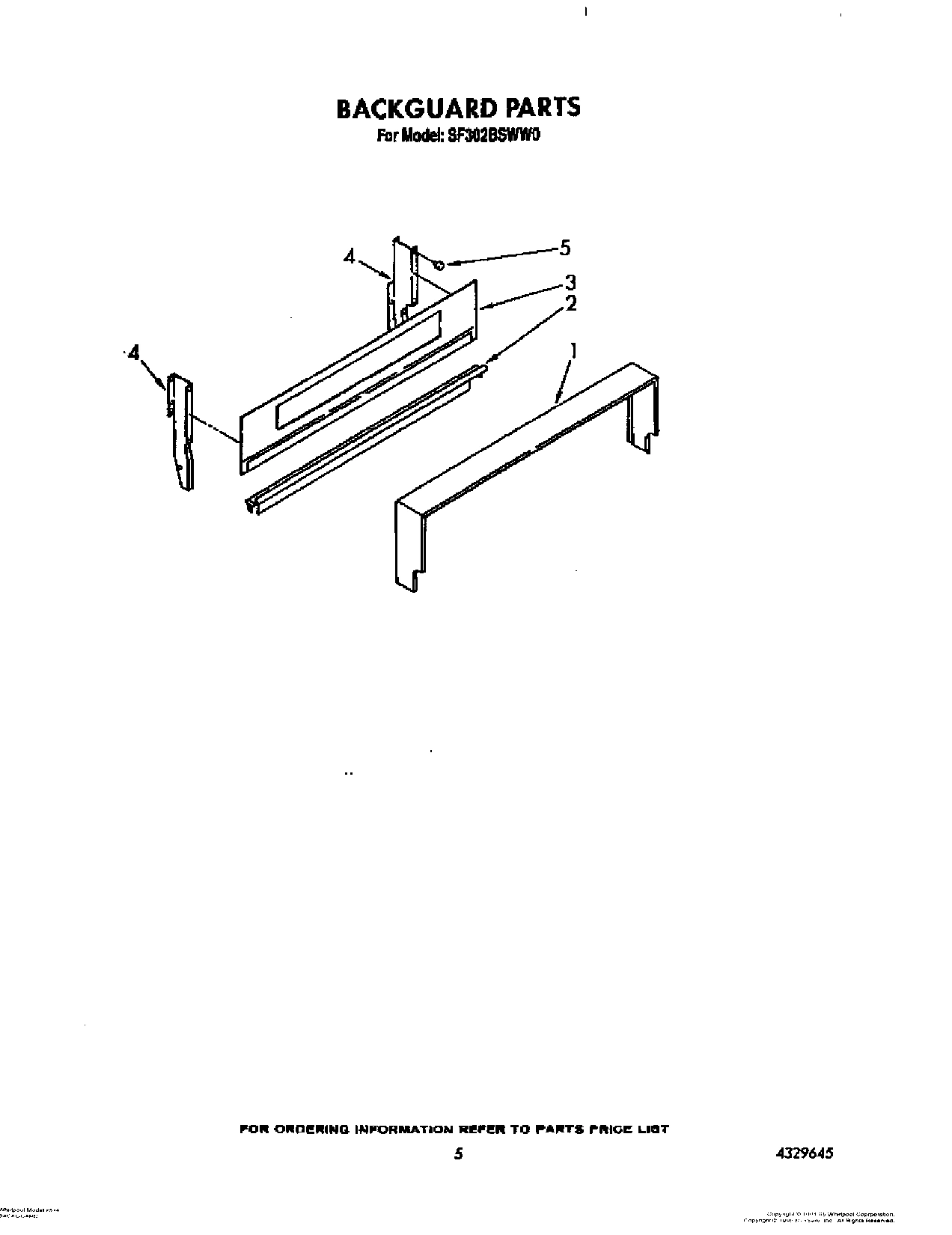

04 - BACKGUARD

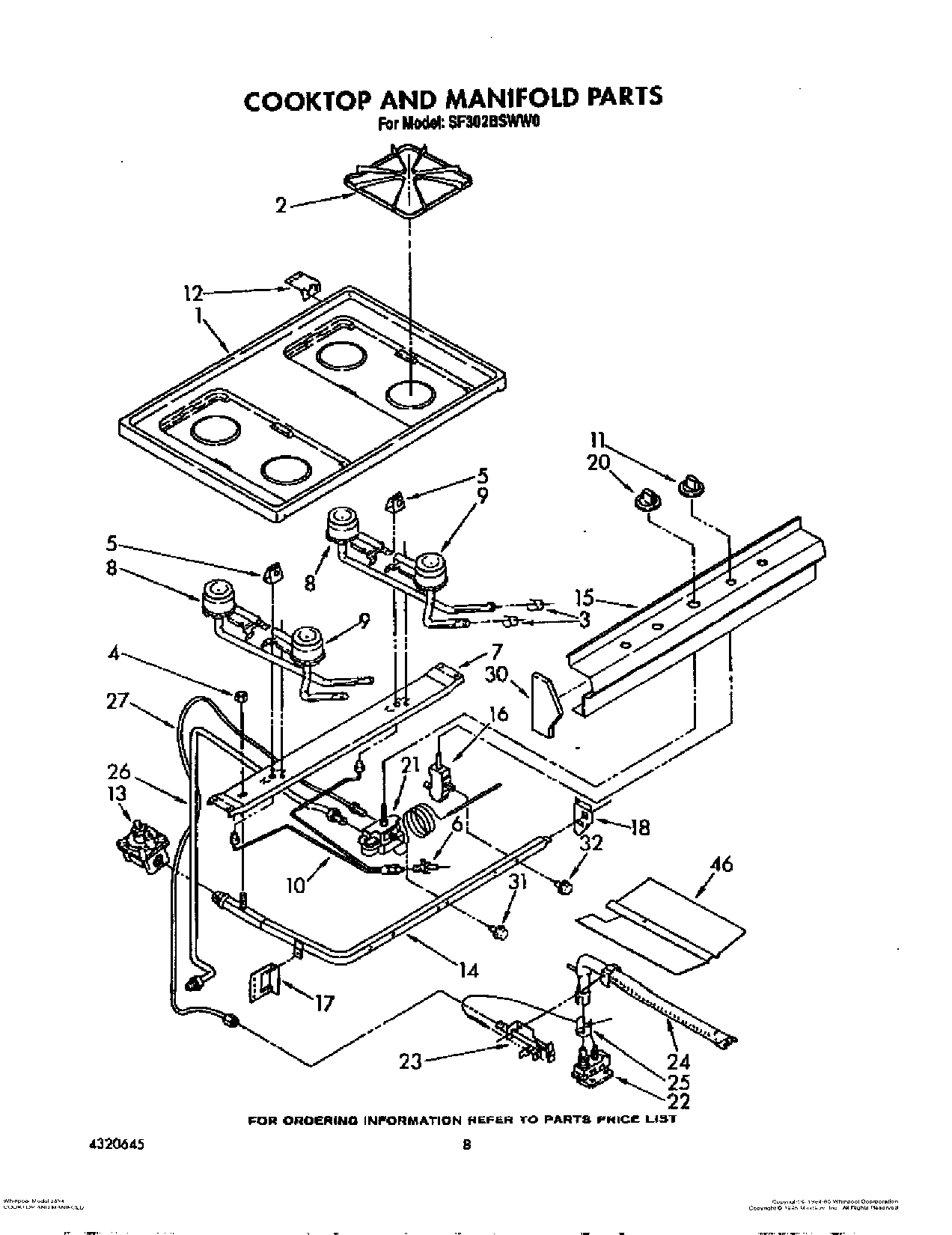

06 - COOKTOP AND MANIFOLD, LIT/OPTIONAL
Common parts from model Whirlpool SF302BSWW0 GAS RANGE
Guide, Cooking WPL LIT3149508 Contact Us For Availability
Instuctions, Installation WPL LIT4315709 Contact Us For Availability
List, Repair Parts WPL LIT4320645 Contact Us For Availability
Guide, Use & Care WPL LIT786767 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
1
Frame WPL 4320574 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Bottom, Backguard WPL 4315482 Contact Us For Availability
2
Screw, 10-12 X 1/2 (2) WPL 4320575 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Frame, Door WPL 4320578 Contact Us For Availability
3
Glass WPL 4320576 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 8-18 x 1/2 (Black) WPL 4315330 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Glass WPL 4320405 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157106 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157107 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4320577 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Ring, Hold Down WPL 4320352 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
8
Flue, Box WPL 5157014 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
Liner, Door WPL 4320562 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Burner Box WPL 4320411 Contact Us For Availability
10
Tubing, Pilot WPL 4157081 Contact Us For Availability
11
Bottom, Oven WPL 4320462 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
12
Rack, Oven (2) WPL 4315754 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320457 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320458 Contact Us For Availability
12
Screw, 10-12 X 3/8 (4) WPL 4157121 Contact Us For Availability
12
Bracket, Cooktop (2) WPL 4314910 Contact Us For Availability
13
Seal, Door WPL 4320463 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4320579 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4320642 Contact Us For Availability
15
Bumper, (2) WPL 4315408 Contact Us For Availability
15
Screw, 6-20 x 1 WPL 4315409 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
15
Panel, Manifold WPL 4320643 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 32) WPL 4314814 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Knob, Thermostat WPL 4320644 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat (Includes Ill. No. 31) WPL 4314818 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
24
Burner Extension Box WPL 4320479 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
30
Bracket WPL 4320536 Contact Us For Availability
30
Endcap (L.H.) WPL 4320602 Contact Us For Availability
30
Endcap (R.H.) WPL 4320603 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
31
Bumper WPL 4320477 Contact Us For Availability
31
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
32
Anchor (2) WPL 4315789 Contact Us For Availability
32
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
33
Bracket WPL 4315792 Contact Us For Availability
34
Screw (2) WPL 4320348 Contact Us For Availability
46
Flame Spreader WPL 4320440 Contact Us For Availability
× ![]()
