Model Whirlpool SF3020EWW3 GAS RANGE – Common Parts & Diagrams
04 - COOKTOP AND MANIFOLD, LIT/OPTIONAL
05 - INTERNAL

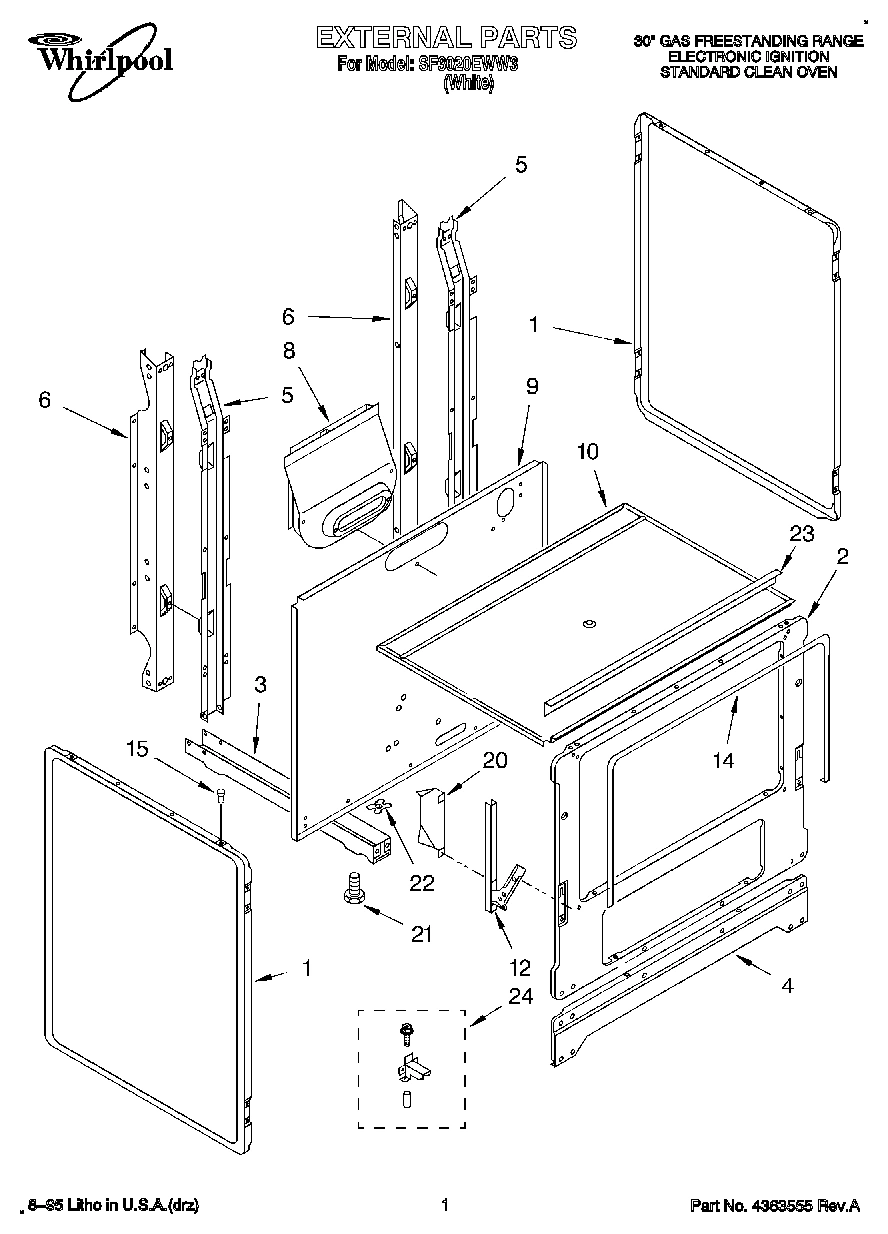

01 - EXTERNAL
03 - BACKGUARD

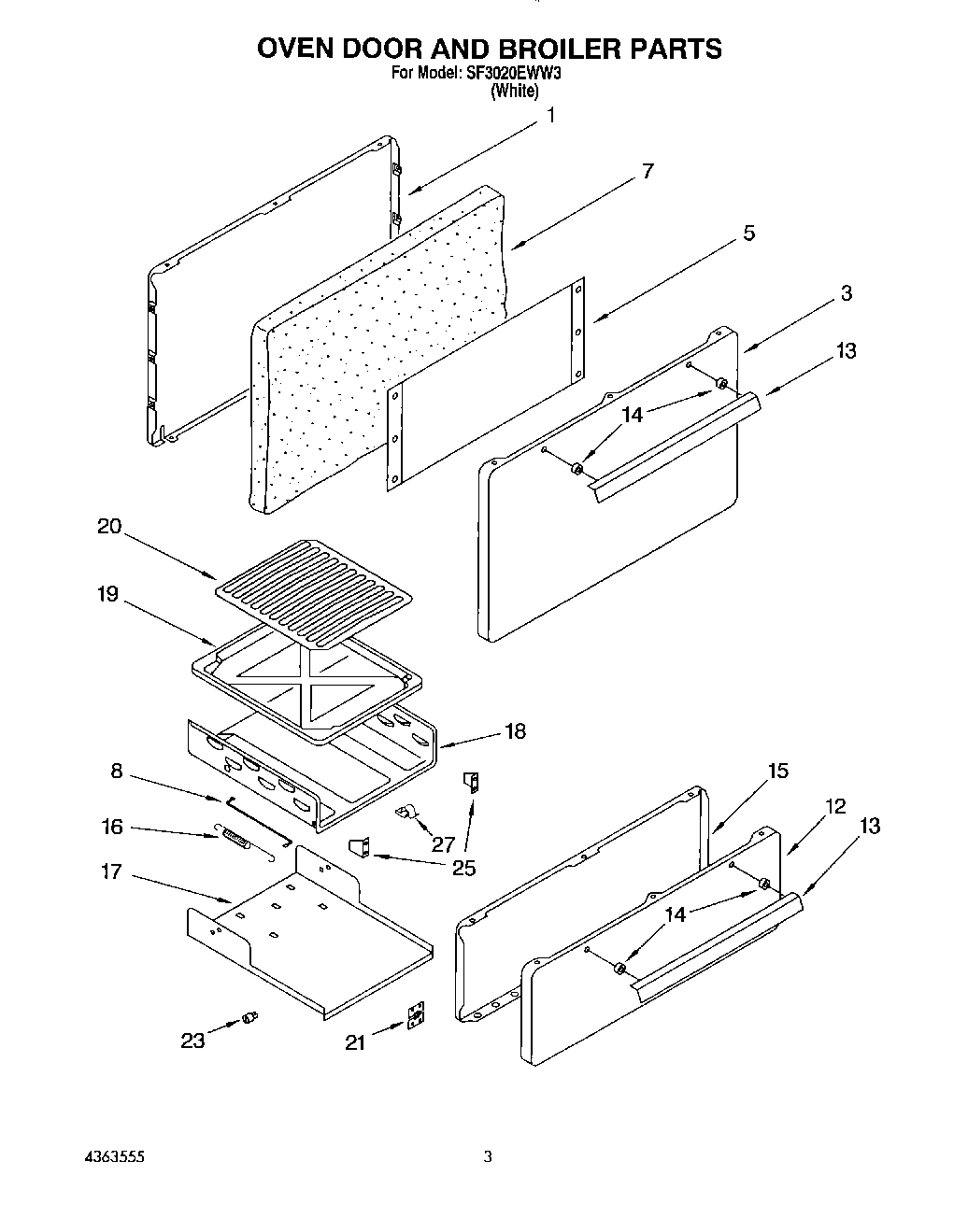

02 - OVEN DOOR AND BROILER
Common parts from model Whirlpool SF3020EWW3 GAS RANGE
Guide, Cooking WPL LIT4363518 Contact Us For Availability
1
Cooktop (Nut) WPL 4157115 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
1
Screw WPL 4320662 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4363024 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4363025 Contact Us For Availability
1
Screw, WPL 4157121 Contact Us For Availability
1
Frame WPL 4320574 Contact Us For Availability
1
Liner, Door WPL 4363515 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
2
Bottom, Backguard WPL 4363187 Contact Us For Availability
2
Screw WPL 4363234 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
3
Glass WPL 4320756 Contact Us For Availability
3
Panel, Door (White) WPL 4320785 Contact Us For Availability
3
Panel, Door (Almond) WPL 4320786 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4364032 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4364033 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4364001 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4364002 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw WPL 4320661 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Baffle, Oven Door WPL 4363287 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Clamp, Cord WPL 4157221 Contact Us For Availability
7
Support, Burner WPL 4320798 Contact Us For Availability
7
Liner, Oven Back WPL 4157016 Contact Us For Availability
7
Insulation WPL 4363236 Contact Us For Availability
7
Screw WPL 4363237 Contact Us For Availability
8
Burner, Rear (2) WPL 4363108 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
8
Rod, Push-Pull WPL 4363047 Contact Us For Availability
9
Burner, Front (2) WPL 4363107 Contact Us For Availability
9
Panel, Rear WPL 4363085 Contact Us For Availability
10
Burner Box WPL 4363416 Contact Us For Availability
11
Bottom, Oven WPL 4363242 Contact Us For Availability
12
Panel, Broiler (Screw) WPL 4320742 Contact Us For Availability
12
Screw WPL 4320567 Contact Us For Availability
12
Rack, Oven (2) WPL 4320804 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320807 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320816 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle, Door (2) WPL 4157040 Contact Us For Availability
14
Manifold WPL 4363546 Contact Us For Availability
14
Seal, Door WPL 4320463 Contact Us For Availability
14
Screw WPL 4320579 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
15
Screw WPL 4314933 Contact Us For Availability
15
Panel, Manifold WPL 4363544 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper WPL 4157027 Contact Us For Availability
15
Liner, Broiler Door WPL 4321171 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 32) WPL 4314814 Contact Us For Availability
16
Shield, Radiation WPL 4363006 Contact Us For Availability
16
Spring (2) WPL 4363233 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
17
Carriage Broiler WPL 4362896 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
18
Drawer, Broiler WPL 4315520 Contact Us For Availability
19
Relief, Strain WPL 4157185 Contact Us For Availability
20
Knob, Thermostat WPL 4320644 Contact Us For Availability
20
Shield, Insulation WPL 4157876 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
21
Thermostat (Includes Ill. No. 31) WPL 4179354 Contact Us For Availability
21
Leg, Leveler WPL 4363195 Contact Us For Availability
21
Hinge, Door WPL 4363046 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Nut WPL 4157332 Contact Us For Availability
23
Screw WPL 4320604 Contact Us For Availability
23
Pilot WPL 4363115 Contact Us For Availability
23
Extension Burner Box WPL 4320479 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
24
Anti-Tip Kit WPL 4363057 Contact Us For Availability
25
Bracket WPL 4363048 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
27
Clip, Broiler WPL 4157959 Contact Us For Availability
30
Endcap (L.H.) WPL 4320602 Contact Us For Availability
30
Endcap (R.H.) WPL 4320603 Contact Us For Availability
30
Endcap (Screw) WPL 4320799 Contact Us For Availability
31
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
32
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
33
Ignitor (Screw) WPL 4320431 Contact Us For Availability
33
Ignitor (R.H.) WPL 4157694 Contact Us For Availability
33
Ignitor (L.H.) WPL 4157695 Contact Us For Availability
34
Spreader, Flame WPL 4320440 Contact Us For Availability
35
Cover, Spark Module WPL 4363559 Contact Us For Availability
36
Screw WPL 4315330 Contact Us For Availability
36
Module, Spark WPL 4363560 Contact Us For Availability
39
Tie, Wire WPL 4315726 Contact Us For Availability
39
Ignitor, Oven WPL 4363119 Contact Us For Availability
39
Harness, Wiring WPL 4363345 Contact Us For Availability
× ![]()
