Model Whirlpool SF3020ERW0 GAS RANGE – Common Parts & Diagrams
02 - EXTERNAL OVEN
05 - OVEN DOOR AND BROILER

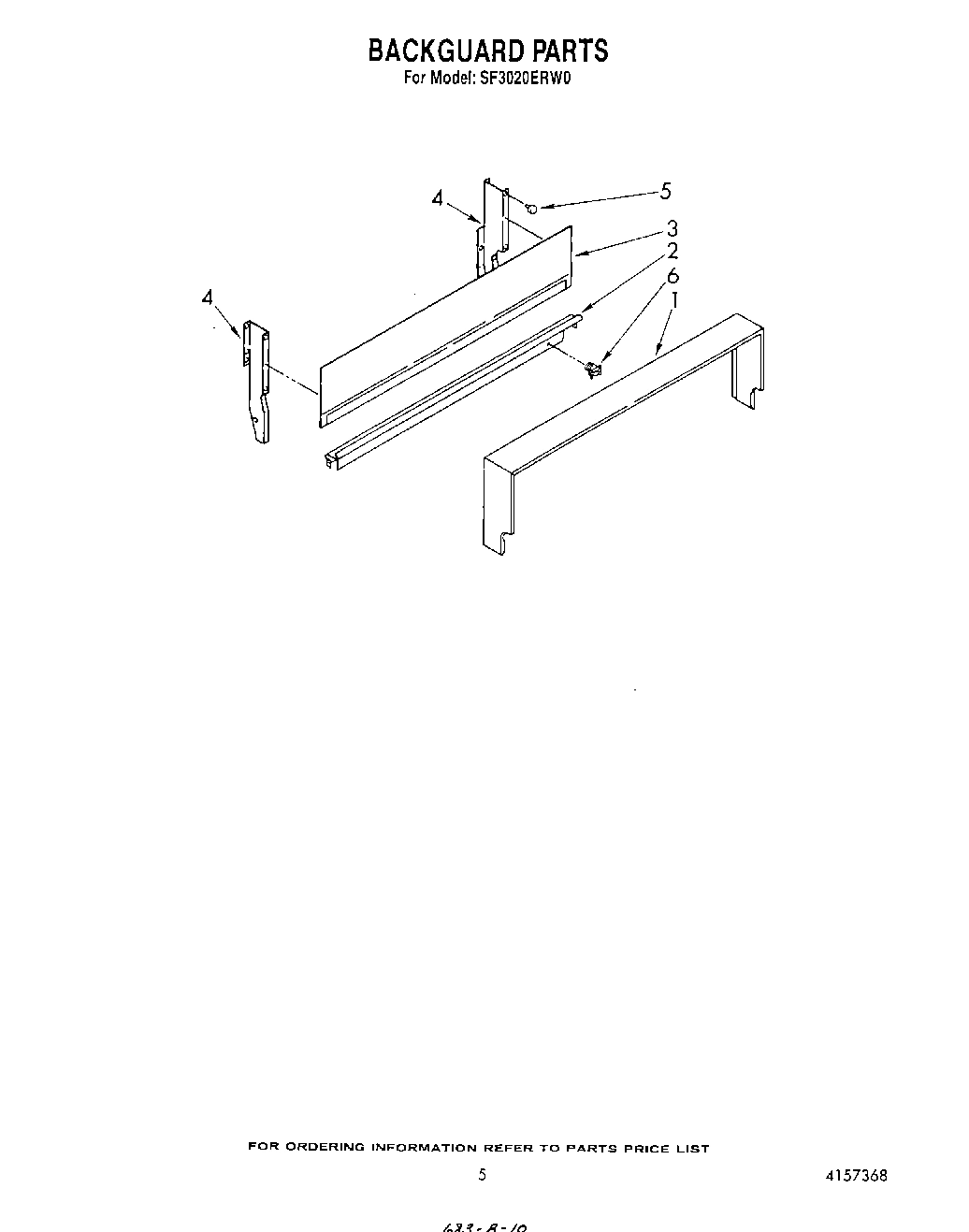

04 - BACKGUARD

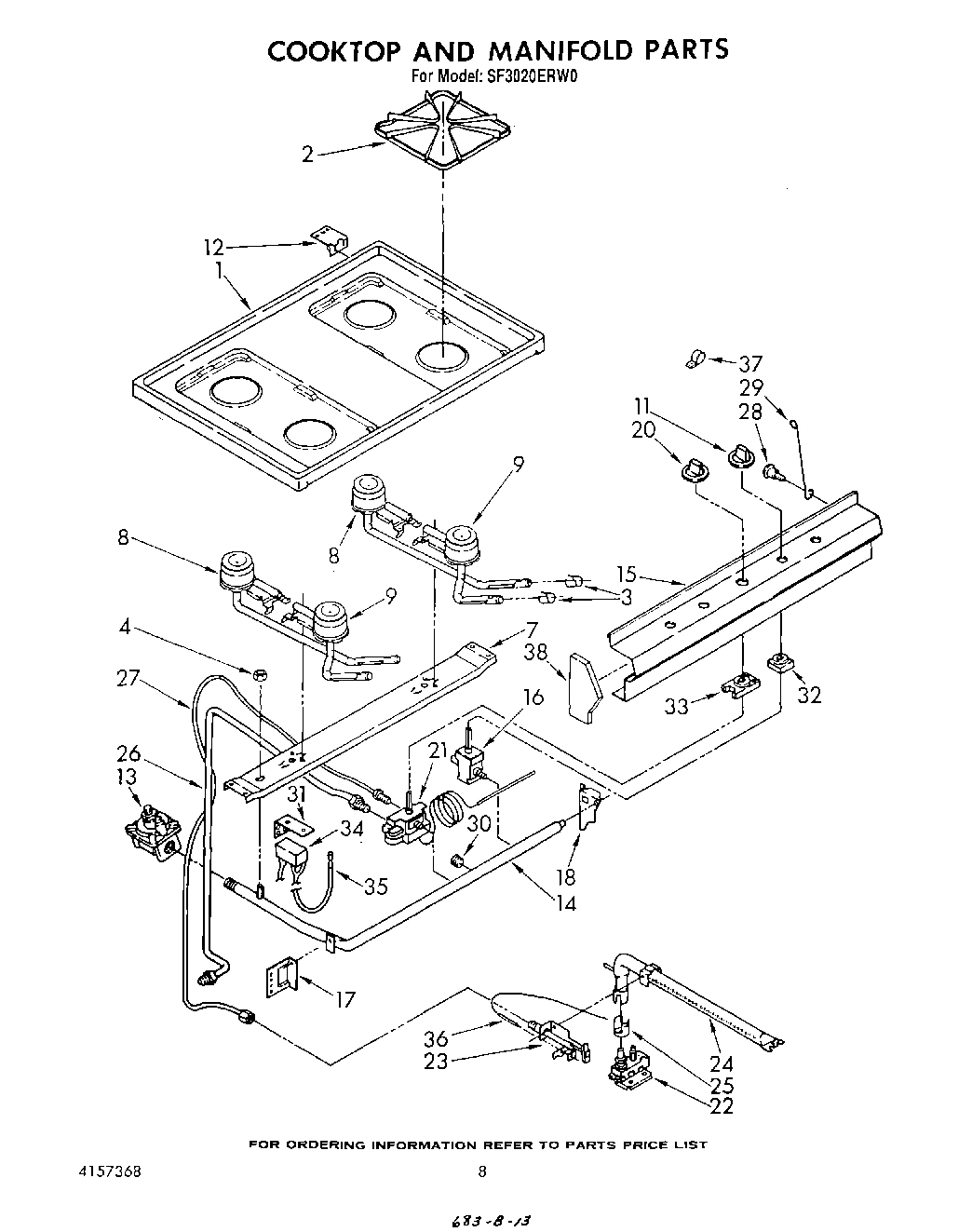

06 - COOK TOP AND MANIFOLD , LITERATURE

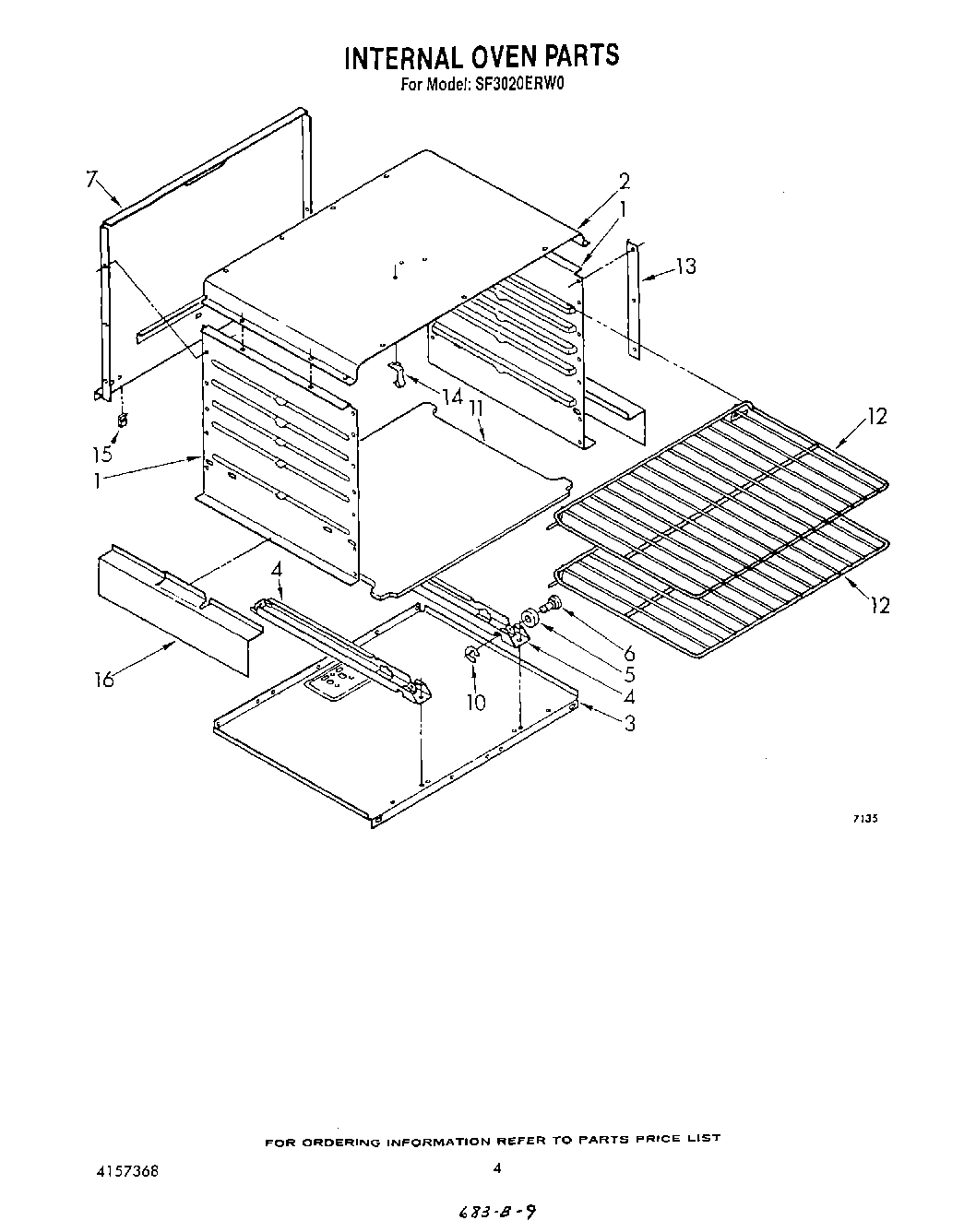

03 - INTERNAL OVEN
Common parts from model Whirlpool SF3020ERW0 GAS RANGE
1
Liner, door WPL 4157155 Contact Us For Availability
1
Frame WPL 4157103 Contact Us For Availability
1
Cooktop (White) WPL 4157173 Contact Us For Availability
1
Cooktop (Almond) WPL 4157174 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4157001 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Bottom, Backguard WPL 4157104 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Liner, Oven Top WPL 4157003 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Panel, Door (White) WPL 4157152 Contact Us For Availability
3
Panel, Door (Almond) WPL 4157153 Contact Us For Availability
3
Glass WPL 4157151 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Baffle, Bottom WPL 4157004 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157106 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157107 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Track, Broiler (2) WPL 4157007 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Ring, Hold Down WPL 4157154 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Roller (2) WPL 4157008 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Strain Relief WPL 4157221 Contact Us For Availability
6
Pin, Roller (2) WPL 4157009 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
7
Liner, Oven Back WPL 4157016 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Panel, Rear WPL 4157015 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Burner Box WPL 4157017 Contact Us For Availability
10
Retainer, Roller (2) WPL 4157026 Contact Us For Availability
11
Bottom, Oven WPL 4157101 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Panel, Broiler (White) WPL 4157039 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4157327 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Rack, Oven (2) WPL 4157102 Contact Us For Availability
13
Handle, Door (2) WPL 4157023 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157024 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
14
Seal, Door (Top) WPL 4157025 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4157188 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Liner, Broiler Door WPL 4157042 Contact Us For Availability
15
Panel, Manifold WPL 4157222 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 90~ (4) WPL 4157212 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Track, Upper (2) WPL 4157044 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
18
Block, Disconnect WPL 4157220 Contact Us For Availability
18
Liner, Brolier WPL 4157172 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4157177 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid WPL 4157047 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat WPL 4157211 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Roller (2) WPL 4157050 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Pin, Roller (2) WPL 4157051 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
24
Burner, Oven WPL 4157096 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/8`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
29
Rod, Support WPL 4157010 Contact Us For Availability
31
Plate, Module WPL 4157171 Contact Us For Availability
34
Module, Spark WPL 4157181 Contact Us For Availability
35
Ignitor (R.H.) WPL 4157182 Contact Us For Availability
35
Ignitor (L.H.) WPL 4157183 Contact Us For Availability
36
Ignitor, Oven WPL 4157184 Contact Us For Availability
37
Strain Relief WPL 4157185 Contact Us For Availability
38
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
38
Endcap (L.H.) WPL 4157186 Contact Us For Availability
38
Endcap (R.H.) WPL 4157187 Contact Us For Availability
38
List, Repair Parts WPL LIT4157368 Contact Us For Availability
38
Guide, WPL LIT786302 Contact Us For Availability
38
WPL LIT786735 WPL LIT786735 Contact Us For Availability
38
WPL LIT786767 WPL LIT786767 Contact Us For Availability
× ![]()
