Model Whirlpool SF301BSRW0 GAS RANGE – Common Parts & Diagrams
06 - INTERNAL OVEN
04 - BACKGUARD

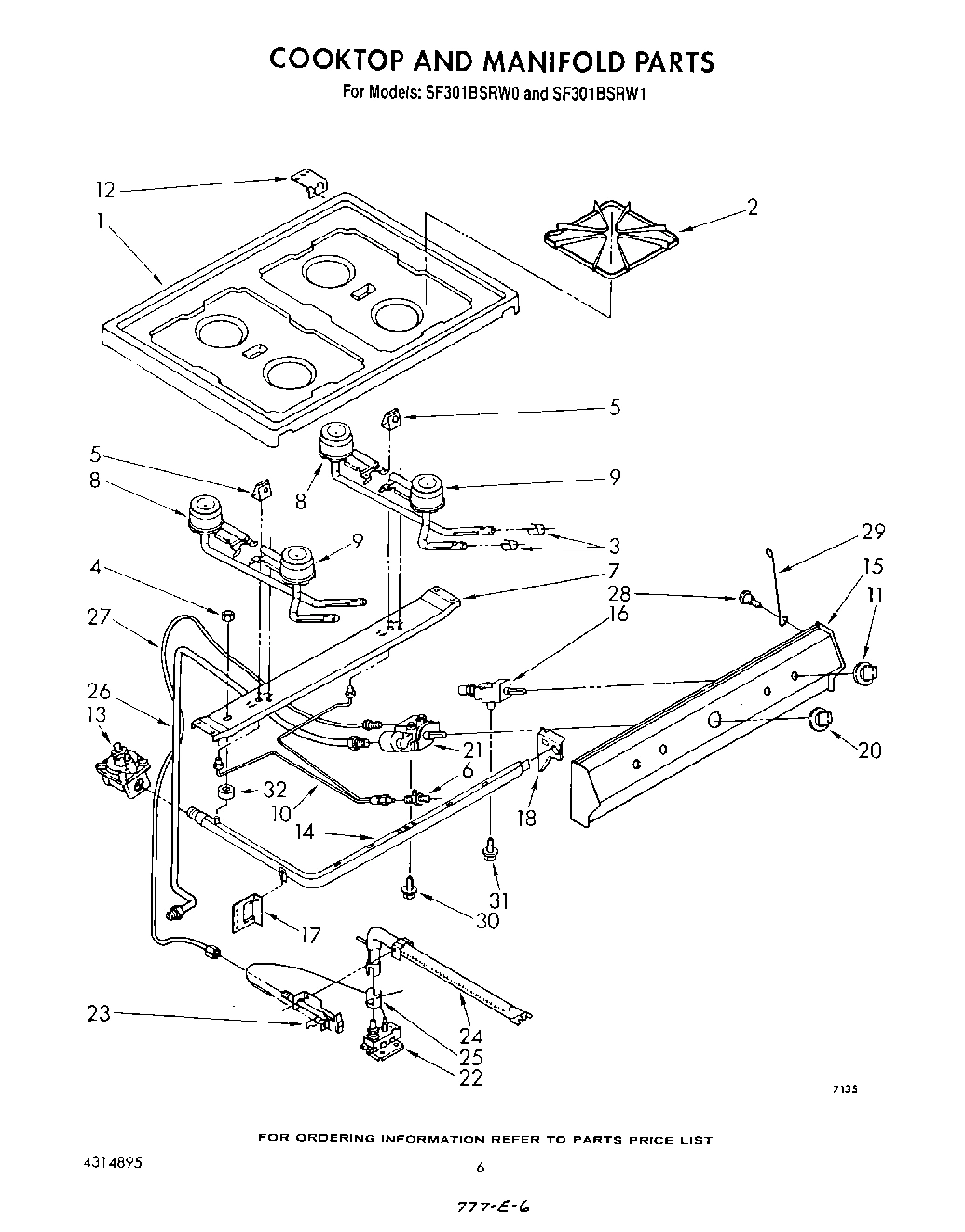

05 - COOK TOP AND MANIFOLD , LITERATURE

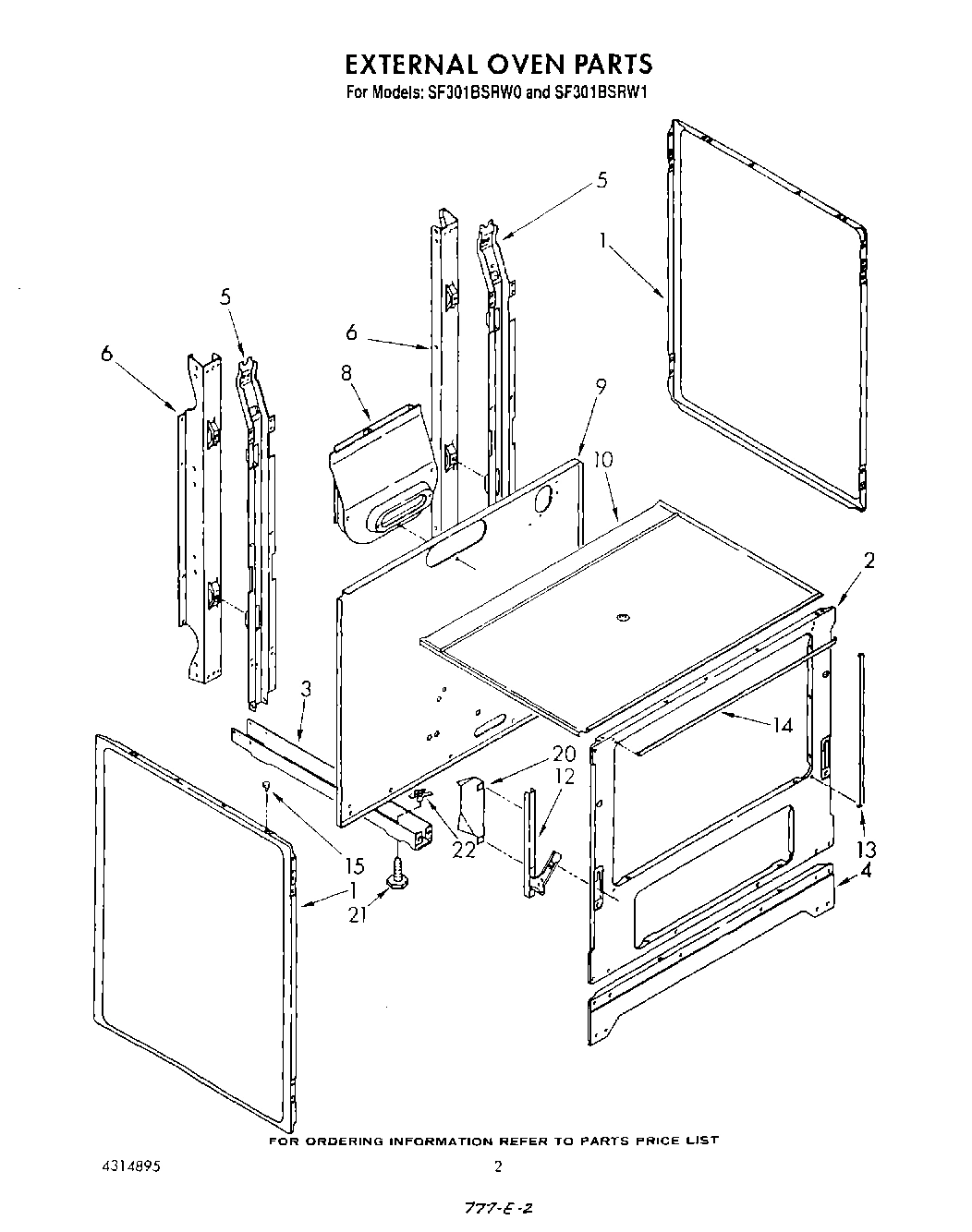

02 - EXTERNAL OVEN

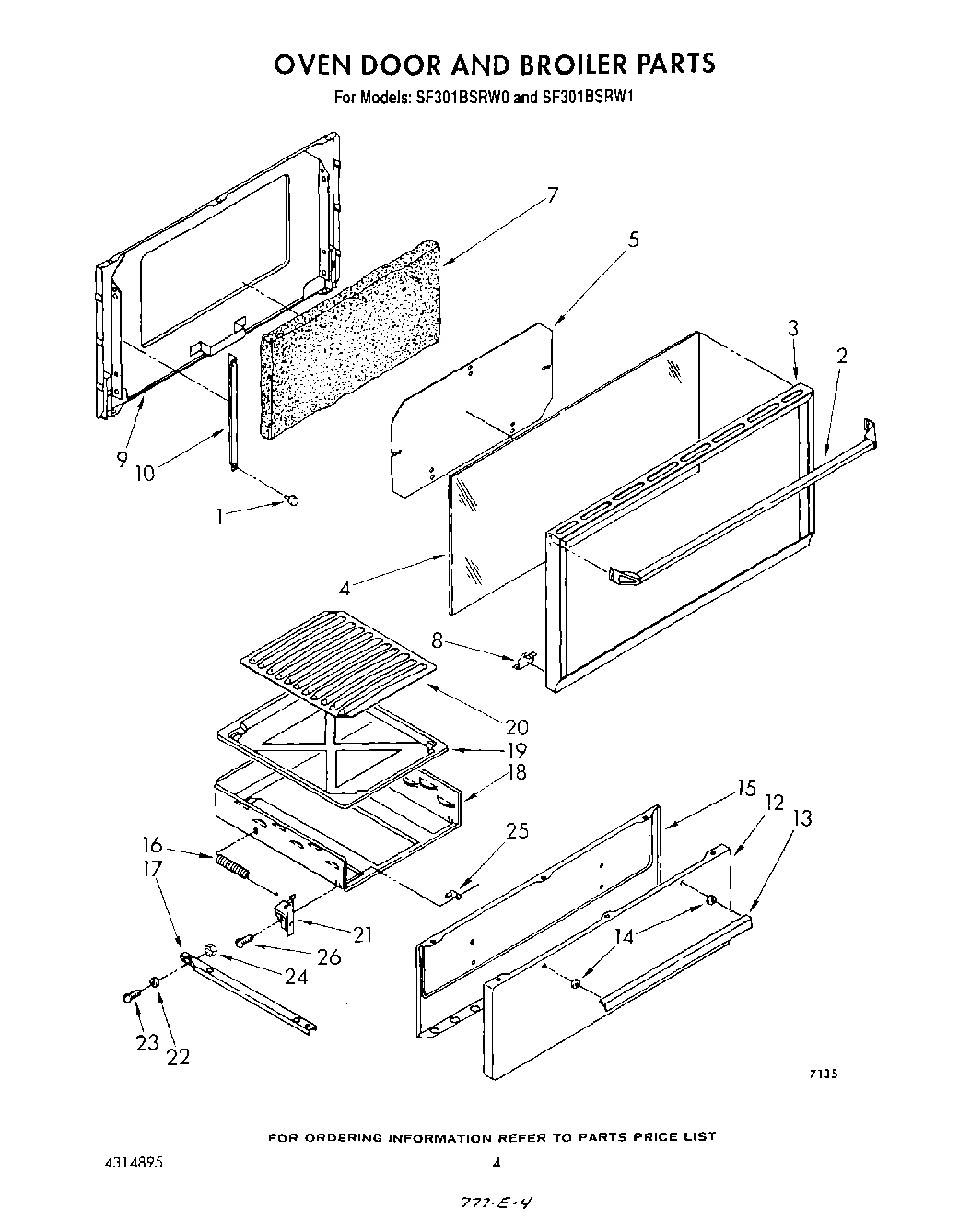

03 - OVEN DOOR AND BROILER
Common parts from model Whirlpool SF301BSRW0 GAS RANGE
Guide, Use & Care WPL LIT4314868 Contact Us For Availability
List, Repair Parts WPL LIT4314895 Contact Us For Availability
Guide, Cooki WPL LIT786302 Contact Us For Availability
WPL LIT786735 WPL LIT786735 Contact Us For Availability
1
Frame WPL 4179273 Contact Us For Availability
1
Bumper (4) WPL 4157128 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
2
Bottom, Backugard WPL 4157150 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Frame, Front WPL 4315083 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
3
Glass WPL 4157151 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Frame, Door WPL 4157029 Contact Us For Availability
4
Track, Broiler (2) WPL 4157007 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157106 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157107 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Glass WPL 4157030 Contact Us For Availability
5
Roller (2) WPL 4157008 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Ring, Hold Down WPL 4157154 Contact Us For Availability
6
Pin, Roller (2) WPL 4157009 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
8
Burner, Rear (2) WPL 4179101 Contact Us For Availability
8
Speed Clip (2) WPL 4157115 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Support, Glass WPL 4157034 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4179100 Contact Us For Availability
9
Panel, Rear WPL 4157015 Contact Us For Availability
9
Liner, Door WPL 4315064 Contact Us For Availability
10
Retainer, Roller (2) WPL 4157026 Contact Us For Availability
10
Tubing, Pilot WPL 4157081 Contact Us For Availability
10
Burner Box WPL 4315080 Contact Us For Availability
10
Support, Glass (2) WPL 4157037 Contact Us For Availability
11
Bottom, Oven WPL 4315071 Contact Us For Availability
12
Rack, Oven (2) WPL 4157102 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Panel, Broiler (White) WPL 4315262 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4315263 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Seal, Door (2) (Side) (Light Gray) WPL 4157948 Contact Us For Availability
13
Seal, Door (2) (Side) (Charcoal Gray) WPL 4315334 Contact Us For Availability
13
Handle, Broiler Door WPL 4157040 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
14
Manifold WPL 4314823 Contact Us For Availability
14
Seal, Door (Top) (Light Gray) WPL 4157025 Contact Us For Availability
14
Seal, Door (Top) (Charcoal Gray) WPL 4315333 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Panel, Manifold WPL 4157086 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 31) WPL 4314821 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
17
Track, Upper (2) WPL 4157044 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4314820 Contact Us For Availability
18
Liner, Brolier WPL 4315088 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
21
Thermostat (Includes Ill. No. 30) WPL 4314822 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Roller (2) WPL 4157050 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pin, Roller (2) WPL 4157051 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
29
Rod, Support WPL 4157010 Contact Us For Availability
30
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
31
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
32
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
32
Spacer, Manifold WPL 4315207 Contact Us For Availability
× ![]()
