Model Whirlpool SF3000EWN0 – Common Parts & Diagrams
05 - OVEN DOOR AND BROILER
03 - INTERNAL OVEN

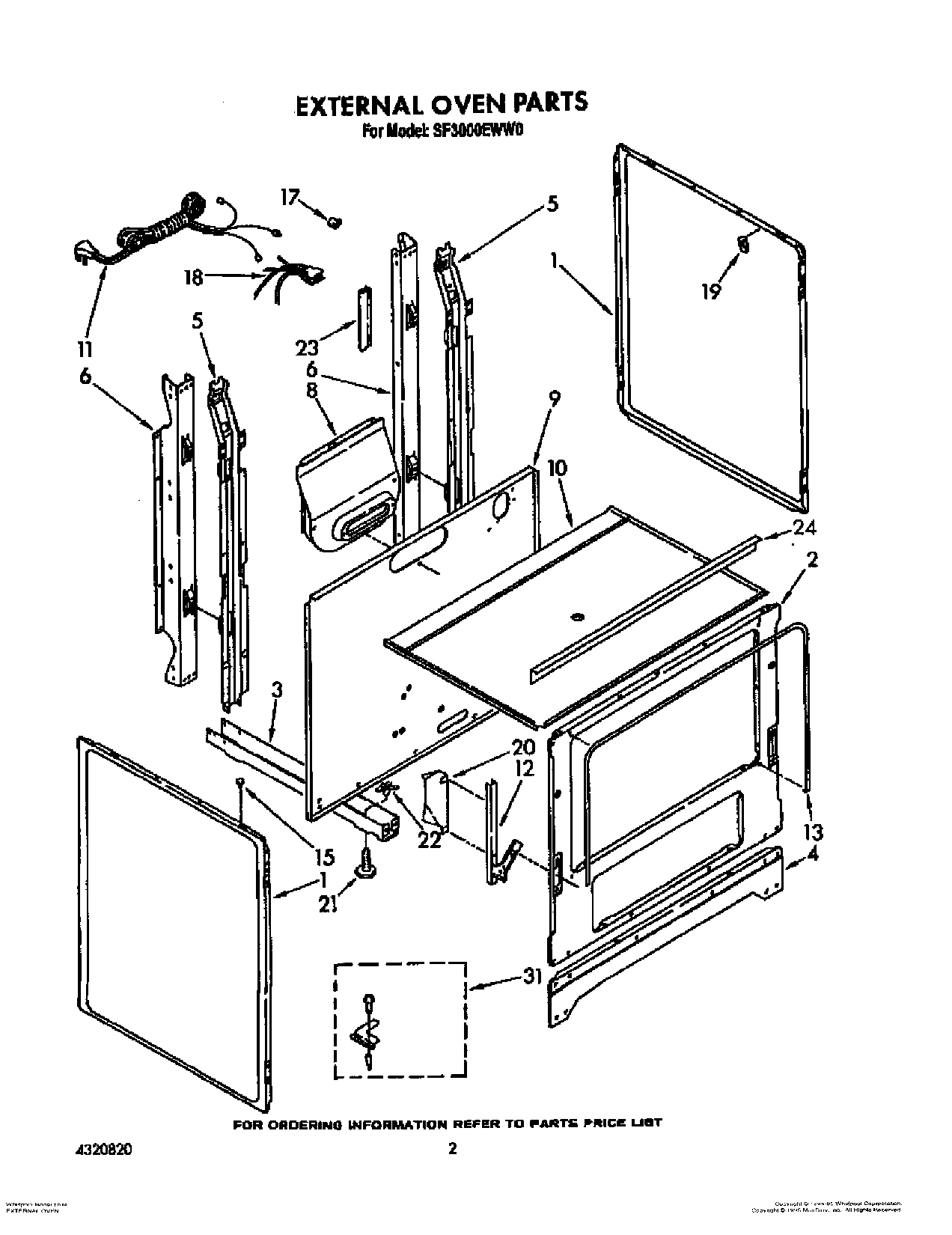

02 - EXTERNAL OVEN

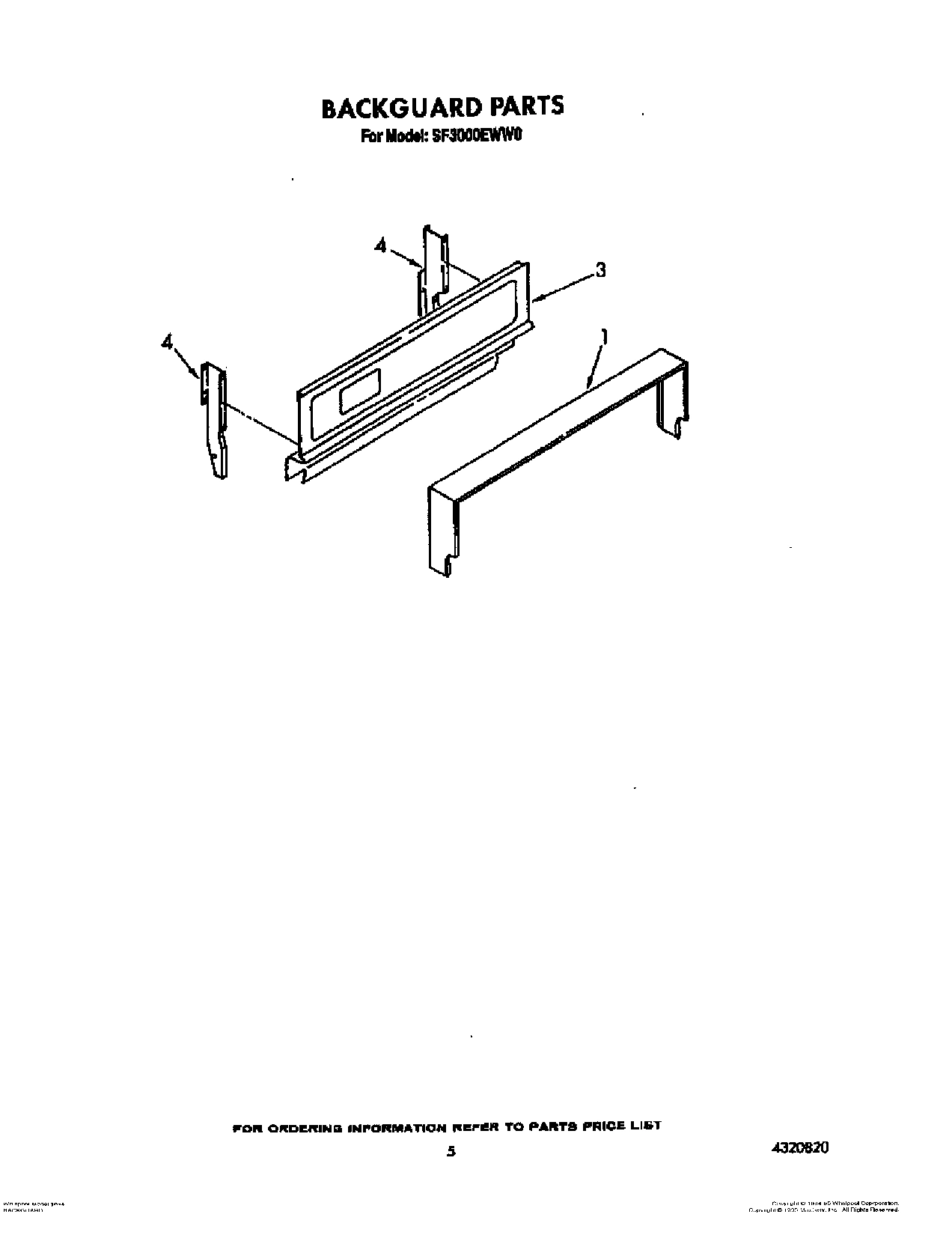

04 - BACKGUARD

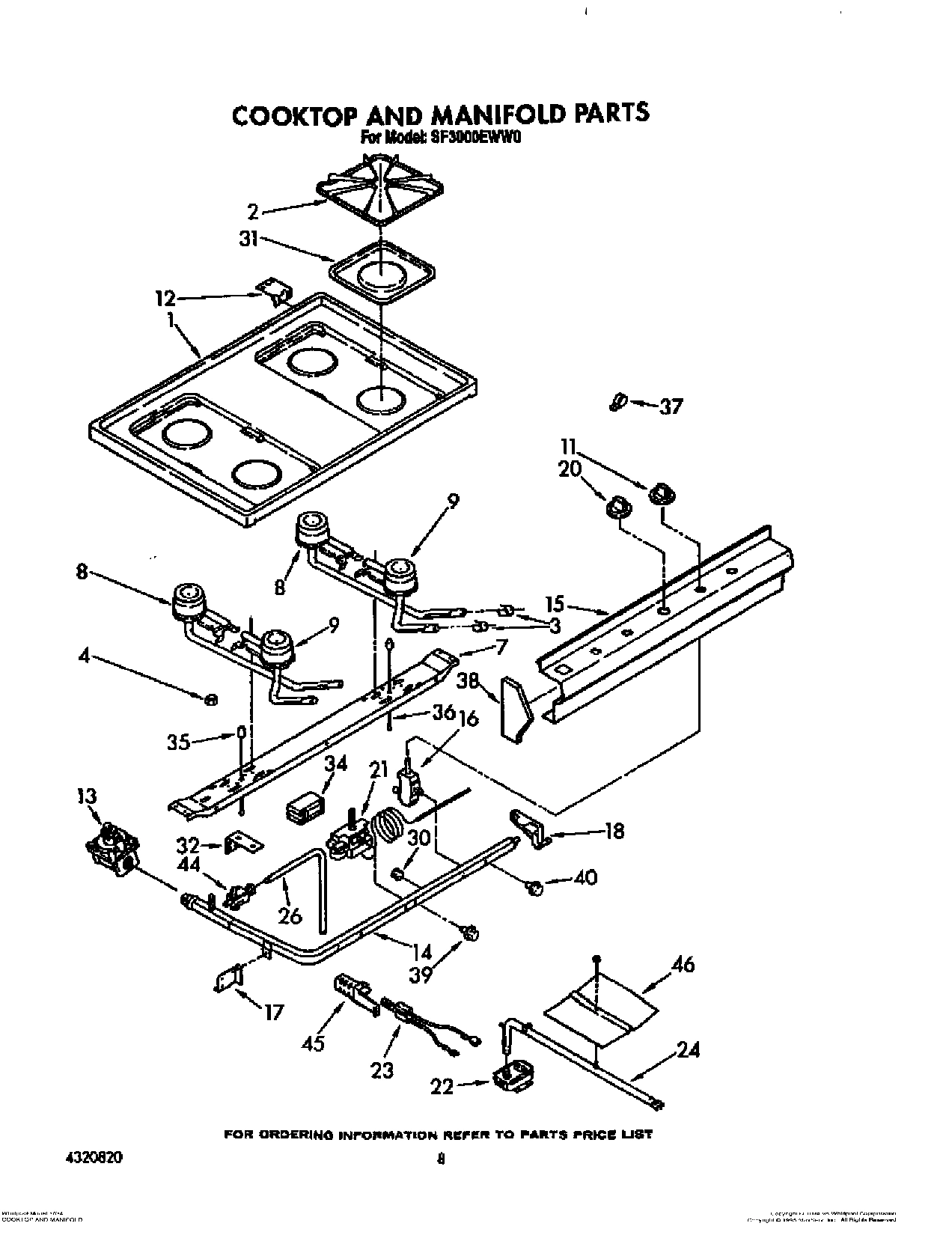

06 - COOKTOP AND MANIFOLD, LIT/OPTIONAL
Common parts from model Whirlpool SF3000EWN0
Guide, Cooking WPL LIT3149508 Contact Us For Availability
Use & Care Guide WPL LIT4315703 Contact Us For Availability
Instuctions, Installation WPL LIT4315709 Contact Us For Availability
R WPL LIT4320820 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Frame WPL 4320775 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Panel, Backguard (White) WPL 4157158 Contact Us For Availability
3
Panel, Backguard (Almond) WPL 4157528 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 8-18 X 1/2 Black (2) WPL 4315330 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Roller (2) WPL 4315388 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4320577 Contact Us For Availability
6
Pin, Roller (2) WPL 4315381 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Burner Box WPL 4320411 Contact Us For Availability
11
Bottom, Oven WPL 4315071 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320457 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320458 Contact Us For Availability
12
Panel, Broiler (Screw, 10-12 X 1/2 (5)) WPL 4320742 Contact Us For Availability
12
Rack, Oven (2) WPL 4320534 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
12
Bracket, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Screw, 10-12 X 3/8 (4) WPL 4314910 Contact Us For Availability
13
Handle, Door WPL 4157040 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4320579 Contact Us For Availability
13
Support, Liner (2) WPL 4315754 Contact Us For Availability
13
Seal, Door WPL 4320463 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4320581 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (2) 01 6-20 X 1`` (2) WPL 4315408 Contact Us For Availability
15
Panel, Manifold WPL 4320582 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 40) WPL 4314814 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Block, Disconnect WPL 4157220 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
19
Tie, Wire (2) WPL 4315726 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Knob, Thermostat WPL 4320593 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Thermostat WPL 4320594 Contact Us For Availability
22
Bumper, Nylon1 (4) WPL 4315387 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4320442 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Screw, 10-12 X 3/8 (1) WPL 4157126 Contact Us For Availability
23
Pilot WPL 4320445 Contact Us For Availability
24
Extension Burner Box WPL 4320479 Contact Us For Availability
24
Burner, Oven WPL 4320441 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Manifold To Safety Valve) WPL 4320595 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
31
Plate, Module WPL 4157171 Contact Us For Availability
34
Module, Spark WPL 4320446 Contact Us For Availability
35
Ignitor (R.H.) WPL 4179204 Contact Us For Availability
35
Ignitor (L.H.) WPL 4179205 Contact Us For Availability
37
Strain Relief WPL 4157185 Contact Us For Availability
38
Endcap (L.H.) WPL 4320602 Contact Us For Availability
38
Endcap (R.H.) WPL 4320603 Contact Us For Availability
39
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
40
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
44
Valve, Shut Off WPL 4157661 Contact Us For Availability
45
Bracket, Ignitor WPL 4320447 Contact Us For Availability
46
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
46
Nut WPL 4157012 Contact Us For Availability
46
Spreader, Flame WPL 4320440 Contact Us For Availability
× ![]()
