Model Speed Queen SF18VNV Washer – Common Parts & Diagrams

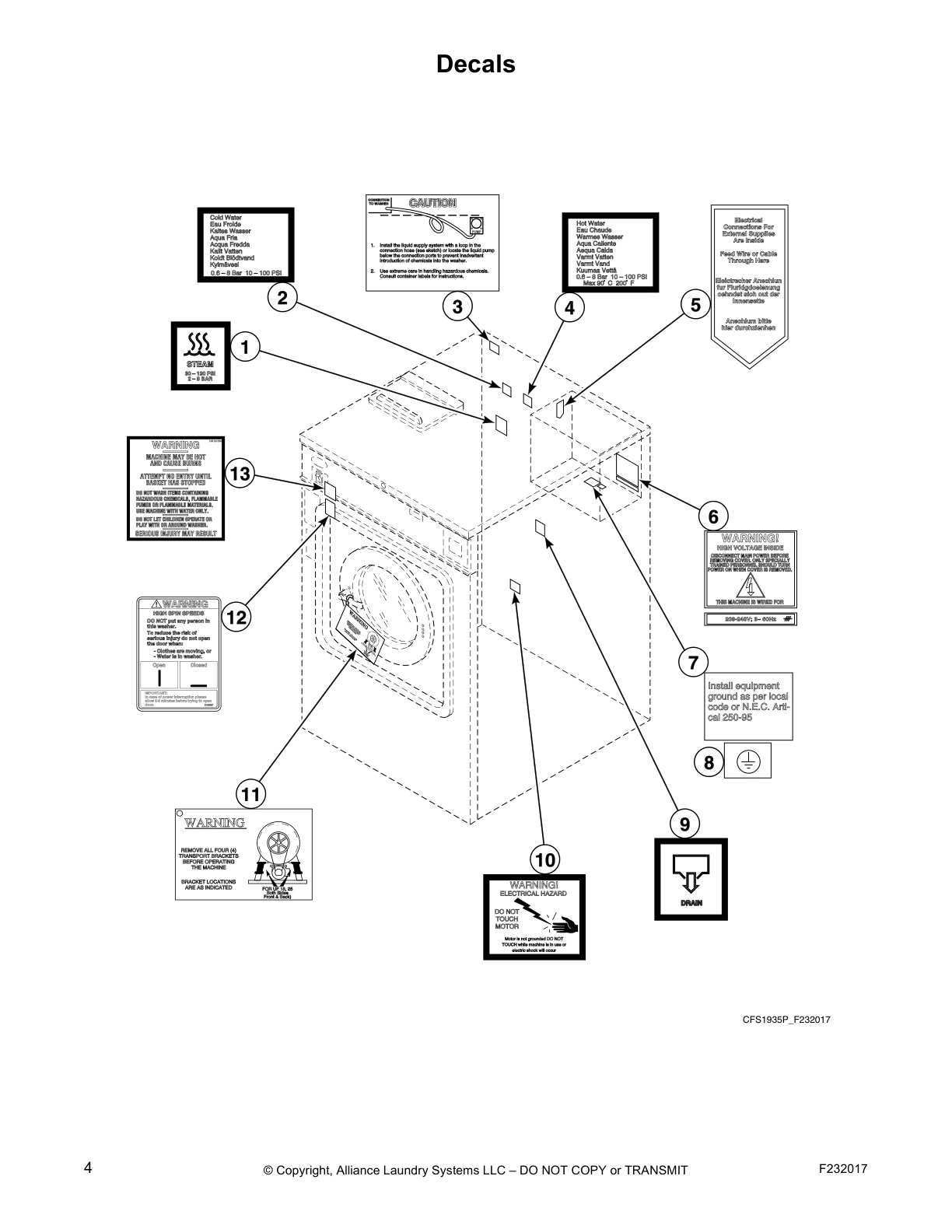

Decals

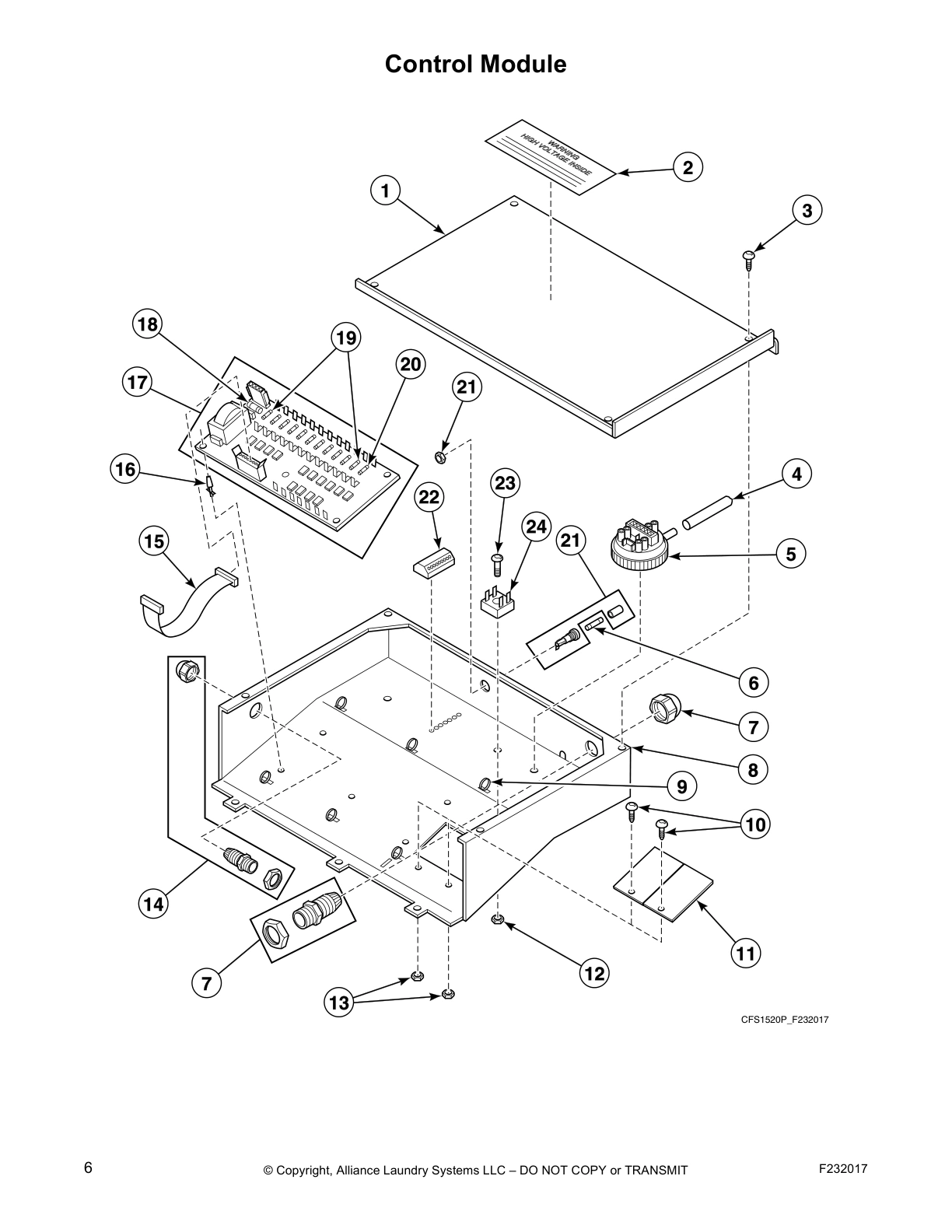

Control Module
AC Drive - 160 AC Drive
AC Drive - 1305 AC Drive
Panels
Upper Front Panel, Control Panel Decal and Controls
Supply Dispenser
Supply Dispenser Connections
Clamps and Hoses
Water Inlet Valves, Hoses and Vacuum Breaker
Door Assembly and Middle Front Cover
New Style Door Handle
Door Lock - Models Through 12/11/00
Door Lock - Models Starting 12/11/00
Basket, Shell and Shell Front
Temperature Probe and Air Trap Hose
Drain Valve, Hoses and Frame Assembly
Motor, Belt, Pulley and Suspension
Special Tools
Common parts from model Speed Queen SF18VNV Washer
SPQ F430948 SPQ F430948 Contact Us For Availability
1
Inverter Drive SPQ F370812 Contact Us For Availability
1
Side Panel SPQ F609478 Contact Us For Availability
1
Lid Clamp Assembly SPQ F630430 Contact Us For Availability
1
Red Dot Decal SPQ F230662 Contact Us For Availability
1
Door Knob SPQ F0637564-00 Contact Us For Availability
1
E-Ring Retainer SPQ F310205 Contact Us For Availability
1
Gasket SPQ F170401P Contact Us For Availability
1
Plug SPQ F421507 Contact Us For Availability
1
Supply Hose SPQ F200171 Contact Us For Availability
1
Basket Pulley SPQ F150262 Contact Us For Availability
1
Pulley Puller Weldment SPQ F608741 Contact Us For Availability
2
Spring Pin SPQ F431222 Contact Us For Availability
2
Fuse Holder SPQ F609489 Contact Us For Availability
2
Supply Dispenser Lid SPQ F200270501 Contact Us For Availability
2
Vacuum Breaker Bottom SPQ F015033000 Contact Us For Availability
2
Hose Clamp SPQ F422808 Contact Us For Availability
2
Door Lock Plate Shim SPQ F431147 Contact Us For Availability
2
Door Lock Microswitch SPQ F310137 Contact Us For Availability
2
Grommet SPQ F170604 Contact Us For Availability
2
Key SPQ F790209 Contact Us For Availability
2
Pulley Insertion Tool Kit SPQ F798004 Contact Us For Availability
3
Screw SPQ F0150329-00 Contact Us For Availability
3
Filter SPQ F110106 Contact Us For Availability
3
Top Cover Latch SPQ F602753 Contact Us For Availability
3
Screw SPQ F430925 Contact Us For Availability
3
V-Series Microcomputer Board Kit SPQ F370313-10P Contact Us For Availability
3
Cap SPQ F190303 Contact Us For Availability
3
Washer SPQ F431916 Contact Us For Availability
3
Door Lock Retainer Latch SPQ F150455 Contact Us For Availability
3
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
3
Air Trap Hose SPQ F020014200 Contact Us For Availability
3
Pulley Cover Plate SPQ F430801 Contact Us For Availability
4
Door Handle Kit SPQ F8535601 Contact Us For Availability
4
SPQ F0634847-00 SPQ F0634847-00 Contact Us For Availability
4
Nut SPQ F431005 Contact Us For Availability
4
SPQ F609487 SPQ F609487 Contact Us For Availability
4
Key SPQ F160562 Contact Us For Availability
4
Fill Hose SPQ F150436 Contact Us For Availability
4
Door Handle Spacer SPQ F0637563-00 Contact Us For Availability
4
SPQ F431231 SPQ F431231 Contact Us For Availability
4
Shell Band Fastener Kit SPQ F791001 Contact Us For Availability
4
Hose Clamp SPQ F200205 Contact Us For Availability
4
Screw SPQ F605985F Contact Us For Availability
5
Injection Nozzle Kit SPQ F730168 Contact Us For Availability
5
Supply Dispenser Gasket SPQ F170170 Contact Us For Availability
5
SPQ F231416 SPQ F231416 Contact Us For Availability
5
Lid Lock SPQ F190802P Contact Us For Availability
5
SPQ F430317 SPQ F430317 Contact Us For Availability
5
SPQ F200108P SPQ F200108P Contact Us For Availability
5
SPQ F432305 SPQ F432305 Contact Us For Availability
5
Latch Arm Upgrade Sub-Assembly SPQ F0637734-00 Contact Us For Availability
5
Temperature Probe SPQ F370606P Contact Us For Availability
5
Rear Drain Hose SPQ F150311 Contact Us For Availability
5
Belt SPQ F430100 Contact Us For Availability
6
SPQ F300128P SPQ F300128P Contact Us For Availability
6
SPQ F231299 SPQ F231299 Contact Us For Availability
6
SPQ F430174 SPQ F430174 Contact Us For Availability
6
Top Cover Assembly SPQ F632976 Contact Us For Availability
6
Vent Nipple SPQ F422517 Contact Us For Availability
6
Door Holder SPQ F150267P Contact Us For Availability
6
SPQ F633734 SPQ F633734 Contact Us For Availability
6
Reducer Bushing SPQ F421936 Contact Us For Availability
6
Drain Connector Tee SPQ F8017101 Contact Us For Availability
6
Overflow Hose SPQ F200215 Contact Us For Availability
7
Take-Apart Hinge SPQ F190203P Contact Us For Availability
7
Emergency Stop Decal SPQ F200299500 Contact Us For Availability
7
Mounting Bracket SPQ F602722 Contact Us For Availability
7
SPQ F230661 SPQ F230661 Contact Us For Availability
7
Door Handle Upgrade Kit SPQ F0637582-00 Contact Us For Availability
7
SPQ F0636103-00 SPQ F0636103-00 Contact Us For Availability
7
Trunnion Kit SPQ F747006-01 Contact Us For Availability
7
Screw SPQ F430103 Contact Us For Availability
7
Pulley Bushing SPQ F280406 Contact Us For Availability
8
SPQ F381720P SPQ F381720P Contact Us For Availability
8
SPQ F220900 SPQ F220900 Contact Us For Availability
8
Supply Dispenser Sub-Assembly SPQ F602374 Contact Us For Availability
8
Wye SPQ F200170 Contact Us For Availability
8
SPQ F431123 SPQ F431123 Contact Us For Availability
8
Nut SPQ F430240 Contact Us For Availability
8
Frame Assembly SPQ F609474 Contact Us For Availability
8
Motor Pulley SPQ F150394 Contact Us For Availability
9
SPQ F200318900P SPQ F200318900P Contact Us For Availability
9
SPQ F609512 SPQ F609512 Contact Us For Availability
9
SPQ F421612 SPQ F421612 Contact Us For Availability
9
SPQ F381718P SPQ F381718P Contact Us For Availability
9
SPQ F730155 SPQ F730155 Contact Us For Availability
9
SPQ F431017 SPQ F431017 Contact Us For Availability
9
Washer SPQ F431131 Contact Us For Availability
9
Pulley SPQ F280298P Contact Us For Availability
10
Strain Relief Connector SPQ F140329 Contact Us For Availability
10
Emergency Stop Button Kit SPQ F200233700P Contact Us For Availability
10
Supply Hose SPQ F150454 Contact Us For Availability
10
Door Gasket SPQ F200000200 Contact Us For Availability
10
Door Lock Plate Shim SPQ F603185 Contact Us For Availability
10
Heating Element SPQ F360206P Contact Us For Availability
10
Nut SPQ F430233 Contact Us For Availability
11
Screw SPQ F430929 Contact Us For Availability
11
Door Lock Switch SPQ F431024 Contact Us For Availability
11
Rear Cover SPQ F609477 Contact Us For Availability
11
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
11
Water Hose SPQ F200164 Contact Us For Availability
11
Counterclockwise Spin Rotation Decal SPQ F230693 Contact Us For Availability
11
Door Lock Splash Shield SPQ F320200 Contact Us For Availability
11
Heating Element Plug SPQ F360202 Contact Us For Availability
11
Motor Shim SPQ F632370 Contact Us For Availability
12
Front Cover Gasket SPQ F170180P Contact Us For Availability
12
Screw SPQ F430986 Contact Us For Availability
12
Door Glass Kit SPQ F290205P Contact Us For Availability
12
Pushbutton Stop SPQ F340710 Contact Us For Availability
12
Door Lock Plate Sub-Assembly SPQ F633084 Contact Us For Availability
12
Motor SPQ F220239 Contact Us For Availability
13
1-Way Valve SPQ F381728P Contact Us For Availability
13
Ground Terminal Lug SPQ F430938 Contact Us For Availability
13
Front Cover SPQ F609480 Contact Us For Availability
13
Clip SPQ F601515 Contact Us For Availability
13
Screw SPQ F430977 Contact Us For Availability
13
Shaft Sleeve SPQ F400379 Contact Us For Availability
13
Shock Mounting Hardware SPQ F220233 Contact Us For Availability
14
Door Lock Catch Casting SPQ F150261 Contact Us For Availability
14
Terminal SPQ F140734 Contact Us For Availability
14
Keypad SPQ F370576P Contact Us For Availability
14
Y Connector SPQ F381725P Contact Us For Availability
14
Washer SPQ F605382 Contact Us For Availability
14
Screw SPQ F430987 Contact Us For Availability
14
Hose Clamp SPQ F250706 Contact Us For Availability
15
Input Power Block SPQ F140766 Contact Us For Availability
15
Door Lock Torsion Spring SPQ F430231 Contact Us For Availability
15
Shock Absorber SPQ F200213 Contact Us For Availability
15
Vacuum Breaker Top SPQ F380727P Contact Us For Availability
15
Bearing SPQ F100160 Contact Us For Availability
15
Washer SPQ F431100 Contact Us For Availability
16
Nut SPQ F140747 Contact Us For Availability
16
Door Hinge Rod SPQ F630794 Contact Us For Availability
16
Door Lock Lever SPQ F430921 Contact Us For Availability
16
Compression Spring SPQ F250504 Contact Us For Availability
17
Door Hinge SPQ F633791P Contact Us For Availability
17
Nut SPQ F605381 Contact Us For Availability
17
Shock and Spring Kit SPQ F310136 Contact Us For Availability
18
AC Drive Mounting Bracket SPQ F609483 Contact Us For Availability
18
Door Lock Torsion Spring SPQ F430232 Contact Us For Availability
18
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
19
Door Lock Pin Release Spring SPQ F310110 Contact Us For Availability
19
Door Lock Splash Shield SPQ F340919 Contact Us For Availability
19
Door Mount SPQ F633790 Contact Us For Availability
20
AC Drive Box Assembly SPQ F350128 Contact Us For Availability
20
Screw SPQ F431041 Contact Us For Availability
20
Spacer SPQ F431902 Contact Us For Availability
21
Fan SPQ F350304P Contact Us For Availability
21
Door Stamping SPQ F430532 Contact Us For Availability
21
Pin Lock Conversion Kit SPQ F430225 Contact Us For Availability
22
Door Lock Pin Linkage SPQ F200203200 Contact Us For Availability
22
Magnet SPQ F602431-3 Contact Us For Availability
23
Electrical Panel Cover SPQ F140331 Contact Us For Availability
23
Door Locking Linkage Pin SPQ F431901 Contact Us For Availability
24
Pop Rivet SPQ F8390801 Contact Us For Availability
24
AC Drive Caution Decal SPQ F634848 Contact Us For Availability
24
Door Release Solenoid SPQ F0798815-00 Contact Us For Availability
25
Control Transformer Decal SPQ F430215 Contact Us For Availability
25
Middle Front Cover SPQ F0340723-00 Contact Us For Availability
26
Filter Retainer Guard SPQ F220899 Contact Us For Availability
26
Trim SPQ F431215 Contact Us For Availability
27
Washer SPQ F609494 Contact Us For Availability
28
Door Handle SPQ F015050100P Contact Us For Availability
29
Door Lock Spring SPQ F430916 Contact Us For Availability
30
Door Holder Spacer SPQ F150225 Contact Us For Availability
31
Door Holder SPQ F310125 Contact Us For Availability
32
Push Red Button Decal SPQ F320300 Contact Us For Availability
NI
SPQ F270306P SPQ F270306P Contact Us For Availability
NI
SPQ F430910 SPQ F430910 Contact Us For Availability
NI
SPQ F231083 SPQ F231083 Contact Us For Availability
NI
Tubing SPQ F602794-1 Contact Us For Availability
NI
SPQ F280432 SPQ F280432 Contact Us For Availability
NI
SPQ F280416 SPQ F280416 Contact Us For Availability
× ![]()
