Model Whirlpool SF0100SYN0 – Common Parts & Diagrams
06 - INTERNAL OVEN
02 - EXTERNAL OVEN

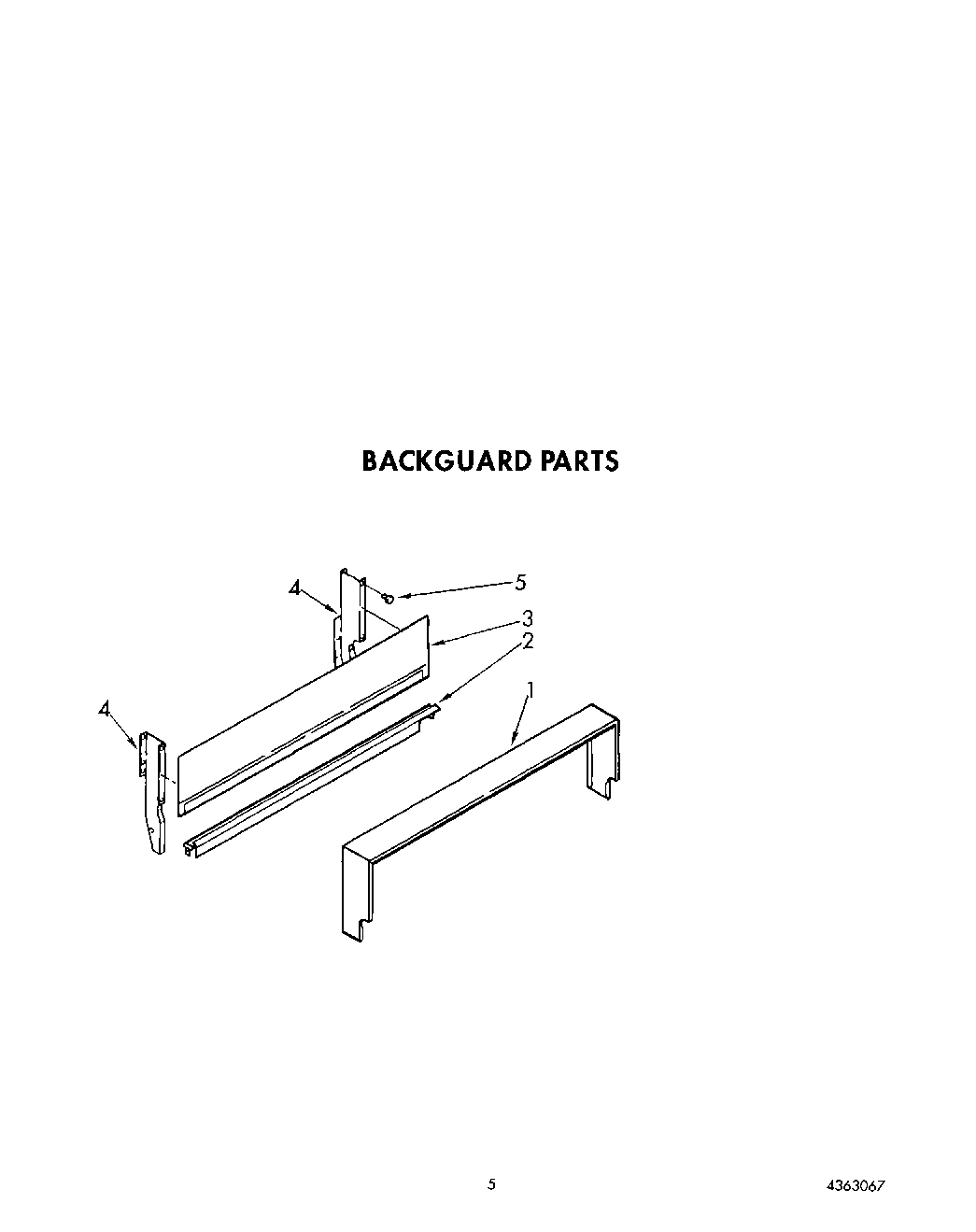

04 - BACKGUARD

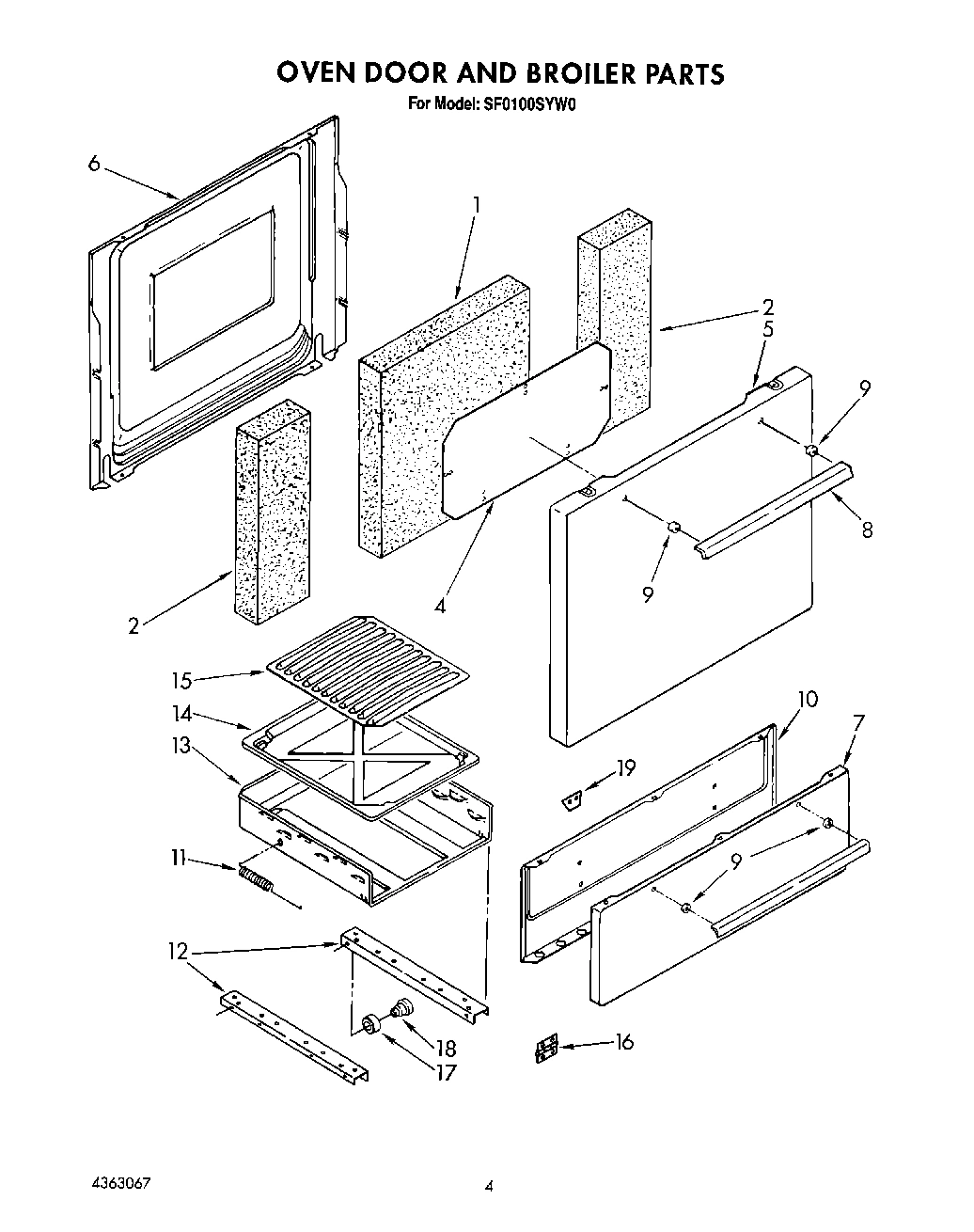

03 - OVEN DOOR AND BROILER

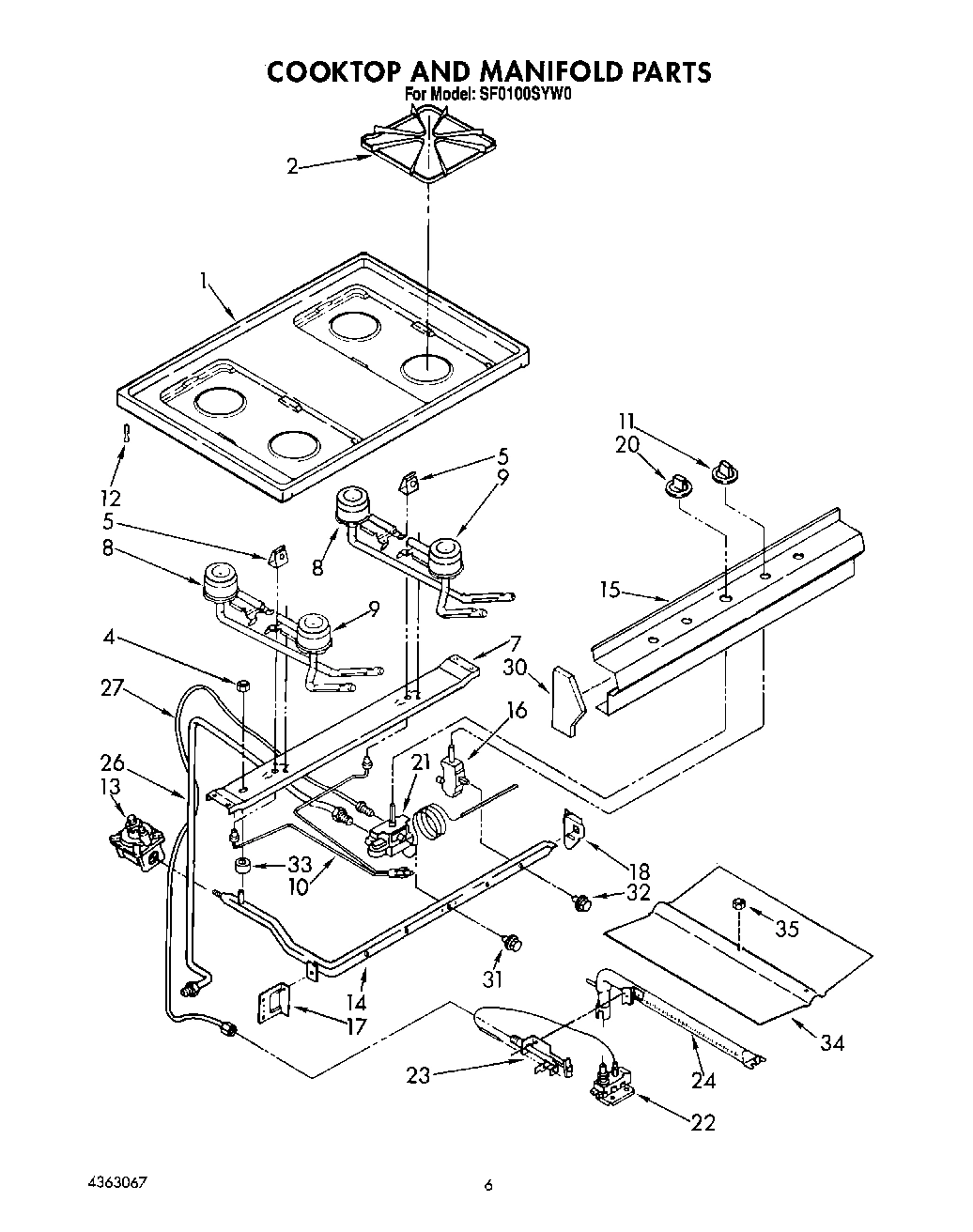

05 - COOKTOP AND MANIFOLD, LIT/OPTIONAL
Common parts from model Whirlpool SF0100SYN0
Use & Care Guide WPL LIT4362937 Contact Us For Availability
Installation Instructions WPL LIT4362938 Contact Us For Availability
Repair Parts List WPL LIT4363067 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4363024 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4363025 Contact Us For Availability
1
Frame WPL 4179290 Contact Us For Availability
1
Insulation WPL 4179320 Contact Us For Availability
1
Cooktop (White) WPL 4179184 Contact Us For Availability
1
Cooktop (Almond) WPL 4179185 Contact Us For Availability
2
Frame, Front WPL 4363015 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Bottom, Backguard WPL 4157857 Contact Us For Availability
2
Insulation WPL 4179321 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Baffle, Bottom WPL 4315415 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
3
Glass WPL 4157854 Contact Us For Availability
4
Liner, Oven Back WPL 4315060 Contact Us For Availability
4
Base, Front WPL 4363014 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2) WPL 4157123 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Baffle WPL 4363018 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Bottom, Oven WPL 4363066 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Panel, Door (White) WPL 4363021 Contact Us For Availability
5
Panel, Door (Almond) WPL 4363022 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
6
Rack, Oven (2) WPL 4362870 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Liner, Door WPL 4315068 Contact Us For Availability
7
Support, Liner (2) WPL 4157328 Contact Us For Availability
7
Panel, Broiler (White) WPL 4363019 Contact Us For Availability
7
Panel, Broiler (Almond) WPL 4363020 Contact Us For Availability
7
Support, Burner WPL 4363017 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
8
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
8
Washer (2) WPL 4157119 Contact Us For Availability
8
Handle, Door (2) WPL 4157794 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Clip, Speed WPL 4157330 Contact Us For Availability
9
Panel, Rear WPL 4315414 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Spacer (4) WPL 4157041 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Shield, Radiation WPL 4363006 Contact Us For Availability
10
Burner Box WPL 4314939 Contact Us For Availability
10
Liner, Broiler Door WPL 4315090 Contact Us For Availability
10
Tubing, Pilot WPL 4157926 Contact Us For Availability
11
Spring (2) WPL 4157043 Contact Us For Availability
12
Track, Upper (2) WPL 4363049 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Liner, Broiler WPL 4315520 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Seal, Door (Top) WPL 4315471 Contact Us For Availability
14
Manifold WPL 4314861 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Grid WPL 4315094 Contact Us For Availability
15
Panel, Manifold WPL 4314862 Contact Us For Availability
16
Hinge, Door WPL 4363045 Contact Us For Availability
16
Valve, 90~ (Includes Illus No. 32) WPL 4314814 Contact Us For Availability
17
Roller (2) WPL 4315388 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157944 Contact Us For Availability
18
Roller Pin (2) WPL 4363050 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
19
Bracket WPL 4363048 Contact Us For Availability
20
Shield WPL 4157876 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Thermostat (Includes Illus No. 31) WPL 4314818 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Hinge, Door (2) WPL 4315464 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 WPL 4157126 Contact Us For Availability
24
Anti-Tip Kit WPL 4321080 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
30
Endcap (L.H.) WPL 4157186 Contact Us For Availability
30
Endcap (R.H.) WPL 4157187 Contact Us For Availability
31
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
32
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
33
Spacer, Manifold WPL 4315207 Contact Us For Availability
34
Flame Spreader WPL 4320440 Contact Us For Availability
35
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
× ![]()
