Model Whirlpool SF0100SRW9 – Common Parts & Diagrams
06 - INTERNAL OVEN
02 - EXTERNAL OVEN

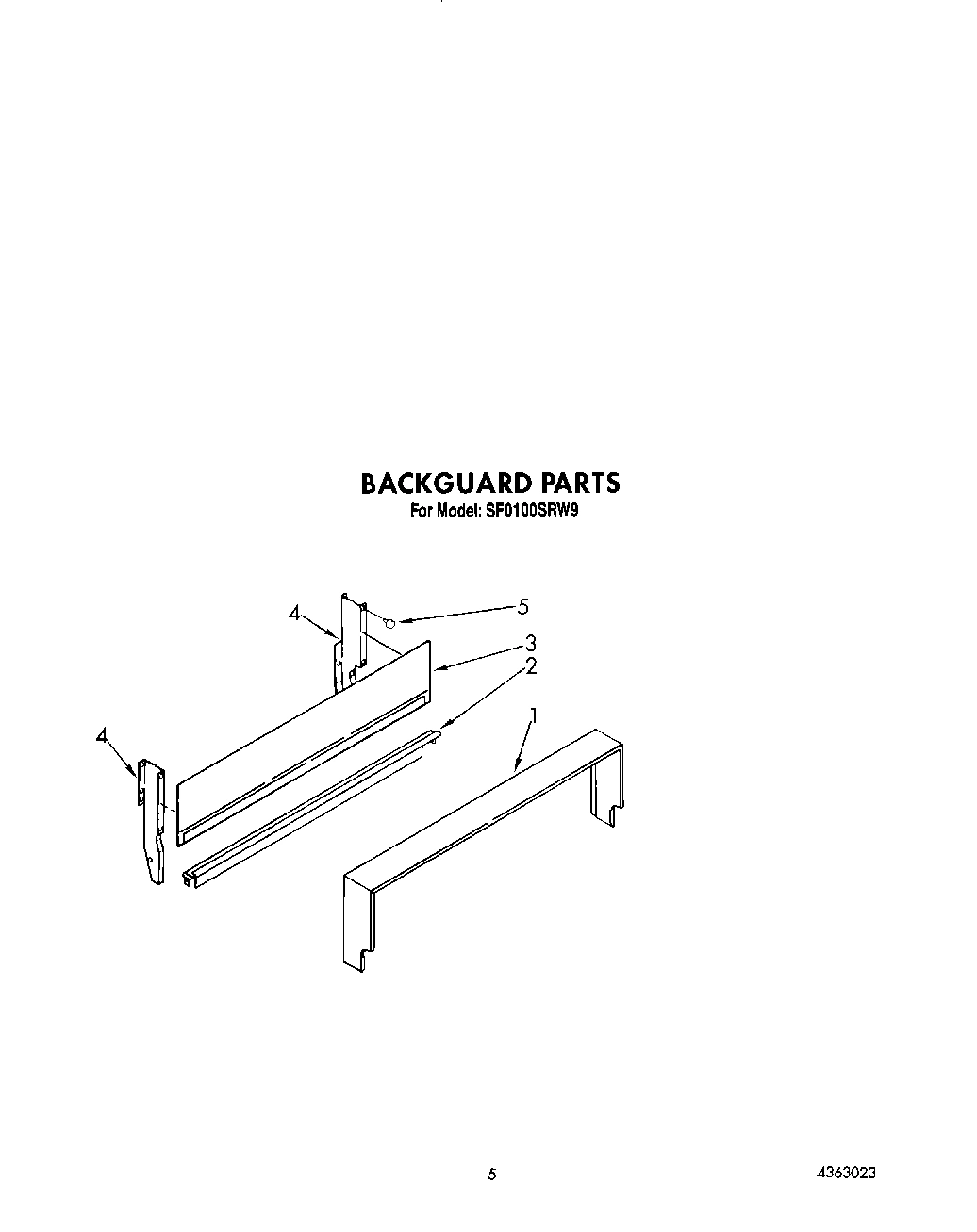

04 - BACKGUARD

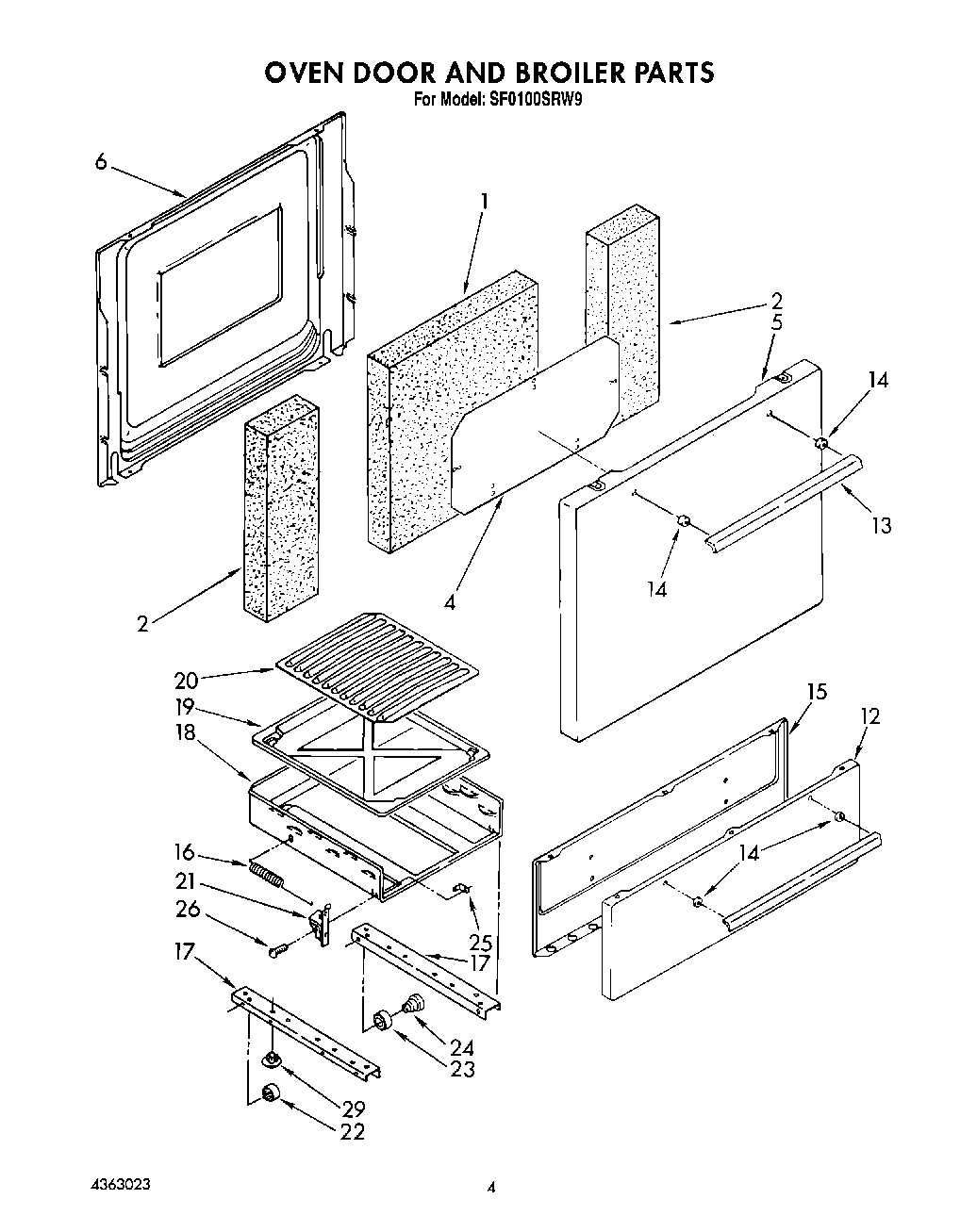

03 - OVEN DOOR AND BROILER

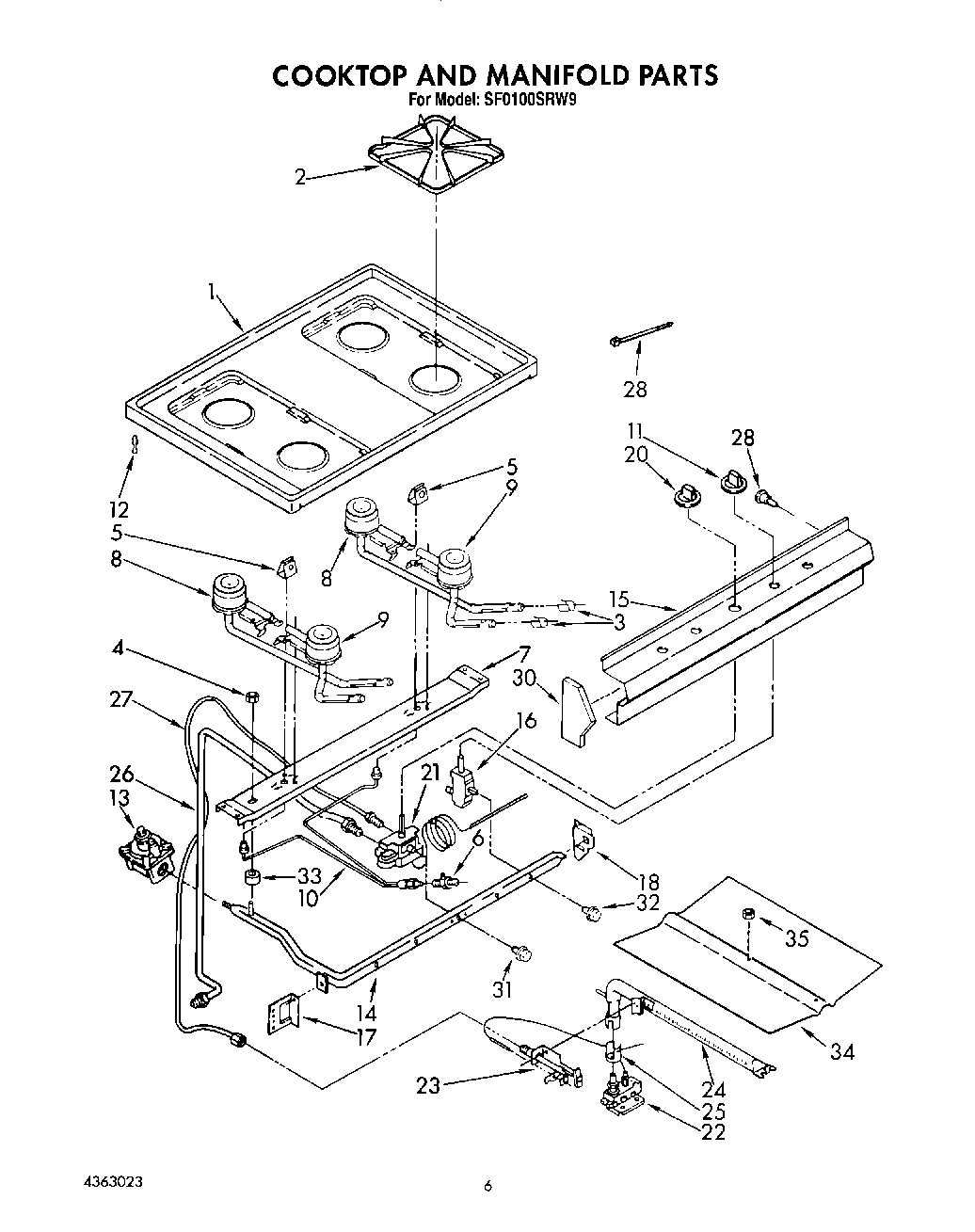

05 - COOKTOP AND MANIFOLD, LIT/OPTIONAL
Common parts from model Whirlpool SF0100SRW9
Guide, Use & Care WPL LIT4179119 Contact Us For Availability
Repair Parts List WPL LIT4363023 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
Instuctions, Installation WPL LIT786731 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Frame WPL 4179290 Contact Us For Availability
1
Insulation WPL 4179320 Contact Us For Availability
1
Cooktop (White) WPL 4179184 Contact Us For Availability
1
Cooktop (Almond) WPL 4179185 Contact Us For Availability
2
Frame, Front WPL 4363015 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Bottom, Backguard WPL 4157857 Contact Us For Availability
2
Insulation WPL 4179321 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
3
Glass WPL 4157854 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Track, Broil (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broil (Right Hand) WPL 4315385 Contact Us For Availability
4
Base, Front WPL 4363014 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2) WPL 4157123 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Baffle WPL 4363018 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Panel, Door (White) WPL 4363021 Contact Us For Availability
5
Panel, Door (Almond) WPL 4363022 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Liner, Door WPL 4179275 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
7
Liner, Oven Back WPL 4315060 Contact Us For Availability
7
Support, Burner WPL 4363017 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Panel, Rear WPL 4315414 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Burner Box WPL 4315079 Contact Us For Availability
10
Tubing, Pilot WPL 4157926 Contact Us For Availability
11
Bottom, Oven WPL 4363016 Contact Us For Availability
12
Rack, Oven (2) WPL 4362870 Contact Us For Availability
12
Panel, Broiler (White) WPL 4363019 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4363020 Contact Us For Availability
12
Stud, Locating WPL 4314933 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Door (2) WPL 4157794 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Seal, Door (Top) WPL 4315471 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4314861 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Panel, Manifold WPL 4314862 Contact Us For Availability
16
Shield, Radiation WPL 4363006 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 90~ (Includes Illus No. 32) WPL 4314814 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157944 Contact Us For Availability
18
Liner, Broiler WPL 4315090 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
20
Shield WPL 4157876 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat (Includes Illus No. 31) WPL 4314818 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Hinge, Door (2) WPL 4315464 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 WPL 4157126 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Tie, Wire WPL 4315726 Contact Us For Availability
29
Hole Plug (2) WPL 4315386 Contact Us For Availability
30
Endcap (L.H.) WPL 4157186 Contact Us For Availability
30
Endcap (R.H.) WPL 4157187 Contact Us For Availability
31
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
32
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
33
Spacer, Manifold WPL 4315207 Contact Us For Availability
34
Flame Spreader WPL 4320440 Contact Us For Availability
35
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
× ![]()
