Model Whirlpool SF0100ERW4 – Common Parts & Diagrams

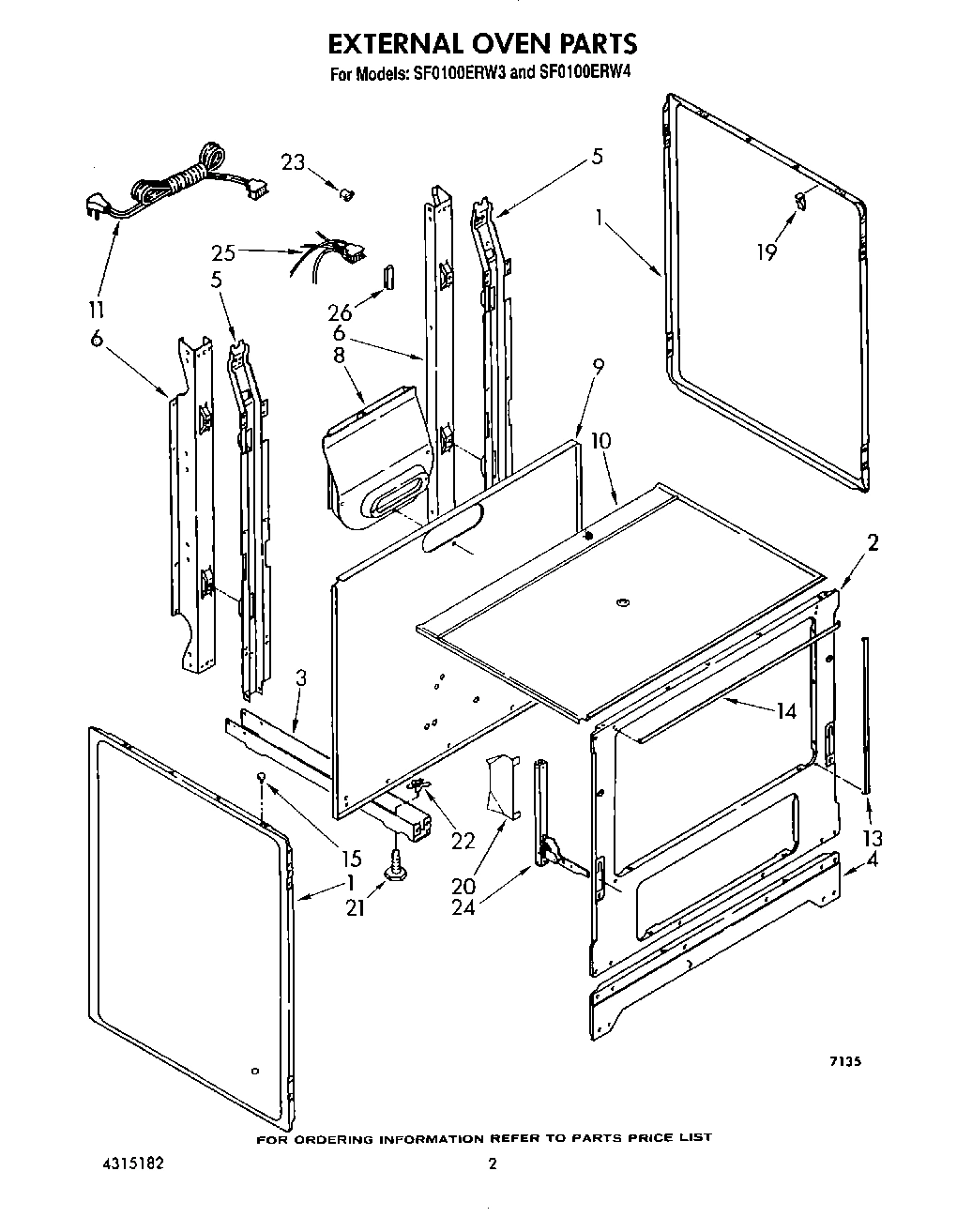

02 - EXTERNAL OVEN

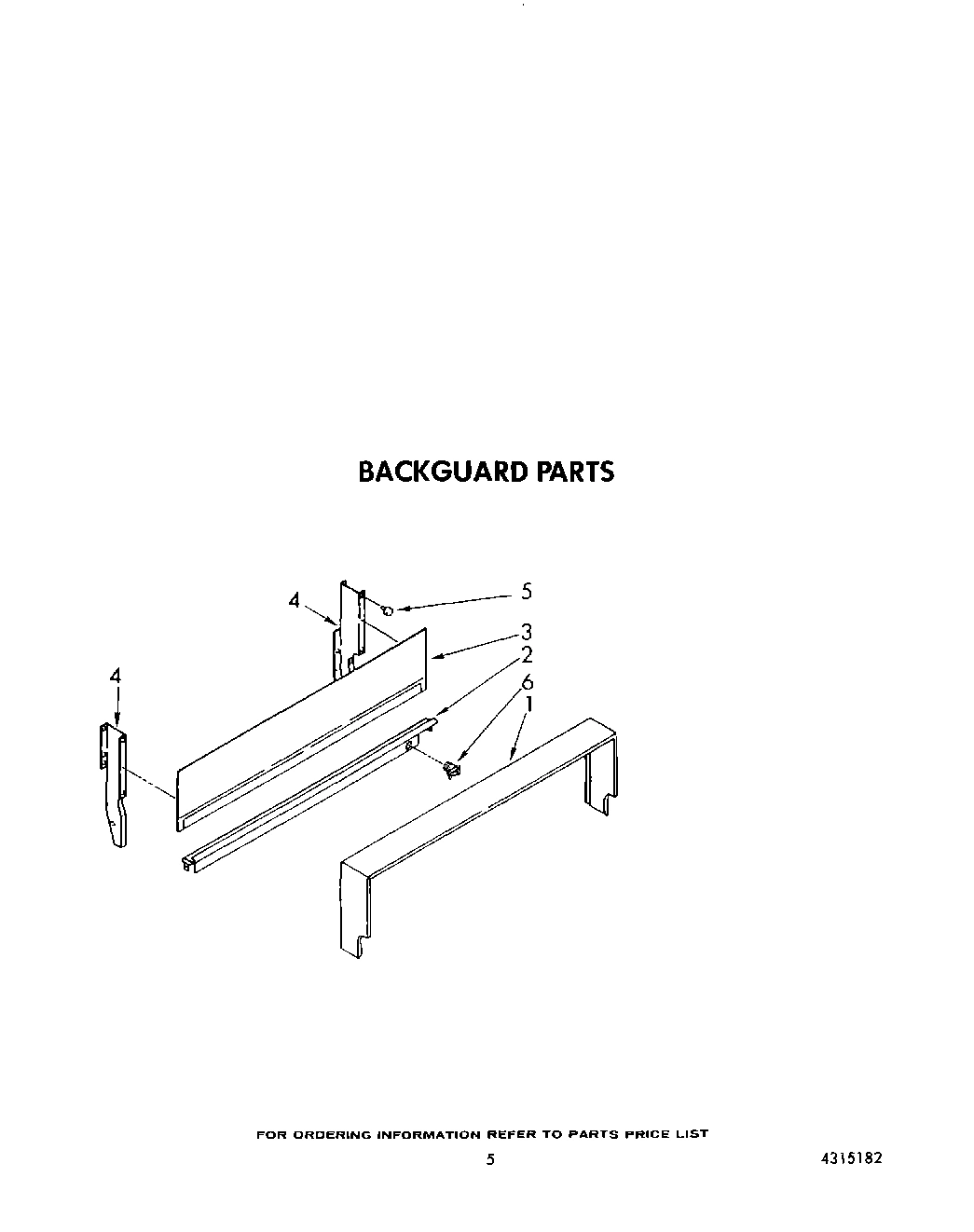

04 - BACKGUARD

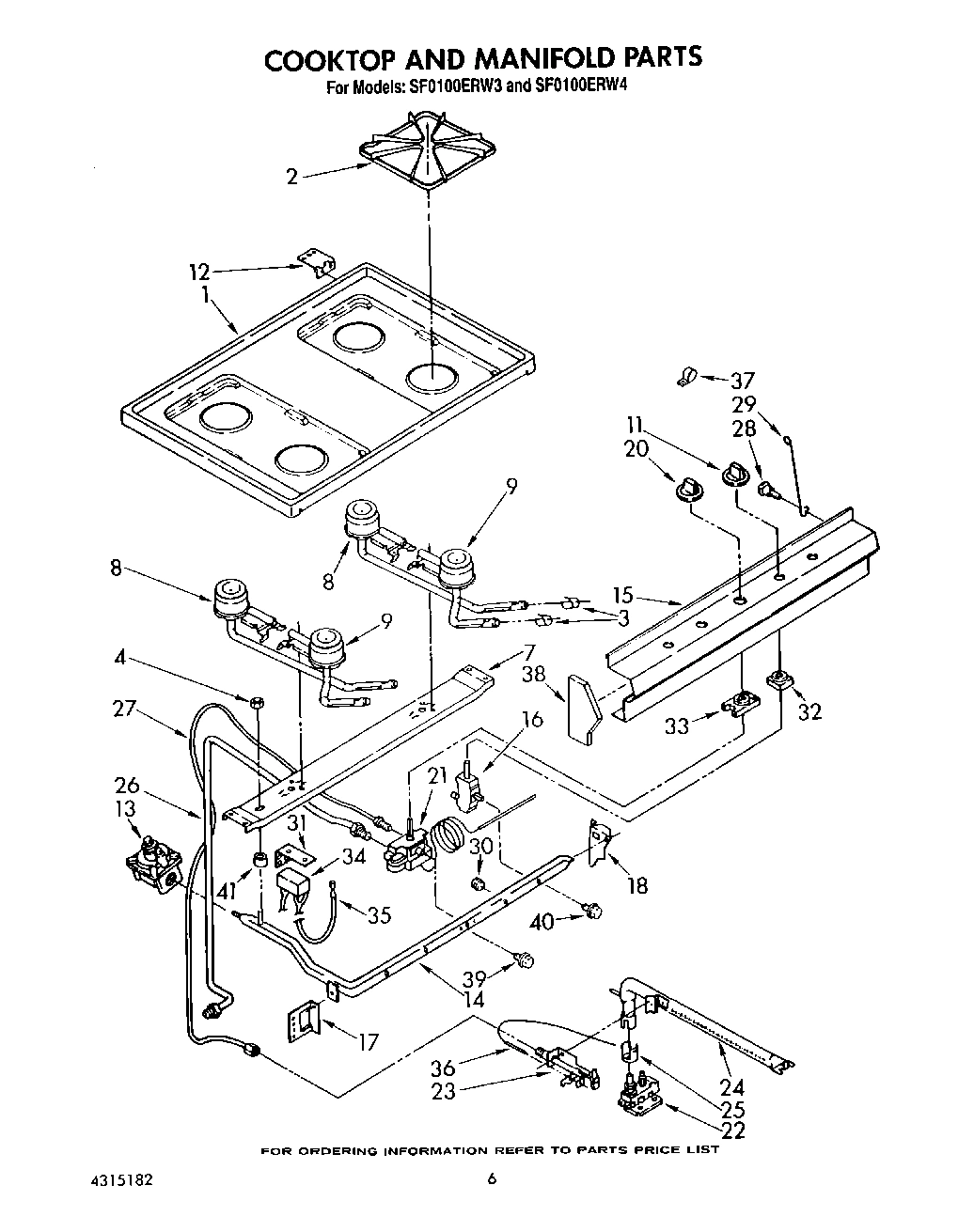

05 - COOKTOP AND MANIFOLD, LIT/OPTIONAL

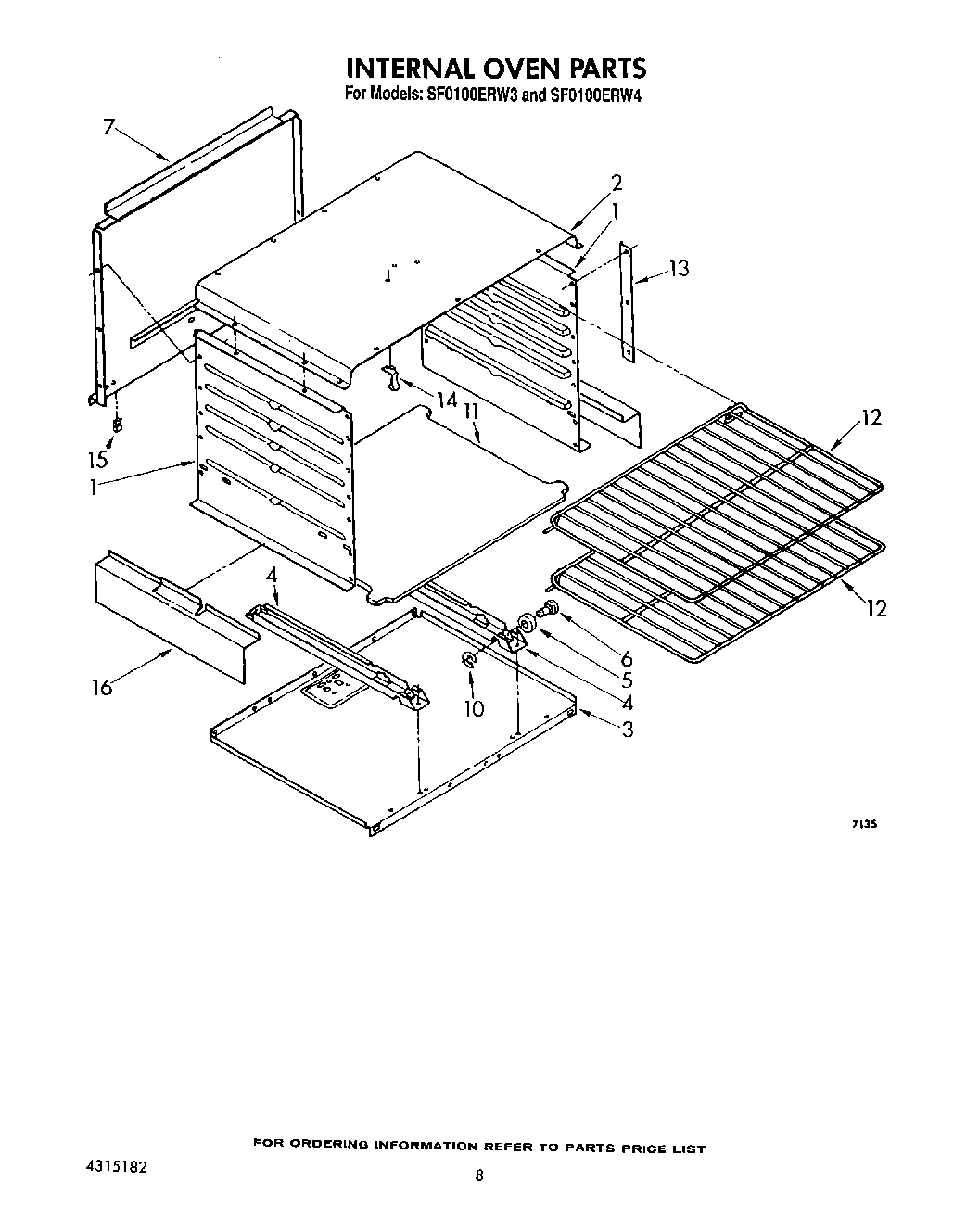

06 - INTERNAL OVEN

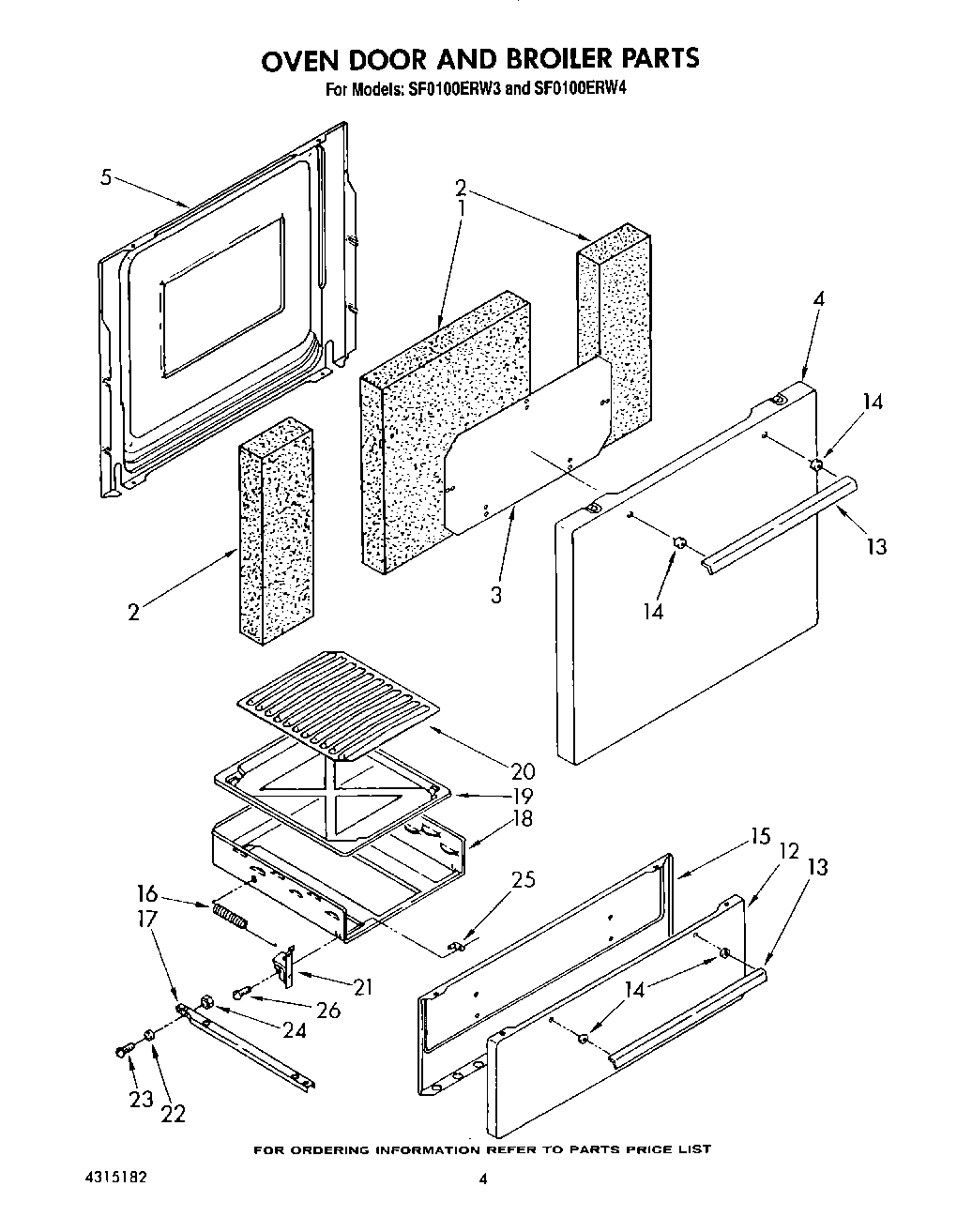

03 - OVEN DOOR AND BROILER
Common parts from model Whirlpool SF0100ERW4
WPL LIT4179119 WPL LIT4179119 Contact Us For Availability
WPL LIT4315182 WPL LIT4315182 Contact Us For Availability
WPL LIT786302 WPL LIT786302 Contact Us For Availability
WPL LIT786731 WPL LIT786731 Contact Us For Availability
1
Frame WPL 4179290 Contact Us For Availability
1
Cooktop (White) WPL 4157878 Contact Us For Availability
1
Cooktop (Almond) WPL 4157879 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315041 Contact Us For Availability
1
Insulation WPL 4179320 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Bottom, Backguard WPL 4157857 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Liner, Oven Top WPL 4315048 Contact Us For Availability
2
Insulation WPL 4179321 Contact Us For Availability
3
Glass WPL 4157854 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Baffle, Bottom WPL 4157924 Contact Us For Availability
3
Baffle WPL 4157931 Contact Us For Availability
4
Base, Front WPL 4157945 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Track, Broiler (2) WPL 4157007 Contact Us For Availability
4
Panel, Door (White) WPL 4179271 Contact Us For Availability
4
Panel, Door (Almond) WPL 4179272 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Roller (2) WPL 4157008 Contact Us For Availability
5
Liner, Door WPL 4315068 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Clamp, Cable WPL 4157221 Contact Us For Availability
6
Pin, Roller (2) WPL 4157009 Contact Us For Availability
7
Support, Burner WPL 4157946 Contact Us For Availability
7
Liner, Oven Back WPL 4315060 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Panel, Rear WPL 4157923 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Burner Box WPL 4315079 Contact Us For Availability
10
Retainer, Roller (2) WPL 4157026 Contact Us For Availability
11
Bottom, Oven WPL 4315074 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Rack, Oven (2) WPL 4157927 Contact Us For Availability
12
Panel, Broiler Use With Model SF0100ER-3 (Whi WPL 4179284 Contact Us For Availability
12
Panel, Broiler Use With Model SF0100ER-3 (Alm WPL 4179285 Contact Us For Availability
12
Panel, Broiler Use With Model SF0100ER-3 (Whi WPL 4315264 Contact Us For Availability
12
Panel, Broiler Use With Model SF0100ER-3 (Alm WPL 4315265 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157948 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Door (2) WPL 4157794 Contact Us For Availability
14
Seal, Door (Top) WPL 4157947 Contact Us For Availability
14
Manifold WPL 4314861 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Panel, Manifold WPL 4314862 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4315090 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 40) WPL 4314814 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157944 Contact Us For Availability
17
Track, Upper (2) WPL 4157044 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
18
Liner, Brolier WPL 4315088 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
20
Shield WPL 4157876 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Thermostat (Includes Ill. No. 39) WPL 4179354 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Roller (2) WPL 4157050 Contact Us For Availability
23
Strain Relief WPL 4157143 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
23
Pin, Roller (2) WPL 4157051 Contact Us For Availability
24
Hinge, Door (2) WPL 4179315 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Block, Disconnect WPL 4157220 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
26
Safe Edge WPL 4157132 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157758 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
27
Tubing 3/8`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
29
Rod, Support WPL 4157010 Contact Us For Availability
31
Plate, Module WPL 4157171 Contact Us For Availability
34
Module, Spark WPL 4179297 Contact Us For Availability
35
Ignitor (R.H.) WPL 4157182 Contact Us For Availability
35
Ignitor (L.H.) WPL 4157792 Contact Us For Availability
36
Ignitor, Oven WPL 4157184 Contact Us For Availability
37
Strain Relief WPL 4157185 Contact Us For Availability
38
Endcap (L.H.) WPL 4157186 Contact Us For Availability
38
Endcap (R.H.) WPL 4157187 Contact Us For Availability
39
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
40
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
41
FOIL, ALUMI WPL 241430 Contact Us For Availability
41
WPL 4315207 WPL 4315207 Contact Us For Availability
× ![]()
