Model Whirlpool SEC350XX1 – Common Parts & Diagrams

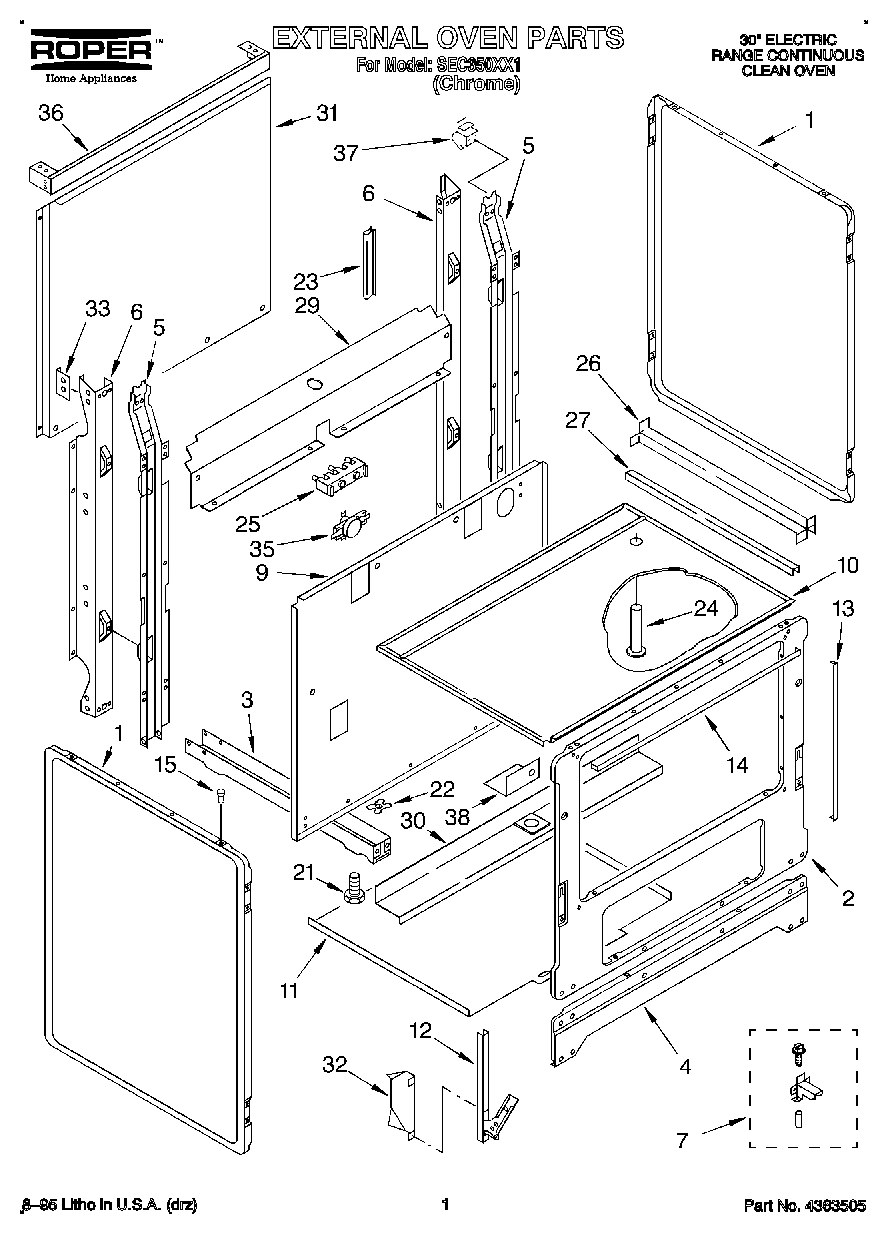

01 - EXTERNAL OVEN, LITERATURE

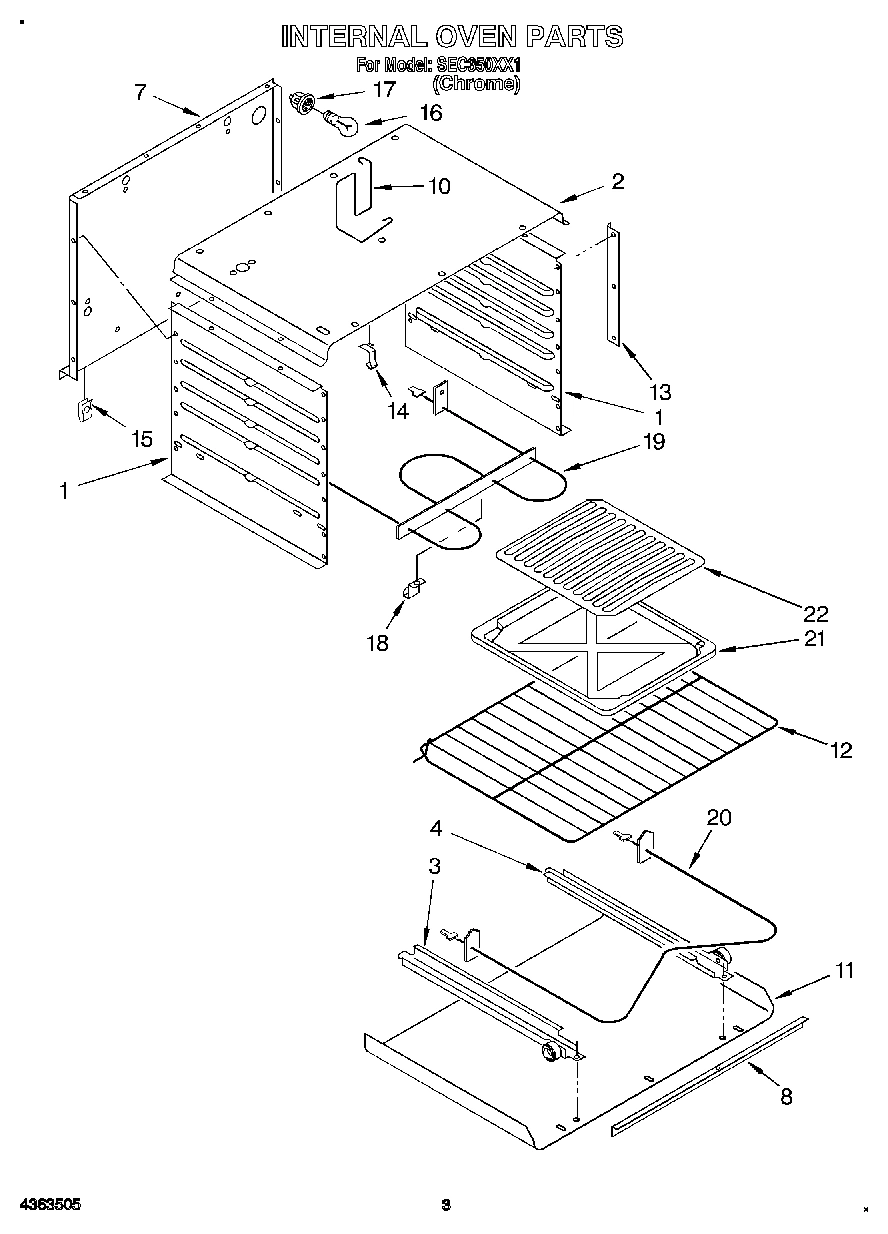

02 - INTERNAL OVEN
04 - COOKTOP
03 - OVEN DOOR AND STORAGE DRAWER
Common parts from model Whirlpool SEC350XX1
1
Screw WPL 4320452 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4320729 Contact Us For Availability
1
Cooktop, Chrome WPL 4363212 Contact Us For Availability
1
Bumper, Rubber ``L`` Shaped WPL 4321083 Contact Us For Availability
2
Liner, Oven Top WPL 4315044 Contact Us For Availability
3
Rail, Base (2) WPL 4363194 Contact Us For Availability
3
Track, L.H. WPL 4320465 Contact Us For Availability
3
Knob, Burner (4) WPL 4320345 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Track, R.H. WPL 4315385 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Panel, Manifold WPL 4321162 Contact Us For Availability
5
Liner WPL 4363284 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Screw WPL 4363237 Contact Us For Availability
6
Knob, Thermostat WPL 4320346 Contact Us For Availability
6
Track, Upper (Left) WPL 4364023 Contact Us For Availability
6
Track, Upper (Right) WPL 4364024 Contact Us For Availability
7
Anti-Tip Kit WPL 4363057 Contact Us For Availability
7
Liner, Oven Back WPL 4314989 Contact Us For Availability
7
Thermostat WPL 4314949 Contact Us For Availability
7
Liner, Door WPL 4363269 Contact Us For Availability
8
Screw WPL 4320662 Contact Us For Availability
8
Support, Oven Bottom WPL 4315213 Contact Us For Availability
8
Ring, Hold Down WPL 4363238 Contact Us For Availability
9
Panel, Rear WPL 4315493 Contact Us For Availability
9
Rod, Support WPL 4157010 Contact Us For Availability
9
Insulation WPL 4363236 Contact Us For Availability
10
Burner Box WPL 4314939 Contact Us For Availability
10
Cage, Light WPL 4320570 Contact Us For Availability
10
Endcap (R.H.) WPL 4314980 Contact Us For Availability
10
Endcap (L.H.) WPL 4314981 Contact Us For Availability
10
Panel, Drawer WPL 4363504 Contact Us For Availability
11
Retainer, Insulation WPL 4315490 Contact Us For Availability
11
Bottom, Oven WPL 4320773 Contact Us For Availability
11
Screw WPL 4363537 Contact Us For Availability
11
Clock WPL 4321163 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw WPL 4320567 Contact Us For Availability
12
Rack, Oven (2) WPL 4320804 Contact Us For Availability
12
Glass WPL 4321160 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Light, Indicator (3) WPL 4315030 Contact Us For Availability
13
Bumper (2) WPL 4320477 Contact Us For Availability
13
Support WPL 4320536 Contact Us For Availability
14
Seal, Door (Top) WPL 4315335 Contact Us For Availability
14
Unit, Surface (6``) WPL 4315619 Contact Us For Availability
14
Unit, Surface (8``) WPL 4315620 Contact Us For Availability
14
Window WPL 4157032 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Screw WPL 4157018 Contact Us For Availability
15
Cover, Switch WPL 4315214 Contact Us For Availability
15
Handle WPL 4320473 Contact Us For Availability
15
Screw WPL 4320474 Contact Us For Availability
16
Screw WPL 4320604 Contact Us For Availability
16
Frame, Door WPL 4321161 Contact Us For Availability
17
Receptacle WPL 4157020 Contact Us For Availability
17
Mounting Bracket WPL 4363064 Contact Us For Availability
18
Support, Broil Element WPL 4157967 Contact Us For Availability
18
Spacer (2) WPL 4314916 Contact Us For Availability
19
Knob, Clock (3) WPL 4363358 Contact Us For Availability
19
Handle WPL 4157208 Contact Us For Availability
20
Screw WPL 4320577 Contact Us For Availability
21
Leg, Leveler (4) WPL 4363195 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Grid WPL 4315094 Contact Us For Availability
22
Hinge, Cooktop WPL 4157083 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Light, Indicator WPL 4314996 Contact Us For Availability
24
Tube, Vent WPL 4314952 Contact Us For Availability
26
Channel WPL 4363171 Contact Us For Availability
27
Support WPL 4157965 Contact Us For Availability
29
Cover, Rear WPL 4363286 Contact Us For Availability
29
Glide Stop WPL 4321201 Contact Us For Availability
30
Screw WPL 4315522 Contact Us For Availability
30
Shield, Wire WPL 4320496 Contact Us For Availability
31
Cover, Rear WPL 4315000 Contact Us For Availability
32
Shield, Insulation WPL 4157325 Contact Us For Availability
33
Bracket, Mounting (R.H.) WPL 4314911 Contact Us For Availability
33
Bracket, Mounting (L.H.) WPL 4314912 Contact Us For Availability
35
Disc, Thermo WPL 4179130 Contact Us For Availability
36
Back, Bar WPL 4314955 Contact Us For Availability
37
Bracket, Top Support WPL 4314910 Contact Us For Availability
38
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
38
Plate, Mounting WPL 4320523 Contact Us For Availability
× ![]()
