Model Whirlpool SE950PERW9 – Common Parts & Diagrams
07 - UPPER OVEN EXTERNAL
03 - INTERNAL OVEN
05 - OVEN DOOR AND BROILER

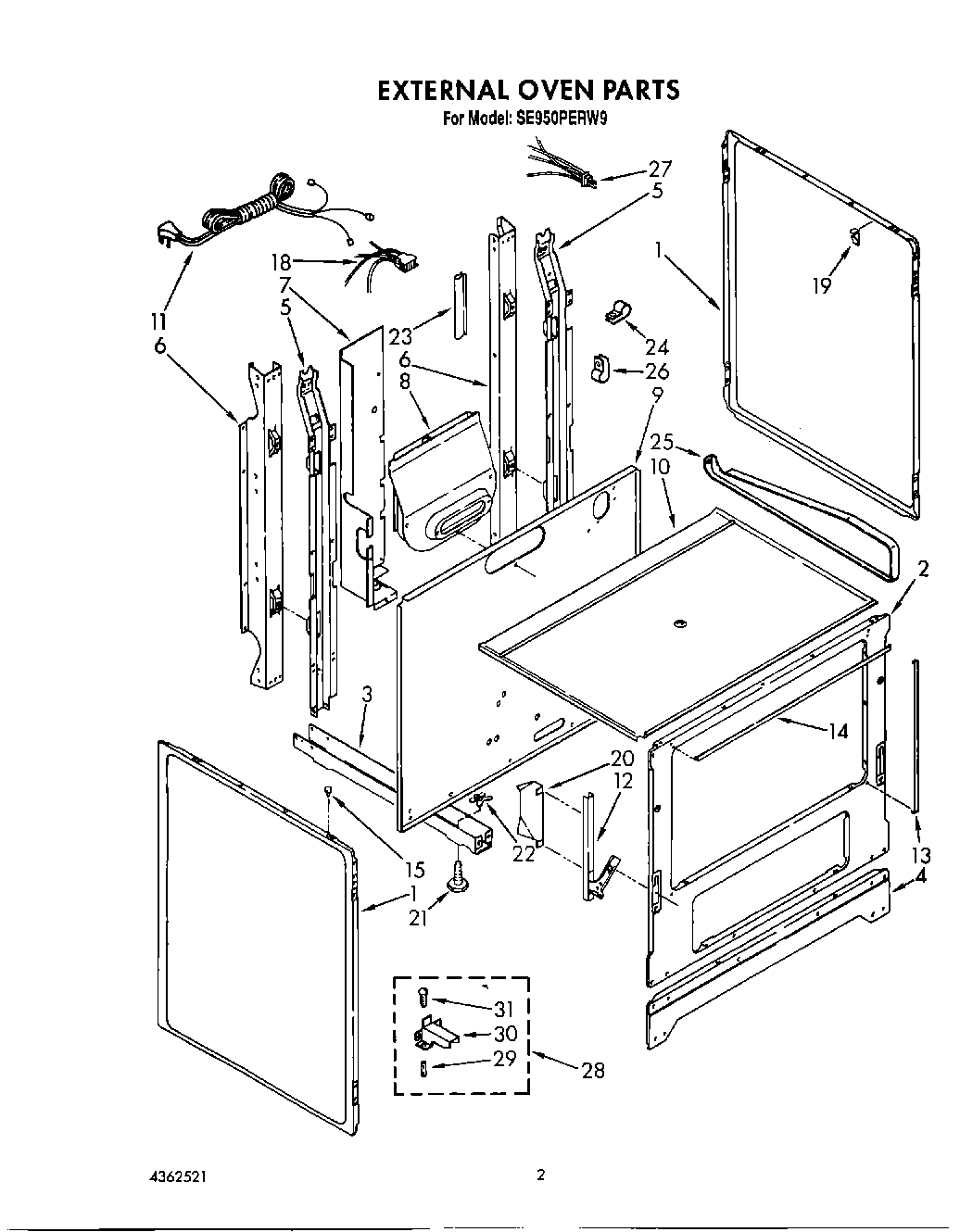

02 - EXTERNAL OVEN

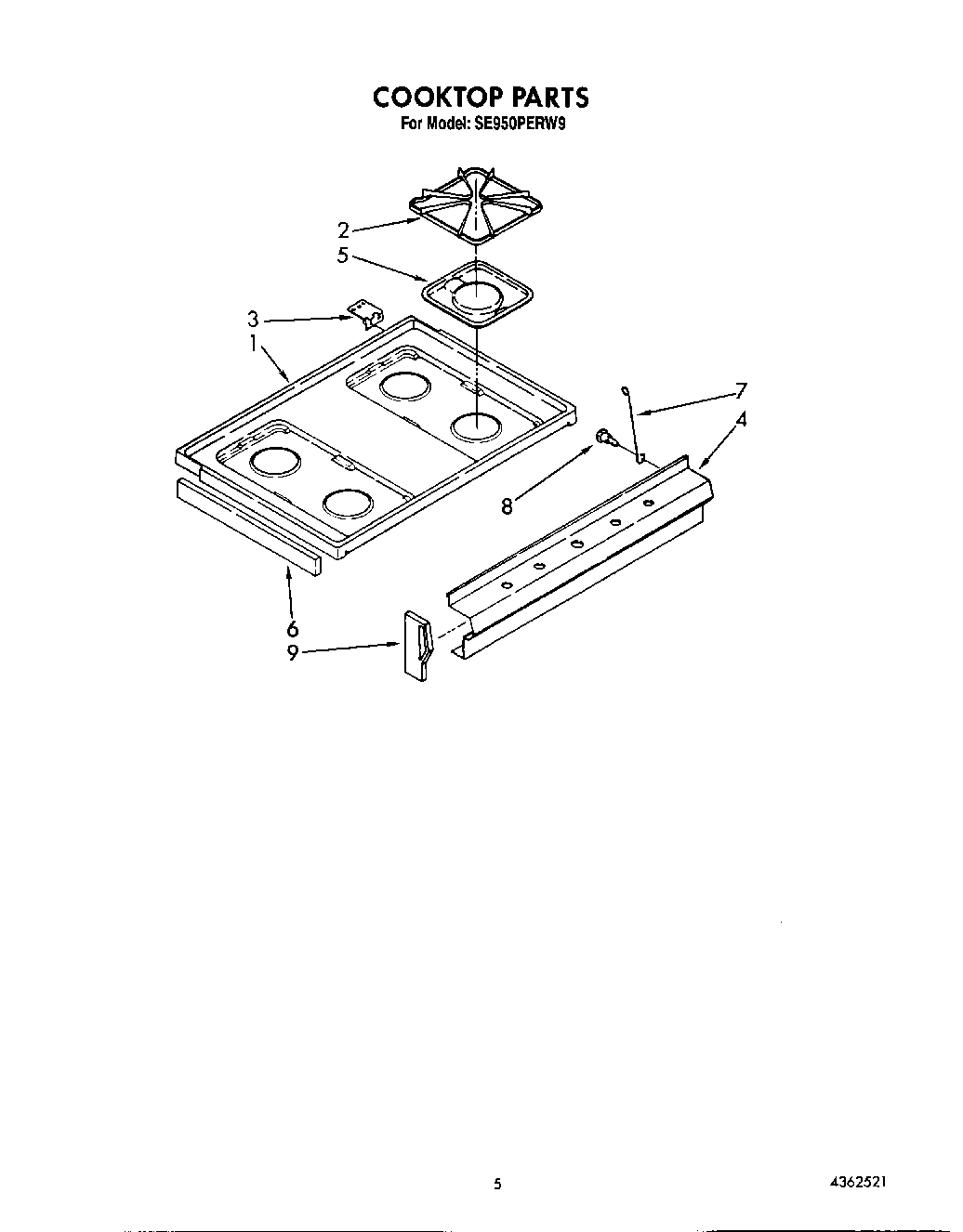

04 - COOKTOP
09 - UPPER OVEN DOOR

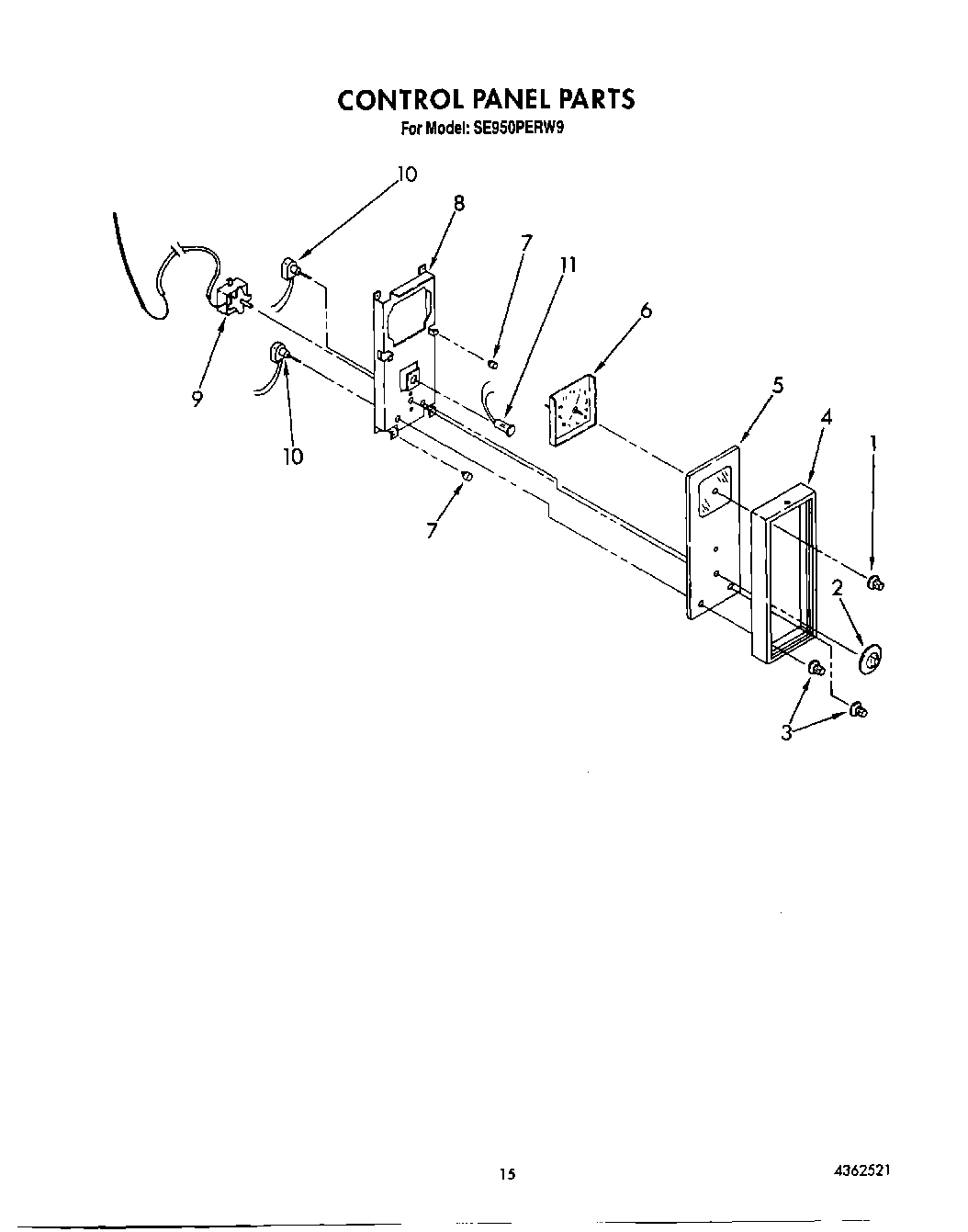

10 - CONTROL PANEL

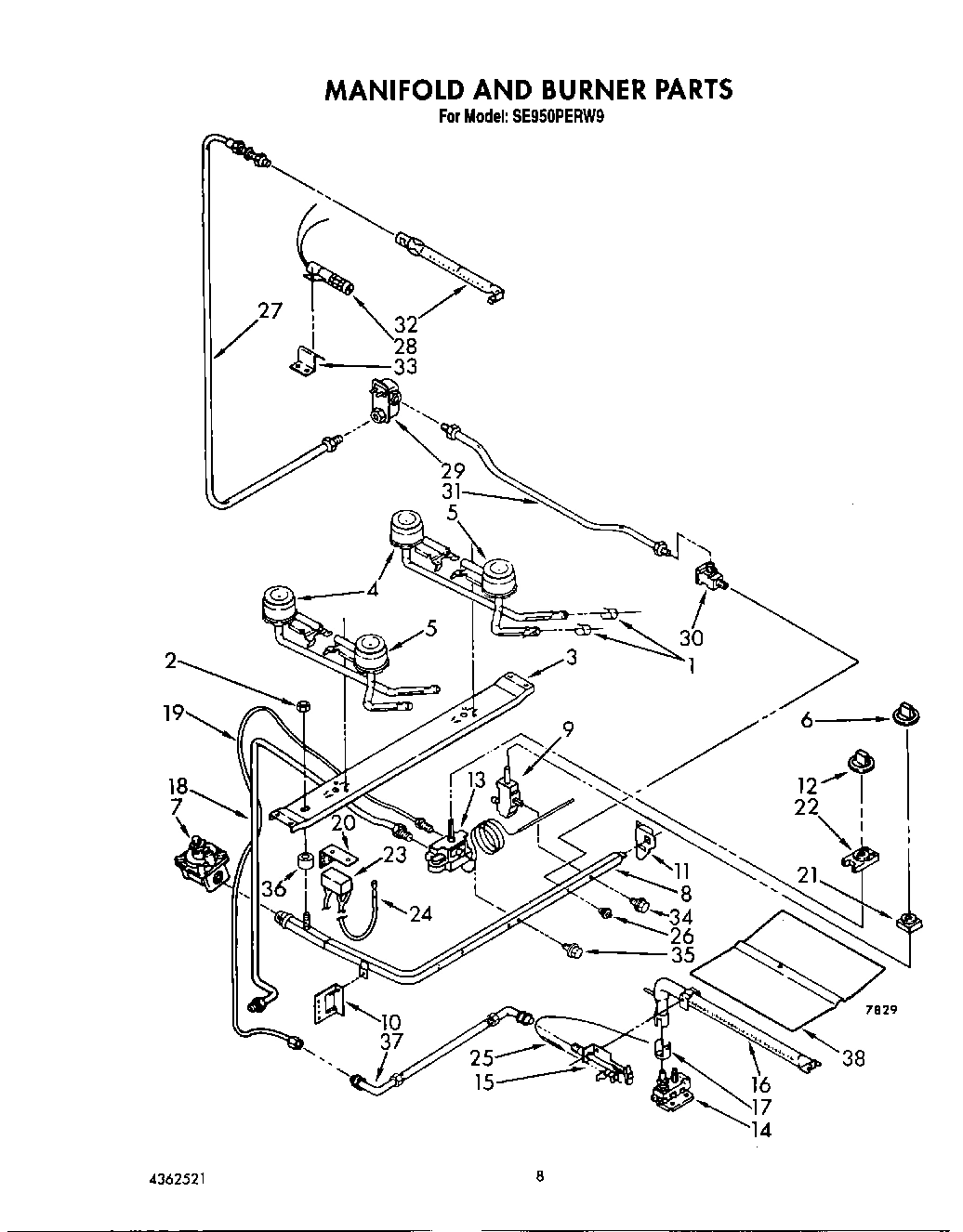

06 - MANIFOLD AND BURNER

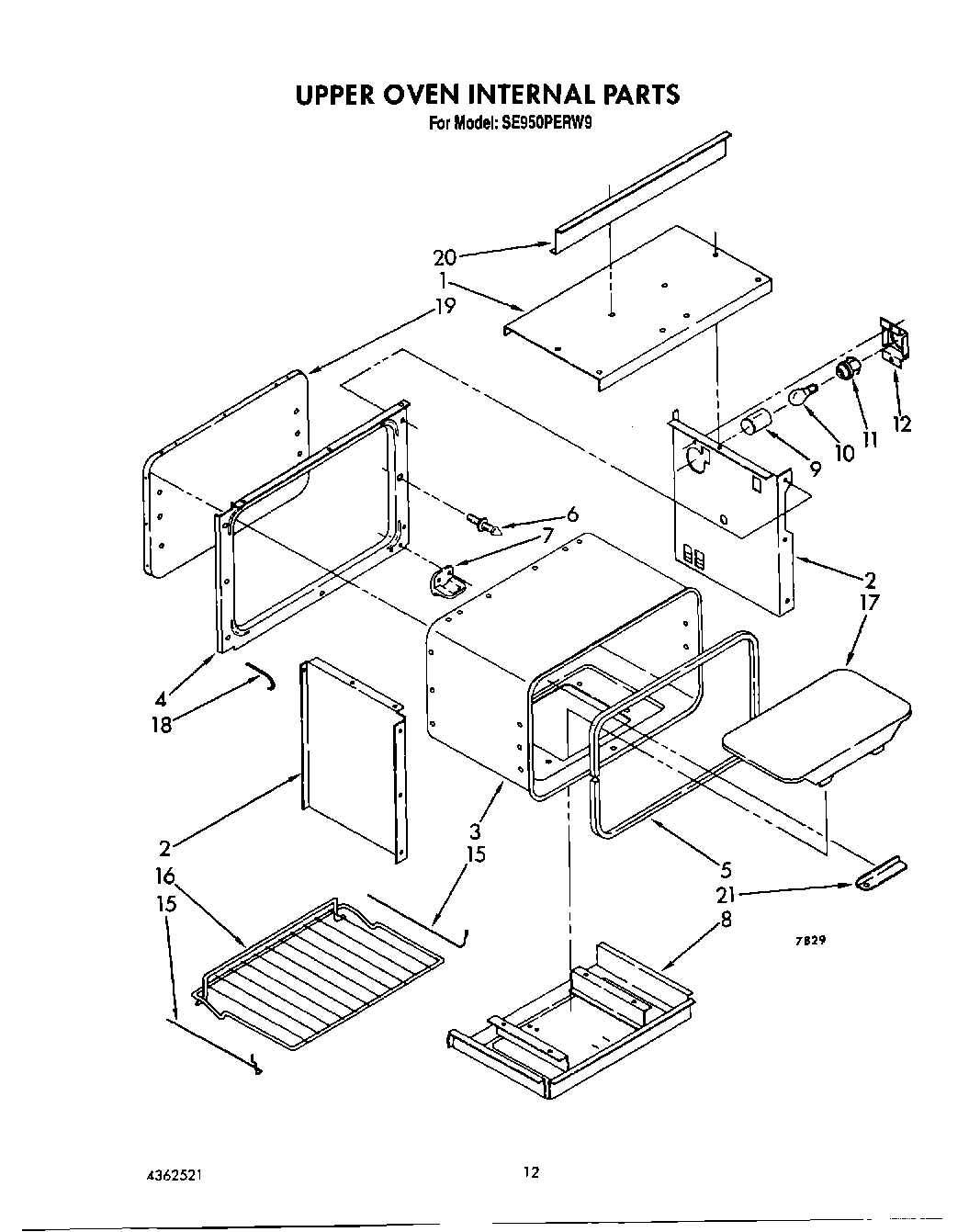

08 - UPPER OVEN INTERNAL, LIT/OPTIONAL
Common parts from model Whirlpool SE950PERW9
Repair Parts List WPL LIT4362521 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
Instuctions, Installation WPL LIT786734 Contact Us For Availability
Guide, Use & Care WPL LIT786770 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Cooktop (White) WPL 4157890 Contact Us For Availability
1
Cooktop (Almond) WPL 4157891 Contact Us For Availability
1
Frame WPL 4157703 Contact Us For Availability
1
Knob, Clock WPL 4157701 Contact Us For Availability
1
Shutter, Air (4) WPL 4157074 Contact Us For Availability
1
Baffle WPL 4157729 Contact Us For Availability
2
Liner, Oven Top WPL 4315046 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Frame, Front WPL 4320723 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Glass, Outer WPL 4157705 Contact Us For Availability
2
Knob, Thermostat WPL 4321293 Contact Us For Availability
2
Nut, Hex WPL 4157075 Contact Us For Availability
2
Side, Burner Box (R.H.) WPL 4157726 Contact Us For Availability
2
Side, Burner Box (L.H.) WPL 4157730 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Frame, Door WPL 4321230 Contact Us For Availability
3
Speed Clip WPL 4157115 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
3
Glass, Inner WPL 4157148 Contact Us For Availability
3
Knob, Light WPL 4157700 Contact Us For Availability
3
Support, Burner WPL 4157078 Contact Us For Availability
3
Liner, Oven WPL 4315078 Contact Us For Availability
4
Panel, Side (L.H) (White) WPL 4157679 Contact Us For Availability
4
Panel, Side (L.H) (Almond) WPL 4157825 Contact Us For Availability
4
Track, Broil (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broil (Right Hand) WPL 4315385 Contact Us For Availability
4
Glass WPL 4321160 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Panel, Manifold WPL 4314815 Contact Us For Availability
4
Catch WPL 4157668 Contact Us For Availability
4
Frame WPL 4157702 Contact Us For Availability
4
Burner, Rear (2) WPL 4157206 Contact Us For Availability
4
Frame, Front WPL 4314864 Contact Us For Availability
5
Support, Side Panel (R.H.) WPL 4157691 Contact Us For Availability
5
Support, Side Panel (L.H.) WPL 4157692 Contact Us For Availability
5
Ring, Hold Down WPL 4320351 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
5
Handle WPL 4157704 Contact Us For Availability
5
Glass WPL 4157697 Contact Us For Availability
5
Burner, Front (2) WPL 4157205 Contact Us For Availability
5
Seal, Door WPL 4315366 Contact Us For Availability
6
Window WPL 4157032 Contact Us For Availability
6
Support, Rear (2) WPL 4157746 Contact Us For Availability
6
Trim, Top (2) WPL 4315447 Contact Us For Availability
6
Bar, Slide WPL 4157725 Contact Us For Availability
6
Clock WPL 4157698 Contact Us For Availability
6
Strike WPL 4157669 Contact Us For Availability
7
Panel, Bottom WPL 4157711 Contact Us For Availability
7
Liner, Oven Back WPL 4315055 Contact Us For Availability
7
Bumper WPL 4157128 Contact Us For Availability
7
Cover, Wire WPL 4157715 Contact Us For Availability
7
Rod, Support WPL 4157010 Contact Us For Availability
7
Spacer WPL 4157708 Contact Us For Availability
7
Regulator, Pressure WPL 4157084 Contact Us For Availability
7
Support, Door WPL 4157739 Contact Us For Availability
8
Reflector, Light WPL 4157712 Contact Us For Availability
8
Support, Glass WPL 4157034 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Screw WPL 4157018 Contact Us For Availability
8
Pin, Hinge WPL 4157707 Contact Us For Availability
8
Bracket WPL 4157716 Contact Us For Availability
8
Manifold WPL 4315379 Contact Us For Availability
8
Housing, Burner WPL 4315077 Contact Us For Availability
9
Backsplash (White) WPL 4157710 Contact Us For Availability
9
Backsplash (Almond) WPL 4179058 Contact Us For Availability
9
Liner, Door WPL 4321174 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
Endcap (Left Hand) WPL 4157186 Contact Us For Availability
9
Endcap (Right Hand) WPL 4157187 Contact Us For Availability
9
Hinge WPL 4157724 Contact Us For Availability
9
Thermostat WPL 4321292 Contact Us For Availability
9
Valve, 180~ (4) (Includes Ill. No. 35) WPL 4179356 Contact Us For Availability
9
Reflector, Light WPL 4157722 Contact Us For Availability
10
Panel, Rear Upper WPL 4157720 Contact Us For Availability
10
Support, Glass (2) WPL 4157037 Contact Us For Availability
10
Burner Box WPL 4315080 Contact Us For Availability
10
Washer WPL 4157706 Contact Us For Availability
10
Switch, Light WPL 4157732 Contact Us For Availability
10
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
11
Bulb WPL 4157667 Contact Us For Availability
11
Socket, Light WPL 4157020 Contact Us For Availability
11
Bottom, Oven WPL 4320784 Contact Us For Availability
11
Plate (2) WPL 4157131 Contact Us For Availability
11
Cord, Power WPL 4179363 Contact Us For Availability
11
Spacer, Glass (3) WPL 4157684 Contact Us For Availability
11
Light, Indicator WPL 4157870 Contact Us For Availability
11
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
12
Socket WPL 4157728 Contact Us For Availability
12
Rack, Oven (2) WPL 4315754 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320457 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320458 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Liner WPL 4315063 Contact Us For Availability
12
Bracket, Light WPL 4157721 Contact Us For Availability
13
Support, Frame WPL 4157713 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Clip, Liner (6) WPL 4315346 Contact Us For Availability
13
Thermostat (Includes Ill. No. 34) WPL 4315441 Contact Us For Availability
14
Bracket, Fitting WPL 4157719 Contact Us For Availability
14
Insulation WPL 4157033 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Seal, Door (Top) WPL 4315333 Contact Us For Availability
14
Valve, Safety WPL 4157094 Contact Us For Availability
15
Cover, Receptacle WPL 4157673 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4321171 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Support, Window WPL 4157869 Contact Us For Availability
15
Pilot WPL 4315270 Contact Us For Availability
15
Support, Rack (Left Hand) WPL 4157736 Contact Us For Availability
15
Support, Rack (Right Hand) WPL 4157737 Contact Us For Availability
16
Flue, Cover WPL 4157868 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Burner, Lower Oven WPL 4179289 Contact Us For Availability
16
Rack, Oven WPL 4157735 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Shutter WPL 4157097 Contact Us For Availability
17
Bottom, Oven WPL 4315073 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Block, Disconnect WPL 4157149 Contact Us For Availability
18
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4315443 Contact Us For Availability
18
Bolt, Hook (4) WPL 4157738 Contact Us For Availability
18
Nut, Hex WPL 4157874 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
19
Tubing 3/16`` (Thermostat To Pilot) WPL 4315445 Contact Us For Availability
19
Liner, Oven Back WPL 4315056 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Plate, Module WPL 4157171 Contact Us For Availability
20
Support WPL 4157731 Contact Us For Availability
21
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Plate, Cover WPL 4157871 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4321201 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Module, Spark WPL 4315322 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Strain Relief WPL 4157185 Contact Us For Availability
24
Ignitor (R.H.) WPL 4179204 Contact Us For Availability
24
Ignitor (L.H.) WPL 4179205 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Support, Burner Box (Left Hand) WPL 4157747 Contact Us For Availability
25
Support, Burner Box (Right Hand) WPL 4157748 Contact Us For Availability
25
Ignitor, Lower Oven WPL 4315316 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Clamp, Wire WPL 4157221 Contact Us For Availability
26
Screw & Gasket Assembly WPL 4314983 Contact Us For Availability
27
Block, Disconnect WPL 4157112 Contact Us For Availability
27
Tubing 3/8`` (Solenoid Valve To Burner) WPL 4315444 Contact Us For Availability
28
Anti Tip Kit WPL 4315756 Contact Us For Availability
28
Ignitor, Upper Oven WPL 4157689 Contact Us For Availability
29
Anchor (2) WPL 4315786 Contact Us For Availability
29
Valve WPL 4157690 Contact Us For Availability
30
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
30
Bracket WPL 4315792 Contact Us For Availability
30
Shut-Off Valve WPL 4315442 Contact Us For Availability
31
Bumper, Rubber (2) WPL 4320477 Contact Us For Availability
31
Tubing 3/8`` (Shut Off Valve To Solenoid Valv WPL 4315376 Contact Us For Availability
32
Burner, Upper Oven WPL 4157733 Contact Us For Availability
33
Bumper, Rubber (4) WPL 4321083 Contact Us For Availability
33
Bracket, Ignitor WPL 4157672 Contact Us For Availability
34
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
35
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
36
Spacer, Manifold WPL 4315207 Contact Us For Availability
37
Tubing 3/16`` (Filter To Burner Pilot) WPL 4315446 Contact Us For Availability
38
Reflector, Flame Spreader WPL 4320440 Contact Us For Availability
× ![]()
