Model Whirlpool SCS3014GT1 30`` GAS COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool SCS3014GT1 30`` GAS COOKTOP

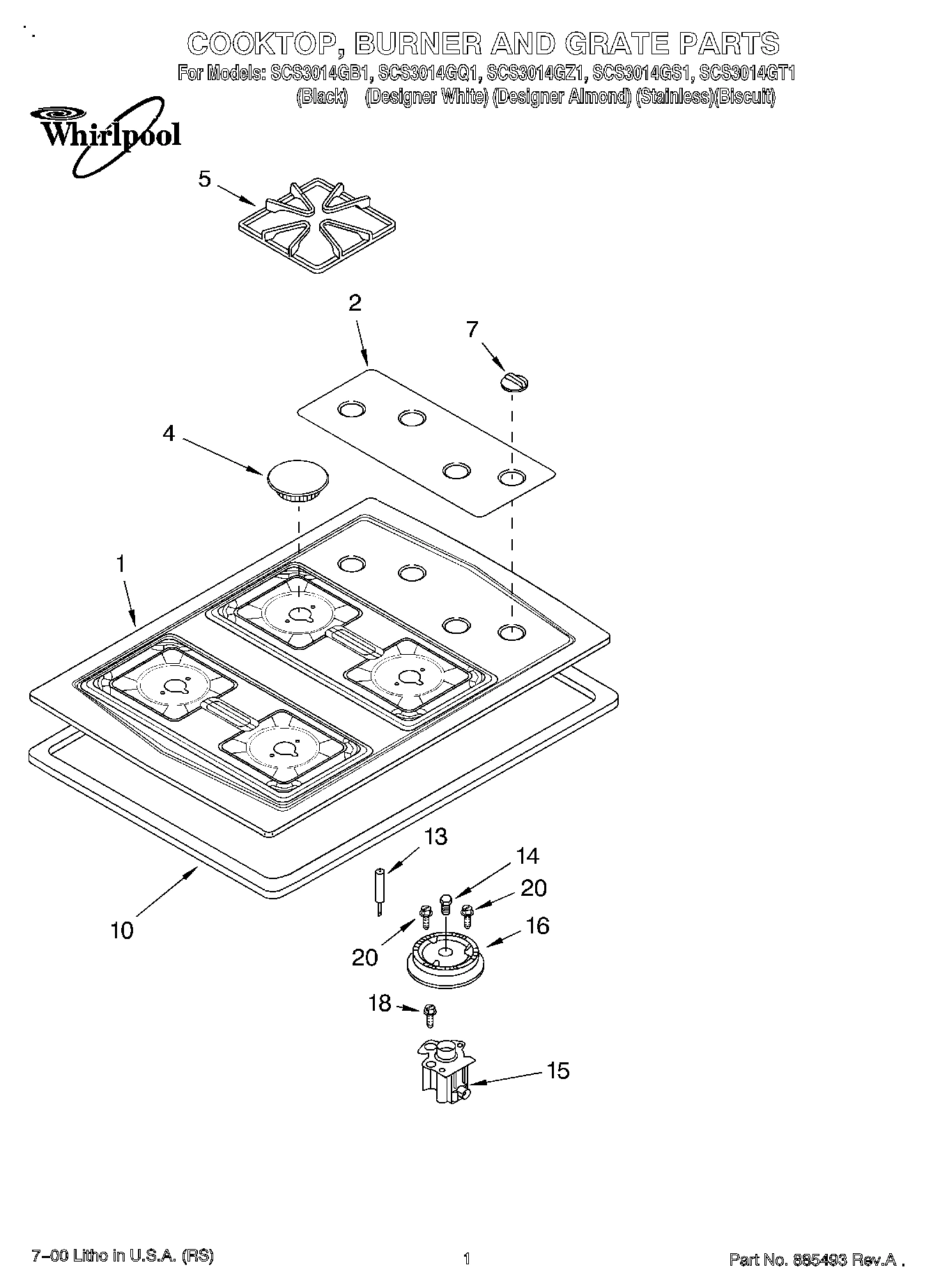

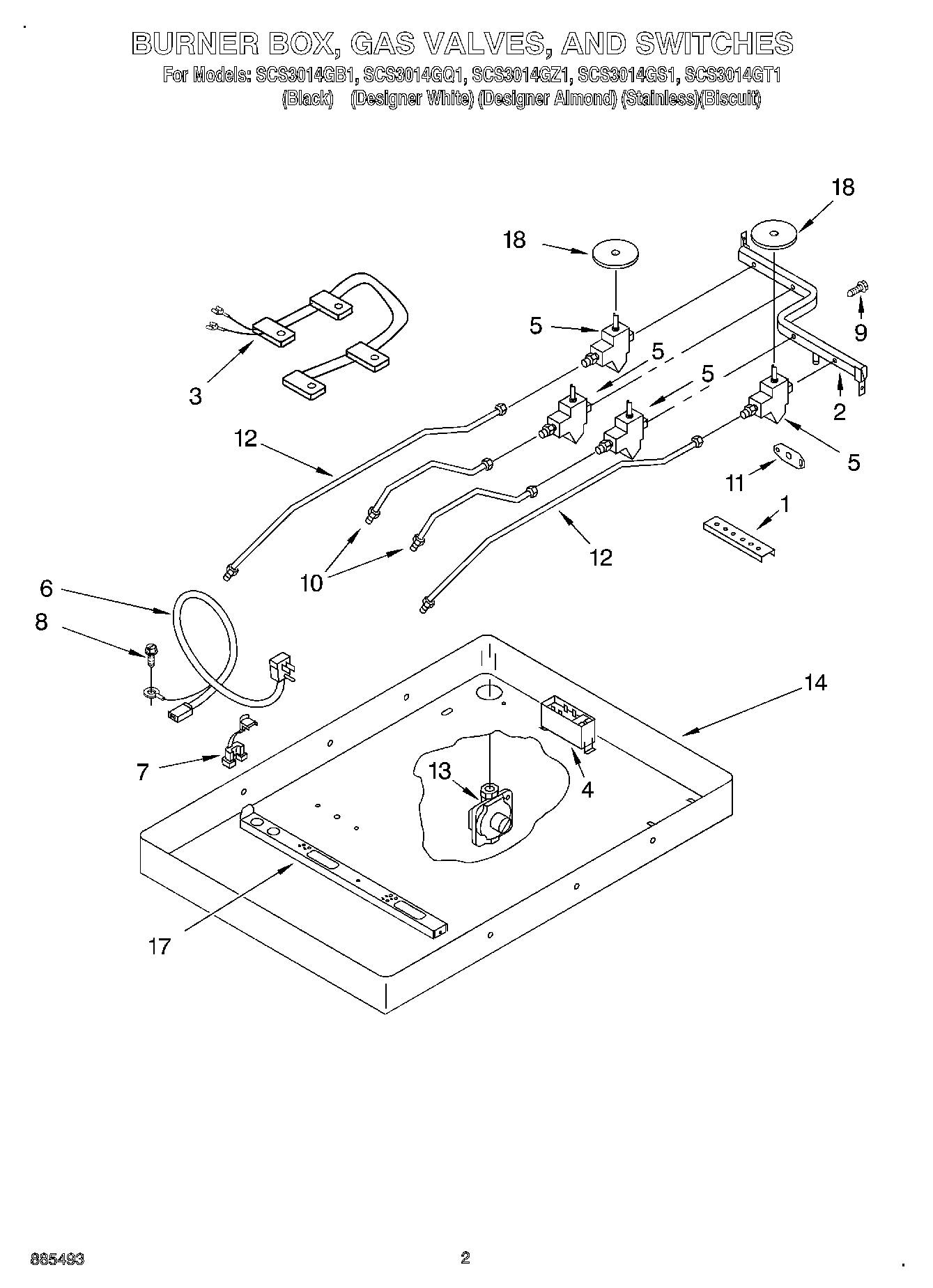

01 - COOKTOP, BURNER AND GRATE

Print

• This Diagram
• All Diagrams

WP3192741 Whirlpool LP Conversion Kit In Stock WPL WP3192741 View Details $21.74

View on Model

Hardware, Mounting WPL 3188310 Contact Us For Availability

View on Model

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

View on Model

Installation Instructions WPL LIT3191827 Contact Us For Availability

View on Model

Wiring Diagram WPL LIT3192098 Contact Us For Availability

View on Model

Insert Sheet - Wiring Diagram WPL LIT3192244 Contact Us For Availability

View on Model

LP Conversion Instructions WPL LIT3192742 Contact Us For Availability

View on Model

Use & Care Guide WPL LIT3192743 Contact Us For Availability

View on Model

1

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $30.25

View on Model

1

Screw WPL 3179557 Contact Us For Availability

View on Model

1

Nut, Tinnerman (2) WPL 4167077 Contact Us For Availability

View on Model

2

9759354 Whirlpool Oven Manifold Pipe Backorder WPL 9759354 View Details $70.08

View on Model

2

W10491985 Whirlpool Screw Backorder WPL W10491985 View Details $2.51

View on Model

3

WP3191334 Whirlpool Wire Harness Backorder WPL WP3191334 View Details $147.65

View on Model

4

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 View Details $44.27

View on Model

4

WP3191901 Whirlpool Burner Cap Backorder WPL WP3191901 View Details $56.96

View on Model

4

WP3191903 Whirlpool Burner Cap In Stock WPL WP3191903 View Details $101.63

View on Model

4

WP3191904 Whirlpool Burner Cap Backorder WPL WP3191904 View Details $100.55

View on Model

4

WP3191905 Whirlpool Burner Cap Backorder WPL WP3191905 View Details $46.21

View on Model

4

WP8053421 Whirlpool Oven Spark Module In Stock WPL WP8053421 View Details $83.70

View on Model

4

Cap, Burner 6K (1) (Gray 9.5K (2)) WPL 3191899 Contact Us For Availability

View on Model

5

WP8053456 Whirlpool Burner Grate Backorder WPL WP8053456 View Details $99.97

View on Model

5

WPW10447925 Whirlpool Grate Kit In Stock WPL WPW10447925 View Details $198.76

View on Model

5

Valve, Burner (Small (1)) WPL 3191292 Contact Us For Availability

View on Model

5

Valve, Burner (Large (3)) WPL 3191293 Contact Us For Availability

View on Model

6

W10392007 Whirlpool Power Cord Backorder WPL W10392007 View Details $37.33

View on Model

7

4173634 Whirlpool Bushing Backorder WPL 4173634 View Details $4.61

View on Model

7

WP3191328 Whirlpool Control Knob In Stock WPL WP3191328 View Details $12.66

View on Model

8

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $2.51

View on Model

9

Bolt, Gas Valve WPL 307630 Contact Us For Availability

View on Model

10

Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability

View on Model

11

3192491 Whirlpool Support Bracket Backorder WPL 3192491 View Details $6.00

View on Model

12

3191320 Whirlpool Oven Gas Tubing Backorder WPL 3191320 View Details $46.81

View on Model

13

Regulator, Pressure WPL 3177120 Contact Us For Availability

View on Model

14

WP3192523 Whirlpool Orifice Backorder WPL WP3192523 View Details $33.91

View on Model

14

Box, Burner WPL 3192500 Contact Us For Availability

View on Model

17

W10203756 Whirlpool Support Backorder WPL W10203756 View Details $6.37

View on Model

18

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 View Details $30.25

View on Model

18

WP4449809 Whirlpool Screw In Stock WPL WP4449809 View Details $2.64

View on Model

20

WP3368921 Whirlpool Screw In Stock WPL WP3368921 View Details $1.52

View on Model

×
