Model Whirlpool SBE26GC ELECTRIC RANGE – Common Parts & Diagrams

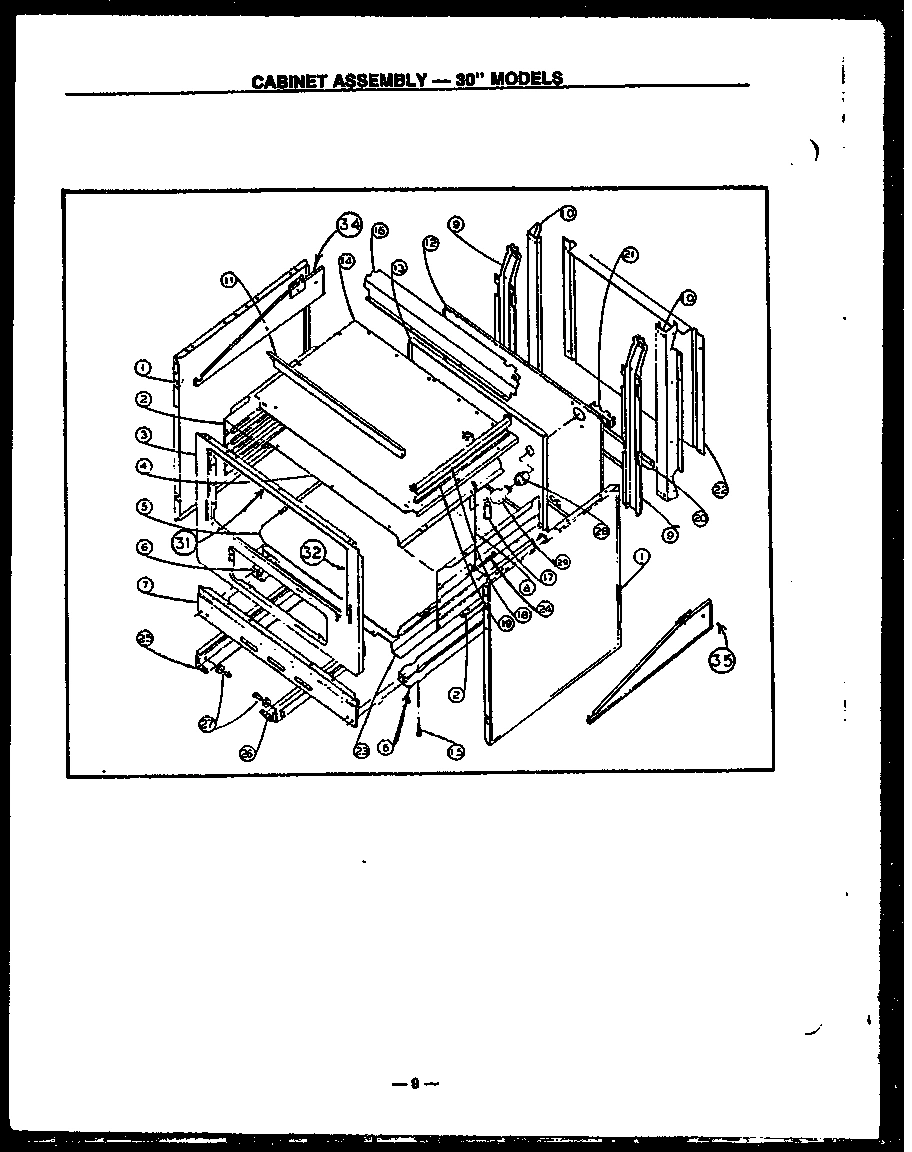

04 - Page 4

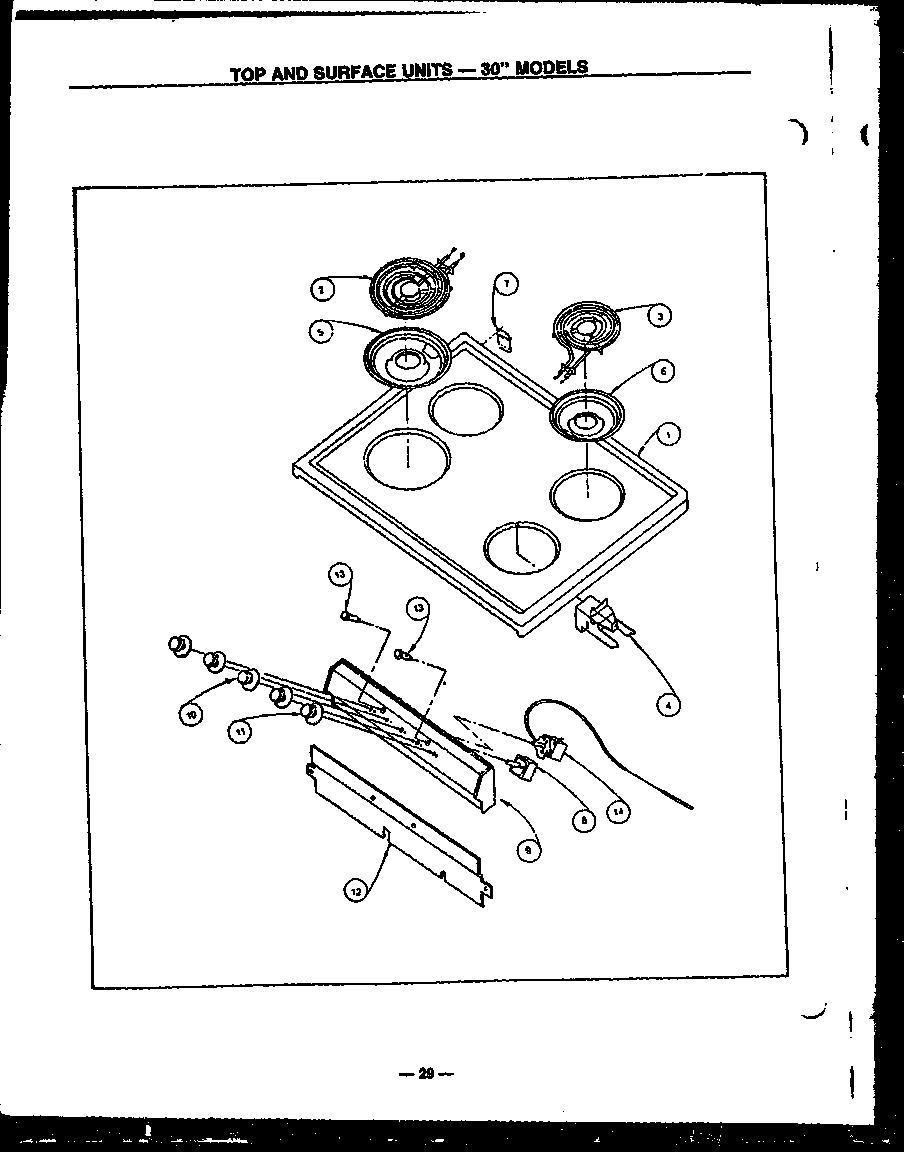

06 - TOP AN SURFACE UNITS-30`` MODELS

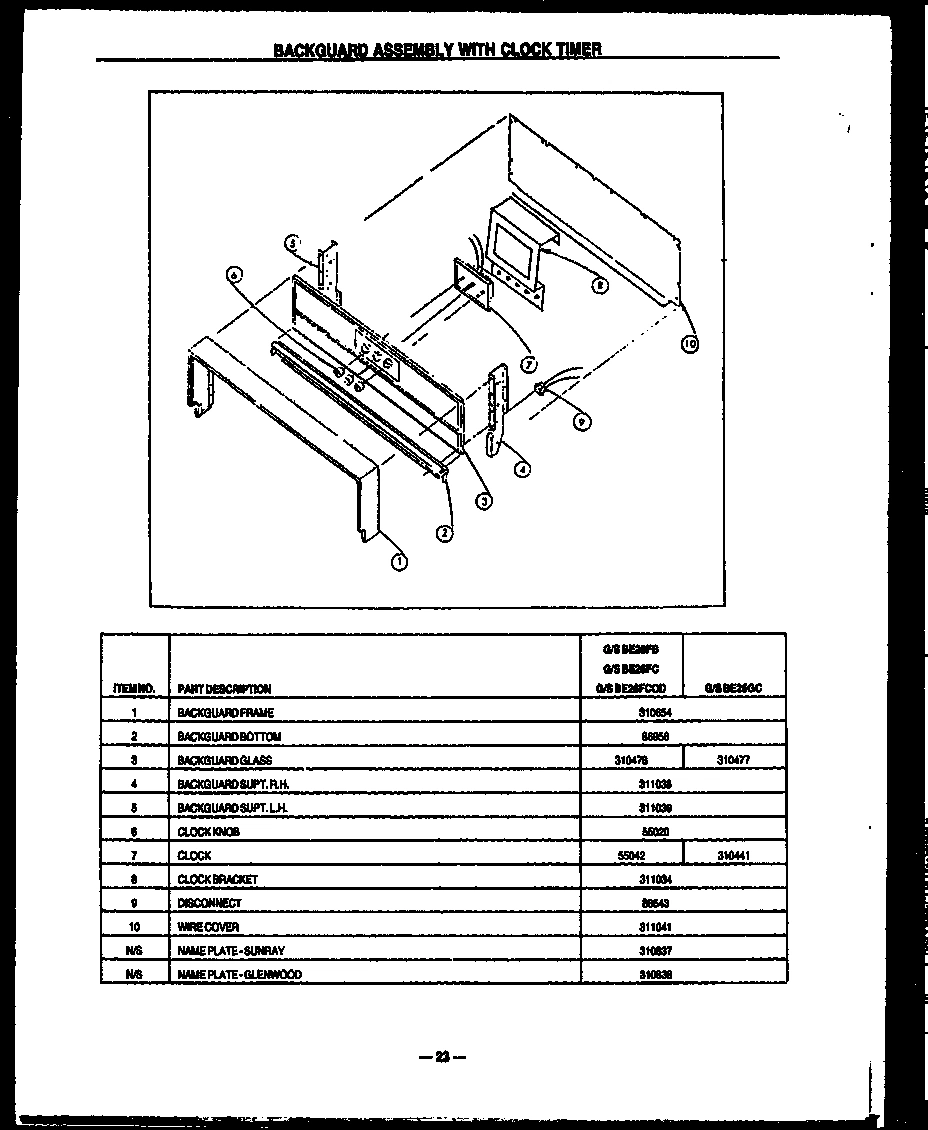

01 - BACKGUARD ASSY WITH CLOCK TIMER

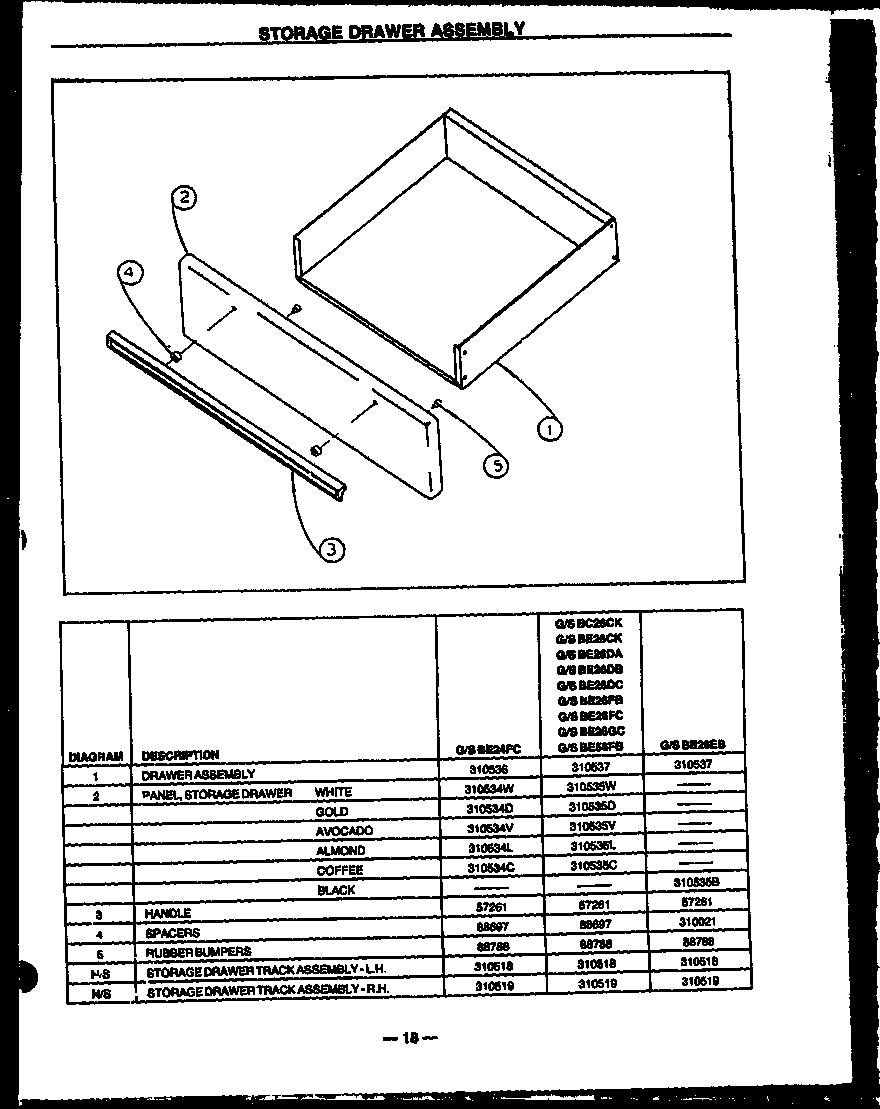

05 - STORAGE DRAWER ASSY

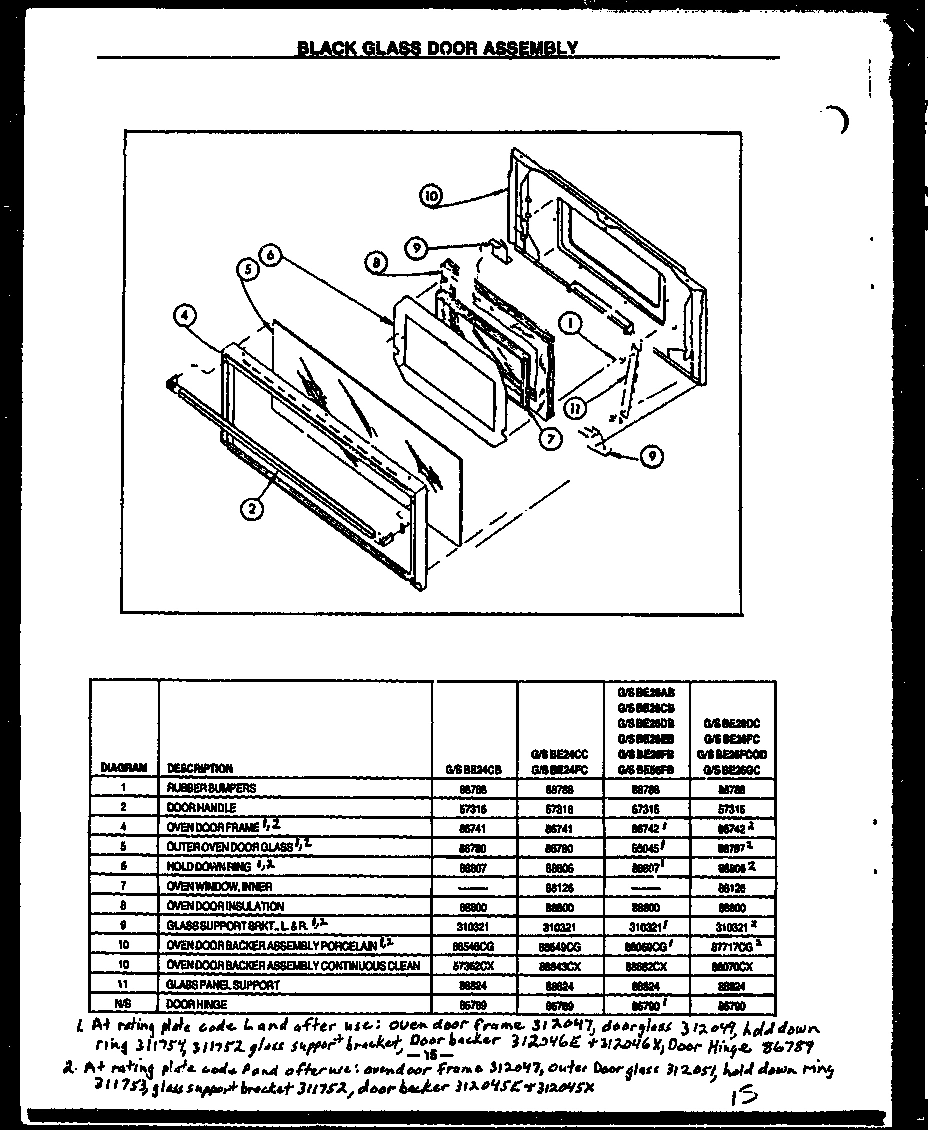

02 - BLACK GLASS DOOR ASSY

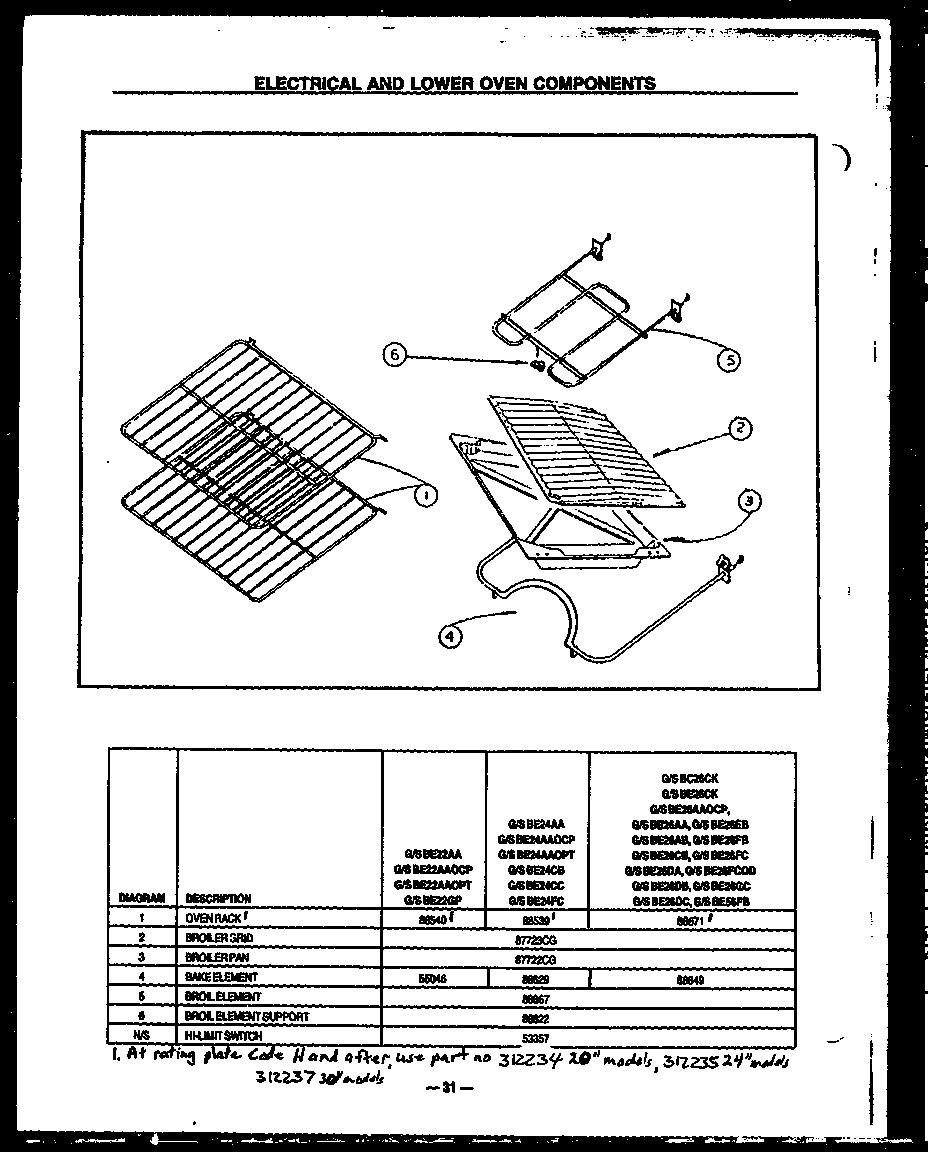

03 - ELECTRICAL AND LOWER OVEN COMPONENTS
Common parts from model Whirlpool SBE26GC ELECTRIC RANGE
1
PANEL, SIDE WPL 311003C Contact Us For Availability
1
BODY SIDE HARVEST WPL 311003D Contact Us For Availability
1
PANEL,BODY SIDE (AL) WPL 311003N Contact Us For Availability
1
BODY SIDE AVOCADO WPL 311003V Contact Us For Availability
1
PANEL, TEXTURE BODY WPL 311003W Contact Us For Availability
1
MAIN TOP, COFFEE WPL 086931C Contact Us For Availability
1
MAIN TOP, ALMOND WPL 086931L Contact Us For Availability
1
MAIN TOP, AVOCADO WPL Y086931A Contact Us For Availability
1
MAIN TOP, HARVEST WPL Y086931H Contact Us For Availability
1
MAIN TOP, 30`` (WHITE) WPL Y086931W Contact Us For Availability
1
BACKGUARD FRAME 8`` X 30`` FB WPL Y0310654 Contact Us For Availability
1
STORAGE DRAWER WPL Y0310537 Contact Us For Availability
1
BUMPER-RUBBER 1/4`` WPL Y0088788 Contact Us For Availability
1
OVEN RACK WPL Y0088671 Contact Us For Availability
2
OVEN SIDE LINER WPL 88813CX Contact Us For Availability
2
LINER, OVEN SIDE WPL 88897CG Contact Us For Availability
2
BASE-BKGD, 30`` W/HOLES WPL Y0086956 Contact Us For Availability
2
PANEL STORAGE DRAWER COFFEE WPL 310535C Contact Us For Availability
2
PANEL, STORAGE DRAWER WPL 310535D Contact Us For Availability
2
PANEL, STORAGE DRAWER WPL 310535L Contact Us For Availability
2
PANEL STORAGE DRAWER AVOCADO WPL 310535V Contact Us For Availability
2
PANEL, STORAGE DRAWER WPL 310535W Contact Us For Availability
2
HANDLE, DOOR (J) WPL Y0057315 Contact Us For Availability
3
MAIN FRONT 30`` WPL 88751CG Contact Us For Availability
3
GLASS, BACKGUARD 8`` WPL Y0310477 Contact Us For Availability
3
SUB 88812, HANDLE OVEN DR {J} WPL Y0057261 Contact Us For Availability
4
OVEN TOP LINER PORCELAIN WPL 310030E Contact Us For Availability
4
OVEN TOP LINER CONTINUOUS CLEA WPL 310031X Contact Us For Availability
4
BACKGUARD SUPPORT-RH WPL Y0311038 Contact Us For Availability
4
HANDLE SPACER, PLASTIC (J) WPL Y0088697 Contact Us For Availability
4
OVEN DOOR FRAME WPL 86742 Contact Us For Availability
5
OVEN BOTTOM LINER CONTINOUS CL WPL 88818CX Contact Us For Availability
5
LINER, OVEN BOTTOM WPL 88898CG Contact Us For Availability
5
BOWL, BURNER 8`` (CHROME) WPL Y0088810 Contact Us For Availability
5
BACKGUARD SUPPORT-L.H. WPL Y0311039 Contact Us For Availability
5
GLASS,OVEN DR 29``X 14 13/16`` WPL Y0088797 Contact Us For Availability
6
RAIL, BASE WPL 0088654 Contact Us For Availability
6
KNOB, CLOCK WPL Y0055020 Contact Us For Availability
6
HOLD DOWN RING START AT CODE P WPL 88806 Contact Us For Availability
7
TOE PANEL (J) WPL 0052744 Contact Us For Availability
7
HINGE, MAIN TOP WPL 0088782 Contact Us For Availability
7
x CLOCK WPL 0310441 Contact Us For Availability
7
SUB 88647,WINDOW ASSY DOOR WPL Y0088126 Contact Us For Availability
8
SUPPORT ROD WPL 0087023 Contact Us For Availability
8
SWITCH, INFINITE WPL 0057312 Contact Us For Availability
8
CLOCK BRACKET WPL Y0311034 Contact Us For Availability
8
SUB 41966, INSULATION WPL Y0088800 Contact Us For Availability
9
VERTICAL SUP. (J) WPL 0052742 Contact Us For Availability
9
USE 07621903F WPL 0310664 Contact Us For Availability
9
CONNECTOR WPL Y0088643 Contact Us For Availability
9
SUPPORT, FULL GLASS DR {J} WPL 0310321 Contact Us For Availability
10
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
10
KNOB, ELEMENT WPL Y0086942 Contact Us For Availability
10
PANEL-RIGHT WITH KNOCKOUT SECT WPL 311041 Contact Us For Availability
10
BACKER, OVEN DOOR WPL 87717CG Contact Us For Availability
10
OVEN DR BACKER, CONT CLN STRT WPL 88070CX Contact Us For Availability
11
KNOB, THERMOSTAT WPL 0086943 Contact Us For Availability
11
SUPPORT, GLASS PANEL{J} WPL 0088824 Contact Us For Availability
12
SHIELD, SWITCH COVER WPL 86935CG Contact Us For Availability
12
MAIN BACK WPL Y0088752 Contact Us For Availability
13
OVEN BACKLINER WPL 311030E Contact Us For Availability
13
OVEN BACKLINER WPL 311031X Contact Us For Availability
13
LIGHT, PILOT WPL 0088640 Contact Us For Availability
13
LIGHT, INDICATOR WPL Y0088777 Contact Us For Availability
14
BURNER BOX WPL 56011CG Contact Us For Availability
14
THERMO-ELECT. WPL 0088758 Contact Us For Availability
15
SUB 62362, LEG, LEVELING WPL Y0088651 Contact Us For Availability
16
COVER, REAR BURNER BOX WPL 311014E Contact Us For Availability
17
TUBE, OVEN VENT WPL Y0056015 Contact Us For Availability
18
WIRE CHANNEL WPL 311011E Contact Us For Availability
19
WIRE CHANNEL SUPPORT WPL Y0088817 Contact Us For Availability
20
BOTTOM WIRE COVER SUPPORT WPL Y0088832 Contact Us For Availability
22
COVER WIRE WPL Y0088833 Contact Us For Availability
23
SUPPORT, OVEN BOTTOM INSUL. WPL Y0088820 Contact Us For Availability
24
SHOULDER SCREW WPL 0088779 Contact Us For Availability
25
TRACK, LOWER L.H. WPL 0310522 Contact Us For Availability
26
TRACK, LOWER R.H. WPL Y0310523 Contact Us For Availability
27
SEE NOTE ROLLER WPL Y00000000 Contact Us For Availability
28
SOCKET, OVEN LIGHT WPL Y0088674 Contact Us For Availability
31
TOP DOOR SEAL WPL 56069 Contact Us For Availability
32
SEAL STRAP WPL Y56090 Contact Us For Availability
NI
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
NI
CAGE, OVEN LIGHT WPL Y0088635 Contact Us For Availability
NI
SCREW WPL 0055047 Contact Us For Availability
NI
SWITCH, OVEN LIGHT WPL Y0310516 Contact Us For Availability
NI
SUNRAY LABEL WPL 0310837 Contact Us For Availability
NI
NAMEPLATE, GLENWOOD WPL 0310838 Contact Us For Availability
NI
TRACK, UPPER L.H. (ELEC) WPL 0310518 Contact Us For Availability
NI
TRACK, UPPER R.H. (ELEC) WPL 0310519 Contact Us For Availability
NI
HINGE, OVEN DOOR WPL Y0086790 Contact Us For Availability
× ![]()
