Model Whirlpool S9507W1 – Common Parts & Diagrams

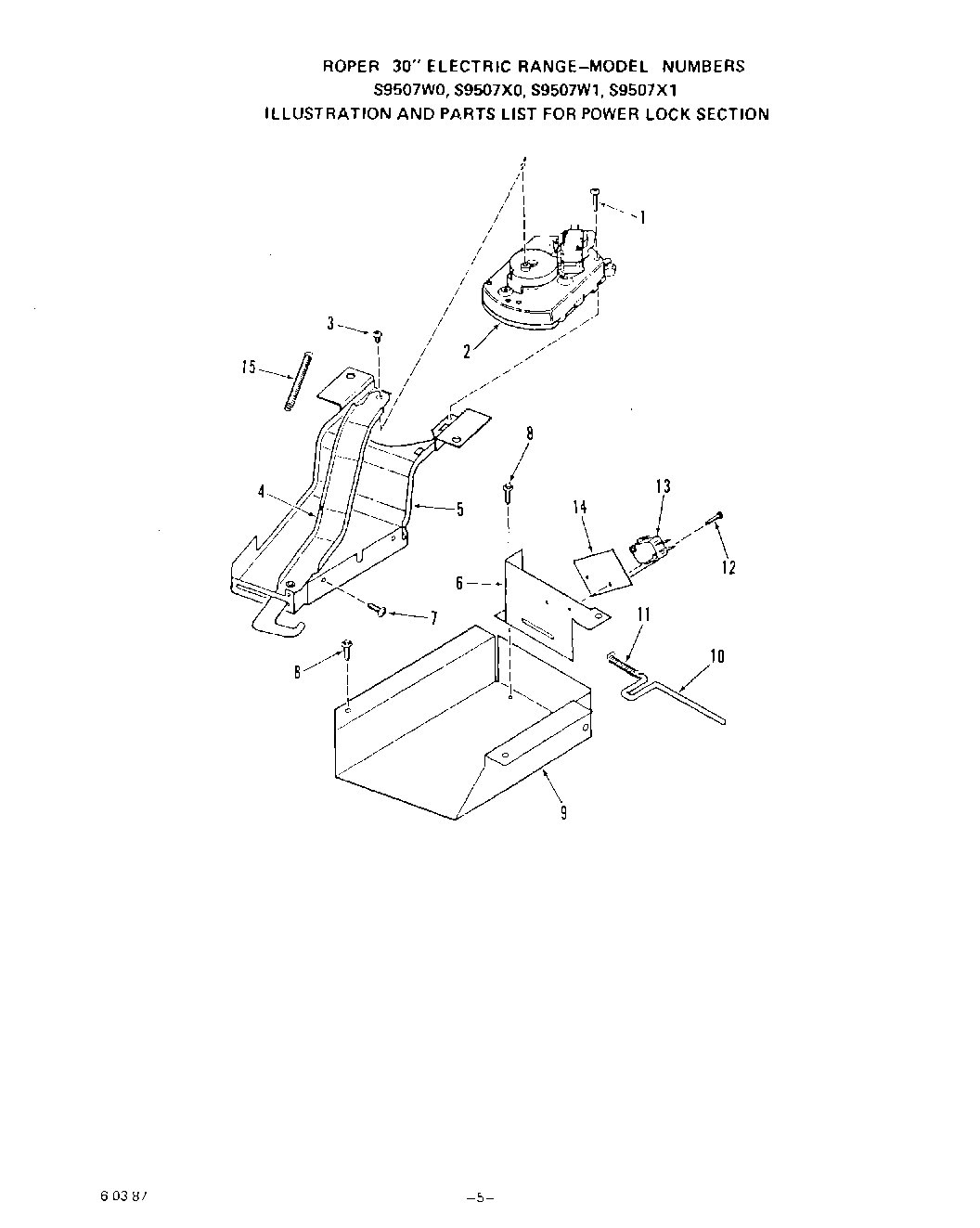

04 - POWER LOCK

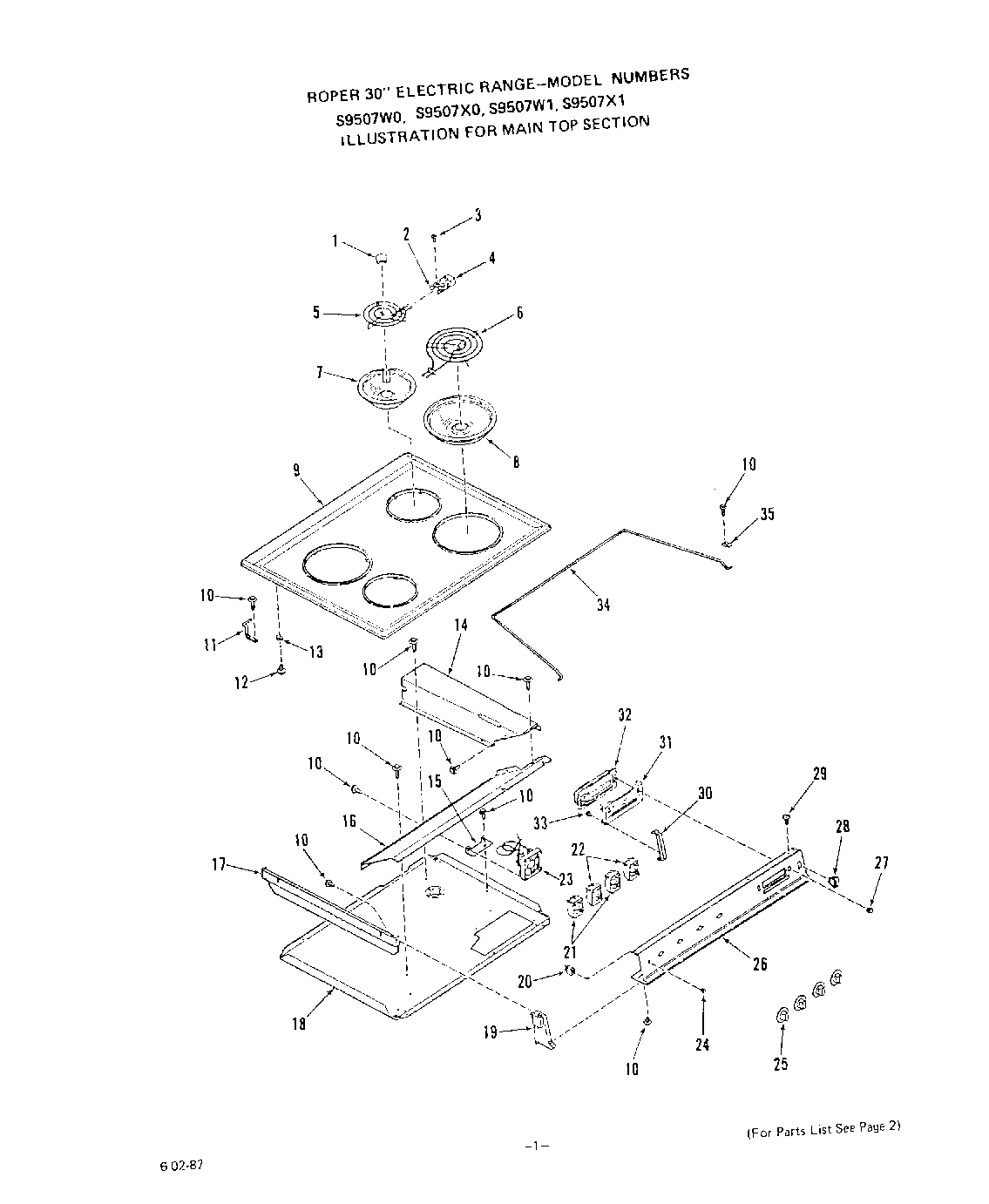

02 - MAIN TOP
06 - WIRE HARNESS, LIT/OPTIONAL
07 - WIRING DIAGRAM
03 - BODY
05 - OVEN DOOR
Common parts from model Whirlpool S9507W1
1
Medallion WPL 318586 Contact Us For Availability
1
Small Ring (3 Req) WPL 285573 Contact Us For Availability
1
Screw TC 6-32x3/8`` WPL 295268 Contact Us For Availability
1
Set-On Griddle WPL 3009844 Contact Us For Availability
1
Wire Harness (Main Top) WPL 331036 Contact Us For Availability
1
Wire Harness (Sensor) WPL 333274 Contact Us For Availability
1
Wire Harness (Main) WPL 336612 Contact Us For Availability
1
Wire Harness (Clock/Control) WPL 336614 Contact Us For Availability
1
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
1
Inner Glass Seal WPL 302935 Contact Us For Availability
2
Terminal Block Clip WPL 318872 Contact Us For Availability
2
Eyelet Terminal WPL 238387 Contact Us For Availability
2
End Cap WPL 330339 Contact Us For Availability
2
Small Pan (3 Req) WPL 331865 Contact Us For Availability
2
Hex Nut 10-32 WPL 097816 Contact Us For Availability
2
Inner Door Glass WPL 336442 Contact Us For Availability
3
Large Ring (2 Req) WPL 285574 Contact Us For Availability
3
Screw 8-32x3/8`` WPL 232183 Contact Us For Availability
3
Screw 7-32x7/16`` WPL 299632 Contact Us For Availability
3
Backsplash WPL 331387 Contact Us For Availability
3
Flag Terminal WPL 374251 Contact Us For Availability
3
Ground Strap WPL 327255 Contact Us For Availability
3
Door Lining WPL 331624 Contact Us For Availability
4
Lock Lever Asm WPL 337971 Contact Us For Availability
4
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
4
Terminal Blcok w/Wires WPL 318871 Contact Us For Availability
4
Pan and Ring Kit Complete WPL 1002184 Contact Us For Availability
4
Backplash Support WPL 330331 Contact Us For Availability
4
Large Pan (2 Req) WPL 331866 Contact Us For Availability
4
Instruction Sheet WPL 331933 Contact Us For Availability
4
Faston Terminal (3`16``) WPL 374180 Contact Us For Availability
4
Faston Terminal (1/4``) WPL 374250 Contact Us For Availability
4
Washer WPL 299425 Contact Us For Availability
5
Door Lock Plate WPL 337937 Contact Us For Availability
5
Surface Element 6`` (Lt. Front & Rt. Rear) WPL 325510 Contact Us For Availability
5
Sheet Instruction WPL 331389 Contact Us For Availability
5
Wire Shield-Lower WPL 327258 Contact Us For Availability
5
Glass Retainer WPL 326009 Contact Us For Availability
6
Door Switch Bracket WPL 337752 Contact Us For Availability
6
Surface Element 8`` (Lt. Rear & Rt. Front) WPL 325506 Contact Us For Availability
6
Insulation Retainer (Left) WPL 312518 Contact Us For Availability
6
Insulation Retainer (Right) WPL 336477 Contact Us For Availability
6
Intermediate Door Glass WPL 326088 Contact Us For Availability
7
Side Trim (Left) WPL 330340 Contact Us For Availability
7
Side Trim (Right) WPL 330341 Contact Us For Availability
7
Outer Door Glass WPL 332067 Contact Us For Availability
8
Burner Bowl 8`` WPL 292974 Contact Us For Availability
8
Cushion (3 Req) WPL 112370 Contact Us For Availability
9
Lock Box WPL 337485 Contact Us For Availability
9
Main Top (White) WPL 334873 Contact Us For Availability
9
Main Top (Almond) WPL 334874 Contact Us For Availability
9
Main Top (Chrome) WPL 336480 Contact Us For Availability
9
Overn Door Frame WPL 332065 Contact Us For Availability
10
Switch Actuator Pin WPL 337771 Contact Us For Availability
10
Handle WPL 332452 Contact Us For Availability
11
Spring WPL 337834 Contact Us For Availability
11
Main Top Hinge (Left) WPL 334843 Contact Us For Availability
11
Main Top Hinge (Right) WPL 334844 Contact Us For Availability
11
Body Side (Right) WPL 337204 Contact Us For Availability
11
Body Side (Left) WPL 337205 Contact Us For Availability
11
Spacer, Door Handle WPL 107158 Contact Us For Availability
12
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
12
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
12
Screw 10AB WPL 326974 Contact Us For Availability
12
Screw WPL 331704 Contact Us For Availability
13
Micro Switch WPL 334078 Contact Us For Availability
13
Hinge Bracket WPL 335161 Contact Us For Availability
13
Storage Drawer Support (Lt. or Rt.) WPL 311441 Contact Us For Availability
13
Washer WPL 333014 Contact Us For Availability
14
Insulator WPL 329171 Contact Us For Availability
14
Fan Duct WPL 337486 Contact Us For Availability
14
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
14
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
15
Spring WPL 337933 Contact Us For Availability
15
Fan Bracket WPL 337484 Contact Us For Availability
15
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
15
Mounting Plate WPL 328615 Contact Us For Availability
16
Wire Cover WPL 337488 Contact Us For Availability
16
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
16
Center Door Glass WPL 338108 Contact Us For Availability
17
Body Side Extention WPL 336365 Contact Us For Availability
17
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
17
Insulation Retainer WPL 328623 Contact Us For Availability
18
Burner Box Bottom WPL 336488 Contact Us For Availability
18
Oven Door Spring WPL 334726 Contact Us For Availability
18
Insulation WPL 335782 Contact Us For Availability
19
End Cap (Left) WPL 330344 Contact Us For Availability
19
End Cap (Right) WPL 330345 Contact Us For Availability
19
Door Gasket WPL 337670 Contact Us For Availability
20
Indicator Light WPL 331717 Contact Us For Availability
20
Base w/Levers (Lt. or Rt.) WPL 336546 Contact Us For Availability
20
Door Lining Plug WPL 335165 Contact Us For Availability
21
Indicator Control WPL 324608 Contact Us For Availability
21
Oven Door Hinge (Right) WPL 336632 Contact Us For Availability
21
Oven Door Hinge (Left) WPL 336633 Contact Us For Availability
21
Glass Spacer WPL 333015 Contact Us For Availability
22
Infinite Control WPL 324609 Contact Us For Availability
22
Washer WPL 99279 Contact Us For Availability
23
Fam Asm WPL 336471 Contact Us For Availability
23
Insulation Retainer-Bottom WPL 312517 Contact Us For Availability
23
Felt Washer WPL 335178 Contact Us For Availability
24
Lens-Indicator Light WPL 331705 Contact Us For Availability
25
Knob-Infinite WPL 336379 Contact Us For Availability
25
Insulation-Oven Bottom & Back (1 Piece) WPL 308861 Contact Us For Availability
26
Control Panel WPL 336357 Contact Us For Availability
26
Main Back WPL 337207 Contact Us For Availability
27
Knob-Clock WPL 334961 Contact Us For Availability
27
Range Service Mounting Plate WPL 327259 Contact Us For Availability
28
Oven Light Switch WPL 334649 Contact Us For Availability
28
Service Cord Insulation WPL 327242 Contact Us For Availability
29
Junction Block WPL 290105 Contact Us For Availability
30
Bracket-Clock WPL 336354 Contact Us For Availability
30
Screw 10-32x1`` WPL 313190 Contact Us For Availability
31
Clock Lens (S9507W0-S9507X0 Models) WPL 337365 Contact Us For Availability
31
Wire Shield WPL 327235 Contact Us For Availability
32
Clock (S9507W1-S9507X1 models) WPL 337632 Contact Us For Availability
32
Clock (S9507W0-S9597X0 Models) WPL 337088 Contact Us For Availability
32
Upper Wire Shield WPL 337201 Contact Us For Availability
33
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
33
Wire Shield WPL 327808 Contact Us For Availability
34
Main Top Support WPL 336079 Contact Us For Availability
35
Installation Guide WPL 336407 Contact Us For Availability
35
Use & Care WPL 336497 Contact Us For Availability
35
Repair Parts List WPL 336674 Contact Us For Availability
35
Main Top Support.Clamp WPL 337251 Contact Us For Availability
35
Front Frame WPL 336377 Contact Us For Availability
36
Vent Tube WPL 330735 Contact Us For Availability
38
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
39
Storage Drawer WPL 296150 Contact Us For Availability
41
Handle WPL 332205 Contact Us For Availability
42
Storage Drawer WPL 332161 Contact Us For Availability
43
Front Panel-Storage Drawer WPL 336483 Contact Us For Availability
44
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
45
Sensor WPL 334300 Contact Us For Availability
46
Screw WPL 336152 Contact Us For Availability
47
Bake Element (Volt.(Optional)) WPL 208 Contact Us For Availability
47
Bake Element (Volt) WPL 240 Contact Us For Availability
49
Oven Lamp Lens WPL 114989 Contact Us For Availability
50
Lens Gasket WPL 229371 Contact Us For Availability
51
Oven Lamp Holder WPL 87883 Contact Us For Availability
52
Oven Lamp Bulb WPL 111257 Contact Us For Availability
53
Cover WPL 304835 Contact Us For Availability
54
Snap Bushing WPL 333866 Contact Us For Availability
55
Relay Cover WPL 336543 Contact Us For Availability
56
Oven Body WPL 337043 Contact Us For Availability
57
I WPL 316951 Contact Us For Availability
58
WPL 308860 WPL 308860 Contact Us For Availability
59
WPL 334368 WPL 334368 Contact Us For Availability
59
WPL 334369 WPL 334369 Contact Us For Availability
60
WPL 324808 WPL 324808 Contact Us For Availability
61
WPL 326297 WPL 326297 Contact Us For Availability
62
WPL 331592 WPL 331592 Contact Us For Availability
63
WPL 326069 WPL 326069 Contact Us For Availability
64
WPL 299372 WPL 299372 Contact Us For Availability
65
WPL 337633 WPL 337633 Contact Us For Availability
65
WPL 337672 WPL 337672 Contact Us For Availability
66
WPL 334955 WPL 334955 Contact Us For Availability
68
WPL 337249 WPL 337249 Contact Us For Availability
69
WPL 331512 WPL 331512 Contact Us For Availability
× ![]()
