Model Whirlpool S8757W0 – Common Parts & Diagrams
07 - WIRE HARNESS , BACKSPLASH , GRIDD

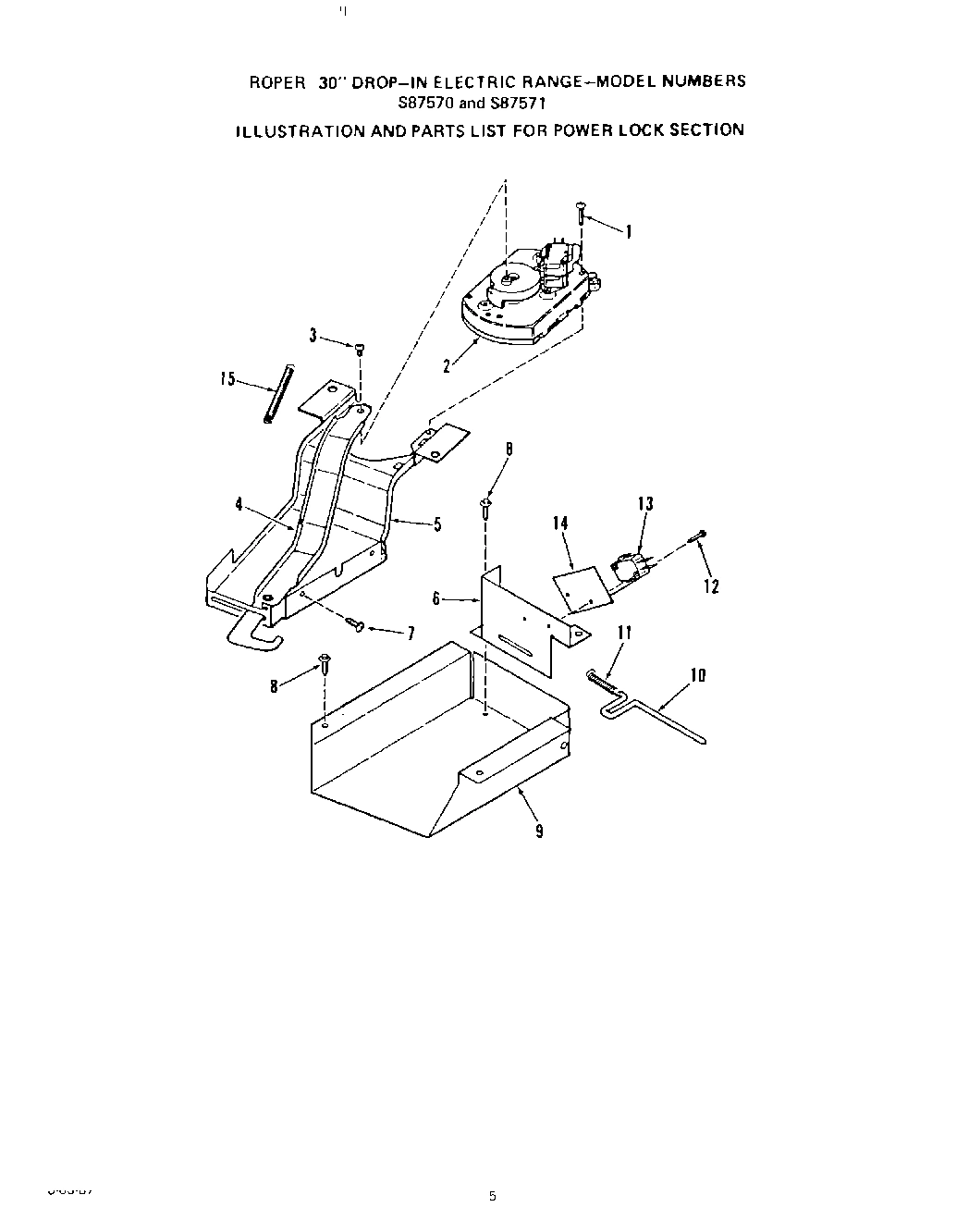

03 - POWER LOCK

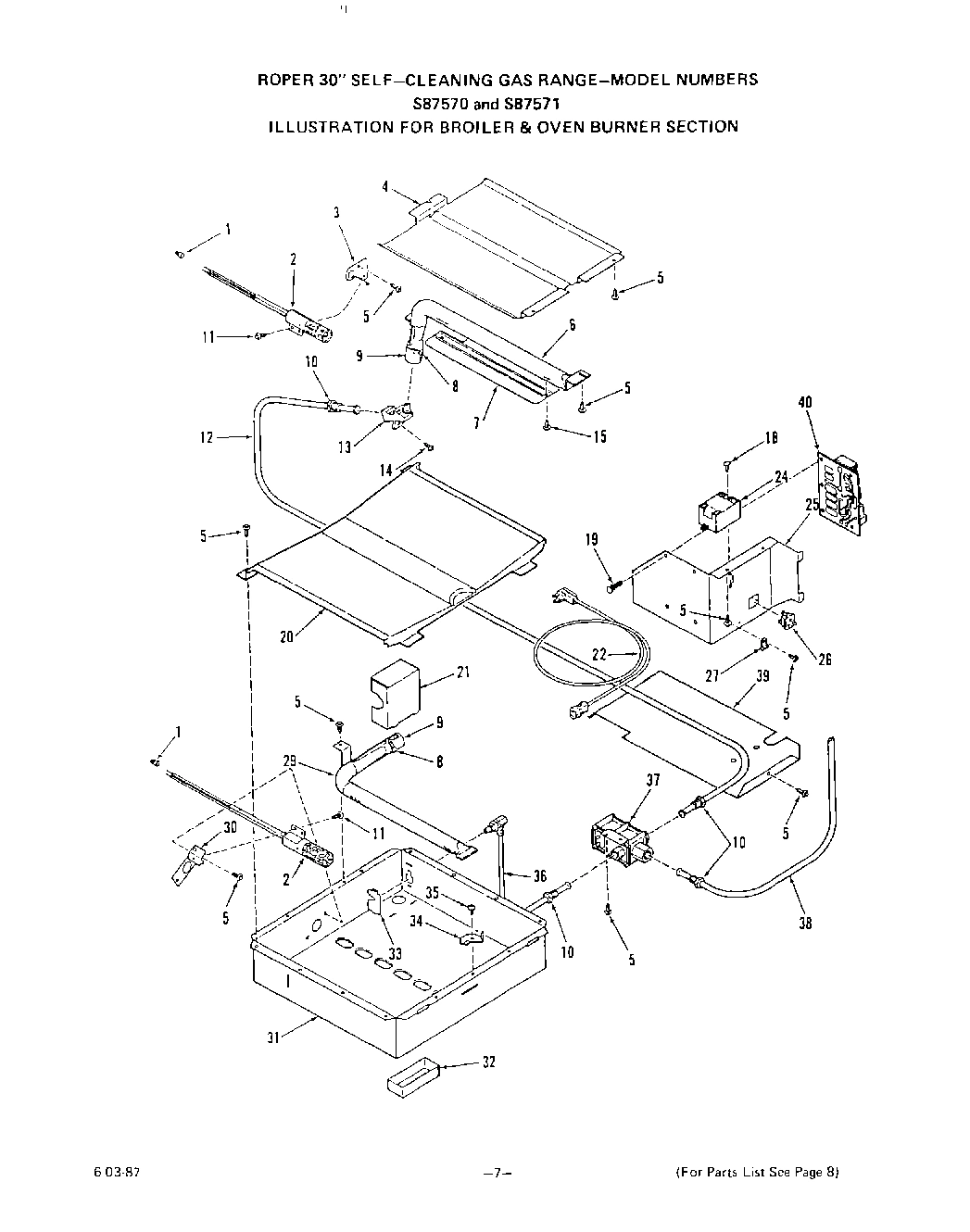

05 - BROILER AND OVEN BURNER

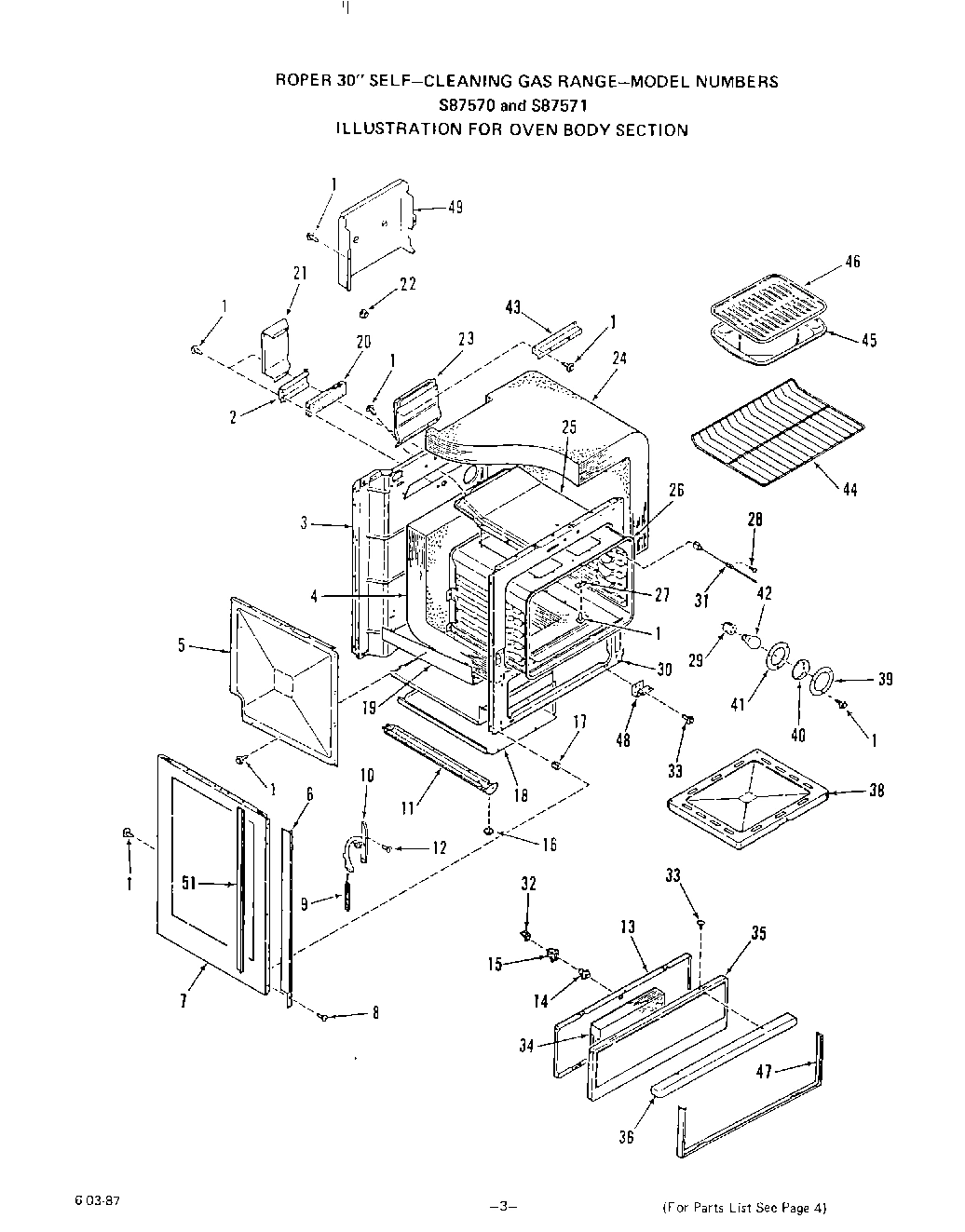

02 - OVEN BODY

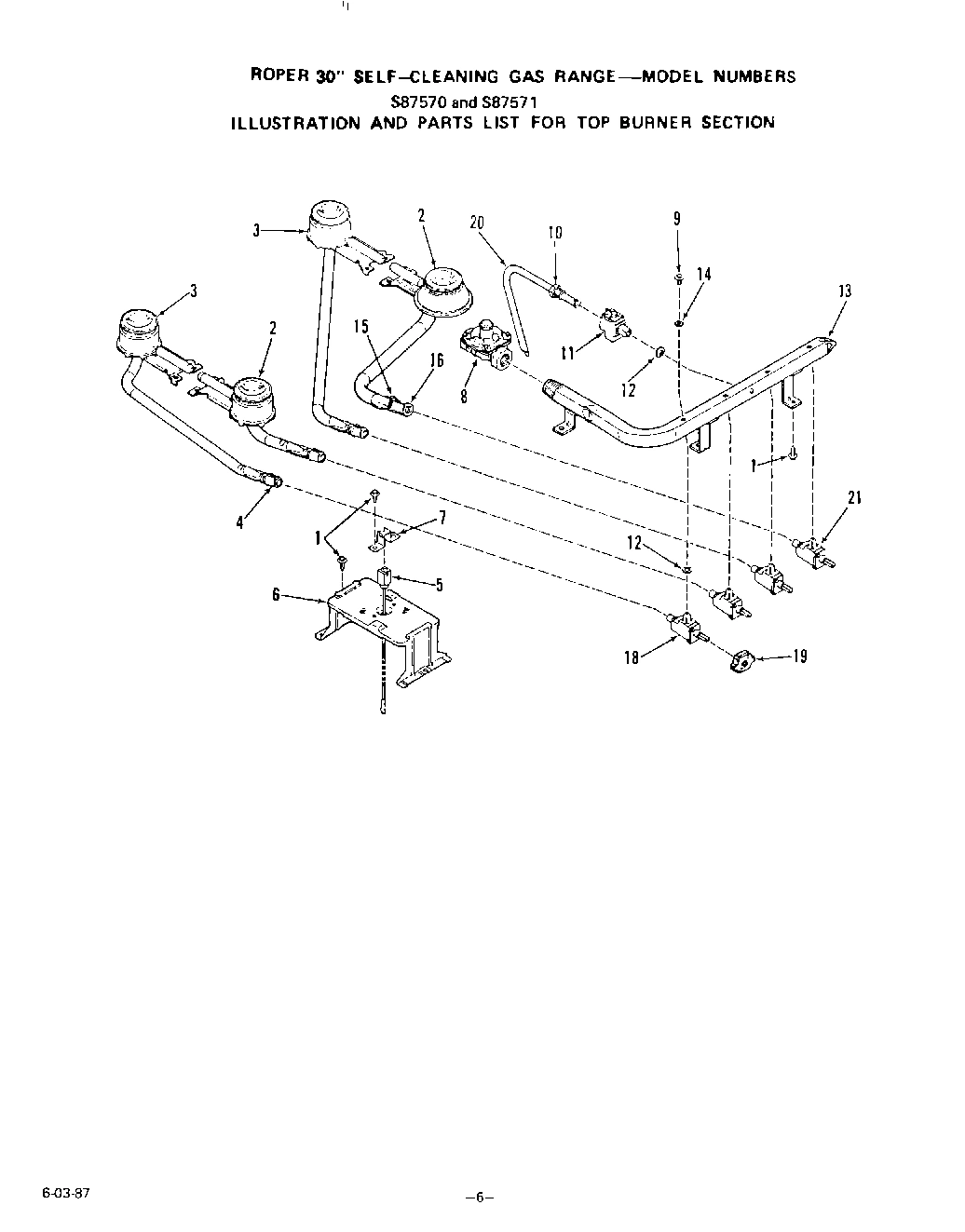

04 - TOP BURNER

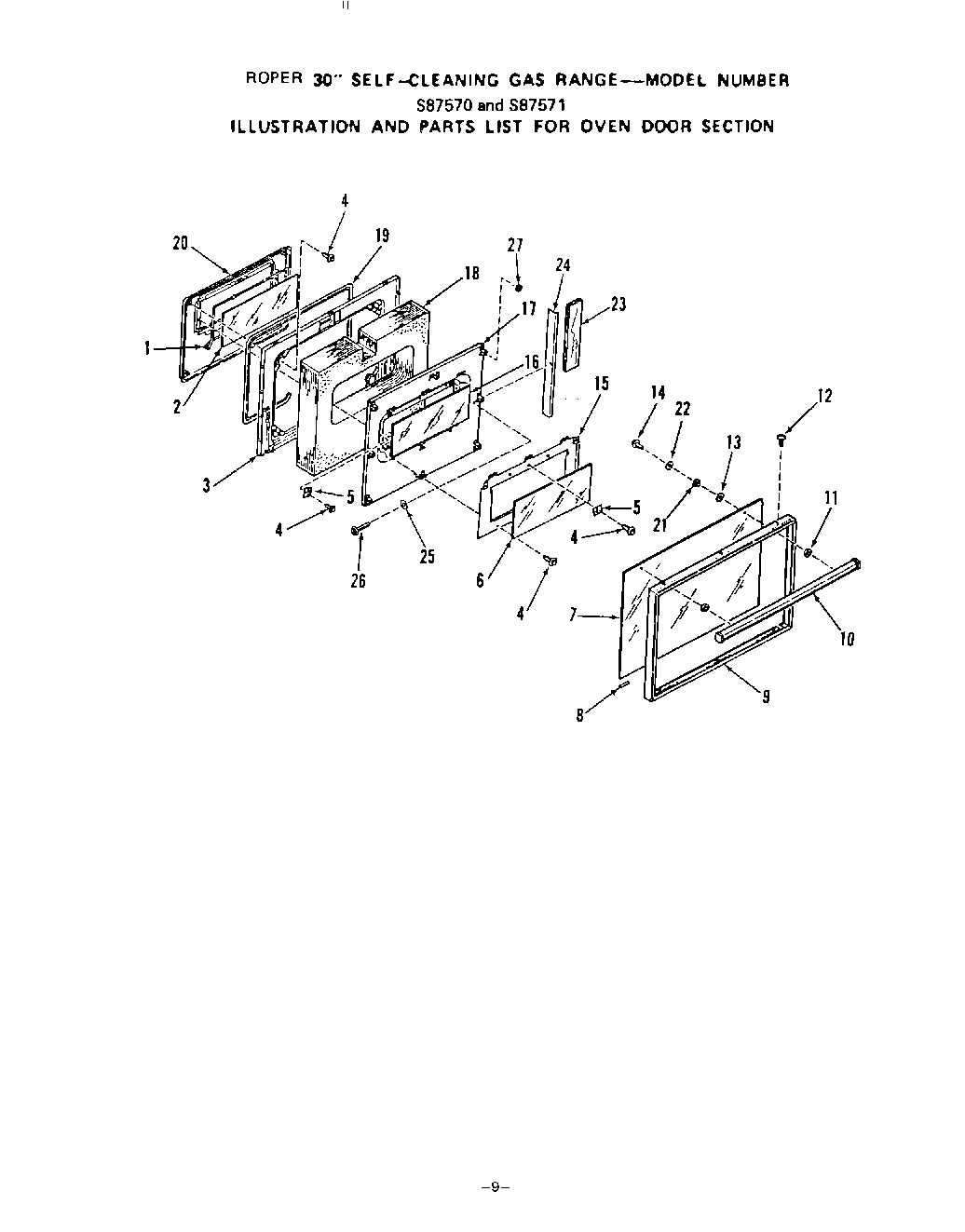

06 - OVEN DOOR
09 - SECTION

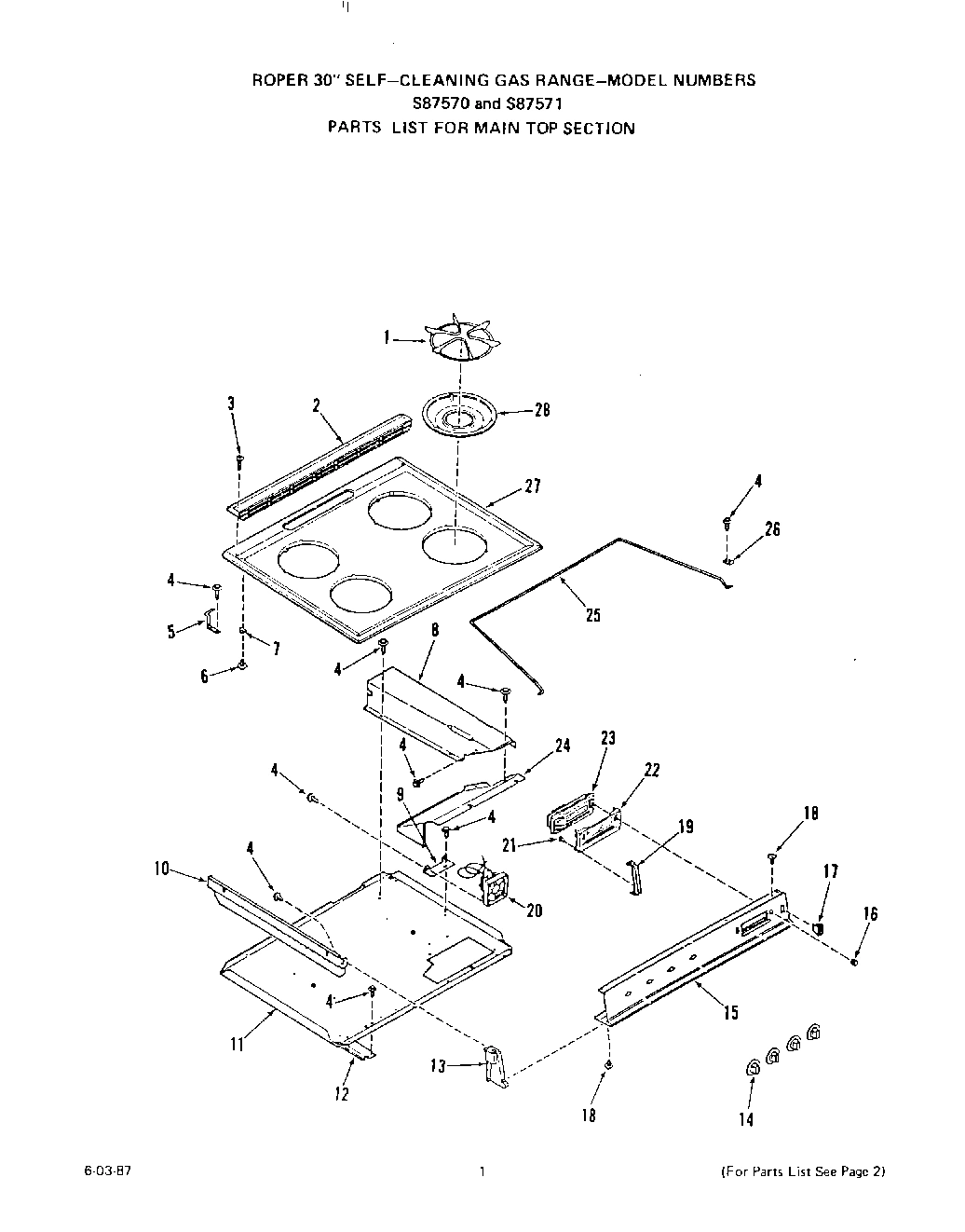

01 - MAIN TOP
Common parts from model Whirlpool S8757W0
1
Top Burner Grate WPL 330242 Contact Us For Availability
1
Screw 8 - 32 x 850 WPL 103436 Contact Us For Availability
1
Wire Connector WPL 103595 Contact Us For Availability
2
Inner Glass-Oven Door WPL 336442 Contact Us For Availability
2
Wire Shield WPL 327809 Contact Us For Availability
2
Left WPL 330350 Contact Us For Availability
2
Right WPL 336419 Contact Us For Availability
2
Burner-Top Front WPL ARI128605A Contact Us For Availability
2
Vent Cover WPL 330738 Contact Us For Availability
2
Lock Motor Asm WPL 336467 Contact Us For Availability
2
Igniter-Broiler & Oven Burner WPL 337263 Contact Us For Availability
3
Lining-Oven Door WPL 331624 Contact Us For Availability
3
Main Back WPL 330613 Contact Us For Availability
3
Left WPL 330488 Contact Us For Availability
3
Right WPL 330489 Contact Us For Availability
3
Burner-Top Rear WPL ARI128606A Contact Us For Availability
3
Screw 6-32x1/2`` WPL 99931 Contact Us For Availability
3
Screw 8-32x3/8`` WPL 232183 Contact Us For Availability
3
Bracket-Broiler Burner Igniter WPL 327804 Contact Us For Availability
4
Insulation-Oven Back & Bottom (1 Piece) WPL 329146 Contact Us For Availability
4
Air Shutter (3 Req) WPL 327198 Contact Us For Availability
4
Lock Lever Asm WPL 337971 Contact Us For Availability
4
Baffle-Broiler Burner WPL 327807 Contact Us For Availability
5
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
5
Retainer-Door Glass WPL 312888 Contact Us For Availability
5
Retainer-Insulation (Lt. or Rt.) WPL 328959 Contact Us For Availability
5
Right WPL 329462 Contact Us For Availability
5
Left WPL 329464 Contact Us For Availability
5
Electrode-Spark Igniter WPL ARI128607A Contact Us For Availability
5
Right WPL 334843 Contact Us For Availability
5
Left WPL 334844 Contact Us For Availability
5
Main Top Hinge WPL ARI128597A Contact Us For Availability
5
Door Lock Plate WPL 337937 Contact Us For Availability
6
Intermediate Glass-Oven Door WPL 326088 Contact Us For Availability
6
Left WPL 330340 Contact Us For Availability
6
Right WPL 330341 Contact Us For Availability
6
Trim-Side WPL ARI128603A Contact Us For Availability
6
Support-Top Burner (Rt. or Lt.) WPL 330358 Contact Us For Availability
6
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
6
Door Switch Bracket WPL 337752 Contact Us For Availability
6
Broiler Burner (Inc`s. Keys 7, 8, 9, 15) WPL 330163 Contact Us For Availability
7
Outer Glass-Oven Door WPL 332067 Contact Us For Availability
7
Body Side (Lt. or Rt.) WPL 337255 Contact Us For Availability
7
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
7
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
7
Hinge Bracket WPL 335161 Contact Us For Availability
7
Baffle WPL 328660 Contact Us For Availability
8
Cushion WPL 112370 Contact Us For Availability
8
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
8
Pressure Regulator WPL 324528 Contact Us For Availability
8
Fan Duct WPL 337486 Contact Us For Availability
8
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
9
Frame-Oven Door WPL 332065 Contact Us For Availability
9
Spring-Oven Door (Lt. or Rt.) WPL 334726 Contact Us For Availability
9
Mounting Screw 1/4-20 WPL 311455 Contact Us For Availability
9
Fan Bracket WPL 337484 Contact Us For Availability
9
Lock Box WPL 337485 Contact Us For Availability
9
Air Shutter WPL 312988 Contact Us For Availability
10
Handle WPL 332452 Contact Us For Availability
10
Right WPL 334632 Contact Us For Availability
10
Left WPL 334633 Contact Us For Availability
10
Hinge-Oven Door WPL ARI128604A Contact Us For Availability
10
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
10
Burner Box Side Extension WPL 336365 Contact Us For Availability
10
Switch Actuator Pin WPL 337771 Contact Us For Availability
11
Spacer, Door Handle WPL 107158 Contact Us For Availability
11
Base w/Levelers (Lt. or Rt.) WPL 336546 Contact Us For Availability
11
Shut Off Valve WPL 326830 Contact Us For Availability
11
Spring WPL 337834 Contact Us For Availability
12
Screw WPL 331704 Contact Us For Availability
12
Rubber Gasket WPL 313563 Contact Us For Availability
12
Left WPL 330558 Contact Us For Availability
12
Right WPL 337674 Contact Us For Availability
12
Burner Box Bottom Stiffener WPL ARI128598A Contact Us For Availability
12
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
12
Tubing 3/8`` (Control Valve to Broiler Orific WPL 286823 Contact Us For Availability
13
Washer WPL 333014 Contact Us For Availability
13
Lining-Storage Door WPL 335063 Contact Us For Availability
13
Manifold Pipe WPL 330348 Contact Us For Availability
13
Left WPL 330344 Contact Us For Availability
13
Right WPL 330345 Contact Us For Availability
13
End Cap WPL ARI128599A Contact Us For Availability
13
Micro Switch WPL 334078 Contact Us For Availability
13
Broiler Orifice Fitting WPL 331992 Contact Us For Availability
14
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
14
Strike-Door WPL 335061 Contact Us For Availability
14
Rubber Gasket WPL 311692 Contact Us For Availability
14
Gas Valve Knobs WPL 336367 Contact Us For Availability
14
Insulator WPL 329171 Contact Us For Availability
14
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
15
Mounting Plate-Glass WPL 328615 Contact Us For Availability
15
Catch-Door WPL 335060 Contact Us For Availability
15
Screw WPL 301911 Contact Us For Availability
15
Manifold Panel WPL 336353 Contact Us For Availability
15
Lock Spring WPL 337933 Contact Us For Availability
15
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
16
Center Glass-Oven Door WPL 338108 Contact Us For Availability
16
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
16
Air Shutter WPL 336701 Contact Us For Availability
16
Knob-Clock WPL 334961 Contact Us For Availability
17
Retainer-Oven Door Insulation WPL 328623 Contact Us For Availability
17
Switch WPL 334649 Contact Us For Availability
18
Insulation-Oven Door WPL 335782 Contact Us For Availability
18
Storage Compartment WPL 328491 Contact Us For Availability
18
Gas Valve (Lt. Front, Lt.&Rt. Rear) WPL 333508 Contact Us For Availability
18
Screw 6-32x3/8`` WPL 329382 Contact Us For Availability
19
Gasket-Oven Door WPL 337670 Contact Us For Availability
19
Lower Insulation Retainer WPL 331144 Contact Us For Availability
19
Switch-Gas Valve (4 Req) WPL 310253 Contact Us For Availability
19
Bracket-Clock WPL 336354 Contact Us For Availability
19
Spacer WPL 334955 Contact Us For Availability
20
Plug-Oven Door Lining WPL 335165 Contact Us For Availability
20
Insulation WPL 330166 Contact Us For Availability
20
Fan WPL 336471 Contact Us For Availability
20
Baffle-Oven Burner WPL 335196 Contact Us For Availability
21
Spacer-Glass WPL 333015 Contact Us For Availability
21
Wire Shield WPL 327808 Contact Us For Availability
21
Gas Valve (Rt. Front) WPL 336369 Contact Us For Availability
21
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
21
Shield-Orifice Fitting WPL 331864 Contact Us For Availability
22
S87570 WPL 337365 Contact Us For Availability
22
Washer WPL 99279 Contact Us For Availability
22
Bushing WPL 324257 Contact Us For Availability
22
S87571 WPL 334898 Contact Us For Availability
22
Clock Lens Asm. WPL ARI128600A Contact Us For Availability
22
Range Service Cord WPL 332479 Contact Us For Availability
23
Insulation WPL 335781 Contact Us For Availability
23
Flue Deflector WPL 330978 Contact Us For Availability
23
S87570 WPL 337088 Contact Us For Availability
23
S87571 WPL 337632 Contact Us For Availability
23
Clock/Oven Control WPL ARI128601A Contact Us For Availability
24
Baffle-Side WPL 335780 Contact Us For Availability
24
Insulation-Oven Top & Sides (1 Piece) WPL 329147 Contact Us For Availability
24
Wire Cover WPL 337487 Contact Us For Availability
24
Module-Spark Igniter WPL 320990 Contact Us For Availability
25
Washer WPL 323451 Contact Us For Availability
25
Flue Box WPL 327781 Contact Us For Availability
25
Main Top Support Rod WPL 336079 Contact Us For Availability
25
Mounting Bracket-Components WPL 336549 Contact Us For Availability
26
Screw 10ABx1 WPL 105799 Contact Us For Availability
26
Oven Body WPL 336927 Contact Us For Availability
26
Clamp WPL 337251 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
27
Felt Washer WPL 335945 Contact Us For Availability
27
Cover WPL 304835 Contact Us For Availability
27
White WPL 334861 Contact Us For Availability
27
Almond WPL 334862 Contact Us For Availability
27
Chrome WPL 336360 Contact Us For Availability
27
Main Top WPL ARI128602A Contact Us For Availability
27
Clip WPL 106767 Contact Us For Availability
28
Screw WPL 336152 Contact Us For Availability
28
Aeration Pan WPL 336363 Contact Us For Availability
29
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
29
Oven Burner WPL 333746 Contact Us For Availability
30
Front Frame WPL 336341 Contact Us For Availability
30
Bracket-Igniter WPL 311689 Contact Us For Availability
31
Sensor WPL 334300 Contact Us For Availability
31
Bottom-Oven Burner Box WPL 327775 Contact Us For Availability
32
Bracket-Catch WPL 335059 Contact Us For Availability
32
Insulation Retainer-Oven Orifice WPL 329279 Contact Us For Availability
33
Plate-Orifice Fitting WPL 328473 Contact Us For Availability
34
Insulation WPL 303097 Contact Us For Availability
34
Latch-Oven Burner Box Bottom WPL 328479 Contact Us For Availability
35
Front Panel-Storage Door WPL 332118 Contact Us For Availability
35
Shoulder Screw WPL 328584 Contact Us For Availability
36
Handle-Storage Door WPL 332205 Contact Us For Availability
36
Tubing 3/8`` w/Orifice Fitting (Control Valve WPL 331994 Contact Us For Availability
37
Control Valve WPL 306267 Contact Us For Availability
38
Oven Bottom WPL 335231 Contact Us For Availability
38
Tubing 3/8`` (Shut-Off Valve to Control Valve WPL 331107 Contact Us For Availability
39
Retainer-Oven Light Lens WPL 229372 Contact Us For Availability
39
Shield-Component Wire WPL 331143 Contact Us For Availability
40
Lens-Oven Light WPL 114989 Contact Us For Availability
40
S87570 WPL 334701 Contact Us For Availability
40
S87571 WPL 337633 Contact Us For Availability
40
Relay Circuit Board WPL ARI128608A Contact Us For Availability
41
Gasket-Lens WPL 229371 Contact Us For Availability
42
Oven Light Bulb WPL 111257 Contact Us For Availability
43
Flue Deflector Support WPL 334528 Contact Us For Availability
44
Oven Rack (2 Req) WPL 326069 Contact Us For Availability
45
Broiler Pan WPL 331592 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Frame-Front Panel WPL 332161 Contact Us For Availability
48
Hinge-Door WPL 335058 Contact Us For Availability
49
Shield-Flue Deflector WPL 335332 Contact Us For Availability
51
Extension Side Trim WPL 331512 Contact Us For Availability
× ![]()
