Model Whirlpool S7257X0 – Common Parts & Diagrams
06 - WIRE HARNESS

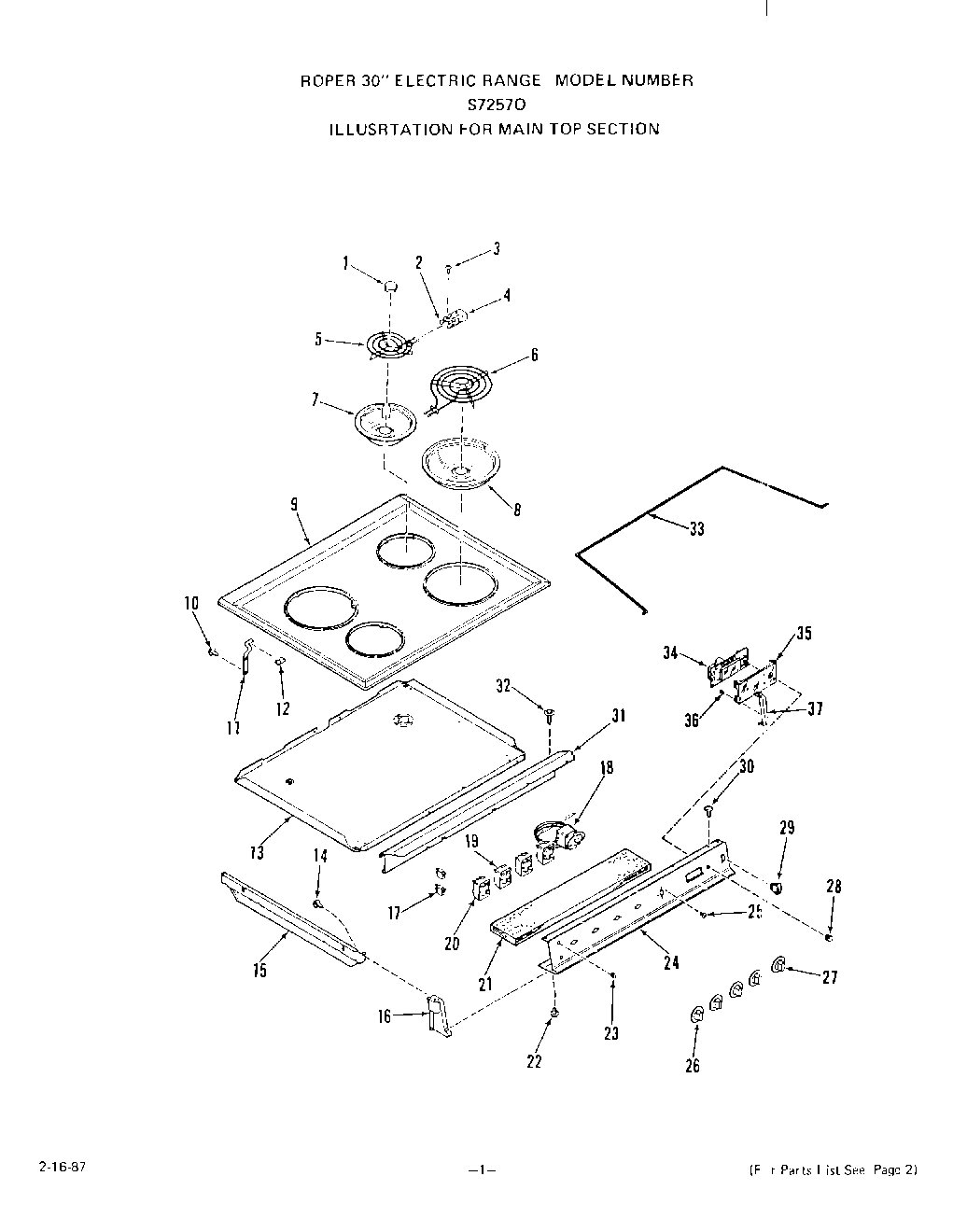

01 - MAIN TOP

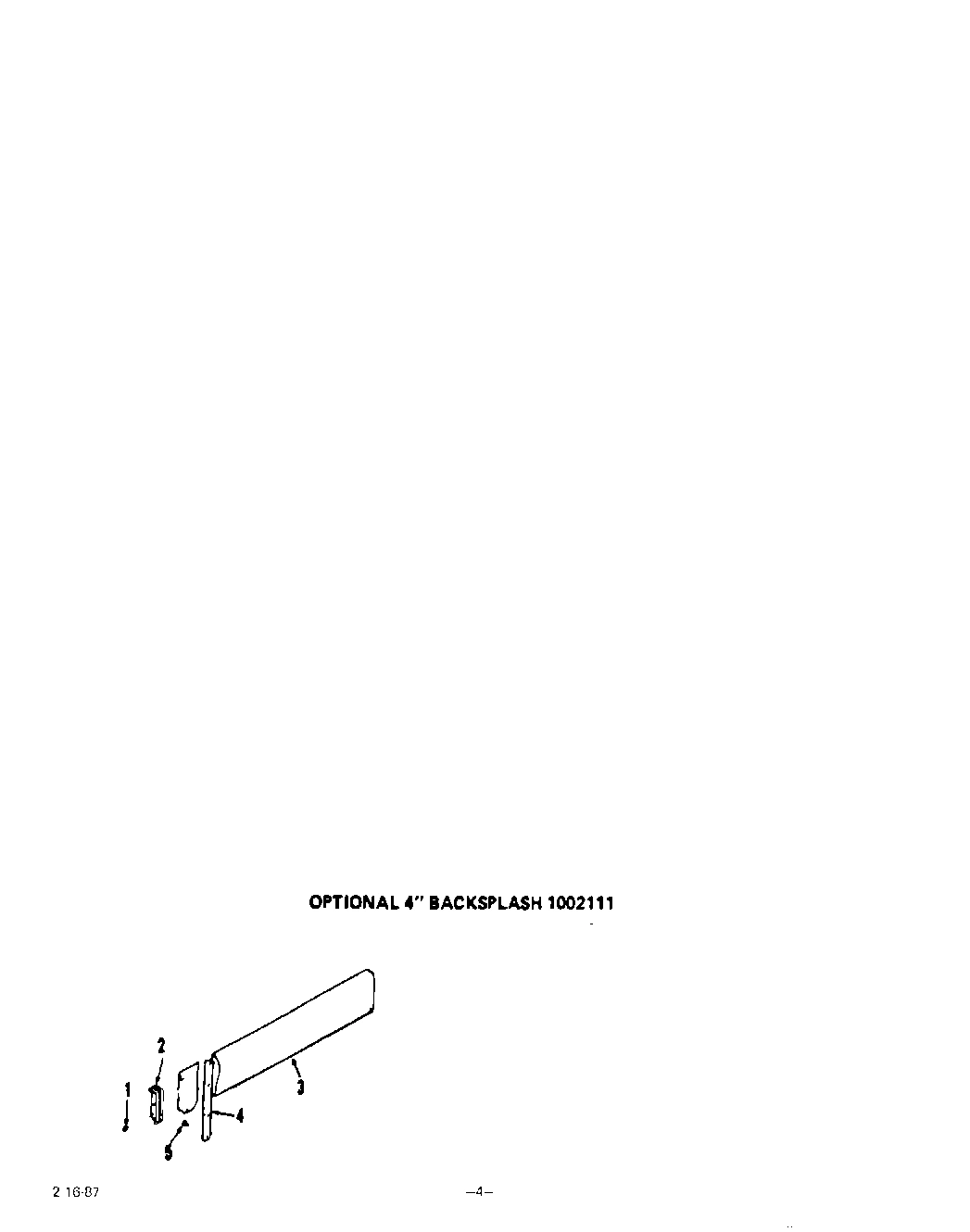

03 - LIT/OPTIONAL 4`` BACKSPLASH

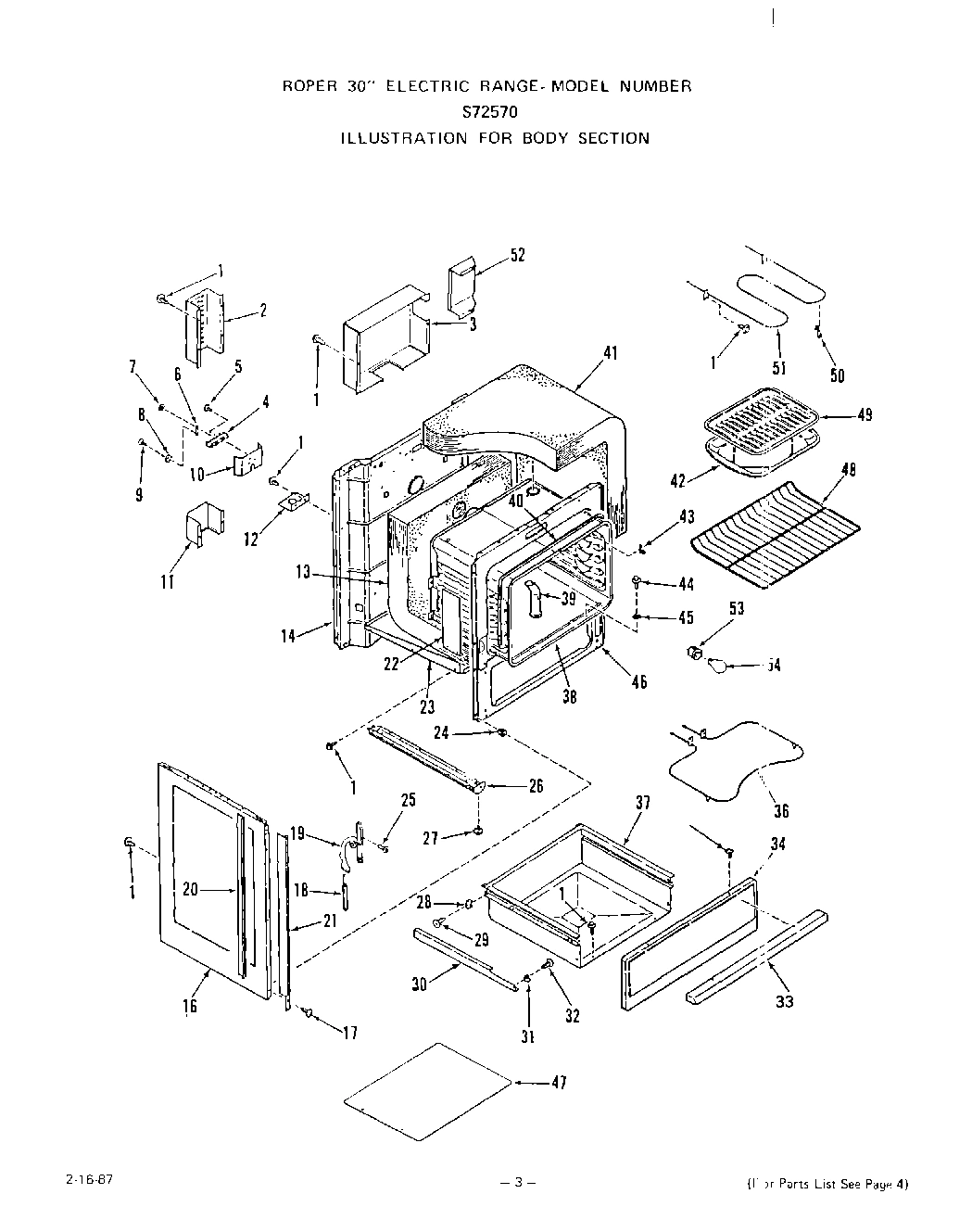

02 - BODY

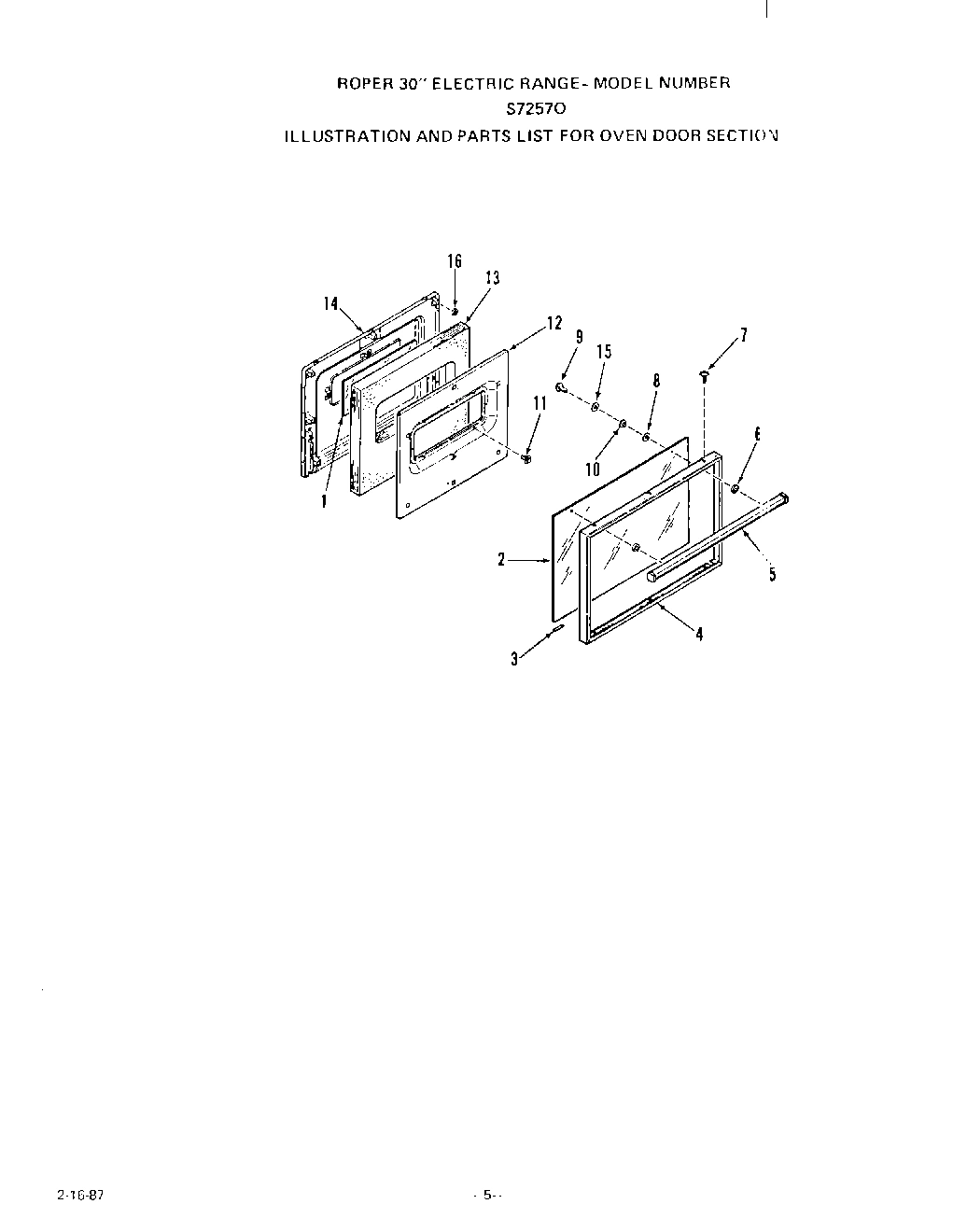

04 - OVEN DOOR
05 - WIRE HARNESS , BACKSPLASH , GRIDD
07 - SECTION
Common parts from model Whirlpool S7257X0
xPart Not Shown on Illustration WPL ARI128570A Contact Us For Availability
1
Screw TC 6-32x3/8`` WPL 295268 Contact Us For Availability
1
Set-On Griddle WPL 309844 Contact Us For Availability
1
Main Top WPL 331036 Contact Us For Availability
1
Main WPL 331037 Contact Us For Availability
1
Wire Harness WPL ARI128569A Contact Us For Availability
1
Medallion WPL 318586 Contact Us For Availability
1
Inner Glass WPL 326010 Contact Us For Availability
2
End Cap WPL 330339 Contact Us For Availability
2
Wire Cover-Upper WPL 327235 Contact Us For Availability
2
Clip-Terminal Block WPL 318872 Contact Us For Availability
2
Outer Glass WPL 332067 Contact Us For Availability
3
Flag Terminal WPL 238387 Contact Us For Availability
3
Backsplash WPL 331387 Contact Us For Availability
3
Wire Shield WPL 333128 Contact Us For Availability
3
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
3
Cushion WPL 112370 Contact Us For Availability
4
Faston Terminal WPL 238393 Contact Us For Availability
4
Backplash Support WPL 330331 Contact Us For Availability
4
Junction Block WPL 290105 Contact Us For Availability
4
Block-Terminal w/Wires WPL 318960 Contact Us For Availability
4
Frame WPL 332066 Contact Us For Availability
5
Screw ST 10-16x7/16`` WPL 327320 Contact Us For Availability
5
xSheet Instruction WPL 331389 Contact Us For Availability
5
Screw 10-32x1`` WPL 313190 Contact Us For Availability
5
Element-Surface 6`` WPL 325507 Contact Us For Availability
5
Handle WPL 332452 Contact Us For Availability
6
Ground Strap WPL 327255 Contact Us For Availability
6
Element-Surface 8`` WPL 325503 Contact Us For Availability
6
Spacer, Door Handle WPL 107158 Contact Us For Availability
7
Hex Nut 10-32 WPL 97816 Contact Us For Availability
7
Screw WPL 331704 Contact Us For Availability
7
Bowl-Burner 6`` WPL 296481 Contact Us For Availability
8
Washer WPL 299425 Contact Us For Availability
8
Bowl-Burner 8`` WPL 304969 Contact Us For Availability
8
Washer WPL 333014 Contact Us For Availability
9
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
9
Chrome WPL 336480 Contact Us For Availability
9
Main Top WPL ARI128561A Contact Us For Availability
9
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
10
Service Cord Insulator WPL 327242 Contact Us For Availability
10
Spacer-Glass WPL 333015 Contact Us For Availability
11
Wire Shield-Lower WPL 327258 Contact Us For Availability
11
Right WPL 334843 Contact Us For Availability
11
Left WPL 334844 Contact Us For Availability
11
Hinge-Main Top WPL ARI128562A Contact Us For Availability
11
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
12
Service Cord Mounting Plate WPL 327259 Contact Us For Availability
12
Bracket-Hinge WPL 335161 Contact Us For Availability
12
Retainer WPL 328622 Contact Us For Availability
13
Insulation-Back & Bottom WPL 326049 Contact Us For Availability
13
Bottom-Burner Box WPL 330389 Contact Us For Availability
13
Insulation WPL 325999 Contact Us For Availability
14
Main Back WPL 330675 Contact Us For Availability
14
Lining WPL 325946 Contact Us For Availability
15
Extension-Burner Box Side WPL 336365 Contact Us For Availability
15
Washer WPL 99279 Contact Us For Availability
16
Body Side (Lt. or Rt.) - Black WPL 336447 Contact Us For Availability
16
Left WPL 330344 Contact Us For Availability
16
Right WPL 330345 Contact Us For Availability
16
End Cap WPL ARI128563A Contact Us For Availability
16
Washer-Felt WPL 335945 Contact Us For Availability
17
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
17
Surface WPL 331716 Contact Us For Availability
17
Oven WPL 331717 Contact Us For Availability
17
Light-Indicator WPL ARI128564A Contact Us For Availability
18
Oven Door Spring (Lt. or Rt.) WPL 334722 Contact Us For Availability
18
Thermostat WPL 326322 Contact Us For Availability
19
Right WPL 334632 Contact Us For Availability
19
Left WPL 334633 Contact Us For Availability
19
Oven Door Hinge WPL ARI128565A Contact Us For Availability
19
Switch-Infinite (For 8`` Element) WPL 320946 Contact Us For Availability
20
Side Trim Extension WPL 331512 Contact Us For Availability
20
Switch-Infinite (For 6`` Element) WPL 320945 Contact Us For Availability
21
Left WPL 330340 Contact Us For Availability
21
Right WPL 330341 Contact Us For Availability
21
Side Trim WPL ARI128566A Contact Us For Availability
21
Insulation WPL 331071 Contact Us For Availability
23
Insulation Retainer-Lower WPL 328984 Contact Us For Availability
23
Lens-Indicator Light WPL 331705 Contact Us For Availability
24
Panel-Control WPL 336356 Contact Us For Availability
25
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
26
Base w/Levelers (Lt. or Rt.) WPL 336546 Contact Us For Availability
26
Knob-Infinite WPL 336379 Contact Us For Availability
27
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
27
Knob-Thermostat WPL 336378 Contact Us For Availability
28
Slide Block-Rear WPL 281913 Contact Us For Availability
28
Knob-Clock WPL 334961 Contact Us For Availability
29
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
29
Switch-Oven Light WPL 334649 Contact Us For Availability
30
Storage Drawer Support (Lt. or Rt.) WPL 311441 Contact Us For Availability
30
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
31
Slide Block-Front WPL 281914 Contact Us For Availability
31
Cover-Wire WPL 330726 Contact Us For Availability
32
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
33
Handle WPL 332205 Contact Us For Availability
33
Rod-Main Top Support WPL 336079 Contact Us For Availability
34
Storage Drawer Panel - Black WPL 336483 Contact Us For Availability
34
Clock WPL 335616 Contact Us For Availability
35
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
35
Clock Lens WPL 336943 Contact Us For Availability
36
240 Volt WPL 326365 Contact Us For Availability
36
208 Volt WPL 326366 Contact Us For Availability
36
Bake Element WPL ARI128567A Contact Us For Availability
36
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
37
Storage Drawer WPL 296150 Contact Us For Availability
37
Bracket-Clock WPL 336354 Contact Us For Availability
38
Oven Body WPL 333779 Contact Us For Availability
39
Vent Tube WPL 330736 Contact Us For Availability
40
Oven Door Seal WPL 314062 Contact Us For Availability
41
Insulation-Top & Sides WPL 326040 Contact Us For Availability
42
Broiler Pan WPL 331592 Contact Us For Availability
43
Capillary Tube Clip WPL 335535 Contact Us For Availability
44
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
45
Washer WPL 21067 Contact Us For Availability
46
Front Frame WPL 336373 Contact Us For Availability
47
Oven Bottom Liner WPL 331867 Contact Us For Availability
48
Oven Rack WPL 326068 Contact Us For Availability
49
Broiler Pan Grid WPL 326297 Contact Us For Availability
50
Broil Element Support WPL 324808 Contact Us For Availability
51
240 Volt WPL 334368 Contact Us For Availability
51
208 Volt WPL 334369 Contact Us For Availability
51
Broil Element WPL ARI128568A Contact Us For Availability
52
Wire Shield WPL 327808 Contact Us For Availability
53
Bulb Holder WPL 87883 Contact Us For Availability
54
Oven Light Bulb WPL 111257 Contact Us For Availability
× ![]()
