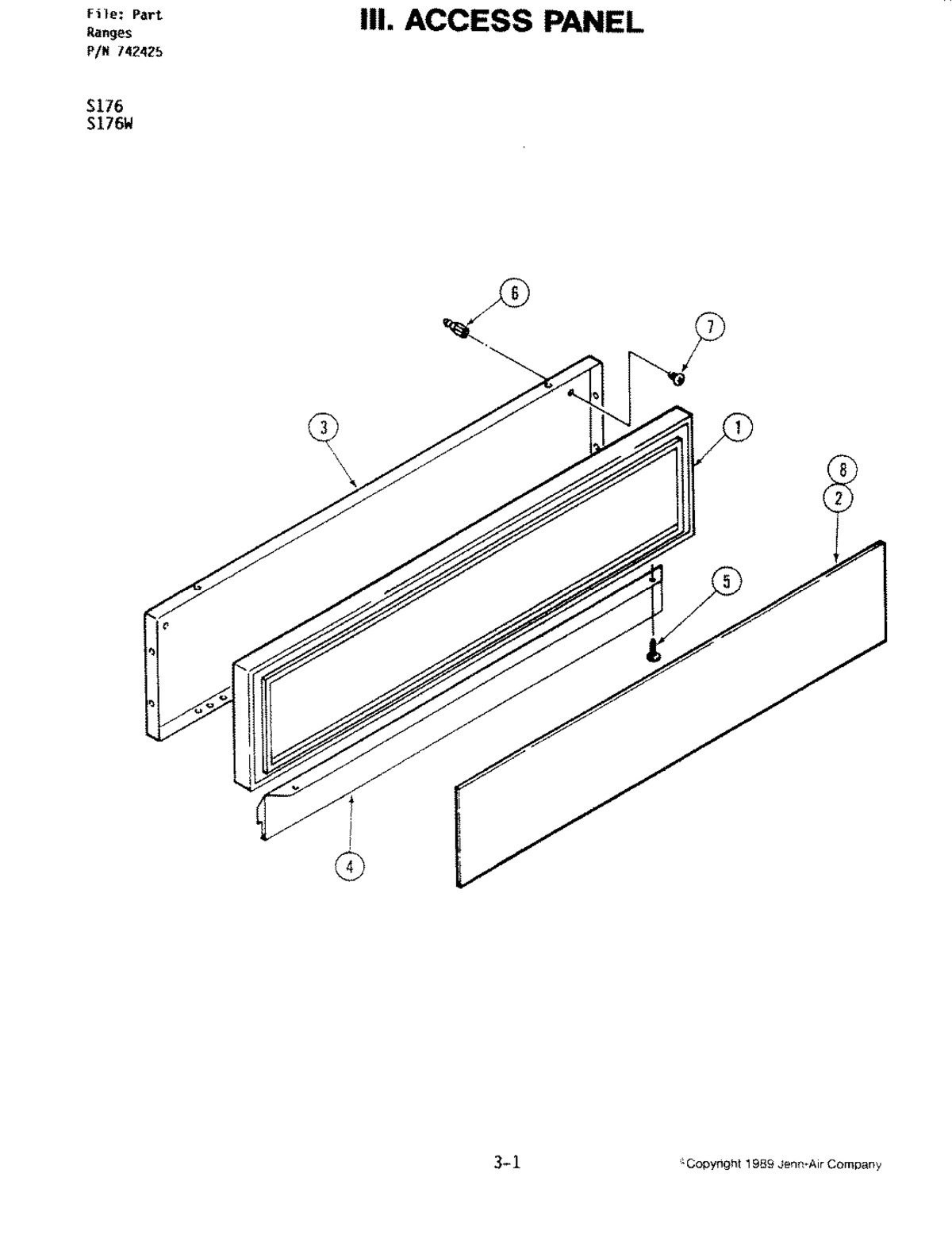

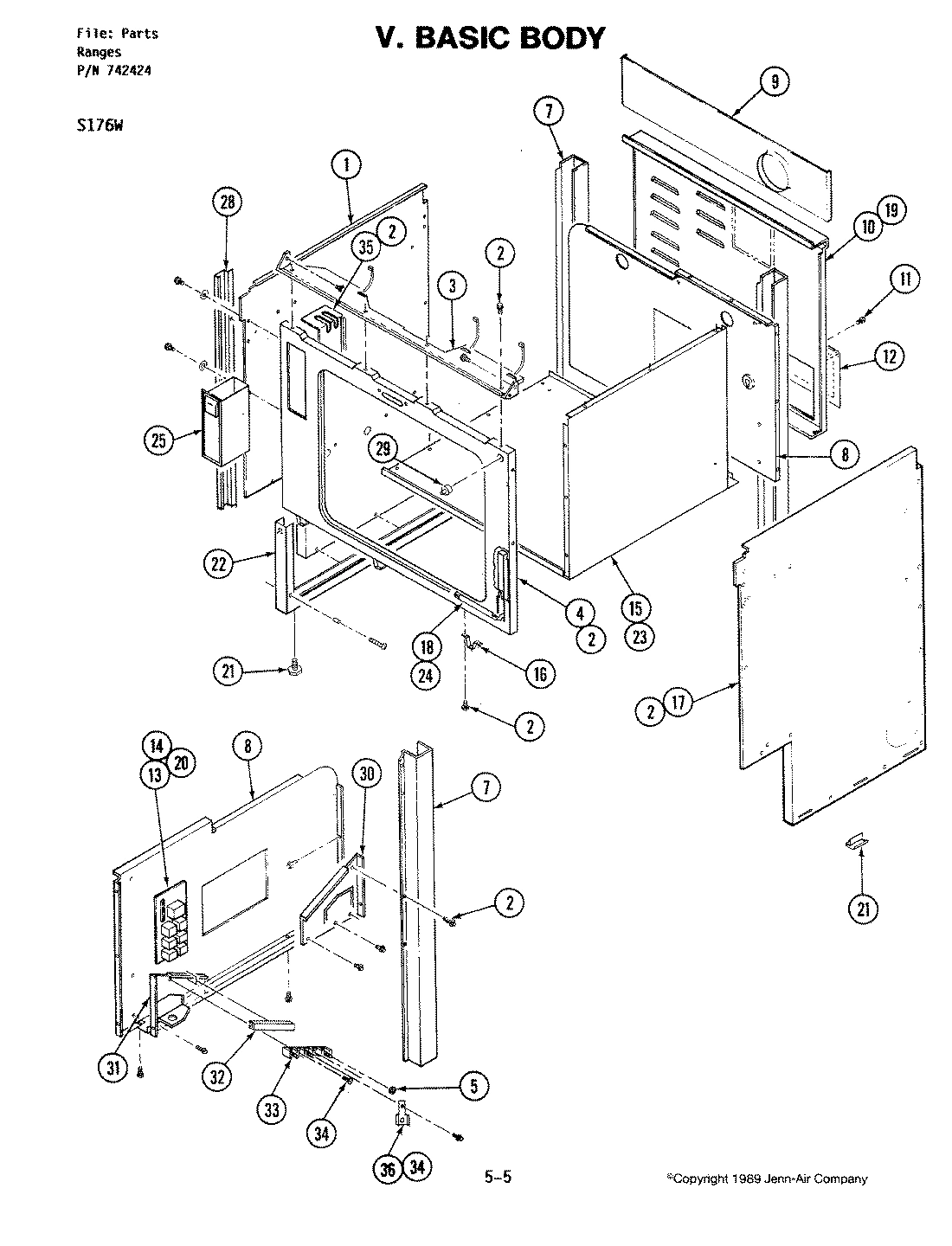

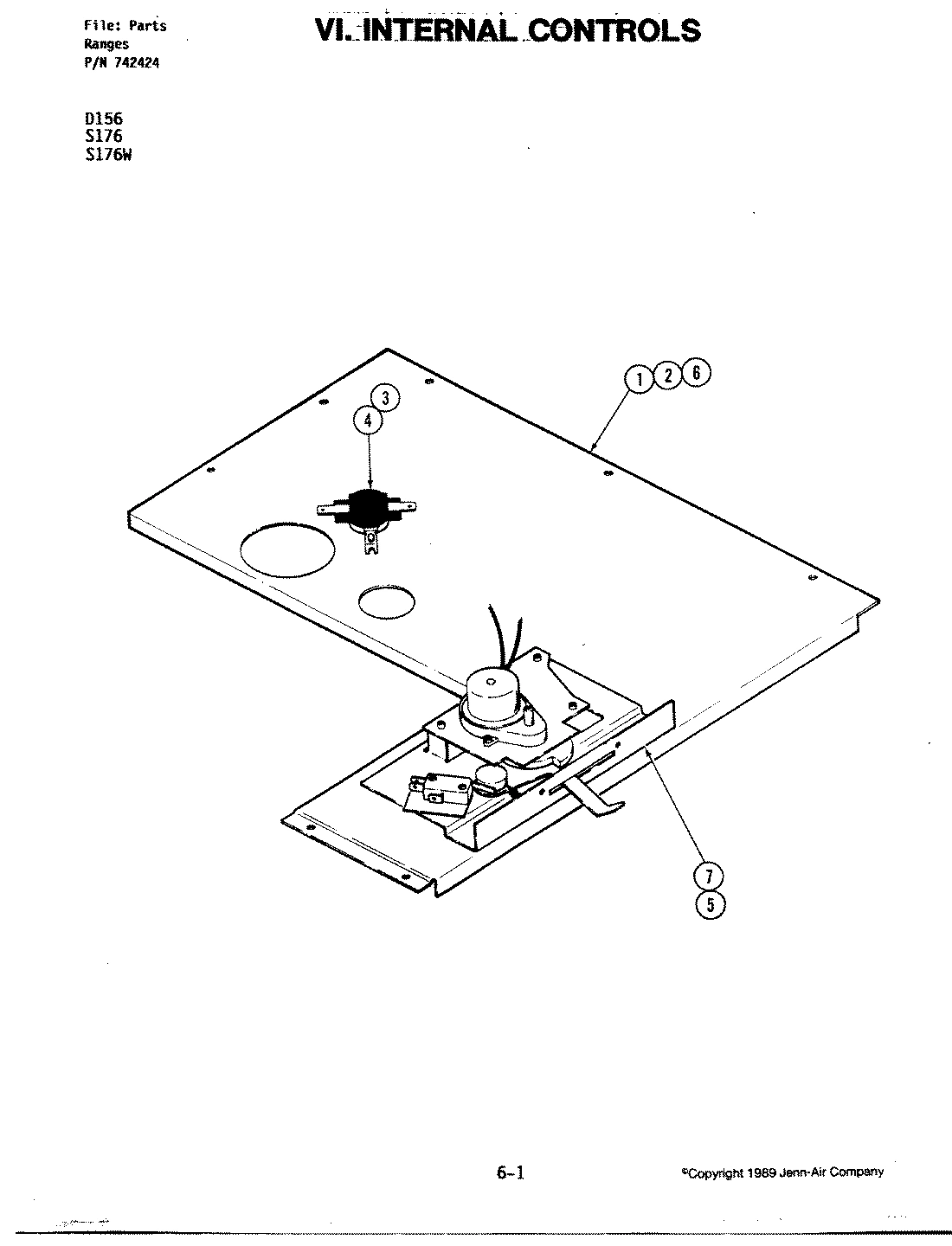

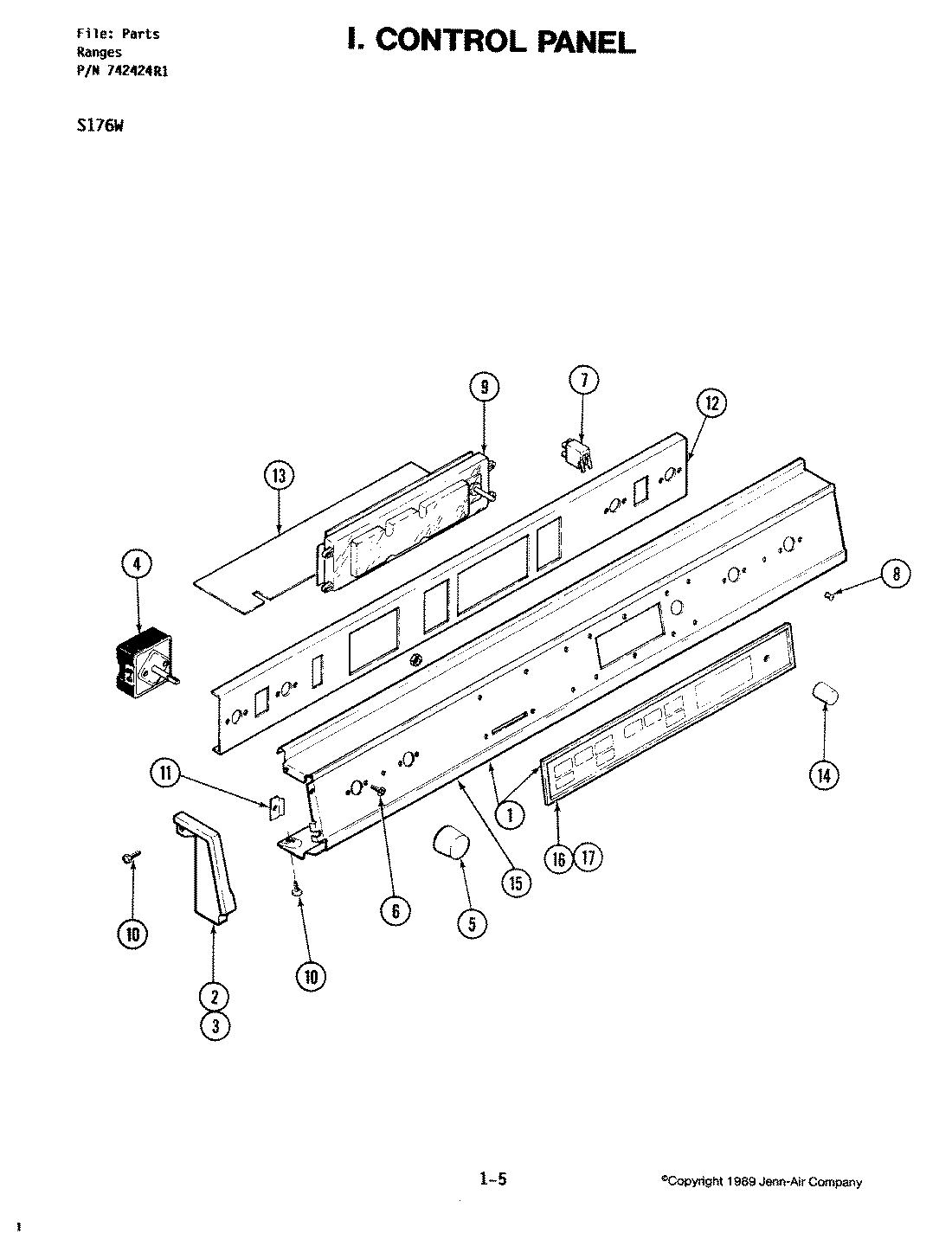

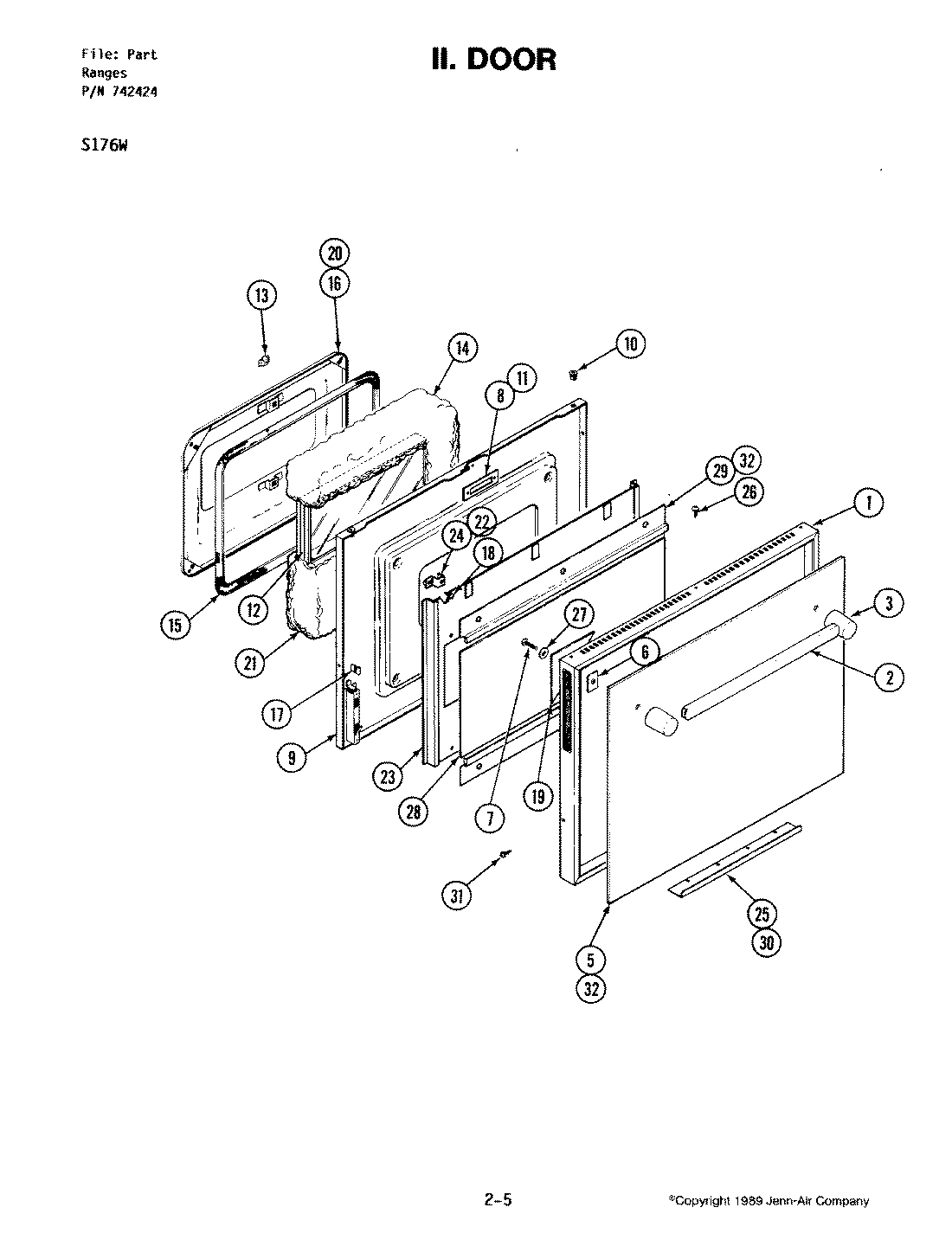

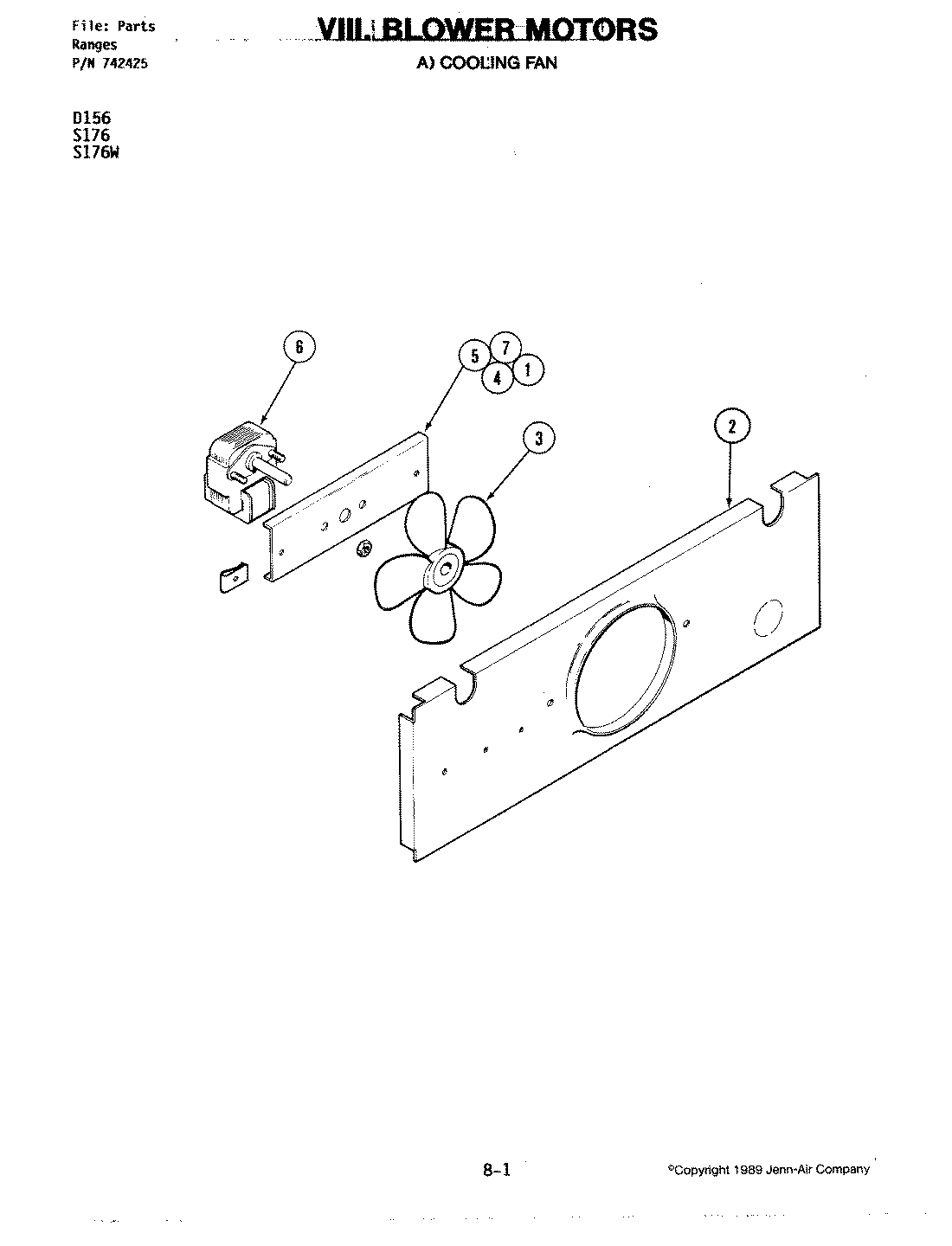

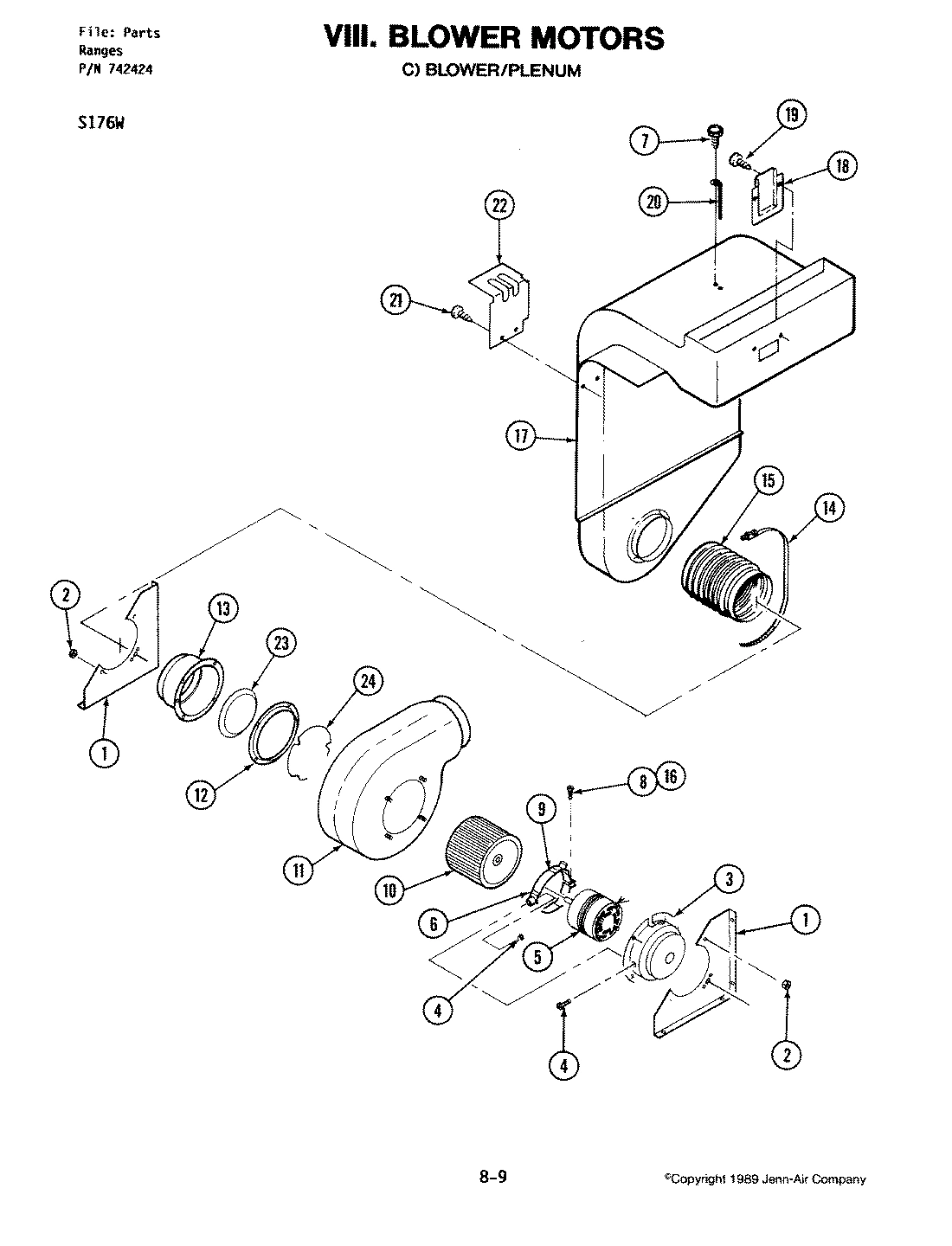

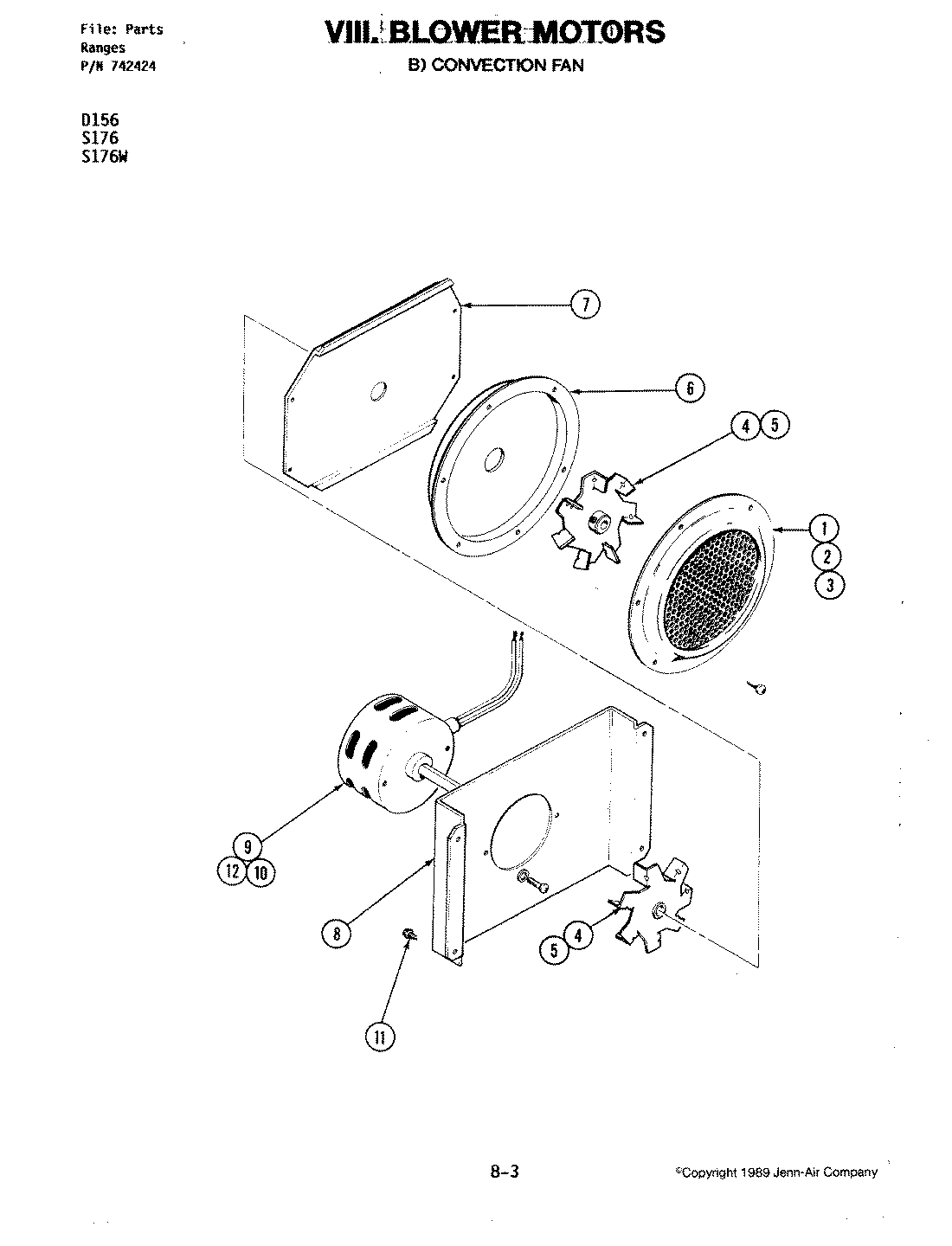

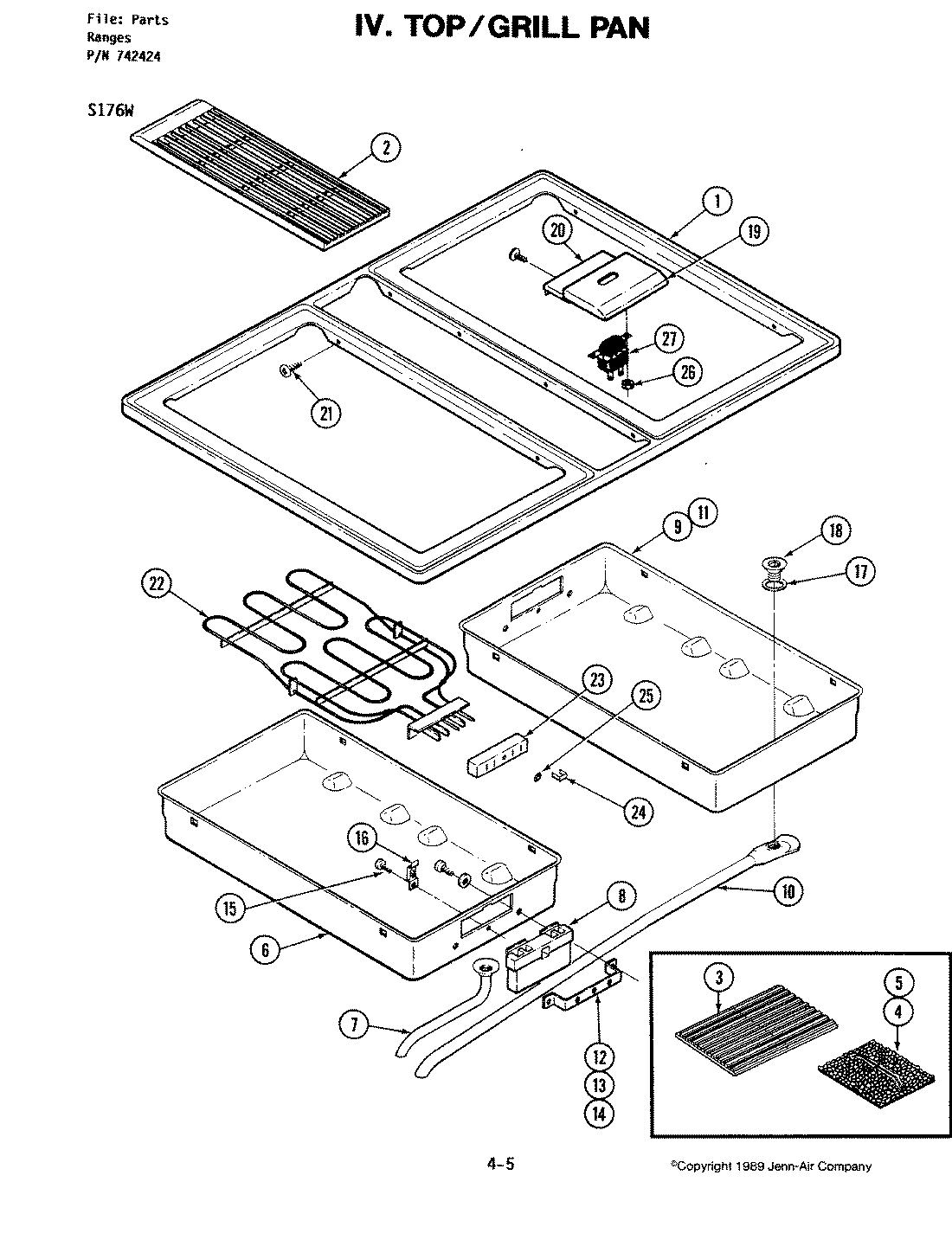

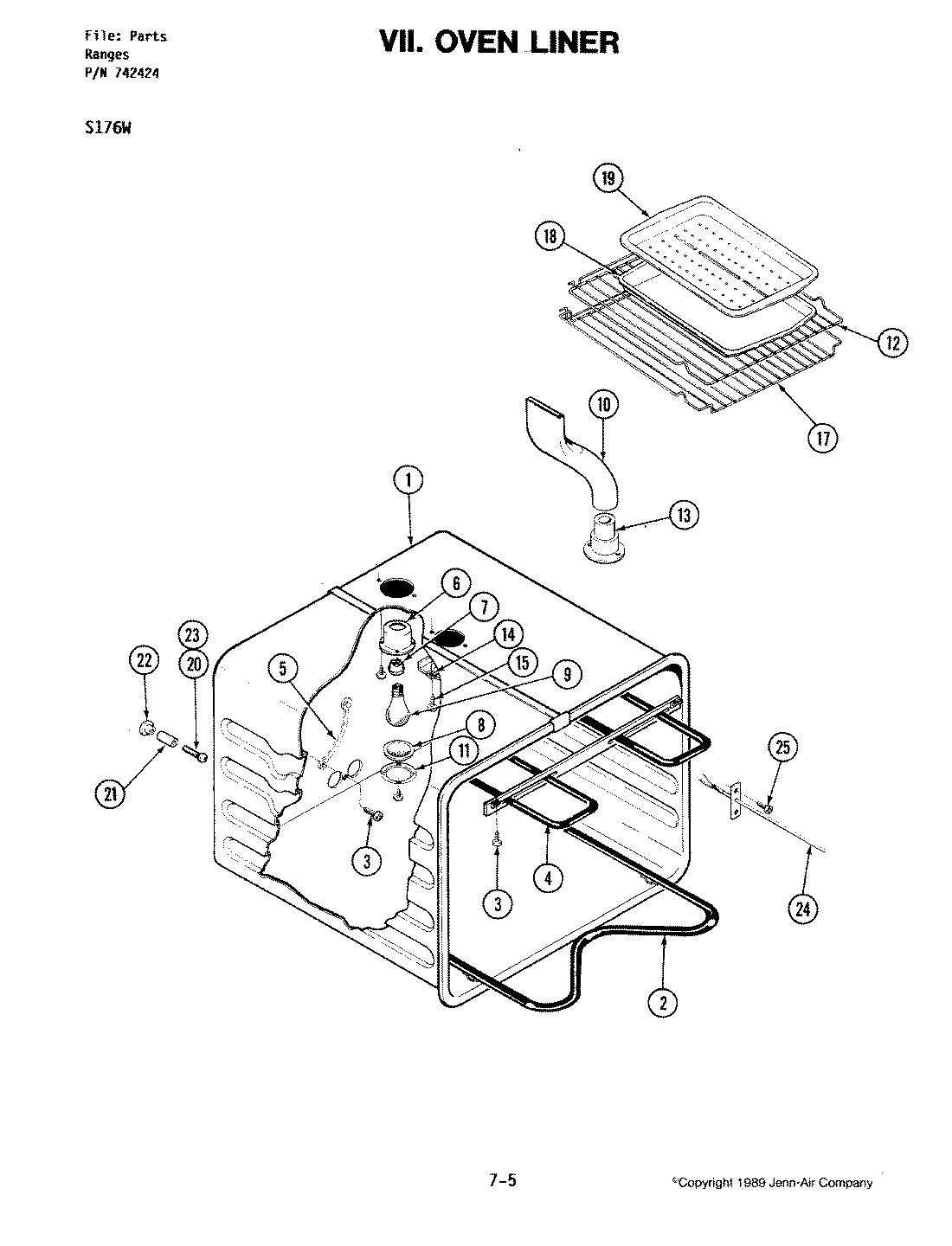

Model Whirlpool S176W ELECTRIC RANGE – Common Parts &amp; Diagrams

1

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.55

1

FRAME WPL 705134 Contact Us For Availability

1

PANEL, SIDE (LT) WPL Y702301 Contact Us For Availability

1

WASHER, ALUM WPL 71001403 Contact Us For Availability

1

OVEN WELD ASSY. WPL 71001490 Contact Us For Availability

1

LINER WPL 712582 Contact Us For Availability

1

PANEL, TOP WPL 704669 Contact Us For Availability

1

TOP WPL 701853 Contact Us For Availability

1

PLATE, CONVECTION FRONT WPL 71001378 Contact Us For Availability

1

PANEL, CONTROL WPL Y712587 Contact Us For Availability

1

FRAME, BASE DOOR (CHRM) WPL Y704746 Contact Us For Availability

2

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.55

2

WPY04100019 Whirlpool Bake Element In Stock WPL WPY04100019 $79.86

2

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $2.55

2

HANDLE (WHT) WPL 704475 Contact Us For Availability

2

ELEMENT, BAKE (208V) WPL 712247 Contact Us For Availability

2

GRILL, AIR WPL 704479 Contact Us For Availability

2

GRILL, AIR (WHT) WPL 71001451 Contact Us For Availability

2

GRILL, AIR WPL Y04100631 Contact Us For Availability

2

CAP, END (LT) WPL 702388 Contact Us For Availability

2

PANEL, BASE (WHT) WPL Y704747 Contact Us For Availability

3

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.68

3

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.55

3

END CAP (WHT) WPL Y704454 Contact Us For Availability

3

ANGLE, MOUNT WPL 712002 Contact Us For Availability

3

GRATE, GRILL WPL 703905 Contact Us For Availability

3

CAP, END (RT) WPL Y702387 Contact Us For Availability

3

LINER, DOOR WPL Y702341 Contact Us For Availability

3

COVER, MOTOR WPL Y704760 Contact Us For Availability

4

W11120791 Whirlpool Range Surface Element Inf In Stock WPL W11120791 $46.34

4

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $84.36

4

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $73.20

4

CLOSURE, FRONT WPL 702329 Contact Us For Availability

4

PLATE, ROCK WPL 708929 Contact Us For Availability

4

WHEEL, CONVECTION WPL 701711 Contact Us For Availability

4

WIRE, ORANGE (RIGHT) WPL 703523 Contact Us For Availability

4

PANEL, KICK WPL Y702744 Contact Us For Availability

4

SCREW WPL 707407 Contact Us For Availability

5

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.69

5

SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability

5

GLASS WPL 704742 Contact Us For Availability

5

WIRE, GROUND WPL 702643 Contact Us For Availability

5

SCREW, SET WPL 701709 Contact Us For Availability

5

KNOB, INFINITE (WHT) WPL 704481 Contact Us For Availability

5

MOTOR WPL Y704759 Contact Us For Availability

5

FOAM, URETHANE WPL Y715957 Contact Us For Availability

6

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

6

HARNESS, BACKSPLASH WPL 703648 Contact Us For Availability

6

BUSHING WPL Y704489 Contact Us For Availability

6

CLIP, SPRING WPL Y702476 Contact Us For Availability

6

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

6

BRACKET,STIFFENER WPL 702697 Contact Us For Availability

6

PAN, GRILL (LT) WPL 701955 Contact Us For Availability

6

KIT, WIRE WPL 712228 Contact Us For Availability

6

WIRE, BROWN WPL Y712197 Contact Us For Availability

6

WIRE, YELLOW WPL Y712200 Contact Us For Availability

6

WIRE, VIOLET WPL Y712203 Contact Us For Availability

6

PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability

6

CLIP----S WPL 708763 Contact Us For Availability

6

STUD, BALL WPL Y702633 Contact Us For Availability

6

BAND, MOTOR WPL Y707393 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

7

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

7

SCREW WPL 704963 Contact Us For Availability

7

SUPPORT,TUBE WPL 704296 Contact Us For Availability

7

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

7

LATCH, AUTOMATIC (UPPER) WPL Y704689 Contact Us For Availability

7

TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability

7

COVER, MOTOR FRONT WPL 701713 Contact Us For Availability

8

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

8

BACK, INNER WPL Y704735 Contact Us For Availability

8

LENS, LIGHT WPL Y704143 Contact Us For Availability

8

PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability

8

LENS WPL Y704607 Contact Us For Availability

8

TAPE, DOUBLE STICK (WHT) WPL Y704970 Contact Us For Availability

8

SCREW WPL Y707402 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

9

WP5708M007-60 Whirlpool Wire Harness Backorder WPL WP5708M007-60 $61.49

9

WP5708M008-60 Whirlpool Dishwasher Wire Harne Backorder WPL WP5708M008-60 $55.47

9

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $5.32

9

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

9

PLATE, BACK WPL Y702345 Contact Us For Availability

9

LINER WPL 712567 Contact Us For Availability

9

WIRE, BLUE WPL Y712227 Contact Us For Availability

9

PAN, GRILL (RT) WPL Y701956 Contact Us For Availability

9

WIRE, BROWN WPL Y712199 Contact Us For Availability

9

KIT, WIRE WPL Y712229 Contact Us For Availability

9

MOTOR, CONVECT WPL Y703035 Contact Us For Availability

9

TIMER, ELECTRONIC WPL Y704727 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.14

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $84.38

NUT, PUSH IN WPL 701643 Contact Us For Availability

COVER, REAR (LOWER) WPL 702307 Contact Us For Availability

TUBE, VENT WPL 702290 Contact Us For Availability

TUBE, DRAIN (RIGHT) WPL Y702327 Contact Us For Availability

SCREW, HEX WPL Y702976 Contact Us For Availability

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.75

WPY702434 Whirlpool Receptacle Backorder WPL WPY702434 $41.18

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

RETAINER, LENS WPL Y704144 Contact Us For Availability

BRACKET, RETAINING WPL 702616 Contact Us For Availability

HARNESS, SUPPLY (J2) WPL 704708 Contact Us For Availability

HARNESS, CONTROL WPL Y704703 Contact Us For Availability

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

RACK, OVEN WPL Y704660 Contact Us For Availability

COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability

BRACKET WPL Y702698 Contact Us For Availability

WASHER, LOCK WPL 715910 Contact Us For Availability

PANEL, BACK WELD WPL 712580 Contact Us For Availability

RING, INLET WPL Y704758 Contact Us For Availability

CLIP, RETAINER WPL Y700503 Contact Us For Availability

RELAY, TRANSFORMER ASSY. WPL Y704710 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

INSULATOR WPL Y705143 Contact Us For Availability

ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability

WP7711P492-60 Whirlpool Clock Knob In Stock WPL WP7711P492-60 $7.53

INSULATION WPL 702293 Contact Us For Availability

SUPPORT, CIRCUIT BOARD WPL Y704706 Contact Us For Availability

SHIELD, VENT WPL Y702632 Contact Us For Availability

WASHER WPL Y707664 Contact Us For Availability

CLAMP, HOSE WPL Y702331 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

WPY702338 Whirlpool Oven Seal In Stock WPL WPY702338 $91.19

ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability

PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability

PANEL, CONTROL WPL 704795 Contact Us For Availability

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

74004835 Whirlpool Clip In Stock WPL 74004835 $5.00

PLUG WPL 712494 Contact Us For Availability

NUT WPL 707161 Contact Us For Availability

BRACKET, HAT WPL 702658 Contact Us For Availability

SUPPORT, RACK WPL 702701 Contact Us For Availability

SWITCH, MEMBRANE ((WHT) WPL Y04100041 Contact Us For Availability

SWITCH, MEMBRANE WPL Y704796 Contact Us For Availability

CLIP WPL 704487 Contact Us For Availability

PANEL, SIDE (RT) WPL 702300 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

WASHER, TEFLON WPL 702747 Contact Us For Availability

PLENUM, LOWER ASSEMBLY WPL 712007 Contact Us For Availability

PLENUM, UPPER WPL 712025 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

HINGE WPL Y703419 Contact Us For Availability

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

COVER, VENT WPL Y702475 Contact Us For Availability

GUSSET----NA WPL 704805 Contact Us For Availability

ESCUTCHEON (WHT) WPL 71001452 Contact Us For Availability

ESCUTCHEON (WHT) WPL Y04100548 Contact Us For Availability

ESCUTCHEON (WHT) WPL Y704477 Contact Us For Availability

INSULATION, TOP WPL 701660 Contact Us For Availability

HARNESS, SUPPLY WPL 704766 Contact Us For Availability

SCREW WPL 705170 Contact Us For Availability

BRACKET, FILLER WPL Y704233 Contact Us For Availability

STOP, FILTER WPL Y702656 Contact Us For Availability

W11117769 Whirlpool Refrigerator Leveler Backorder WPL W11117769 $6.97

INSULATION, BOTTOM WPL 702292 Contact Us For Availability

LEVELER, LEG WPL Y04100573 Contact Us For Availability

SPACER, OVEN WPL 701741 Contact Us For Availability

WP5700M426-60 Whirlpool Heating Element Backorder WPL WP5700M426-60 $174.65

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $11.42

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

STRAIN, RELIEF WPL Y702696 Contact Us For Availability

RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability

ENCLOSURE, SIDE (RIGHT) WPL 702183 Contact Us For Availability

INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability

INSULATION-BACK WPL 702283 Contact Us For Availability

NUT, TEE WPL 715294 Contact Us For Availability

CORD, RECEPTACLE MOTOR WPL 702735 Contact Us For Availability

CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability

WPY708730 Whirlpool Terminal Block In Stock WPL WPY708730 $40.86

BAFFLE WPL 703782 Contact Us For Availability

WASHER WPL 701736 Contact Us For Availability

BAFFLE, INNER WPL 704466 Contact Us For Availability

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

SCREW WPL 715870 Contact Us For Availability

ADAPTOR WPL Y04100259 Contact Us For Availability

HARNESS, WIRE SENSOR WPL Y704801 Contact Us For Availability

CLIP, SHUNT WPL Y700450 Contact Us For Availability

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.51

Y708862 Whirlpool Speed Nut Backorder WPL Y708862 $10.83

RAIL, GLASS WPL 704744 Contact Us For Availability

CONTAINER,GREASE ASSEMBLY WPL Y712001 Contact Us For Availability

26

WASHER, CONICAL WPL 702462 Contact Us For Availability

26

PALNUT WPL Y705023 Contact Us For Availability

27

SCREW WPL 702731 Contact Us For Availability

27

SWITCH, FAN (GRY) WPL 704478 Contact Us For Availability

28

GLASS, BAFFLE WPL Y704820 Contact Us For Availability

28

TRIM, SIDE WPL 702337 Contact Us For Availability

29

RETAINER, GLASS WPL Y704819 Contact Us For Availability

29

SWITCH, DOOR WPL 701666 Contact Us For Availability

30

SCREW WPL Y700584 Contact Us For Availability

30

GUSSETT (LT) WPL 702557 Contact Us For Availability

31

SCREW (BLACK) WPL Y704488 Contact Us For Availability

31

GUSSETT (RT) WPL 702556 Contact Us For Availability

32

TAPE, FOAM WPL 704491 Contact Us For Availability

32

INSULATOR WPL 702898 Contact Us For Availability

33

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

34

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $2.51

36

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

36

STRAP, GROUND WPL Y702335 Contact Us For Availability

36

BRACKET, ANTI-TIP WPL Y705344 Contact Us For Availability
