Model Maytag RY4951000W3 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

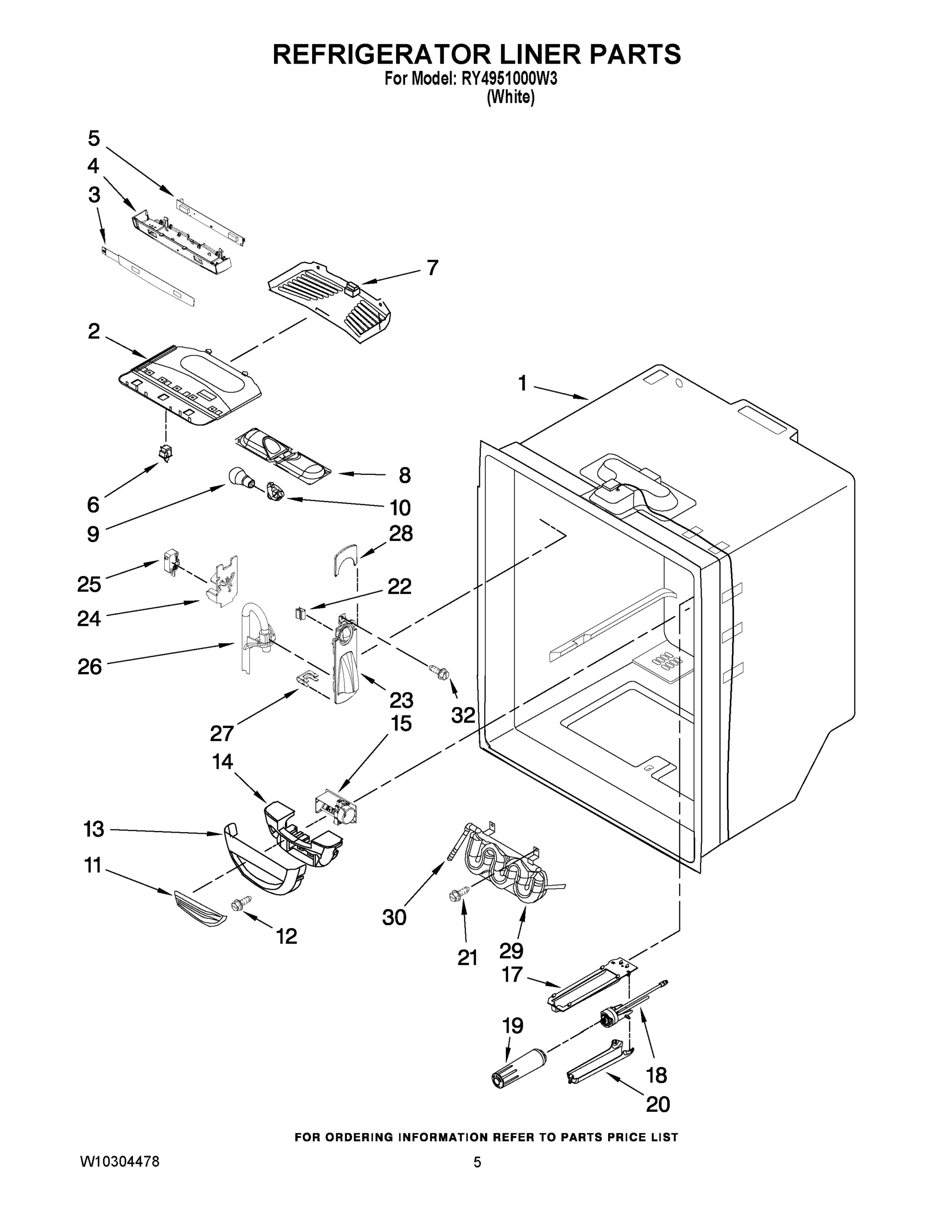

03 - REFRIGERATOR LINER PARTS

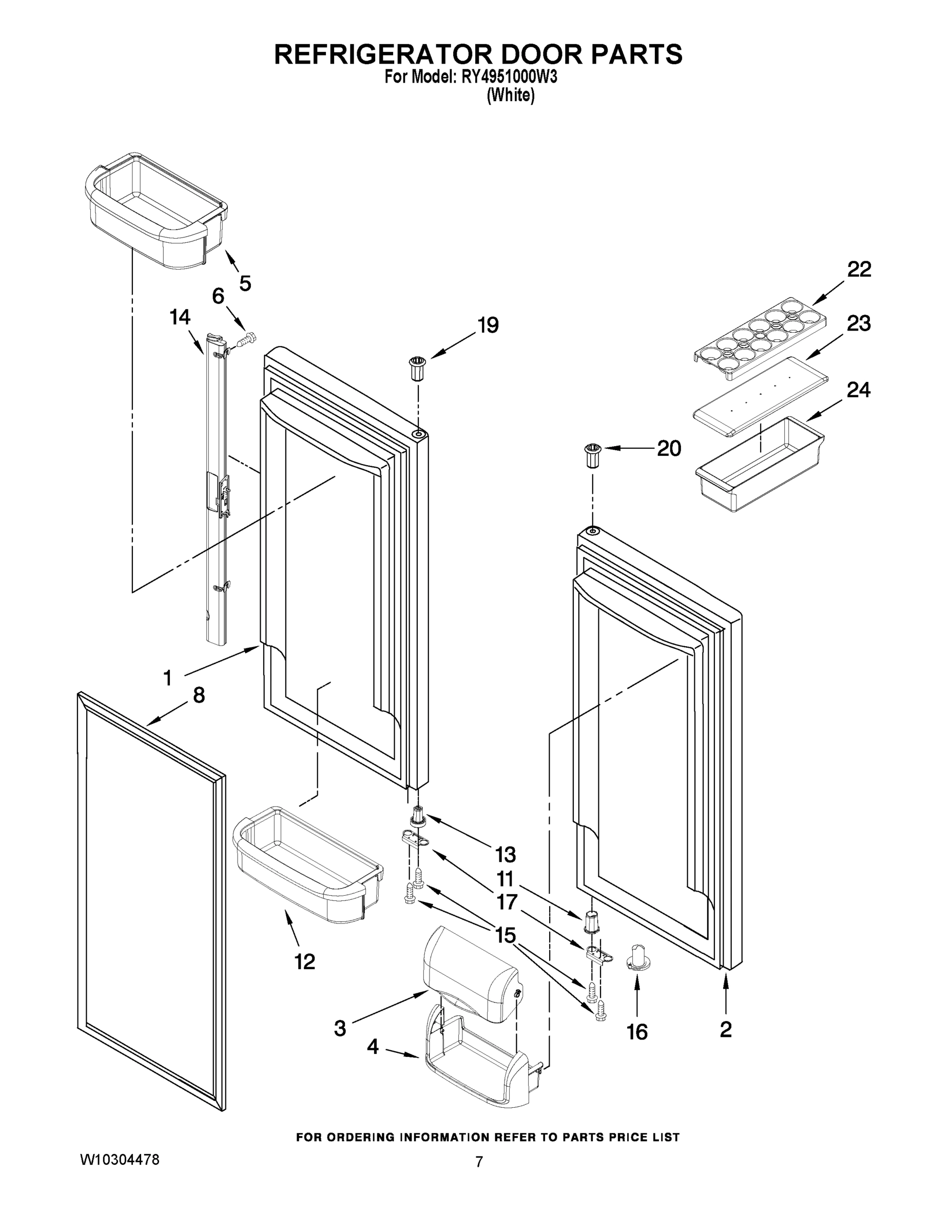

04 - REFRIGERATOR DOOR PARTS

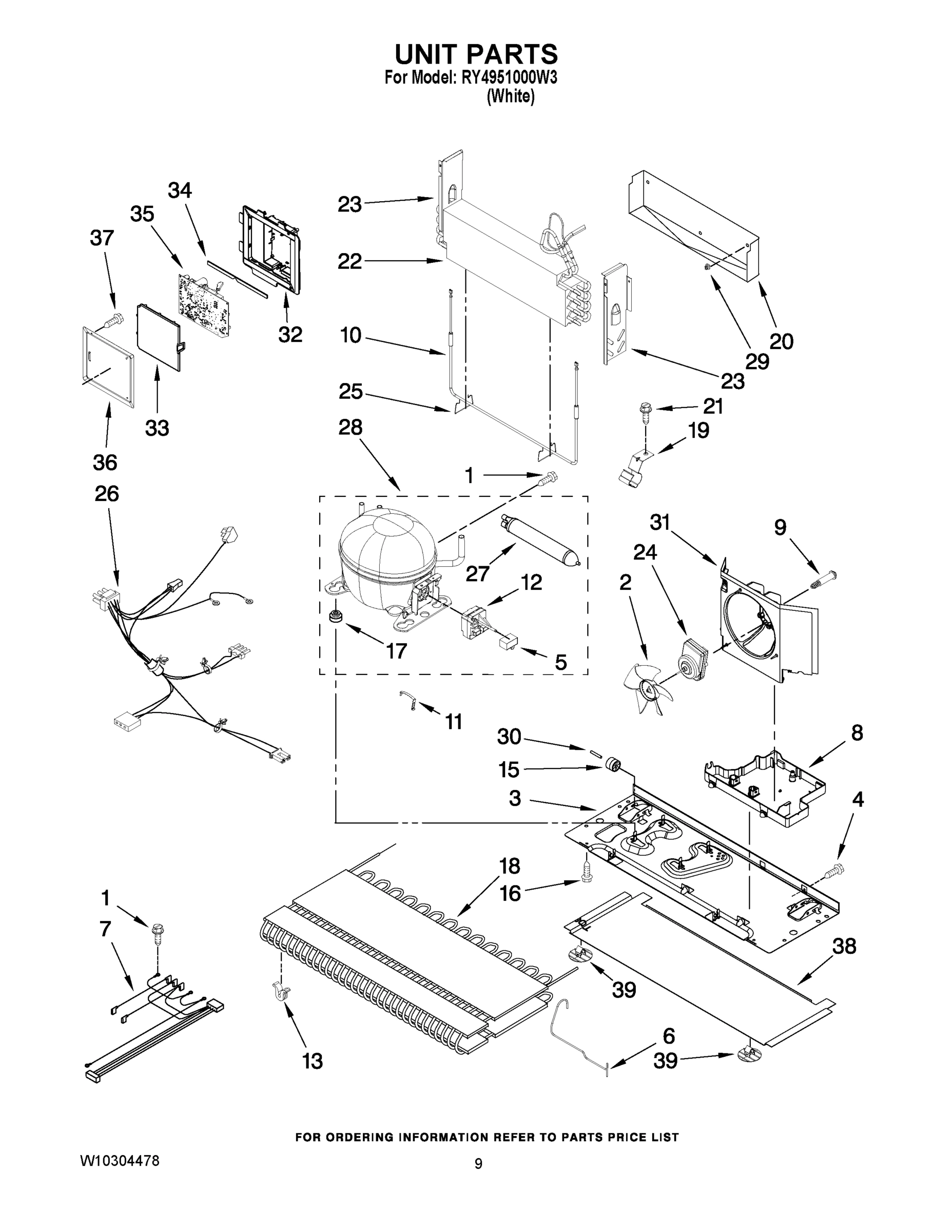

05 - UNIT PARTS

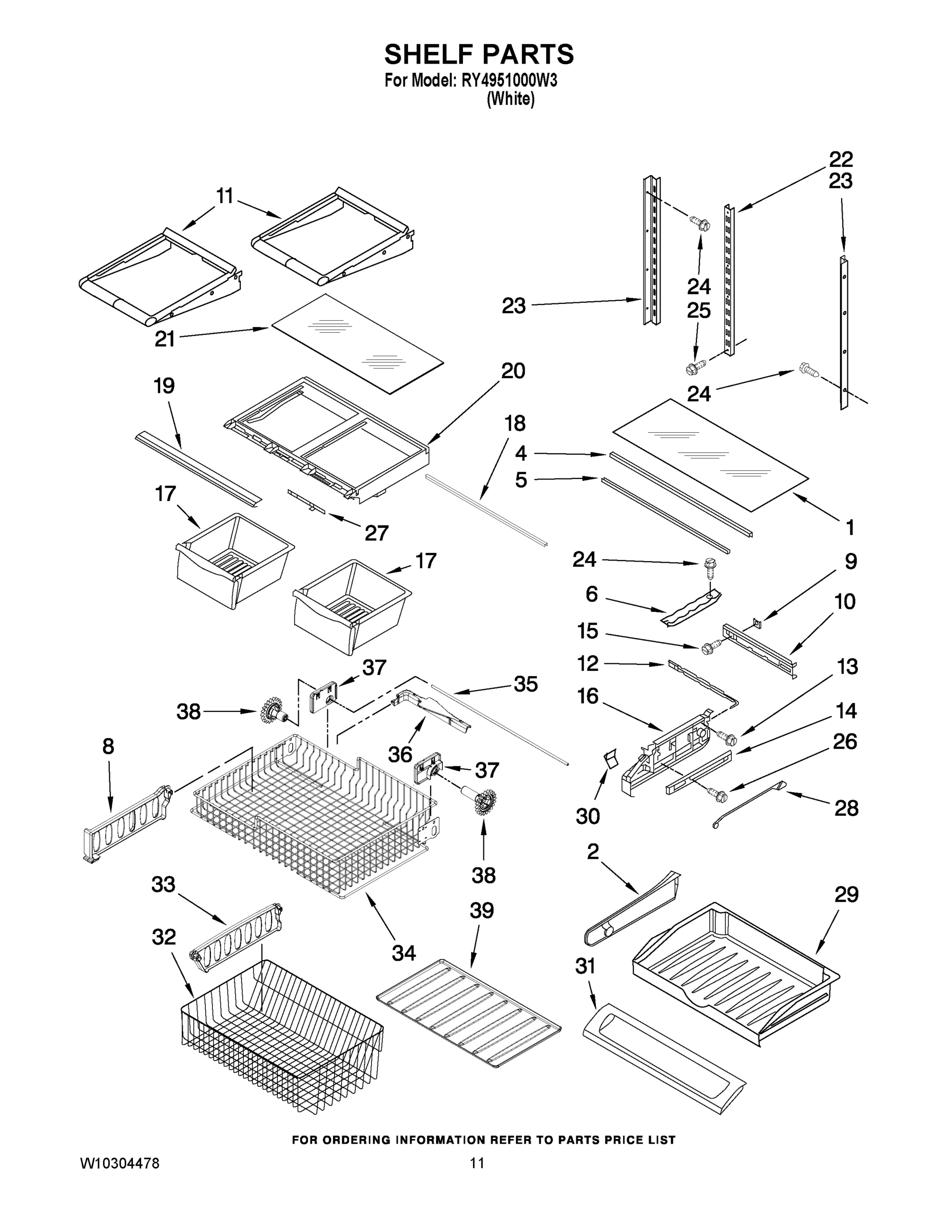

06 - SHELF PARTS

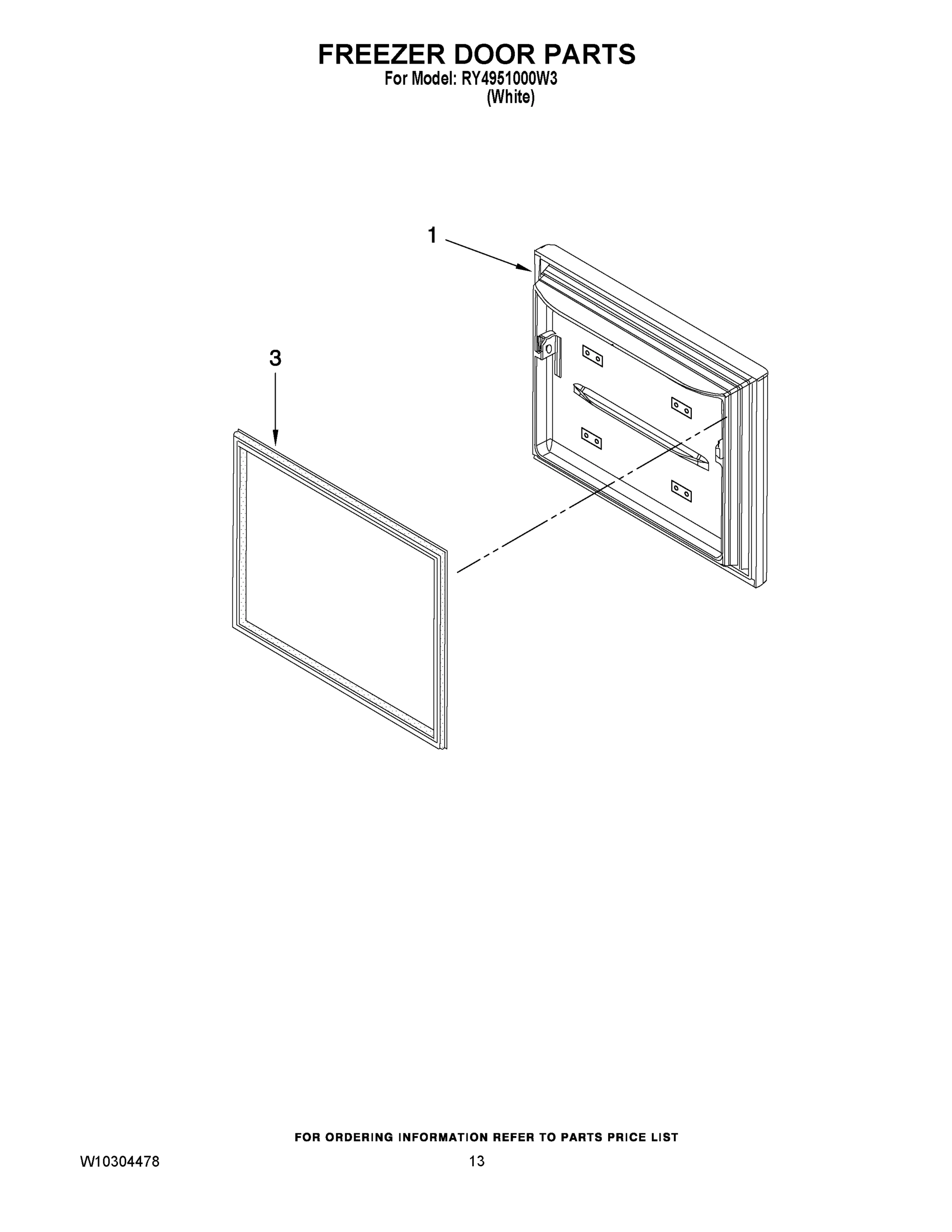

07 - FREEZER DOOR PARTS

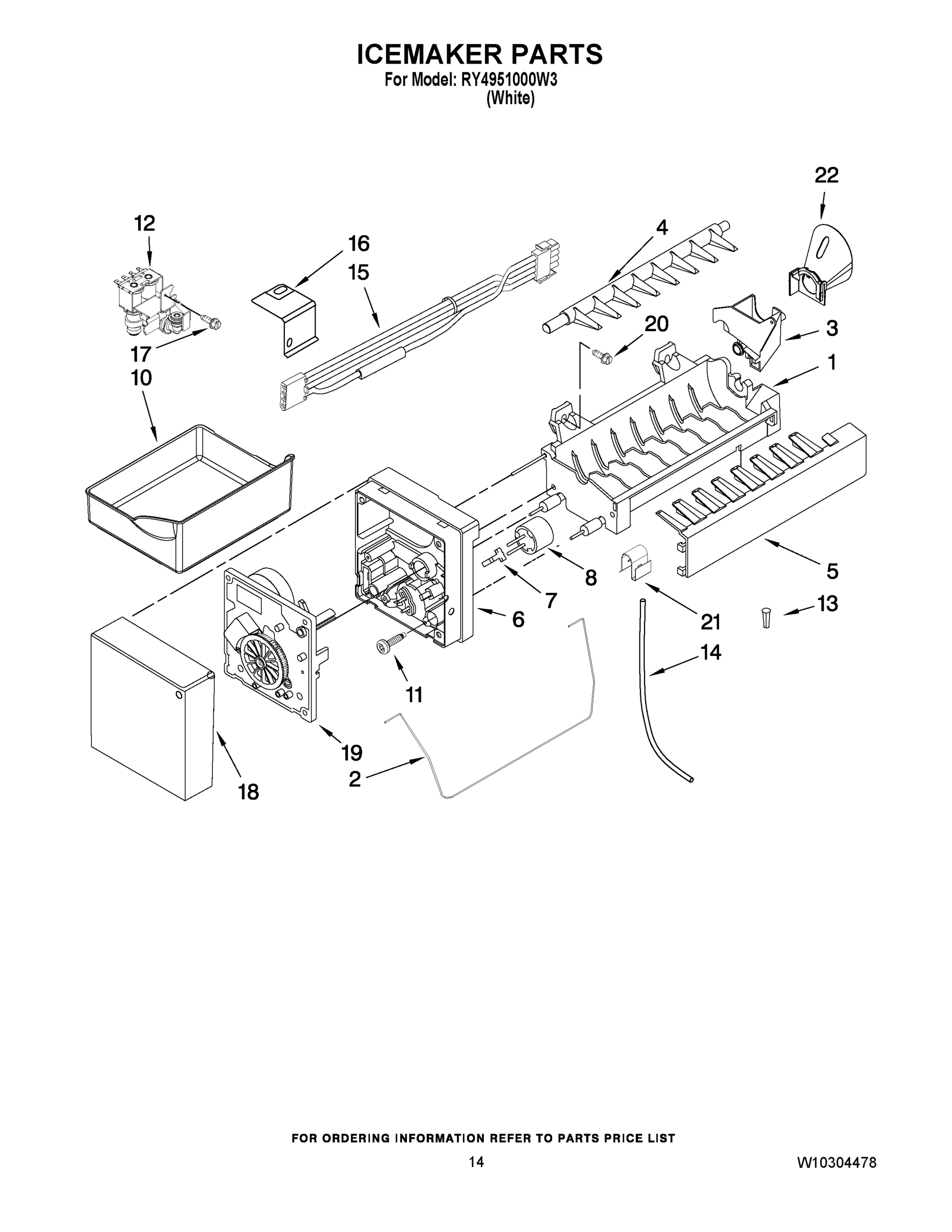

08 - ICEMAKER PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag RY4951000W3 REFRIGERATOR
1
MAY 12732428WQ MAY 12732428WQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12204829 MAY 12204829 Contact Us For Availability
1
MAY 13092221WQ MAY 13092221WQ Contact Us For Availability
1
Mold & Heater Assembly (Also Order 542638 Gre MAY W10122523 Contact Us For Availability
2
MODULE, LIGHT MAY 12806302 Contact Us For Availability
2
MAY 12732422WQ MAY 12732422WQ Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
DIVIDER, PANTRY DRAWER MAY 12709301 Contact Us For Availability
2
ARM-SHUT OFF MAY W10202524 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY W10218675 MAY W10218675 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY W10164040 MAY W10164040 Contact Us For Availability
3
Cup, Fill MAY 628515 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY 12806405 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY 12655902SP MAY 12655902SP Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
5
MAY 10449516 MAY 10449516 Contact Us For Availability
5
MAY W10217475 MAY W10217475 Contact Us For Availability
5
BIN, MEDIUM (3) MAY 12557212 Contact Us For Availability
5
CAPACITOR MAY 2321245 Contact Us For Availability
5
MAY 12227305WD MAY 12227305WD Contact Us For Availability
5
ICE STRIPPER MAY W10122563 Contact Us For Availability
6
SWITCH, LIGHT (2) MAY C3680310V Contact Us For Availability
6
MAY 12990204 MAY 12990204 Contact Us For Availability
6
MAY W10286438 MAY W10286438 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
HARNESS, EVAP. HEATER MAY W10280430 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Gasket, Door (2) (White) MAY W10163894 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
8
Divider, Upper Basket MAY W10241046 Contact Us For Availability
8
Thermostat (Also Order 542369 Cement) MAY 2321258 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT (2) MAY A0282808V Contact Us For Availability
9
MAY 12991001N MAY 12991001N Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
10
Hinge, Top Right MAY 12626910ED Contact Us For Availability
10
SOCKET, LIGHT (2) MAY W10134764V Contact Us For Availability
10
FOIL-FZ LIGHT MAY W10277466 Contact Us For Availability
10
MAY 12729132 MAY 12729132 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
10
MAY W10171529 MAY W10171529 Contact Us For Availability
11
SCREW (6) MAY 12992201 Contact Us For Availability
11
MAY 12226114 MAY 12226114 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
BUSHING, DOOR (BOTTOM RIGHT) MAY 12028601W Contact Us For Availability
11
STRAP, BALE MAY 2302129 Contact Us For Availability
11
SHELF, GLIDE (4) MAY 12463911 Contact Us For Availability
11
Screw (2) MAY W10001280 Contact Us For Availability
12
MAY 10093321 MAY 10093321 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
BIN, GALLON (2) MAY 12699004 Contact Us For Availability
12
START DEVICE MAY 2312007 Contact Us For Availability
12
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
12
MAY 12544125 MAY 12544125 Contact Us For Availability
13
COVER, LEFT HINGE (WHITE) MAY 12629803W Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
Screw (4) MAY 12990512 Contact Us For Availability
13
BUSHING, DOOR (BOTTOM LEFT) MAY 12699301W Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
MAY A3223101SP MAY A3223101SP Contact Us For Availability
14
SCREW (6) MAY 12992403 Contact Us For Availability
14
MODULE-FZ LIGHT MAY W10277025 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 12722811W MAY 12722811W Contact Us For Availability
14
MAY 13058101V MAY 13058101V Contact Us For Availability
14
TUBING, PLASTIC MAY B5705333SP Contact Us For Availability
15
Hinge, Center (White) MAY 12655102WD Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY W10221218 MAY W10221218 Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
MAY 12975112 MAY 12975112 Contact Us For Availability
16
MAY 12777701 MAY 12777701 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12028505W MAY 12028505W Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY 12656025 MAY 12656025 Contact Us For Availability
16
Endcap, Pantry (Left) MAY 12656105 Contact Us For Availability
16
Bracket, Ice Maker MAY 2256087 Contact Us For Availability
17
Cover, Corner (2) (White) MAY 12587703W Contact Us For Availability
17
PLATE MAY 12704801 Contact Us For Availability
17
MAY 10447111 MAY 10447111 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
PAN, CRISPER (2) MAY 12531105 Contact Us For Availability
17
MAY 12991604 MAY 12991604 Contact Us For Availability
18
Hinge, Top Left MAY 12626911ED Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY 12590622 MAY 12590622 Contact Us For Availability
18
MAY W10135027 MAY W10135027 Contact Us For Availability
18
Brace, Crisper MAY 12227304WD Contact Us For Availability
18
Cover MAY 12582501 Contact Us For Availability
19
ROLLER ASSY. (FRONT) (RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSY. (FRONT) (LEFT) MAY W10275850 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
BUSHING, DOOR UPPER LEFT (WHITE) MAY 12395501W Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
19
MAY W10231335 MAY W10231335 Contact Us For Availability
19
MAY W10122522 MAY W10122522 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY A3189392 Contact Us For Availability
20
BUSHING, DOOR UPPER RIGHT (WHITE) MAY 10961006W Contact Us For Availability
20
MAY 12225403WD MAY 12225403WD Contact Us For Availability
20
MAY 12531202SP MAY 12531202SP Contact Us For Availability
20
Screw (3) MAY W10001240 Contact Us For Availability
21
MAY 12579702 MAY 12579702 Contact Us For Availability
21
Gasket MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
Glass, Crisper Cover MAY 12204821 Contact Us For Availability
21
Clip MAY 628379 Contact Us For Availability
22
MAY W10244559 MAY W10244559 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
MAY B8390302SP MAY B8390302SP Contact Us For Availability
22
MAY 10436506S MAY 10436506S Contact Us For Availability
22
MAY 12726403 MAY 12726403 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
22
MAY 12918001 MAY 12918001 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY 12706909SP MAY 12706909SP Contact Us For Availability
23
MAY 10436404S MAY 10436404S Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY W10251971 MAY W10251971 Contact Us For Availability
24
MAY 10351006 MAY 10351006 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 12707303SP MAY 12707303SP Contact Us For Availability
24
Screw (6) MAY 12990513 Contact Us For Availability
24
MAY 10423131SP MAY 10423131SP Contact Us For Availability
24
MAY W10246191 MAY W10246191 Contact Us For Availability
25
MAY W10119064 MAY W10119064 Contact Us For Availability
25
MAY W10119295 MAY W10119295 Contact Us For Availability
25
MAY 12990515 MAY 12990515 Contact Us For Availability
26
Screw (4) MAY 12990504 Contact Us For Availability
26
MAY 12726003 MAY 12726003 Contact Us For Availability
26
Screw (8) MAY 12990521 Contact Us For Availability
26
MAY 12707206SP MAY 12707206SP Contact Us For Availability
26
MAY W10234313 MAY W10234313 Contact Us For Availability
27
GUARD-WATER VALVE MAY W10208593 Contact Us For Availability
27
CRADLE, BASKET (LEFT) MAY W10281115 Contact Us For Availability
27
CRADLE, BASKET (RIGHT) MAY W10281116 Contact Us For Availability
27
MAY 12251001SP MAY 12251001SP Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY 12530805SP MAY 12530805SP Contact Us For Availability
28
SCREW (2) MAY 12990303 Contact Us For Availability
28
Slide, Drawer (2) MAY 13055901 Contact Us For Availability
28
MAY 12707008 MAY 12707008 Contact Us For Availability
28
MAY W10223234 MAY W10223234 Contact Us For Availability
28
ROD, TEMPERATURE CONTROL MAY 12655303 Contact Us For Availability
29
MAY 12831101 MAY 12831101 Contact Us For Availability
29
MAY W10261191 MAY W10261191 Contact Us For Availability
29
MAY W10261193 MAY W10261193 Contact Us For Availability
29
MAY 12706112 MAY 12706112 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12655702 MAY 12655702 Contact Us For Availability
30
MAY W10212204 MAY W10212204 Contact Us For Availability
30
Screw (6) MAY 12990501 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
MAY 12655204V MAY 12655204V Contact Us For Availability
31
SHAFT MAY 12812903WD Contact Us For Availability
31
MAY W10189187 MAY W10189187 Contact Us For Availability
31
MAY 12655803SP MAY 12655803SP Contact Us For Availability
32
BOX, HV CONTROL MAY W10257666 Contact Us For Availability
32
MAY W10150040 MAY W10150040 Contact Us For Availability
33
Insulation, Sound MAY 12820505 Contact Us For Availability
33
LID, HV BOX MAY 12957702 Contact Us For Availability
33
DIVIDER, LOWER BASKET MAY W10150061 Contact Us For Availability
34
Brake, Foot MAY W10141622 Contact Us For Availability
34
SHROUD-LGHT SOCKET MAY W10119914 Contact Us For Availability
34
GASKET-HV BOX MAY 12957801 Contact Us For Availability
34
MAY W10188805 MAY W10188805 Contact Us For Availability
35
MAY W10284696 MAY W10284696 Contact Us For Availability
35
MAY W10284697 MAY W10284697 Contact Us For Availability
35
BOARD, CONTROL (HV, APOLLO) MAY W10276422 Contact Us For Availability
35
MAY 12812904WD MAY 12812904WD Contact Us For Availability
36
MAY W10210988 MAY W10210988 Contact Us For Availability
36
MAY 12961602 MAY 12961602 Contact Us For Availability
36
MAY W10149389 MAY W10149389 Contact Us For Availability
37
CLIP MAY M0114003SP Contact Us For Availability
37
MAY 12990702 MAY 12990702 Contact Us For Availability
37
MAY W10233898 MAY W10233898 Contact Us For Availability
37
MAY W10233899 MAY W10233899 Contact Us For Availability
38
EXTENSION-BASEPAN MAY W10225121 Contact Us For Availability
38
MAY W10146446 MAY W10146446 Contact Us For Availability
38
MAY W10158749 MAY W10158749 Contact Us For Availability
39
MAY W10206339 MAY W10206339 Contact Us For Availability
39
TRAY-LOWER BSKT. MAY 12727304 Contact Us For Availability
100
ICEMAKER ASSEMBLY MAY W10190972 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.0 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
MAY W10226506 MAY W10226506 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
