Model Whirlpool RY160LXTS0 30`` Slide-In Electric Range – Common Parts & Diagrams

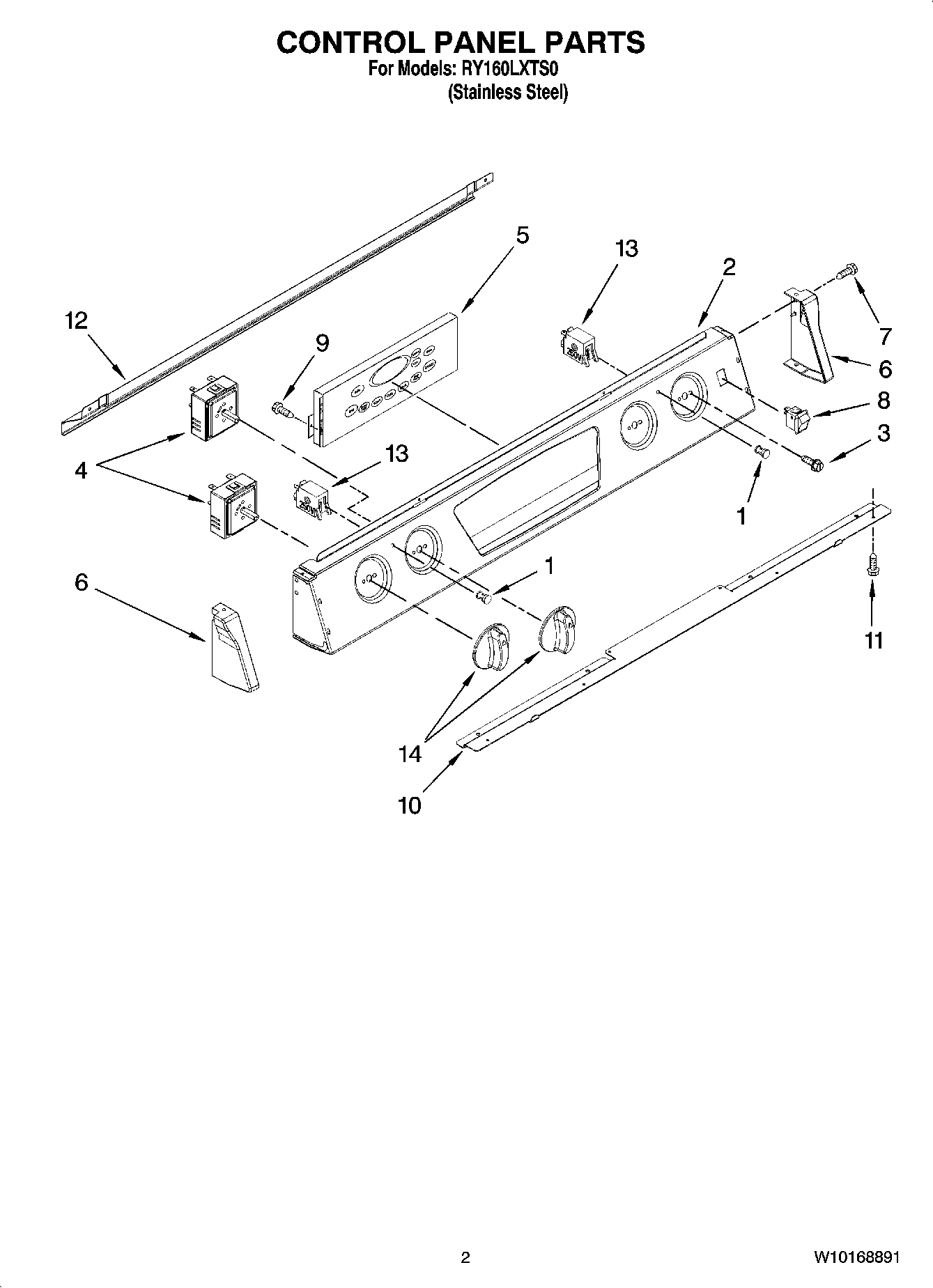

02 - CONTROL PANEL PARTS

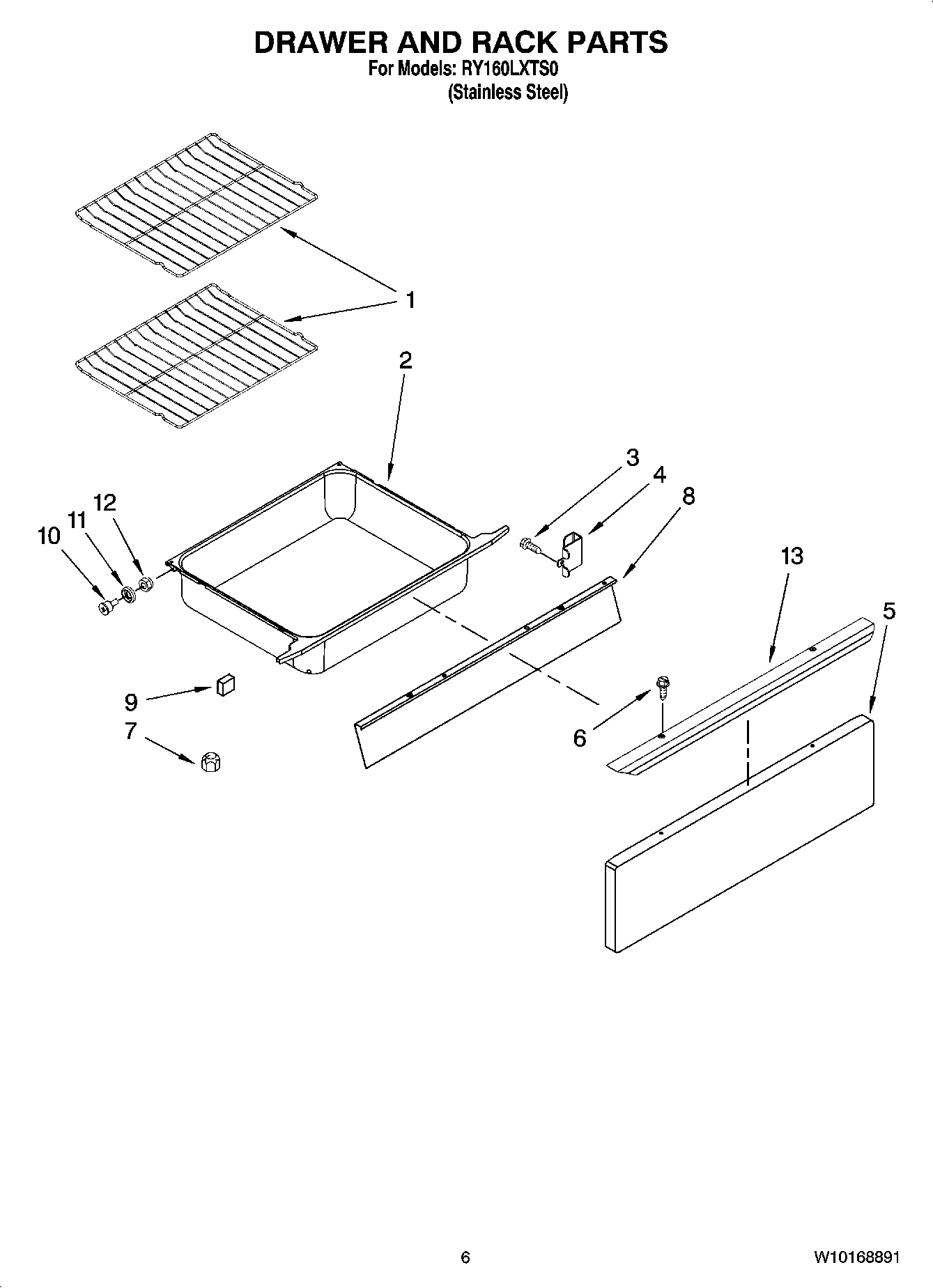

05 - DRAWER AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

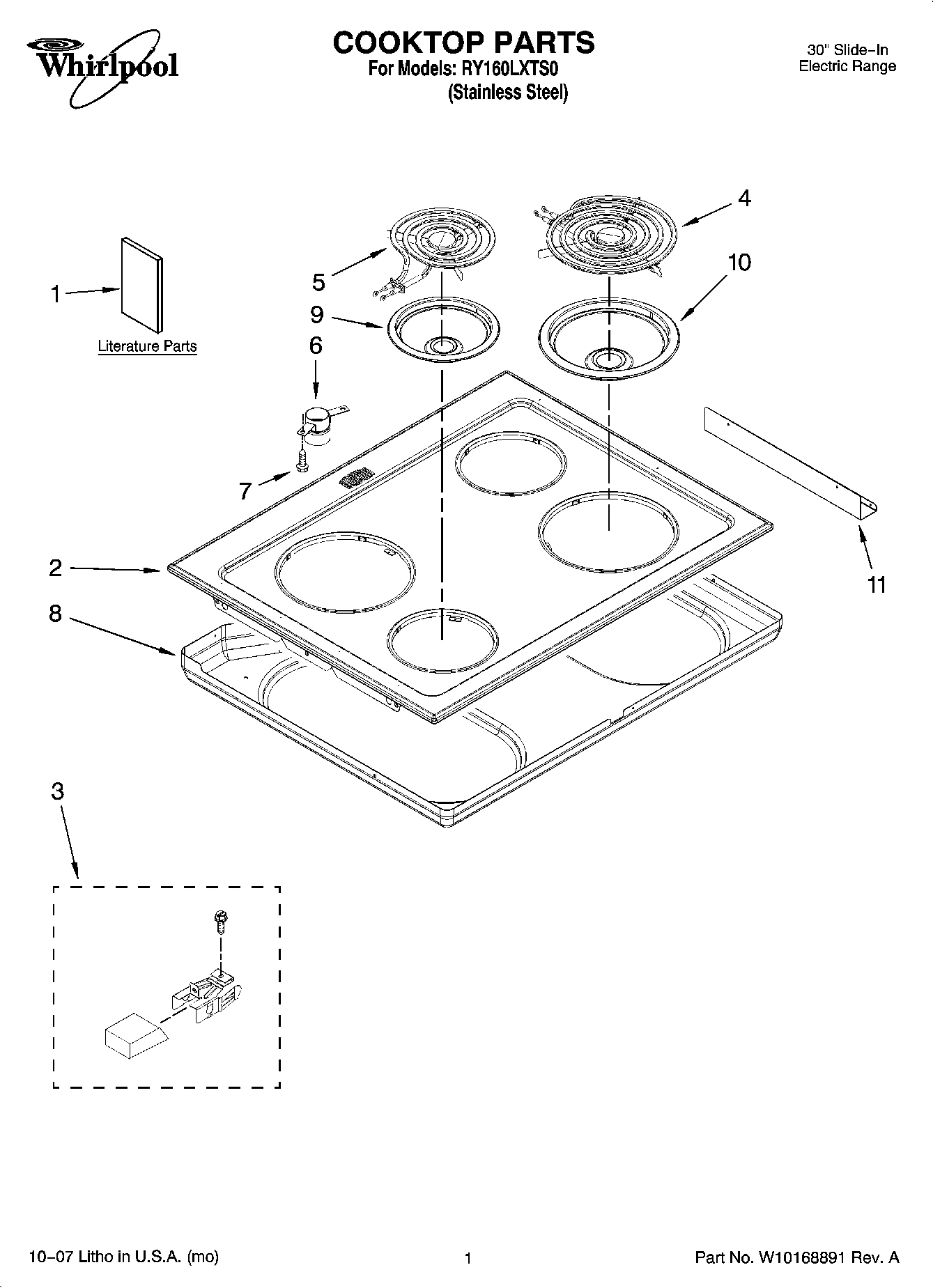

01 - COOKTOP PARTS

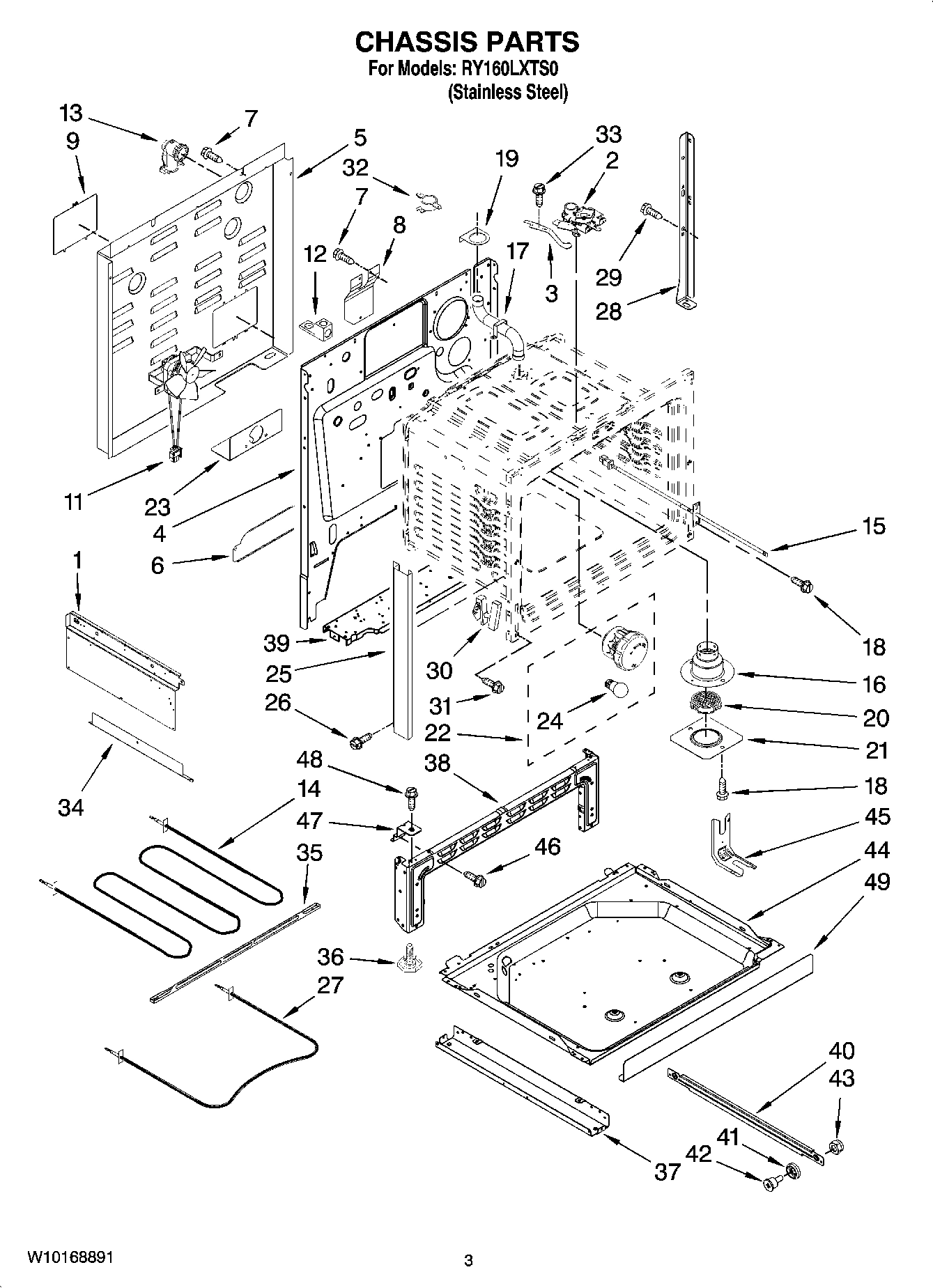

03 - CHASSIS PARTS

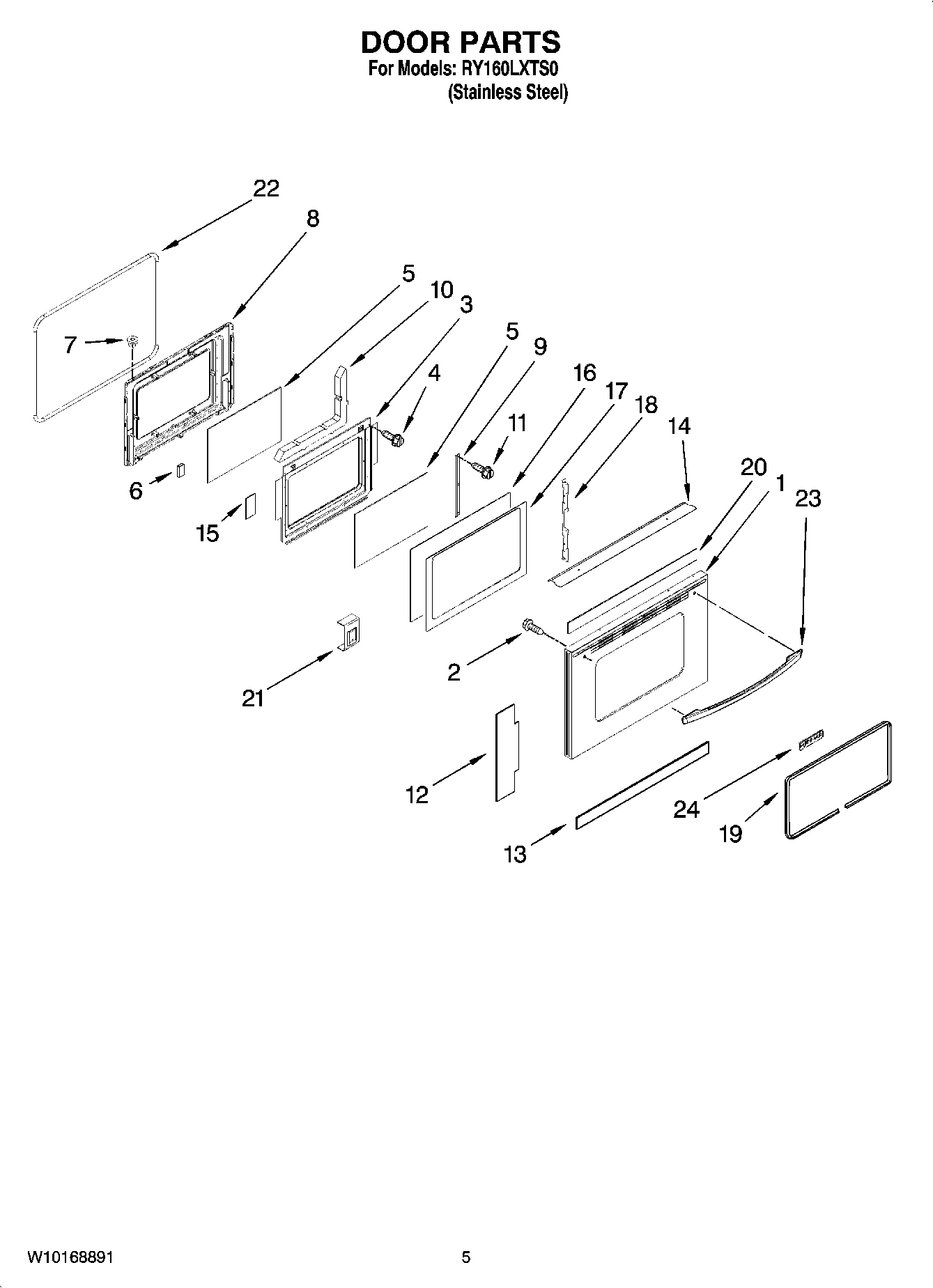

04 - DOOR PARTS
Common parts from model Whirlpool RY160LXTS0 30`` Slide-In Electric Range
Cleaner, Glass WPL W10355051 No Longer Available
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
P WPL 799344 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
Screw, Ground WPL 7101P02760 Contact Us For Availability
Harness, Sensor WPL 74010890 Contact Us For Availability
Coil, Harness (Lt) WPL 74010893 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL ARI128511A WPL ARI128511A Contact Us For Availability
WPL ARI128512A WPL ARI128512A Contact Us For Availability
WPL ARI128513A WPL ARI128513A Contact Us For Availability
WPL ARI128514A WPL ARI128514A Contact Us For Availability
WPL ARI128515A WPL ARI128515A Contact Us For Availability
WPL ARI128516A WPL ARI128516A Contact Us For Availability
WPL W10169071 WPL W10169071 Contact Us For Availability
1
Use & Care Guide WPL W10165716 Contact Us For Availability
1
Installation Instructions WPL W10165721 Contact Us For Availability
1
Wiring Diagram WPL W10166918 Contact Us For Availability
1
Panel, Shield (Left) WPL 74010821 Contact Us For Availability
1
Panel, Door (SS) WPL W10168887 Contact Us For Availability
2
Latch Assembly WPL 74010897 Contact Us For Availability
2
Drawer, Storage WPL 74008333 Contact Us For Availability
3
Lever, Lock WPL 74001075 Contact Us For Availability
4
Bracket, Drawer WPL 74010896 Contact Us For Availability
4
Main Back WPL 74011465 Contact Us For Availability
5
Panel, Dwr (SS) WPL 7760P22960 Contact Us For Availability
6
Tube, Vent Upper WPL 74005759 Contact Us For Availability
6
Extension, Back WPL 74010815 Contact Us For Availability
8
Lining, Drawer WPL 2404F03051 Contact Us For Availability
8
Bottom, Burner Box WPL 74006046 Contact Us For Availability
8
Insulator, Cord WPL 74006364 Contact Us For Availability
8
Liner, Door WPL 74011456 Contact Us For Availability
9
Panel, Access WPL 74005264 Contact Us For Availability
10
Insulation, Door WPL 74003647 Contact Us For Availability
12
Nut WPL 7103P08260 Contact Us For Availability
13
Handle, Drawer WPL 74009841 Contact Us For Availability
13
Connector, Cable WPL 74004223 Contact Us For Availability
14
Shield, Door WPL 74011049 Contact Us For Availability
15
Tape, White WPL 74004224 Contact Us For Availability
16
Tube, Vent Lower WPL W10165822 Contact Us For Availability
16
Glass, Coated WPL 74010231 Contact Us For Availability
17
Tube, Vent Upper WPL 74010886 Contact Us For Availability
17
Glass, Inner Clear WPL 74003649 Contact Us For Availability
18
Retainer, Glass WPL 74011050 Contact Us For Availability
19
Holder, Vent Tube WPL 74010817 Contact Us For Availability
20
Smoke Eliminator WPL 74008597 Contact Us For Availability
20
Tape, Protective WPL W10168886 Contact Us For Availability
21
Plate, Smoke Elm. WPL W10165724 Contact Us For Availability
21
Clip, Glass (2) WPL 7112P03460 Contact Us For Availability
22
Seal, Door WPL 7201P04660 Contact Us For Availability
23
Handle, Door WPL 74008318 Contact Us For Availability
24
Nameplate, Logo WPL 8303811 Contact Us For Availability
24
BULB-OVEN WPL 7407P10360 Contact Us For Availability
28
Support, Oven Rear WPL 74010884 Contact Us For Availability
31
Screw, Hinge (4) WPL 7101P11260 Contact Us For Availability
34
Extention, Shield WPL 74010820 Contact Us For Availability
35
Support, Element WPL 74003386 Contact Us For Availability
38
Pedestal, Front WPL 74010882 Contact Us For Availability
39
Support WPL 74007129 Contact Us For Availability
40
Runner, Drawer (2) WPL 74003565 Contact Us For Availability
42
Shaft, Roller (2) WPL 74005231 Contact Us For Availability
46
Screw w/ Washer WPL 7101P12460 Contact Us For Availability
47
Support, Oven Bottom WPL 74010812 Contact Us For Availability
49
Insulation, Back WPL W10165725 Contact Us For Availability
49
Cover, Front WPL 74010807 Contact Us For Availability
49
Insulation, Wrap WPL 74010987 Contact Us For Availability
49
Insulation, Oven Bottom WPL 74011207 Contact Us For Availability
49
Insulation WPL ARI128510A Contact Us For Availability
× ![]()
