Model Whirlpool RT18DKXDN10 – Common Parts & Diagrams

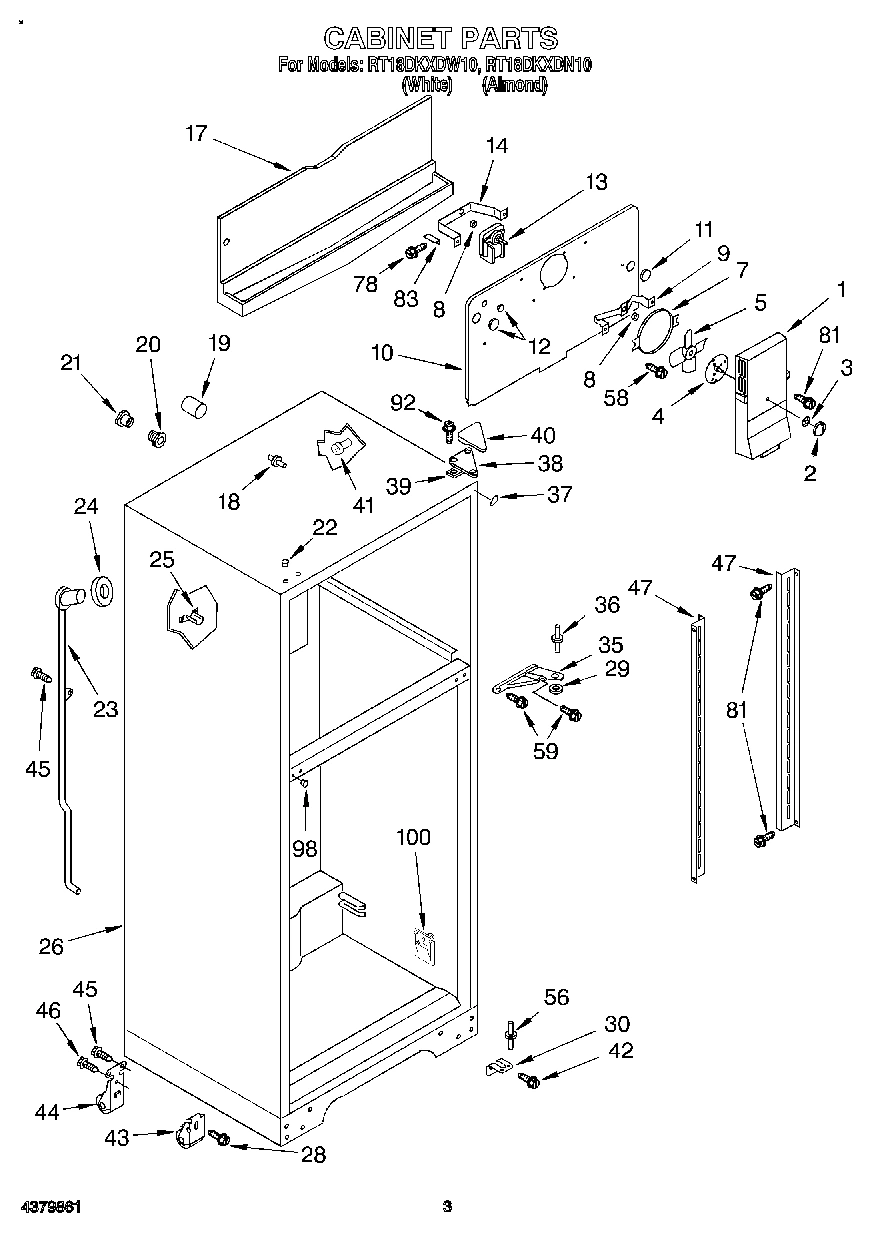

02 - CABINET

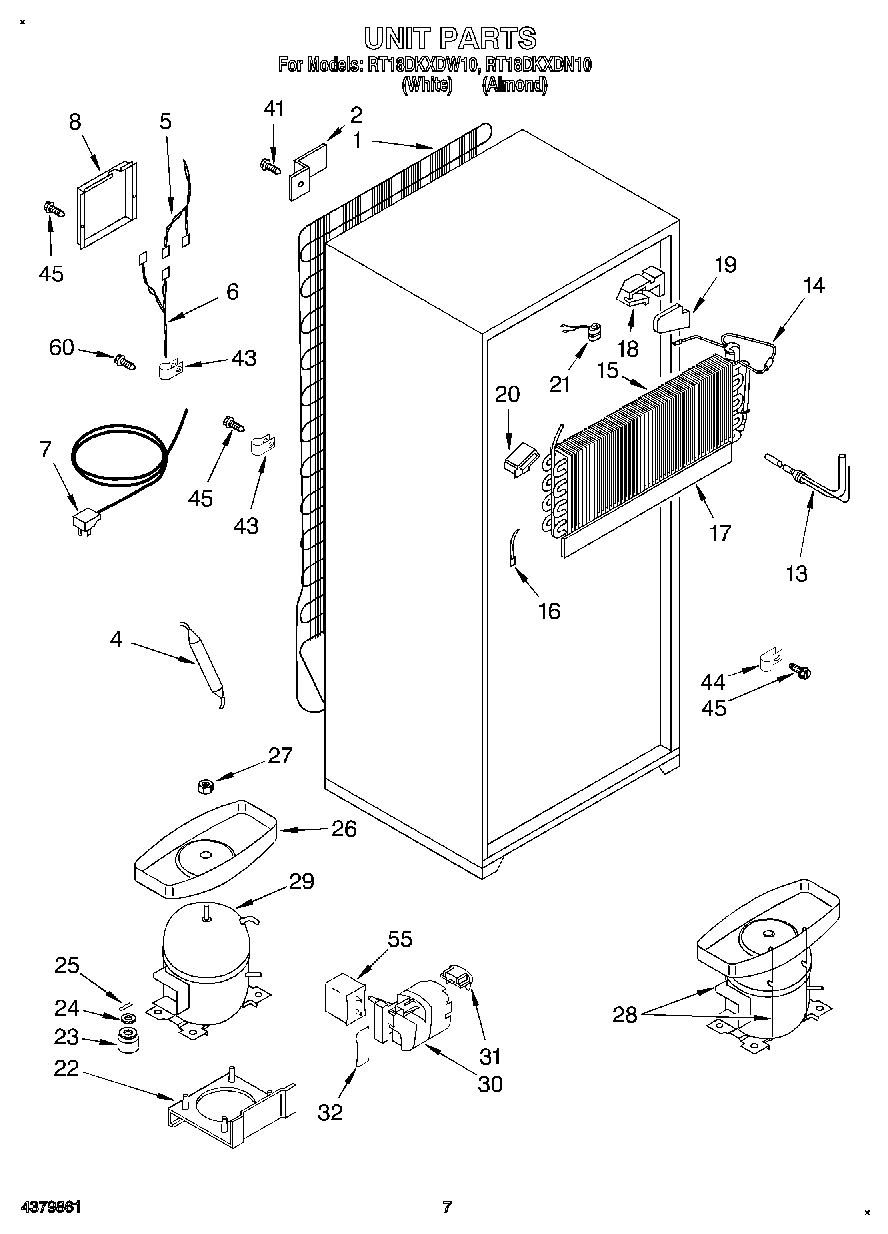

04 - UNIT, LIT/OPTIONAL
01 - DOOR
03 - SHELF
Common parts from model Whirlpool RT18DKXDN10
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL 2171718 WPL 2171718 Contact Us For Availability
WPL LIT4343344 WPL LIT4343344 Contact Us For Availability
WPL LIT4343430 WPL LIT4343430 Contact Us For Availability
WPL LIT4343431 WPL LIT4343431 Contact Us For Availability
1
Condenser WPL 4339728 Contact Us For Availability
1
Gasket, Freezer Door (Magnetic) WPL 4343266 Contact Us For Availability
1
Mullion (Almond) WPL 4343425 Contact Us For Availability
1
Mullion (White) WPL 4343426 Contact Us For Availability
2
Bracket, Condenser Mounting (4) WPL 4339729 Contact Us For Availability
2
Gasket, Refrig. Door (Magnetic) WPL 4343267 Contact Us For Availability
3
Panel, Inner Door Refrigerator WPL 4343268 Contact Us For Availability
4
Rack, Door (2) WPL 4343269 Contact Us For Availability
5
Harness-Wiring, Control/Divider WPL 4339515 Contact Us For Availability
5
Support, Door Rack (Right Hand) WPL 4343384 Contact Us For Availability
5
Heater, Mullion WPL 4343427 Contact Us For Availability
6
Harness-Wiring, Compressor WPL 4343368 Contact Us For Availability
6
Support, Door Rack (Left Hand) WPL 4343385 Contact Us For Availability
6
Tapping Plate, Mullion Mounting WPL 4343428 Contact Us For Availability
7
Cord, Electric Power WPL 4339528 Contact Us For Availability
7
Door, Dairy WPL 4343272 Contact Us For Availability
7
Top Panel, Refr., With Snap Bushing WPL 4343336 Contact Us For Availability
8
Cover, Wiring WPL 4343369 Contact Us For Availability
8
Rack, Door WPL 4343273 Contact Us For Availability
8
Divider, Styrofoam WPL 4339733 Contact Us For Availability
9
Panel, Inner Door (Freezer) WPL 4343274 Contact Us For Availability
9
Bottom Panel, Frz. WPL 4343338 Contact Us For Availability
10
Hole Plug, Bearing Hinge (White) WPL 4339439 Contact Us For Availability
10
Plug-Button, Hinge Brg. Hole (Almond) WPL 4339595 Contact Us For Availability
11
Panel, Freezer Door (With Insulation) (Almond WPL 4343275 Contact Us For Availability
11
Panel, Freezer Door (With Insulation) (White) WPL 4343276 Contact Us For Availability
11
Shelf, Freezer (Straight) WPL 4343339 Contact Us For Availability
12
Nameplate WPL 4343277 Contact Us For Availability
12
Deflector, Air (With Seal) WPL 4343340 Contact Us For Availability
13
Heat Exchanger, Suction Line WPL 4339932 Contact Us For Availability
13
Door Stop (Refr.) WPL 4343278 Contact Us For Availability
13
Cover, Air Deflector WPL 4343342 Contact Us For Availability
13A
Door Stop (Frzr.) (White) WPL 4343423 Contact Us For Availability
13A
Door Stop (Frzr.) (Almond) WPL 4343424 Contact Us For Availability
13A
Extension, Air Deflector (With Insulation) WPL 4343343 Contact Us For Availability
14
Heater, Defrost WPL 4339725 Contact Us For Availability
14
Plug-Button, Handle Mtg. (Almond) WPL 4343413 Contact Us For Availability
14
Plug-Button, Handle Mtg. (White) WPL 4343414 Contact Us For Availability
14A
Plug-Button, Ref. Door Front (Almond) WPL 4343280 Contact Us For Availability
14A
Plug-Button, Ref. Door Front (White) WPL 4343282 Contact Us For Availability
15
Evaporator WPL 4339726 Contact Us For Availability
15
Panel, Refr. Door (With Insulation) (Almond) WPL 4343279 Contact Us For Availability
15
Panel, Refr. Door (With Insulation) (White) WPL 4343281 Contact Us For Availability
16
Strap, Evaporator/ Heater (Aluminum) WPL 4339518 Contact Us For Availability
16
Socket, Light/Lamp WPL 4343346 Contact Us For Availability
17
Insulator, Evap. (Plastic) WPL 4343370 Contact Us For Availability
17
Box, Control WPL 4343347 Contact Us For Availability
18
Insulation Block, Right Hand WPL 4340064 Contact Us For Availability
18
Handle, Door (2) WPL 4343285 Contact Us For Availability
18
Knob, Temp. Control WPL 4343406 Contact Us For Availability
19
Insulation Plug, Right Hand WPL 4340066 Contact Us For Availability
19
Switch, Energy Saver WPL 4339968 Contact Us For Availability
20
Insulation Block, Left Hand WPL 4343371 Contact Us For Availability
20
Handle End WPL 4343288 Contact Us For Availability
20
Label, Control Box WPL 4343351 Contact Us For Availability
21
Ferrule, Outer WPL 4339458 Contact Us For Availability
21
Thermostat, Defrost WPL 4339520 Contact Us For Availability
21
Screw, Handle Mtg. 8-32 D x 1/2 WPL 4343290 Contact Us For Availability
21
Control, Temperature WPL 4342851 Contact Us For Availability
21A
Screw, Cr Oval Hd. 10-24 D x 5/8 WPL 4343432 Contact Us For Availability
21B
Screw, Cr Truss Head, 10-32 x 1/2 WPL 4343400 Contact Us For Availability
21C
Screw, CR Truss Head, 8-15 A x 3/4 WPL 4343412 Contact Us For Availability
22
Hole Plug, Top Hinge (Almond) WPL 4339607 Contact Us For Availability
22
Plug Button, Upper Hinge Holes (White) WPL 4343304 Contact Us For Availability
22
Plate, Compressor Mounting WPL 4343372 Contact Us For Availability
22
Bearing, Hinge WPL 4343391 Contact Us For Availability
22
Sleeve, Plastic Tube WPL 4343353 Contact Us For Availability
23
Drain Tube, With Seal Ring WPL 4343305 Contact Us For Availability
23
Grommet, Compressor Mounting WPL 4343398 Contact Us For Availability
23
Timer WPL 4343354 Contact Us For Availability
24
Seal Ring, Drain Tube WPL 4343306 Contact Us For Availability
24
Washer, Compressor Mounting WPL 4339534 Contact Us For Availability
24
Wire Shelf, Full Cantilever (2) WPL 4343355 Contact Us For Availability
25
Spout, Drain Tube WPL 4343416 Contact Us For Availability
25
Clip, Compressor Mounting WPL 4339535 Contact Us For Availability
25
Cover, Crisper Pan WPL 4343356 Contact Us For Availability
25A
Trim, Crisper Cover WPL 4343436 Contact Us For Availability
26
Base, Cabinet WPL 4343308 Contact Us For Availability
26
Pan-Defrost Drain, Orig/Svce Compr WPL 4343443 Contact Us For Availability
26
Pan, Crisper (Right Hand) WPL 4343437 Contact Us For Availability
26
Pan, Crisper (Left Hand) WPL 4343439 Contact Us For Availability
26A
Trim, Crisper Pan (Right Hand) WPL 4343438 Contact Us For Availability
26A
Trim, Crisper Pan (Left Hand) WPL 4343440 Contact Us For Availability
27
Nut-Lock, 1/4-20 Drain Pan Mounting WPL 4339540 Contact Us For Availability
27
Support, Crisper Cover (Adjustable) WPL 4343360 Contact Us For Availability
28
Bolt, Roller Adj., 1/4-28 x 2-3/4 (2) WPL 4343309 Contact Us For Availability
28
Pan Retainer Kit, Service WPL 4343375 Contact Us For Availability
28
Cap, Protector WPL 4343256 Contact Us For Availability
29
Nylon Washer, .34 x .62 x .05 WPL 4343310 Contact Us For Availability
30
Bracket, Lower Hng. WPL 4343418 Contact Us For Availability
30
Starter-PTC WPL 4343377 Contact Us For Availability
30
Cover, Meat Pan WPL 4343362 Contact Us For Availability
30A
Trim, Meat Pan WPL 4343441 Contact Us For Availability
31
Pan, Meat WPL 4343442 Contact Us For Availability
32
Wire-Bale WPL 4343379 Contact Us For Availability
35
Bracket, Center Hinge (Almond) WPL 4343419 Contact Us For Availability
35
Bracket, Center Hinge (Light Grey) WPL 4343420 Contact Us For Availability
36
Pin, Center Hinge WPL 4343421 Contact Us For Availability
37
Trim, Cabinet Corner (Almond) WPL 4343317 Contact Us For Availability
37
Trim, Cabinet Corner (White) WPL 4343318 Contact Us For Availability
38
Bracket, Upper Hinge WPL 4339442 Contact Us For Availability
39
Shim, Upper Hinge WPL 4343320 Contact Us For Availability
40
Cover, Upper Hinge (Almond) WPL 4339603 Contact Us For Availability
40
Cover, Upper Hinge (White) WPL 4343321 Contact Us For Availability
41
Grommet, Shelf/Rod Mounting (Right Hand) WPL 4339840 Contact Us For Availability
41
Grommet, Shelf/Rod Mounting (Left Hand) WPL 4343322 Contact Us For Availability
42
Screw, Hng/Gusset (1/4-20 x 5/8) WPL 4339455 Contact Us For Availability
43
Roller Assembly, Front (2) WPL 4343323 Contact Us For Availability
43
Clamp, Wiring Harness WPL 4343380 Contact Us For Availability
44
Roller Assembly, Rear (2) WPL 4343324 Contact Us For Availability
44
Clamp, Nylon WPL 4339657 Contact Us For Availability
46
WPL 4339768 WPL 4339768 Contact Us For Availability
47
WPL 4343435 WPL 4343435 Contact Us For Availability
47
Insert, Pan Cover (Glass) WPL 4343364 Contact Us For Availability
55
Capacitor, Run WPL 4343381 Contact Us For Availability
56
WPL 4343422 WPL 4343422 Contact Us For Availability
58
WPL 4343394 WPL 4343394 Contact Us For Availability
58
Screw, 8-15 A x 1/2 WPL 4343291 Contact Us For Availability
58
Shim, Handle WPL 4343287 Contact Us For Availability
58
Shim, Handle WPL 4343289 Contact Us For Availability
59
Screw, 10-32 x 5/8 WPL 4343326 Contact Us For Availability
60
WPL 876029 WPL 876029 Contact Us For Availability
60
WPL 479502 WPL 479502 Contact Us For Availability
60
WPL 799344 WPL 799344 Contact Us For Availability
60
Screw, 8 WPL 4343327 Contact Us For Availability
60
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
60
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
60
WPL 4343365 WPL 4343365 Contact Us For Availability
60
WPL 4343366 WPL 4343366 Contact Us For Availability
60
WPL 4343374 WPL 4343374 Contact Us For Availability
60
WPL 4343382 WPL 4343382 Contact Us For Availability
60
WPL 542639 WPL 542639 Contact Us For Availability
60
WPL 799833 WPL 799833 Contact Us For Availability
60
WPL 978883 WPL 978883 Contact Us For Availability
81
Screw, 8-15 A x 5/8 WPL 4343328 Contact Us For Availability
81
Screw, CR Truss Head, 8-10 x 1-3/4 WPL 4339461 Contact Us For Availability
81
Screw, Control Mtg., CR Pan Head 6-32 x 1/4 WPL 4339471 Contact Us For Availability
81
Screw, Timer Mtg., Cr Pan Head 6-20 x 7/16 WPL 4339498 Contact Us For Availability
81
Bushing, Snap-In (Plastic) WPL 4343337 Contact Us For Availability
81
Seal, Air Deflector WPL 4343341 Contact Us For Availability
81
Plug-Button, Control Box WPL 4343348 Contact Us For Availability
81
Nut-Anchor WPL 4343349 Contact Us For Availability
81
Harness-Wir WPL 4343429 Contact Us For Availability
83
WPL 4339926 WPL 4339926 Contact Us For Availability
92
WPL 4339444 WPL 4339444 Contact Us For Availability
98
WPL 4343329 WPL 4343329 Contact Us For Availability
98
WPL 4343330 WPL 4343330 Contact Us For Availability
100
WPL 4339512 WPL 4339512 Contact Us For Availability
100
WPL 4343296 WPL 4343296 Contact Us For Availability
100
WPL 4343312 WPL 4343312 Contact Us For Availability
100
WPL 4343313 WPL 4343313 Contact Us For Availability
100
WPL 4343319 WPL 4343319 Contact Us For Availability
100
WPL 4343331 WPL 4343331 Contact Us For Availability
100
WPL 4343417 WPL 4343417 Contact Us For Availability
× ![]()
