Model Whirlpool RT18DKXBW01 – Common Parts & Diagrams
03 - COMPARTMENT SEPARATOR
07 - REFRIGERATOR DOOR, LIT/OPTIONAL

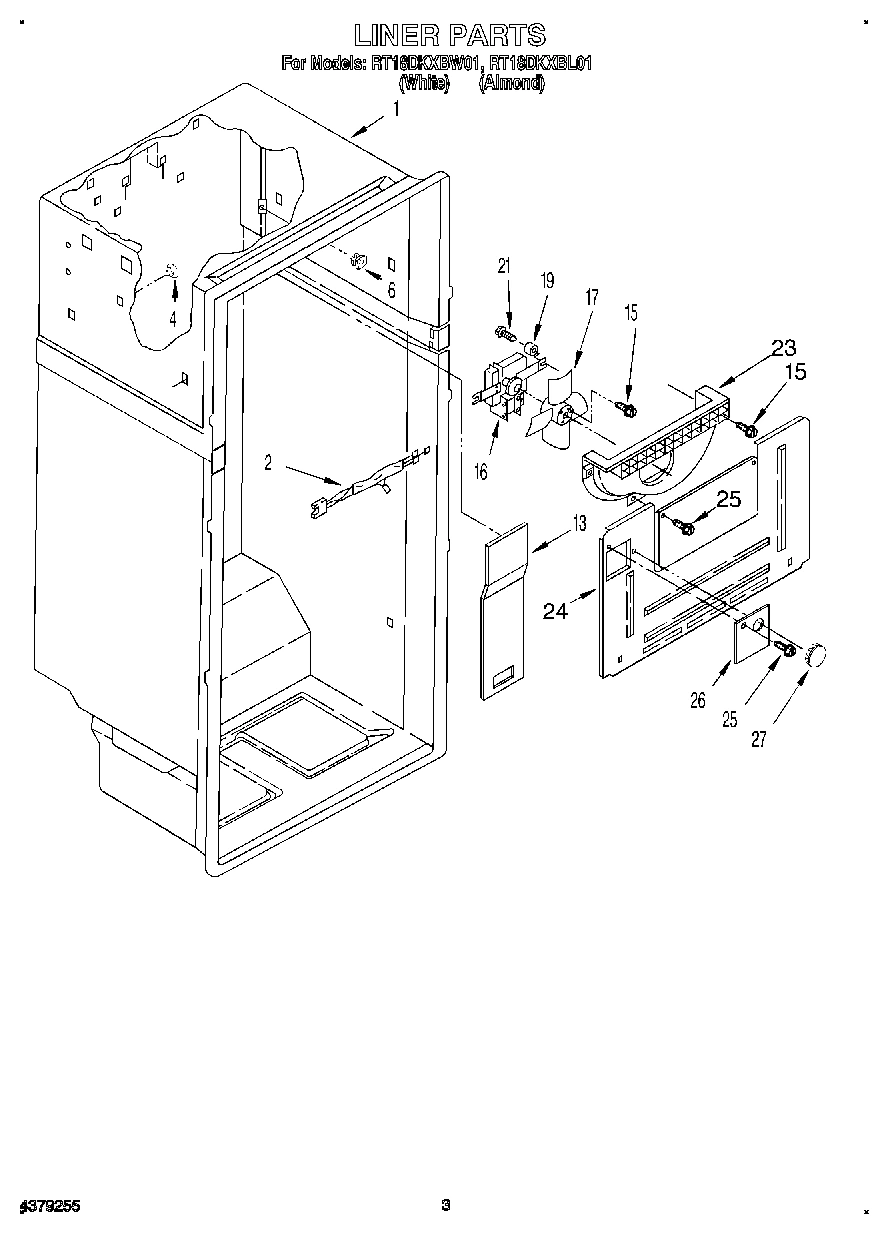

02 - LINER
01 - CABINET
05 - FREEZER DOOR

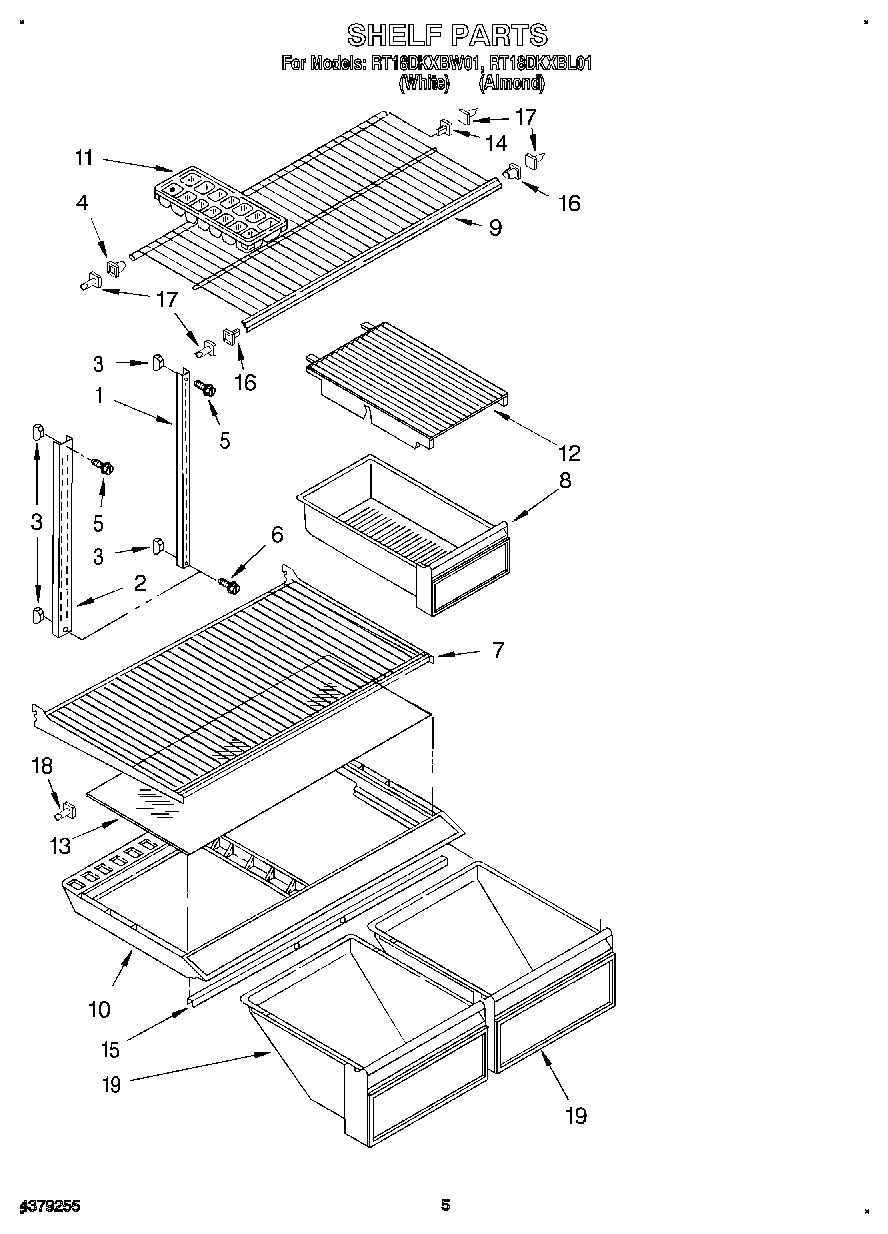

04 - SHELF

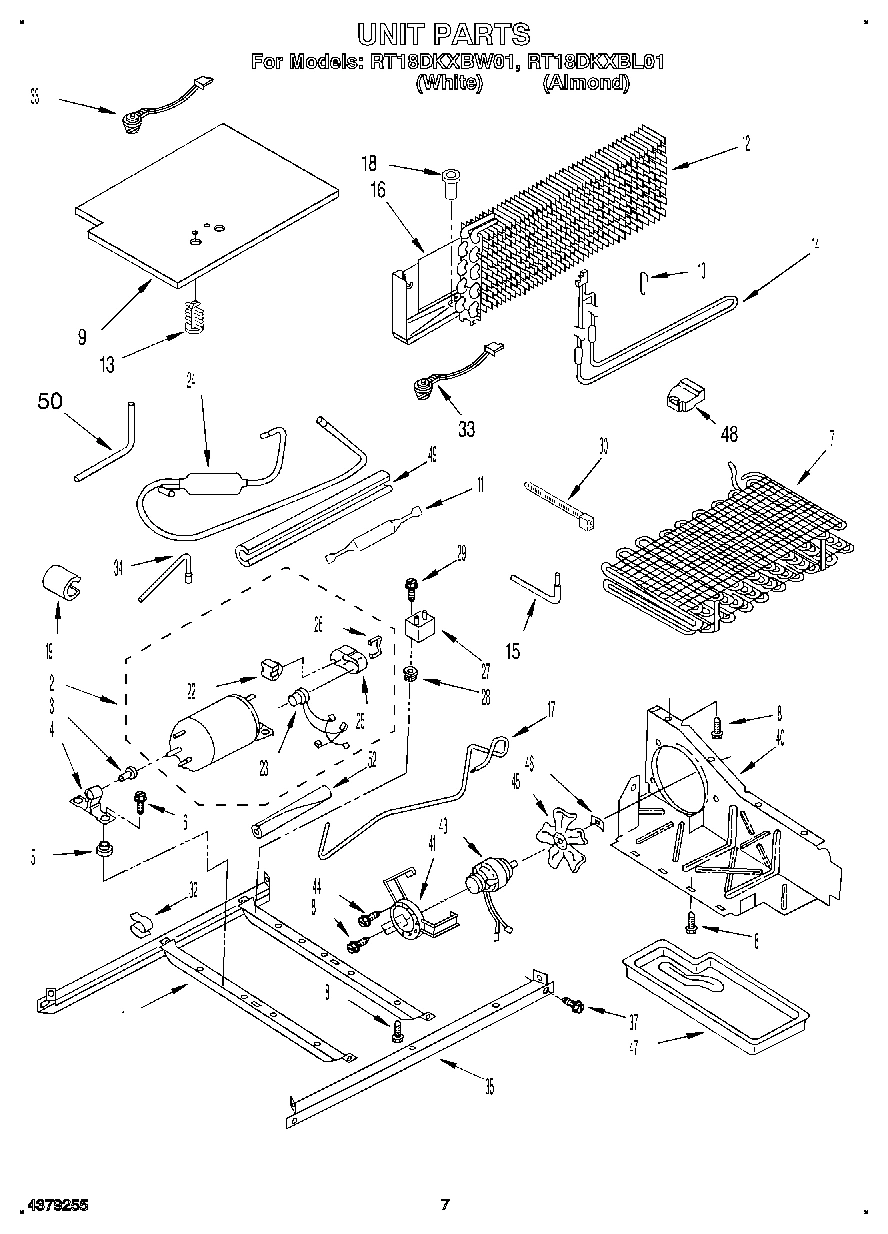

06 - UNIT
Common parts from model Whirlpool RT18DKXBW01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI126883A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI126882A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2174749 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder WPL 1114465 Contact Us For Availability
2
Compressor KIt Includes Items 22 (23, 25, 26 WPL 2154564 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
5
Grommet, Compressor WPL 1105200 Contact Us For Availability
6
Plate, Screw WPL 983604 Contact Us For Availability
6
Screw WPL 489334 Contact Us For Availability
7
Deck Rail Cover WPL 2172703 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Full Cantilever (2) WPL 2163243 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
8
Door Gasket Magnetic WPL 1116735 Contact Us For Availability
8
Pan, Meat WPL 2163661 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
9
Shelf-F.C. WPL 2163241 Contact Us For Availability
9
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
10
Heater, Mullion WPL 2154064 Contact Us For Availability
10
Cover, Crisper WPL 2163655 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
11
Clip, Mullion (3) WPL 1129018 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center WPL 2163255 Contact Us For Availability
12
Cover, Meat Pan WPL 1126678 Contact Us For Availability
12
Evaporator WPL 2174757 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 1116558 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
13
Shelf, Glass WPL 2163596 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Heater, Defrost WPL 2162020 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1116610 Contact Us For Availability
15
Tube, Process WPL 2154040 Contact Us For Availability
16
Shelf Stud WPL 946356 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
17
Support, Stud WPL 946355 Contact Us For Availability
17
Tube, Discharge WPL 2154028 Contact Us For Availability
18
Nameplate WPL 2163676 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
EndCap, Trim WPL 1106862 Contact Us For Availability
19
Interior Door Panel WPL 2160165 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Pan, Crisper WPL 2163652 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Trim, Compartment Door WPL 2157988 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Gasket Retainer, Side WPL 1115138 Contact Us For Availability
22
Relay (See Overload) WPL ARI126884A Contact Us For Availability
23
Compartment, Butter Door WPL 2163223 Contact Us For Availability
23
Gasket Retainer, Top & Bottom WPL 1115137 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Muffler WPL 2154033 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1115136 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
30
Trim, Door WPL 2163635 Contact Us For Availability
31
Spacer WPL 2172745 Contact Us For Availability
32
Clip, Wire WPL 548745 Contact Us For Availability
33
TAPE, VINYL (3/4 X WPL 479502 Contact Us For Availability
33
Hinge Pin, Center WPL 2160051 Contact Us For Availability
33
Door Reversal Instructions WPL 2172761 Contact Us For Availability
33
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
33
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
33
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
33
WPL 542639 WPL 542639 Contact Us For Availability
33
WPL 799833 WPL 799833 Contact Us For Availability
33
WPL 978883 WPL 978883 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
34
Tube, Process WPL 2154090 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
36
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
40
Air, Baffle WPL 2169432 Contact Us For Availability
41
Hole Plug WPL 1129062 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 2169191 Contact Us For Availability
46
Fitting, Drain WPL 2172888 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Cover, Unit WPL 2160514 Contact Us For Availability
48
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
48
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
50
Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability
52
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
52
Sleeve WPL 2159751 Contact Us For Availability
52
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
