Model Whirlpool RT18BMXVW01 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1115572 WPL LIT1115572 Contact Us For Availability

WPL LIT1124321 WPL LIT1124321 Contact Us For Availability

WPL LIT1124353 WPL LIT1124353 Contact Us For Availability

WPL LIT4315853 WPL LIT4315853 Contact Us For Availability

WPL LIT628107 WPL LIT628107 Contact Us For Availability

1

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

1

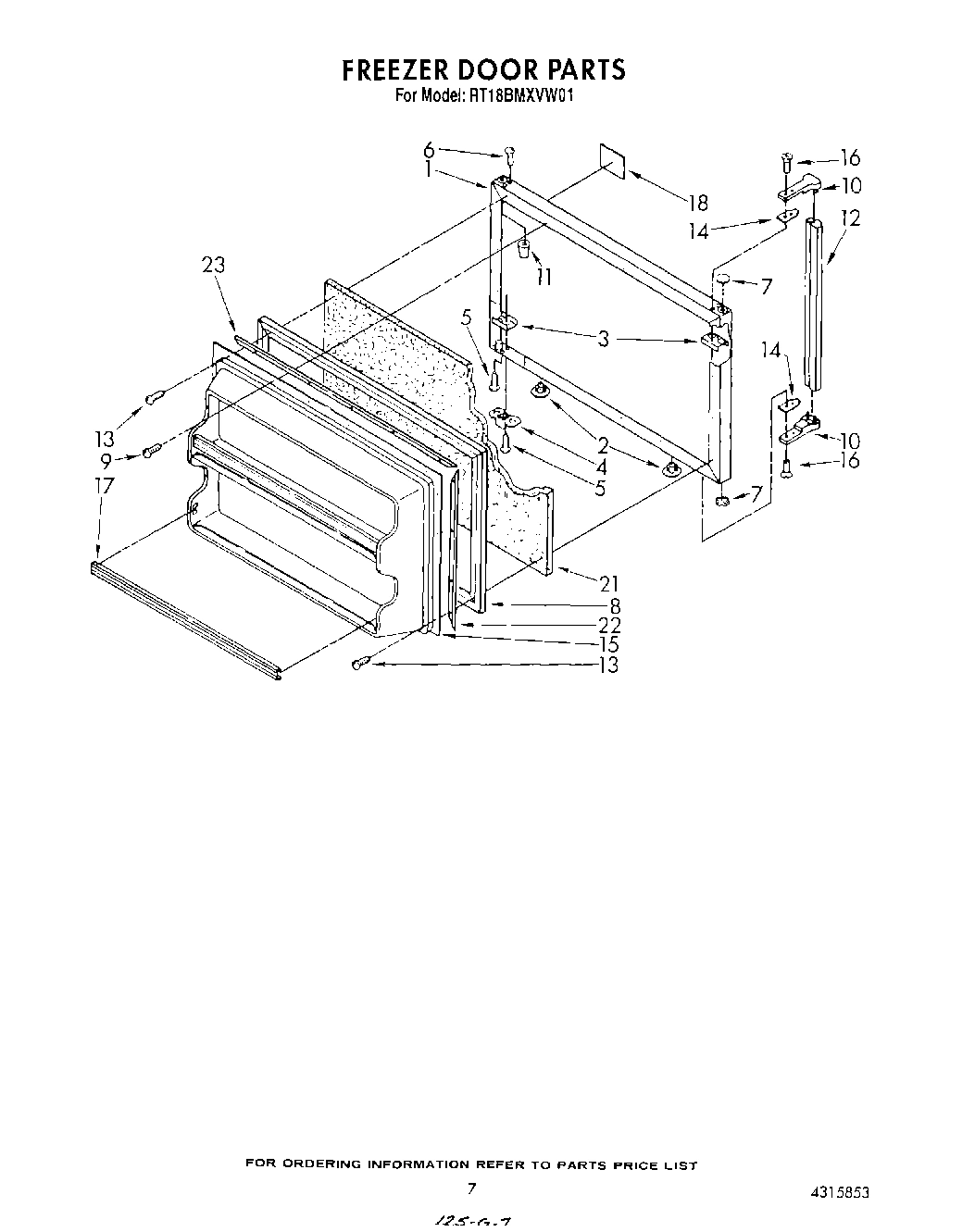

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1104642 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability

1

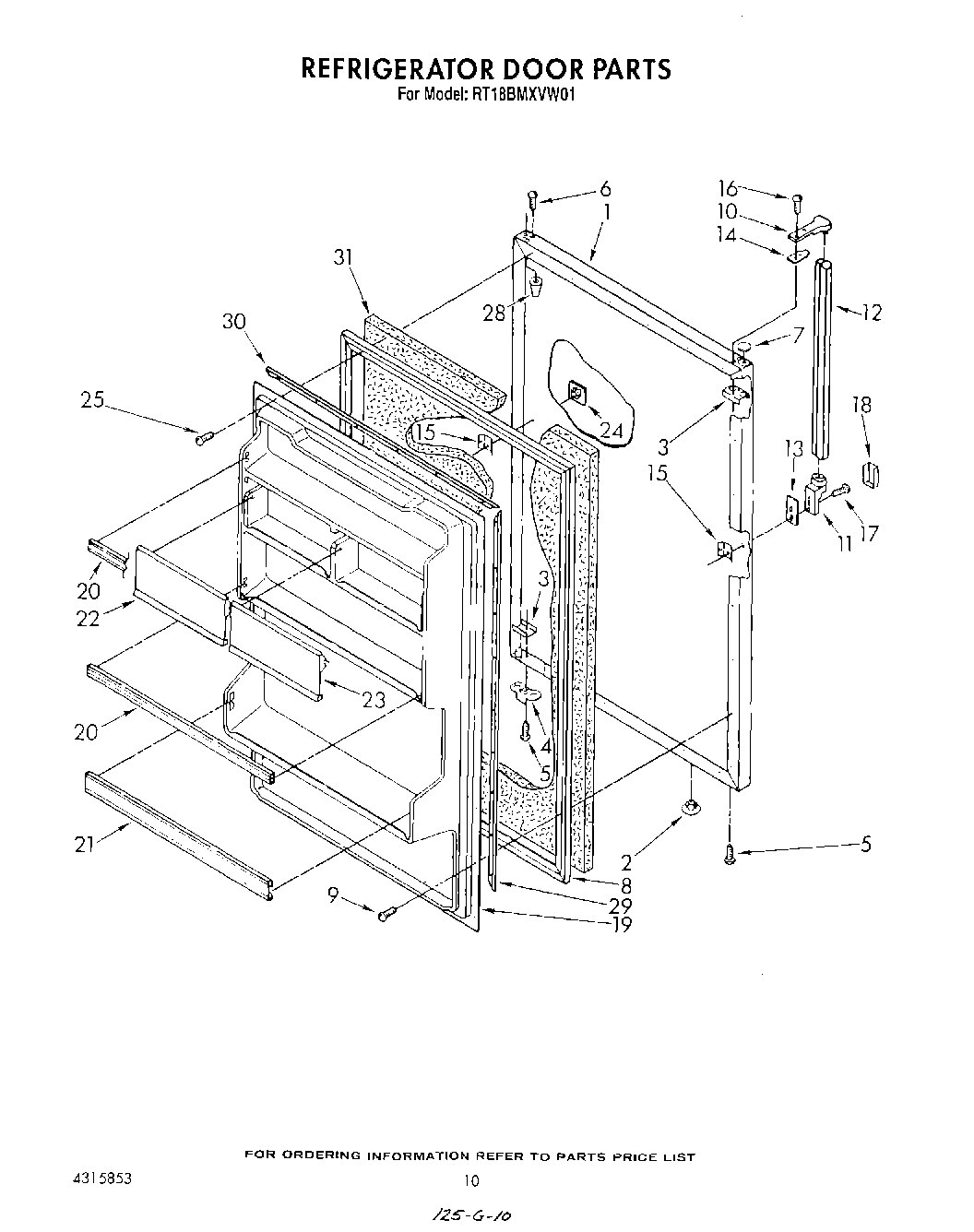

Panel, Refrigerator Door (White) WPL 1104632 Contact Us For Availability

1

Panel, Refrigerator Door (Golden Harvest) WPL 1104634 Contact Us For Availability

1

Panel, Refrigerator Door (Almond) (Also Order WPL 1104636 Contact Us For Availability

1

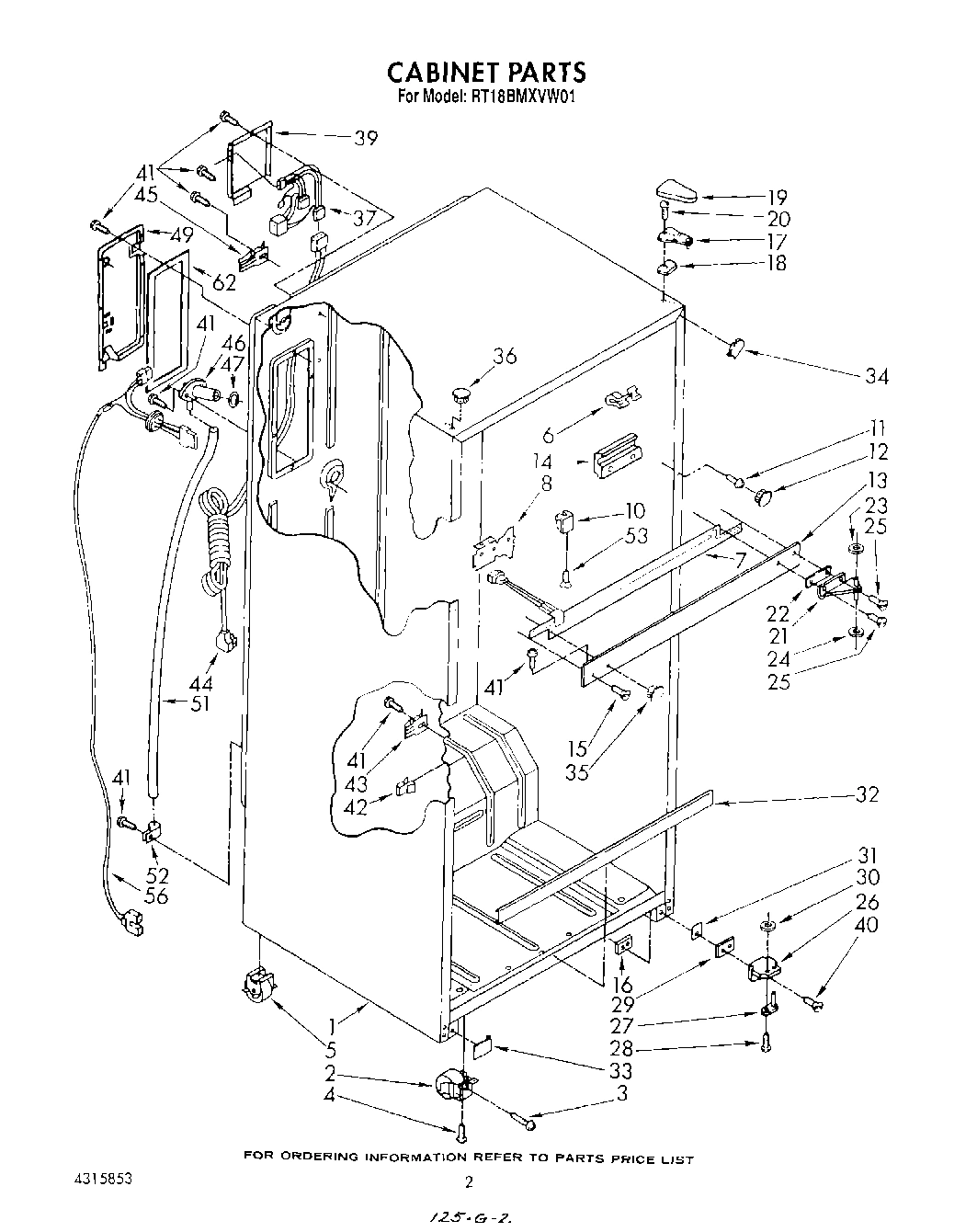

Cabinet (Not A Serviceable Part) WPL ARI126841A Contact Us For Availability

1

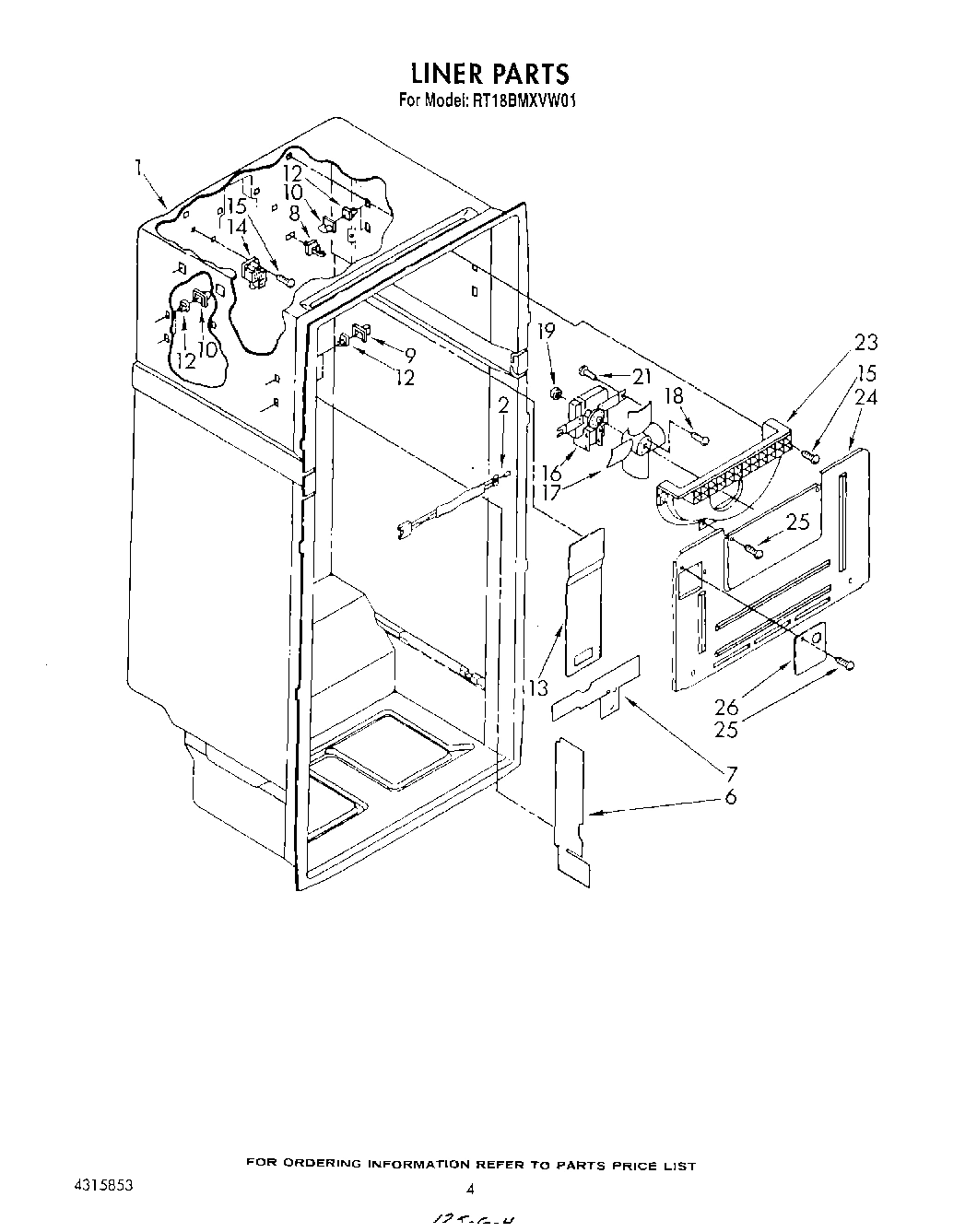

Liner (Not A Serviceable Part) WPL ARI126842A Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability

2

Bumper (2) WPL 1103640 Contact Us For Availability

2

Roller, Front WPL 942774 Contact Us For Availability

2

Wiring, Fan Motor WPL 943796 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Condenser & Precooler Assembly WPL 1108183 Contact Us For Availability

3

Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Clip, Tube (2) WPL 1118652 Contact Us For Availability

4

Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability

5

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Roller, Rear WPL 937216 Contact Us For Availability

6

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

6

Screw (Repair) WPL 489221 Contact Us For Availability

6

Spacer WPL 1105130 Contact Us For Availability

6

Breaker, Trim Clip (3) WPL 534365 Contact Us For Availability

6

Side, Electric Shield WPL 942751 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Heat Shield Evaporator WPL 1108359 Contact Us For Availability

7

Heater, Mullion WPL 1108139 Contact Us For Availability

7

Top, Electric Shield WPL 946351 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

Door Gasket, Magnetic WPL 1122830 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1122827 Contact Us For Availability

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

8

Stud, Evaporator (2) WPL 942750 Contact Us For Availability

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Dampener WPL 945593 Contact Us For Availability

9

Stud (2) WPL 946356 Contact Us For Availability

4318047 Whirlpool Water Valve In Stock WPL 4318047 $29.77

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

Handle End WPL 944157 Contact Us For Availability

Spacer (2) WPL 940024 Contact Us For Availability

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

11

Handle End, Side WPL 935105 Contact Us For Availability

11

Screw (2) WPL 489277 Contact Us For Availability

Handle, Center WPL 1109183 Contact Us For Availability

Handle, Center WPL 1109181 Contact Us For Availability

Case, Relay WPL 1108115 Contact Us For Availability

Connector Wire WPL 227991 Contact Us For Availability

Hole Plug (2) (White) WPL 1122929 Contact Us For Availability

Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability

Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Shim, Handle End (Side) WPL 935076 Contact Us For Availability

Overload WPL 1105163 Contact Us For Availability

Tube, Water Inlet WPL 939027 Contact Us For Availability

Center Rail (White) WPL 1120501 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1120502 Contact Us For Availability

Center Rail (Almond) WPL 1120503 Contact Us For Availability

Cover, Air Duct WPL 1118775 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Spacer, Handle Door (2) WPL 943188 Contact Us For Availability

Center, Rail Shim (2) WPL 939034 Contact Us For Availability

Terminal Block, Multiple WPL 942842 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Interior Door Panel WPL 1120635 Contact Us For Availability

Relay WPL 946615 Contact Us For Availability

Tube, Inlet Valve WPL 627883 Contact Us For Availability

Screw WPL 489184 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

Post, Cripser Cover WPL 836410 Contact Us For Availability

Screw (Repair) WPL 489250 Contact Us For Availability

Clamp Tube WPL 510716 Contact Us For Availability

Tap Plate (2) WPL 944813 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Trim, Door Shelf (2) WPL 1120784 Contact Us For Availability

Nut, Valve WPL 537588 Contact Us For Availability

Hinge, Top WPL 1123514 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Nameplate WPL 1124315 Contact Us For Availability

Screw, Cover WPL 987873 Contact Us For Availability

Shim, Hinge Top WPL 1123517 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Interior Door Panel WPL 1120634 Contact Us For Availability

Tube, Clamp WPL 489151 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

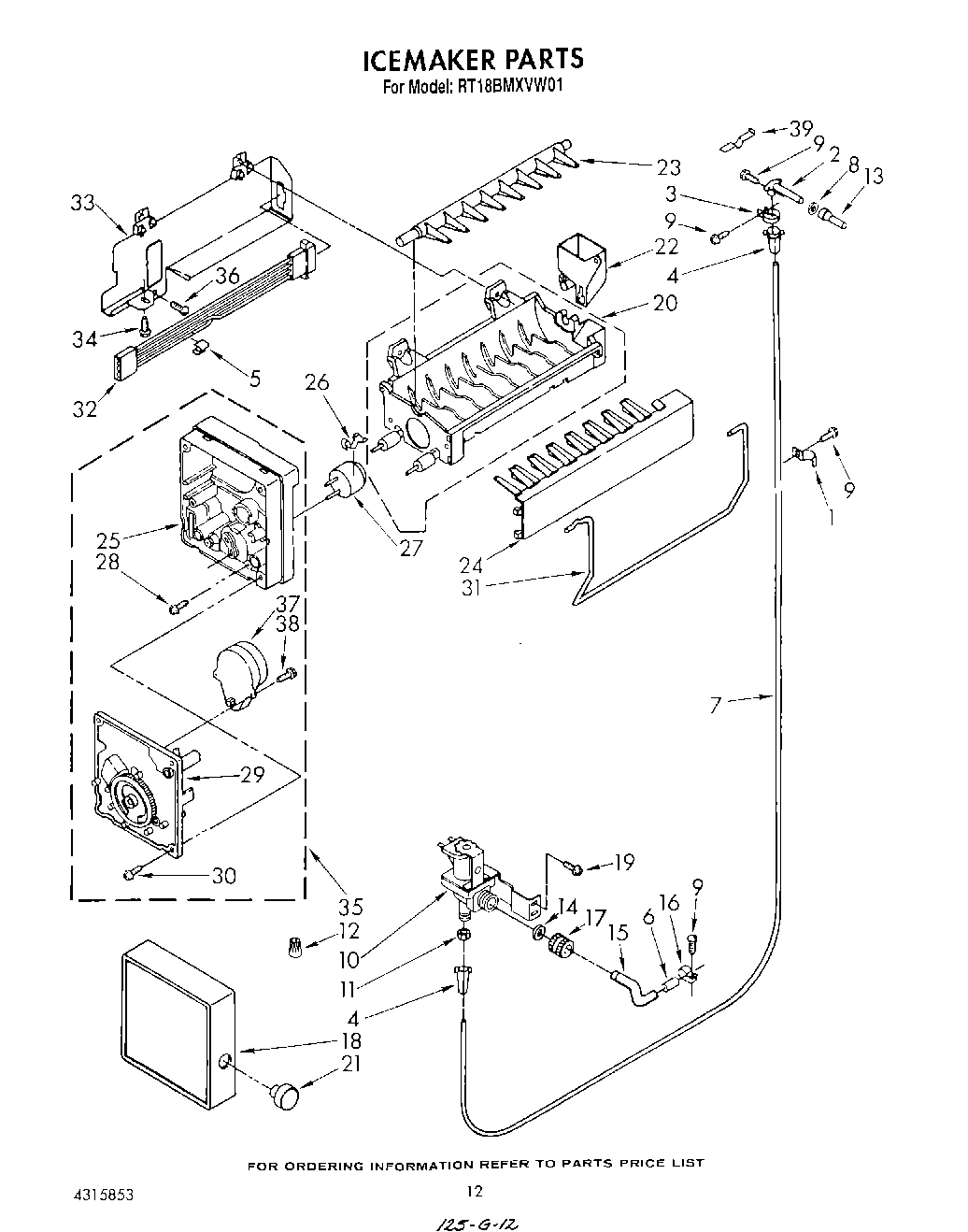

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Trim, Door (2) WPL 1120775 Contact Us For Availability

Condenser, Stand-Off WPL 1100636 Contact Us For Availability

Kit, Foam Slab WPL 876029 Contact Us For Availability

Hinge, Center WPL 944788 Contact Us For Availability

Trim, Door WPL 1120776 Contact Us For Availability

Knob WPL 627992 Contact Us For Availability

Screw (2) WPL 489168 Contact Us For Availability

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Ice Cube Pan WPL 653503 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability

Compartment Door, Utility WPL 1124410 Contact Us For Availability

Evaporator WPL 943762 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Shim, Center (Repair) WPL 836195 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Retainer, Glass Shelf WPL 1111810 Contact Us For Availability

Compartment, Butter Door WPL 1124409 Contact Us For Availability

Scroll, Fan WPL 1122814 Contact Us For Availability

285002 Whirlpool Nut Backorder WPL 285002 $7.58

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Trim, Ice Pan WPL 539567 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability

Evaporator Cover WPL 943741 Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

25

Screw WPL 489179 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Restrictor Sleeve WPL 510446 Contact Us For Availability

Hinge Butt, Bottom WPL 1123882 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability

Screw, 10-32 x 49/64 WPL 489258 Contact Us For Availability

Screw WPL 489218 Contact Us For Availability

29

Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability

29

Clamp, Drier WPL 547637 Contact Us For Availability

29

Shim, Bottom WPL 942812 Contact Us For Availability

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability

Unit Mounting Plate WPL 1118781 Contact Us For Availability

Washer, 7/64 WPL 489201 Contact Us For Availability

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

Exchanger, Heat WPL 1127560 Contact Us For Availability

Cover, Glider Rail (White) WPL 942818 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

Clip, Stand Off WPL 1100707 Contact Us For Availability

Cover, Deck Rail (White) WPL 1119399 Contact Us For Availability

Cover, Deck Rail (Golden Harvest) WPL 1119400 Contact Us For Availability

Cover, Deck Rail (Almond) WPL 1119401 Contact Us For Availability

Heater, Defrost WPL 1105165 Contact Us For Availability

Shield, Heat WPL 627751 Contact Us For Availability

Cover, Glider Rail (White) WPL 943552 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 944833 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

Filler, Wrap Corner WPL 1118060 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $41.78

Cup, Drain WPL 939191 Contact Us For Availability

WPL 1119707 WPL 1119707 Contact Us For Availability

WPL 1119708 WPL 1119708 Contact Us For Availability

WPL 1119709 WPL 1119709 Contact Us For Availability

Clamp WPL 942873 Contact Us For Availability

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

WPL 842031 WPL 842031 Contact Us For Availability

WPL 989195 WPL 989195 Contact Us For Availability

WPL 989876 WPL 989876 Contact Us For Availability

37

WPL 942844 WPL 942844 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Clip WPL 652604 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 942845 WPL 942845 Contact Us For Availability

40

WPL 488949 WPL 488949 Contact Us For Availability

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

44

Overload WPL 483037 Contact Us For Availability

44

WPL 937360 WPL 937360 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

45

WPL 937357 WPL 937357 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

46

WPL 942813 WPL 942813 Contact Us For Availability

47

Capacitor WPL 482996 Contact Us For Availability

47

WPL 1106507 WPL 1106507 Contact Us For Availability

48

Unit Mounting Rail WPL 1118783 Contact Us For Availability

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

49

WPL 1106511 WPL 1106511 Contact Us For Availability

50

Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

51

Evaporator Tray WPL 1101002 Contact Us For Availability

52

WPL 519405 WPL 519405 Contact Us For Availability

53

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

55

Support, Heater WPL 1108172 Contact Us For Availability

56

WP2187501 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187501 $53.02

56

Nut WPL 489142 Contact Us For Availability

57

Washer WPL 489143 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

62

WPL 1106510 WPL 1106510 Contact Us For Availability
